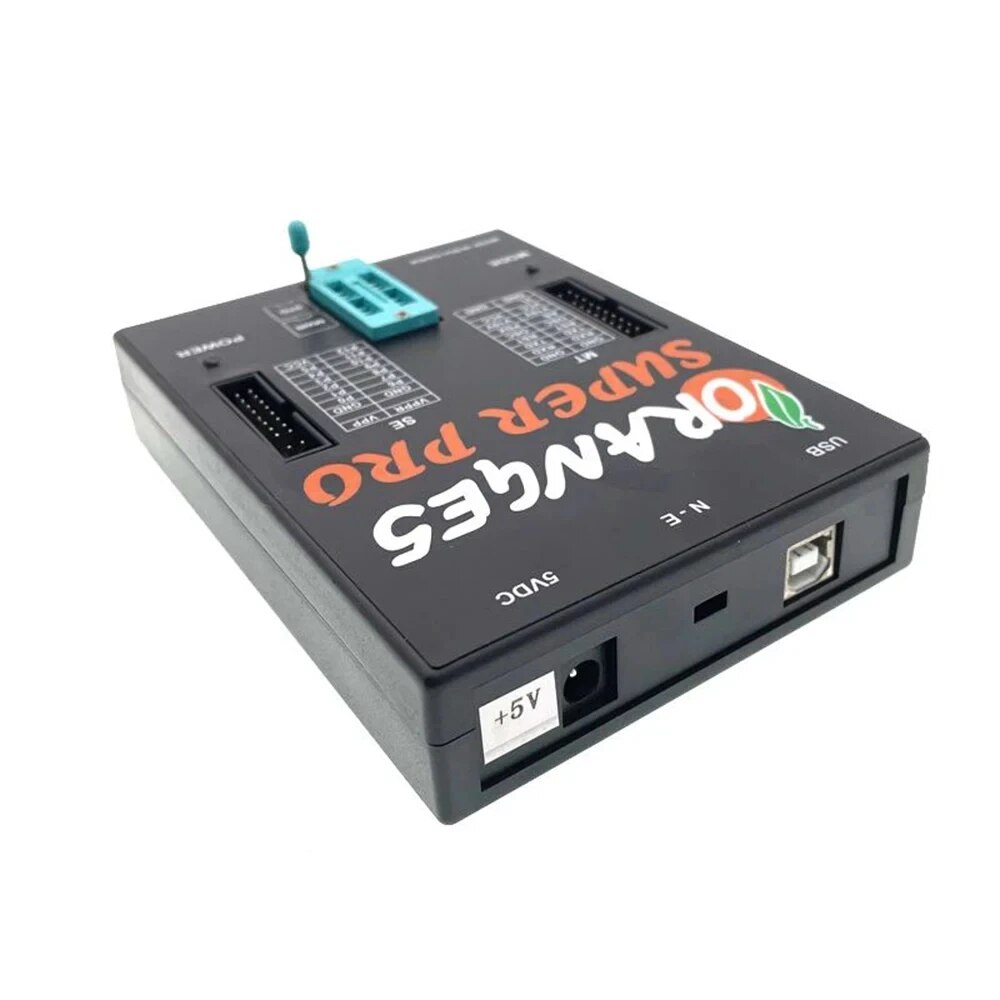

Orange5 V1.42 Professional Programming Device With Full Packet Hardware and Enhanced Function Software New Upgraded
Orange5 Programmer V1.42 Full Activation New Upgraded Orange 5 V1.42 Super Pro Professional ECU Programming Device Repair Tools
Orange5 V1.42 programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.
NOTE: Orange5 cannot work on Win10 and Win11, requires Win7 !!!

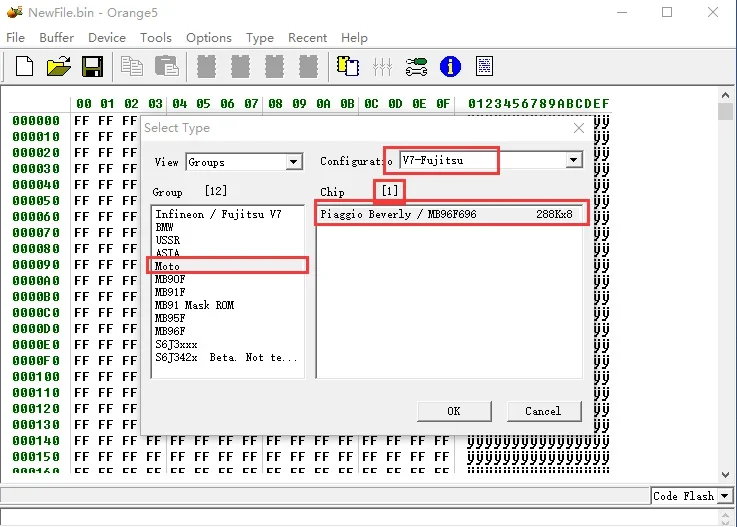

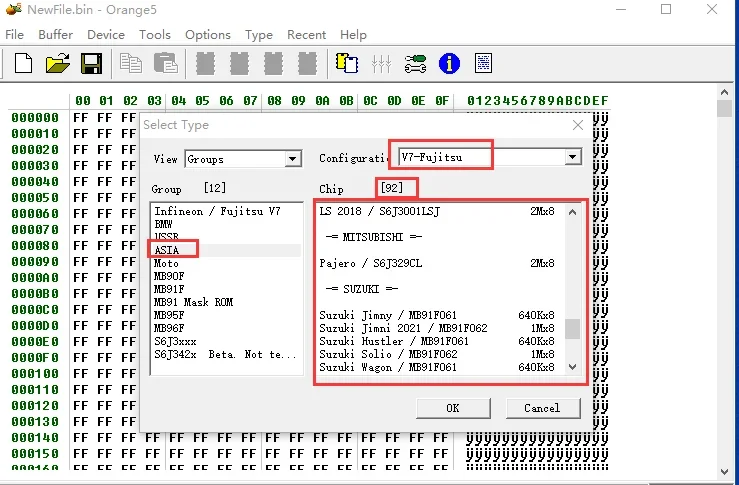

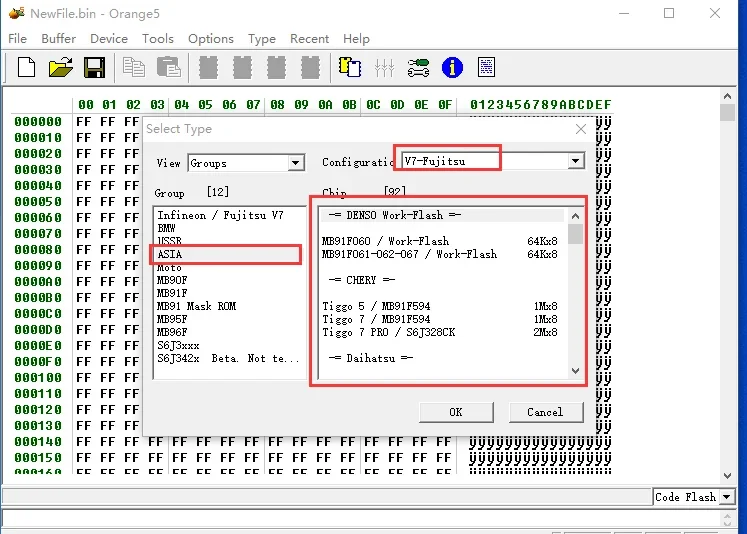

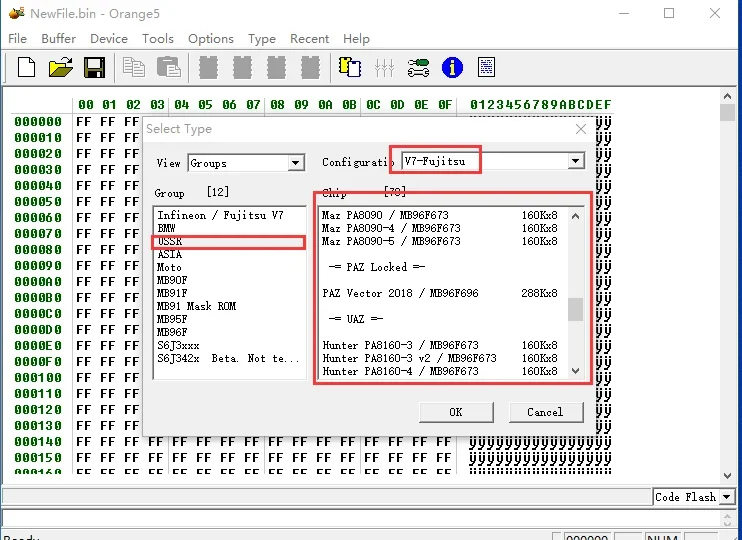

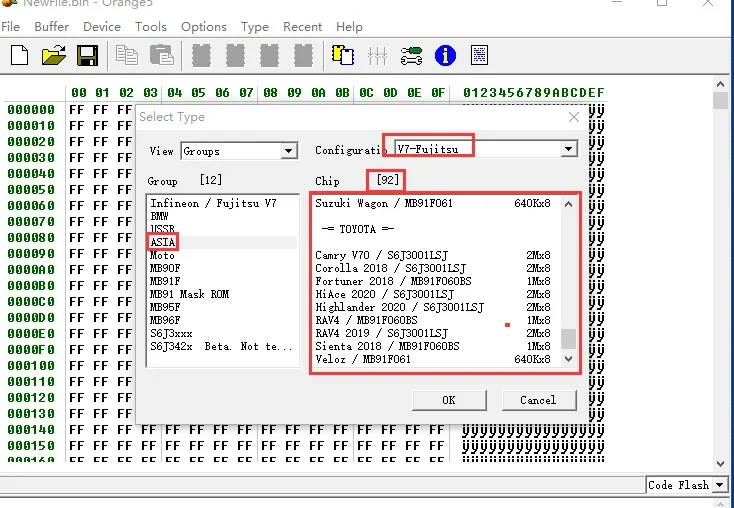

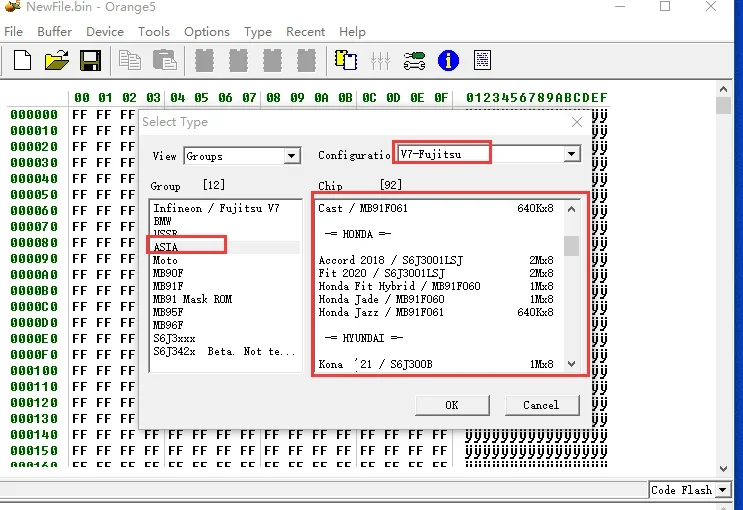

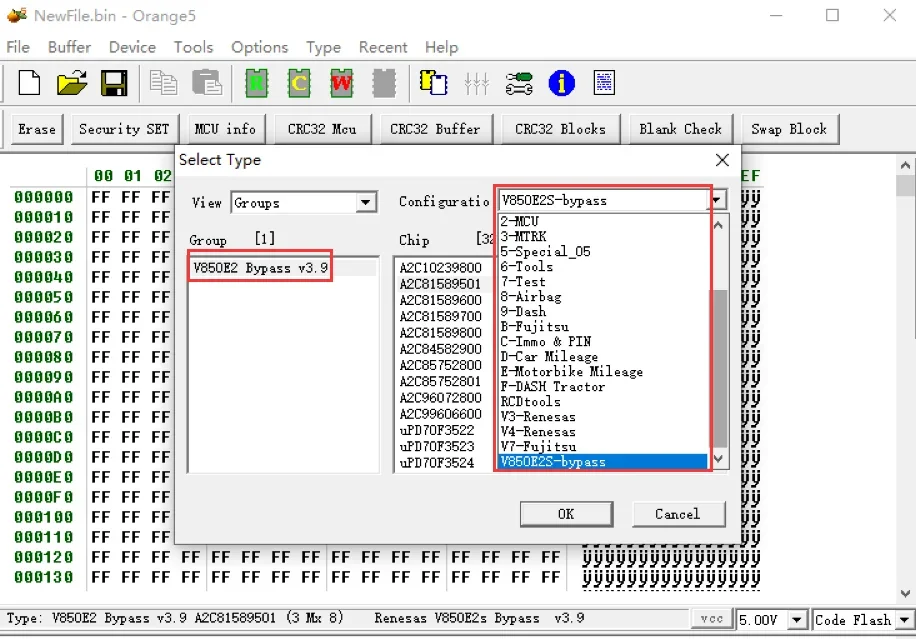

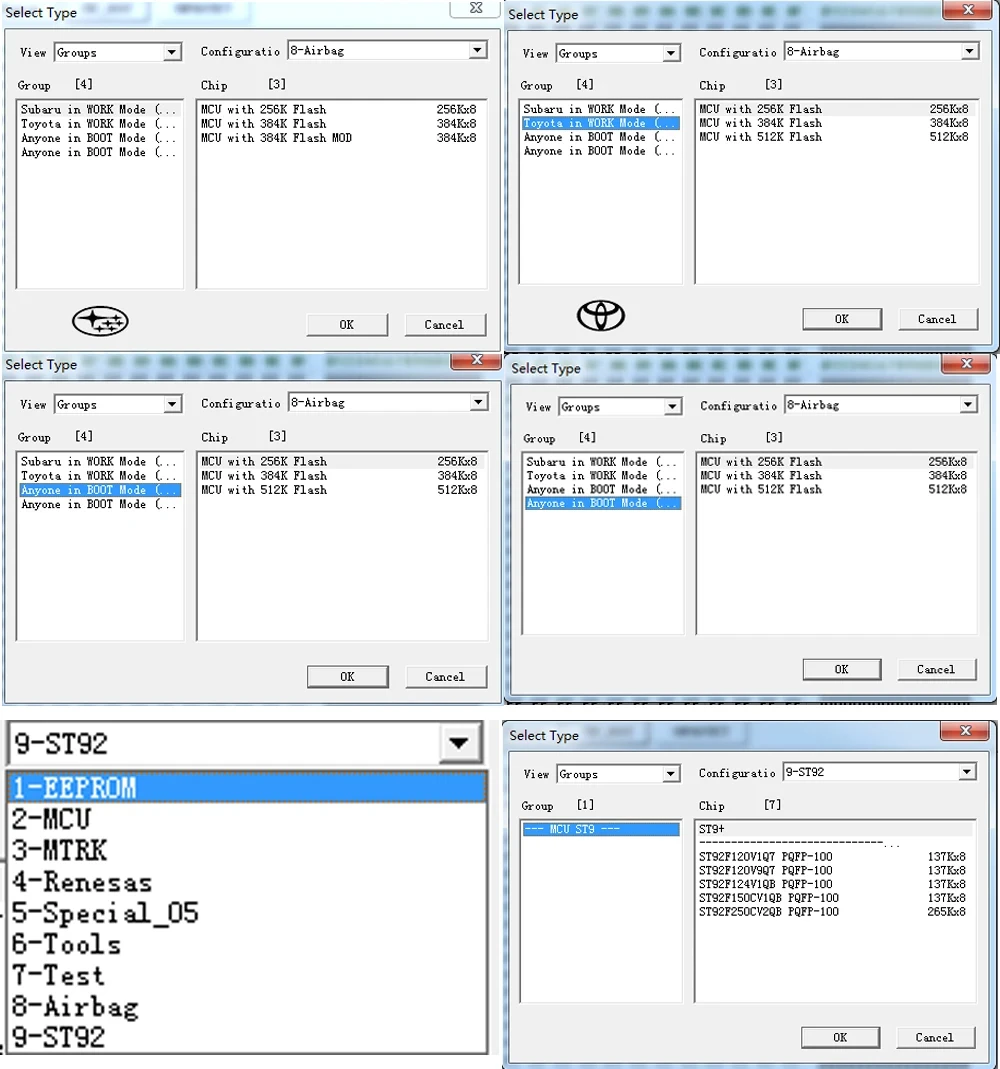

Adds More Ecu Mcu List Program:
Highlights:

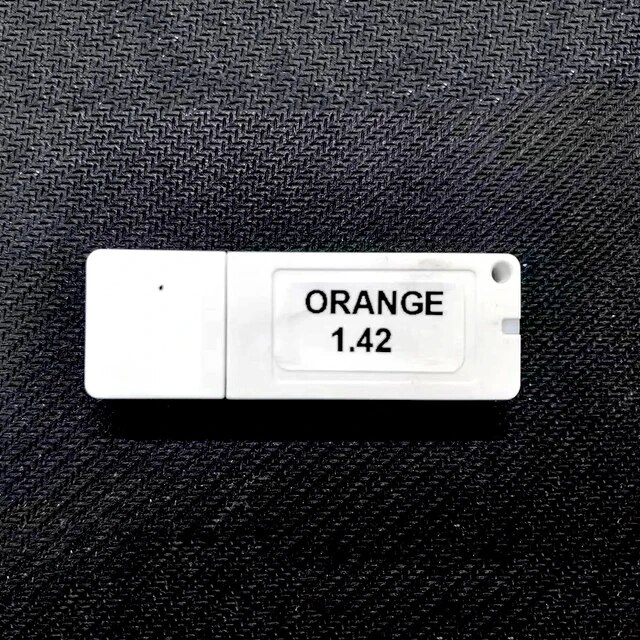

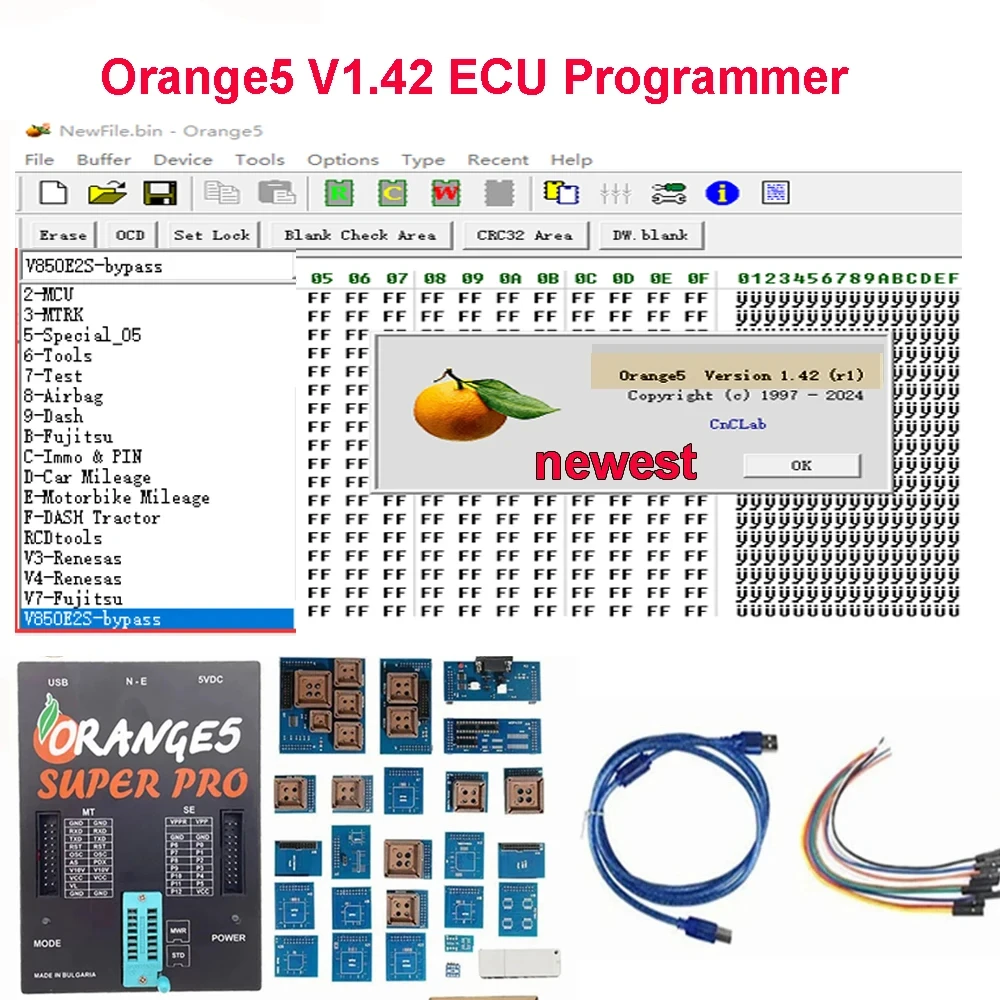

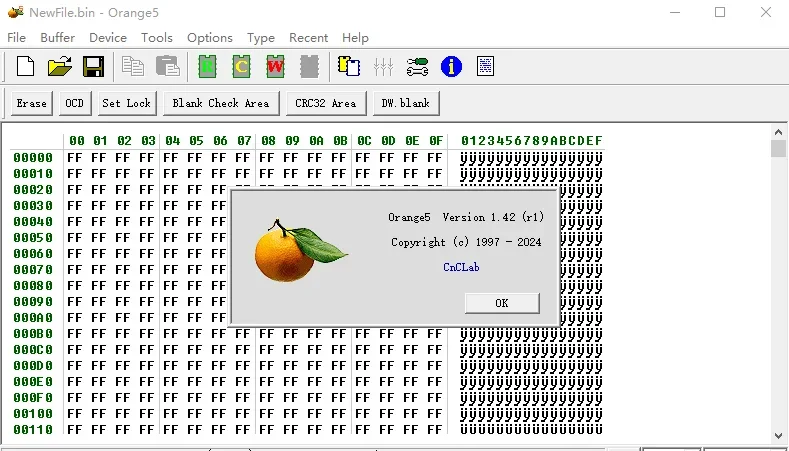

Software Version: V1.42, orange 5 full function. Activate full Authorizations
Language: English
Systems: WIN7 (32bit and 64 bit)
it can do ECU Programmer, Key Progrmmer, km correction, immo pin, srs reset

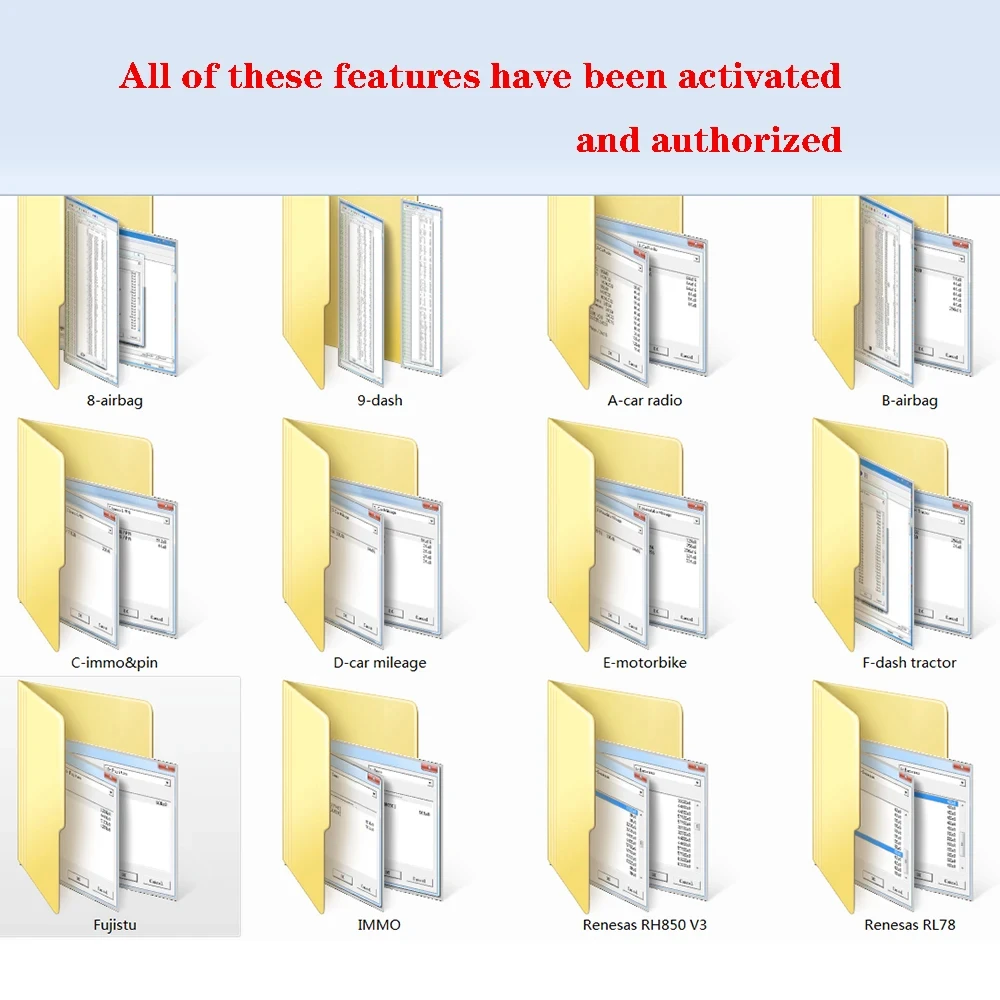

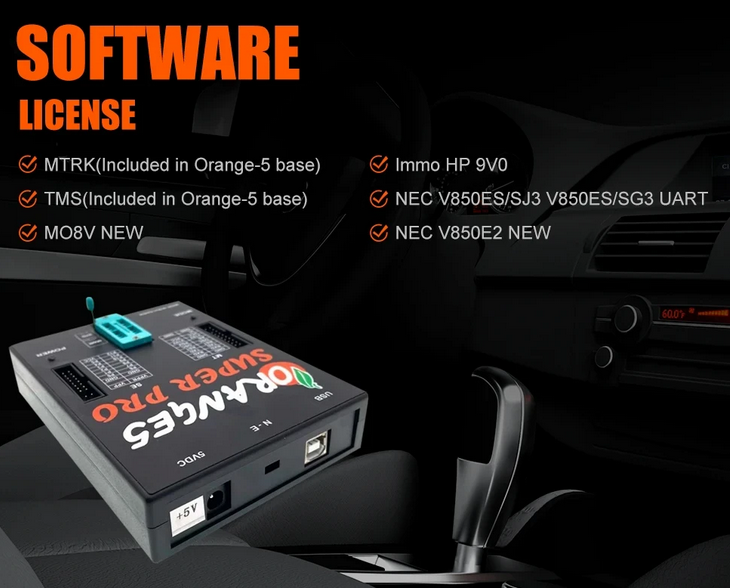

Activate Full Authorizations:

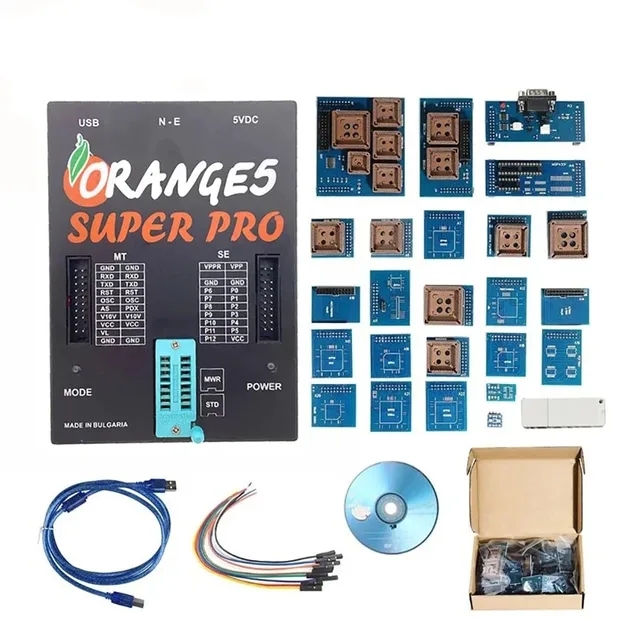

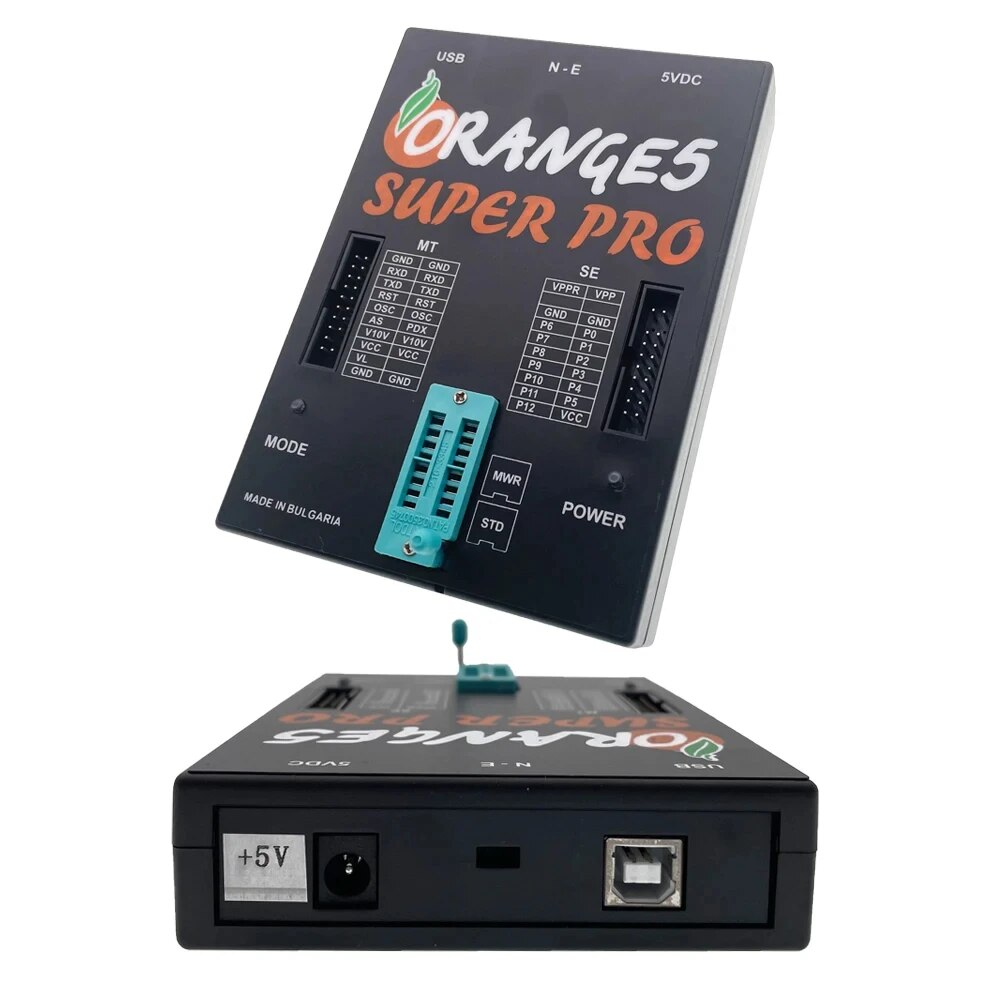

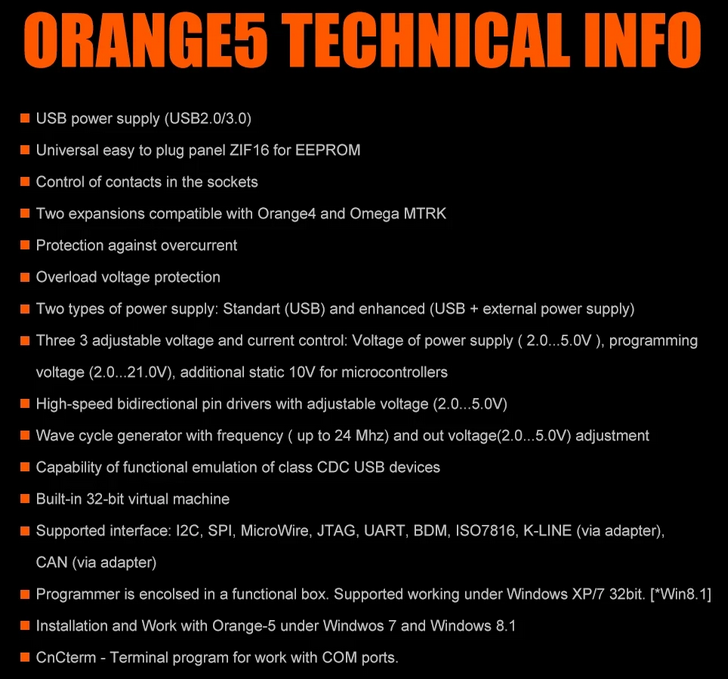

Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standard (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windows 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.

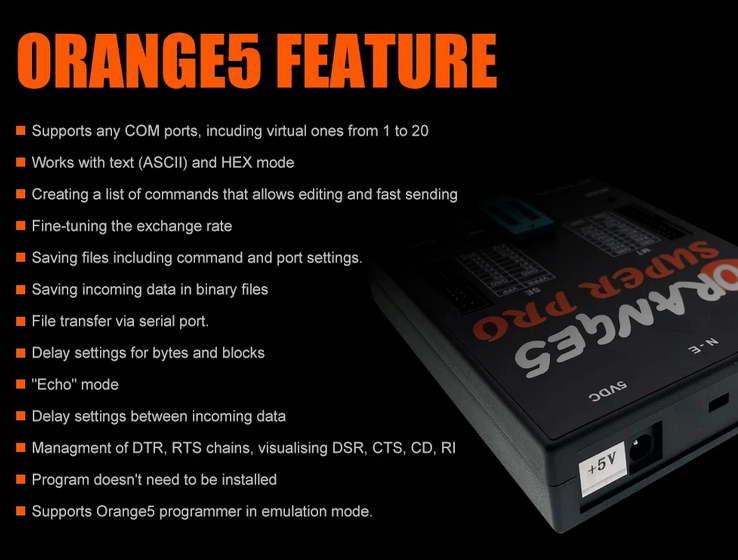

Features:
Supports any COM ports, including virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Management of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
