OEM Orange5 V1.37 V1.38 Professional Programming Device With Full Packet Hardware and Enhanced Function Software
Orange5 Full Programmer
Software Version: V1.37 V1.38 (Software Does not Support Update)
Language: English and Russian
Systems: XP WIN7 WIN8
Get Four Additional Software Free
Please Pay Attention:
1. Orange5 ONLY connect via USB power supply 5V voltage. It can not connect external power supply via 12V, otherwise it will burn, always shows corrupt and kill the board.
2. The default software version of OEM Orange5 is V1.37 V1.38, please never try to use higher version or update online, or device will get locked.
3. Please do not use original software or other software version on this device, otherwise it will be blocked.
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0

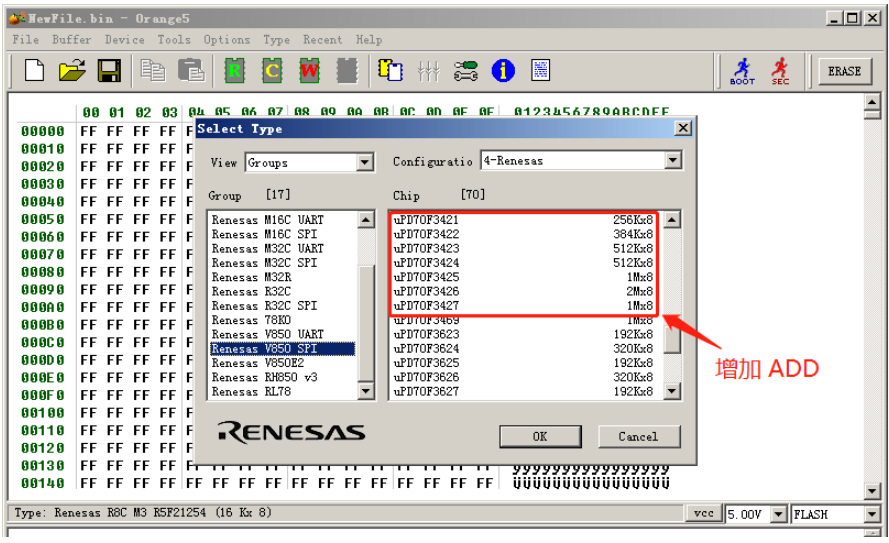

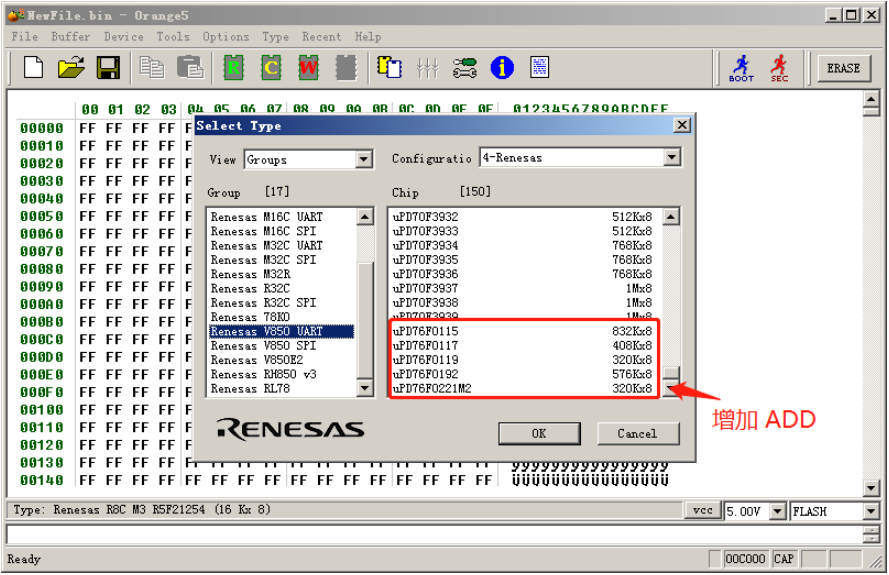

NEC V850ES/SJ3 V850ES/SG3 UART

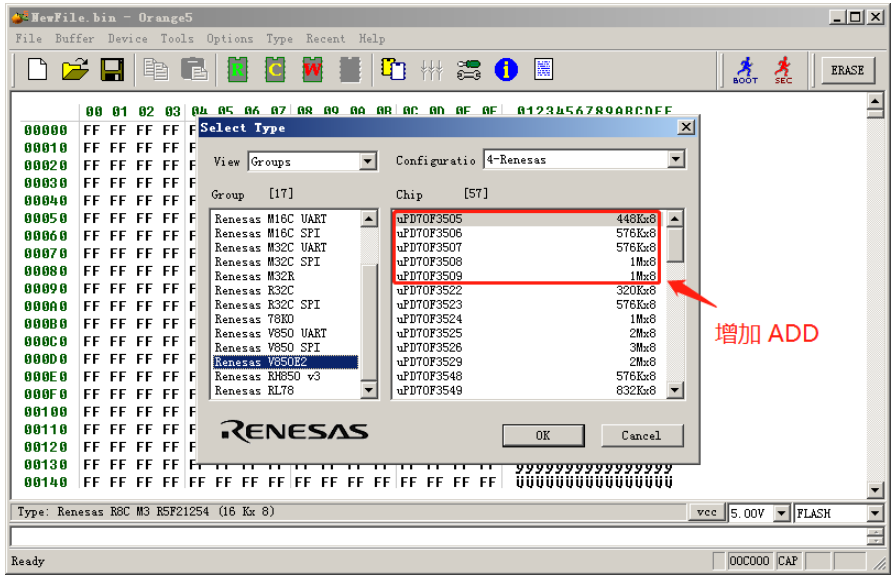

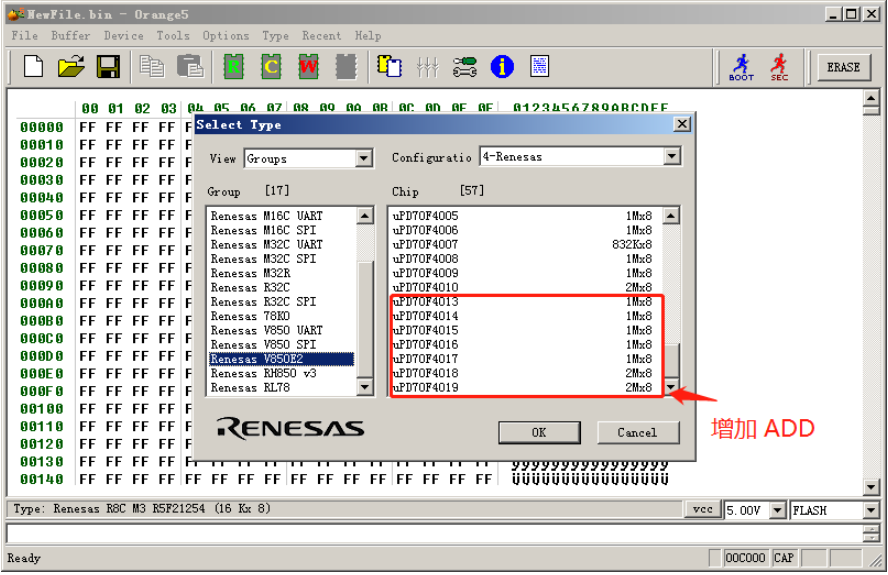

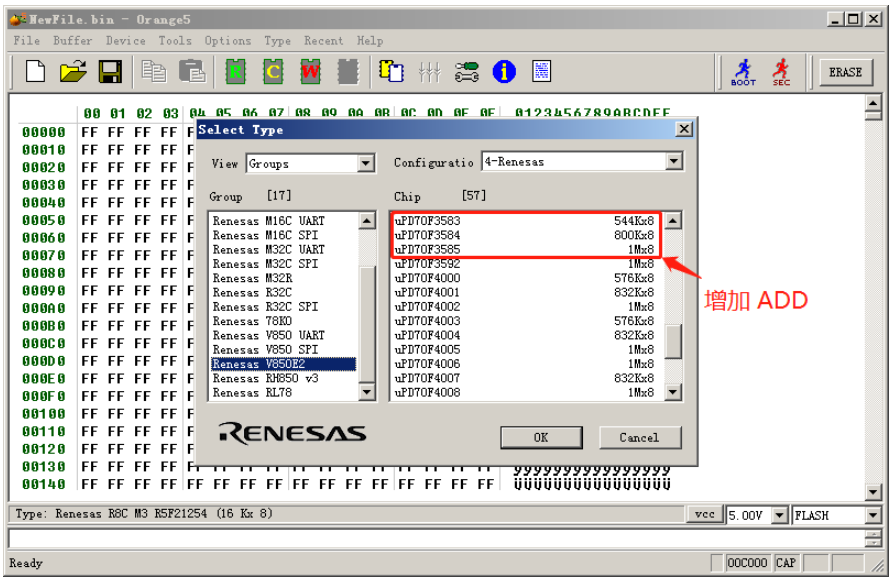

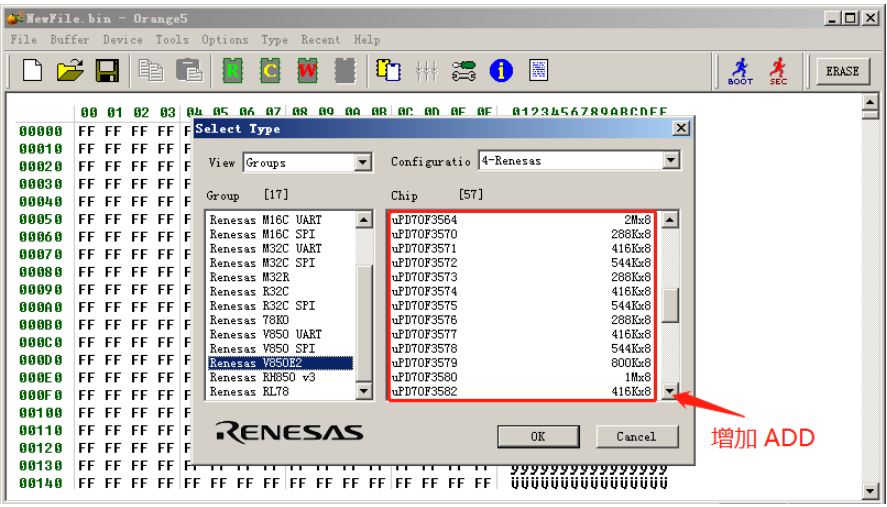

NEC V850E2 NEW
Orange 5 ECU Programmer Features:
Supports any COM ports, including virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

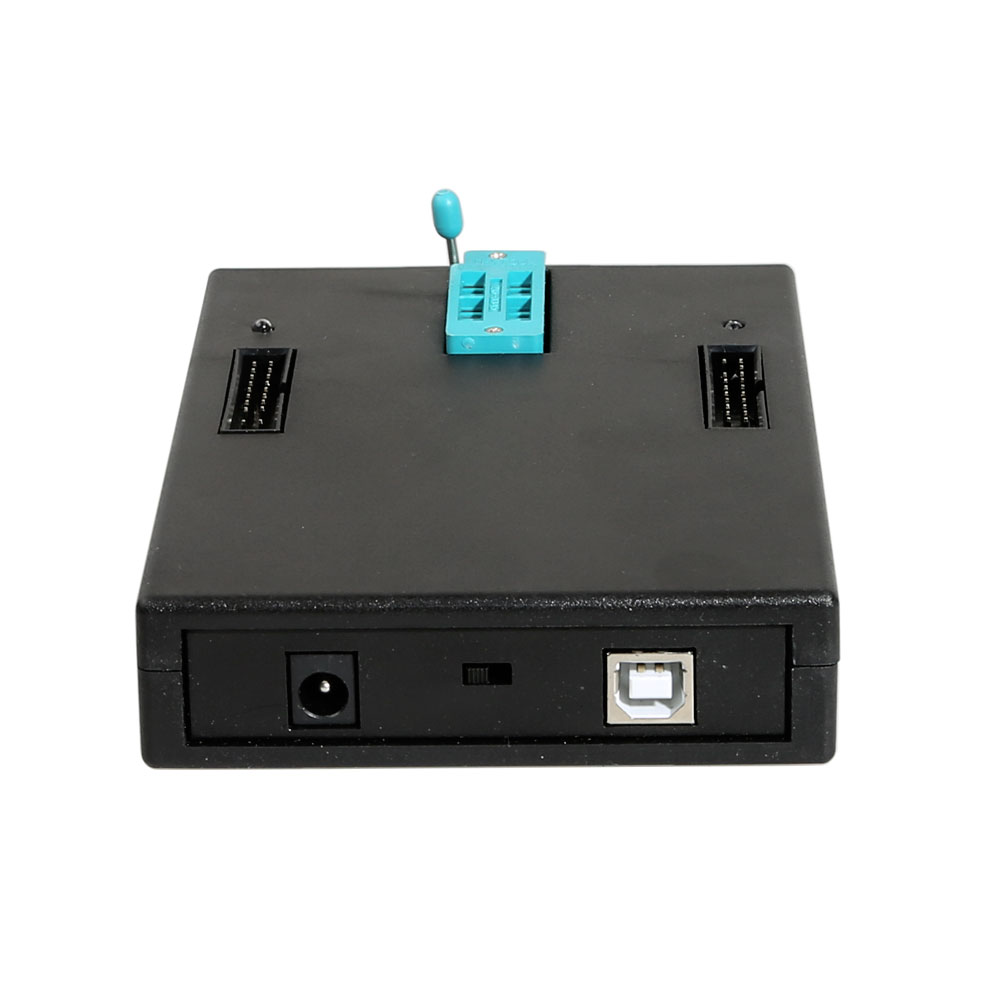

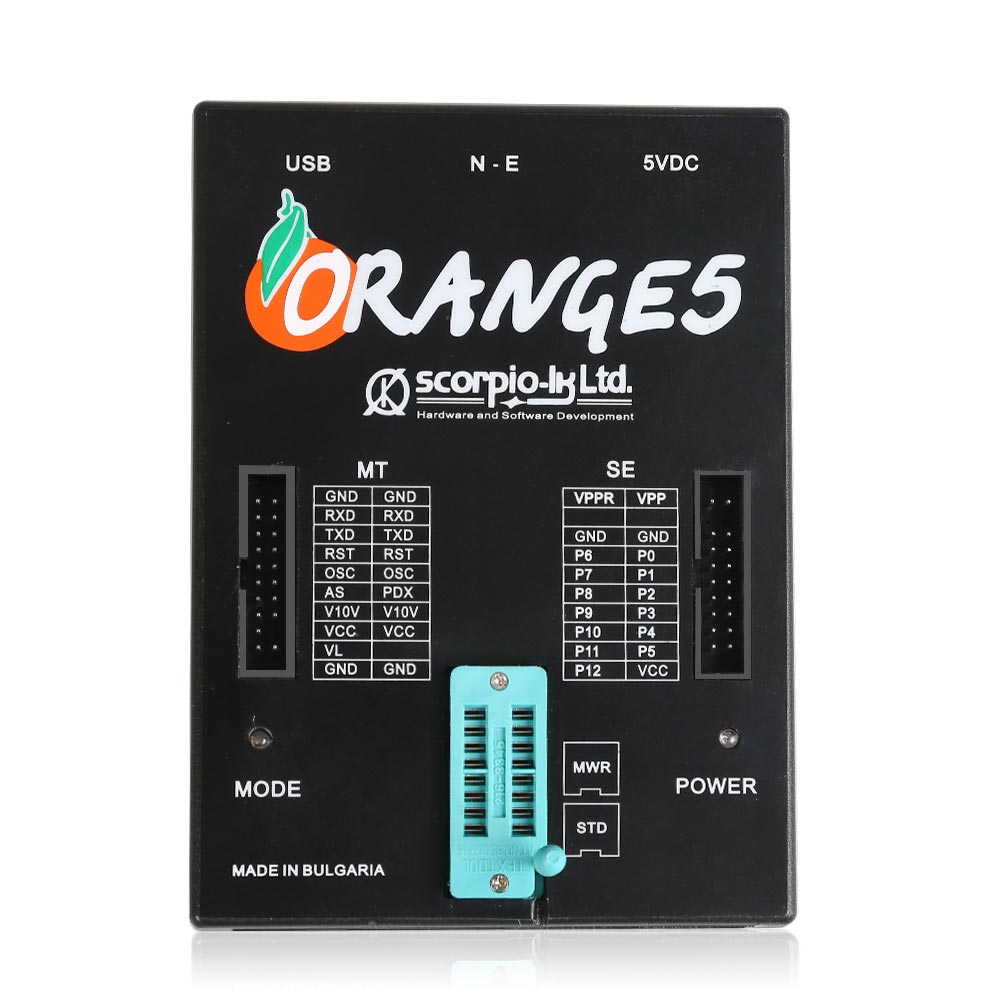

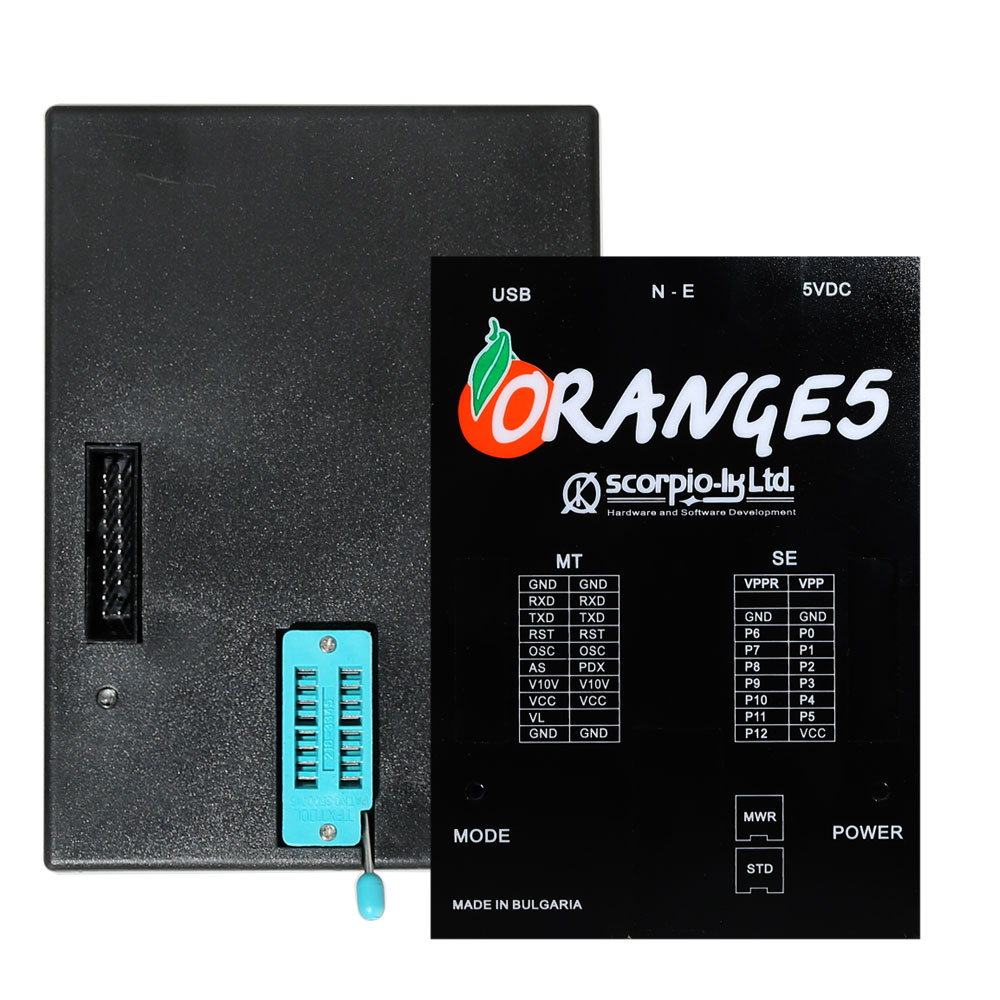

Orange5 Technical Info:

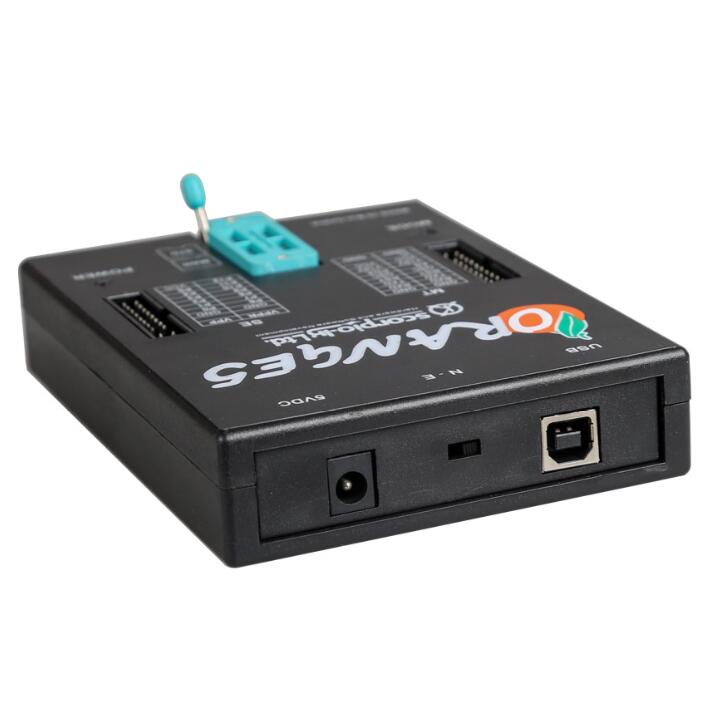

* USB power supply (USB2.0/3.0)

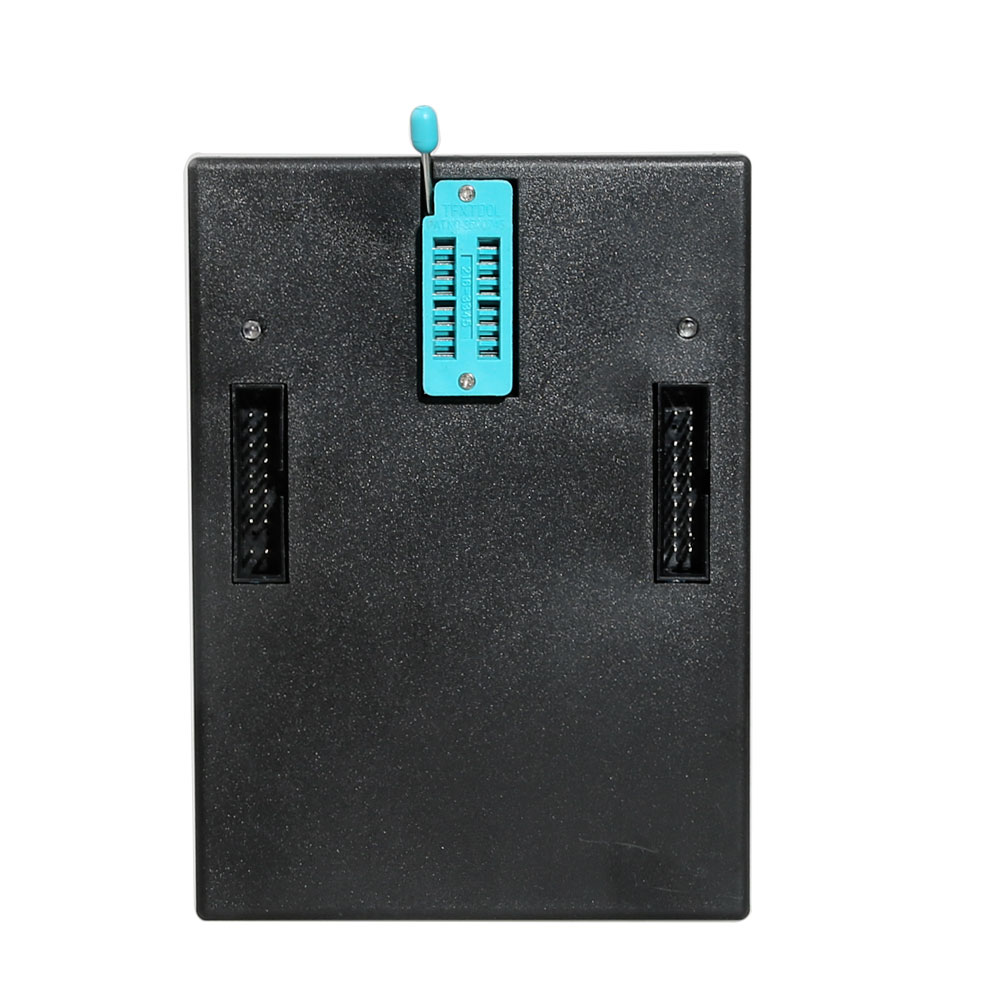

* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Orange5 Programmer Automotive Chip List:
Immo HPX 9V0
For Audi, BMW, Chery, Chevrolet, Chrysler, Citroen, DAF, Dodge, Fiat, Ford, Gilera, Great Wall, Hyundai, Honda, Jeep, KIA, Lancia, Mahindra, Mercedes Benz, Nissan, Opel, Peugeot, Piaggio, Renault, Rover, Seat, Skoda, SsangYong, Suzuki, Toyota, VW
EEPROM
MicroWire, 4Wire, Adesto, AKM, Altera, Amic, Atmel, BOSCH, Catalyst, Chingis, Dallas/Maxim, EON, ESMT, EXEL, Fairchild, Fujitsu, GI, GigaDevice, Grundig, HOLTEK, Hynix, ITT, KHIC, Macronix, MicroChip, Micron, Mitsubishi, Motorola, NEC, NSC, Numonyx, OKI, PCT, Philips, Pioneer, PMC, Ramtron, Rohm, Samsung, Seiko, Siemens, Sony, Spansion, SST, ST, Winbond, Xicor, XUSSR, YMC, MCU, Atmel, Infineon, MediaTek, MicroChip, Nordic, NSC, Philips, Renesas, Samsung, SiLabs, ST, TI, Motorola, Freescale, MC68HC11, MC68HC12
Program with Adapter.
Licenses for M08V, TMS370, Renesas V850 are optional.
For detail chip type model list, pls contact us ,we will send you list link.

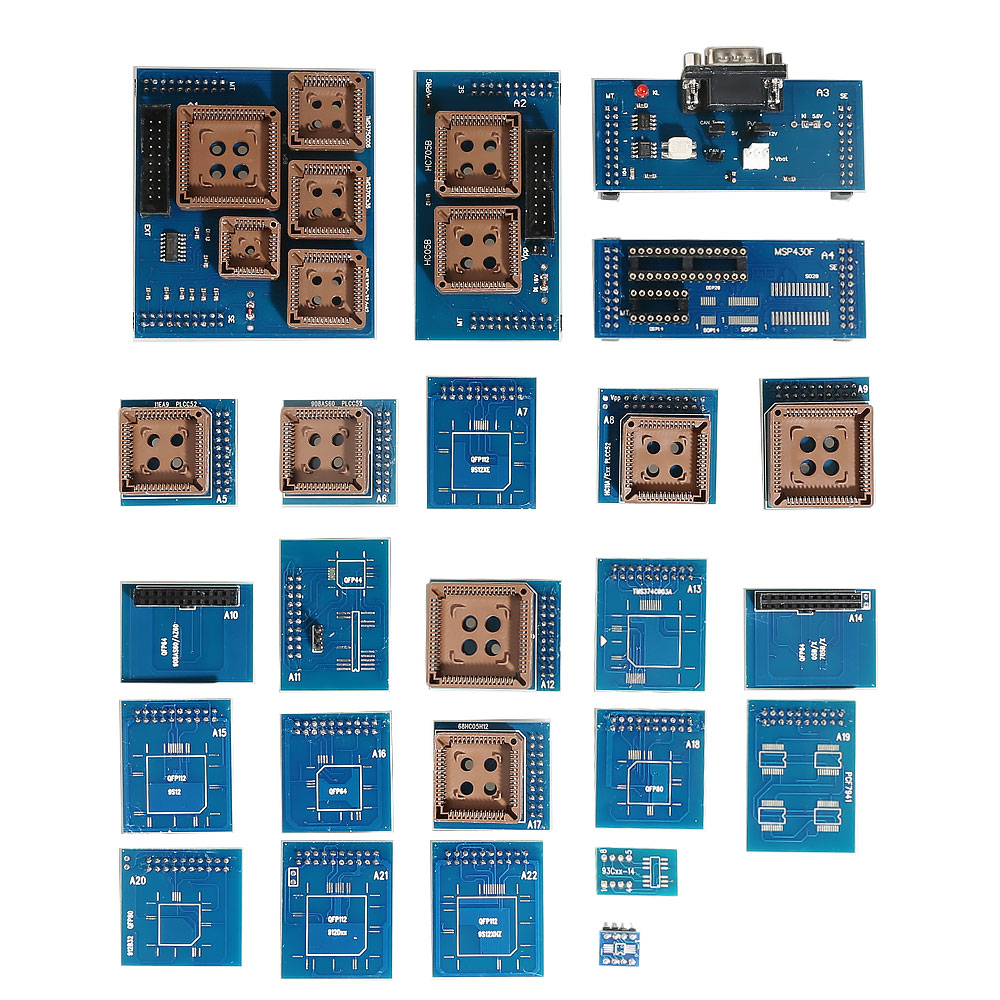

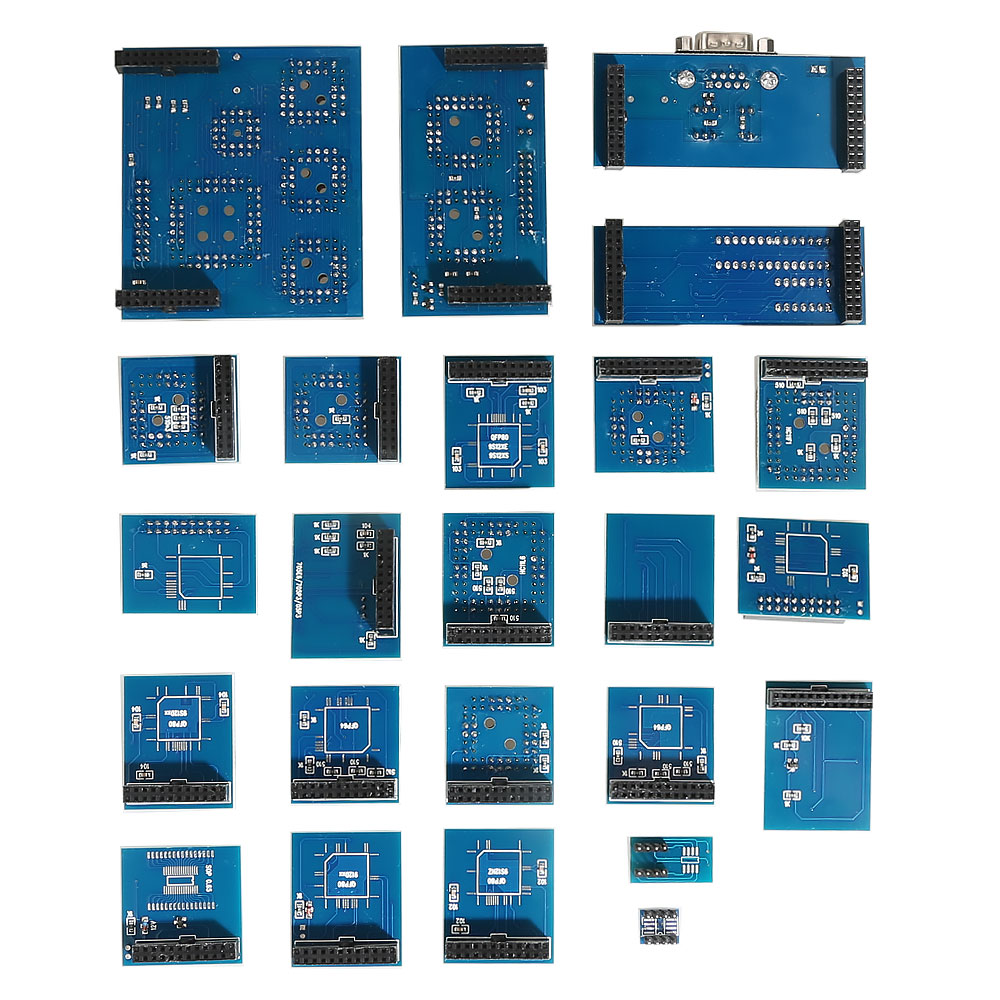

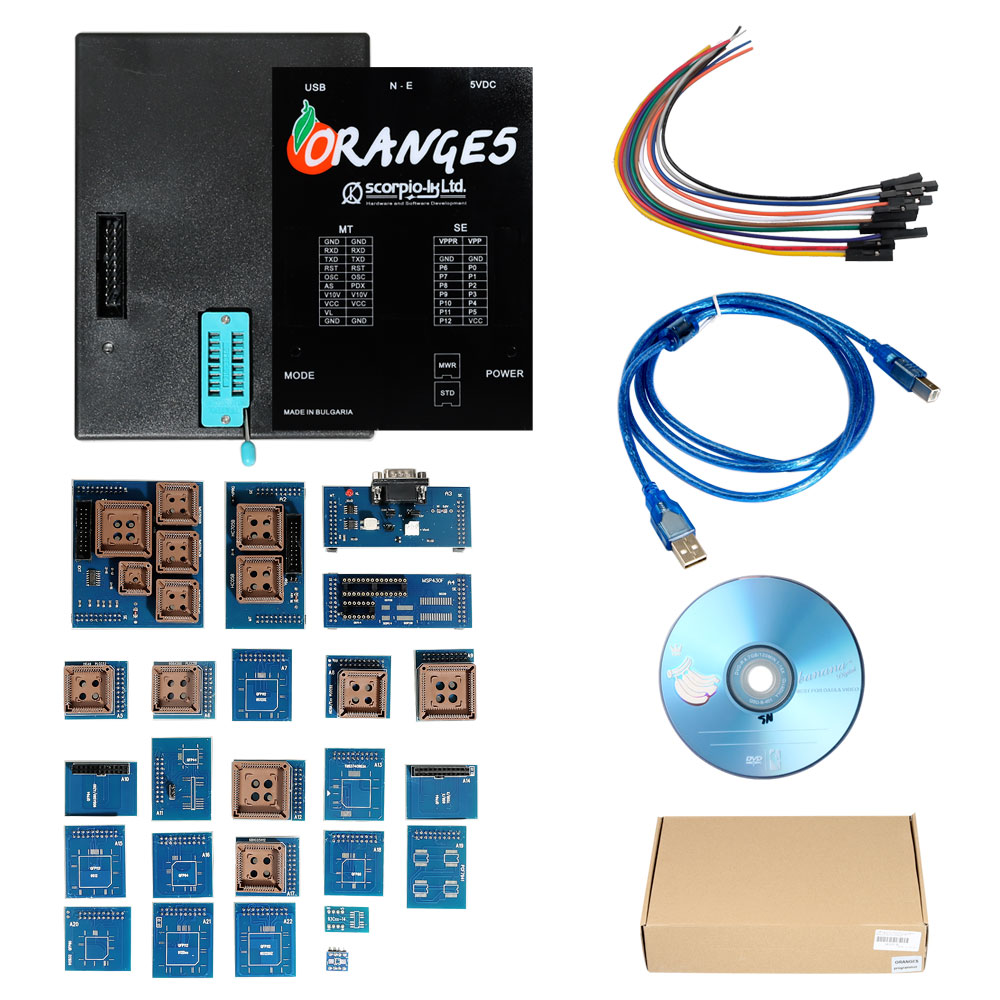

Orange 5 Programmer Packing List:
1pc x Orange 5 Programmer
1pc x USB cable
10pcs x Incircuit wire
1pc x SOIC8/DIP8 Expert adapter
1pc x SSOP8/DIP8
1pc x SOIC8/DIP8 adapter
1pc x SOIC8_14_93Cxx adapter
1pc x Lead 11E9(20) with power
1pc x Adapter 05L28/05B
1pc x Adapter 908AS60/AZ60 QFP64
1pc x Adapter 68HC(7)05P3/E6
1pc x Adapter 05B/X_705B/X QFP64 V2
1pc x Adapter 11PA8/11E9 QFP64
1pc x Adapter 68HC05H12
1pc x Adapter 68HC11EA9
1pc x Adapter 908AS60
1pc x Adapter 9S12Dxx
1pc x Adapter 912Dxx
1pc x Adapter 9S12X
1pc x Adapter 912B32 QFP80
1pc x Adapter 68HC11F1
1pc x Adapter 68HC11L6
1pc x Adapter 68HC11KA4
1pc x Adapter 9S12XE
1pc x Adapter PCF7941
1pc x Adapter TMS374C003A
1pc x Adapter MSP430F
1pc x Adapter 68HC11KA4 PLCC68
1pc x Adapter 908JL
