TagFlash ECU Programmer Support OBD / BENCH / BOOT / BDM / JTAG mode Full reading TCU (MICROEEROM)
Free Download
TagFlash Software
Important Note
You MUST disable your anti-virus and firewall in order to download the software, driver and updates. Any active anti-virus will try to delete the files as it does not recognize the file as safe. They are safe but because of language issue it is often seen as a virus and it will delete your files. YOU MUST DISABLE YOUR ANTI-VIRUS AND FIREWALL or you will not be able to download the software properly.
TagFlash Agricultural Machinery, Boat OBD Support List.pdf
TagFlash Car List BENCH Mode.pdf
TagFlash Car List Full System Mode.pdf
TagFlash Car List RECONDITION (1).pdf
TagFlash Car List RECONDITION.pdf
TagFlash Car List TOOL BOOT Mode.pdf
TagFlash Motorbike ECU Read Write Support List.pdf
TagFlash Truck ECU Read Write Support List.pdf
TagFlash Highlights:
1. This new system developed with high-speed USB2.0 currently the fastest and safest production in the market.
2. It is easy to install and use by anyone.
3. The Driver will always be clickable, the options will not become gray.
4. Time synchronization is no need, it allows for some margin of error.
5. On bench mode, directly identify the chip type before reading/writing .
6. Stable to read / write eeprom & flash via OBD.
7. Reliable for checksum calculations.
8. Add speed limit off.
9. It is relatively up to date that the protocol is synchronized to the original tools.
10. It is not easy to damage the ecu. It can work directly if it can be written; if it cannot be written, it won't be possible from the beginning.
11. There is no need to restart the software when the software reports an error, and there is a direct reset function in the option.
12. Support working in offline mode.
13. Synchronize Agreements Until April 1st, 2023
14. Stability/Comprehensive: Yes
15. Own Servers in Multiple countries
TagFlash Compatible Vehicles:
Car
Truck
Tractor/Marine
Motorbike
Read / Write ECU
Read /Write TCU (a part)
TagFlash is confirmed to read/write ECU on many ECU types such as:
DCM2.7AP yes
DCM2.7 yes
MD1CS018 possible: choose the chip type spc58 to read/write
sid208-sid209 read write on bench ok.
dcm7.1b can read via obd ok
dcm6.2v read via obd no problem
TagFlash is not able to read/write:
Sim2k260 NO
DCM7.1AP No
TagFlash Compatible Operation System:
Windows XP 32 64 bit
Windows Vista 32 64 bit
Windows 7 32 64 bit
Windows 8
Windows10
TagFlash Language:
Ltaliano, English, Deutsch, Francais, Espanol, Polish, Portugues, Czech, Romana, Turkish, Hungarian, Russian, Bulgarian, Chinese, Japanese, Korean and Serbian
TagFlash Update: Free update
Annual Subscription: No need
·5/30V Car, Industrial vehicles, WP
·Boot Mode C167,ST10
·RS232 RS485
·CAN BUS V2.0 50 Kb>10 Nkb
·J1850 VPW PWM GM-FORD
·BDM MPC5XX
·BOOT MODE TRICORE
·Auto setup Pull up K-ine 250,500,1000 ohm
·Auto setup termination Can bus 0,60,120ohm
·Master
·Recovery mode
·Checksum automatic
Available with options: Car, Truck, Tractor/Marine, Motorbike, Full Mode, Recondition (remove speed), Tool Boot, Bench Mode,BDM/JTAG.

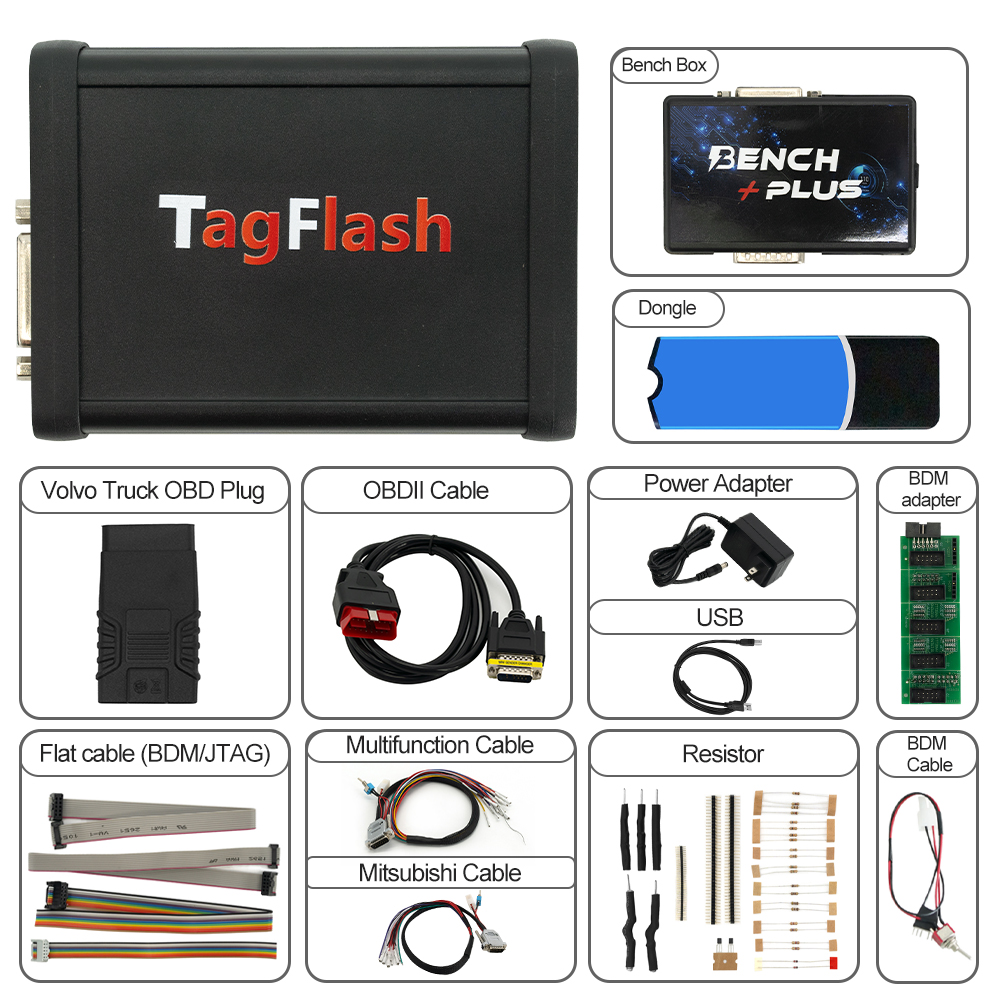

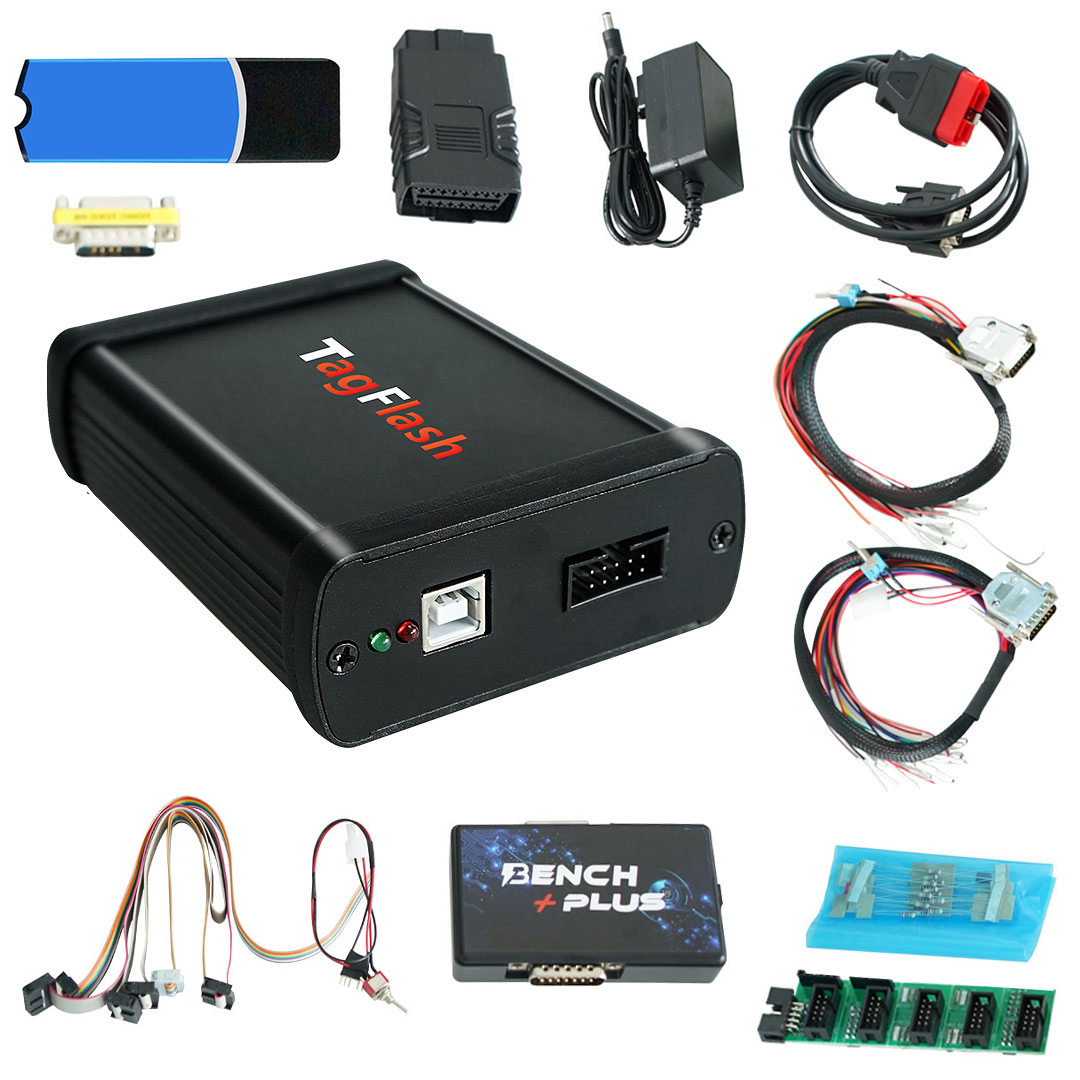

TagFlash Package List:

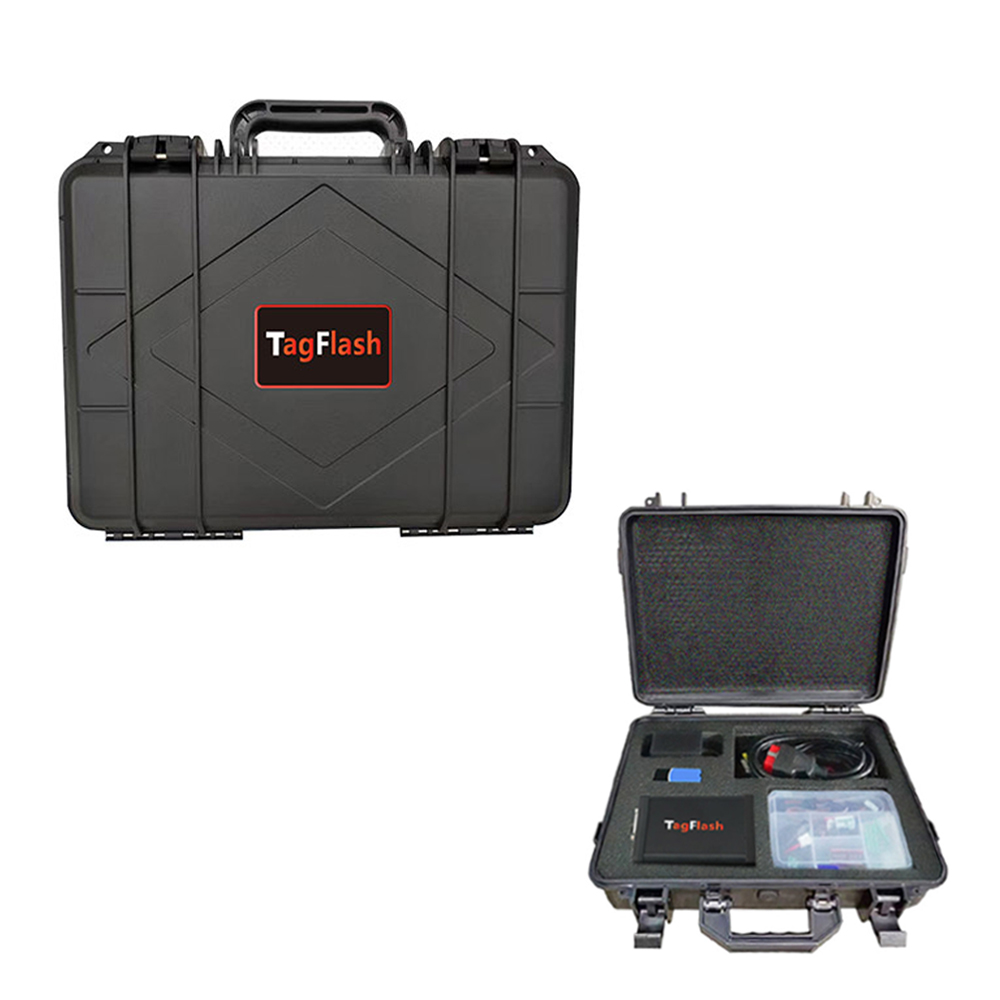

1. A suitcase

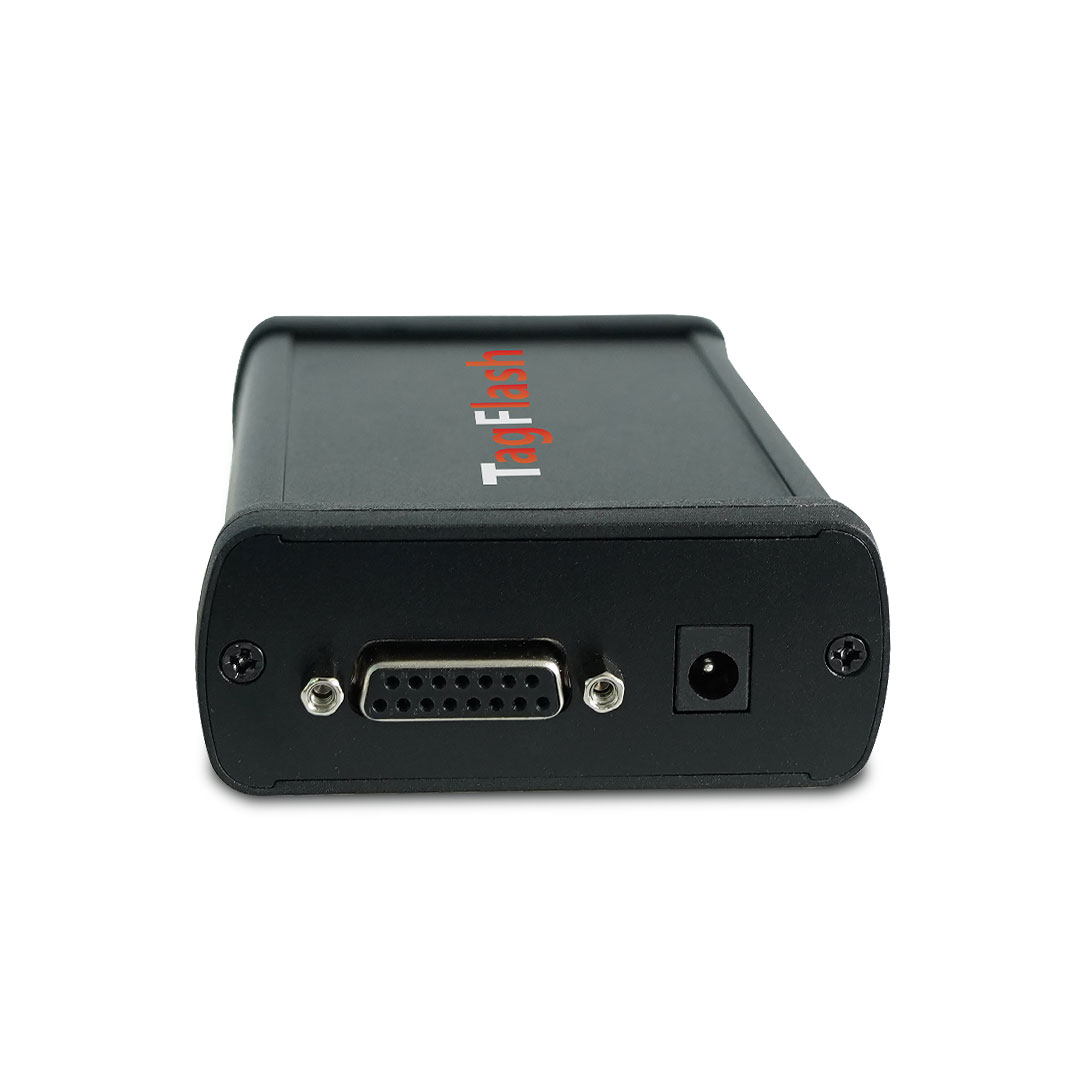

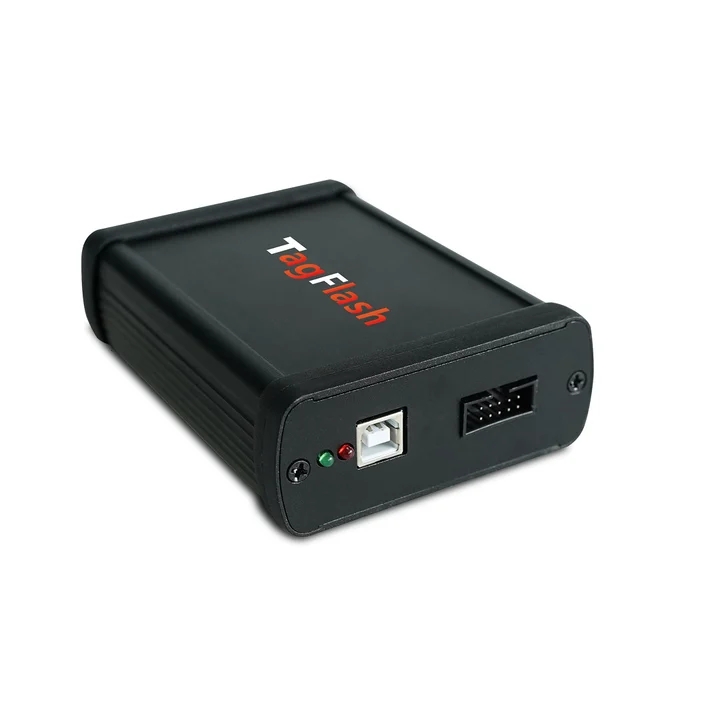

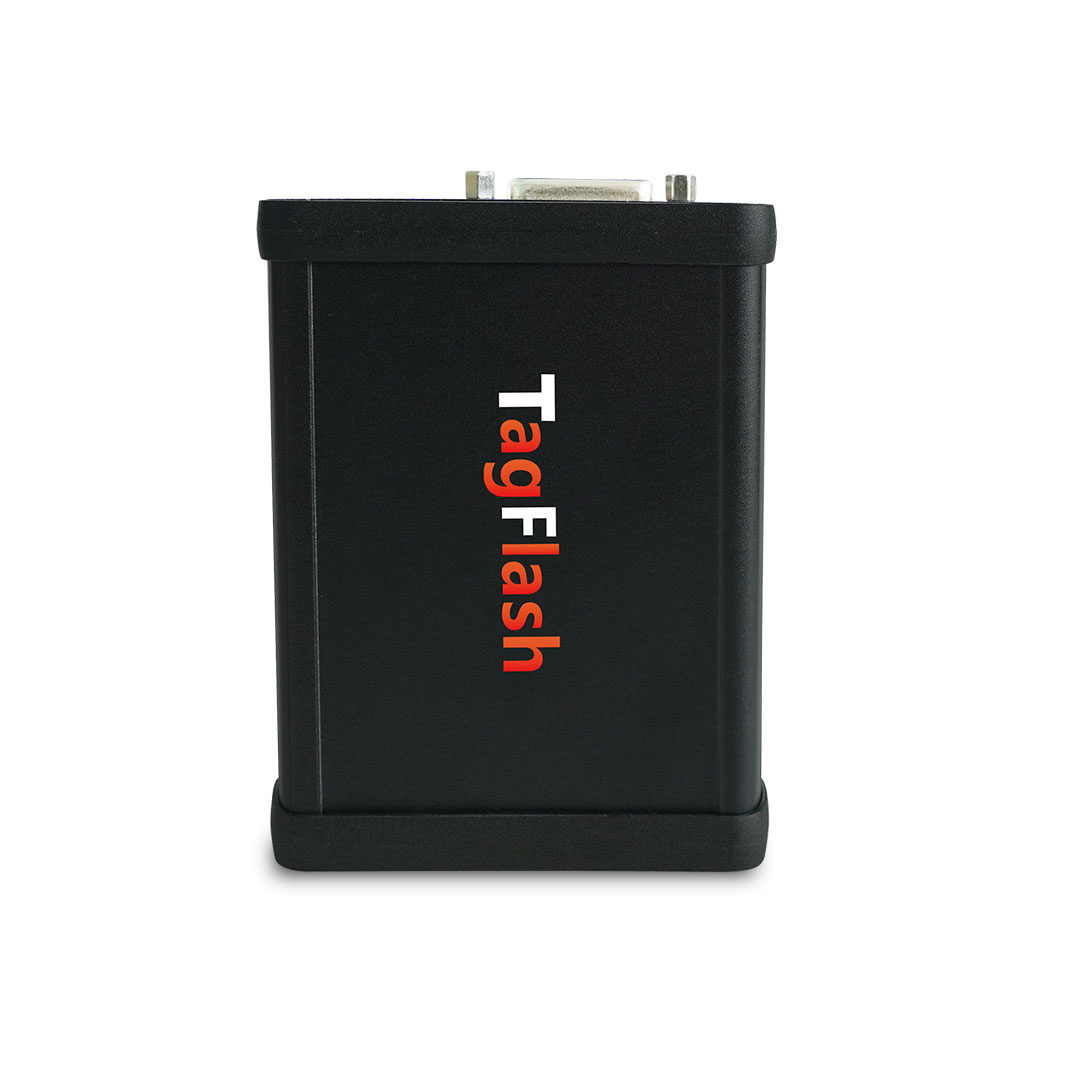

2. Main Unit /Host
3. Offline Dongle: for runing software offline

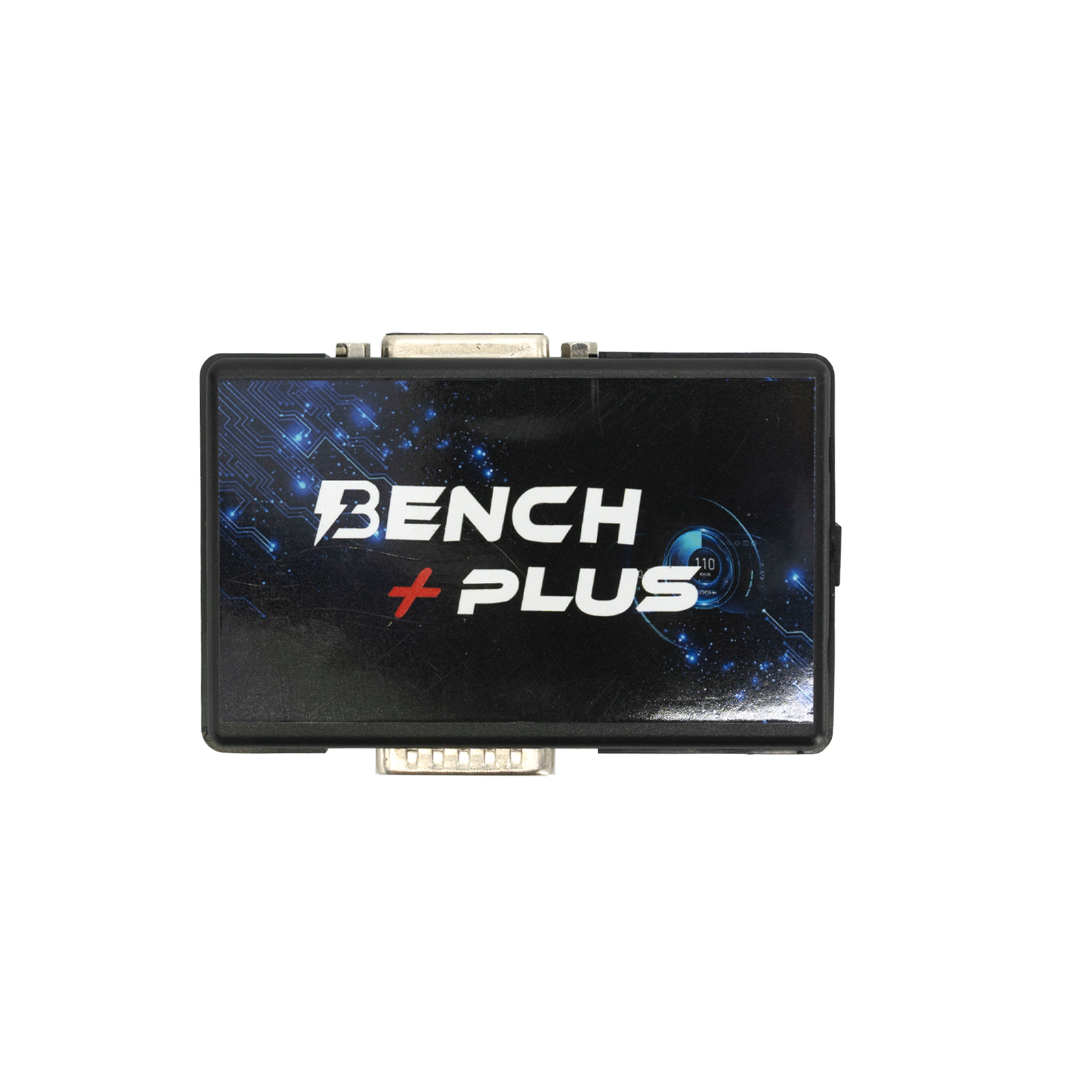

4. Bench Box
5. Volvo Truck OBD Plug: For VOLVO truck reading by OBD
6. Power Adapter: 12V/3A power out
7. OBDII Cable: for ecu reding by OBD
8. Multifunction Cable: for ecu reding by bench/boot/pinout
9. Mitsubishi Cable: for mitsubshi reading in boot
10. Flat cable: for BDM/JTAG function
11. BDM Cable: for BDM function
12. Resistance
13. BDM adapter: in BDM function
14. Mini Gender Changer: when read/write ECU via OBD, plug Mini Gender Changer.

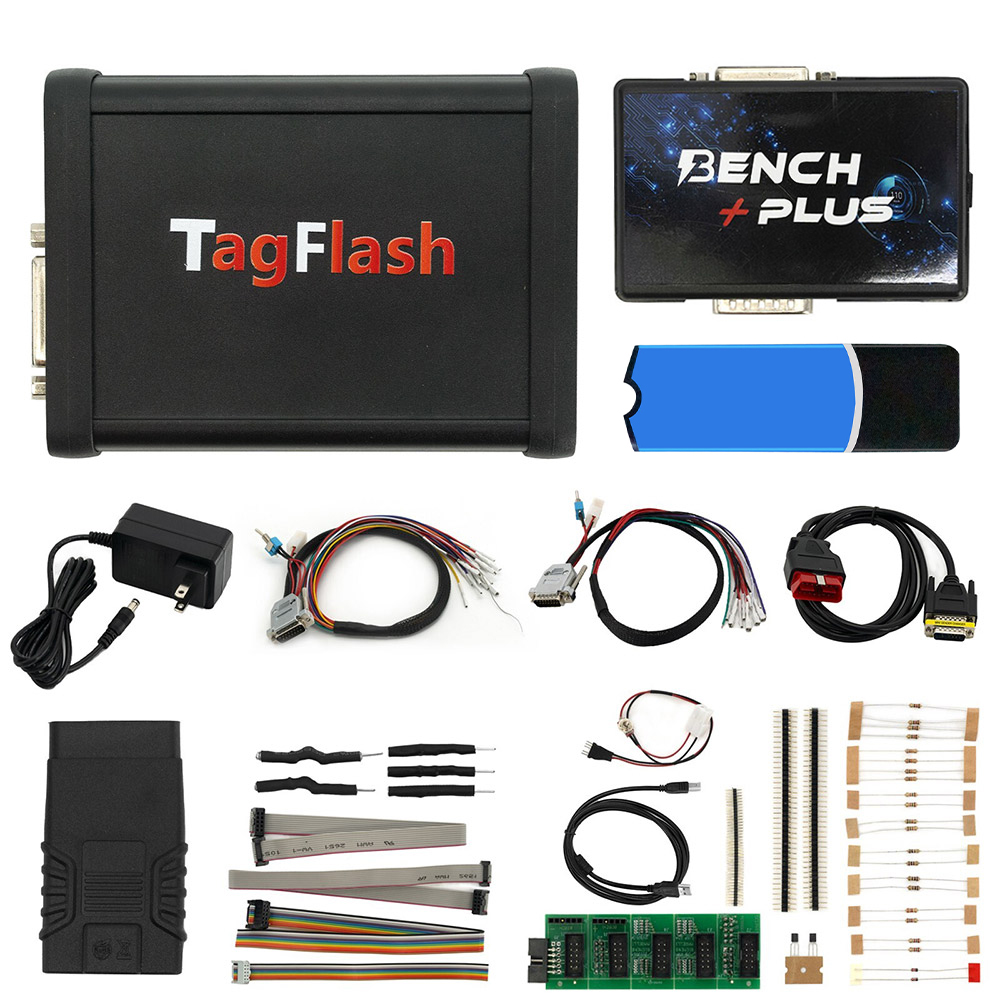

TagFlash Package List:
1*Full Kit
1*Main Unit /Host
1*Offline Dongle
1*Bench Box
1*Volvo Truck OBD Plug
1*Power Adapter
1*OBDII Cable
1*Multifunction Cable
1*Mitsubishi Cable
1*Flat cable
1*BDM Cable
1*Resistor
1*BDM adapter
1*Mini Gender Changer
1*Carton Box or Suitcase (Optional)
