FoxFlash Chip Tuning Tool ECU Programmer with Free Damos Supports VR Reading Auto Checksum and Super Strong ECU TCU Clone Free Update
winols4.7 :
https://mega.nz/file/1T1A0QZL#9q3EzXQ5ofU41UA5Unju7DxcaVwhzBkjzMfEddRj0oE
We're proud to introduce you to foxFlash®, a new, unique and revolutionary tool for automotive professionals, tuners and engine calibration engineers.
Since the foxFlash® is so much more than just an ECU programming tool, it simply can’t be compared to any traditional flash tool. Despite other tools how good, this is being good tools for read/write operations, we supply many important features, both on the developer side as in daily use. That is why we recommend foxFlash.

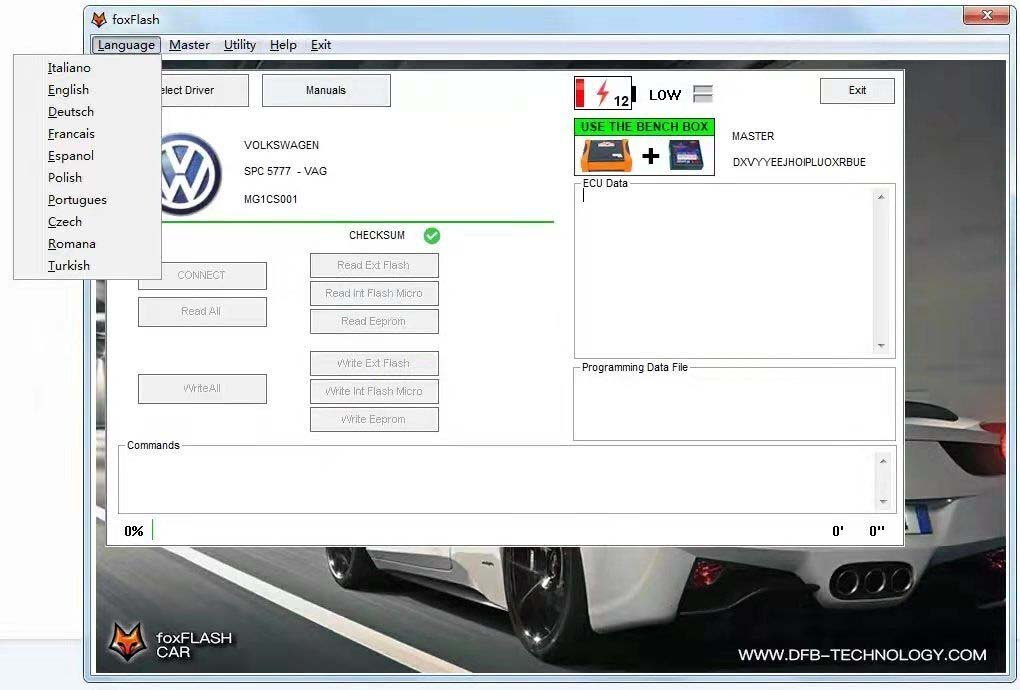

Support language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish
Compatible Operating Systems: Windows 7, 8/8.1, 10, 11 64 bits Pro, Recommended Configuration: CPU > 2.5 GHz (Intel i5, i7), RAM > 4GB (32 Bit is not supported)
foxFlash Burst Points
1.Master version
2.Full protocols open
3.VR read online work (some ecu need use our VR system, tool auto connect to ousr server donload file )
4.ECU can be restored to original if your ecu was damage or meet some bad tuning, use our tool can restore to original.
5.Free update. No subscription, no annual fee.
6.Foxflash Manager app can ONLY be installed on up to 6 PCs
7.Auto checksum
8.Professional Online support, Faster server 1000M/S, No VPN needed. Supports WiFi hotspot
9.Multi-language
10.Two Years Warranty
11.Excellent technical support.
12.Help desk and tuner account
13.ECU and TCU connect wires with pdf
14.Special functions
15.Auto support eeprom and flash checksum
16.Support MEDC17 free clone service (most of others tool need patch the files after read out ,but ours is free)
17.Software can be download on official website:
https://www.dfb-technology.com/
18.With the Latest firmware and updates. Use better quality BOM and PCB. More stable, full proof, and reliable.
19.FoxFlash ECU TCU Car List, or check driver list on dfb-technology, it is much easier to search than pdf
20.Send email to info@dfb-technology.com to create an account to download damos files
What is foxFlash ?
foxFlash is a powerful solution developed for professional chiptuners, calibration engineers and control unit (ECU and TCU) repair shops. foxFlash includes multi-method control unit programming for tuning ability,this tool from tuner design ,so you can get many of them support.
foxFlash is a powerful tool for ecu and tcu, supports a lot of mode:
1.OBD mode:(read the data from Diagnostic port ,you need remove the ecu or tcu from car or open the ecu box , just read everything from car, supports obd vr read, and original file from our server, you can direct obd vr read it )

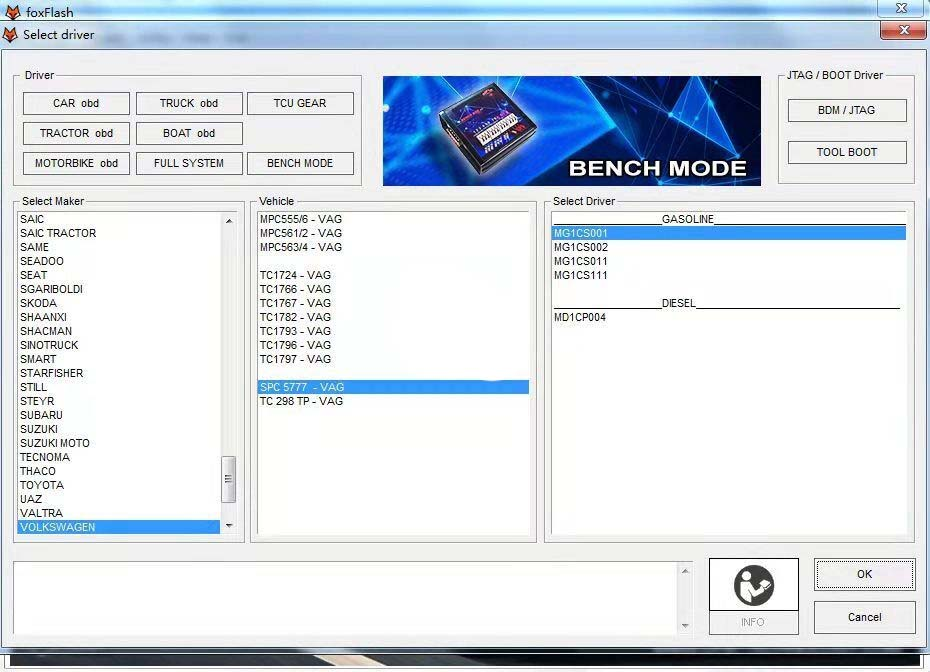

2.BENCH mode: With service mode, you can use this mode clone or backup all ecu data, read the internal flash and external flash and eeprom data, so you can save a lot of money for clone ecu and tcu , you also can clone tcu and chiptuning with this mode.
3.Jtag mode: open the ecu , and wire it or use ours adapter connect ecu ways,some of denso ecu always need use this mode for read and write .
4.Boot mode: open the ecu and always can backup everything , read the flash and eeprom , you can save some ecu cause your obd write failed, or some others reason cause the ecu dead.
5.Full system: you can read and write by pinout for most of ecu and tcu
6.BDM mode: some of the ecu need read and write in bdm mode ,open the ecu and use ours adapter connect it
Quick start basics:
1. ensure good internet. Shutdown date and time automatically syncs. Shutdown antivirus system
2. Device connected and powered (should show in windows device manager)
3. open manager
4. click ACTIVE 4. DO NOT CLOSE MANAGER
5. Open foxflash app.
Note you may need to disable windows automatic time sync feature.

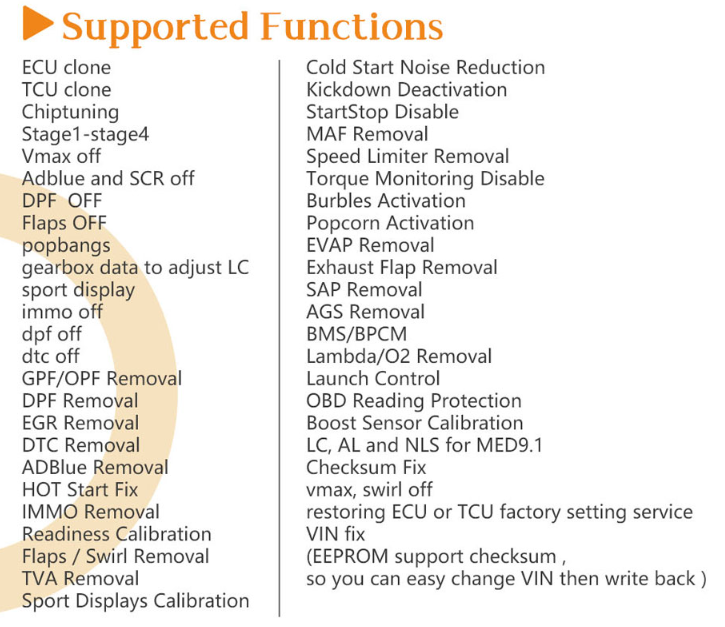

FoxFlash Supported Functions
ECU clone
TCU clone
Chiptuning
Stage1-stage4
Vmax off
Adblue and SCR off
DPF OFF
Flaps OFF
popbangs
gearbox data to adjust LC
sport display
immo off
dpf off
dtc off
GPF/OPF Removal
DPF Removal
EGR Removal
DTC Removal
ADBlue Removal
HOT Start Fix
IMMO Removal
Readiness Calibration
Flaps / Swirl Removal
TVA Removal
Sport Displays Calibration
Cold Start Noise Reduction
Kickdown Deactivation
StartStop Disable
MAF Removal
Speed Limiter Removal
Torque Monitoring Disable
Burbles Activation
Popcorn Activation
EVAP Removal
Exhaust Flap Removal
SAP Removal
AGS Removal
BMS/BPCM
Lambda/O2 Removal
Launch Control
OBD Reading Protection
Boost Sensor Calibration
LC, AL and NLS for MED9.1
Checksum Fix
vmax, swirl off
restoring ECU or TCU factory setting service
VIN fix (EEPROM support checksum , so you can easy change VIN then write back
We strongly recommend users to use online mode. The reasons are as follow:
1.We can help you check if your file is correct online.
2.The autochecksum can work online check too.
3.It is safer.
4.The online mode can check if your modifying is correct. If not, we can help to solve the problem.
5.The online mode can auto VR read and write from our server, which mean you can get the original file, and we can help you recover or save your broken ecu.
BTW, if you want to go out or work outside with our tool, just use your phone to turn on a hotpot, ours tool can work with hotpot. You will NOT need any VPN, for we have a wordwide server. No matter where you are, you can connect us.
The online work is easier and safer. Please do NOT let your ecu become a brick without using the online mode.
Compatibility
Supported Control Units
We believe a control units list can be considered as a more safe approach to correctly target the overall tuning procedure due to the fact that a lot of brands offer identical car models & versions that share different Control Unit types.
Please note that foxFlash can help you select the right protocol with its auto-detection feature during identification on most control units.
Support types:
CAR
TRUCK
MOTORBIKE
TRACTOR
BOAT

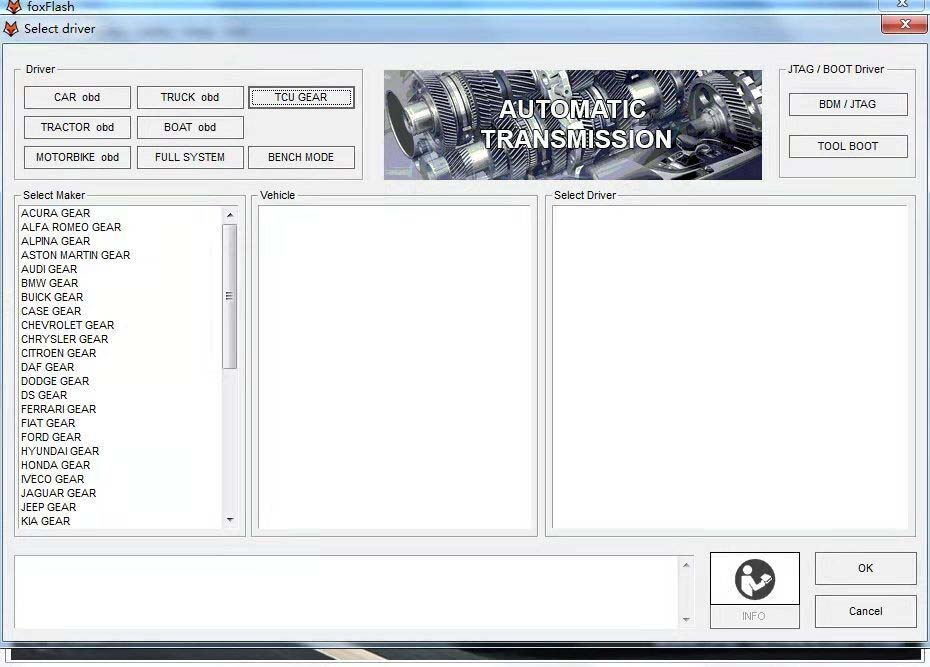

Additional TCU package available for Automatic Transmissions.
Supported Winols damaos supply
As we all know,winols damaos and A2L is very expensive, with a foxFlash, you will have this function for free, so you can get it for chitpuning , dtc off, and so on
How to Update Foxflash Software?
The update will auto sync from the server to your side.
Run the foxFlash manager, click the download button till everything done.
FoxFlash Software Update Log
May 23rd, 2023
Supported Control Units & Vehicles ECU:
Bosch EDC17C83 TC1793
Supported Vehicles:
Isuzu Dmax 2017-2022 1.9D 164cv
Isuzu Dmax Rodeo 2017-2022 1.9D 164cv
Isuzu M21 2017-2022 1.9D 123cv
BENCH read is real.
R/W time: ~6 minutes at first programming, then ~ 30s.
ATTENTION: Some of the latest vehicles might have a secure gateway.
March 15th, 2023
Continental GPEC2 GPEC3 GPEC4LM GPEC2A
– foxFlash is now able to perform the Continental GPEC2 GPEC3 GPEC4LM GPEC2A
foxFlash is now able to perform the following operations:
Boot Read
Boot Write
On the following ECU reference:
Continental GPEC2 GPEC3 GPEC4LM GPEC2A
Chrysler 200 Continental GPEC3 BOOT
Chrysler 200 Continental GPEC3 BOOT
Chrysler 300 mk2 Continental GPEC2A BOOT
Chrysler 300 mk2 Continental GPEC2A BOOT
Chrysler Aspen Continental GPEC2A BOOT
Chrysler Grand VojagerContinental GPEC2A BOOT
Chrysler Town & CountryContinental GPEC2A BOOT
Dodge Avenger Continental GPEC2A BOOT
Dodge Avenger Continental GPEC2A BOOT
Dodge ChallengerContinental GPEC2A BOOT
Dodge ChallengerContinental GPEC2A BOOT
Dodge Charger Continental GPEC2A BOOT
Dodge Charger Continental GPEC2A BOOT
Dodge Dart Continental GPEC3 BOOT
Dodge Durango Continental GPEC2A BOOT
Fiat Tipo Continental GPEC4LM BOOT
Fiat Toro Continental GPEC3 BOOT
Fiat Toro Continental GPEC4LM BOOT
Fiat 500X Continental GPEC3 BOOT
Fiat 500X Continental GPEC4LM BOOT
JeepCherokee Continental GPEC3 BOOT
JeepCherokee Continental GPEC4 BOOT
JeepCompass Continental GPEC3 BOOT
JeepCherokee Continental GPEC4LM BOOT
JeepGladiator Continental GPEC2A BOOT
JeepGran Commander Continental GPEC4 BOOT
JeepRenegadeContinental GPEC3 BOOT
JeepWrangler Continental GPEC4 BOOT
March 03, 2023
Adds following Ducati ECUs.
Ducati install Bosch ME17.9.21 can easy Read&Write now
foxFlash is now able to perform the following operations:
Bench Read
Bench Write
Boot Read
Boot Write
On the following ECU:
Bosch ME17.9.21
Vehicles concerned:
Ducati 1.198 150hp
Support BENCH and BOOT option
Feb. 2023
Protocols for Porsche PDK
February 25, 2023
You can easy read & write Porsche PDK gearbox now!
SUPPORTED CONTROL UNITS & VEHICLES
BOOT
Porsche 911.2 Siemens PDK4000
Porsche 918 Siemens PDK3000
Porsche 918 Siemens PDK4000
Porsche Boxster 718 Siemens PDK3000
Porsche Boxster 981 Siemens PDK4000
Porsche Carrera 991 Siemens PDK3000
Porsche Carrera 991 Siemens PDK4000
Porsche Cayman Siemens PDK4000
Porsche Macan Siemens PDK3000
Porsche Macan Siemens PDK4000
Porsche Panamera Siemens PDK3000
Porsche Panamera Siemens PDK4000
Reading & Writing Time
Read: 12 minutes and 36 seconds
Write: 6 minutes and 18 seconds
January 27, 2023
ECU UPDATE New Protocols for Bentley Skoda (BOSCH )
Today we added multiple protocols for Bentley, Skoda, Honda, Volvo, etc. More info on supported ECUs and cars can be found below.
SUPPORTED CONTROL UNITS & VEHICLES
BENCH /BOOT/OBD
BOSCH
BAIC Bosch ME17.8.8 TC1728: Senova x25 1.5 VTI (2016), Senova X35 1.5 VTI (2016) , BJ20 1.5 VTI (2016)(BOOT)
Honda Bosch ME17.9.55 TC1724: City/Jazz/BRIO/FIT 1.2L i-VTEC (2014)(BOOT)
Mahindra Bosch EDC17C53 TC1767: XUV500 2.2 CRD (2014)(BENCH BOOT)
Bentley Bosch MG1CS163 TC298: Continental GT W12 6.0 (2018)(BENCH)
Volvo Bosch EDC16C34 MPC562: V70/S80 1.6D (2010)(OBD BENCH JTAG)
Skoda Bosch MED17.1.27: Fabia 1.0 TSI (2017)(OBD BENCH BOOT)
Bentley Bosch MED17.1.62: Bentayga W12 6.0 (2016)(BENCH BOOT)
January 28, 2023
1. BMW MSV90 Protocols BOOT Mode
This time it is for BMW cars with Siemens MSV90 TC1796 ECU. More info on supported cars can be found below.
SUPPORTED CONTROL UNITS & VEHICLES
BOOT
SIEMENS
MSV90 TC1796
CARS:
BMW 5 Series F10 – 530i N53B30A/N52B30B
BMW 5 Series F11 – 530i N53B30A/N52B30B
BMW 7 Series F01 – 730Li N52B30A/N52B30B
BMW 7 Series F02 – 730Li N52B30A/N52B30B
BMW X3 Series F25 – 28i xDrive N52B30A/N52B30B
2. Delphi DCM6.2AP DCM6.2A DCM6.2C DCM6.2V update
Support for all Delphi DCM6.2AP/A/C/V
foxFlash is now able to perform the following operations: on DCM6.2A/C/V
OBD Read
OBD Write
JTAG_BOOT
DCM6.2AP with JTAG_BOOT On the following manufacturer ECU’s:
Hyundai
Audi
Citroen
Fiat
Kia
MAN
Peugeot
VW
Toyota
Ssangyong
BENCH MODE for complete reading and writing (full backup) TRW EMS2.2 and TRW EMS2.3
FULL READ AND WRITE VIA PINOUT IN BENCH MODE:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9 / MED9
FULL READ AND WRITE VIA PINOUT IN BENCH MODE:
BOSCH MD1
BOSCH MG1
FREESCALE SPC5777
AURIX TC29x
ST SPC58
FULL READ AND WRITE VIA PINOUT IN BENCH MODE:
BOSCH EDC17
BOSCH MED17 / ME17
SIEMENS PCR2.1
(Unlocking also possible via pinout)
FULL SYSTEM VIA PINOUT (MICRO/FLASH + EEPROM) OF ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
BDM E JTAG MODES FOR:
BDM MPC 55x
BDM MPC 56x
BDM MC32 / ZC32
BDM HC12 / S12x
JTAG NEXUS MPC/SPC 56xx
JTAG NEXUS MPC 55xx
JTAG RENESAS
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC 76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0085
ADDITIONAL PACKAGE FOR AUTOMATIC TRANSMISSION:
FULL READ AND WRITE TCU (MICRO+EEPROM)
TCU CLONING
TCU CODING FUNCTIONS
FoxFlash vs KT200
1. Foxflash use faster server. No VPN needed. Supports WiFi hotspot.
2. FoxFlash gets 2-year warranty and KT200 only 1 year
3. Software has the same function. Foxfalsh develops own firmware, use own component selection, with better materials, improve on problems, more stable.

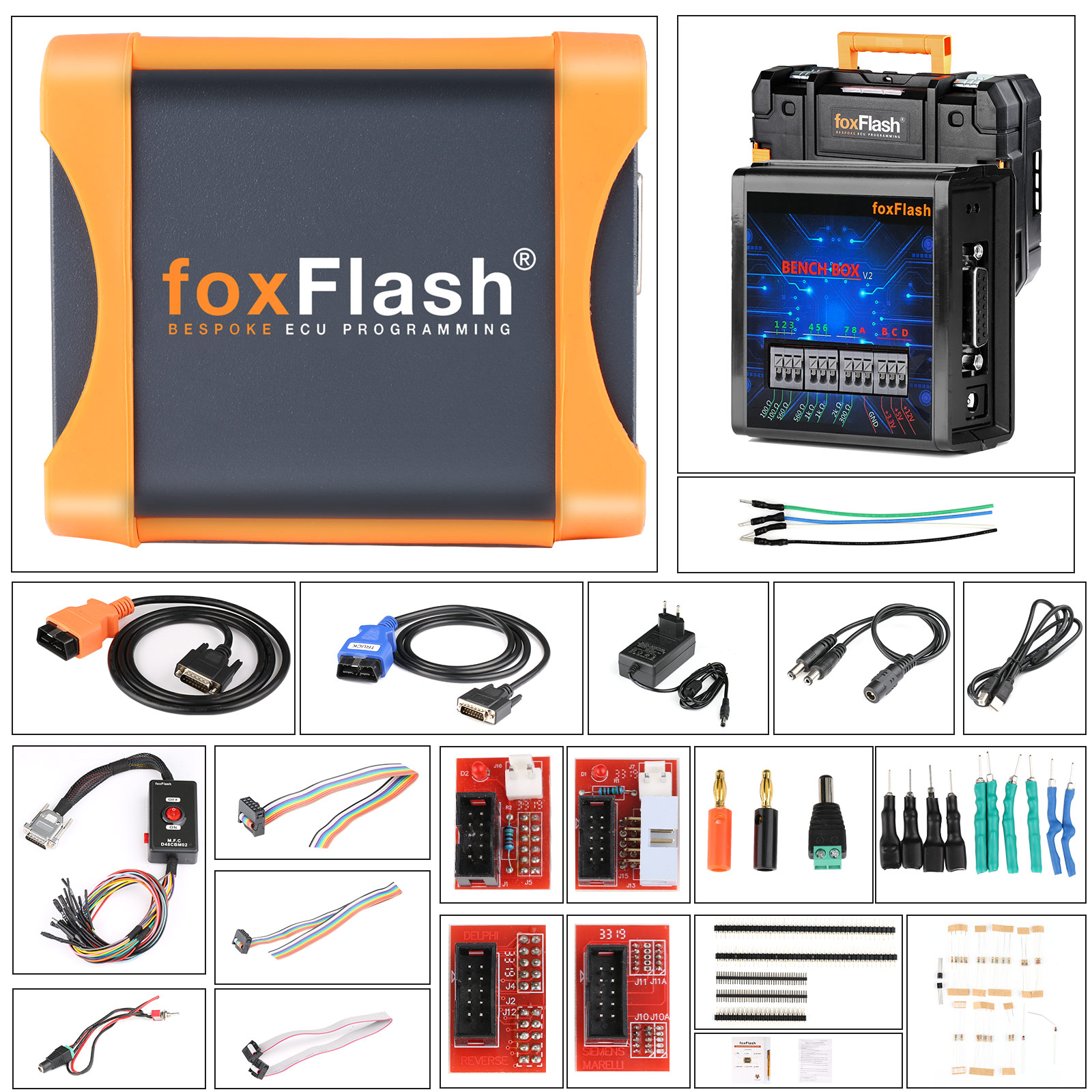

FoxFlash ECU Programmer Package List:
Hardware:

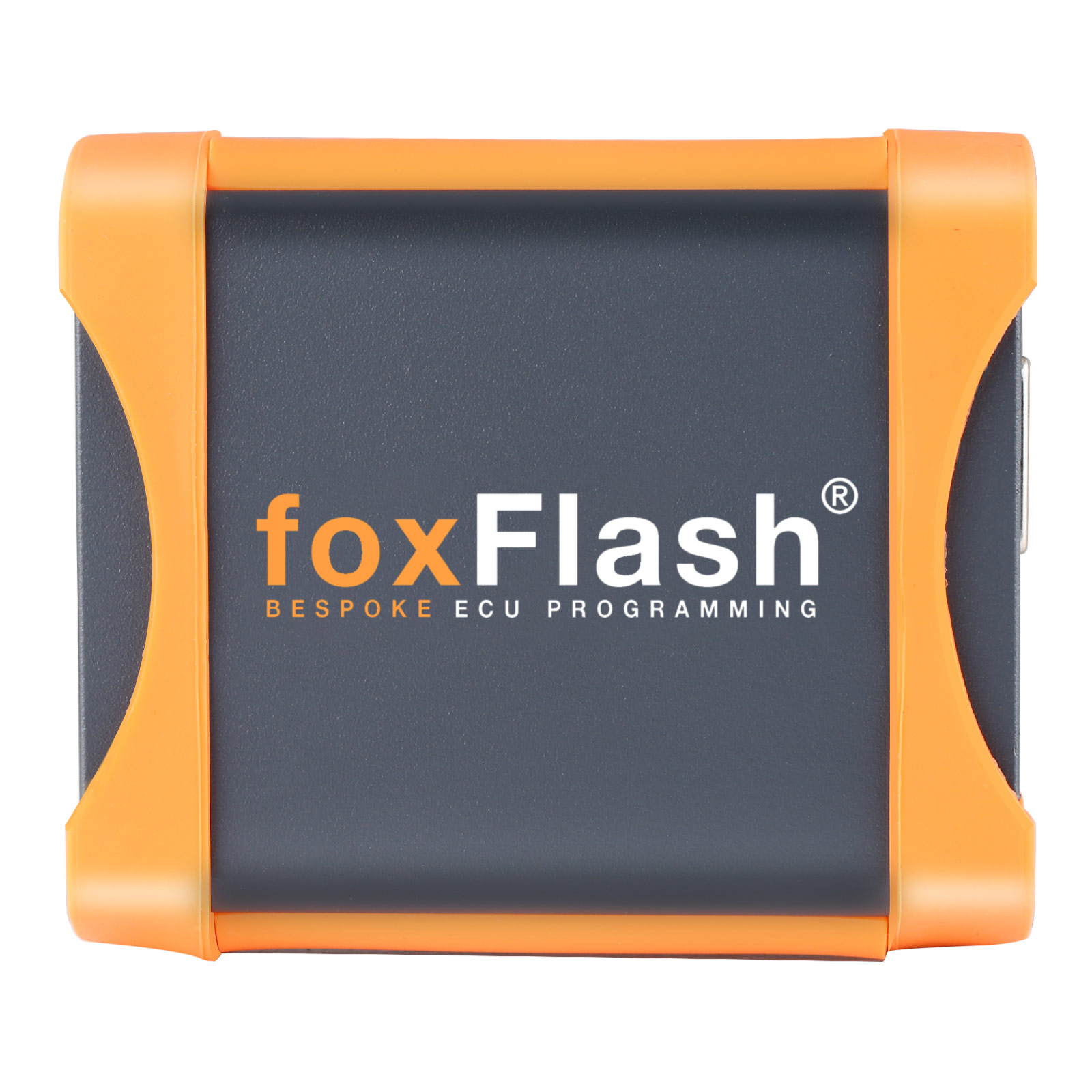

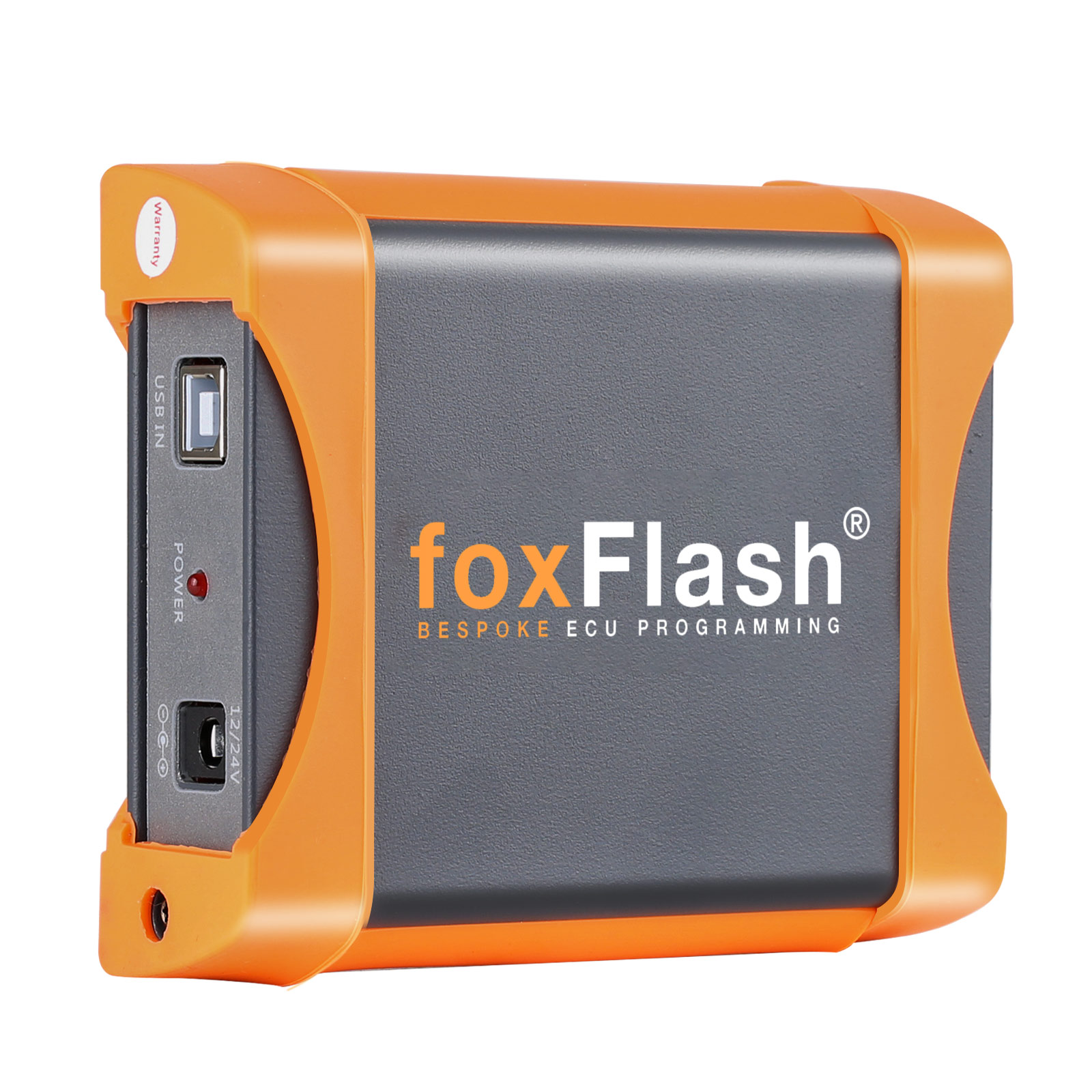

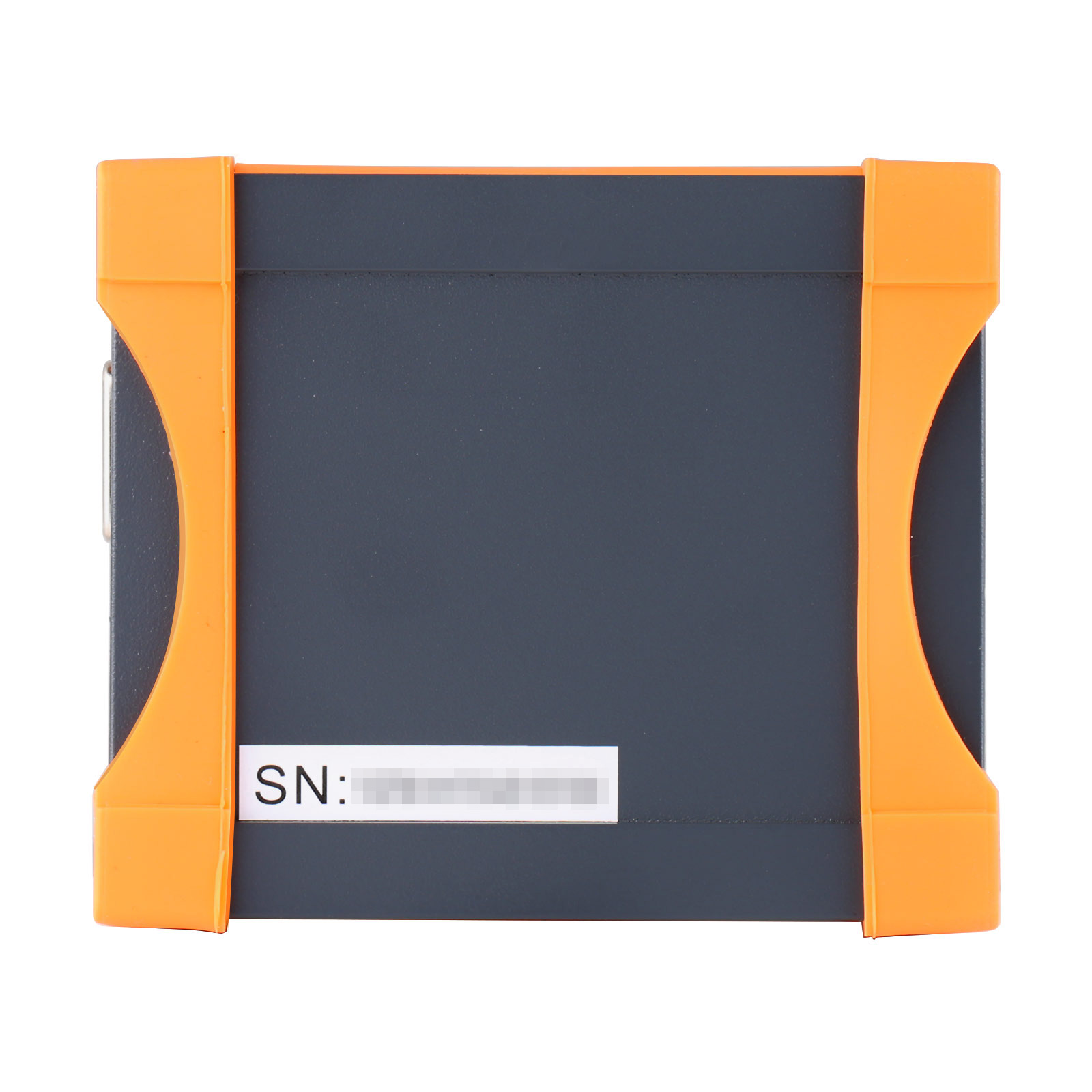

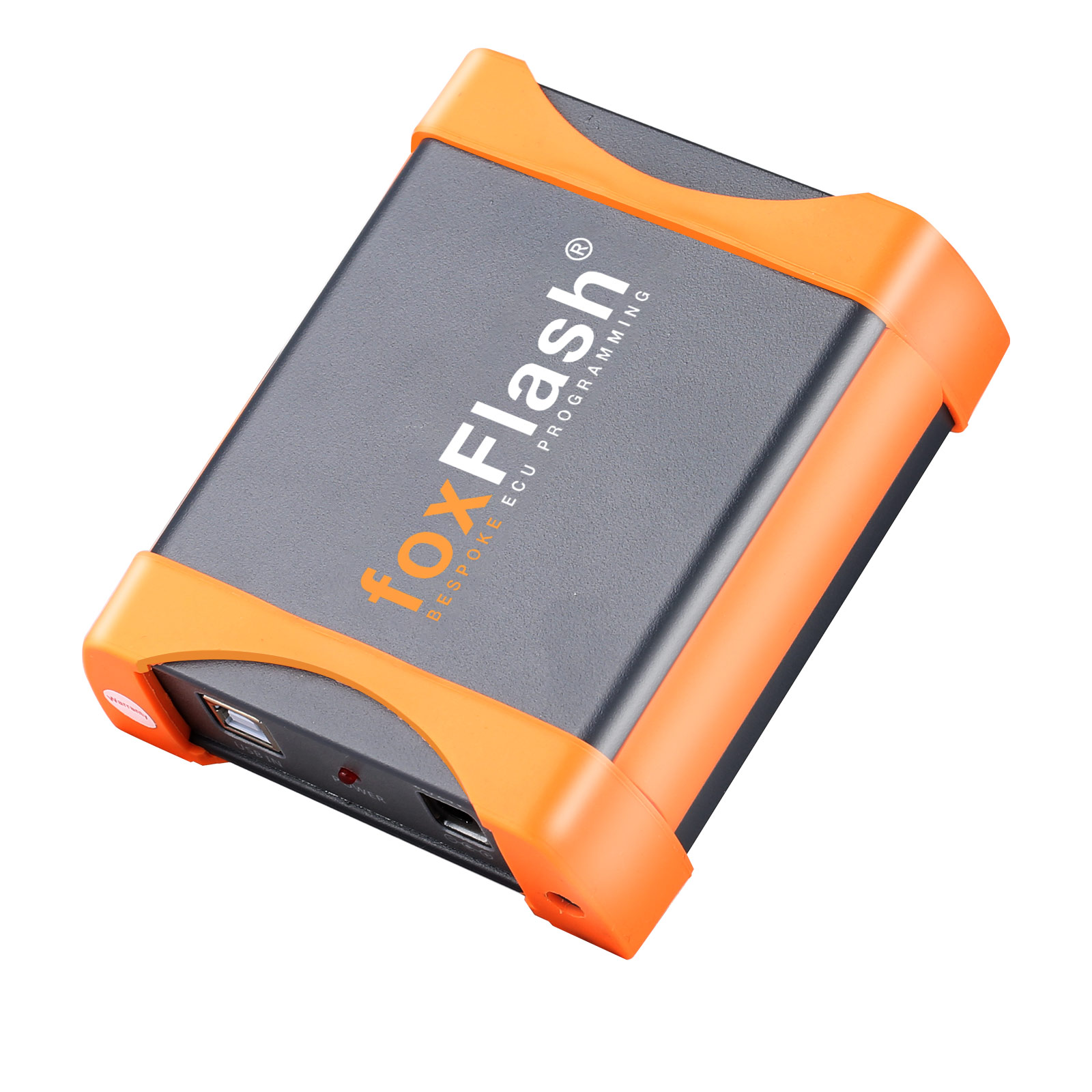

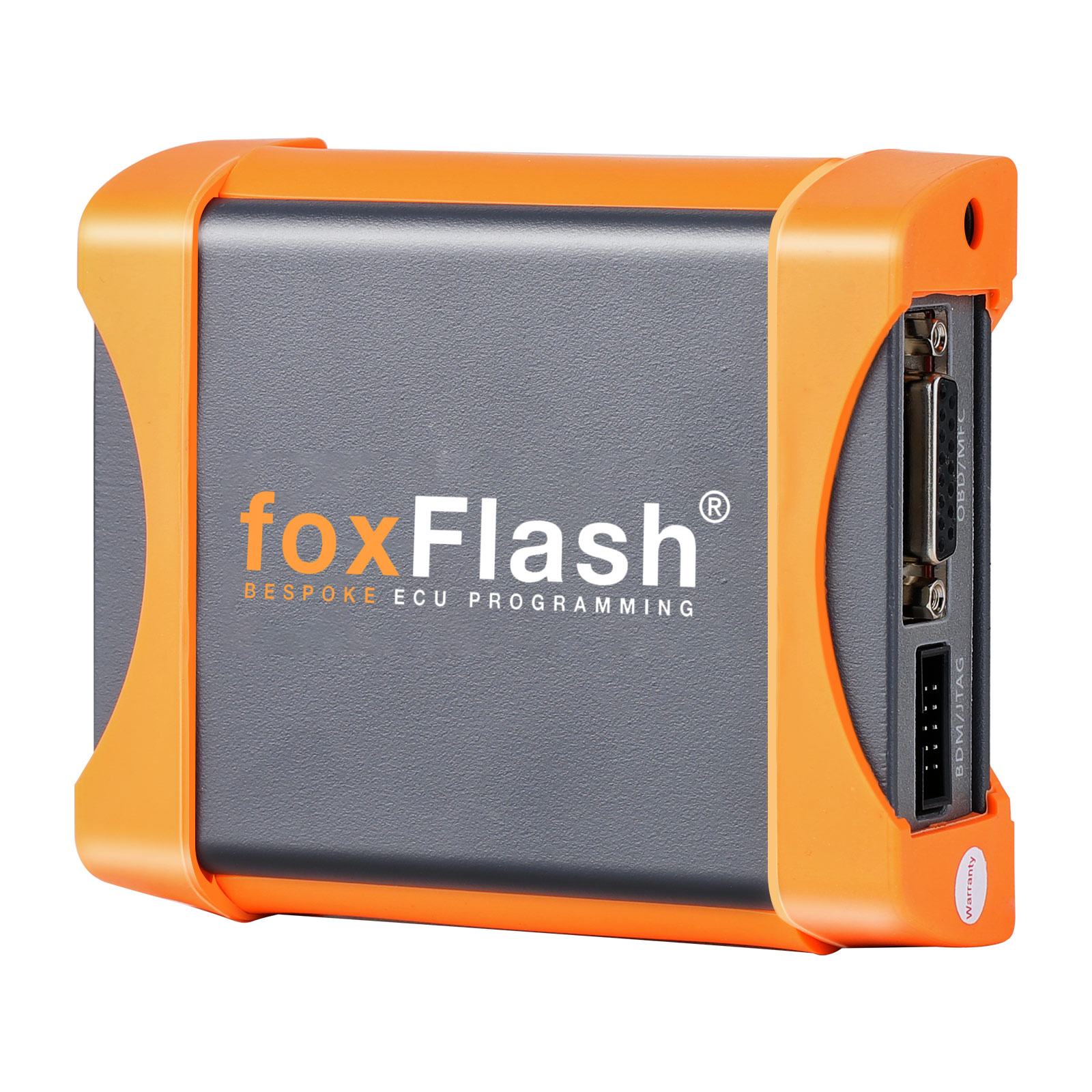

1pc x Master machine

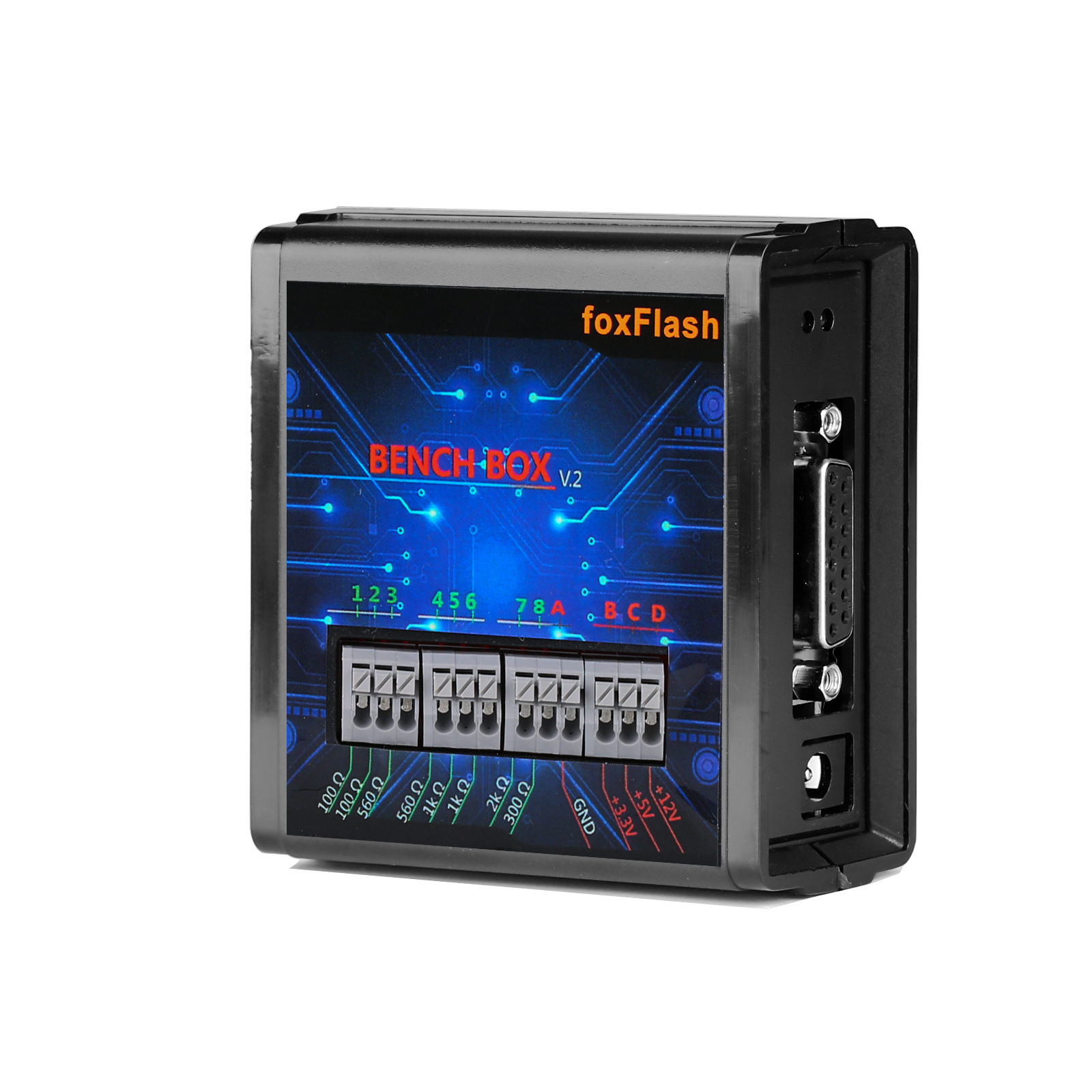

1pc x Fox bench box
1pc x USB cable
1pc x Power adapter
1pc x Fox box store over 10 adpaters
1pc x Jtag and bdm cables
1pc x Pen
1pc x Notebook

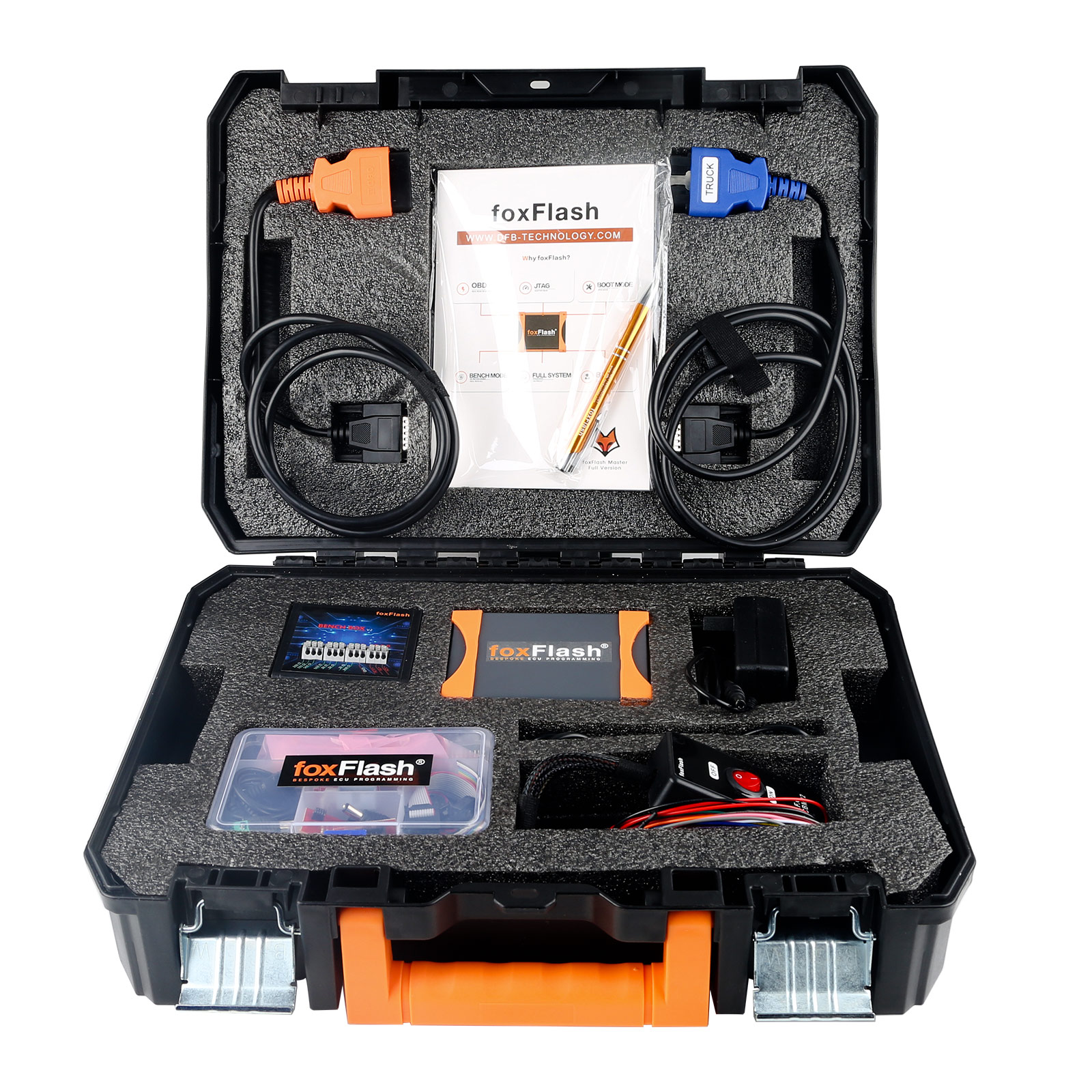

1pc x Suitcase
1pc x Function cable for boot, bench, kline links .
1pc x Truck OBD cable
1pc x Car OBD cable
1pc x Paper box
1pc x Install guide
Software:
1pc x Main software
1pc x Technical Support
1pc x Login account for software and tools
1pc x PDF pacakges for connecting ecu and tcu
1pc x Join facebook group for support
1pc x Online chat support for use
Extra pacakge according to users request after the user get the tool.
1pc x Tuner account
1pc x Helpdesk
1pc x
WinOLS damaos, A2L
