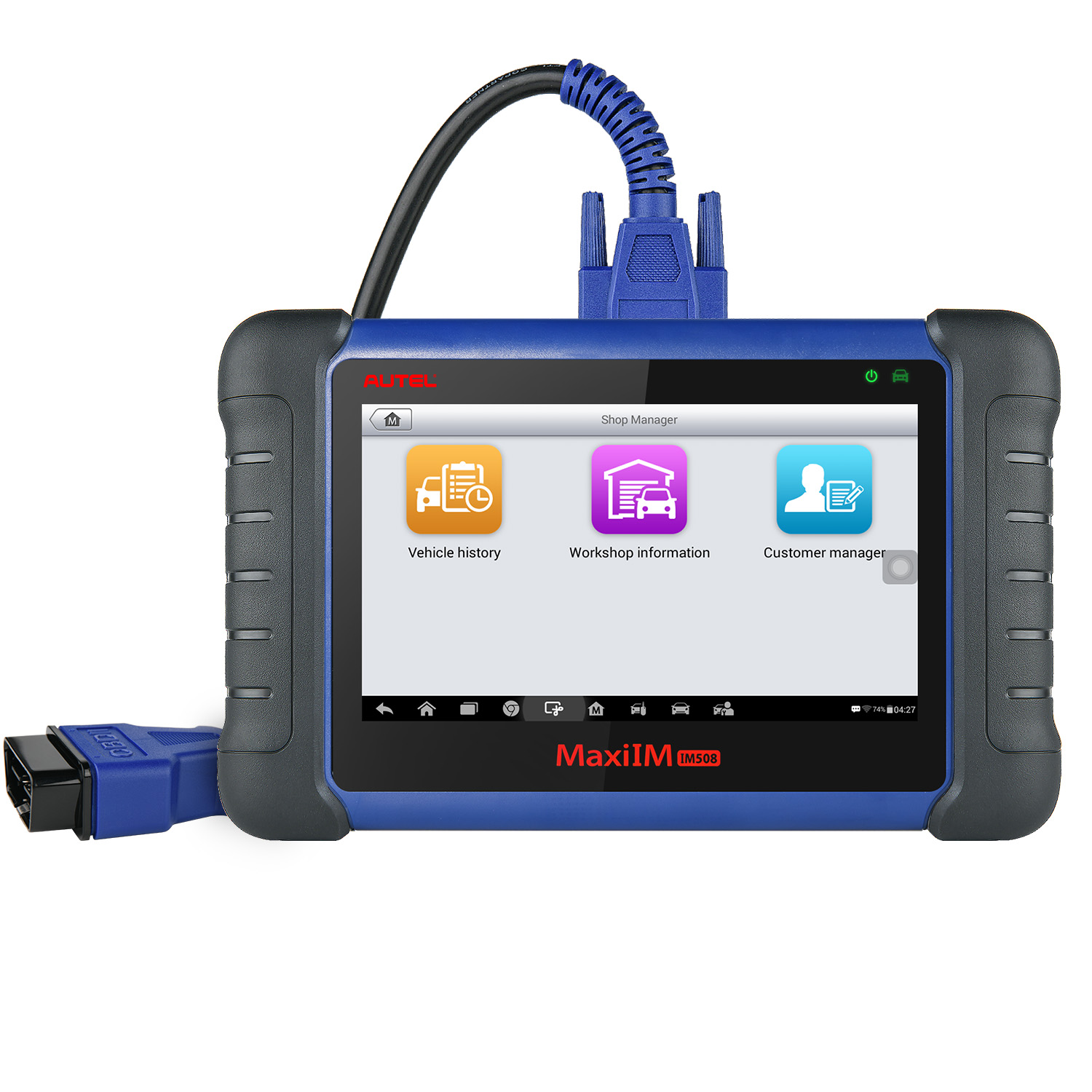

Autel MaxiIM IM508 ADVANCED IMMO & KEY PROGRAMMING Perfect Replacment of AURO OtoSys IM100
Kindly Note: Clients from UK,Portugal, Spain please do not buy AUTEL IM608 from China, or your device will get locked, please buy from your local dealer.
Autel MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device. IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.
MaxiIM IM508 Supports Muti-Language:
English / Portuguese / Germany / Japanese / French / Spanish（Ship the tool with English
language in default , if you need other language , please leave message to us or contact our sales , thank you)
Autel MaxiIM IM508 Features:

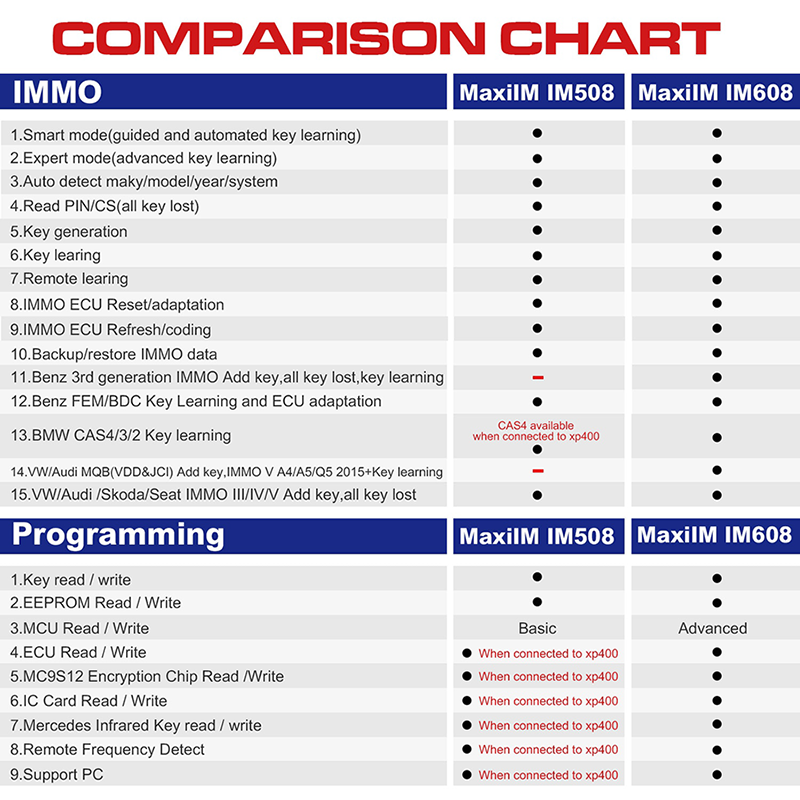

COMPARISON WITH IM608:
With XP200 Key Programmer, IM508 Key Programmer Tool has all IMMO functions as IM608 except for Benz 3rd Generation IMMO, BMW CAS4 Key Learning and VW/Audi MQB(VDD & JCI) Add Key, IMMO V A4/A5/Q5 2015+ Key Learning availability. With nearly 1/3 of its price, IM508 is a perfect affordable IMMO tool alternative for Autel IM608. IM508 is a professional automotive key programming tool that combines key programming, all car systems diagnosis and advanced service functions.
COMPREHENSIVE IMMO & KEY CHIP PROGRAMMING:
IM508 Diagnostic Scan Tool can perform: Read PIN/CS(All Key Lost), key generation, key learning, remote learning on Benz FEM/BDC Key Learning/ECU Adaptation, BMW CAS3/2 Key Learning, VW/Audi/Skoda/Seat IMMO III/IV/V Add Key, All Key Lost, IMMO ECU reset/adaptation/refresh/coding, Transpronder read & write, EEPROM/MCU read & write. Being compatible with XP400 Key Programmer, you may choose to upgrade its programming capabilities further with XP400.
MOST USEFUL SERVICE FUNCTIONS:
As a professional diagnostic scanner, IM508 comes with most useful service functions like Oil Reset, Reset Parking Brake Pads after replacement, SAS Calibration, TPMS Sensors ID Relearn, BMS and performing active tests to test the integrity or functionality of individual system or component.
OE-LEVEL ALL MODULES DIAGNOSIS:
Autel MaxiIM IM508 automotive scan tool can quickly diagnose all modules of more than 80 US, Asian and European makes and models on the market. To check compatibility with your vehicles, please send VIN to firstname.lastname@example.org or contact us through Q/A. With complete capabilities for codes, live data, ECU Info, adaptation, matching, coding and etc, IM508 is the perfect automotive diagnostic tool pick for technicians and mechanics.
12 MONTHS FREE SOFTWARE UPDATES:
IM508 Key Programmer Scan Tool comes with 12 Months Free Software Updates and is backed by 45 Day Money Back Guarantee and 12 Months Seller Warranty. Place your risk-free purchase now and start protecting your cars from being stolen!
Autel MaxiIM IM508 Function List:
All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record, Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
Key Read / Write
EEPROM / MCU Read / Write
Read PIN / CS (All Key Lost)
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All
Key Lost, and More
Professional Key Programmer
Autel IM508 is a professional car diagnostic scanner that provides extraordinary service functions for the immobilizer system, including: immobilizer system status,
key learning, key add, all keys lost, remote control learning, remote control add, chip read and write. It’s a professional solution for car keys and remote controls
and prevents your car from being stolen!
The IMMO application requires a data link to the IMMO electronic control system of the test vehicle for diagnosis via OBD II connection. The application retrieves vehicle IMMO information and performs IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc.
Autel MaxiIM IM508 Advanced IMMO & Key Programming :
1.Read PIN/CS (AII key Lost)
3.Key Learning/Remote Learning
4.Backup/Restore IMMO Data
5.IMMO ECU Reset/Adaptation,Refresh/Coding
6.BMW FEM/BDC Key Learning and ECU Adaptation
7.VW/AUDI MQB Key Learning,48 Transponder(96-bit)Add Key ,All Key Lost,A6 AII Key Lost

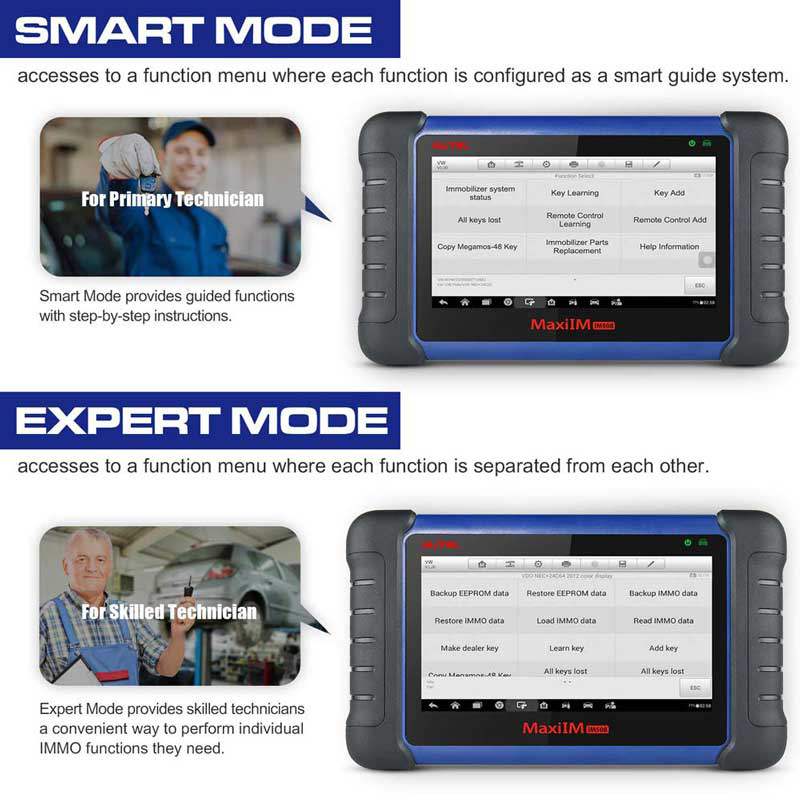

Smart Mode & Expert Mode
Smart Mode– accesses to a function menu where each function is configured as a smart guide system.
Expert Mode– accesses to a function menu where each function is separated from each other.
The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), airbag system (SRS)......
Most Commonly Used Reset Services
Oil Rest Service: This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle
driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore,the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration.
This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test.
The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement
and activate the rest state of the vehicle.
This function is used to manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
OE-Level All Systems Diagnosis
Autel IM508 Car Scanner can perform OE-Level diagnosis on all car electronic systems like ABS, SRS, Engine, Transmission and etc and show live data of multiple sensors.
It is compatible with more than 80 American, Asian and European makes and models.
Auto Scan Technology
The Autel IM508 professional OBD2 scanner comes with Auto Scan function that performs a comprehensive scanning over all the ECUs in the vehicle to locate systems
faults and retrieve DTCs for efficient diagnosis.
Live Data & Review Freeze Frame Data
The IM508 car diagnostic scanner reads codes, show live data of multiple sensors in or graph or text, clears codes. The Review Data section allows you to playback the recorded data frames of live data streams.
Remote Technical Support
The Remote Desk application launches the TeamViewer Quick Support program, which is a simple, fast and secure remote control screen. You can use the application
to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiIM tablet on their PC via the TeamViewer software.

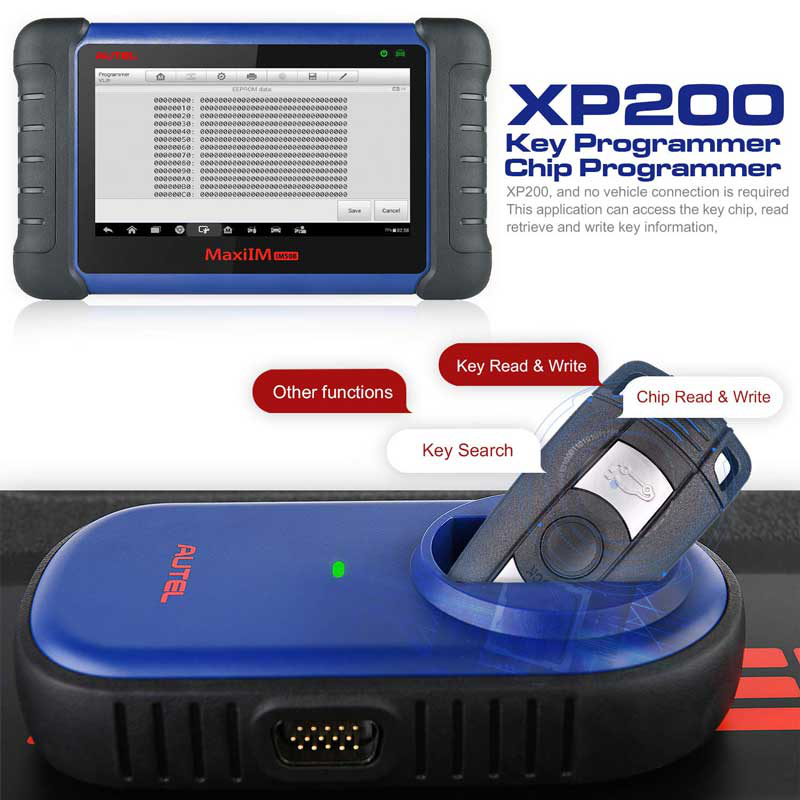

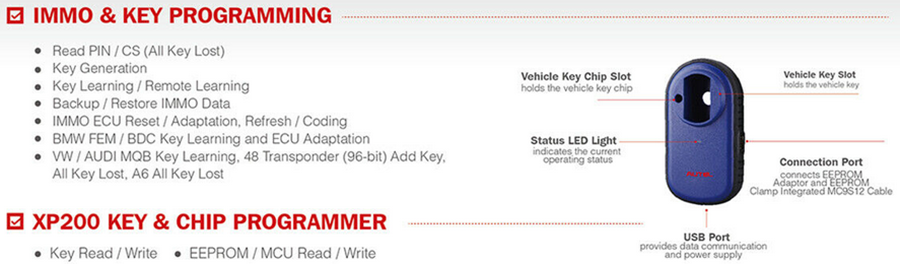

XP200 Key & Chip Programmer:
1.XP200,and no vehicle connection is required.This application can access the key chip,read retrieve and write key information.
2.The XP200 is specially designed to read Volkswagen vehicle key chip data, clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with diagnostic tool and PC that are both loaded with programmer software, the XP200 can read/write key chip data quickly and accurately.
Autel IM508 EEPROM Read/Write Supported Types
AT24C01, AT24C02, AT24C04, AT24C08, AT24C16, AT24C32, AT24C64, AT24C128, AT24C256, AT24C512, AT24C1024, AT24C128_1.8
AT24C256_1.8, AT24C512_1.8, AT24C01A, AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256
AT25512, AT25010_1.8, AT25020_1.8, AT25080_1.8, AT25320_1.8, AT25640_1.8, AT25128_1.8, AT25256_1.8, AT59C11, AT59C22
AT93C46A, AT59C13, AT93C46, AT93C46R, AT93C56, AT93C57, AT93C66, AT93C76, AT93C86
CAT25C01, CAT25C02, CAT25C04, CAT25C08, CAT25C16, CAT25C32, CAT25C64, CAT25C128, CAT25C256
NM24C16U, NM24C16UT, NM24C17U, NM24C17UT, FM93CS46T
85C72, 85C82, 85C92, 25xx080, 25xx160, 25xx320, 25xx640, 25xx040_TSSOP, 25xx320_TSSOP, 25xx640_TSSOP, 93C06, 25xx040
93C46X, 93C46A, 93C46, 93C46AX, 93C46BX_93C46CX, 93C56A, 93C56, 93C66A, 93C66, 93C76A, 93C76, 93C86A, 93C86
PCF8582C, PCF8594C, PCF8598C
NM93C13, NM93C14, NM93CS06, NM93C14TM8, NM93CS46, NM93CS56, NM93CS66
CXK1011, CXK1012, CXK1013
S_24S45, S_24H30, S_24H30_SOP8, S_24H45, S_24H45_SOP8, S_24S30
M24C01, M24C02, M24C04, M24C08, M24C16, M24C32, M24C64, ST24x01/ST25x01, ST24x02/ST25x02, ST24x04/ST25x04
ST24x08/ST25x08, ST24x16, ST25x16, AT25040_1.8, AT25160_1.8, M95010, M95020, M95160, M95040, M95080, M35080, M95320
M95640, M95256, M95128, M95512, M93C46, M93C56, M93C66, M93C76, M93C86, M93S46, M93S56, M93S66
TC89101, TC89102, TC89121, TC89122
TMC93LC46, TMC93LC56, TMC93LC57, TMC93LC66, TMC93LC86
X5043, X5045, X25043, X25045, X24C44
9S12 Read/Write Supported Types
1.Operating System:AndroidTM 4.4.4
2. Processor:Cortex-A9 processor (1.6 GHz)
4.Display:7-inch LCD capacitive touchscreen with 1024x600 resolution
5.Connectivity:Mini USB 2.0,USB 2.0,Wi-Fi,Micro SD card (supports up to 32GB)
6.Sensors:Ambient light sensor for brightness auto changing
7.Audio Input / Output:Input: N/A,Output: buzzer
8.Power and Battery:3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
9.Tested Battery Life:Around 4.5 hours of continuous use
10.Battery Charging Input:5 V/1.5 A
11.Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
12.Operating Temp:0 to 50°C (32 to 122°F)测试
13.Storage Temp:-20 to 60°C (-4 to 140°F)
14.Operating Humidity:5% - 95% non-condensing
15.Net Weight:788 g (2.42 lb.)
16.Supported Automotive Protocols
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,
SAE-J1850 PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
Autel MaxiIM IM508 Package List:

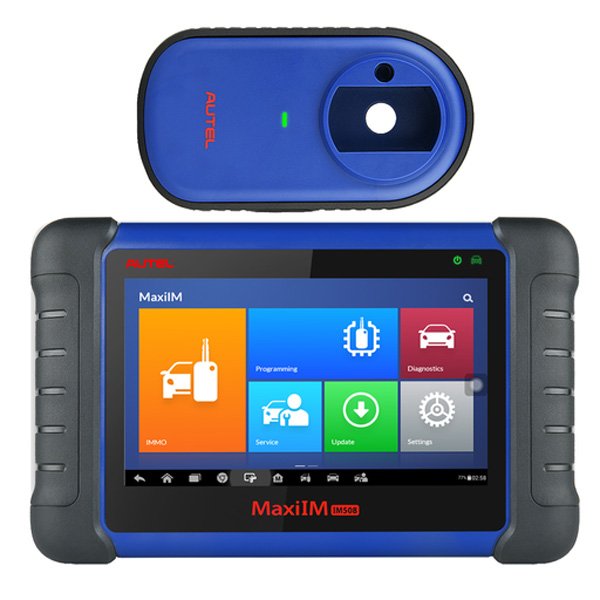

MaxiIM IM508 Tablet
XP200 Key Programmer
USB External Power Adapter
Mini USB Cable

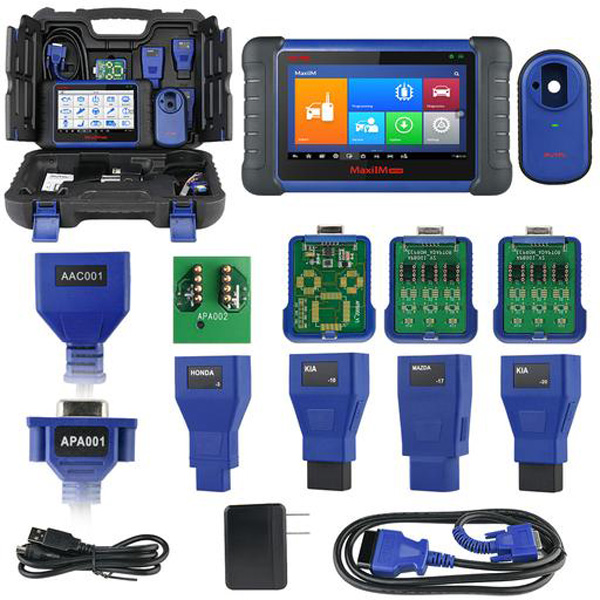

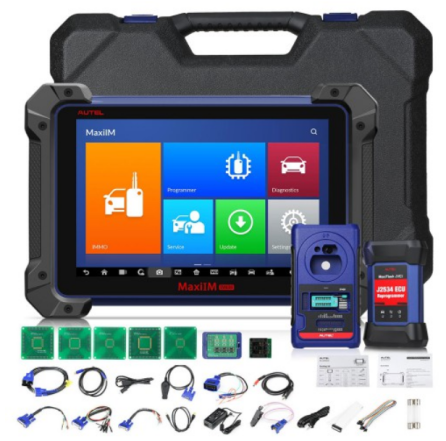

Autel MaxiIM IM508 + XP400 Pro Package List:
MaxiIM IM508 Tablet
XP200 Key Programmer
USB External Power Adapter
Mini USB Cable

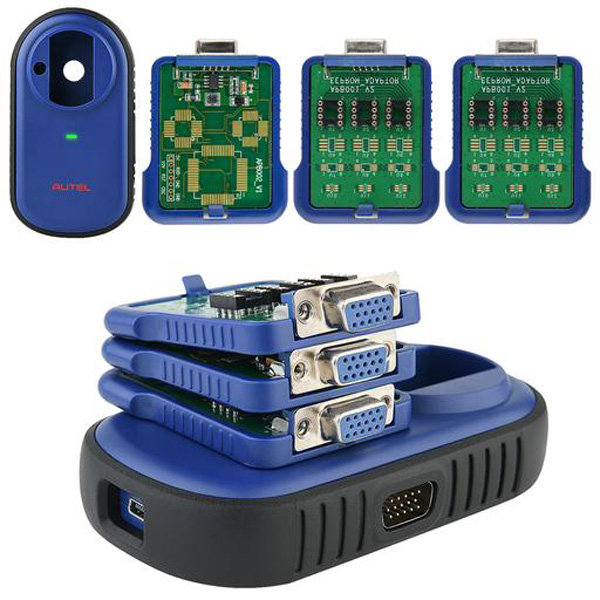

1 x XP400 Pro Main Unit
1 x EEPROM Adapter
1 x EEPROM Socket
1 x Mercedes Infrared Collector
1 x MCU_PLCC52 Adapter
1 x MCU_FQFP64 Adapter
1 xMCU_FQFP80 Adapter
1 x MCU_FQFP112 Adapter
1 x MCU_FQFP144 Adapter
1 x MCU_FQFP176 Adapter
1 x MCU_FQFP32 Adapter
1 x MCU_FQFP48 Adapter
1 x MCU_SO28 Adapter
1 x Spare Signal Cable
1 x USB Cable (Standard USB –Type B USB)
1 x EEPROM Clamp
1 x ECU Cable
1 x MCU Cable
1 x MC9S12 Cable
1 x Dupont Line
