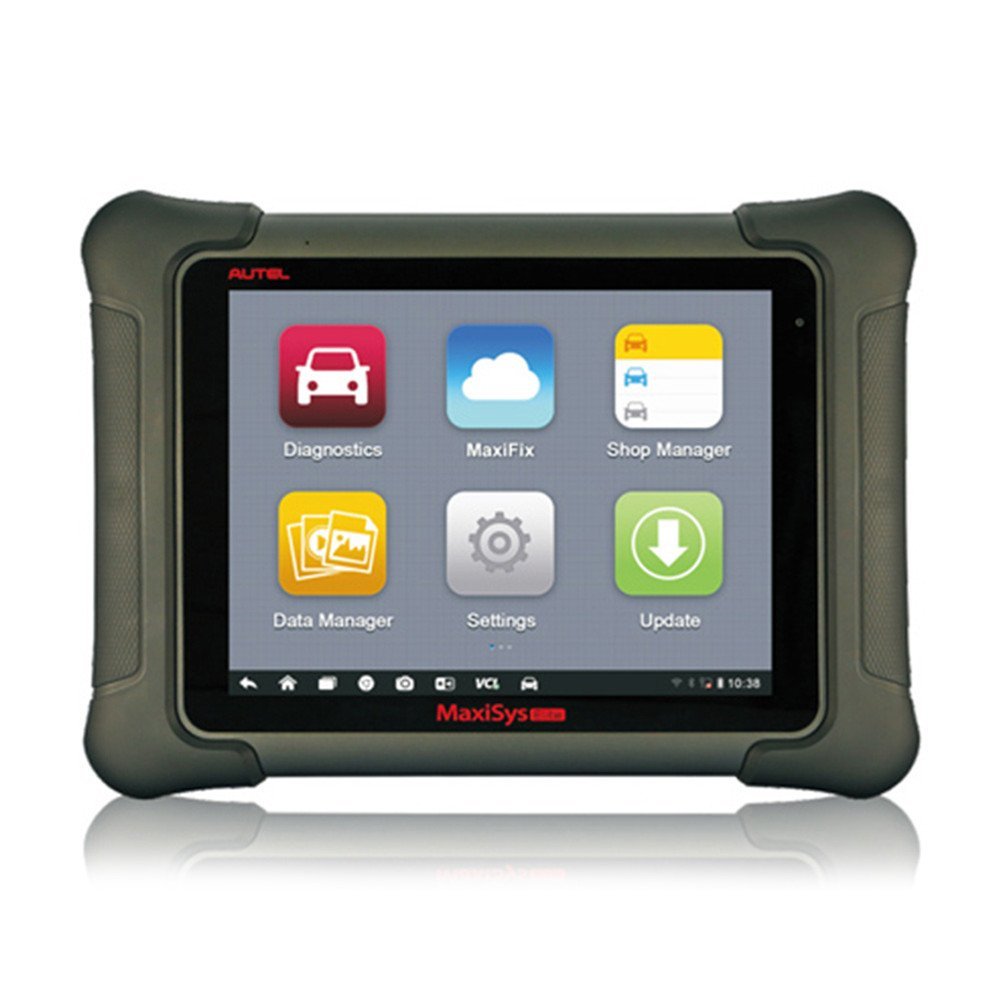

Autel Maxisys Elite II OBD2 Diagnostic Scanner Tool Support Bi-Directional Control with J2534 Programming
Autel Maxisys Elite II is a latest version of the Maxisys Elite series, that upgraded from Autel Maxisys Elite. It improves hardware and software, same hardware as MS909, Adds more expansion functions, replacing the exsiting software/ firmware in the ECUs, programming new ECUs for BMW and Benz, ADAS, oscilloscope, GPS, Support MaxiFix cloud service, etc
Mainly features :
1. Free Update Online for 2 Year. After 2 Year, please check Autel Maxisye Elite II One Year Update Service
Promotion: Registered during 07/01-12/31 2023 enjoy 2-years free update, please contact the seller to add one-year upgrade after registration
2. Global Version No IP Blocking Problem
3. Multi-Language Supported: English, German, Spanish, French, Polish, Italian, Dutch, Portuguese, Swedish, Russian, Japanese, Korean
4. Guide Functions: Guide mechanics to repair vehicles one by one
5. Support Pre-scan and Post Scan Report: Printer report for customers who needs
6. Autel MaxiSys Elite II Comes with SAME Hardware as MaxiSys MS909, but cut 1000+ bucks budget
7. Upgrade Premium Hardware: Android 7.0, Octa-core Processor (2.3GHz Quad-core + 1.7GHz Quad-core), 4GB 128GB, 9.7inch BOE)
8. Support Australia Holden and Ford
9. Extended Function:
-Work with Autel BT506, enables technicians to view the health status of vehicle's battery and electrical system.

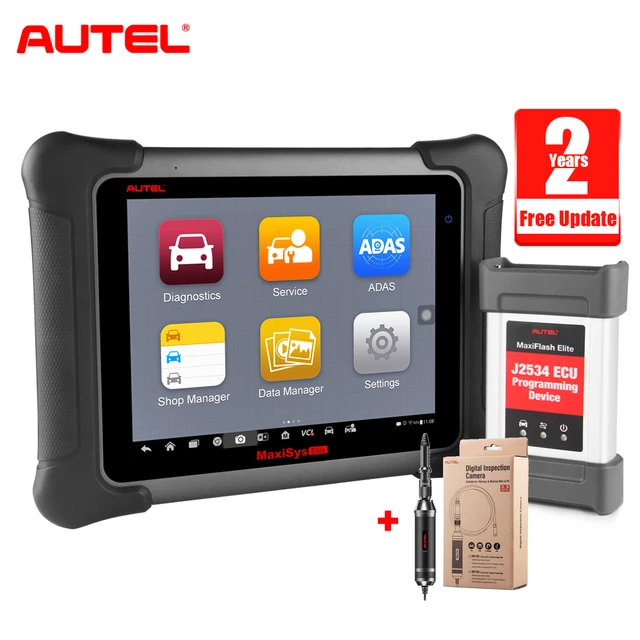

-Work with Autel MV108/ MV105 allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.
10. New Add "Intelligent diagnostics" Function: (Update on June 1, 2022)
A.Technical Service Bulletin (OEM Information).
B.DTC Analysis.
C.Repair Assist.
D.Repair Tips.
E.Relevant Cases.
Autel Maxisys Elite II All System Diagnosis:
1. I/M Readiness, O2 Sensor Monitor, On-Board Monitor, Vehicle Information and Vehicle Status
2. Retrieve and display ECU information of tested control unit, including unit type, version numbers and other specifications;
3. Read all kinds of DTCs from vehicle’s control systems to locate problem areas and offer possible solutions;
4. Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
5. Live data of each parameter item displayed in analog, text, waveform graph, digital, or full screen display modes;
6. Active test used to access vehicle-specific subsystem and component tests.
Specification :
|
Operating System
|
Android 7.0
|
|
Processor
|
Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
|
|
Memory
|
4GB RAM & 128GB On-board Memory
|
|
Display
|
9.7 inch LED capacitive touch screen with 2048x1536 resolution
|
|
Connectivity
|
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
GPS
USB 2.0 (Two USB HOST Type A, one USB mini device)
HDMI 2.0
SD Card (Support up to 256GB)
|
|
Camera (rear)
|
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
|
|
Sensors
|
Gravity Accelerometer, Ambient Light Sensor (ALS)
|
|
Audio Input/Output
|
Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jack
|
|
Power and Battery
|
15400 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
|
|
Input Voltage
|
12 V (9-24 V)
|
|
Operating Temp
|
0 to 50°C (32 to 122°F)
|
|
Storage Temp
|
-20 to 60°C (-4 to 140°F)
|
|
Dimensions(WXHX D)
|
309 X 225 X 35(mm)
|
|
Weight
|
1.59 kg
|
|
Protocols
|
ISO 9142-2,ISO 14230-2,ISO 15765-4,K/L line,Flashing Code,SAE-J1850 VPW,SAE-J1850 PWM,CAN ISO 11898,Highspeed,Middlespeed,Lowspeed and Singlewire CAN,GM UART,UART Echo Byte Protocol,Honda Diag-H Protocol,TP 2.0,TP 1.6,SAE J1939,SAE J1708V
|
What's New in Elite II?
A. Hardware and software platform upgrade, a new operating experience
1. Samsung Exynos8895 8 core hardware platform.
2. Equipped 5M/16M camera.
3. Equipped 4G/128G super memory.
4. Equipped 15400mAh battery
B. Support more expansion functions, easy to manage various repair scenarios
1. Battery detection (BT506)
2. Support ADAS calibration, oscilloscope, GPS
C. Support MaxiFix cloud service, efficiency enhancement at your fingertips
1. Support Remote expert service, RealFix, SMS.
2. Device management/report management, data on the cloud without fear of loss
What Makes Autel Maxisys Elite II "Elite"?
1. Full System Diagnosis & Full OBDII functions
Using the additional OEM software, the Maxisys Elite II can be used as a Pass-Thru diagnostics tool as well, which allows users to read and clear Diagnostic Trouble Codes (DTCs) and data log PIDS, collect sensor data and log generic OBDII data, etc.
Similar to many Autel scan tools, the Autel Maxisys Elite II can perform all the OBD II test modes. These include the latest powertrain diagnostic data, freeze frame data, emission diagnostic trouble codes, emissions diagnostic data, oxygen sensor monitoring test results, onboard monitoring tests, VIN, and many more

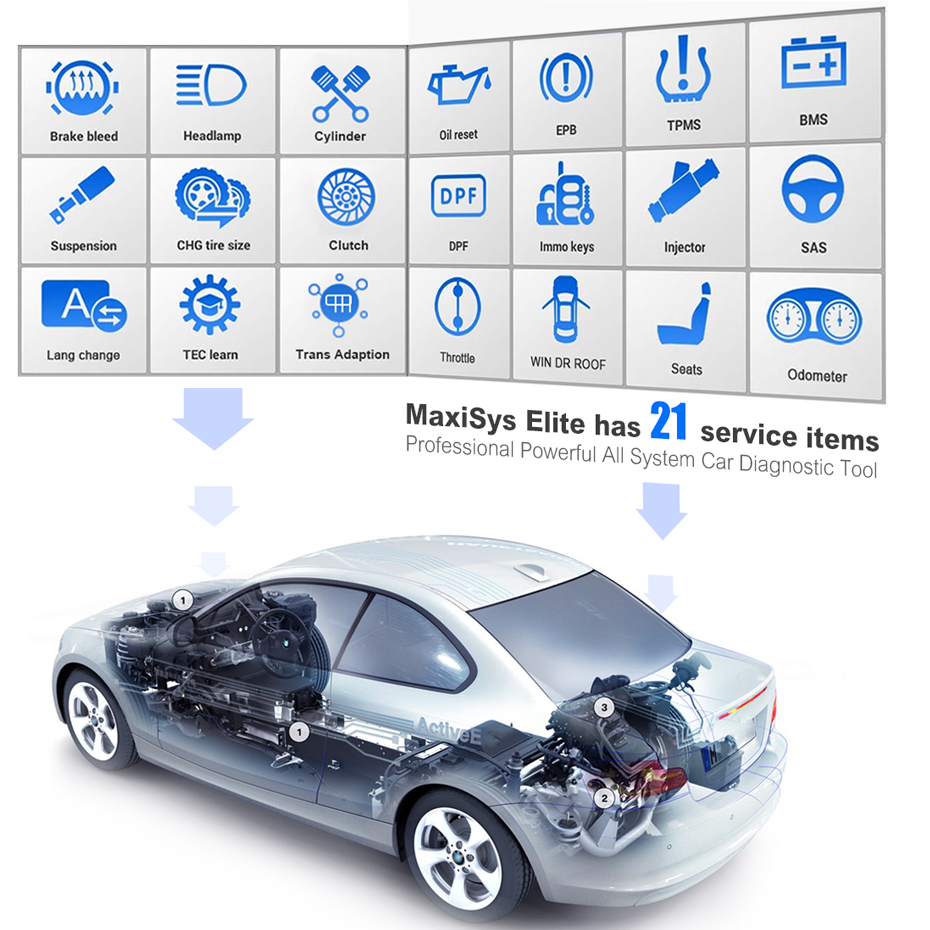

2. 36+ Advanced functions & Online Programming
Maxisys Elite II diagnostic scanner comes with 36+ service functions, such as ABS Brake Bleeding( also for VAG cars), SRS Reset, SAS Calibration, Oil Reset, EPB, BMS, injector coding, DPF, Throttle Body, etc to meet your various needs. Online Programming is available on Maxisys Elite II.

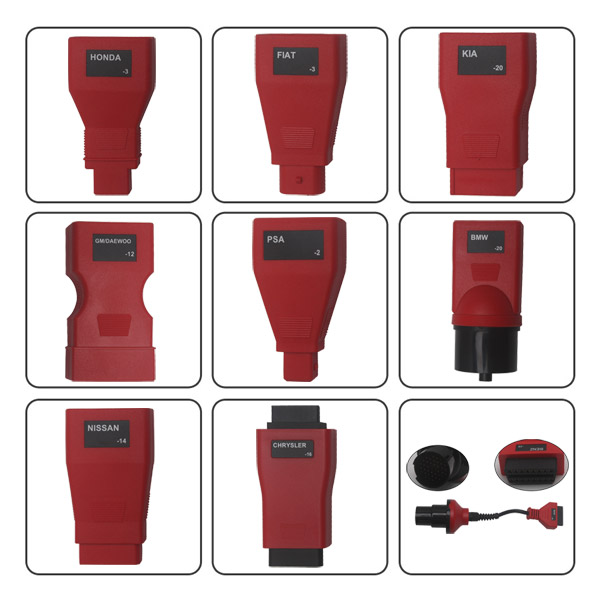

3. Extensive vehicle coverage & Extra Vehicle Adapter
Maxisys Elite II is one of the most extensive diagnostic scan tools with complete system coverage for more than 80 US domestic, European, and Asian vehicle makes and models.
Even though it is an OBD II Scanner, it as well works on some OBD 1 vehicles. Some of the famous car brands that this scan tool is compatible with include GM, Ford, Chrysler, Audi, Toyota, Nissan, Honda, BMW, Benz, Chevrolet, etc.
Autel Maxisys Elite II Special Functions:
1. Oil Reset Service: To reset the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
2. Tire Pressure Monitor System (TPMS) Service: allows you to look up the tire sensor IDs from the vehicles ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
3. Electric Parking Brake (EPB) Service: Deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
4. ABS/SRS Services: To perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.
5. Steering Angle Sensor (SAS) Service: Allowing you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
6. Diesel Particulate Filter service (DPF): Designed to perform the regeneration procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off.
Autel Maxisys Elite II Online Programming

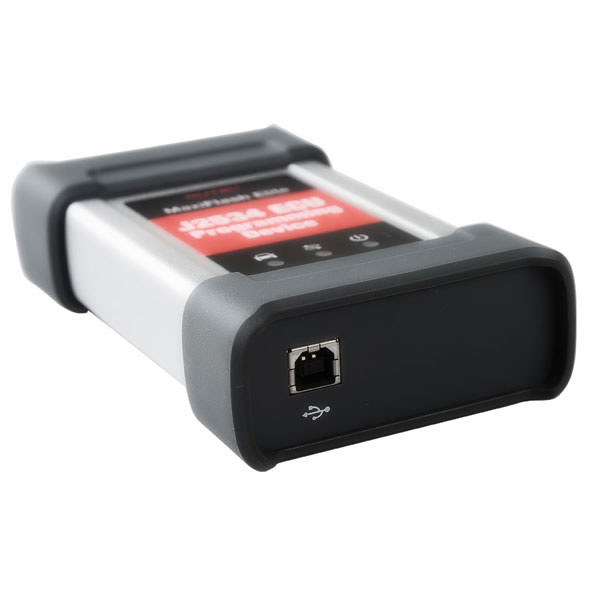

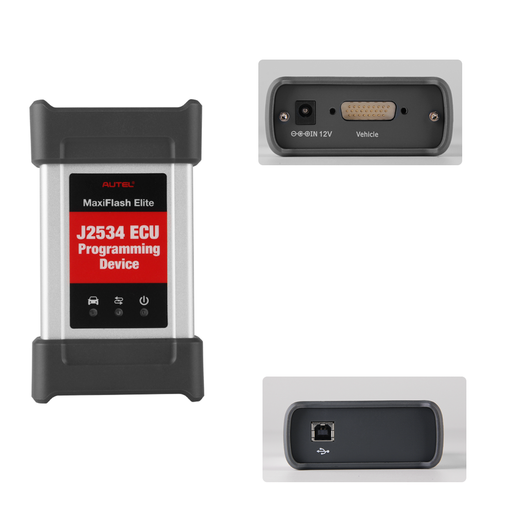

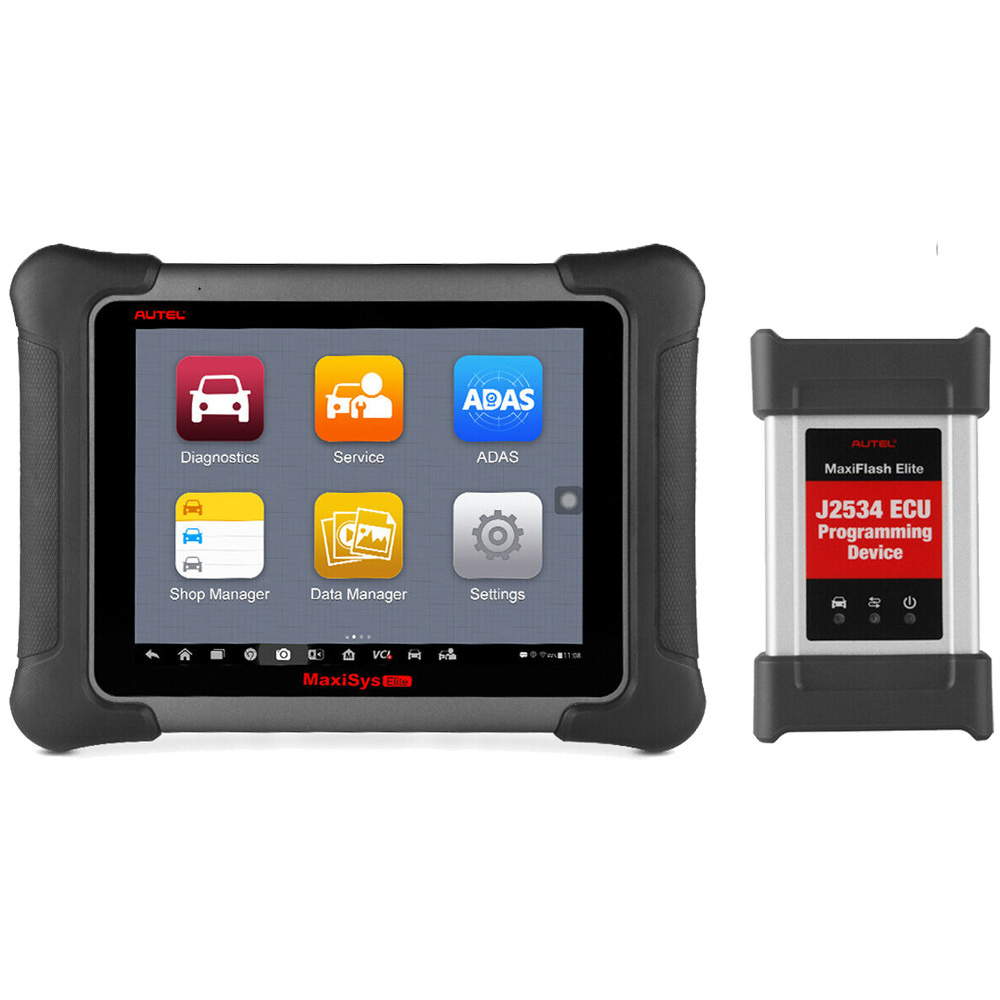

Maxisys Elite diagnostic tool come with Autel MaxiFlash Elite which allows it to process online ECU programming on Benz and BMW vehicles. This is the most advanced and valuable function for many mechanics and professional DIYers. Just do it as instructed, you will find it is easy to fix the complex problem with the guidance.

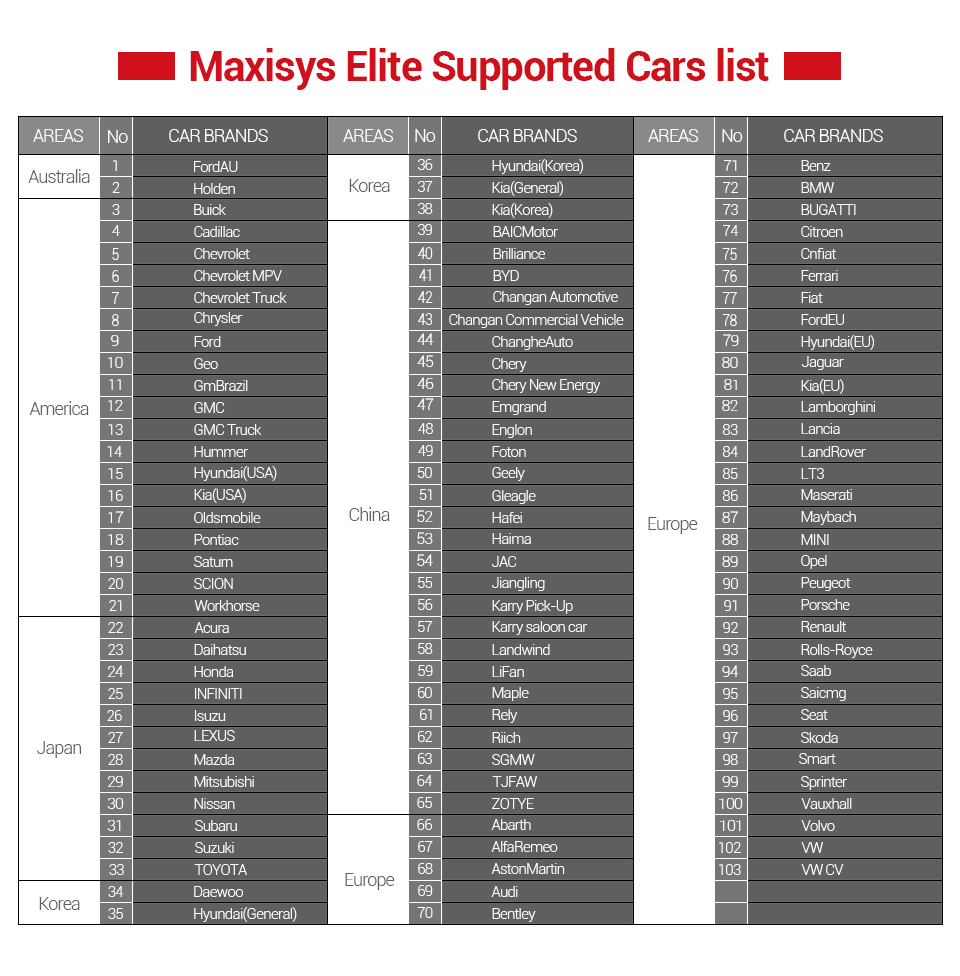

Autel Maxisys Elite II Vehicle Coverage:
The Latest Maxisys Elite II support almost 90% vehicles all around the world. These multi-functions perform various componet adaptions allowing you to recalibrate or configure certain componet after making repaires or replacement.
1) Supported Vehicle List: AUDI, BENZ, BMW, DACIA, EU FORD, AU Ford, Ford, Holden, LANDROVER, MINI, OPEL, PEUGEOT, RENAULT, SEAT, SKODA, VW, VOLVO, SMART,?JAGUAR, BENZ SPRINTER, SAAB, FIAT, ABARTH, LACIA, ALFA ROMEO, VAUXHALL, MAYBACH, BENTLEY, BUGATTI, PORSCHE,GM, CHRYSLER, FORD,SUZUKI,?KIA, DAWEOO, ISUZU, TOYOTA, SUBARU, SCION, NISSAN, MITSUBISHI, LEXUS, INFINITI, HYUNDAI, HONDA, ACCURA, MAZDA.
2) Supported Protocols: ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L lins, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708V

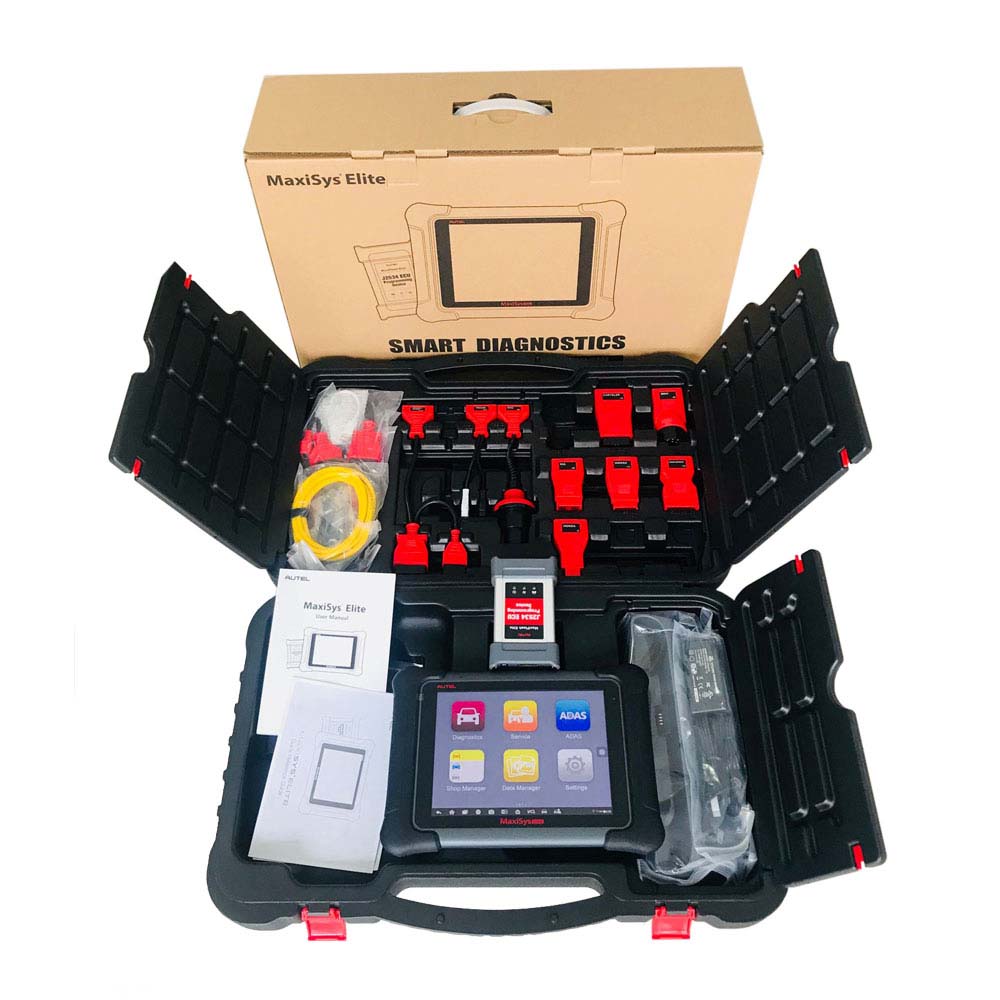

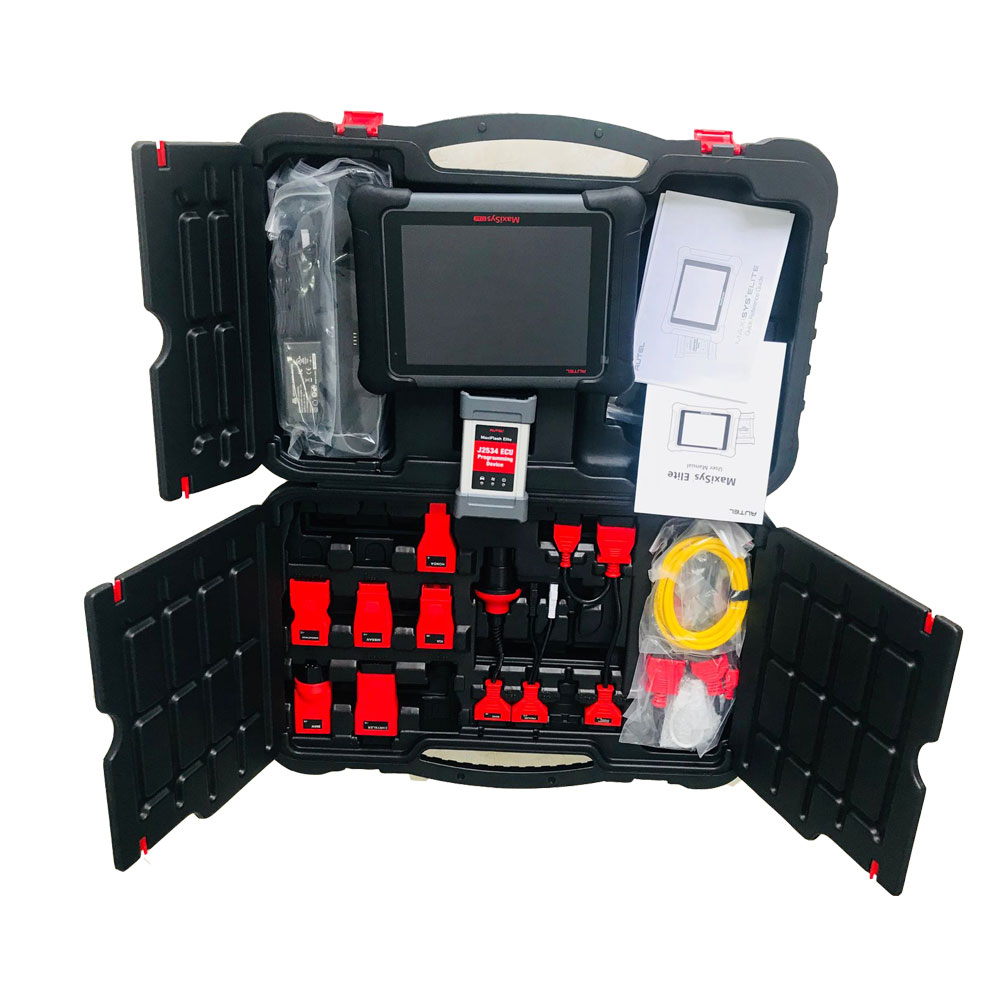

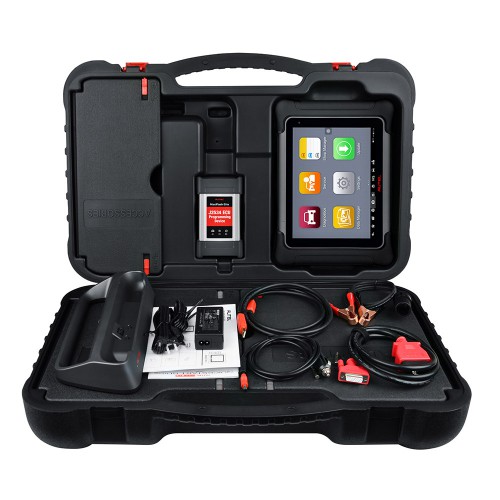

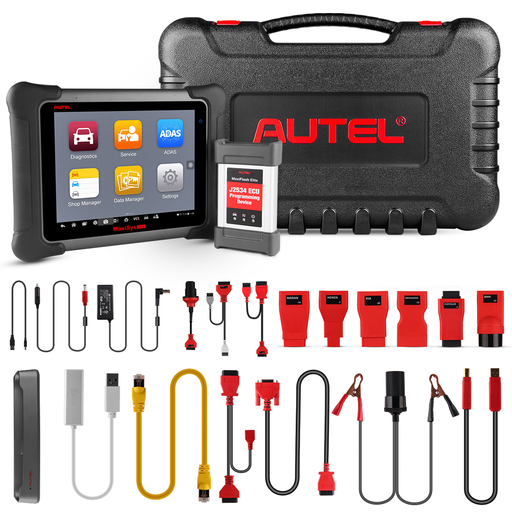

Package Includes:
1pc x Autel MaxiSys Elite II Main Unit
1pc x Main Cable
1pc x Clipper Cable
1pc x USB Cable
1pc x Ciagrette Cable

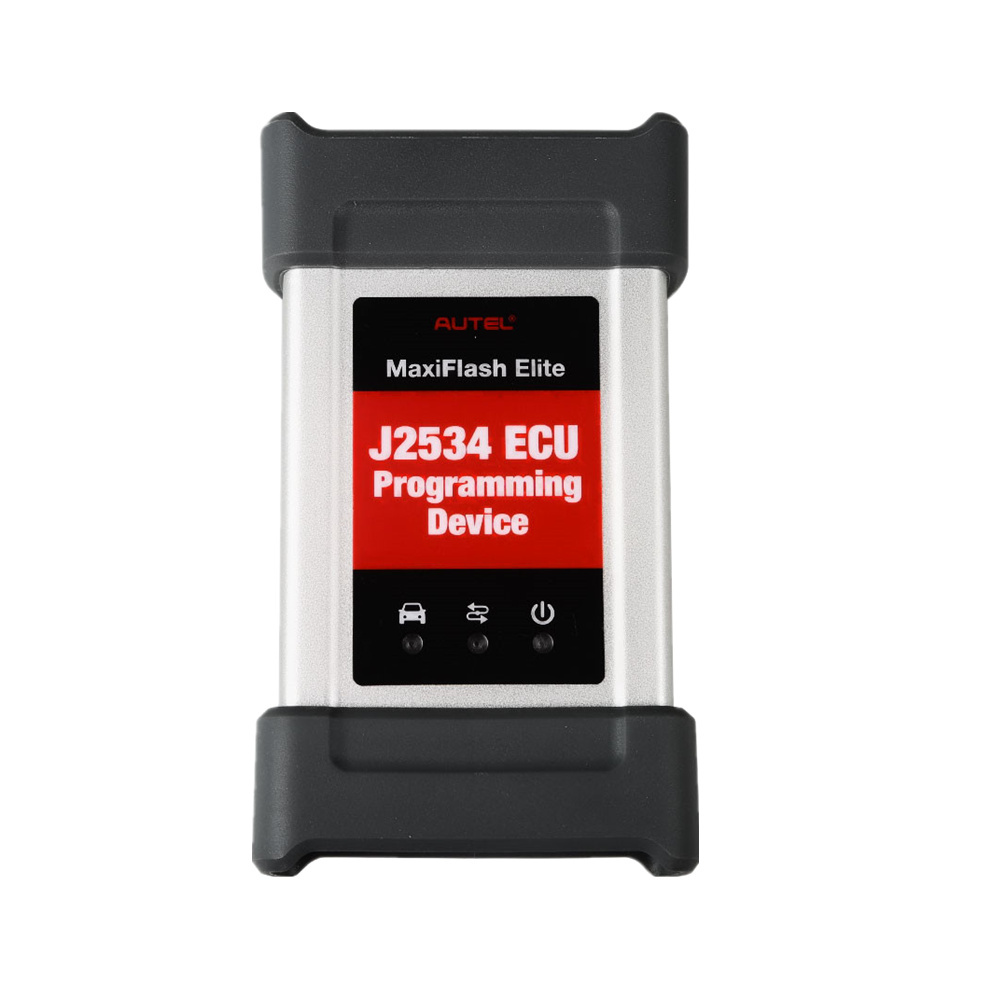

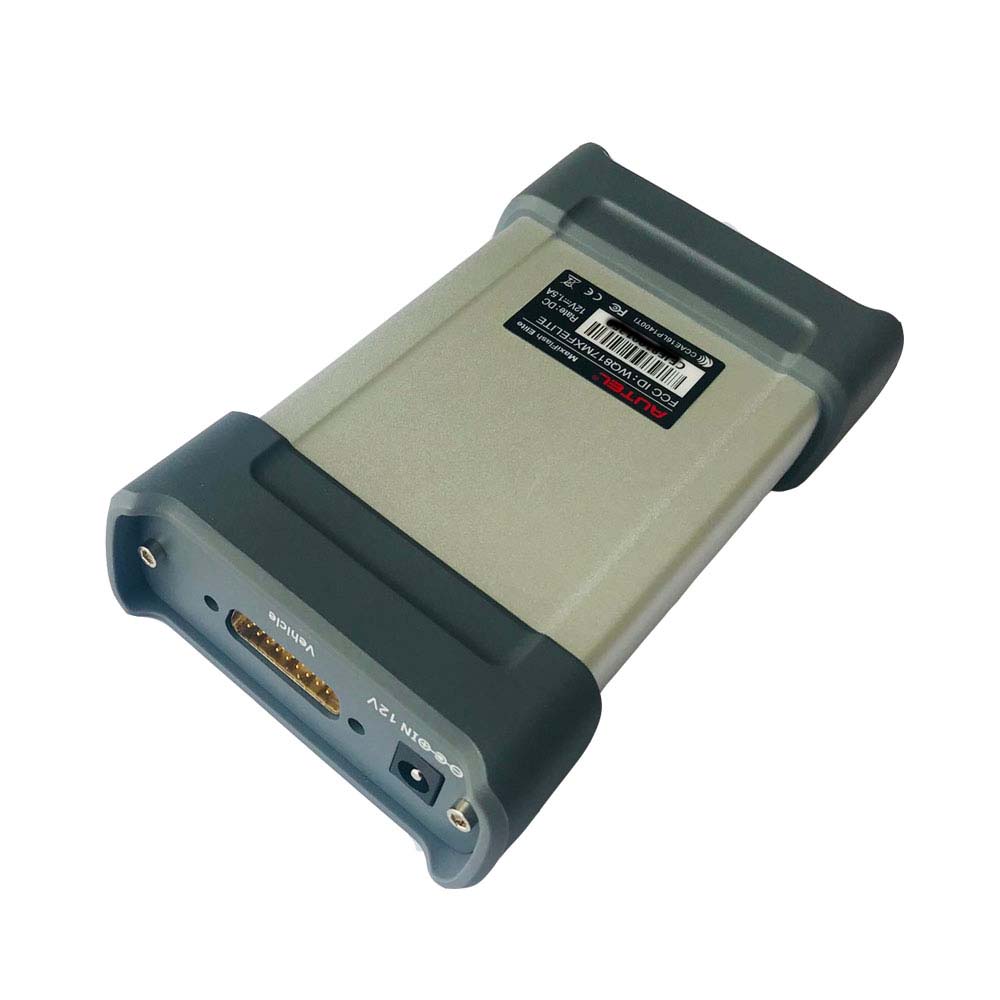

1pc x MaxiFlash Elite
1pc x AC/DC Adapter(12V)
1pc x Product Manual

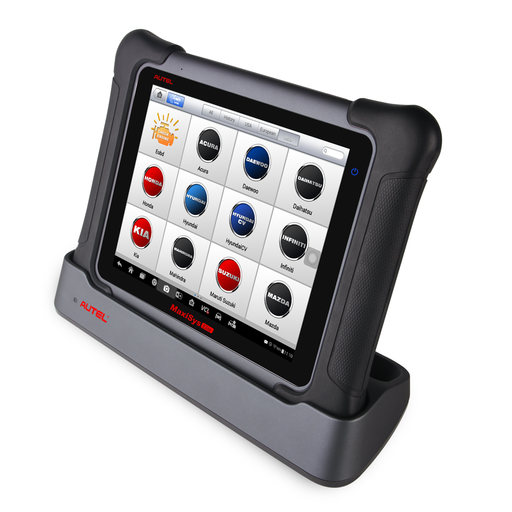

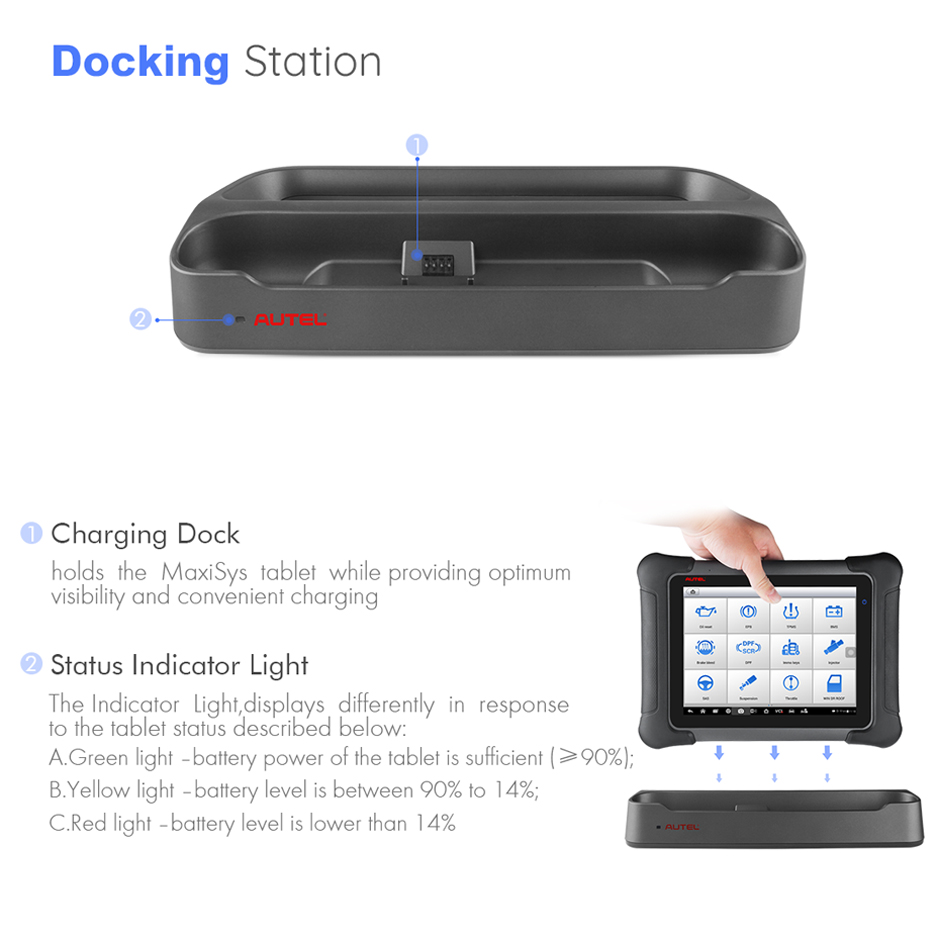

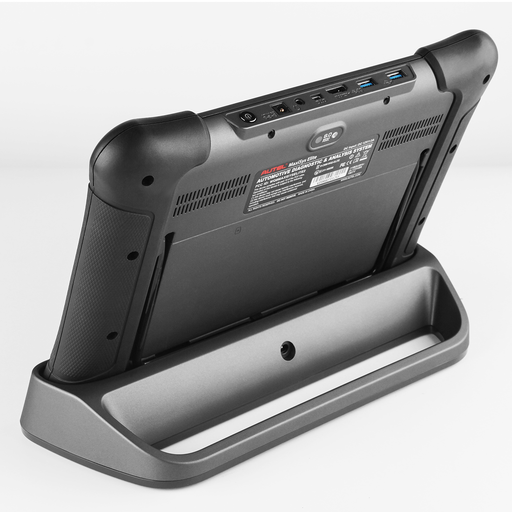

1pc x Docking Station

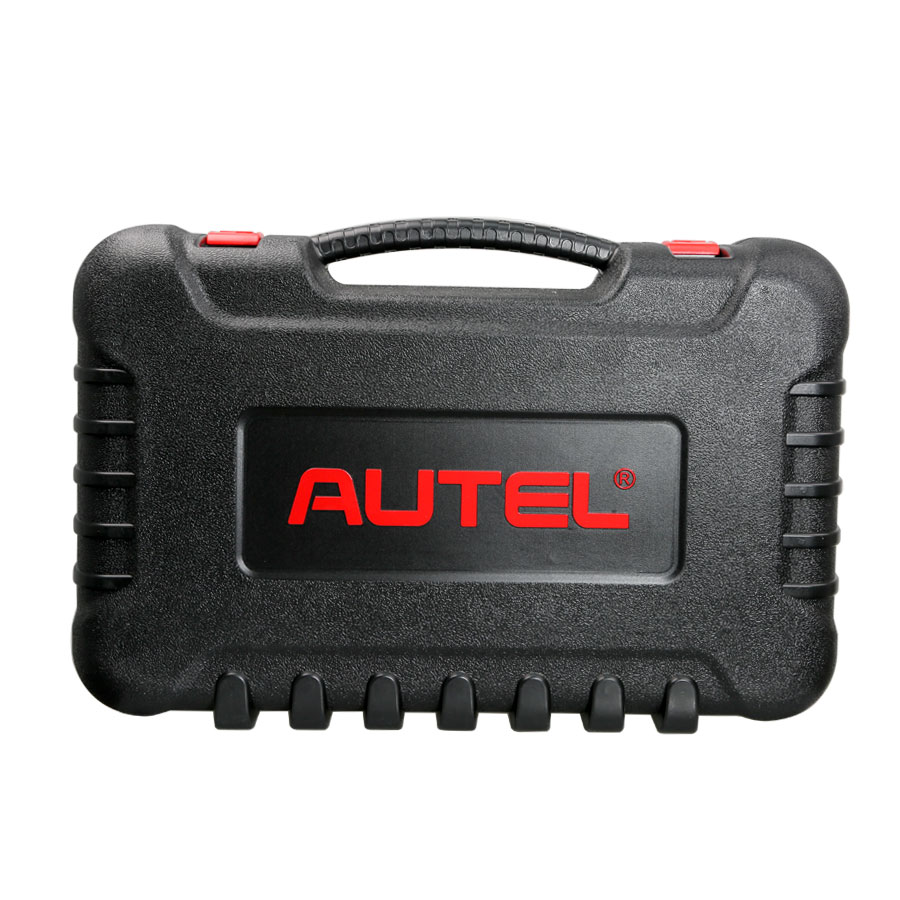

1pc x Carrying Case
