Best Quality MB Star C6 Mercedes BENZ Xentry Diagnosis VCI DOIP Diagnostic Tool support Benz Cars and Trucks V2026.03
Note:
It is recommended that you choose the configuration with the Lenovo T450 or Panasonic CF54 Laptop. We have installed all the software on the computer and you can use the product directly.
1.If you purchase option 2-500G SSD,please make sure your computer can use 2.5" hard drive, then replace your computer's hard drive with ours after receiving the item. After booting up, pls contact us to activate software remotely.Our hard drive cannot be used externally via USB.
If you are unwilling to replace your hard drive, please purchase remote installation service.
2.If you purchase option 3-one-time remote installation service, only one of the car or truck software can be selected for installation, pls tell us which software version you want to install,these two types of software cannot be installed on the same system.
1)2026.03 Car Xentry software version (Only support cars)
2)2023.09 Car Xentry + Truck Xentry software version (Can support both cars and trucks before 2023.09)
System requirements: Windows 10 64-bit, 8G RMB, over 260GB free space on C disk
Both Car and Truck xentry software login information：admin , password：12345
It supports MB diagnostic software Xenntry, For Mercedes Benz super engineer Vediamo and dedicated development software Monaco DTS, which has higher access rights than SDconnect C4/C5. VCI supports CAN/DoIP networks and can be used for diagnostics and writing of Audio & video entertainment systems for new cars.
Software listing :

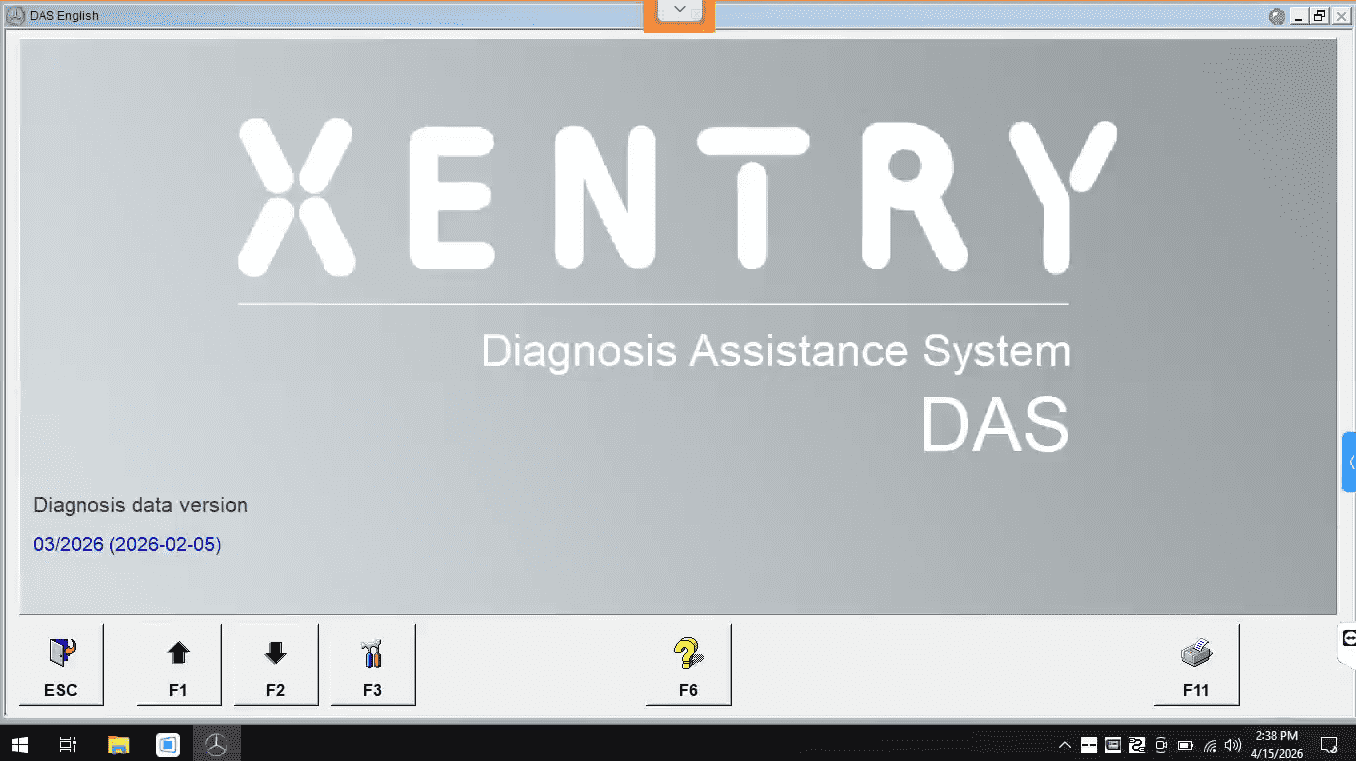

1.DAS 2026.03 for car and DAS 2023.09 for truck: the automatically Diagnosis Assistance System.Support 257 and so on new cars to register free to diagnosis
2.Xentry 2026.03 for car and Xentry 2023.09 for truck: New software released by Benz Company after 04/2009 by diagnosis new cars.
3.WIS net 2021.10:Workshop Information System
Supply the whole view of the wiring diagram in a car, component location diagram and maintenance method.What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.
4.EPC.net 2018.11:Electronic Parts Catalog
5.ST Finder:2023
6.STARUTILITIES:the movement management system and self-test
7.SD MEDIA 2014
8.PL76 2022.01
9.Engineer version Vediamo updated to V5.01.01 ，Engineer version DTS updated to V9.02，Upgrade to the latest version of 2022 data
10.Functions: Star Diagnostic & programming (Support SCN Coding request client have an online account)
11.Support DoIP Function (For Commander online programming)
12.Supported Multi-Language: English, Bulgarian, Danish, Greek, Spanish, French, Italian, Korean, Polish, Romanian, Serbo-Croatian, Turkish, Czech, German, Finish, Hungarian, Japanese, Dutch, Portuguese, Russian, Swedish, Chinese
13.Warranty: Main Unit 1 Year Warranty, Free technical support for any device problem
500G SSD has installed 2 systems, after restarting the computer, you can choose one of the systems to enter.

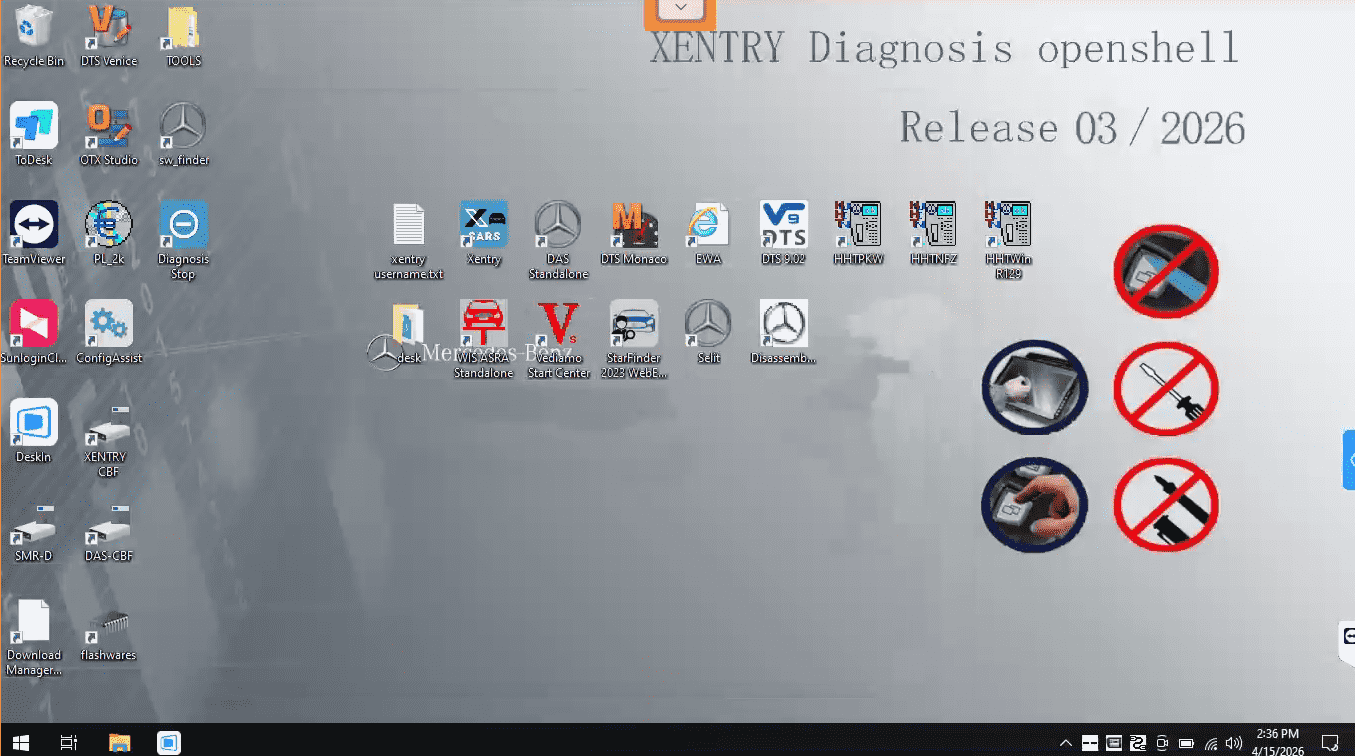

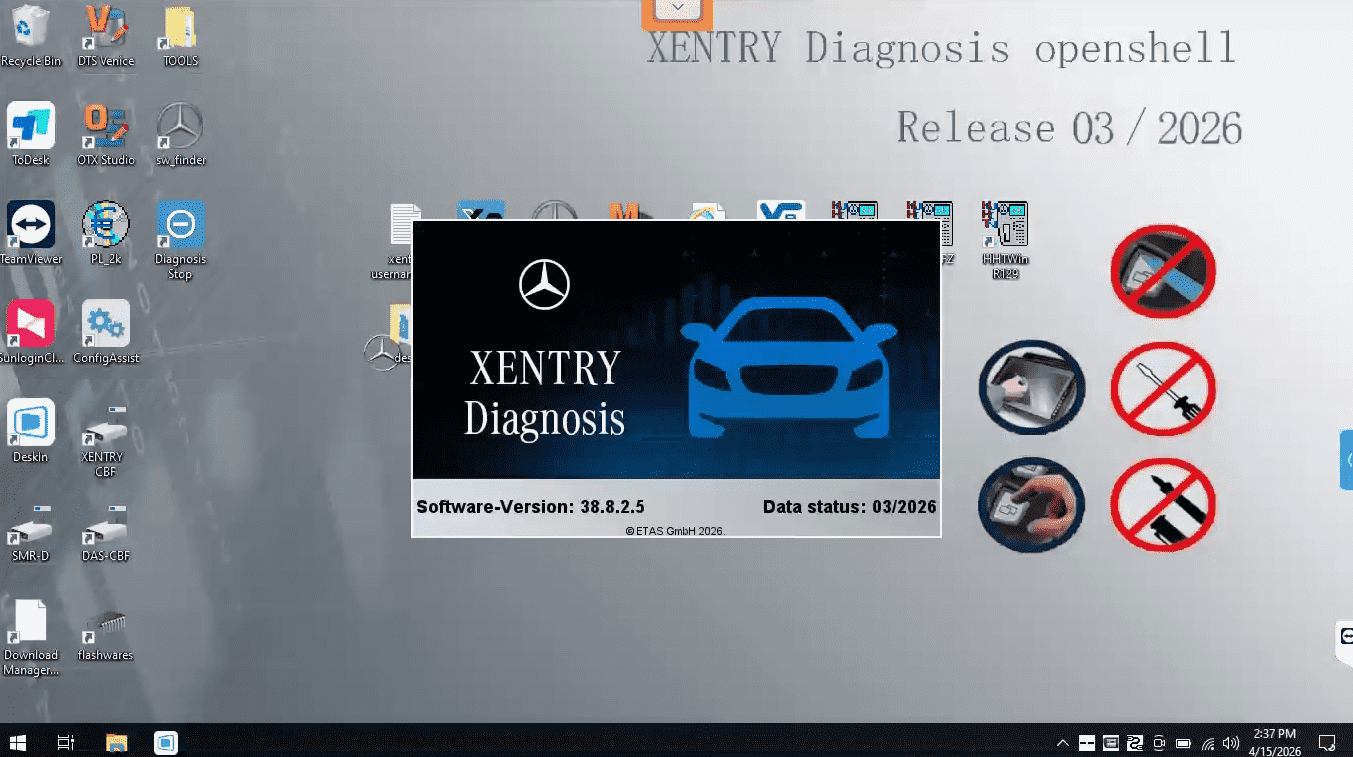

V2026.03 Car MB Star Diagnostic Software
V2023.09 Truck MB Star Diagnostic Software
Mercedes-benz C6 technical specifications
Supported industry standards:
1、ISO-22900-1/2 MVCI with D-PDU Driver（The following actual hardware channels are supported）
2、ISO13400-1/2/3/4 DoIP Driver
3、CAN-BUS1 channels：HSCAN1/CANFD1：PIN 6/14
4、CAN-BUS2 channels ：HSCAN2/CANFD2：PIN 12/13，PIN 3/11，PIN 1/9，
5、CAN-BUS3 channels ：FTCAN：PIN 12/13，PIN 3/11，PIN 1/9，
6、2
channelsK-Line *13
K1-Line：K1,K2,K3,K6,K7,K8,K9,K10,K11,K12,K13,K14,K15
K2-Line：K1,K2,K3,K6,K7,K8,K9,K10,K11,K12,K13,K14,K15
7、ADC input
8、Gigabit eCAT DB26 output
9、100 Mbit USB2.0 HS network card
10、WIFI relay/bridge
Supported protocols:
1、KW2CVW
2、CYCLERX
3、UDS
4、KW2C3PE
5、KW2C2N（SAE J1939）
6、485（SAE J1708）
7、KW2CANN
8、KW2000N
9、KW2K2N
10、KW2000PE
11、DoIP
Mercedes Benz Xentry diagnosis VCI DOIP C6 Features:
Can be used for all model series of For Mercedes For Benz vehicles
Support DoIP, cover more functions during SCN Coding than SD C4/C5
Functions including diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on
Diagnosis updates no longer necessary – firmware updates required on rare occasions
Does not need a power supply unit for external power supply
Dandy multiplexer with a small, sturdy construction (no PC core, battery, fan, or display)
Engines (All Gasoline & Diesel Systems)
Transmissions and Electronic Selector Modules
Airmatic and Active Body Control Suspension Systems
Traction Systems: ESP / ASR / ETS / ABS / BAS / SBC braking systems
Supplementary Restraint Systems (SRS) / Airbag, All body modules OCP / UCP / LCP / SCM / SKF / KFB / RCM / DCM’s
Drive Authorisation System
Sam (Signal Acquisition) Modules
Electronic Ignition System (EIS)
Pneumatic System Equipment and ATA functions
Air Conditioning / climate control Systems
Instrument Cluster
Tyre Pressure Control
Parktronic System
Keyless Go
D2b Command & Audio Gateway (D2B and MOST networks)
TV Tuner
Headlamp Range Adjustment
Seat Electronics
Rvc, RST & Vario Roof modules
Automatic Clutch System ACS
M-Class Body Modules (AAM / EAM / DAS / SEM / VG Transfer Case)
Assyst & ASSYST + systems
Supported systems
Engine
Transmission
Climate control system
SRS (Supplementary restraint system)
ABS
ASR
MPL
GM
BENZ ORIGINAL ANTI-THEFT DASX SYSTEM
System «Keyless-Go» from Mercedes-Benz
OBD-II SYSTEM
Advantages
Light and easy-to-use
No built-in motherboards, hard-drives, fans, displays and batteries
No external power needed
No regular firmware update needed
Package list:
Option 1 Package list：
1pc x XENTRY Diagnosis VCI
Benz C6 Multiplexer
1pc x OBDII Cable
1pc x USB Cable
Option 2 Package list：
1pc x XENTRY Diagnosis VCI
Benz C6 Multiplexer
1pc x OBDII Cable
1pc x USB Cable
1pc x 500G SSD
Option 3 Package list：
1pc x XENTRY Diagnosis VCI Benz C6 Multiplexer
1pc x OBDII Cable
1pc x USB Cable
1pc
x One-time Software remotely installation
Notice:
Only one of the car or truck software can be selected for installation, pls tell us which software version you want to install,these two types of software cannot be installed on the same system.
1)2026.03 Car Xentry software version (Only support cars)
2)2023.09 Car Xentry + Truck Xentry software version (Can support both cars and trucks before 2023.09)
System requirements: Windows 10 64-bit, 8G RMB, over 260GB free space on C disk
Option 4 Package list：
1pc x XENTRY Diagnosis VCI Benz C6 Multiplexer
1pc x OBDII Cable
1pc x USB Cable
1pc x second hand Lenovo T450 laptop
Second Hand Laptop Lenovo T450
Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB
Option 5 Package list:
1pc x XENTRY Diagnosis VCI
Benz C6 Multiplexer
1pc x OBDII Cable
1pc x USB Cable
1pc x second hand Panasonic CF54 Laptop
Second Hand Panasonic CF54 Laptop Specification:
Brand: Panasonic
Condition: Used
Type:TOUGHBOOK
Screen Size:14
Processor Type:Intel (R) Core(TM) I5-5300U CPU
Memory: 8GB
