V2023.09 Mercedes BENZ C6 MB SD Connect C6 DoIP Xentry Diagnosis VCI Plus EVG7 Tablet PC Ready to Use
WIFI password is : 12345678
Pls note:It can't support trucks

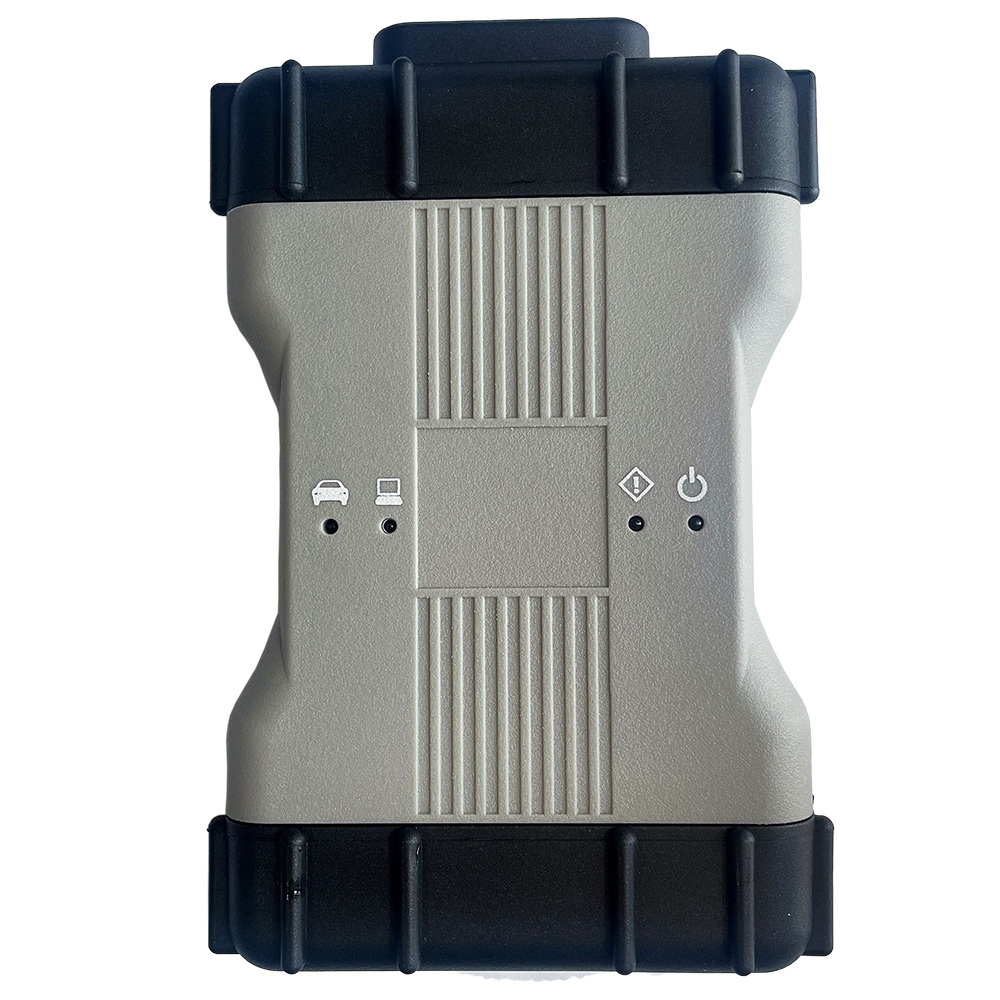

MB Star C6 Multiplexer Overview:
1. Compatible Software: VXDIAG For XENTRY Software
2. Support Vehicle: Support new Mercedes & Smart car
3. DoIP: Support DoIP
4. Functions: Star Diagnostic & programming (SCN Coding)
5. OEM XENTRY C6 Software Version: V2023.09
6. Support wifi

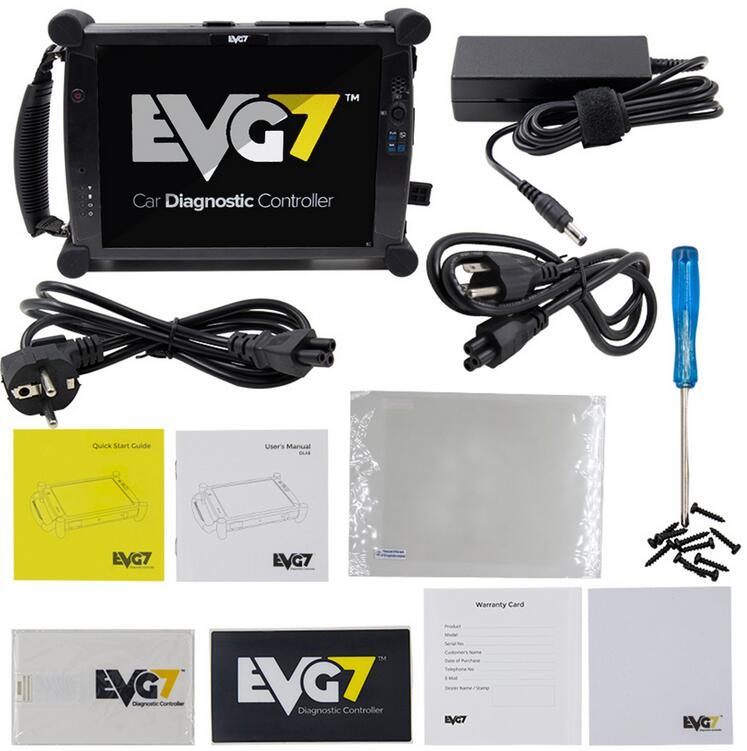

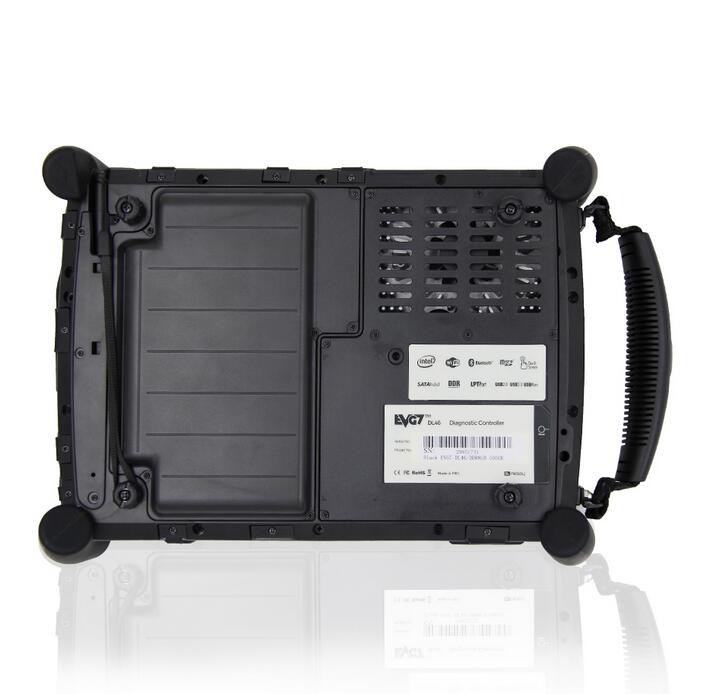

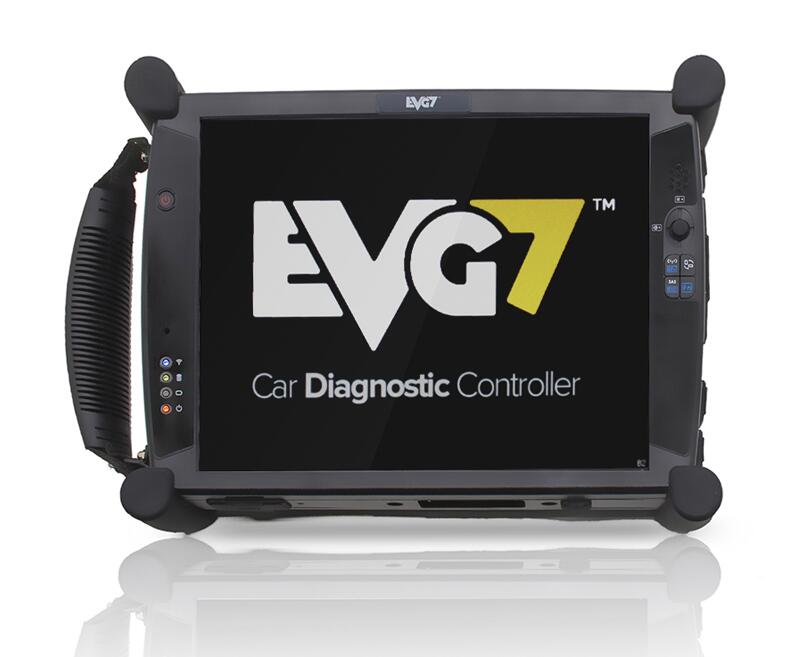

7. EVG7 DL46 Specification:
Condition: NEW
Mark: EVG7
Model: DL46
Processor: Intel Celeron 1037(Dual - 1.8Ghz/L3 2M)
DDR: The biggest support memory: 4GB
HDD: 512 GB SATA SSD
LCD: 10.4 Inch The resolution of the 1024x768
Graphics:
touchscreen widescreen LED backlight
The core graphics Intel HD Graphics
Speakers: Built-in Speakers
Wireless: 802.11b/g/n
LAN: The built-in 10-100M card
Bluetooth: BT2.0 , 4.0
USB: USB3.0 / Mini USB / 2 x USB2.0
Card Reader: TF Card Reader
Other Interface:
VGA Voice Input / The Sound Output /
DC Power Jack / Parallel LPT Port I/O
VGA Output
Battery Type: 9 The core of lithium batteries 10.08V 6600 mAh
Power Adapter: 110V-240V The adaptive communication power supply
Battery Life: The specific time depending on the use environment
Specifications: 270x180x60 mm
weight: 1911g (with battery)
Certificates: CE / FCC / RoHS
Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 Summary:
Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 (Vehicle Communication Interface) multiplexer serves as the interface to the vehicle when performing diagnosis and repairs, and programming electric and electronic on-board vehicle systems.
The Mercedes Benz Xentry diagnosis VCI DOIP Pass thur interface C6 does not have its own PC core, battery, fan, or display. It is operated using the VXDIAG For XENTRY Diagnosis Pad via WLAN or a USB cable connection.
MB Star C6 Software Description：

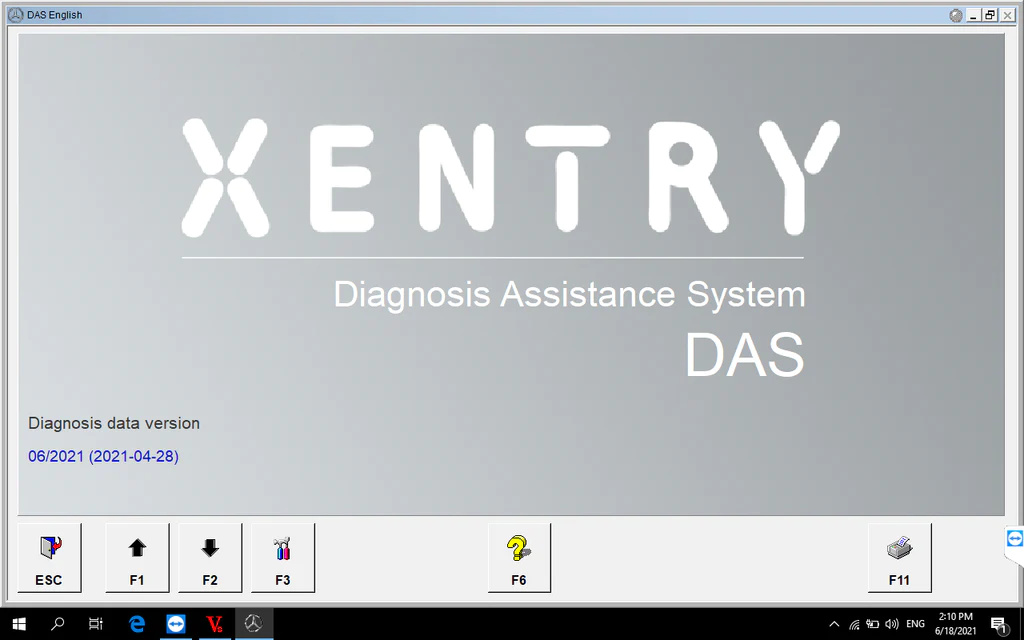

1.DAS / Xentry V2023.09
Xentry：the automatically Diagnosis Assistance System
DAS: New software released by Benz Company after 04/2009 by diagnosis new cars.
2.WIS net 2021.07: Workshop Information System
Supply the whole view of the wiring diagram in a car, component location diagram, and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration, and the car model -all in detail.
3.EPC net 2018.11: Electronic Parts Catalog

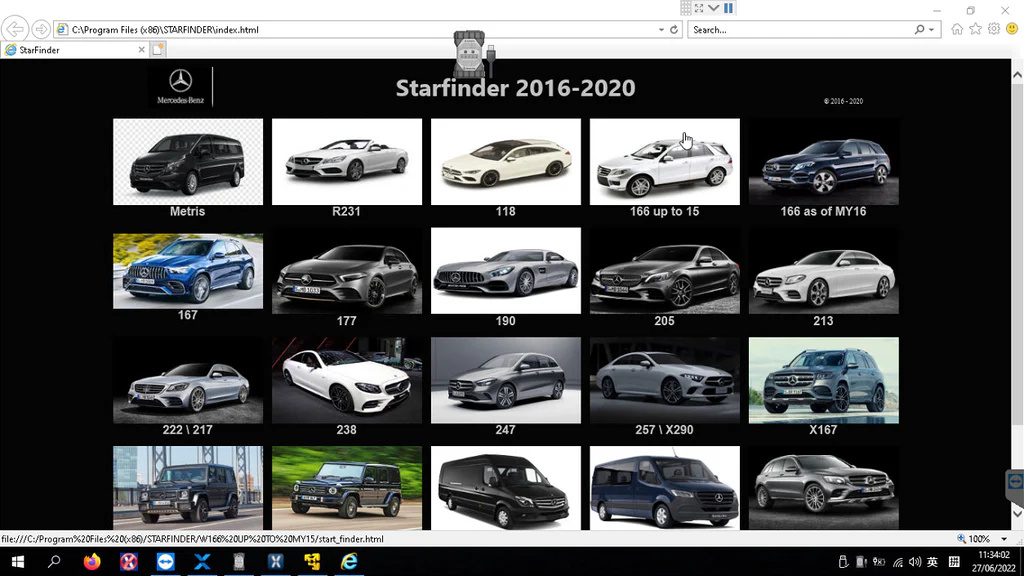

4.ST Finder 2020, StarFinder : 2022，StarFinder : 2008 optional: a Part location finder

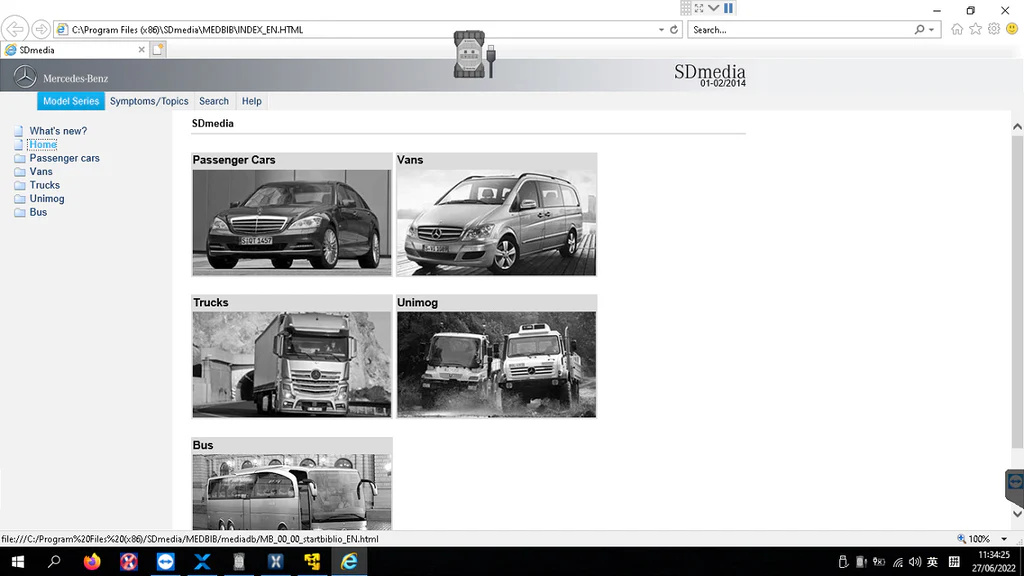

5.SDmedia 2015.01
6.This C6 hardware not support Vediamo

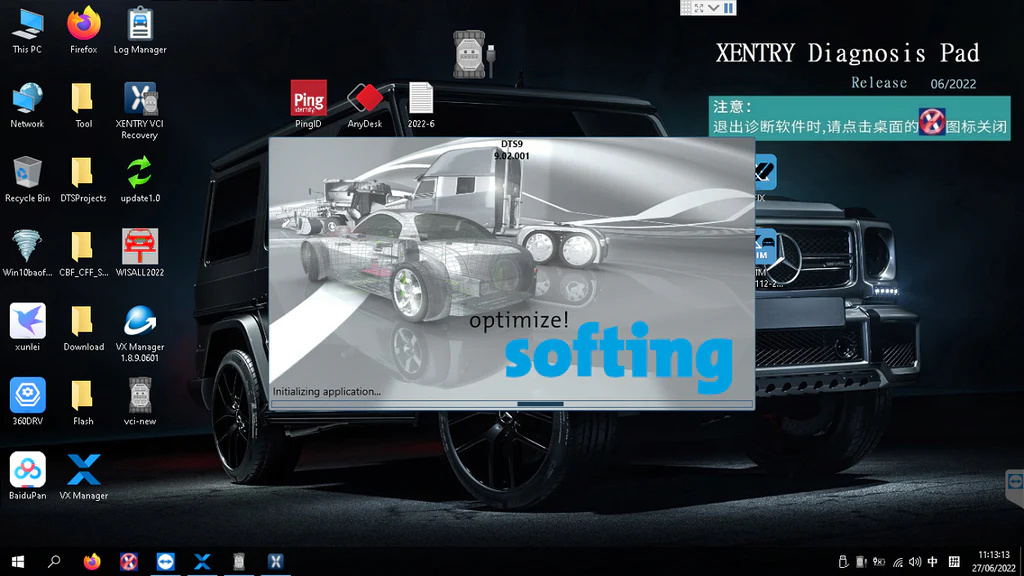

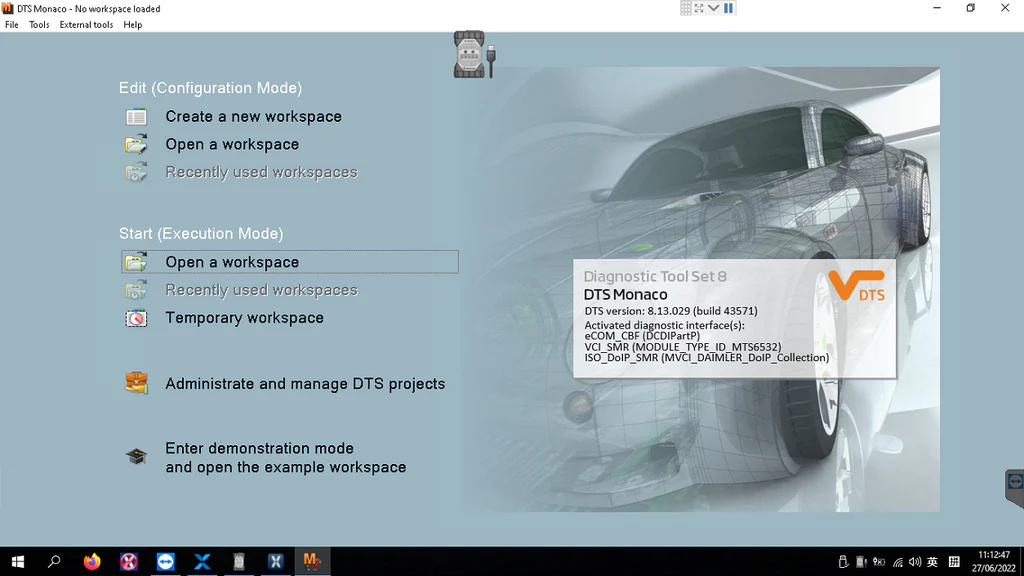

7.DTS 9.02 + DTS8.13: Engineering software for offline programming
1) Fix the error that Mercedes-Benz DAS cannot directly call WIS
2) Join the DAS sedan smart offline programming
3) Join the 204 DAS stand-alone version, which can be mutated (German), which is more powerful than Vediamo
4) Join DAS special function password-free access PKW and SMART
5) Repair SMART 450, 451, 452, 454 No longer need TAN Calculator, all offline
6) Increase offline EOL and VMAX all LKW, modify maximum speed limit
7) Lift NOx TORGUE restriction, do not need FDOK XT calculation code, directly enter, directly cancel the legal speed limit, you can modify without special function
8) Clear SCR/ADBLUE fault code (MR), do not need FDOK XN calculation code, enter it directly
9) Add DAS 212，207 prototyp model
10) Add
Xentry special features and the VeDoc calculator ($53 for activation)
Software Version: V2023.09（Xentry and DAS）

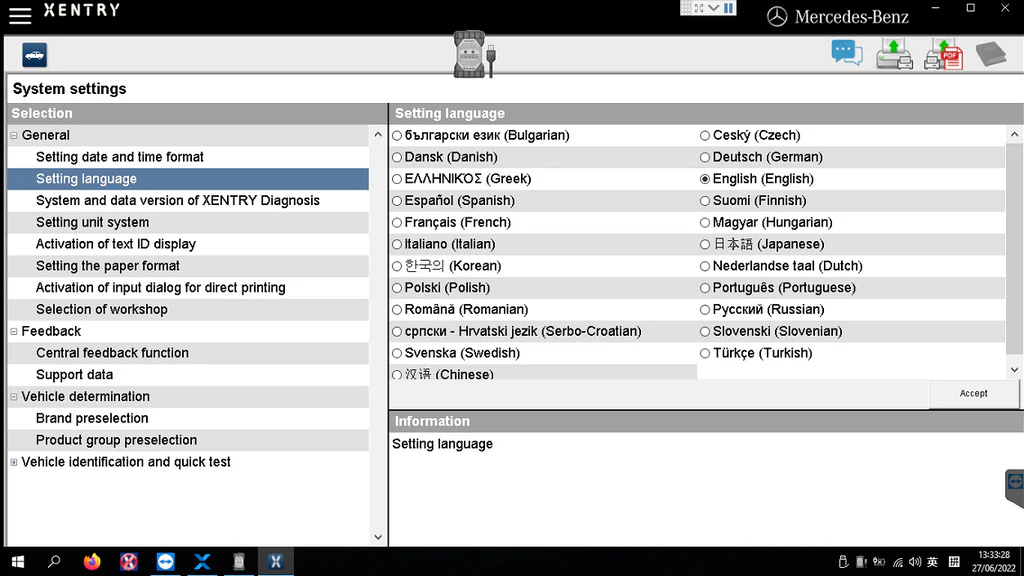

Support Multi-Language:(Default language is English, if you want other languages, please leave message) English/ Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/ German/ Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese
Mercedes Benz C6 OEM Xentry diagnosis VCI DOIP Pass thur interfac is the latest interface for For Mercedes & SMART vehicles can replace Star C4/C5. XENTRY Diagnosis VCI acts as a Pass-through Interface, also called MB Star C6, For Benz C6 multiplexer to provide complete communication between a vehicle and the XENTRY software loaded on a PC.
MB Star C6 Xentry diagnosis VCI DoIP Pass thru interface Functions
1. Diagnosing, programming, simulation studying, repair information, automotive maintenance, technical service bulletin and so on
2. Can be used for all model series of for Mercedes Benz vehicles
3. Support DoIP, cover more functions during SCN Coding than SD C4/C5
4. Diagnosis updates no longer necessary – firmware updates required on rare occasions
5. Does not need a power supply unit for external power supply

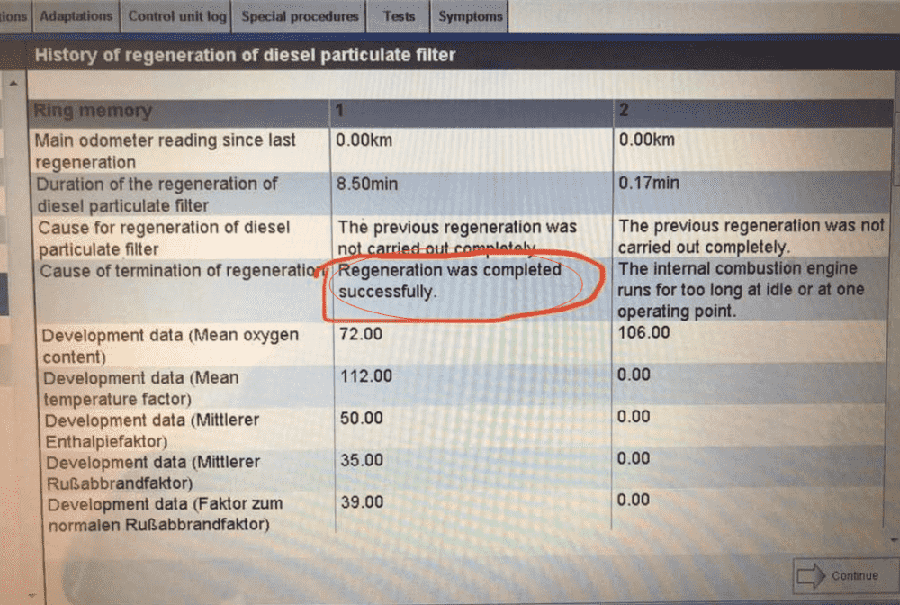

6. DPF Regeneration (work same as original)
MB Star C6 Xentry diagnosis VCI DoIP Pass-thru interface Supported Vehicle List:
MB SD C6 Support Mercedes Benz Cars After the Year 2010
Passenger Car Support List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),
E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),
M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)
Van Support List:
MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)
Super Sports Car Support List:
SLR(199) etc.

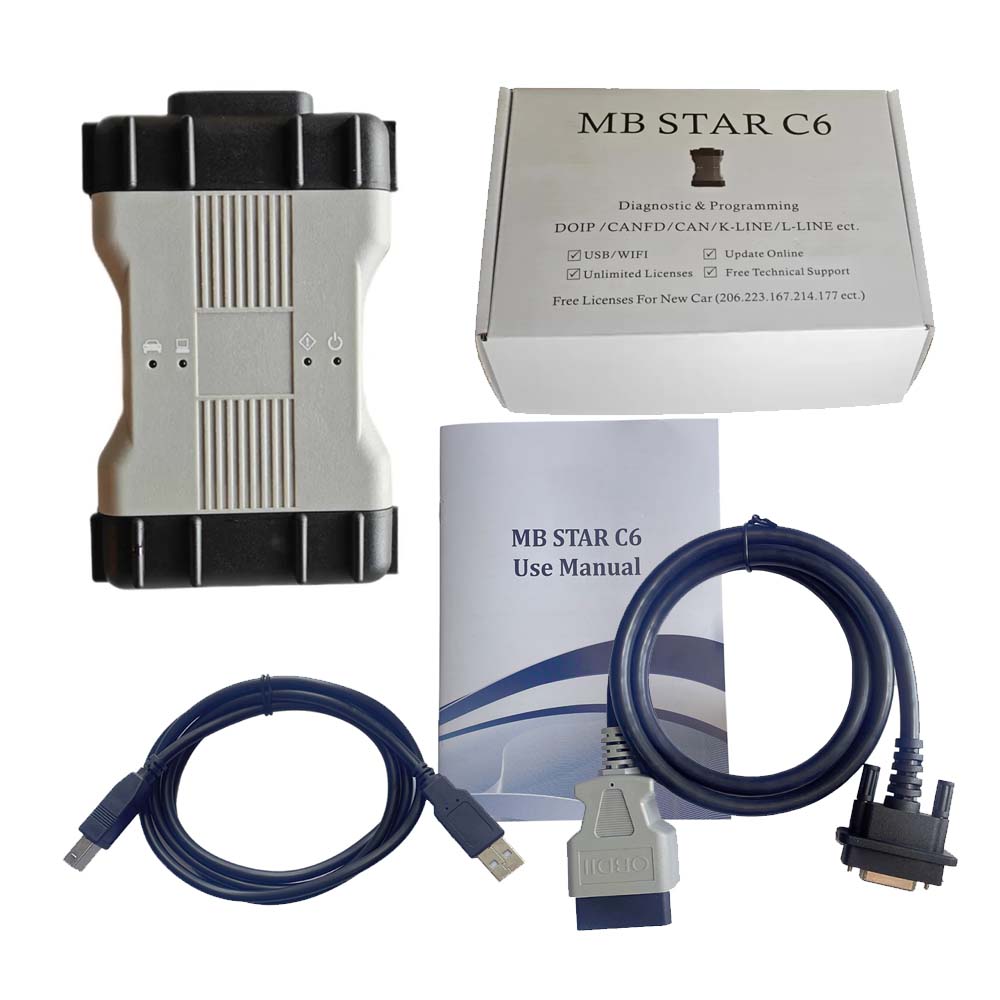

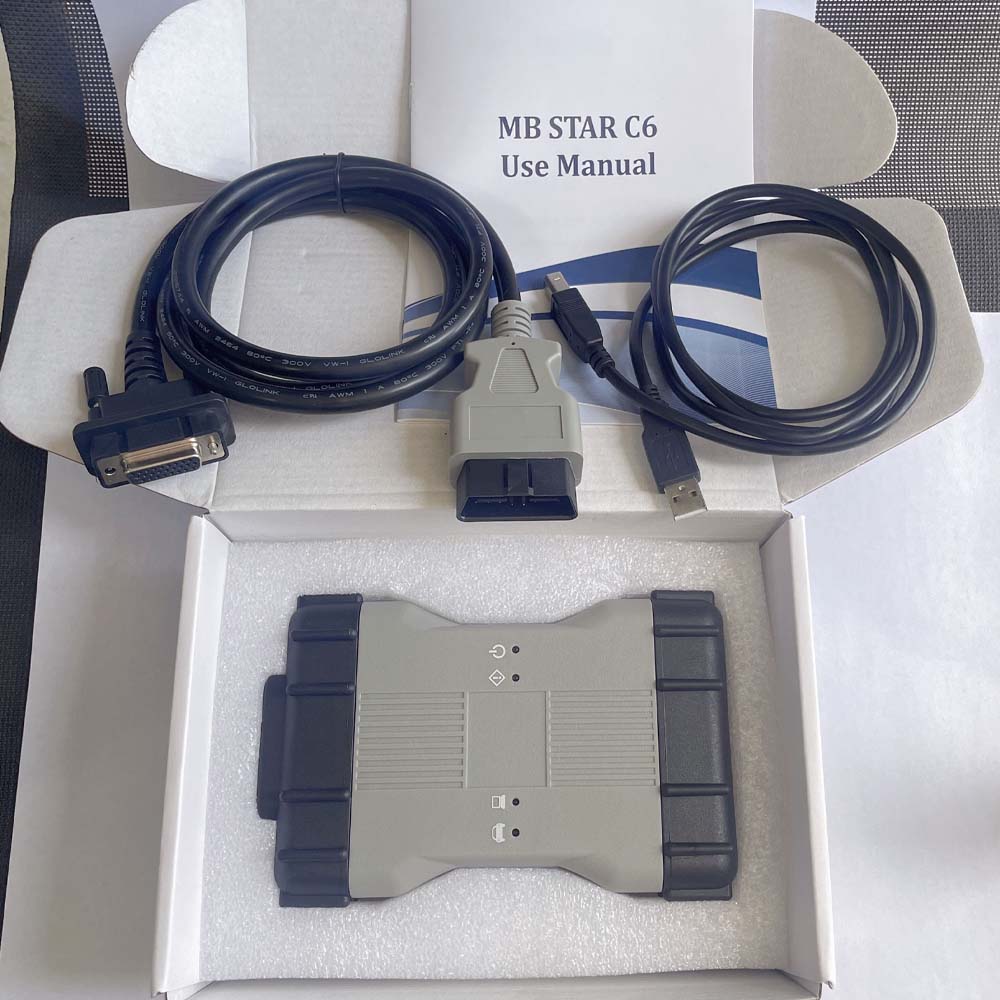

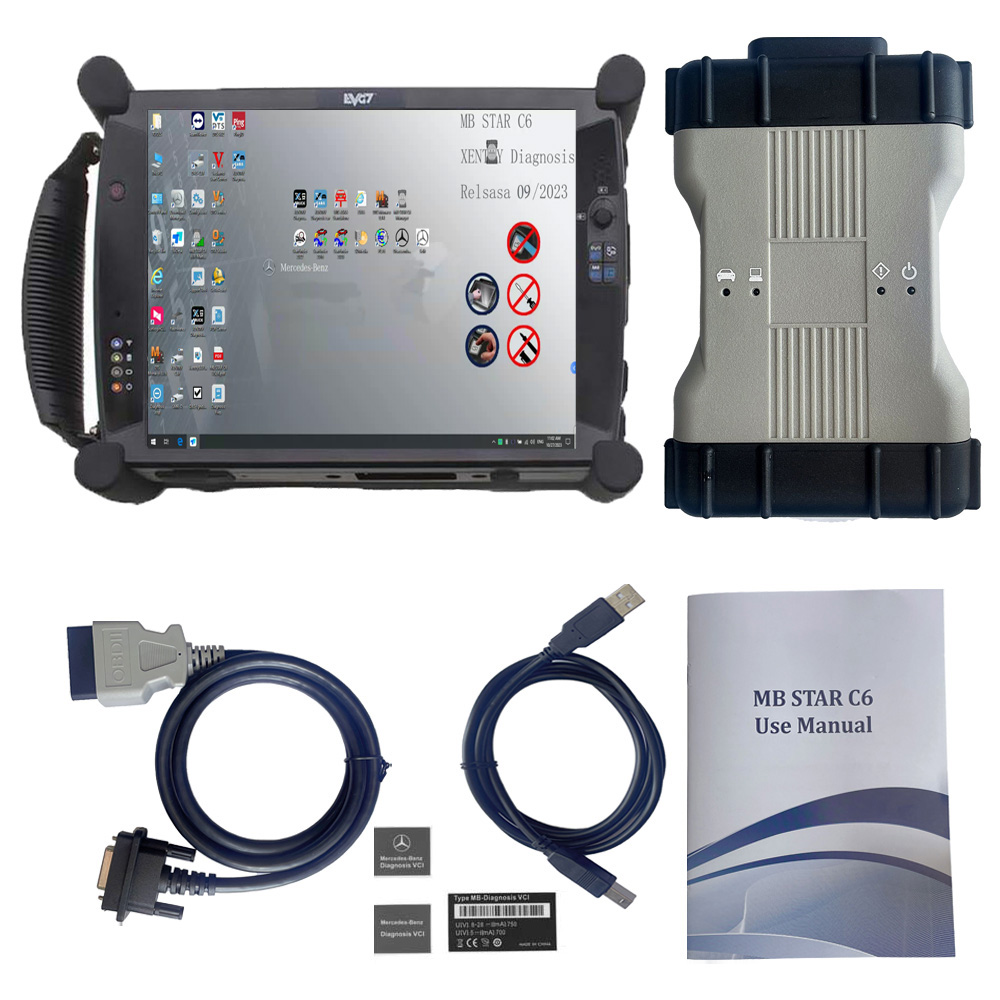

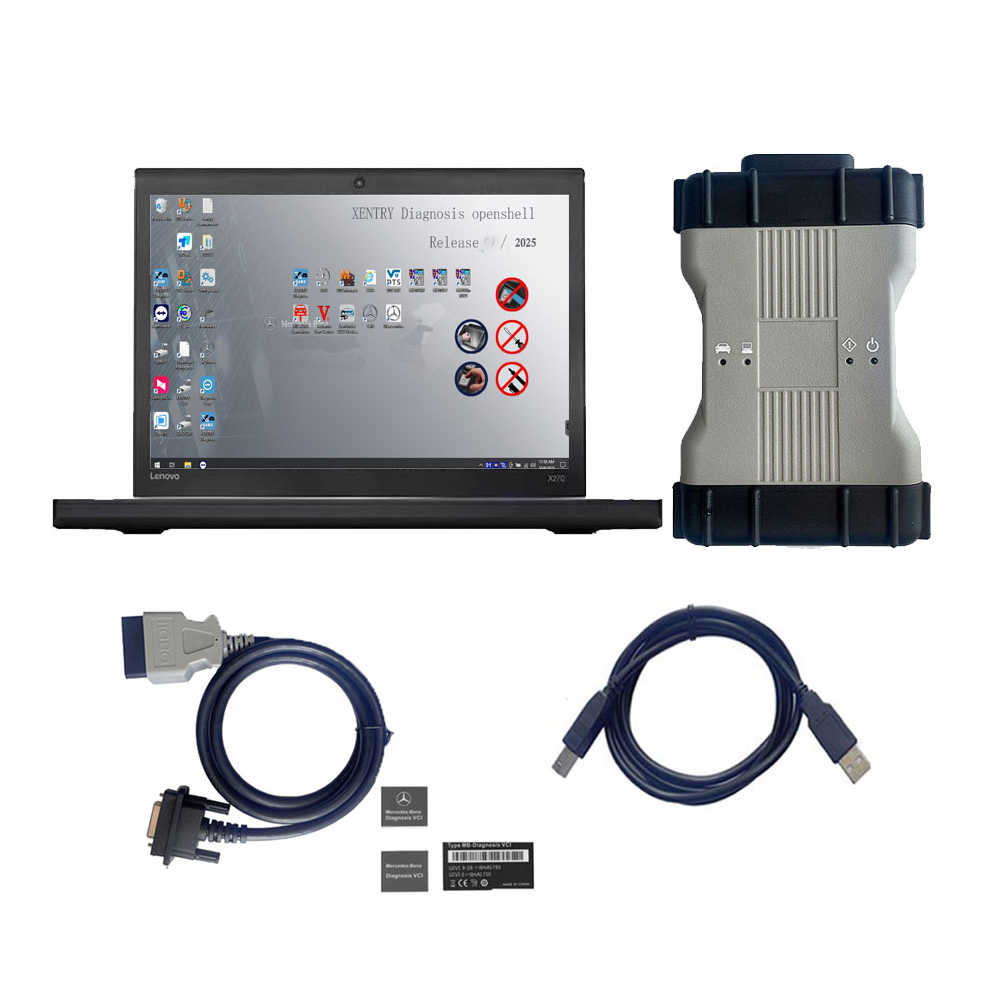

Package list:
1pc x MB STAR C6 Multiplexer

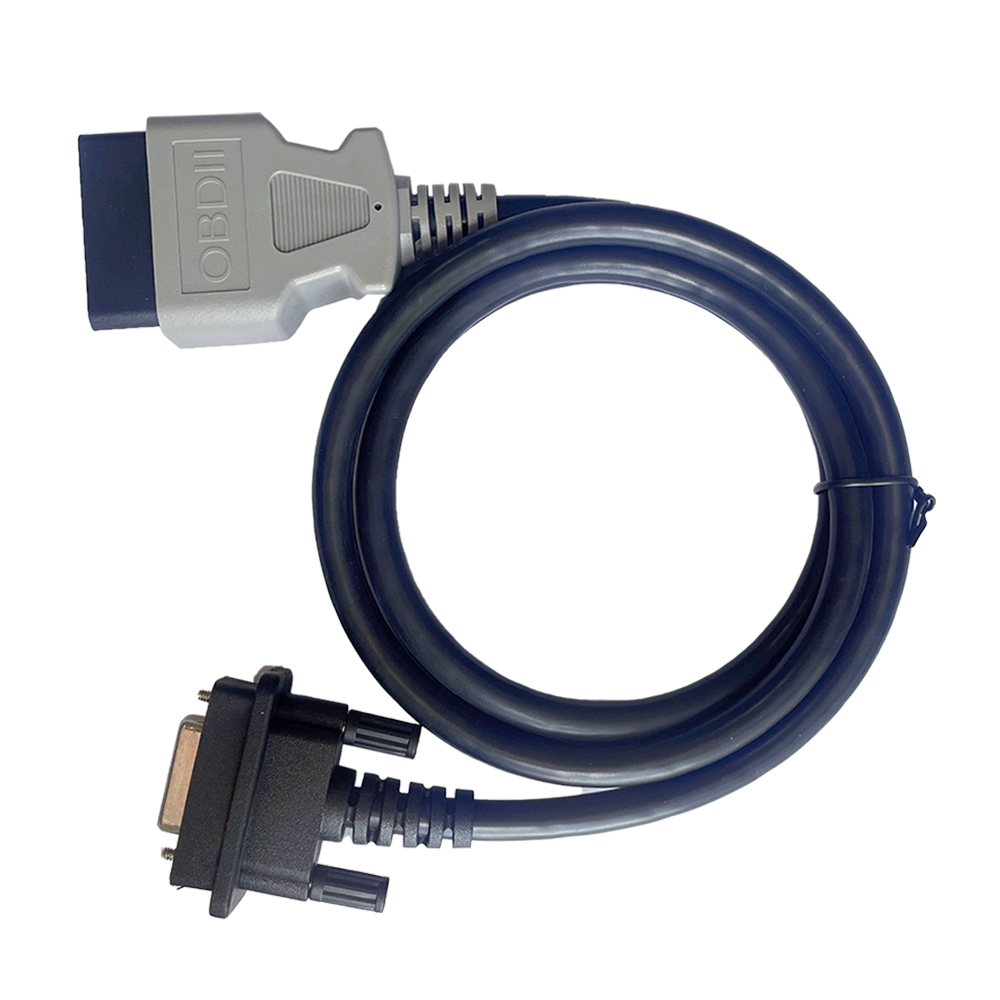

1pc x OBD2 cable
1pc x Lan cable

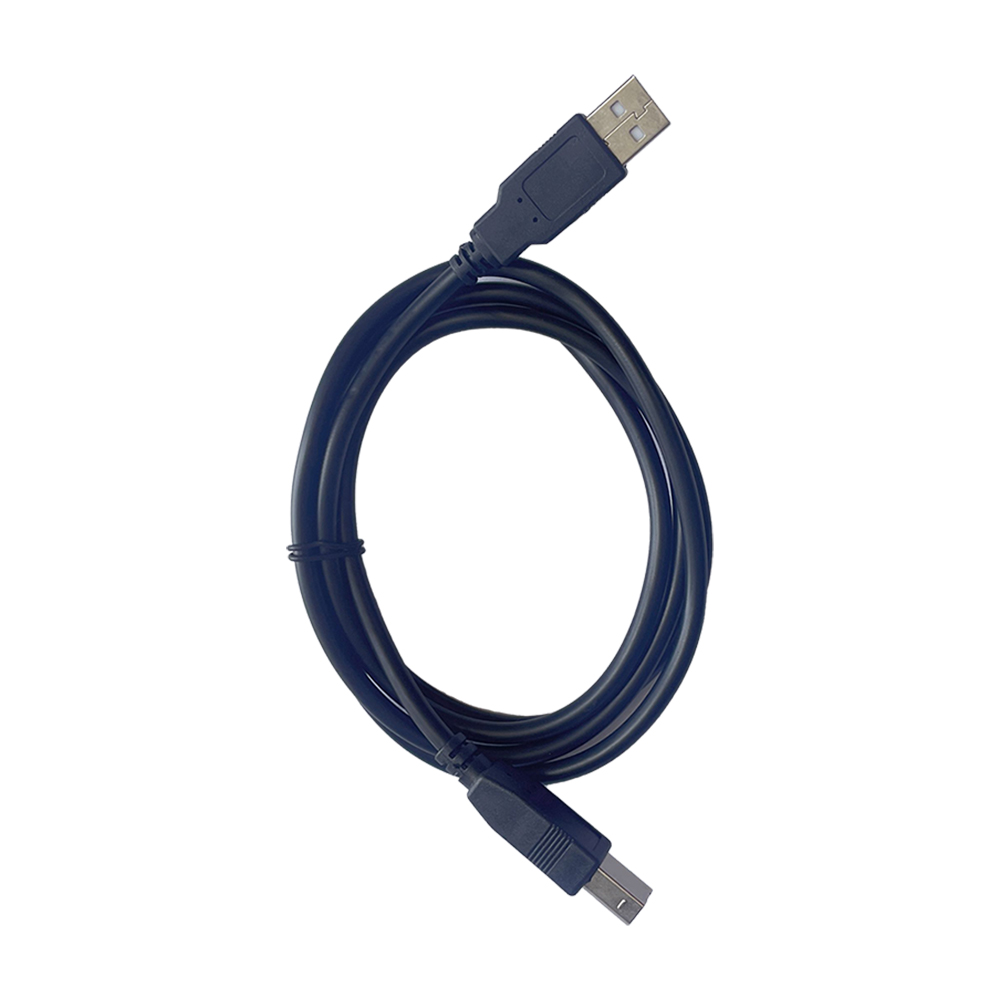

1pc x USB cable
1pc x 512GB SSD
1pc x EVG7 Tablet PC（All software activated. All system ready to use)

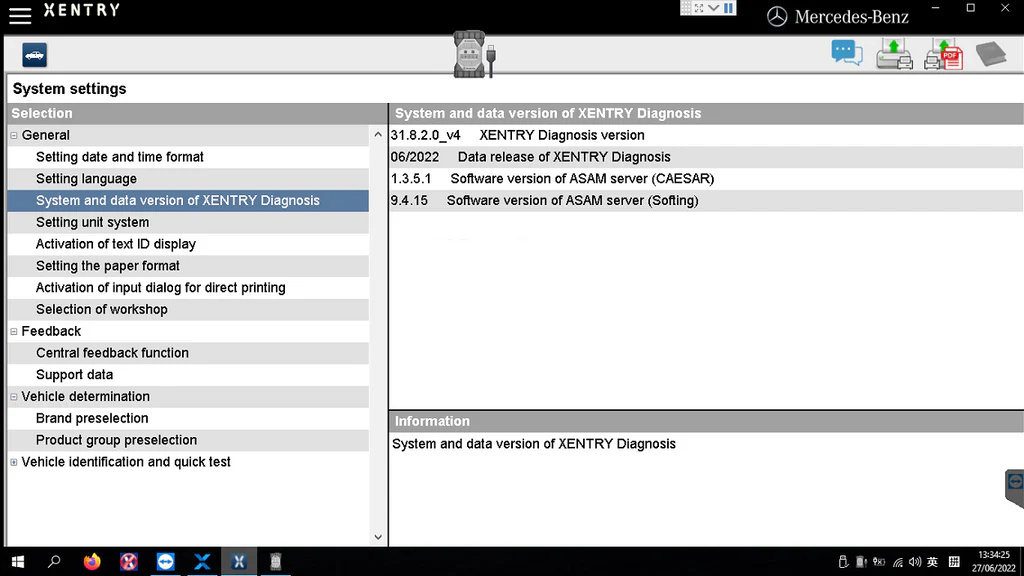

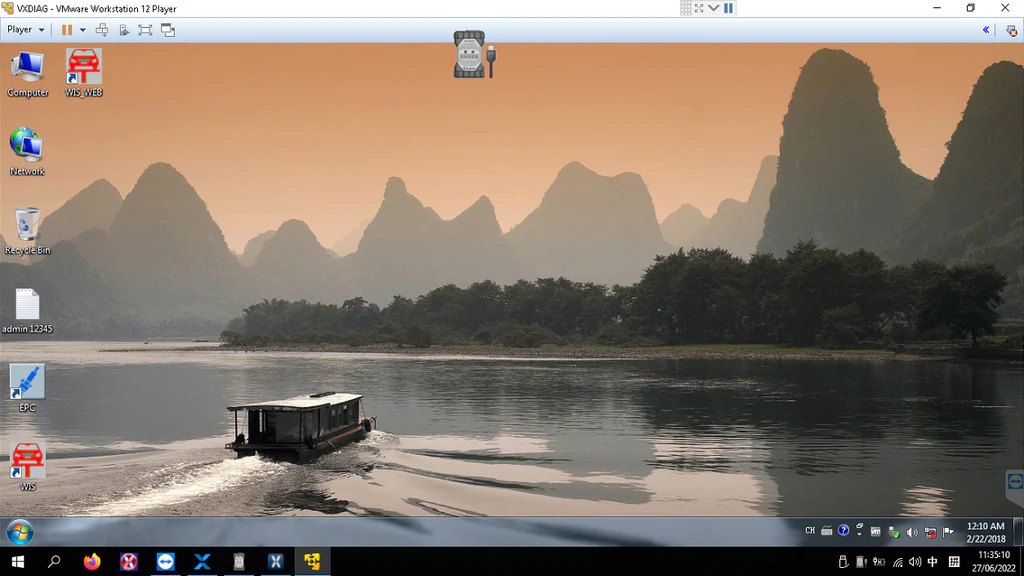

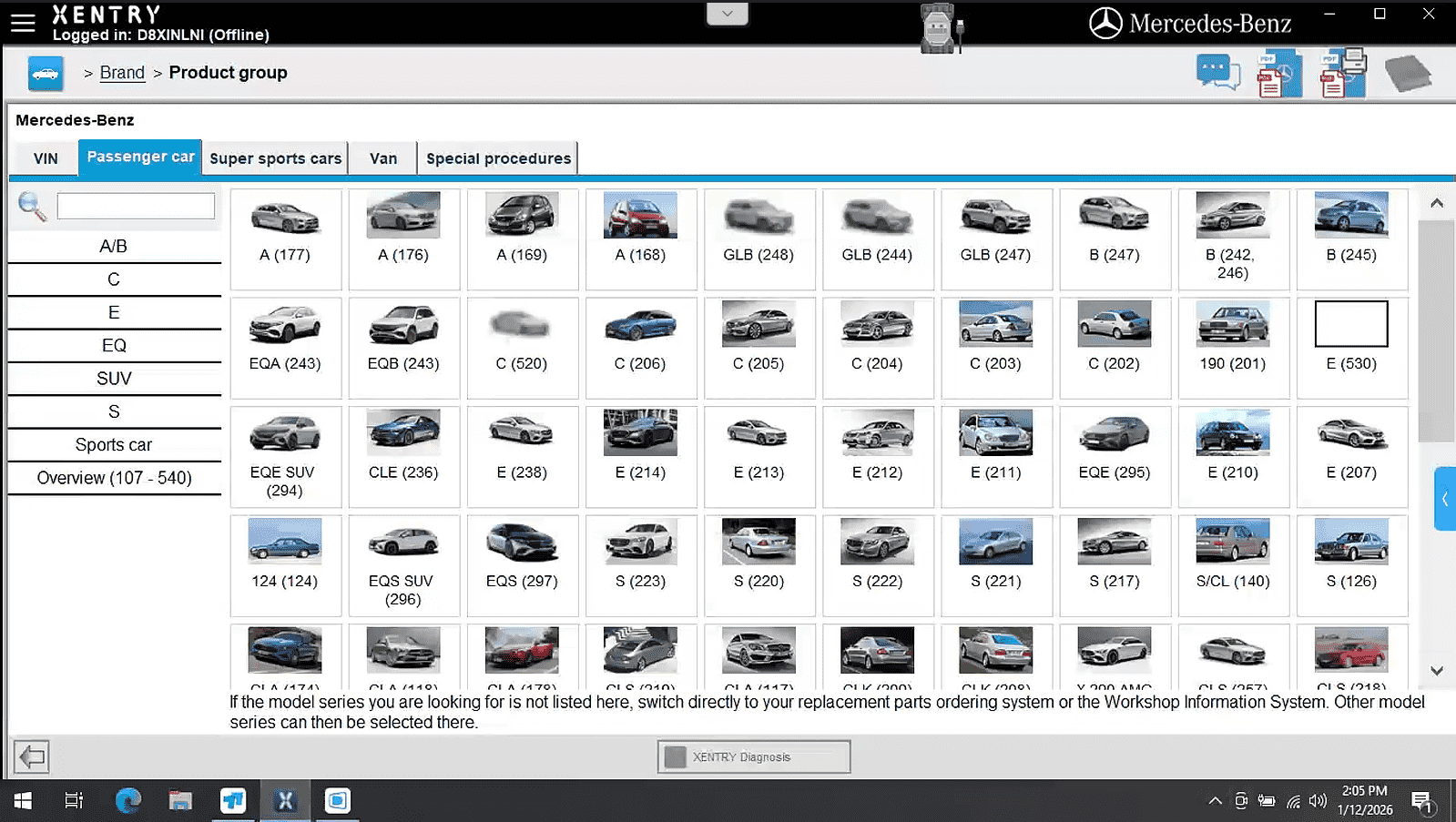

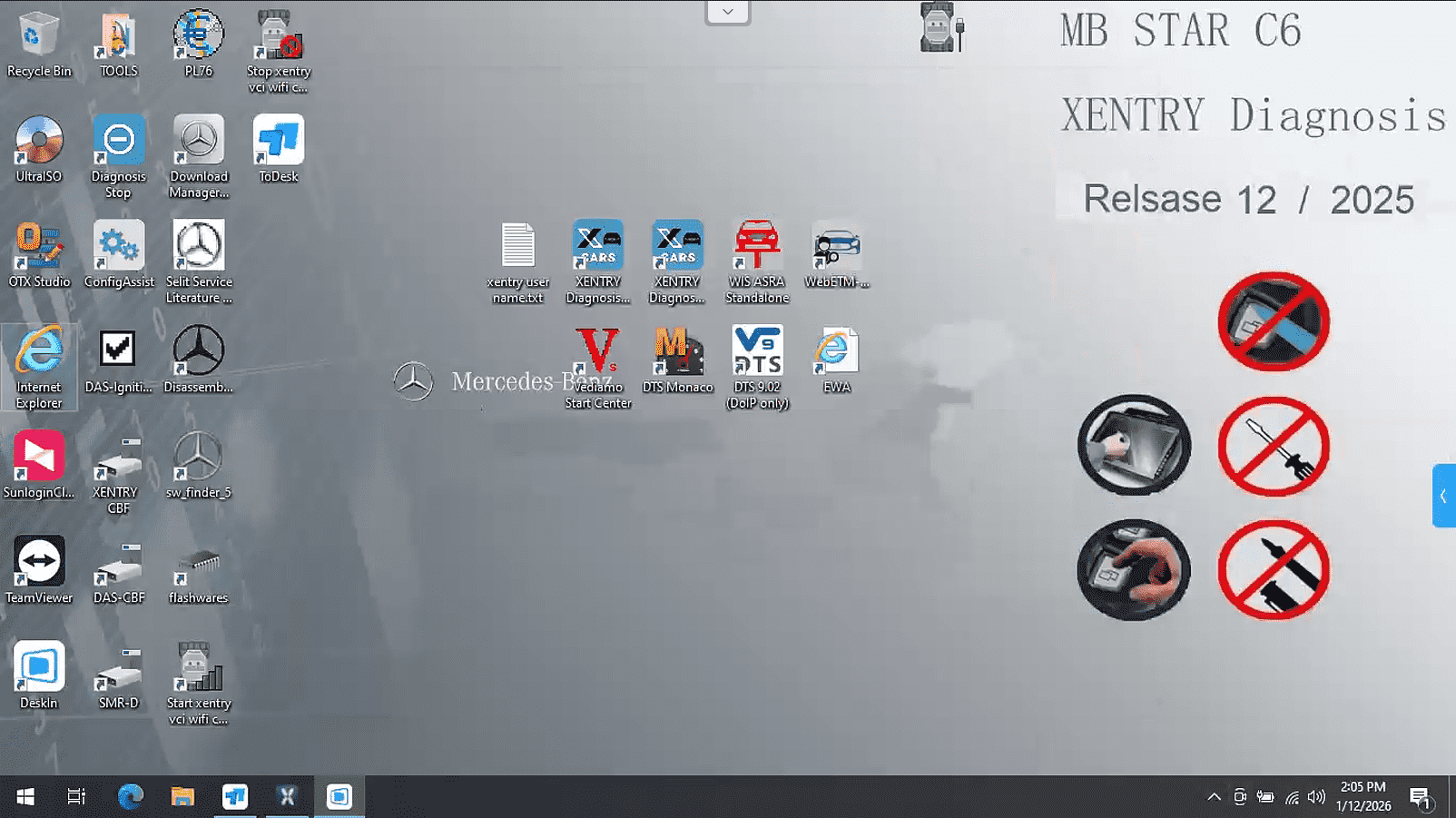

C6 Software Display:
