Cummins INLINE 7 Data Link Adapter Cummins Truck Diagnostic Tool with Cummins Insite 8.5/8.7/9.0 Software
Please pay attention :
In order to make cummins hardware work more stable, we still used Cummins inline 6 hardware driver, but use the cummins inline 7 diagnostic software, the functions the same.

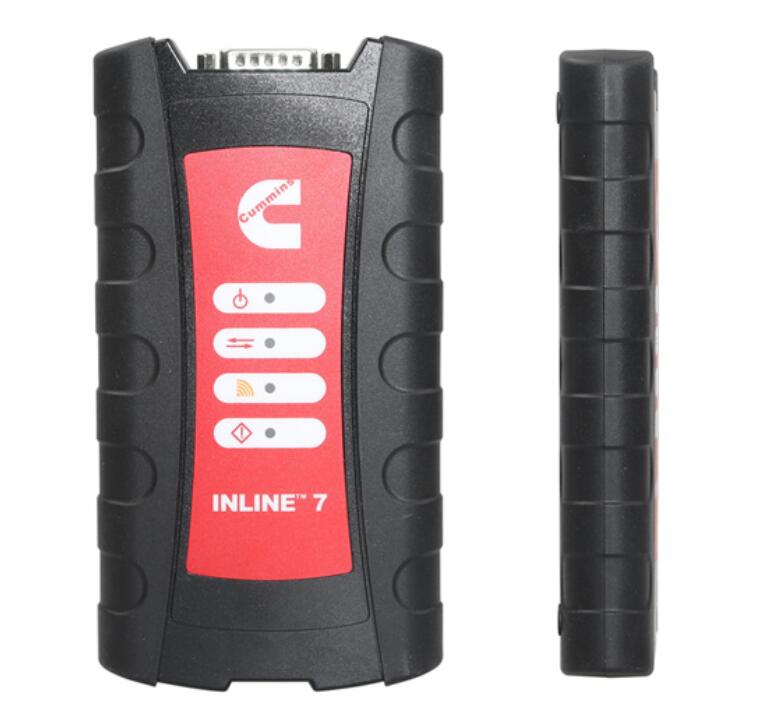

1. Hardware: Cummins INLINE 7 Data Link Adapter
2. Software: Cummins Insite 8.7 or 9.0 PRO (Option)
3. Update Method: update by CDs
4. Multi-language: English(united states)/ Chinese(simplified)/ Danish/ Dutch/ Finnish/ French/ German/ Italian/ Japanese/ Korean/ Norwegian/ Portuguese/ Russian/ Spanish/ Swedish/ Turkish
5. Suggest Operating System for 9.0 PRO software:8.5 version software only supports Win7 32 Bit System , 8.7 version software only supports win10 system,89.0 version software supports Win10 or Win11
6. Connection Method: USB

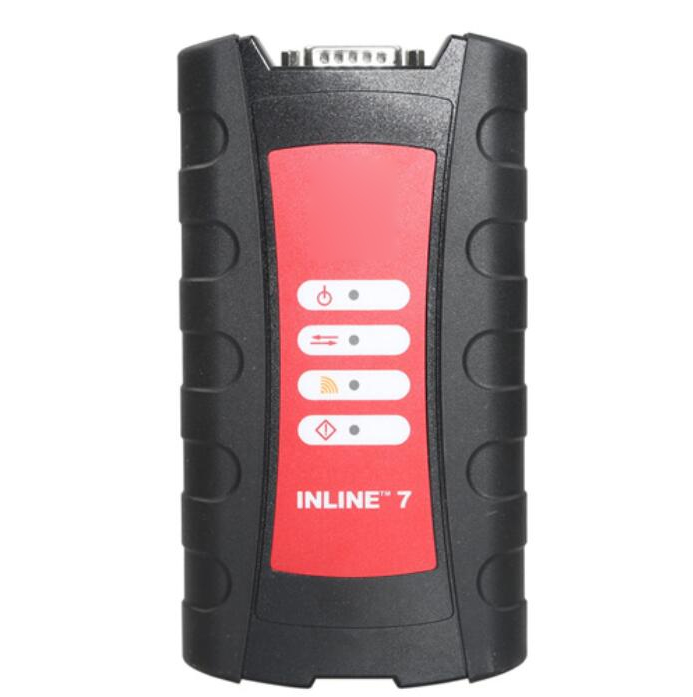

New Cummins engine diagnostic tool Cummins INLINE 7 Data Link Adapter has a faster processor, more robust algorithms, larger memory buffers and more sophisticated filtering than previous models while simultaneously accessing multiple vehicle data channels. INLINE 7 supports USB, WiFi and Bluetooth technologies in a single device. INLINE 7 communicates with your PC and is designed for future capability with mobile products.
The Cummins INLINE 7 DataLink Adapter is designed to function with a wide array of Cummins, OEM and third-party service and information tools, including the following:
Cummins INSITE
Cummins PowerSpec
Detroit Diesel Diagnostic Link
CAT Electronic Technician (On-Highway only)
Navistar® -ServiceMaxx Fleet Pro
Volvo PTT
VCAD Elite Mack/Volvo
V-Mac Service Tools
Allison DOC® For PC Service Tool
Allison DOC® for Fleets (1000/2000/3000/4000)
Eaton ServiceRanger
Bendix ACom
WABCO Toolbox
Freightliner ServiceLink
International DLB, Intune, and IPC v2.02
International ServiceMaxx
PF-Diagnosis
and many more!
The Cummins INLINE 7 data link adapter communicates with your PC using a Universal Serial Bus (USB) through a standard USB connector as well as through WiFi or Bluetooth. INLINE 7 is fully compliant with the Technology and Maintenance Council’s RP1210 standard and supports three simultaneous CAN connections and offers baud rates of 250k, 500k and 1 megabaud.
Cummins INLINE 7 Supports several other protocols:
such as J1708, J1587, ISO 15765, ISO 9141 (K and L line)

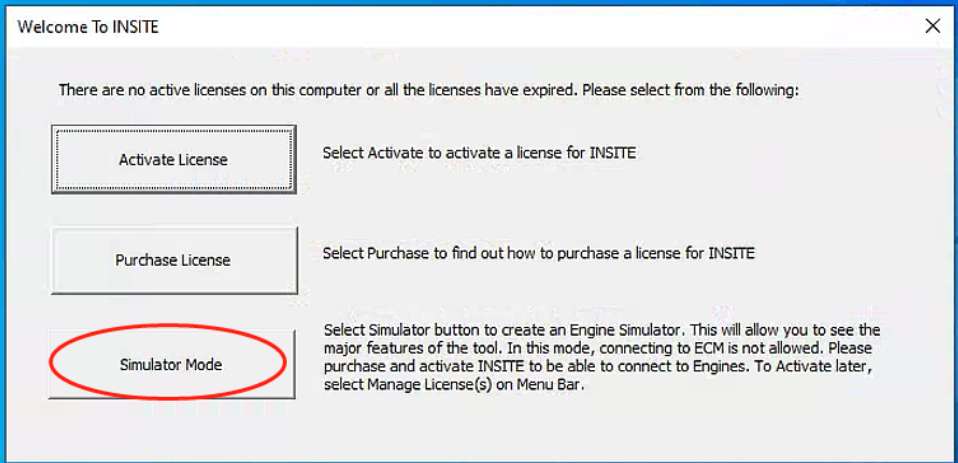

Tips to activate & use Inline 7 Iniste 8.3 Software?
1. Inline7 runs the same driver as Inline6
2. Software activation is done via server. Need to confirm by server and it may take some time, after success, the software is combined with your computer.
3. Do not directly open the Inline 8.3 after installed, you need to go through the server software and use Inline 8.3.
4. After Inline 8.3 is authorized successfully, users can use 3 years for free for 70 times, generally the user is supposed to get authorization every month (that is within 3 years, after the times is used up, users can get authorization by themselves). After 3 years, you need to pay extra license.
5.After activation, users are not allowed to change laptop motherboard, RAM and CPU. If you change them, you have to submit the Inline 7 serial number to the seller for activation.
6. The Calibrations in the Inline 7 U disk can be used for 6 months only, after 6 months later you can search “Inline Calibrations” online and download to use.

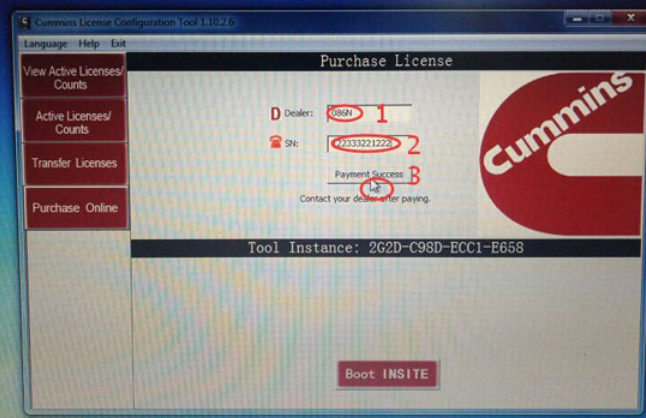

7.If you install Chinese version insite 8.3, then you have to run “Cummins License Configuration tool” in Chinese; if you choose the other language to install insite 8.3, then run the “Cummins License Configuration tool” in English, because the dealer code is not the same.
Chinese dealer code: 010C
English dealer code: 086N
8.After input Dealer code and serial number, please click on ” Payment success”, then provide the dealer with the serial number for processing in the server. When it is done, click on ” Payment success” again and you will receive a message indicating success.
Cummins Inline 7 Data Link Adatper VS. Cummins Inline 6:
Cummins Inline 6 vs. Inline 7 in software and hardware
|
|

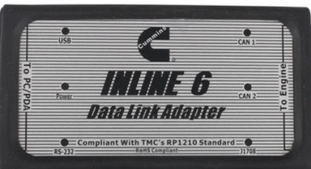

CUMMINS INLINE6
|
CUMMINS INLINE7
|
Software
|
1.Comes with Insite 7.6 software (2013)
2. Pay to use Insite 8.2 8.3
3. Only works with Win7
4. When install insite, you need to change the computer time which is not easy to do.
|
1. Comes with Insite 8.7 software (2013)
2. The software is authorized for free, what the user to do is enter the serial number.
3. Works with WIN10.
4. No need change the computer time, easy to install.
|
Hardware
|
|
|
1. Inline 6 warranty: 1 year
2. The iron shell is heavier and not easy to take.
|
1. Inline 7 warranty: 3 years.

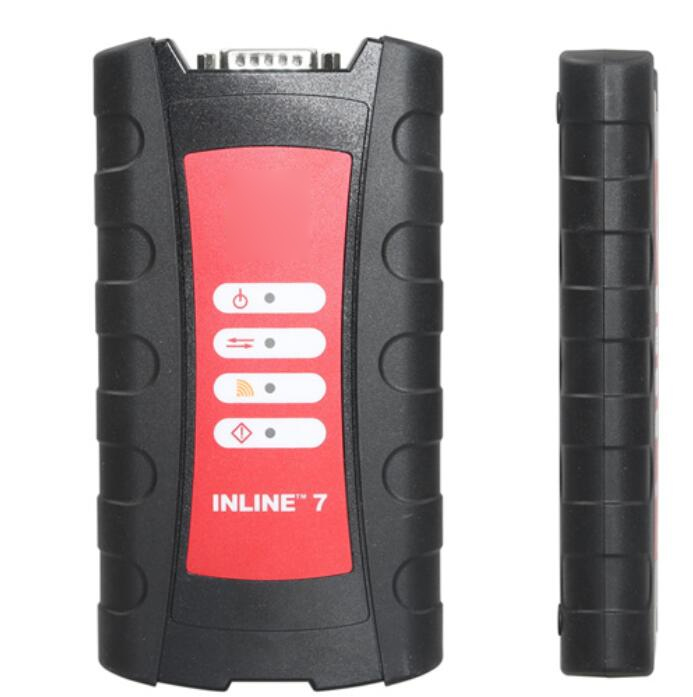

2. Comes with double-layer plastic which is anti-stress and stable, it can protect the circuit board well. The outer layer is soft and comfortable to the touch..
|
|
|

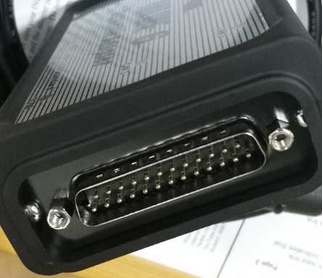

For a long-time use, the two rows of hollow pins are easily poor to contact, broke or bent.
|

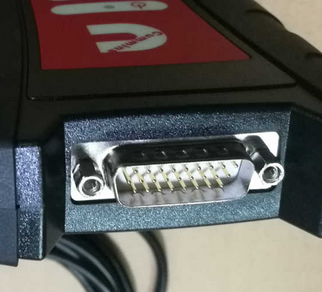

The three rows of solid pins are durable, its warranty is 3 years.
|
|
|

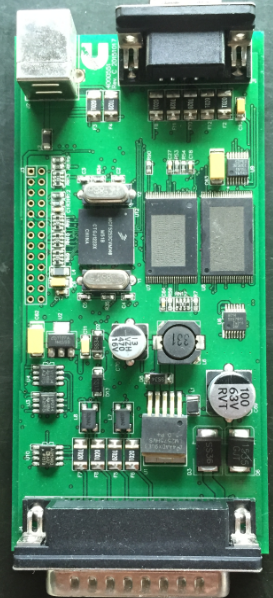

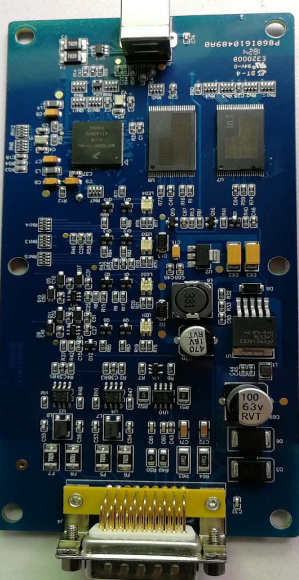

Circuit Board.
|
The circuit board design is more tidy, the PCB line impedance is adjusted and optimized, the product life is improved, and the stability of the equipment is ensured. The maximum warranty is three years.
|
