Product Description


Cummins INLINE 6 Data Link Adapter Cummins Diesel Truck Diagnostic Tool Best Quality

Please be attention:

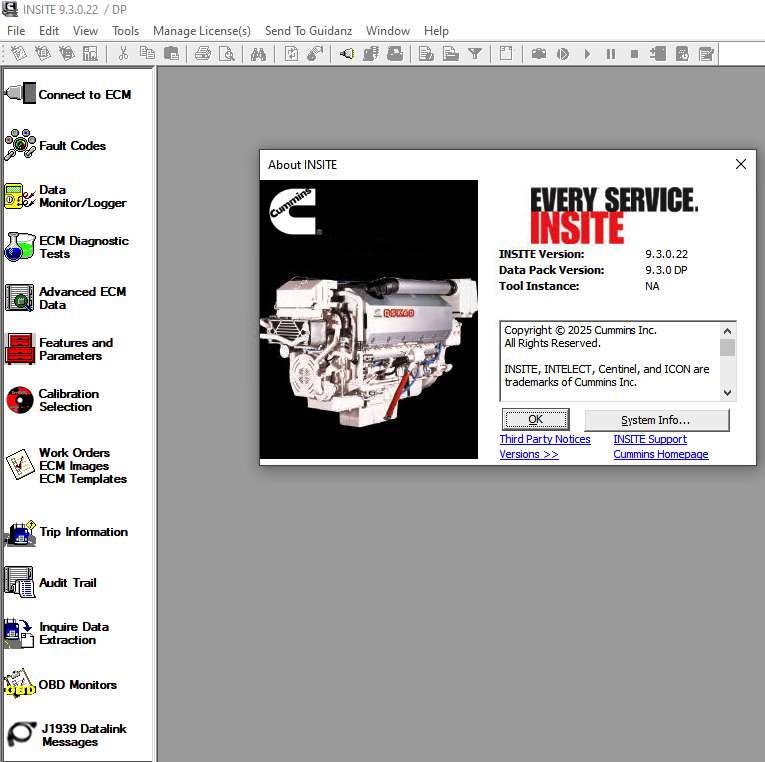

Option 1 : Cummins INLINE 6 with Cummins Insite 7.6.2 Software,you can install and activate the software by yourself .

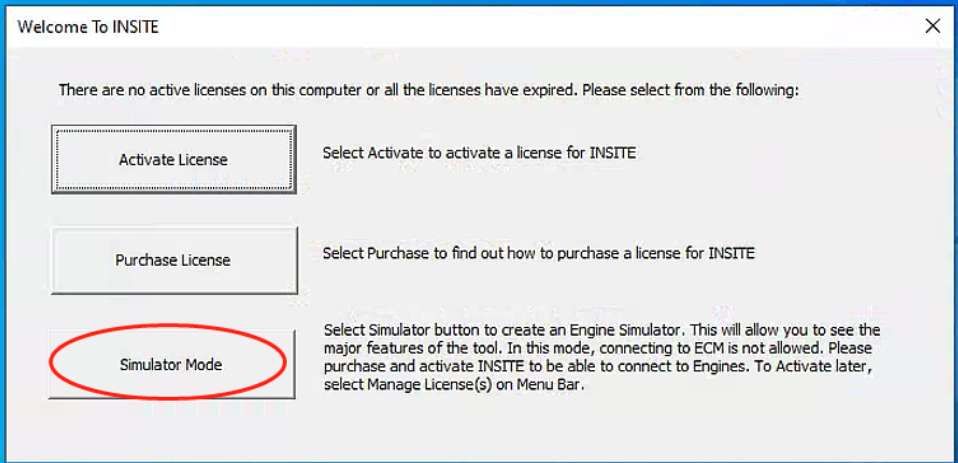

Option 2 : Cummins INLINE 6 with Cummins Insite 8.5 Software,you should install software first , then make remote with our engineer activating your software by team viewer
Option 3 : Cummins INLINE 6 Plus Lenovo X220 Laptop with Cummins Insite 8.5 Software ,we will install and activating the software for you well ready to use
Option 4 : Cummins INLINE 6 Plus Lenovo X220 Laptop with Cummins Insite 8.7 Software ,we will install and activating the software for you well ready to use

Language :
English, Hungarian, Polish, Czech, Indonesian, Portuguese, German, Italian, Romanian, Danish, Japanese, Russian, Greek, Korean, Swedish, Spanish, Netherlands, Turkish, Finnish, Norwegian, Chinese

Cummins INLINE 6 Data Link Adapter:
1. The INLINE 6 can communicate with your PC through a 9-pin serial connector. The INLINE 6 also can communicate with your PC over a Universal Serial Bus (USB) through a 4-pin standard connector. The INLINE 6 adapter connects to vehicle power, the SAE J1708/J1587 data link, and two CAN/J1939 data links via a 25-pin serial connector.
2. With full compliance to the Technology and Maintenance Council's RP1210 standard, the INLINE 6 will work with the latest  INSITE, PowerSpec and Calterm III software applications.
3. It will also work with any other software applications that are fully compliant with the RP1210 standard (note that while some non- applications fully support RP1210, others do not, so you should test each application in question with the INLINE 6 adapter to make that determination).
4. The eye-catching INLINE 6 breaks new ground by utilizing the latest electronic technology to deliver high performance and high quality at an attractive price.
5. Each INLINE kit contains a data link adapter, basic cables, and the INLINE PC software driver. Load the software driver, connect all the hardware, and you are ready to start a new era in data link adapters.

Cummins INLINE 6 Data Link Adapter Features:
1. Supports SAE J1708/J1587 and J1939/CAN data links
2. Both CAN ports auto detect between 250 & 500 kbps
3. Supports USB full speed port at up to 2M baud rate
4. Custom USB cable includes thumbscrews for secure mounting to INLINE 6
5. Supports RS-232 PC serial port at up to 115.2k baud rate
6. Is fully compliant with TMC's RP1210 standard
7. Small enough to fit in pocket
8. Attractive black powder coated aluminum housing provides ruggedness
9. Derives 8 V to 50 V DC power from vehicle
10. Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
11. Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
12. Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
13. INLINE 6 is certified to meet European CE requirements
14. Rated for -40° to +85° C operating temperature
15. INLINE 6 meets rigorous  in-cab environmental test requirements

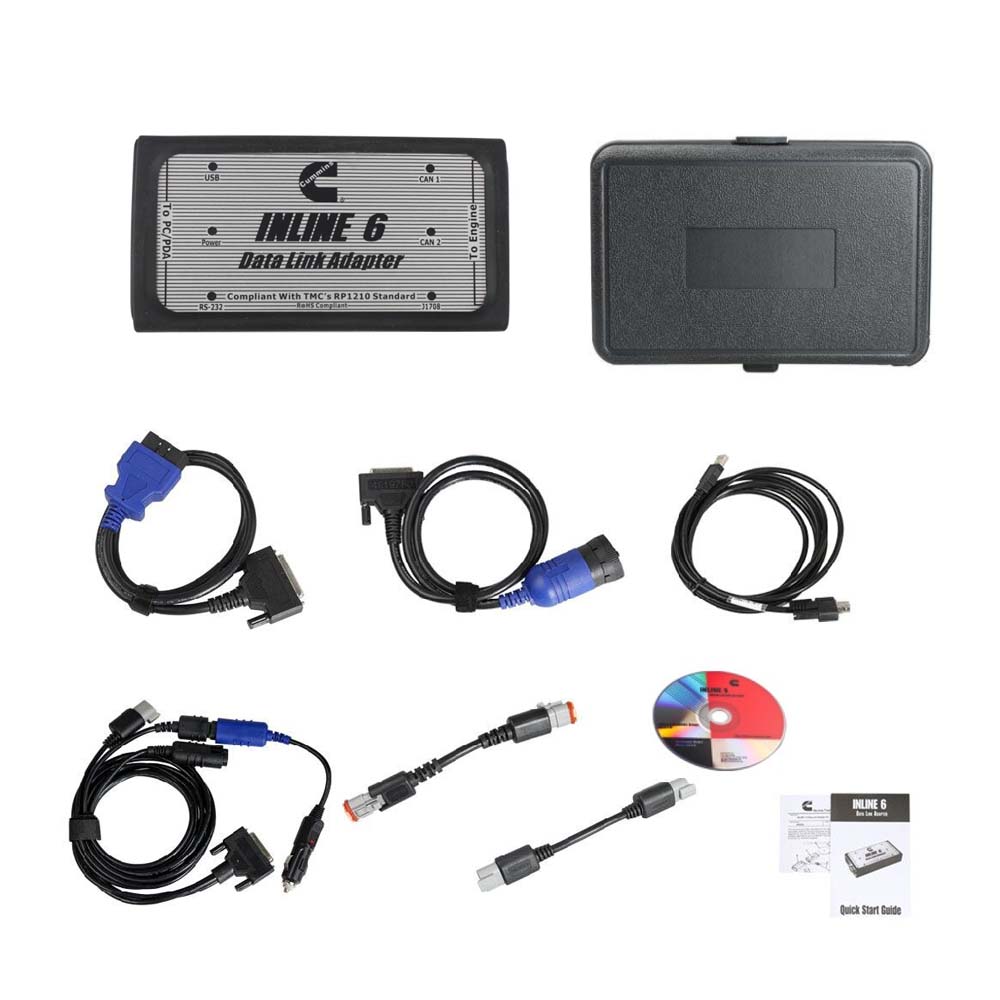

Package Including :

Option 1 :

1 x INLINE 6 data link adapter (P/N 2892093)

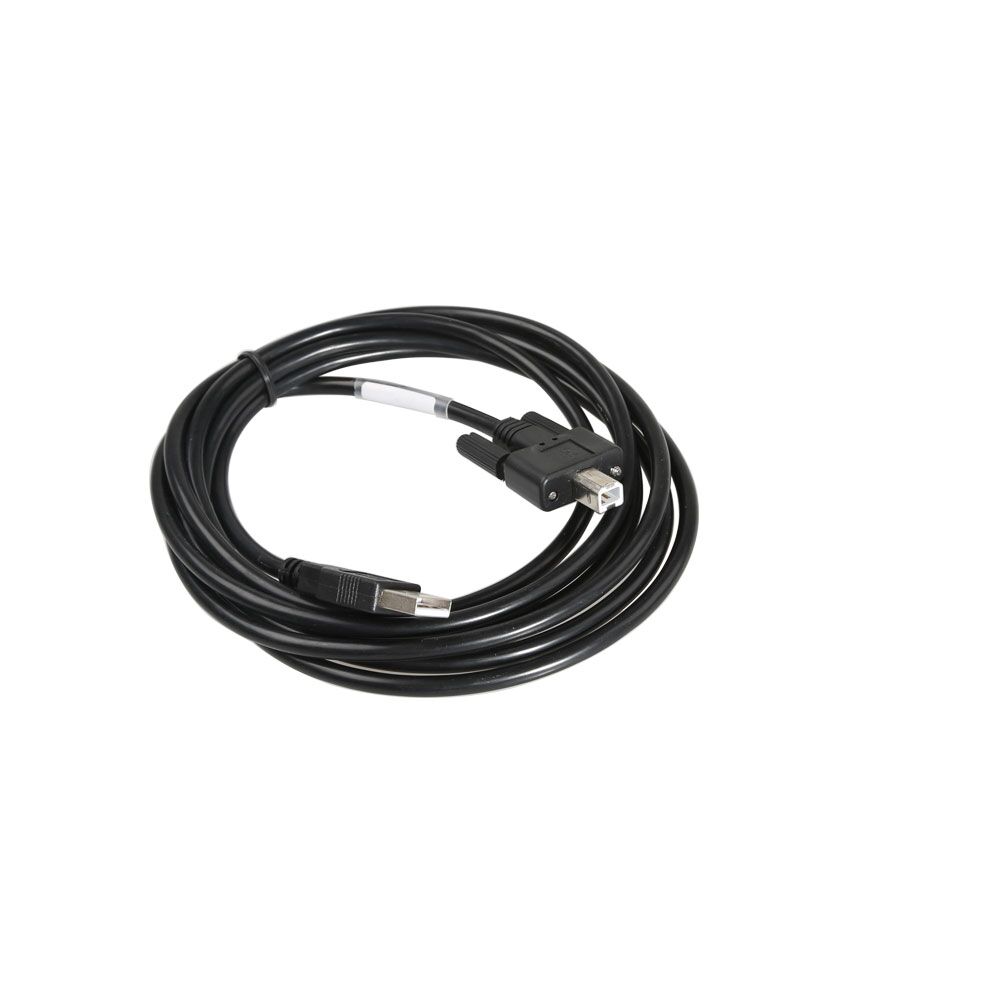

1 x USB 14-foot  cable (P/N 2892176)

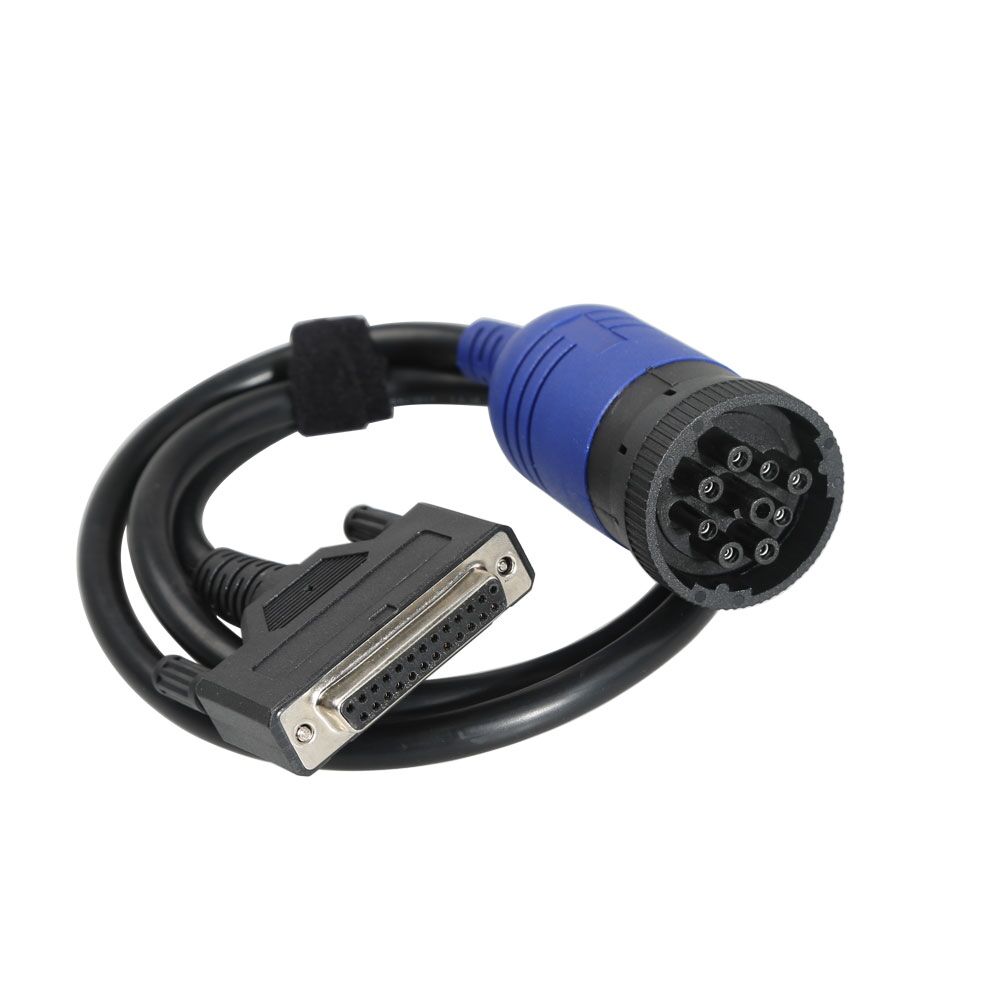

1 x DB25F/9-pin data link cable (P/N 4919780)

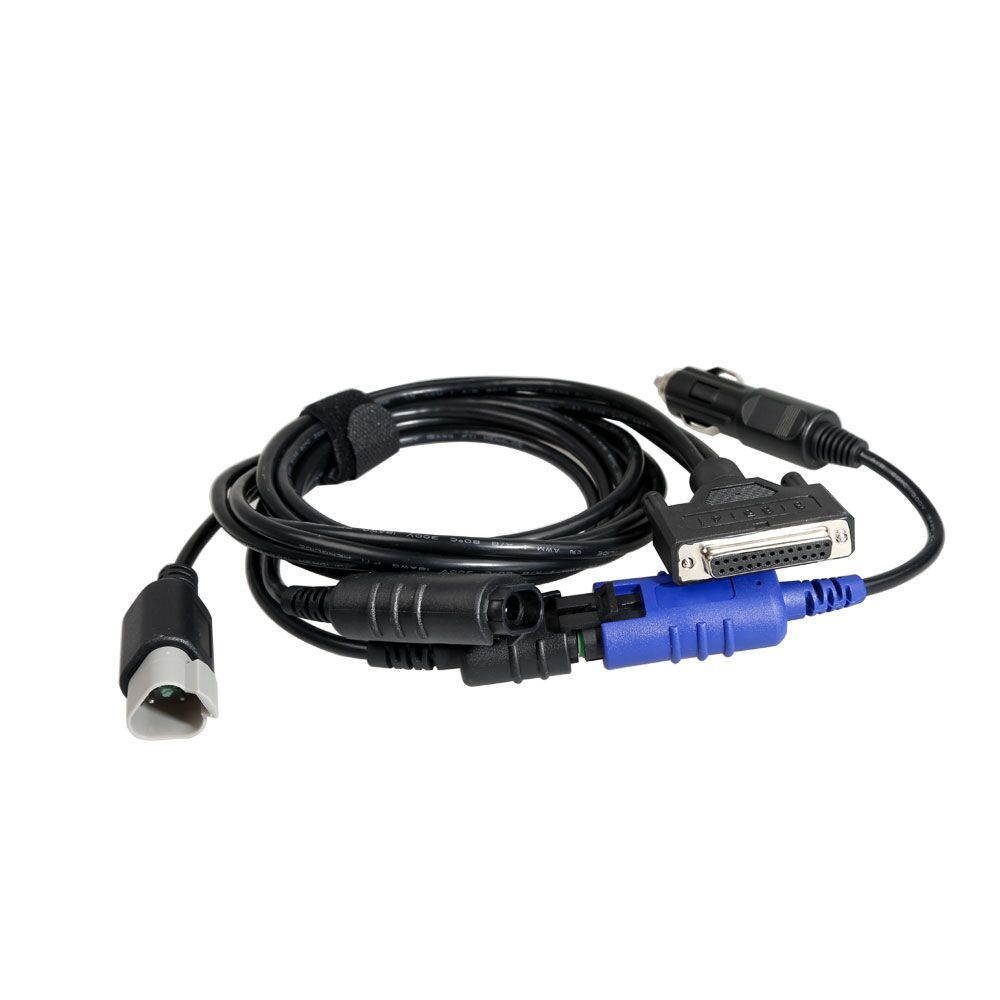

1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)

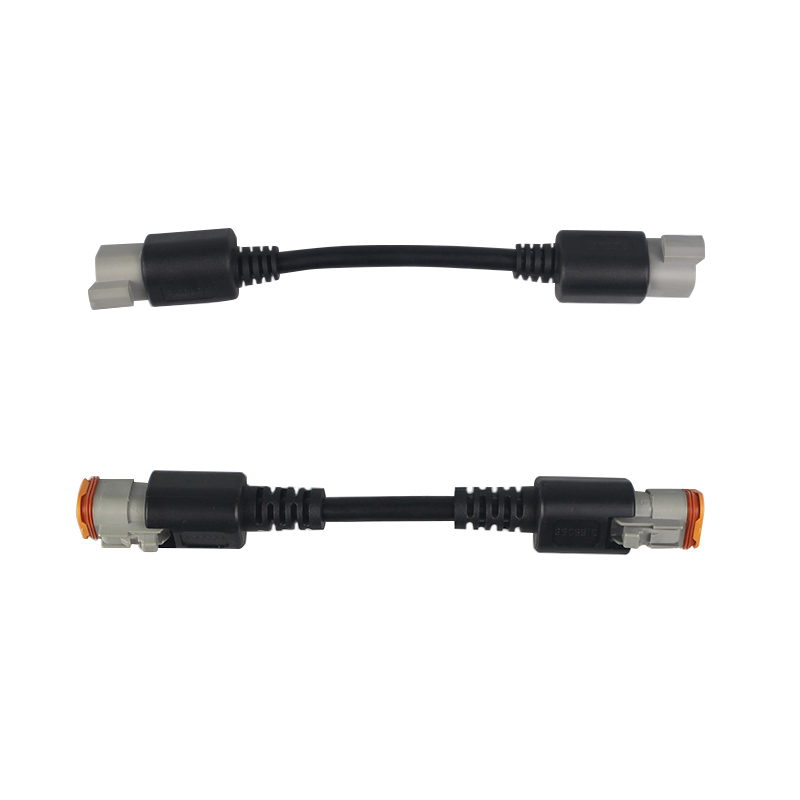

1 x J1939 Gender Changer adapter (P/N 3163597)

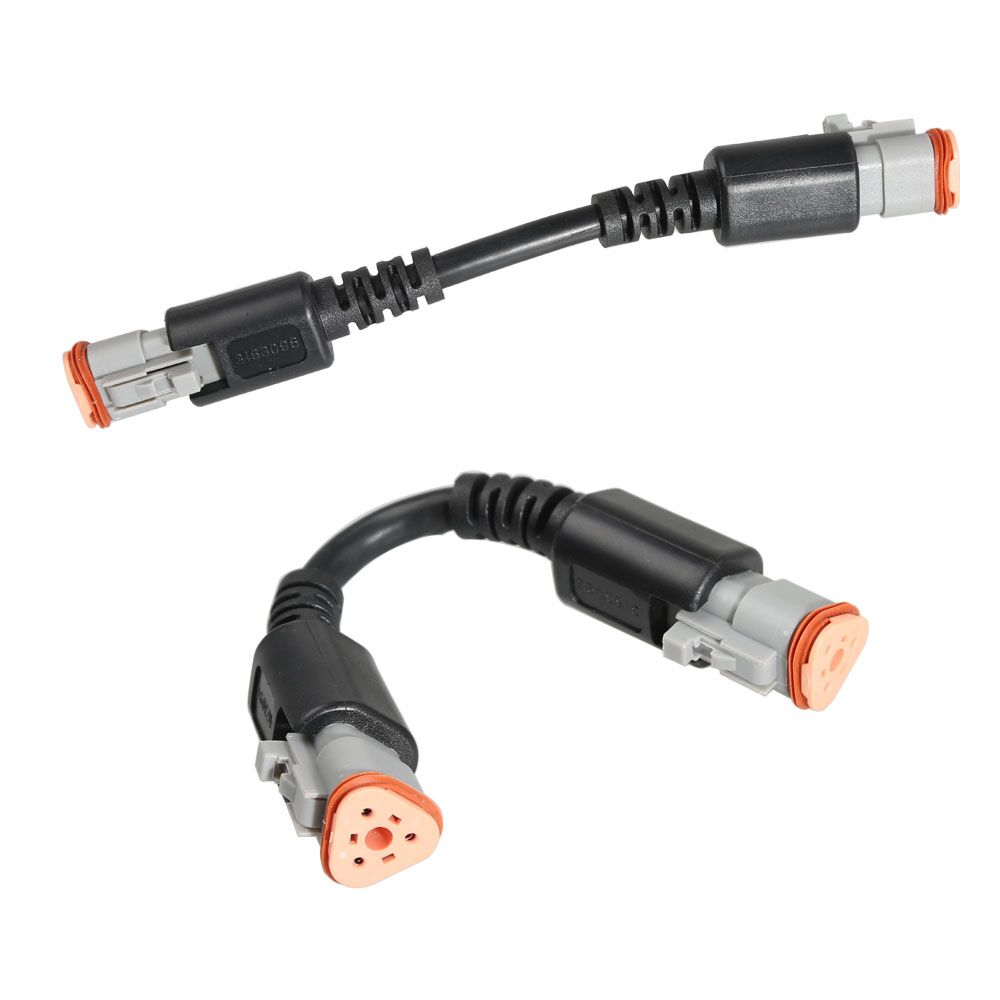

1 x J1939 Backbone adapter (P/N 3163096)

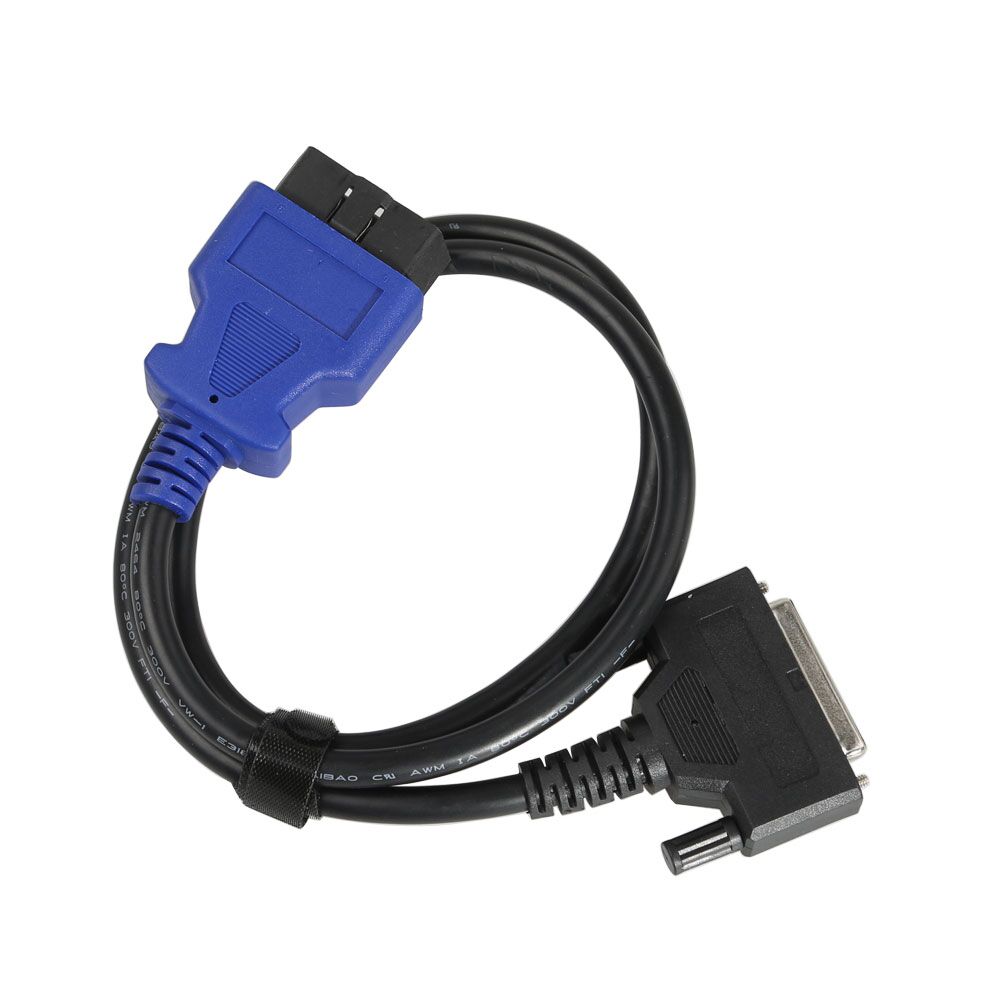

1 x ObdII cable  (P/N 4919781)
1 x Komatsu 12 pin cable
1 x INLINE 6 software CD (P/N 2892095)  Include Insite 7.6.2 + keygen

Option 2 :
1 x INLINE 6 data link adapter (P/N 2892093)
1 x USB 14-foot  cable (P/N 2892176)
1 x DB25F/9-pin data link cable (P/N 4919780)
1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1 x J1939 Gender Changer adapter (P/N 3163597)
1 x J1939 Backbone adapter (P/N 3163096)
1 x ObdII cable  (P/N 4919781)
1 x Komatsu 12 pin cable
1 x INLINE 6 software CD (P/N 2892095)  Include Insite 8.5 with remote service for actvating

Option 3 :
1 x INLINE 6 data link adapter (P/N 2892093)
1 x USB 14-foot  cable (P/N 2892176)
1 x DB25F/9-pin data link cable (P/N 4919780)
1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1 x J1939 Gender Changer adapter (P/N 3163597)
1 x J1939 Backbone adapter (P/N 3163096)
1 x ObdII cable  (P/N 4919781)
1 x Komatsu 12 pin cable

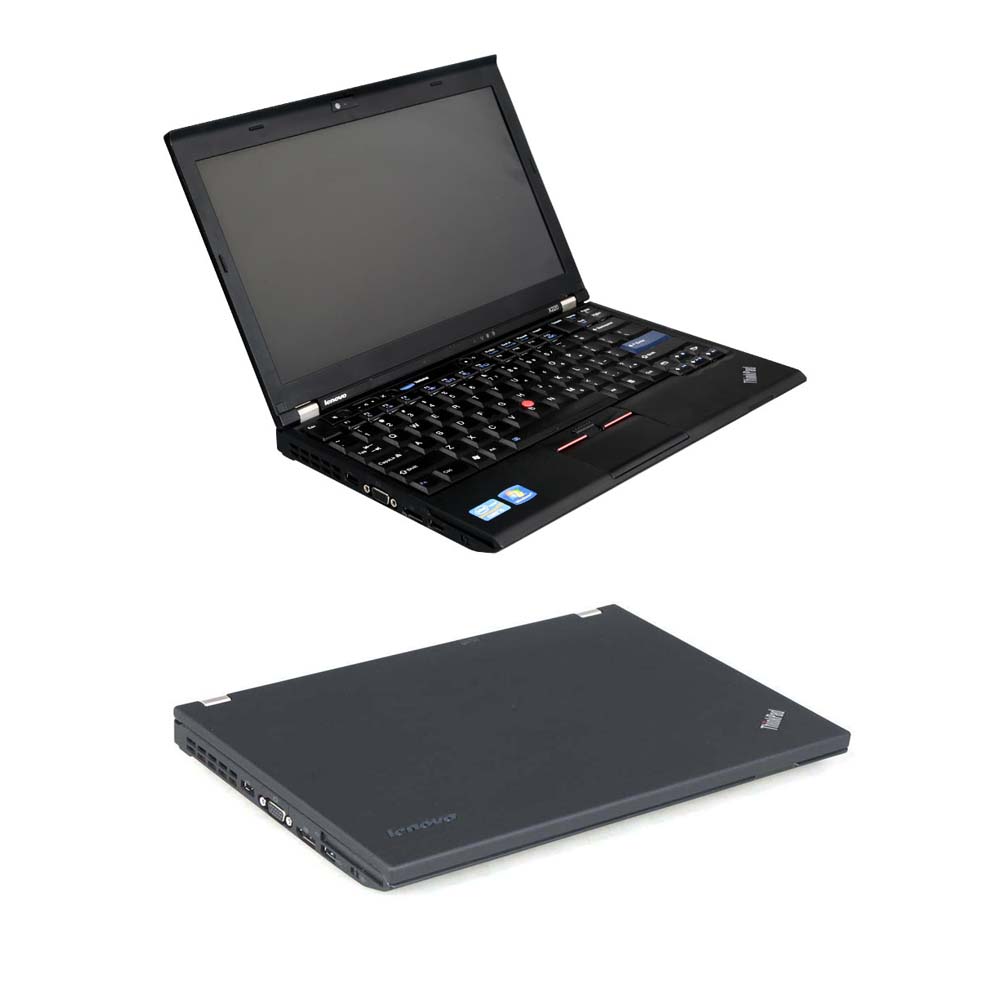

1 x Second Hand Laptop Lenovo X220 Laptop (All software activated. All system ready to use)

Second Hand Laptop Lenovo X220 Laptop Specification :
Brand: Lenovo
Condition: Used
Type:  Laptop/Notebook
Screen Size:  14.0
Processor Type:  Intel (R) Core(TM) I5-2520M CPU
Processor Speed:  2.50 GHz
Processor Configuration:  Dual Core
Memory: 4GB
Compared with other laptop, this one is better quality and run faster
