Autel MaxiSys MS909 MaxiFlash VCI J2534 Full Diagnostic Scanner with ECU Coding and Programming

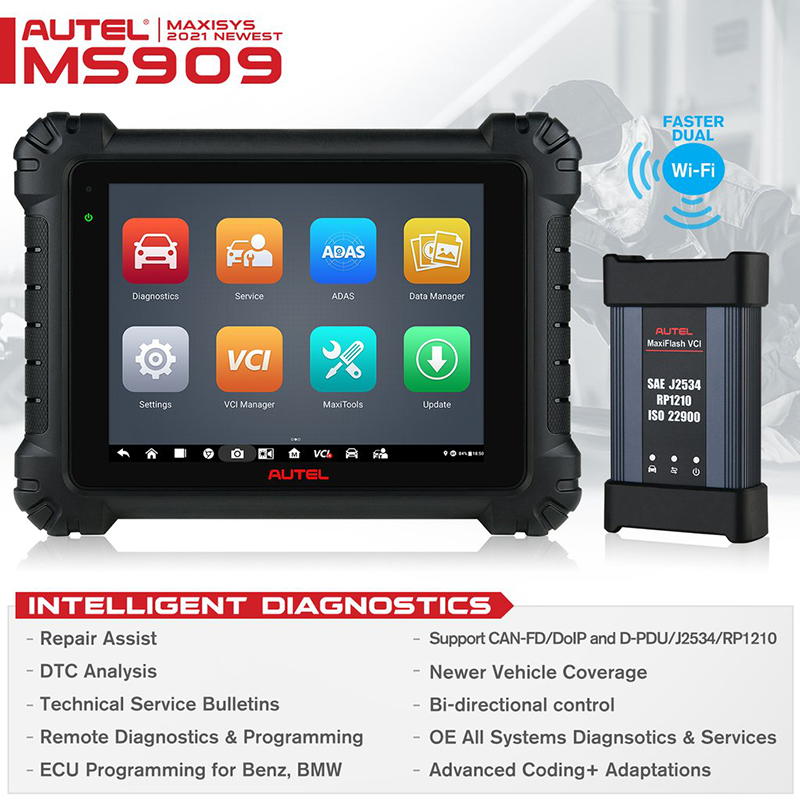

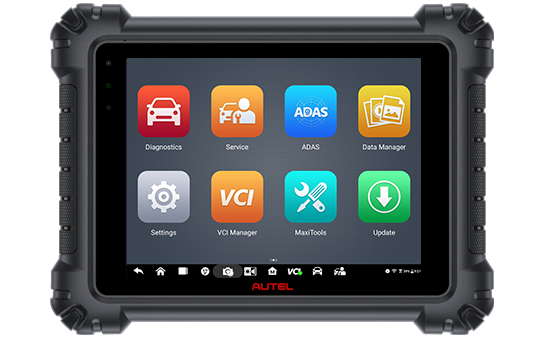

The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostics tablet. It is powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory, and features an advanced VCI supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. The MS909's topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature will guide the technician from code to repair to test with detailed repair information and illustrations, and Oscilloscope preset guides and tests and waveform library. The MS919 has a rechargeable Lithium battery proving 8 hours of continuous use, a convenient docking station, and front and rear cameras.
1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programmin
3. Automatic system and software updates with real-time push message notifications via internet
4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
BT v.2.1 + EDR
USB 2.0 (Two USB HOST Type A, one USB mini device)
SD Card (Support up to 256GB)
Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
Gravity Accelerometer, Ambient Light Sensor (ALS)
3-Band 3.5 mm stereo/standard headset jack
Power and Battery
15000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
0 to 50°C (32 to 122°F)
-20 to 60°C (-4 to 140°F)
(WxHxD) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

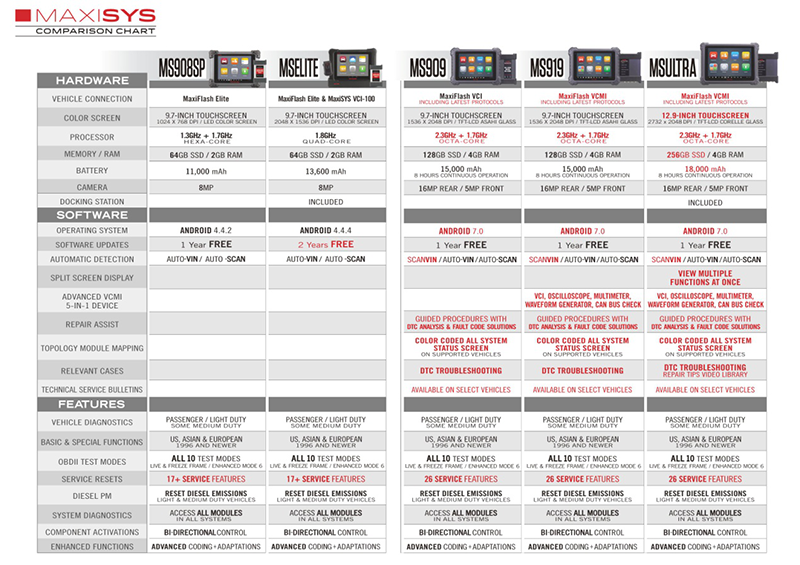

How the Autel MS909 differs from the older Elite and MS908s:
More memory: 128GB Memory

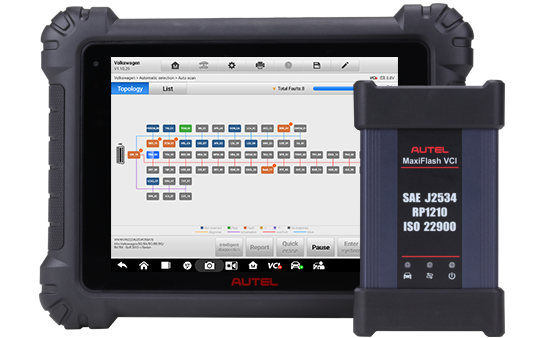

Topology M Module Listing CAN BUS Tree
MaxiFLASH VCI including new protocols ( D-PDU, DoIP/CAN FD, Mega CAN)
Does not include a docking station
Does not include early OBD-II adapters!
1-year subscription with renewable warranty.

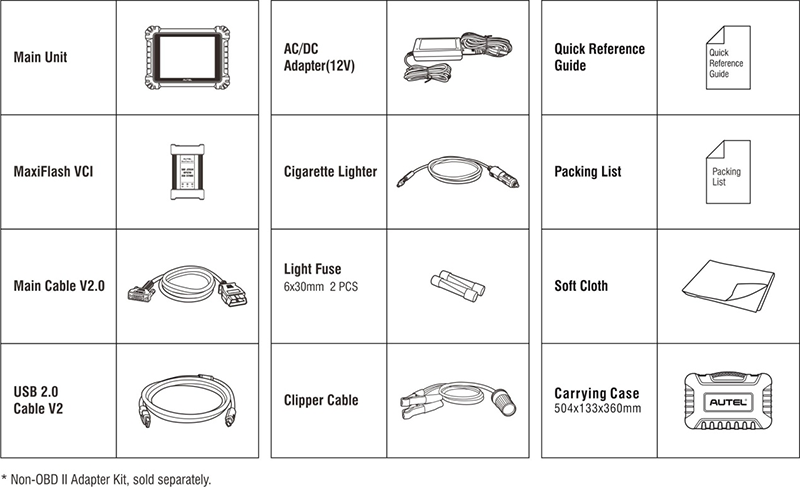

MaxiSYS MS909 Includes:
Main Cable V2.0
USB 2.0 Cable V2
Light Fuse 6x30mm 2 PCS
Quick Reference Guide
Carrying Case 504 x 133 x 360 mm
