CG FC200 ECU Programmer V1.1.3.0 Full Version Support 4200 ECUs and 3 Operating Modes Upgrade of AT200
What is CG FC200?
FC200 ECU programmer is designed for ECU/ EGS clones. Supports data processing, ISN read and write, disassembly matching, VIN modification, and DTC shielding, etc.
Product Description
FC200 supports 4200 ECUs/EGS, covers 80% of models in the market. No open shell, no punch, keep the original parts.
Data loss prevention, automatic verification, 100% accurate analysis of BMW ISN code, supports VIN code modification, and data cloning of various models
Exclusive support for DTC shielding and function shutdown, exquisite design, adapt to various operating environments, FC200 is your trusted auto repair assistant
2022 CGDI FC200 ECU Programmer & ISN OBD Reader
CG FC200 Highlights:
1. Supports 4200 ECUs/EGS, covers 80% of models in the market.
2. Read BMW ISN Code by OBD, perfectly replaces CG AT200
3. Original from CGDI and free Update Online for 1 year, subscription is $125/ year
4. Multi-Language: English, French, Spanish, Polish, Traditional Chinese, and Simplified Chinese
5. Bosch search: Free to find out the ECU type
6. 3 Operation modes: With CAN-bus, No disassembly (platform mode), and Boot mode
7. Full Version with All License Activated, No extra charge。 Software version: V1.0.4.0
8. Supports key programming with CGDI BMW, VVDI 2 Full, Mini ACDP, AUTEL IM508, IM608 Pro, etc.
9. Supports connection by Bench, Boot, OBD
10. Calculates checksum online
CG FC200 Latest Update Information:
V1.1.3.0 Registered Version New (2023.05.24) Download Here
1.Newly added CONNECTAL TC17 platform mode ECU: PCR2.1, SDI7, DPS6
2.Add BOSCH MPC5xx platform mode ECU: MED9.1, MED9.5, MED9.5.10, ME9.0, EDC16CP31, EDC16CP35, EDC16C2, EDC16C8
3.New Volkswagen TCU mileage repair function: DQ200 TC1766, DQ250, VL381, DL382
4.Add Hyundai/Kia/Ssangyong KEFICO CPEGD2.20. x ECU functions: platform mode data read and write, modify VIN functions
5.Add Mercedes Benz CRD2. x MPC556x engine platform mode
6.DELPHI TC17 chip ECU adds PFLASH verification function
7.ECU with PFLASH verification function added to BOSCH ST10F chip: ME7.4.5
8.GM 6T30, 6T80, 6L80 TCU added PFLASH verification function
9.Diesel ECU EDC17C53, EDC17C63, EDC17C81 and other newly added anti-theft system shutdown functions
CG FC200 Version V1.1.2.0 Update Notice on Apr 7th, 2023
1. Fix the problem of engine recognition and read/write failure in GM E38, E67 and E39
2. Add GM E37, E39A, E78, E80 and E83 engine platform mode
3. GM E38, E67, E39 and E39A engines add Ext FLASH verification function
4. Add the "time repair" function of "Lovol harvester" to support the EDC17CV53 engine of Lovol harvester
5. Benz VGS-FDCT, VGS2-FDCT and VGS-FCVT gearbox add PFLASH verification function
6. Volkswagen DL501 Gen2 and DL382 transmissions add PFLASH verification function
7. Add BOSCH ST10 engine: M7.4.4, ME7.3.2, ME7.4.4
8. Fix the connection failure of DELPHI CRD3.10, CRD3.xx TC1797 and other engine platform modes
CG FC200 V1.1.1.0 Software Update Notice on Feb 1st, 2023
1.Setup interface adds-Server Selection function
2.Optimize the device activation interface (add the "Activate" prompt)
3.Repair the failure problem of the Bosch query abroad
4.Added GM AcDelco transmission platform mode: GM 6T30/35/40/45/50, GM 6T70/75/80, GM 6L45/50/80/90
5.New BOOT mode of BOSCH ST10 engine: ME7.1.1, ME7.5.10, ME7.8.2, and MED 7.6.2
6.New BOSCH TC17 engine platform mode: ME17 TC1728 (China)
7.New BOOT mode of KEFICO TC17 engine: CPGDSH2.2x.x, CPGDSH1.26.1, KME 1.9.3.1
8.New BOSCH VAG gearbox PFLASH calibration function: DQ200 TC1784, DQ200 TC1766, DQ250 TC1766, DL501Gen1 TC1766, VL381 TC1766
9.Newly modified VIN model: MED 17.8.3
CG FC-200 V1.1.0.0 Software Update Notice on Dec 13th, 2022:
1. Added DELPHI platform and BOOT engine: CRD3.10, CRD3.E1, CRD3.F1, CRD3E.1, CRD3P.B0, CRD3P.C0, CRD3P.D1, CRD3P.G0, and CRD3xx
2. Added BOSCH BOOT engines: ME7.5.20, M7.9.5, ME7.9.51, and ME7.9.52
3. Add PFLASH check function for MG1C, MD1C SPC5777 and TC298TP engines of BOSCH
4. Added password reading function in the platform mode of GM engine E39
5. Optimize the PFLASH verification algorithm of BOECH's TC17 series engines
6. Added BOSCH platform engine: EDC17CV53
7. Fix some bugs and optimize software performance
CG FC200 V1.0.9.0 Upgrade Notice on Oct, 2022:
1.Added GM engine computer
ACDelco E38: Read and write EEPROM and FLASH
ACDelco E39: Read and write FLASH and password
ACDelco E67: Read and write EEPROM and FLASH
Models involved: Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Isuzu, Opel, Pontiac, Saab, Saturn, Vauxhall
2. Added new gearbox computer
ZF_9HP TC1782: Read and write DFLASH and PFLASH
Models involved: Acura, Chrysler, Citroen, DS, Peugeot, Dodge, Fiat, Honda, Jaguar, Jeep, Land Rover
3. Added Bosch engine computer (platform mode)
MD1CS018
MG1CS032
MG1CS026
MG1CA007
MG1CA811
MG1CA920
4.Added engine computer to modify VIN function
EDC17C42
EDC17CP27
MED17.8.2
MEVD17.2.7
5. Fixed some bugs and optimized software performance
Note:
Please update the authorization for the first time to use, and then restart the FC200 software.
CG FC200 Software V1.0.6.0:
(2022.04.25)
Add Bosch Engine Model:
EDC17C19
EDC17C73
EDC17C10
ME17.5.6
ME17.5.20
ME17.5.24
ME17.9.5
ME17.9.71
MEVD17.4.4
MG1CS042AA
EDC17C10
EDC17U01
Newly Add Engine Computer Edit Vin Function:
EDC17C63 EDC17C76 EDC17C79 EDC17CP52
MEG17.9.12 MED17.8.10 MED17.8.32 MED17 (China) MED17.9.8 ME17.8.8 ME17.9.23 ME17.9.64 MEG17.9.8
Note:

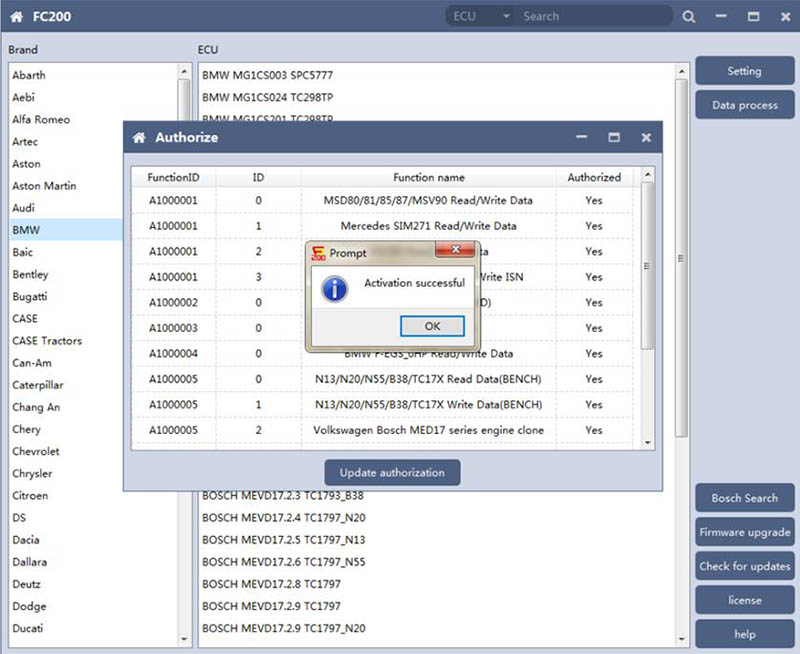

The equipment produced before 2021.09.10 will be automatically activated, and the service time will be valid until 2022.09.10. For equipment produced after this time, after the software is updated, a pop-up window will prompt to activate. Only after activation, some functions related to the server can be used normally. The validity period starts from the day of activation, and the validity period is one year.
CG FC200 ECU Programmer Functions
1. Original Parts Protection
FC200 supports OBD and platform mode for more than 98% ECU and EGS, no need to open shell, no punch, protect original parts of the vehicle. FC200 not only supports BMW ECU but also supports over 3000 ECUs like KTAG + Kess, Kessy, Dimsport, etc.
2.Smart Identification
The "identification" function can help you diagnose whether the ECU module is communicating or not, and check if the wiring is correct or not.
3. Module Clone
Supports ECU/EGS reading& writing and modules clone no need synchronization matching and online programming
4. Read & Write ISN
Supports all BMW series (including Mini) ECU ISN code acquisition, convenient for all keys lost matching and anti-theft fault maintenance. Quickly solve the problem for data collection of BMW all key lost.
5.Write VIN
Solve the problem for double VIN or VIN mismatch of vehicles
6. Data Processing
Supports data analysis and modification for the 4th and 5th generations of Audi/Seat/Skoda/Volkswagen ECUs
Turn off anti-theft system for Bosch MED/EDC17 series ECU
TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.
Packing List
1set X CGDI FC200 ECU Programmer
For detailed instructions and operation methods, please see the attachment: FC200 User Manual
FC200 Support ECU List
Software Features

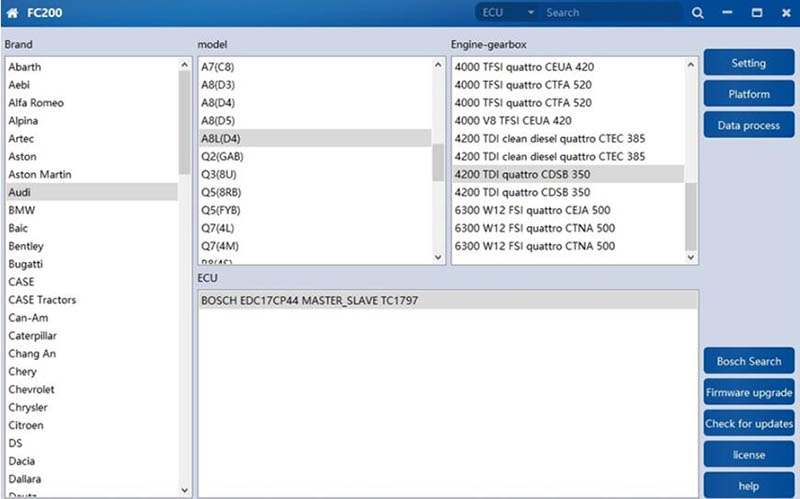

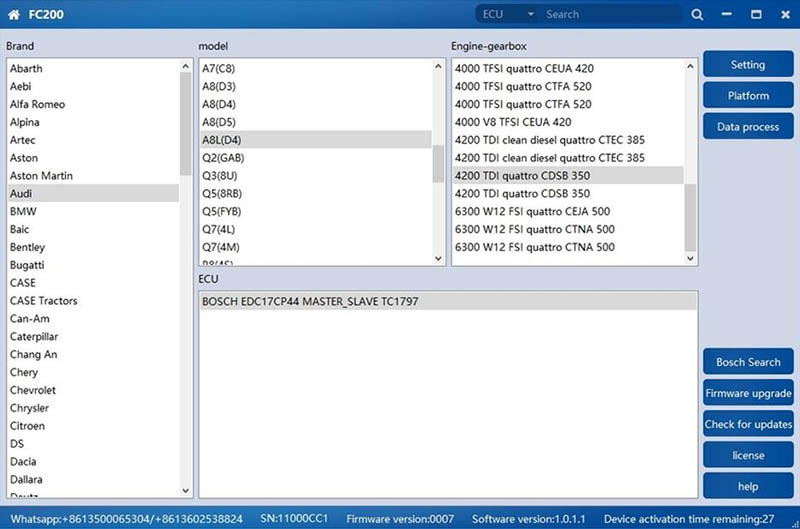

1.Interactive interface
The level is clear, the function is clear, and the "brand-model-ECU" structure is used to help users save time and accurately find the operating directory.
2.Built-in model search
Support ECU model and Bosch number search, avoid the trouble of level selection, and enter the function interface as quickly as possible.
ECU search: Take the BMW MSV90 engine computer as an example. First select "BMW", select "ECU" as the search condition, enter "MSV90", click the search button, and the ECU type will appear.
Bosch number search: Take the Volkswagen engine computer as an example. First select "Volkswagen", select "Bosch Number" as the search condition, and enter "0261S10525". Please note that the Bosch number is a ten-digit number and the letters are capitalized. Click the search button, and the ECU type will appear.

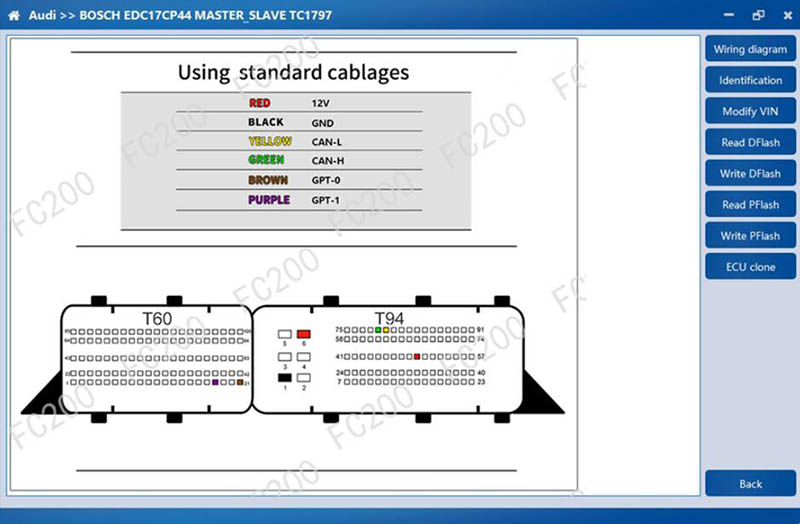

3.Intuitive wiring diagram
Highly paid professional designers are hired to produce, 1:1 simulation, bright colors, to avoid user wiring errors.
FC200 Model Support:
Support 4200 kinds of ECUs, involving 80% of the models on the market.
European Cars: Abbas, Alfa Romeo, Aebi, Artec, Aston, Aston Martin, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, CASE, CASE Tractors, Dallara, Deutz, DS, Ducati, Fendt, Ferrari, Fiat, Jaguar, KTM, Lada, Lamborghini, Lancia, Land Rover, MAN, Maserati, McLaren, Mercedes-Benz, MG, Mini, Opel, Peugeot, Piaggio, Porsche, Renault, Royal Enfield, Saab, SEAT, Skoda, Smart, Steyr, UAZ, Vauxhall, Volkswagen (VW), Volvo, Volvo Penta.
American Cars: Can-Am, Caterpillar, Chevrolet, Chrysler, Dodge, Ford, Ford Trucks, Freightliner, GMC, Indian, Internation, Jeep, Lincoln, New Holland, Polaris, Hidu.
Asian Cars: Force, Genesis Motors, Honda, Hyundai, Infiniti, Isuzu, Kassan, Kia, Kubota, Mahindra, Mitsubishi Fuso, Nissan, Subaru, Suzuki, Toyota.
Chinese Cars: Changan, Chery, Foday, Geely, Great Wall, Iveco, Jianghuai, Jiangling, Lifan, Ferguson, Valtra

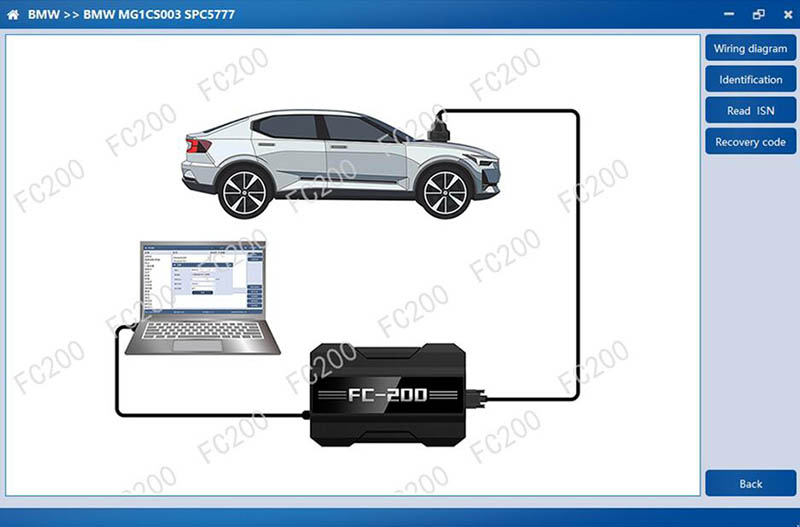

FC200 ECU Programmer Connection Diagram:
For Volkswagen ME17.5.22-TC1724:
For BMW N20 MEVD17.2.9-TC1797:

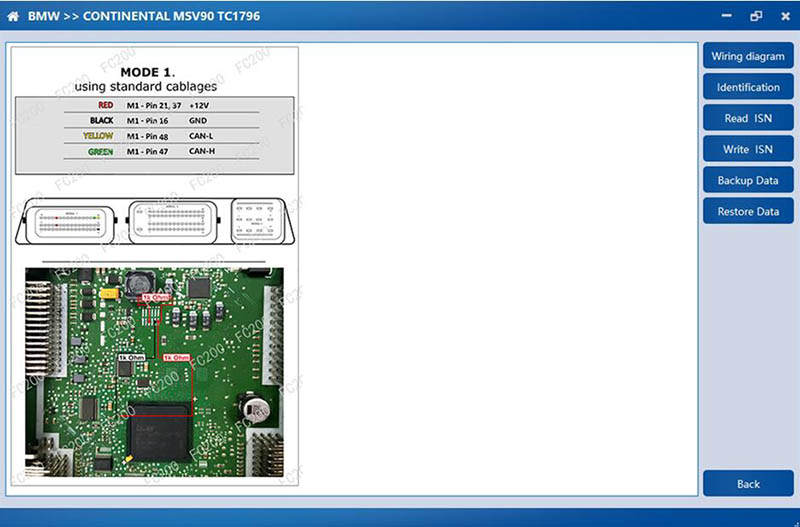

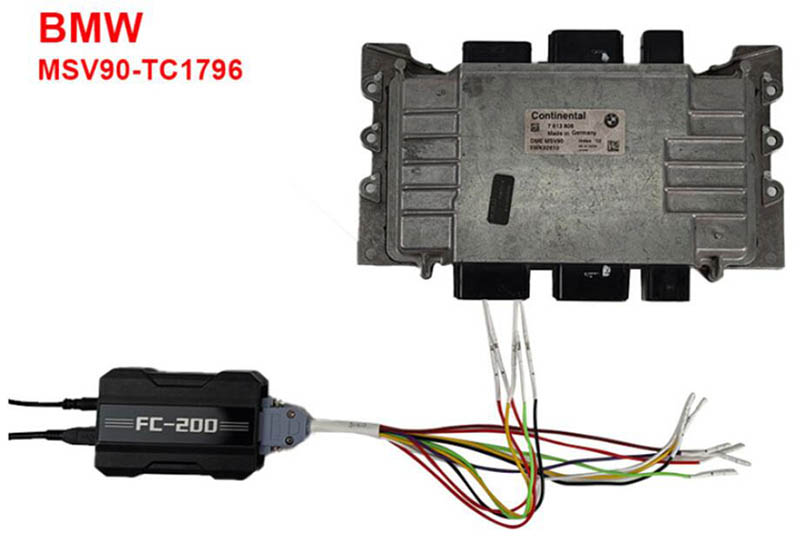

BMW MSV90 TC1796:

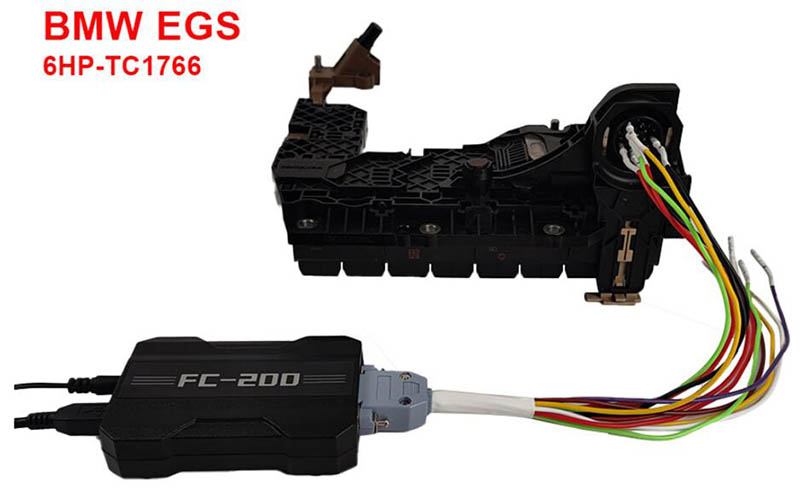

BMW EGS 6HP-TC1766:
BMW B58 MG1CS003-SPC5777:

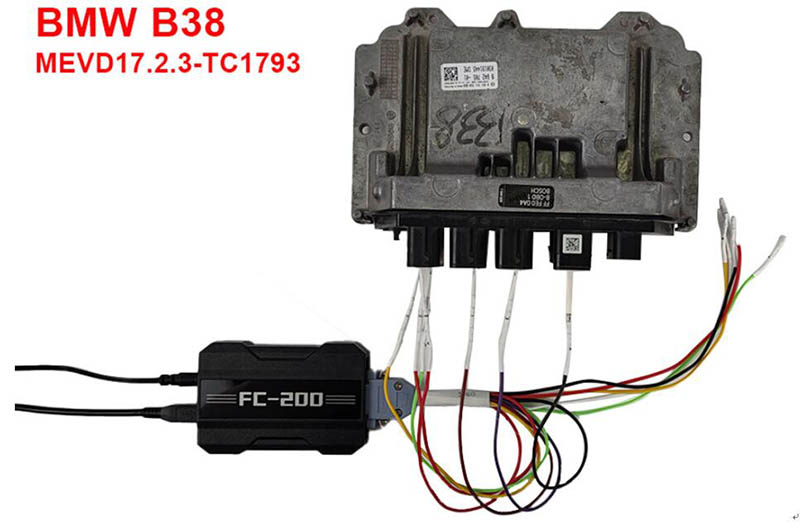

BMW B38 MEVD17.23.-TC1793:
Mecedes Benz MED17.7.5-TC1793:

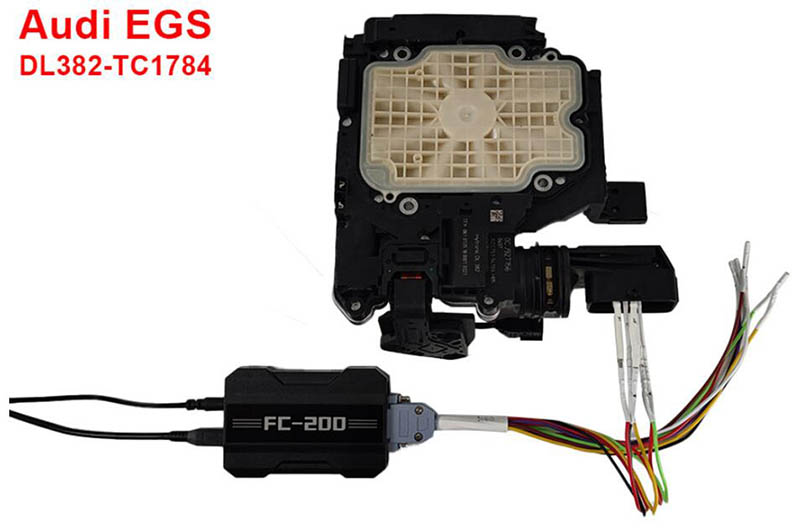

Audi EGS DL382-TC1784:
