How To Upgrade Ford VCMII Firmware

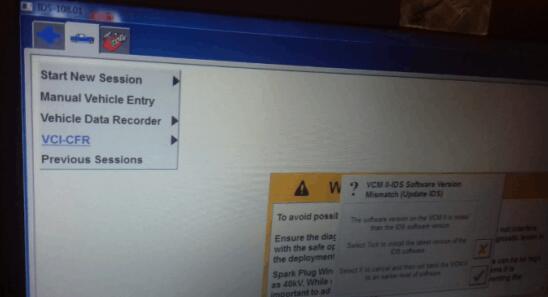

This is technical support from Obd2tool.com  for “VCM II – IDS software version mismatch”, when you are in trouble such as this, you should upgrade your VCM II



Here are the steps of how to update VCM II firmware:

1.Take off the bottom shell of Ford vcm ii as following picture show

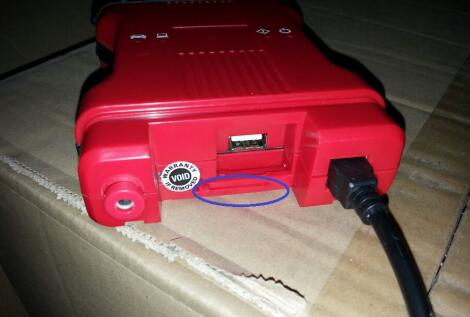

Step 2:Connect the USB cable to Ford VCM 2,  and Press and hold the button as picture 2 marked



Step 3.  Hold the Press button till you connect the USB cable to the laptop and hear the beep sounds.


Open Ford VCM II Manager, then go to VCM II Update for recovery

Running Bosch\VCI Software(Ford-VCM-II)\VCI Manger(Ford-VCM-II)

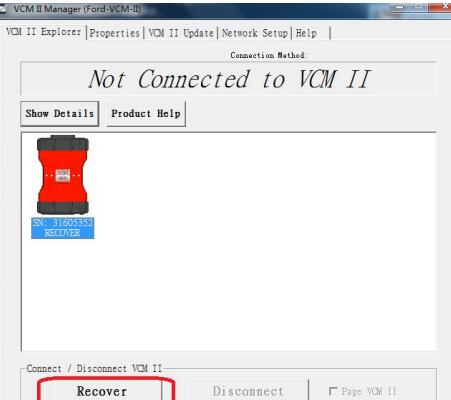

When the following figure appears, it means that the recovery mode has been entered.



Step 4: Then Check Recover and Update the VCM firmware



Click Start Update to update the firmware, and it will show you:

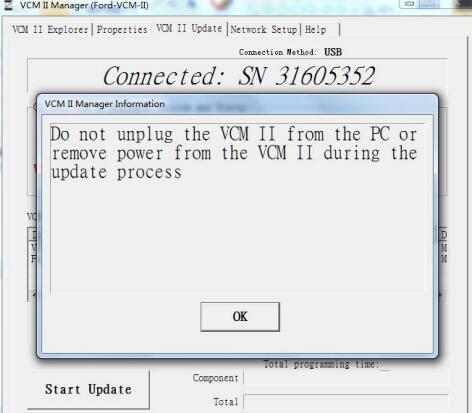

“Do not unplug the VCMII from the PC  or remove power from the VCMII during the update process”|



After clicking OK, the interface as shown in the figure below begins to write the new firmware:

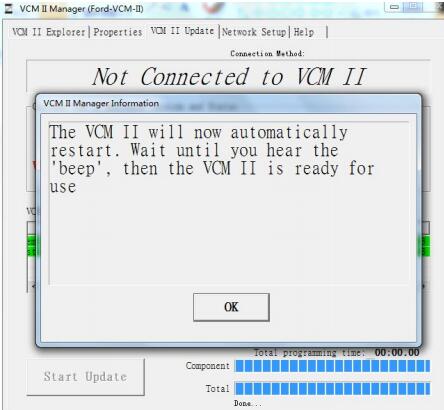

When the upgrade is completed, the following prompt interface will appear, and the system of the VCM II device will restart. When you hear a “beep”
Restart is complete after that. You can now exit VCM II Manger.



After the device automatically restarts, run IDS. When the icon shown below appears, the VCM 2  update is complete.
It can be used normally.


Hope it’s helpful to you.
Good luck!
