Product Description

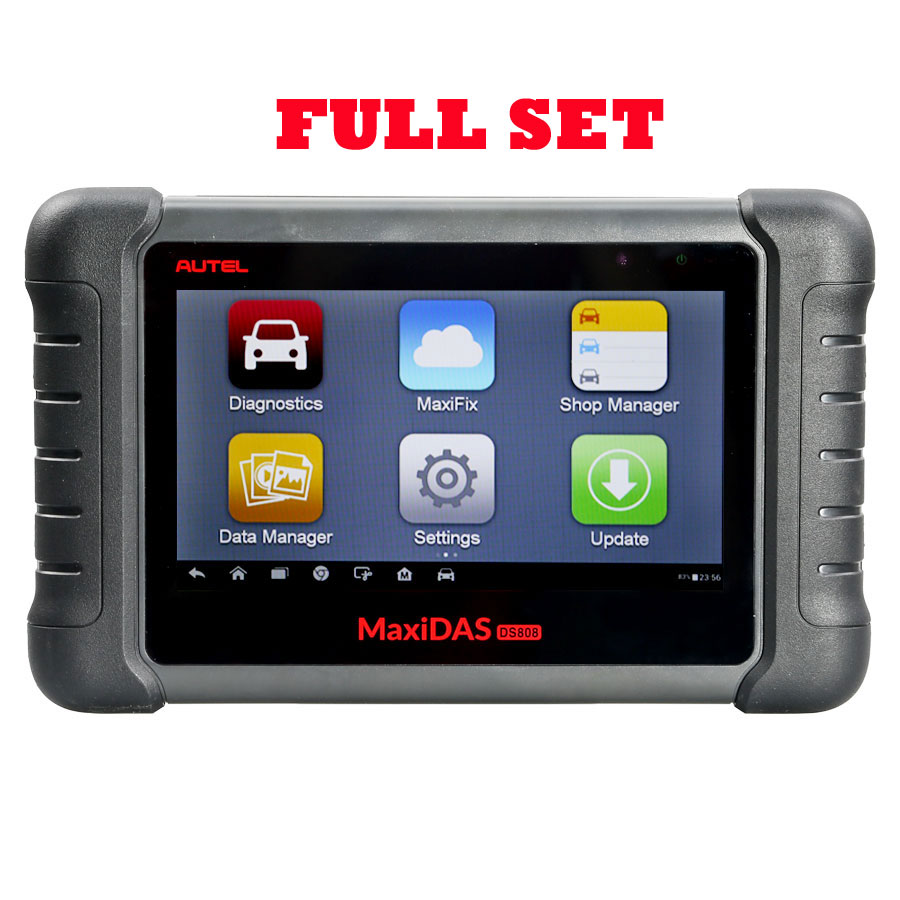

AUTEL MaxiDAS DS808 Kit Android Tablet Diagnostic Tool Full Set Supports Online Update with Injector Coding/Key Coding

Based on the Android operating system and with 7-inch LCD touch screen (1024*600 resolution), MaxiDAS DS808 (With Conkit) full set is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 (With Conkit) offers maximum convenience and efficiency for your diagnosis and analysis.

AUTEL MaxiDAS DS808 full set vs. MaxiDAS DS808:
The only difference: DS808 is full set, MaxiDAS DS808 is standard set. Please confirm by checking their packge list.
Same: same functions and same MUX specification
Autel Maxidas DS808 supports customized Languages besides English. If you need to change device languge, please send us serial number and your location first. And it will cost 120USD.
We can authorize other language like Korean,  Russian,  Portuguese, Italian, Dutch, Swedish, Japanese & Spanish.



MaxiDAS DS808 (With Conkit) Features:

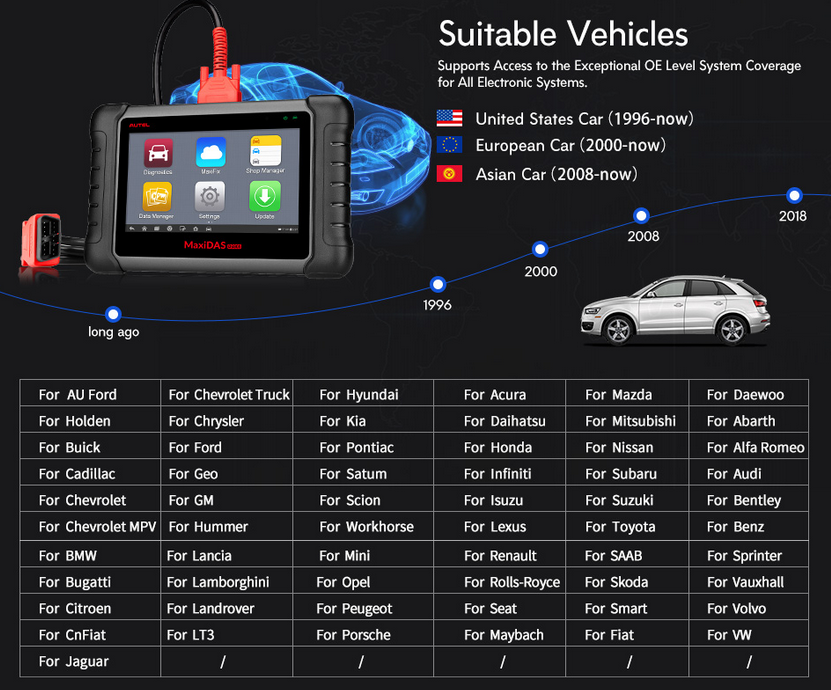

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
Exceptional OE-Level system coverage for all electronic systems
Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
Smart AutoVIN technology for identifying vehicles easily
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Convenient data management system for managing internal program applications and reviewing data

Note: There are two options available when accessing the Diagnosis section:
1. Auto Scan – starts auto scanning for all the available systems on the vehicle.
2. Control Units – displays a selection menu of all available control units of the test vehicle.
After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.

Supported Automotive Protocols:
ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

How to Register Autel MaxiDAS DS808 scanner:
1.Go to the website: http://pro.autel.com
2.On the Sign In page, input your account ID and other information to log in, if you already have an account.
3.If you are a new member to Autel and do not have an account yet,click the Create Autel ID button on the left side.
4.Enter the required information in the input fields, read through Autel’s Terms and Conditions and tick on Agree, and then click Create Autel ID at the bottom to continue.
5.The online system will automatically send a confirmation email to the registered email address. Validate your account by clicking the link provided through the mail.
A product registration screen opens.
6.Find out the scanner’s serial number and password from the About section of the Settings application on the Display Tablet.
7.Select the product model of your Autel DS808, enter the product serial number and password on the Product Registration screen, and click on Submit to complete the registration.

How to update Autel DS808 software:
1. Make sure the Display Tablet is connected to a power source with stable access to the internet.

2. Tap the Update application button from the MaxiDAS Job Menu;
or tap the update notification message when received one;
or tap the Update icon on Vehicle Menu in Diagnostics application.
The Update application screen displays.
3. Check all available updates:
If you decide to update all the items, tap the Update All button.
If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s).
4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume
from the break point.
5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced.


MaxiDAS DS808 (With Conkit) Specifications:
Operating System:Android™ 4.4.4
Processor:Cortex-A9 processor (1.5 GHz)
Memory :32GB
Display:7-inch LCD capacitive touchscreen with 1024x600 resolution

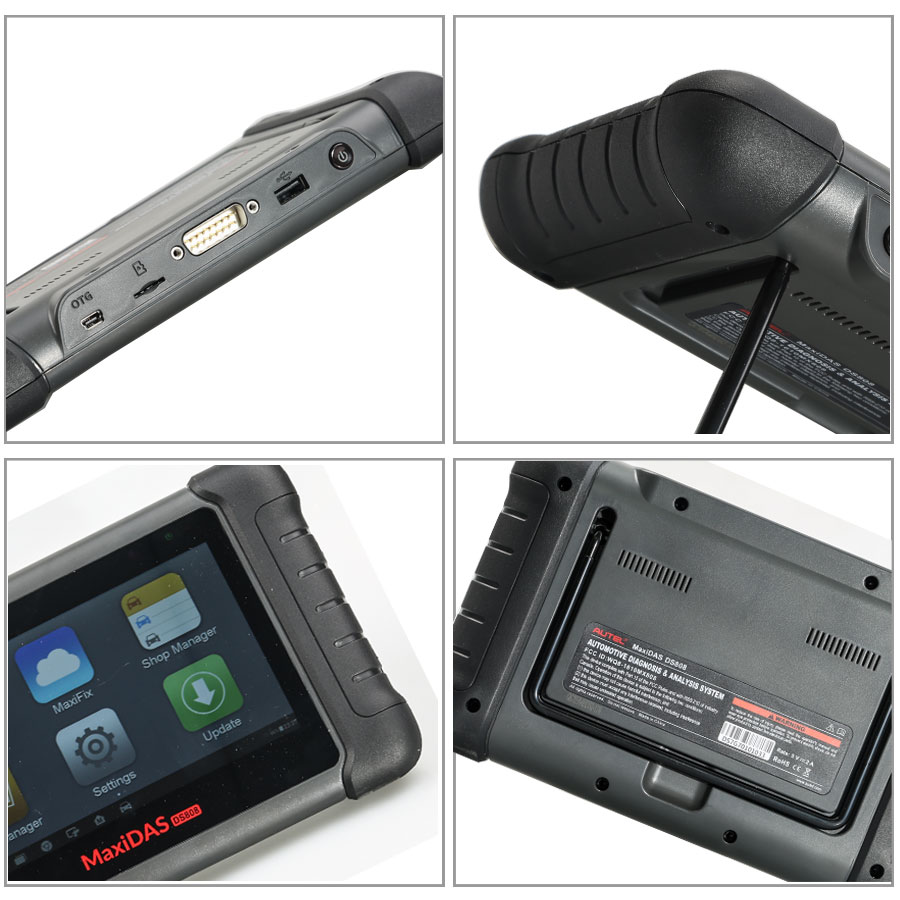

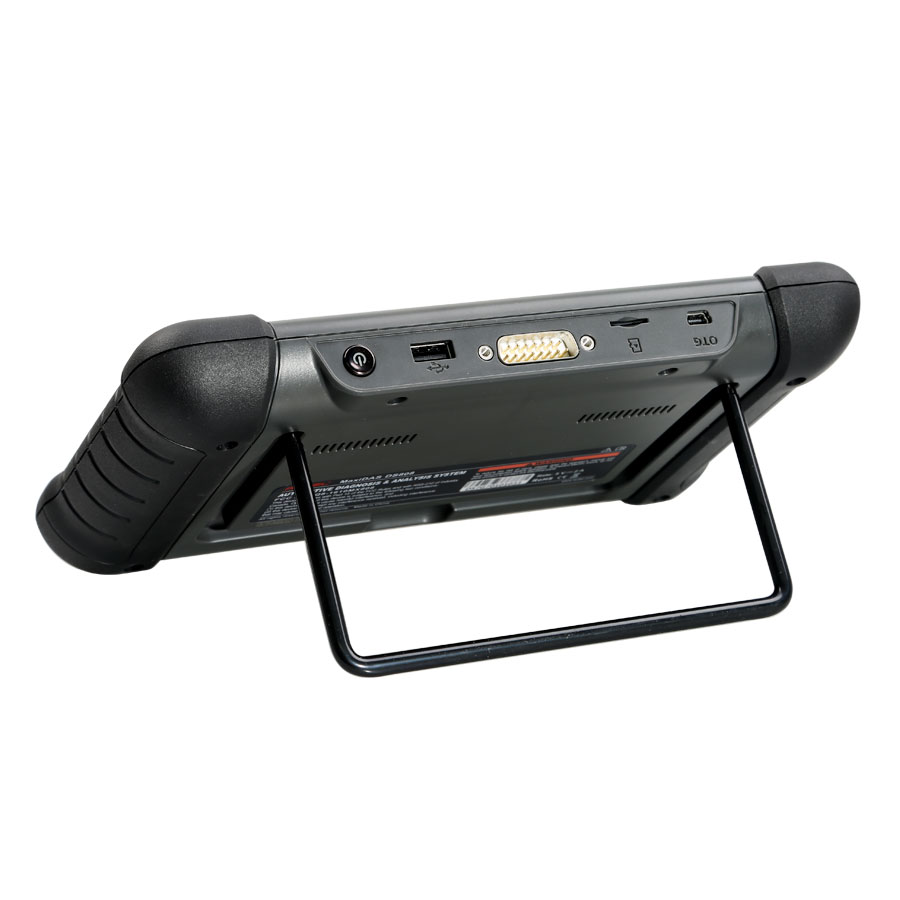

Connectivity:• Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors:Ambient light sensor for brightness auto changing
Audio Input/Output:• Input: N/A • Output: buzzer
Power and Battery:• 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life:Around 4.5 hours of continuous use
Battery Charging Input:5 V/1.5 A
Power Consumption:500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp:-10 to 60°C(14 to 140°F)
Storage Temp:-20 to 70°C (-4 to 158°F)
Operating Humidity:5% - 95% non-condensing
Dimensions (W x H x D):237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight:788 g (2.42 lb.)

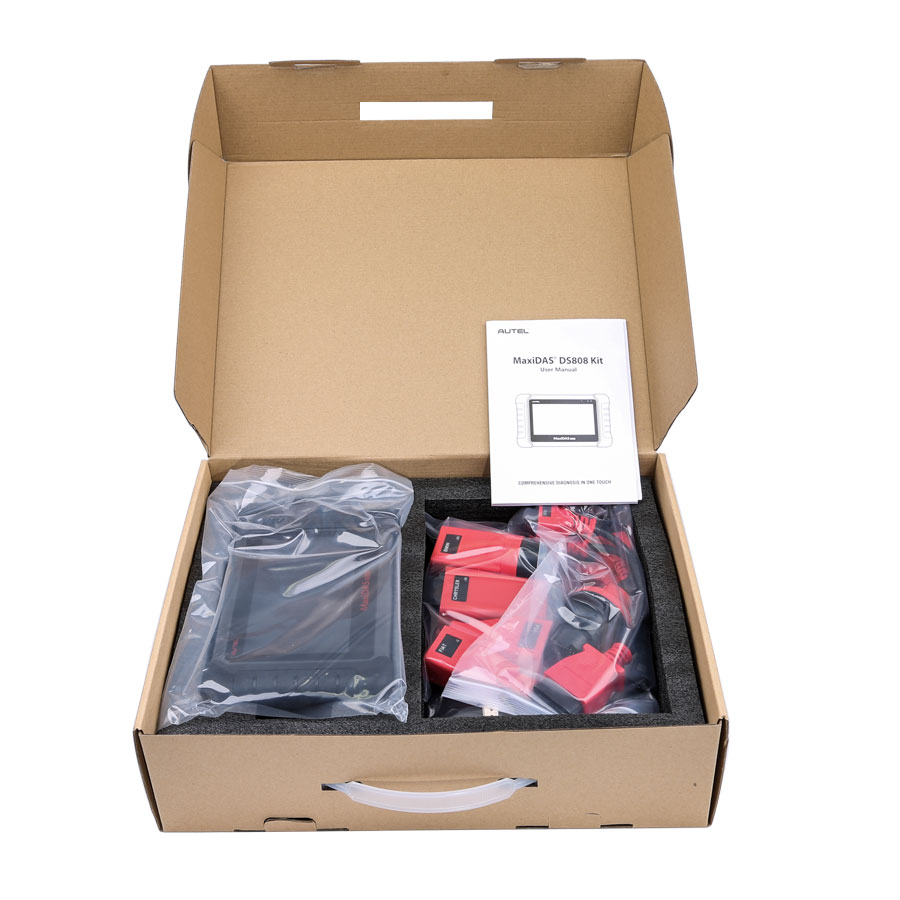

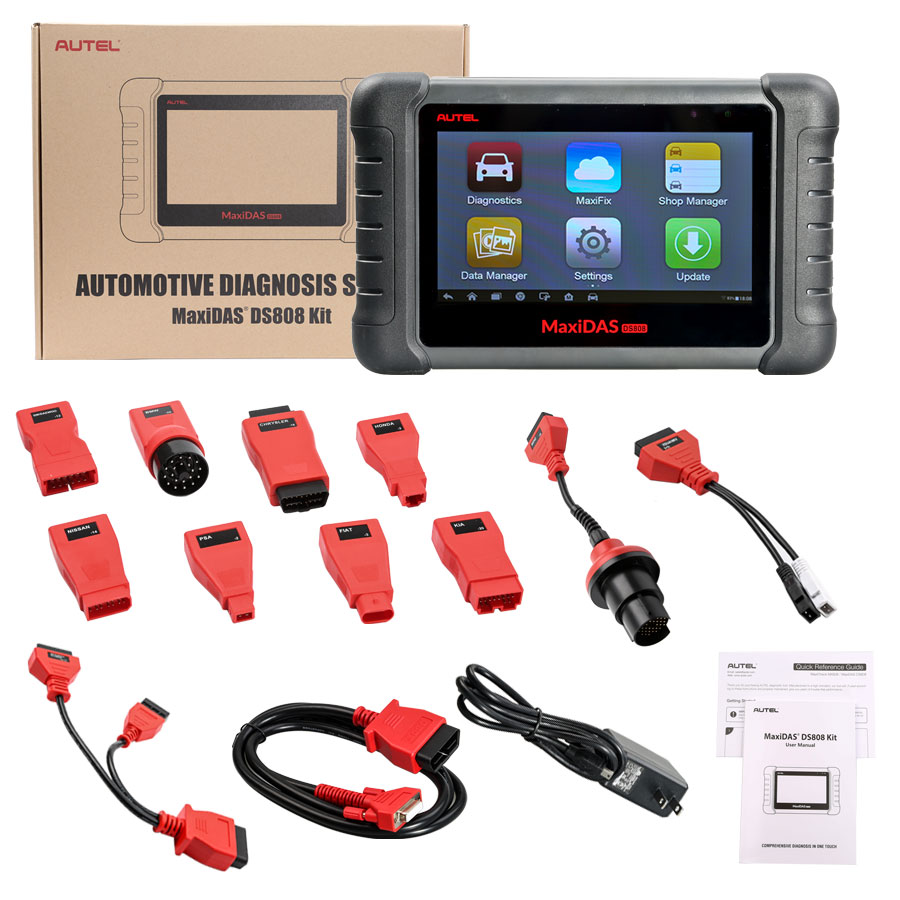

Package Includes:
1pc x USB External

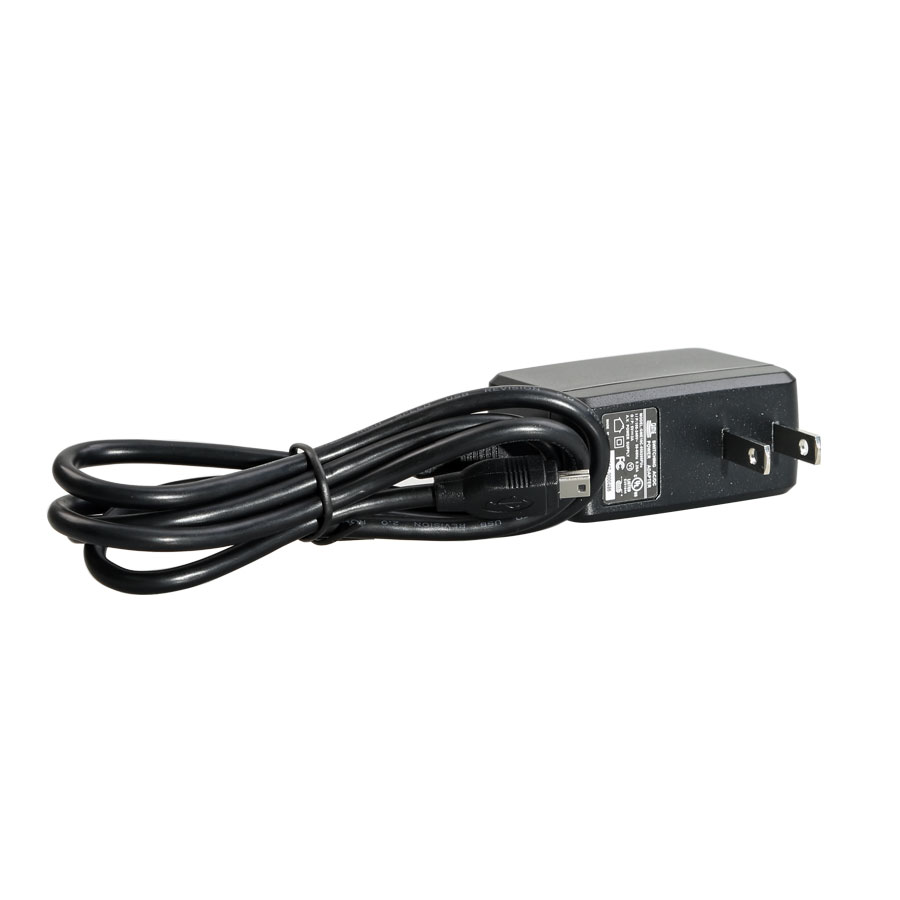

1pc x Power Adapter
1pc x USB External Power AdapterUser
1pc x ManualQuick reference guide

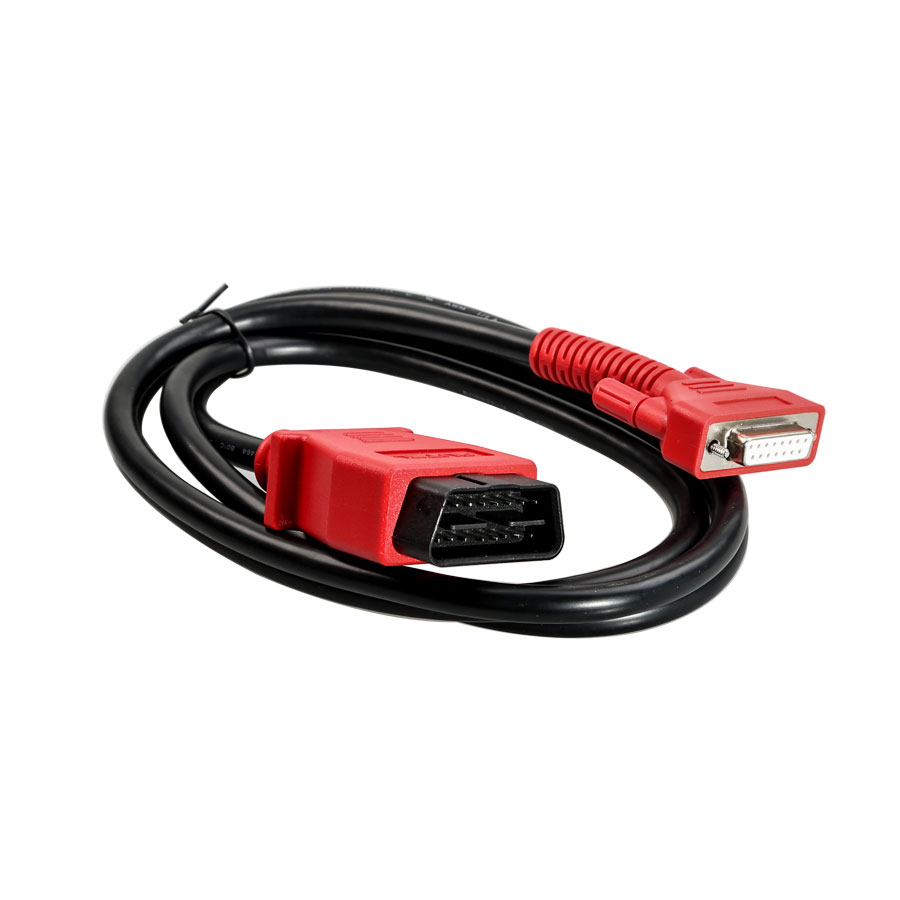

1pc x Main cable
1pc x Mini USB Cable

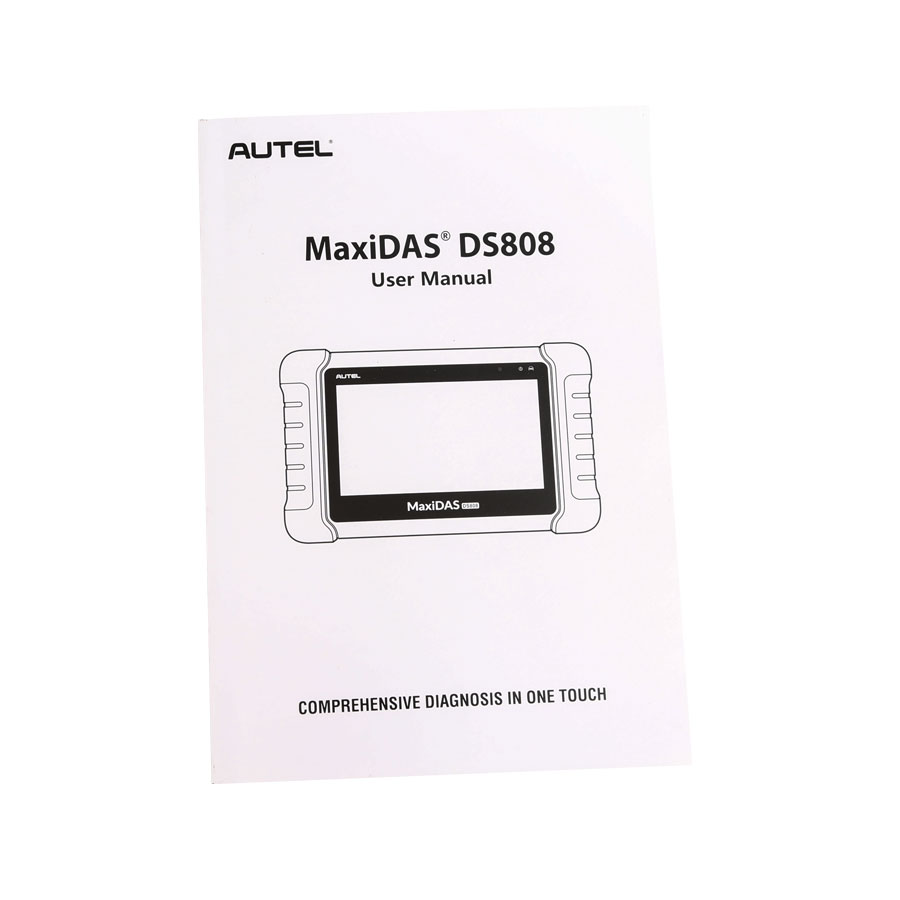

1pc x User Manual

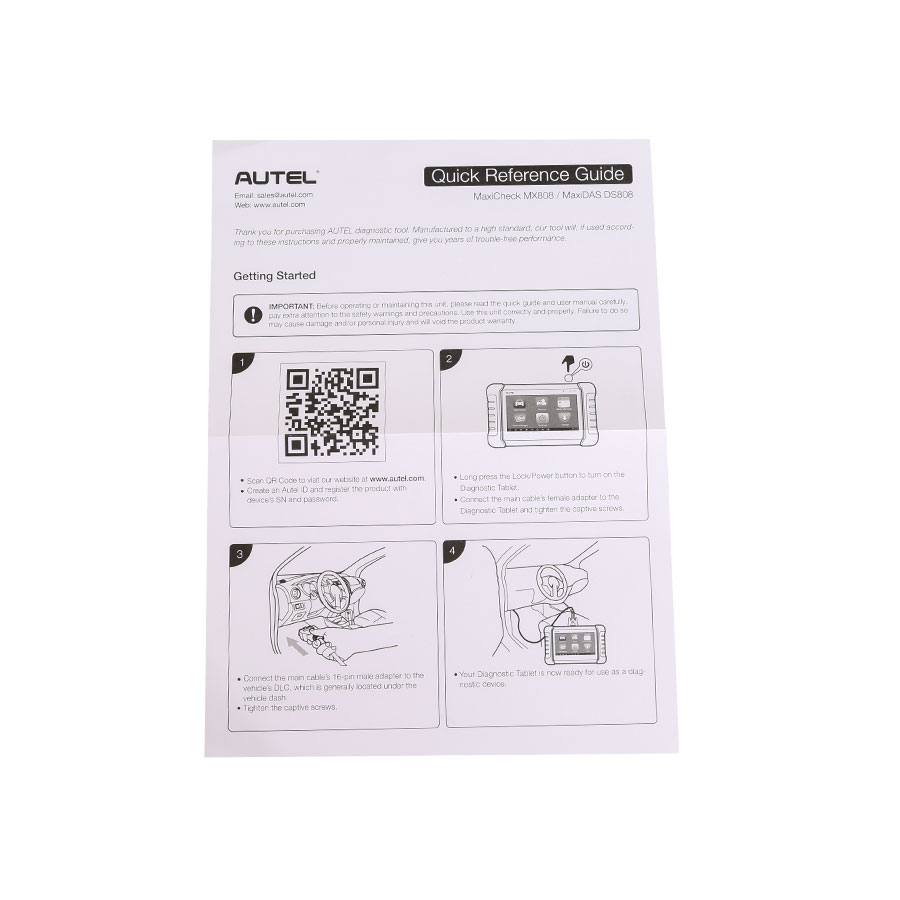

1pc x Quick Guide
1pc x Benz-14
1pc x Chrysler-16
1pc x BMW-20
1pc x Kia-20
1pc x Nissan-14
1pc x GM/Daewoo-12
1pc x Honda-3
1pc x VW/AUDI-2+2
1pc x Mitsubishi/Hyundai-12+16
1pc x Benz-38
1pc x PSA-2
1pc x Fiat-3

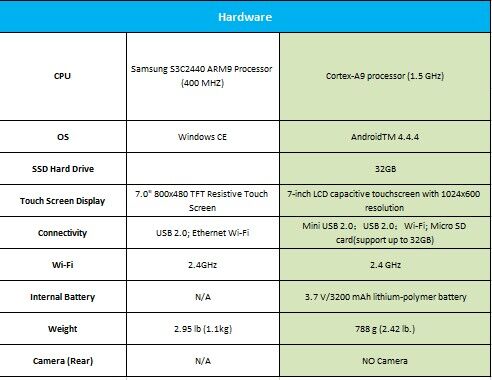

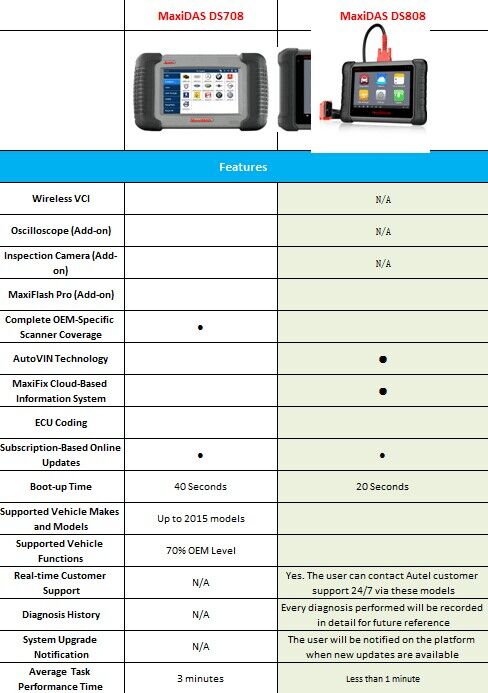

The difference between MaxiDAS DS708 And MaxiDAS DS808:


Basic information comparison table among Autel Ds708 scanner, Autel MaxiSYS MS906, Autel DS808 standard package and Autel DS808 diagnostic system  full package.

Autel

Autel MaxiDas DS808 (Full kit)

Autel MaxiDas DS808

Autel MaxiSYS MS906

Autel MaxiDas DS708





Price

$779 free shipping

 $849 free shipping

   $1,350

  $799

CPU

Cortex-A9 processor (1.5 GHz)

Cortex-A9 processor (1.5 GHz)

Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)

Samsung S3C2440 ARM9 Processor 400 MHz

OS

Android™ 4.4.4

Android™ 4.4.4

Android™ 4.4.2, KitKat

Windows CE

SSD Hard Drive

32GB

32GB

32GB


Touch Screen Display

7″ LCD 1024×600 resolution touch scrren

7″ LCD 1024×600 resolution touch scrren

8″ 1,024×768 LED-backlit glossy Multi Touch capacitive display with IPS technology

7.0″ 800×480 TFT Resistive Touch Screen

Connectivity

• Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)

• Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)

Wi-Fi (802.11 b/g/n), DB16 DLC, USB 2.0, SD Card (Support up to 32GB)

USB 2.0, Ethernet, Wi-fi

Wifi

802.11b/g/n Wi-Fi

802.11b/g/n Wi-Fi

802.11b/g/n Wi-Fi

2.4 GHz

Internal Battery

3.7 V/3200 mAh lithium-polymer battery

3.7 V/3200 mAh lithium-polymer battery

3.7V/5000 mAh lithium-polymer battery


Weight(Display)


788 g (2.42 lb.)

0.96 kg (2.12 lb.)

1.1kg (2.95lb)

Camera(rear)



8.0 Megapixel, AF with Flashlight

N/A

Wireless VCI

Yes

Yes

Yes


Boot Up Time

Less than 40 seconds

Less than 40 seconds

Less than 40 seconds

40 Seconds

Complete OEM-Specific Scanner Coverage

Yes

Yes

Yes

Yes

AutoVIN Technology

Yes

Yes

Yes


MaxiFix Cloud-Based Information System

Yes

Yes

Yes


Shop Manager

Yes

Yes

Yes


ECU coding

Minimum

Minimum

Minimum

Minimum

ECU Flash Programming

N/A

N/A

N/A

N/A

J2534 Hardware included

N/A

N/A

N/A

N/A

Default Language

English, pay to change other language

English; pay to change other language

English

English, Spanish, French, German, Portuguese and Russian

Subscription-Based On-Line Updates

Yes

Yes

Yes

Yes

Warranty

Yes

Yes

1 year

1 year
