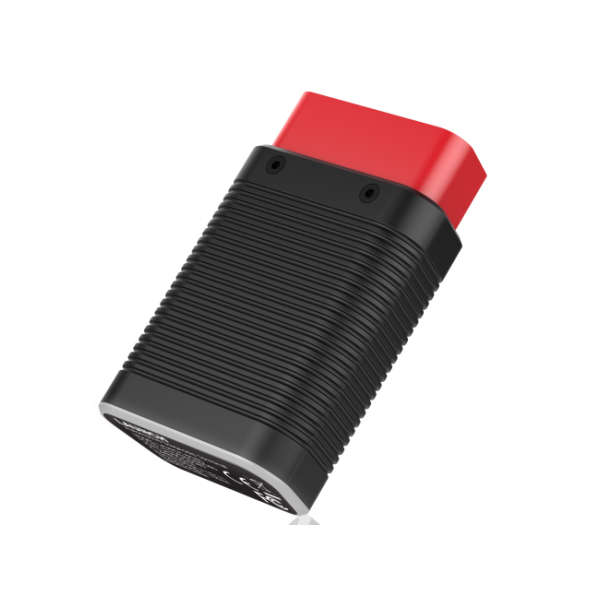

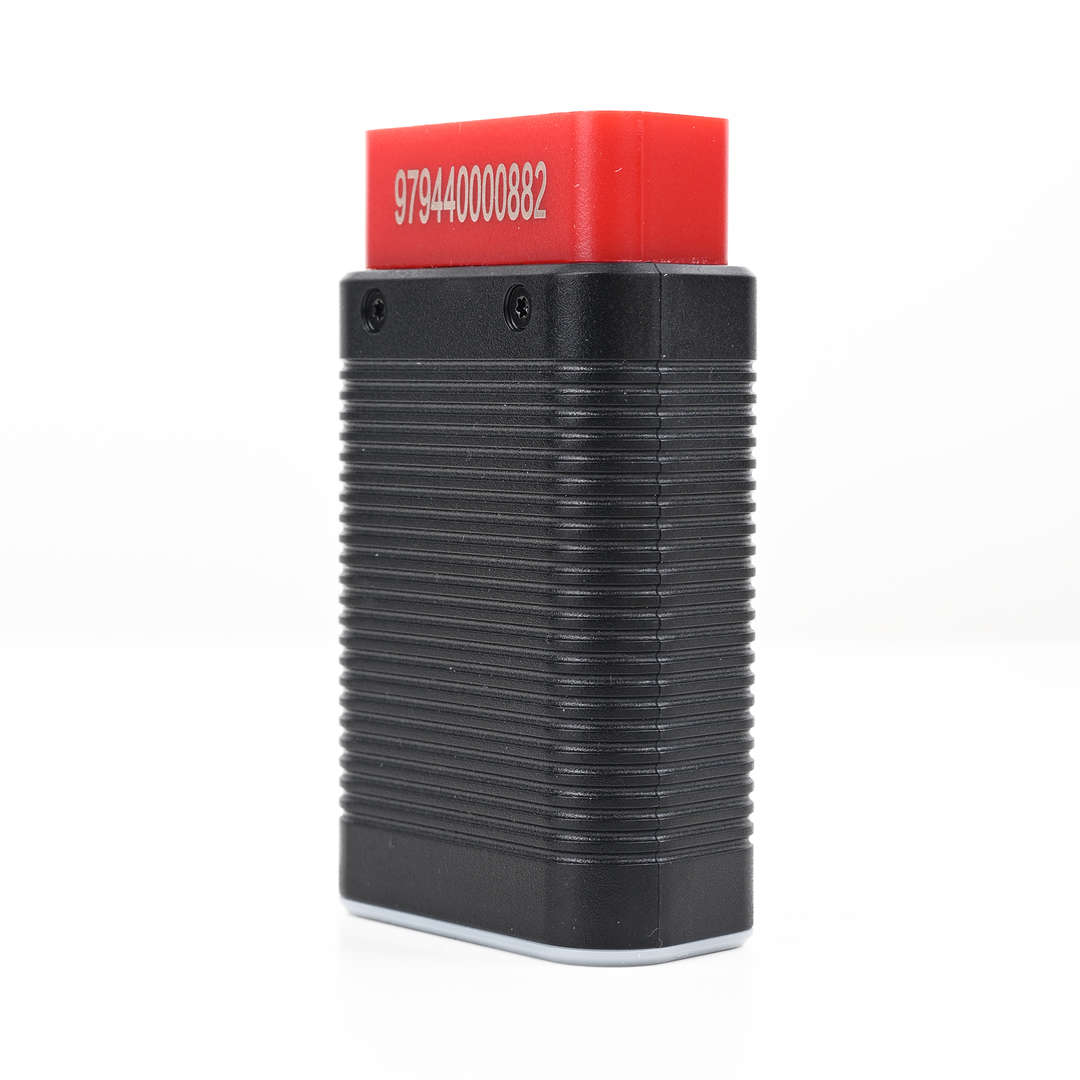

LAUNCH AIOBD (NueraDiag) Full System Diagnostic Scanner Global Version
LAUNCH AIOBD (NueraDiag) is a global-version diagnostic scanner compatible with iOS and Android. Designed as a professional diagnostic device specifically for the LAUNCH AIOBD app, it provides comprehensive coverage across all vehicle brands, systems, and functions. The LAUNCH AIOBD connector communicates with the mobile app via Bluetooth, enabling professional vehicle diagnostics within communication range when connected to the vehicle.
Why choosing LAUNCH AIOBD
1.Multifunctional Diagnostics: Supports OBDII 10 modes, full system scanning, and special functions (e.g., ECU coding, anti-theft functions).
2.Smart Vehicle Identification: Automatically detects VIN and initiates a complete vehicle scan.
3.AI Assistance: LAUNCH AI provides DTC explanations, repair guidance, tool recommendations, and cost estimates.
4.Cross-Platform Compatibility: Supports iOS and Android (iOS supports 19 software packages; Android supports over 30 packages).
5.Visualized Data Display: Real-time data visualization with line graphs and shareable diagnostic reports.
6.Multilingual Support: English, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Korean, and Traditional Chinese.
7.Continuous Software Updates: Regular feature updates with optional paid subscriptions via the app store.
Free Functions
1.One-click access to all OBDII static data.
2.Supports smoke check, OBFCM, and all 10 OBD modes.
3.Generate and share diagnostic reports (lifetime free).
Advanced Functions (Paid)
1.Read/clear fault codes, retrieve version information, read data streams, perform action tests, access maintenance functions, and ECU coding.
2.Unlock vehicle software for full-system diagnostics.
3.AI analysis, predictive maintenance suggestions, labor time, and replacement part recommendations.
How to Use
1.Plug the device into the vehicle’s OBDII port.
2.Pair via Bluetooth.

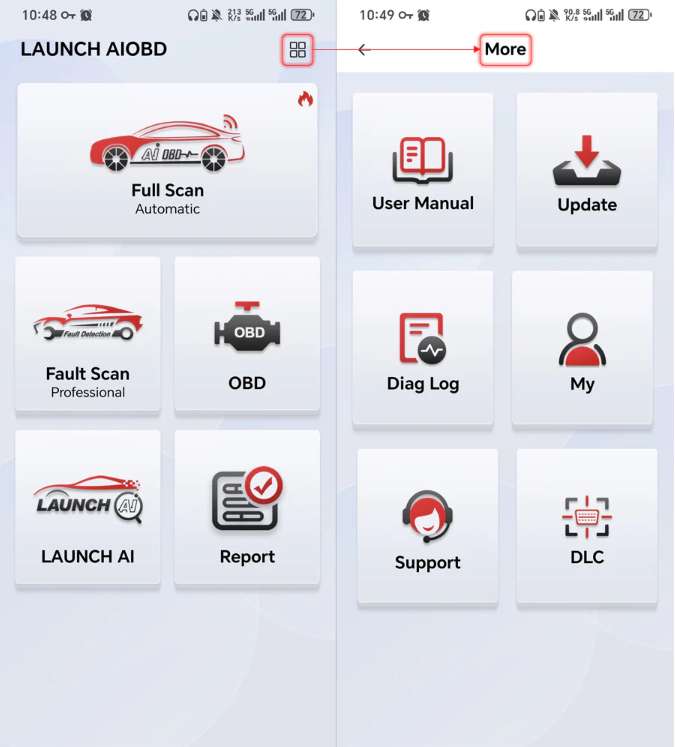

3.Use the LAUNCH AIOBD app to perform full-system diagnostics.
App Download
iOS: Search “LAUNCH AIOBD” in the App Store.
Android: Search “LAUNCH AIOBD” in the Google Play Store.
Scan the QR code on the packaging to directly access the app store.
New User Activation Automatically searches for and registers the connector—no manual activation required.
Diagnostic Modes & Capabilities

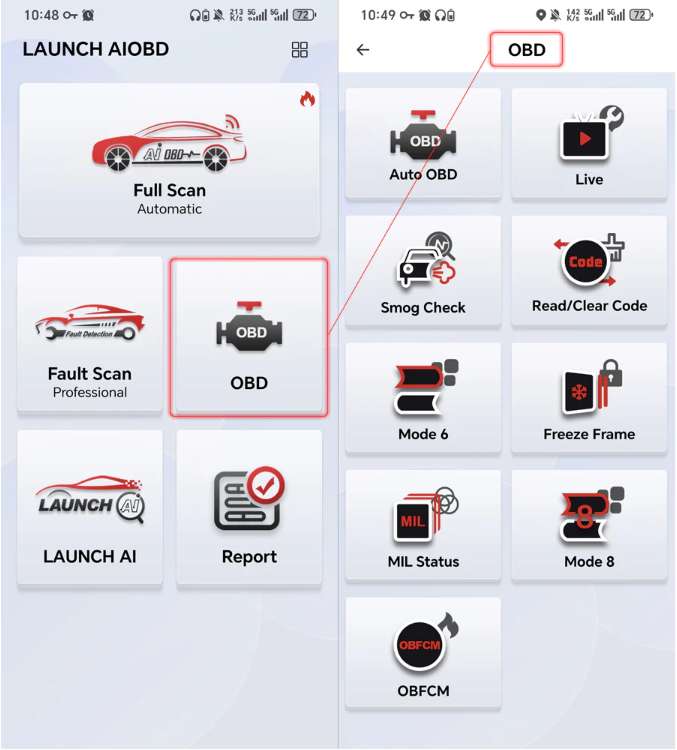

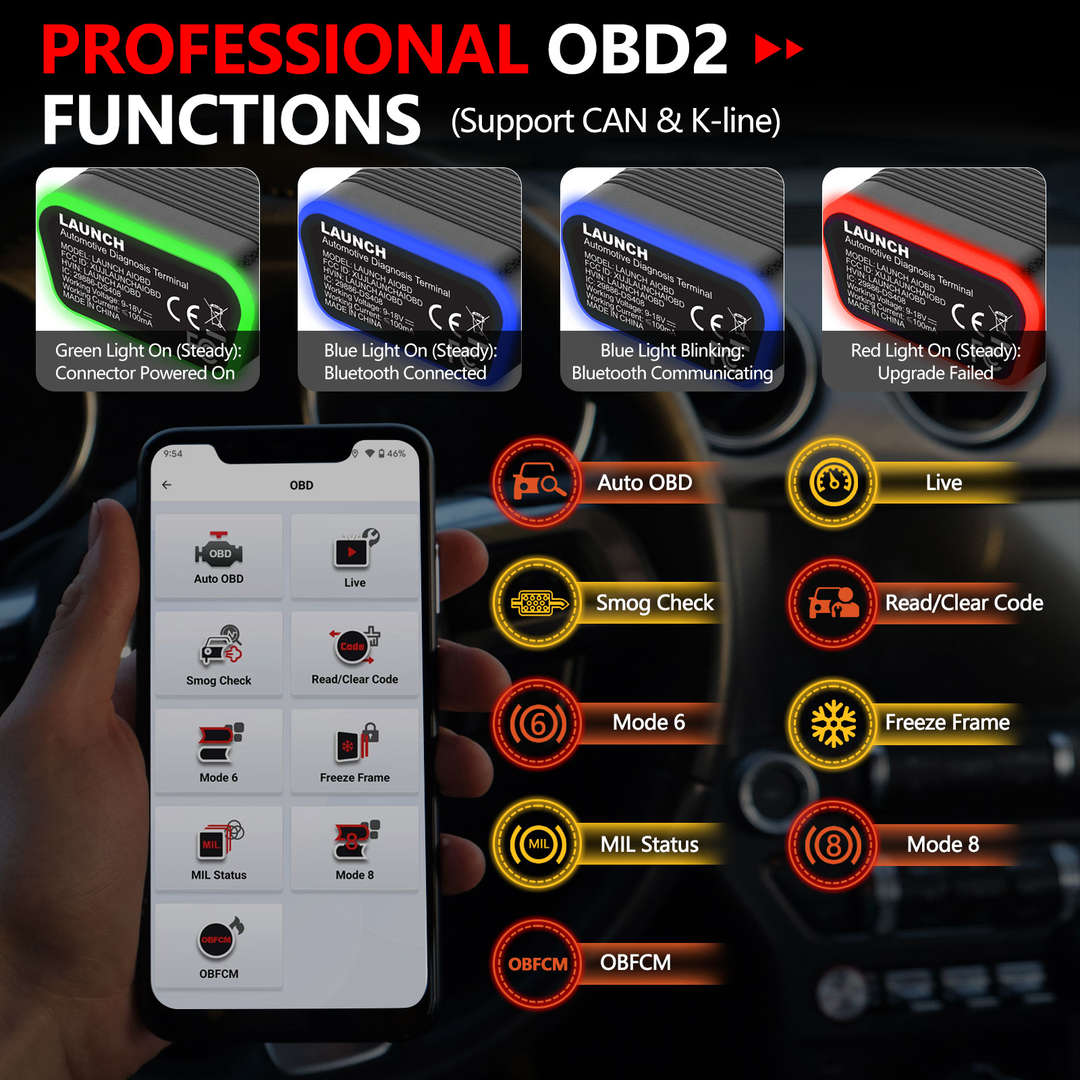

OBDII Functions:
1.Automatically read all OBD static data, generate reports, and clear codes.
2.Real-time data with line graph display.
3.Smoke check.
4.Read/clear codes.
5.Mode 6 (displays Mode 5 data for vehicles without Mode 6).
6.Freeze frame data.
7.MIL status.
8.Mode 8 (on-board system control requests).
9.OBFCM (European emission-related data reporting).

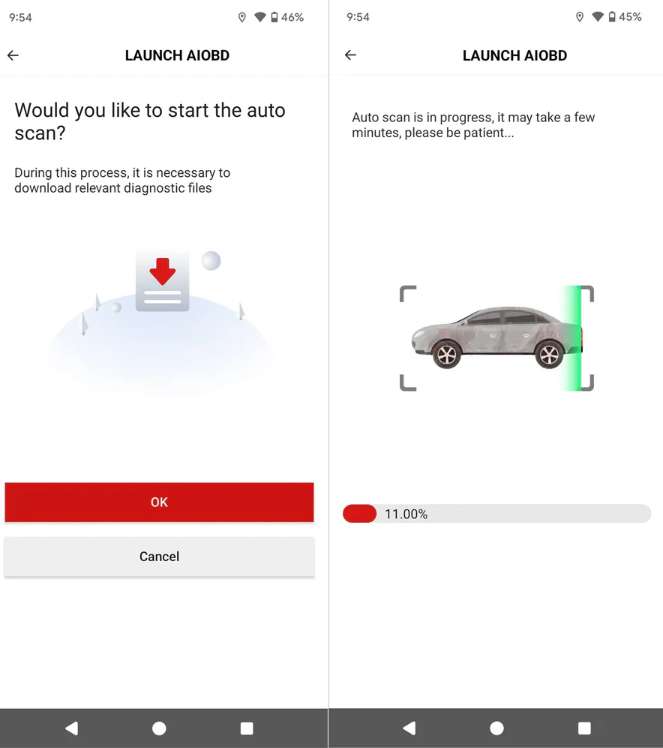

Full Vehicle Scan:
1.One-click automatic detection and professional diagnostic report generation.
2.Post-OBD function, prompts users to scan the entire vehicle system.
3.If unpaid, enter AIT mode to view vehicle health reports (fault code count, affected systems, etc.).
4.Unlock all systems and features after purchase.
Vehicle Fault Detection (requires pin card or in-app purchase):
1.Download Autosearch for automatic vehicle model recognition.
2.Access traditional diagnostics: code reading/clearing, data stream reading, version info, special functions, action tests, guided functions, ECU coding, and anti-theft key programming.
Additional Support
1.Data Subscription: Provides repair plans, recommended tools, and repair shops based on fault codes (launch expected in Q2).
2.Launch AI: Checks product model compatibility, fault code details, repair plans, and other automotive repair queries.
3.MALL Function: Subscribe to vehicle brands for expanded capabilities.
4.Historical Reports:
Post-purchase, AI analyzes full scan reports, recommends nearby repair shops, and displays fault details (parts, time, cost).
Summarizes historical diagnostics, top 10 fault types, and predictive maintenance suggestions.

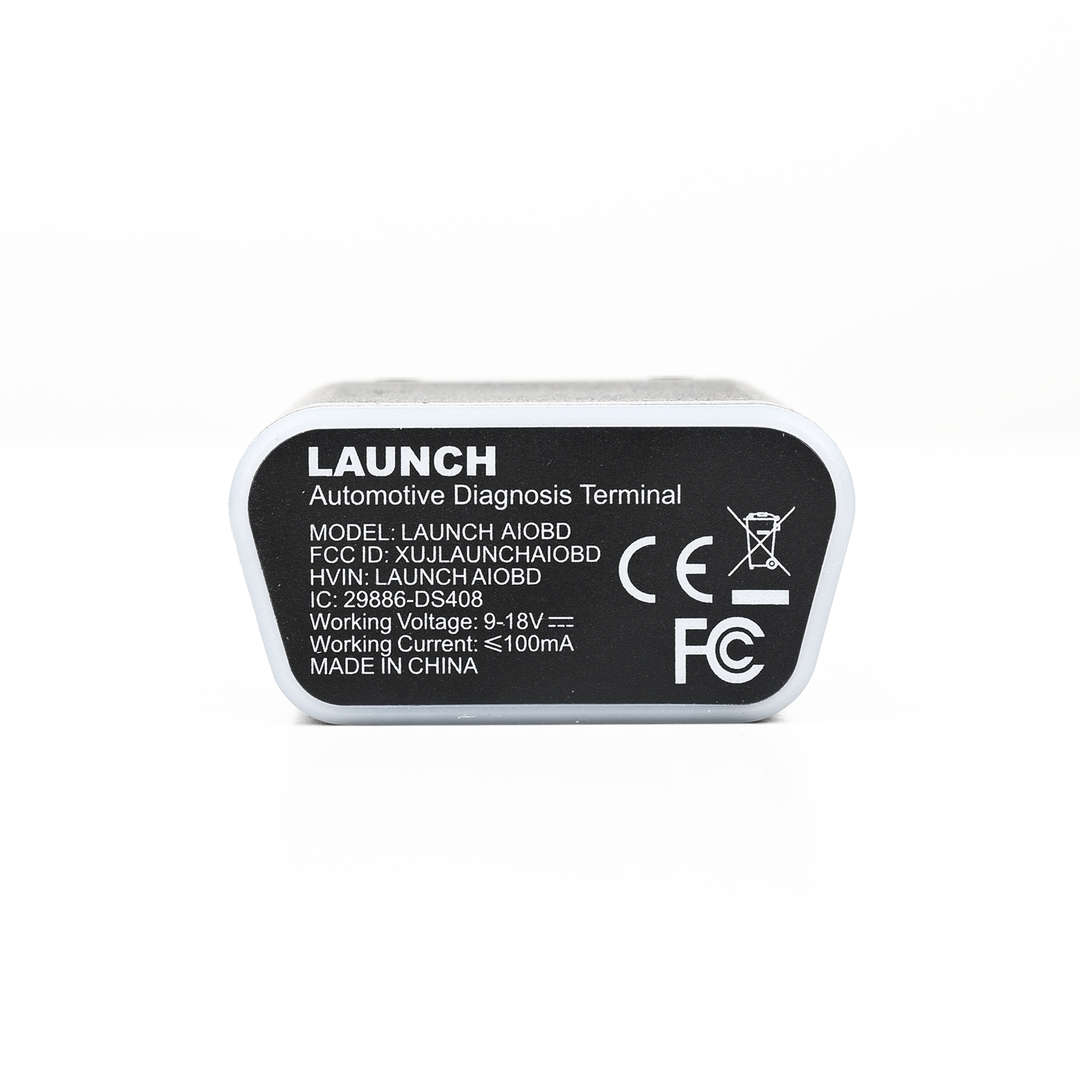

Product Specifications:
MCU: GD32F405
Operating voltage: DC 9-18V
Operating current: ≤100mA @12V DC
Operating temperature: -10°C to 50°C
Storage temperature: -20°C to 70°C
Storage humidity: 10% to 93%
Dimensions: 74*47.1*24mm
Communication method: Bluetooth
CAN: support
K-line: support

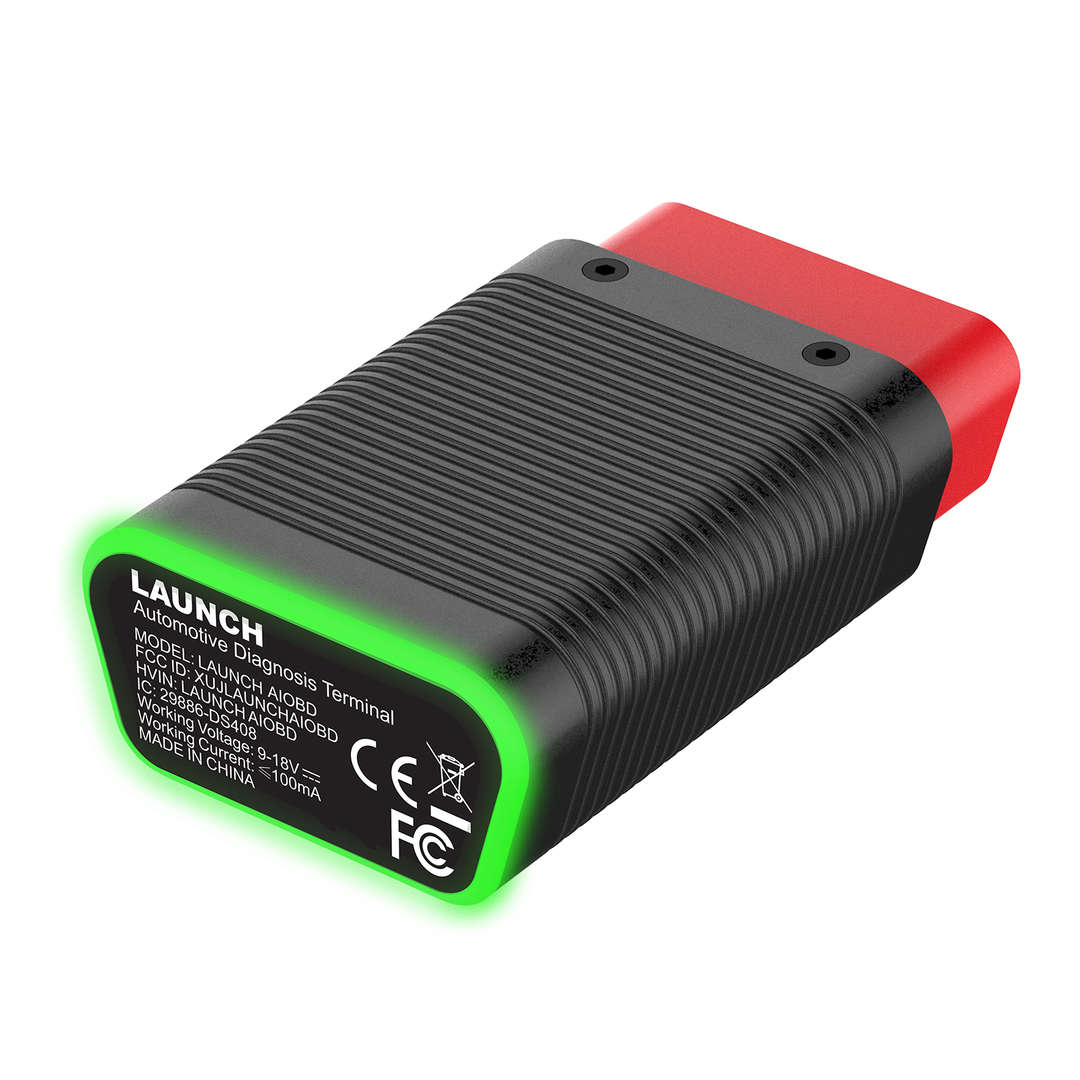

Green light: Connector powered
Blue light: Bluetooth connected
Blue light: Flashing: Bluetooth communication
Red light: Upgrade unsuccessful

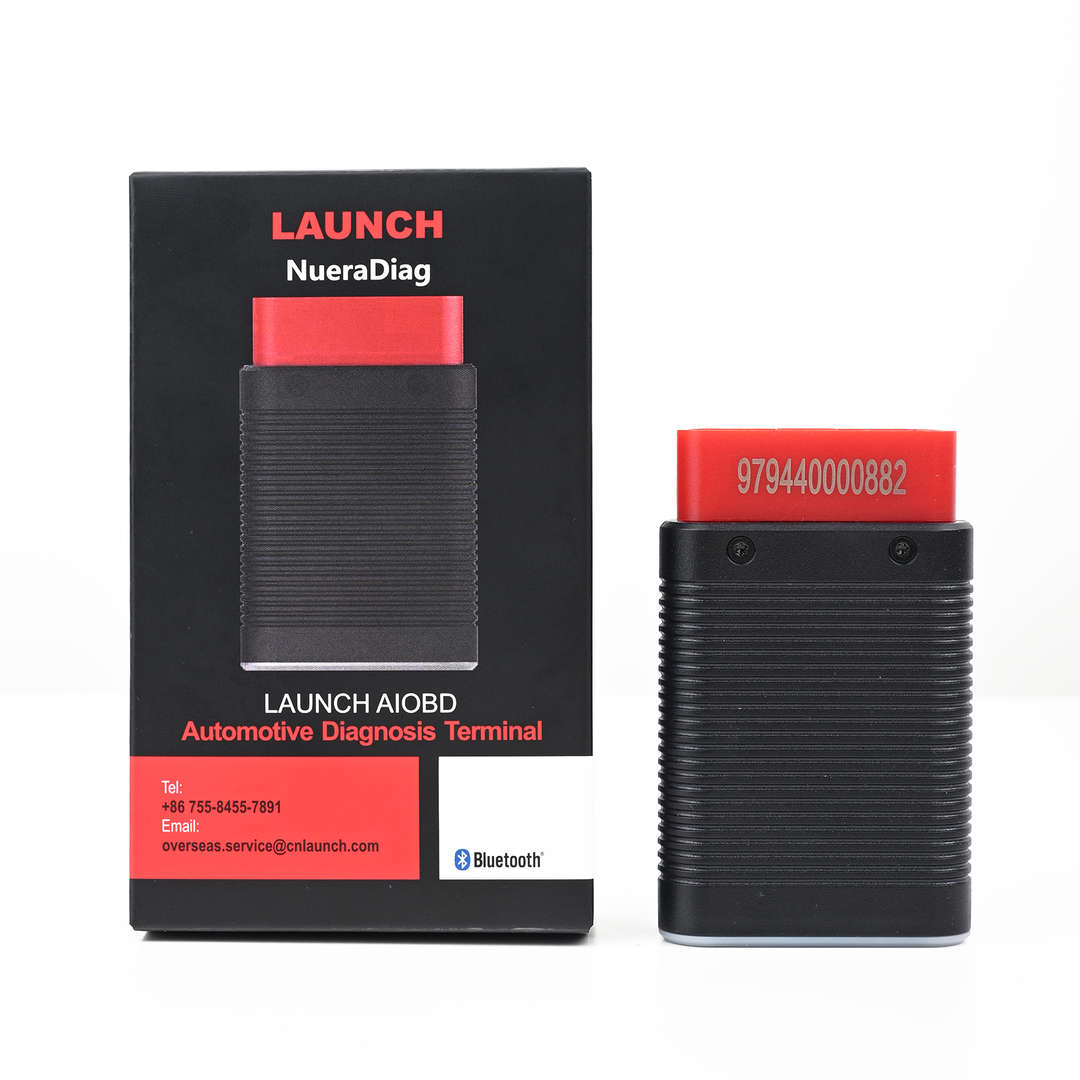

Package includes:
1pc x LAUNCH AIOBD Automotive Diagnosis Terminal Global Version
