LAUNCH X431 PROG5 IMMO Programmer 3-in-1 ECU TCU Cloning Tool Upgrade of XPROG3
PROG5= X-Prog3 + PC Converter + X431 Key Programmer + MCU3 Adapter + More ECU/TCU Cloning Models.
The G5 itself can only do immo functions for German brands. It does not have universal IMMO software (purchase universal IMMO license separately).
1 Year free update. $269 per year later.
Notice:
1. The LAUNCH X431 G5 can connect directly to the computer; a PC Adapter is no longer needed.
2. The X431 G5 can be used with the X431 PAD series (X431 PAD V ELITE, PAD VII ELITE, PAD IX), as well as comprehensive diagnostic tools such as PRO3 V+ ELITE/ PRO3S+ ELITE.

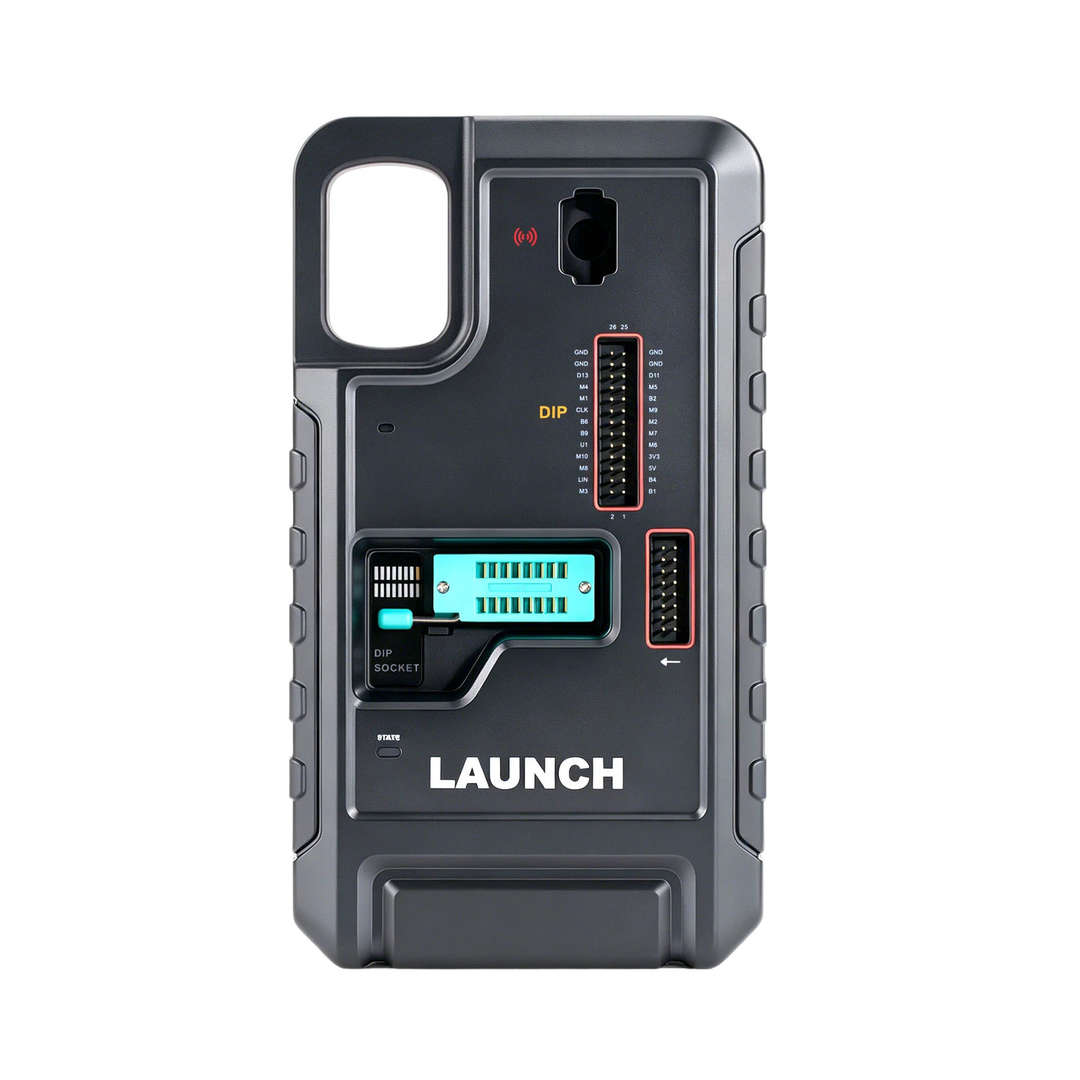

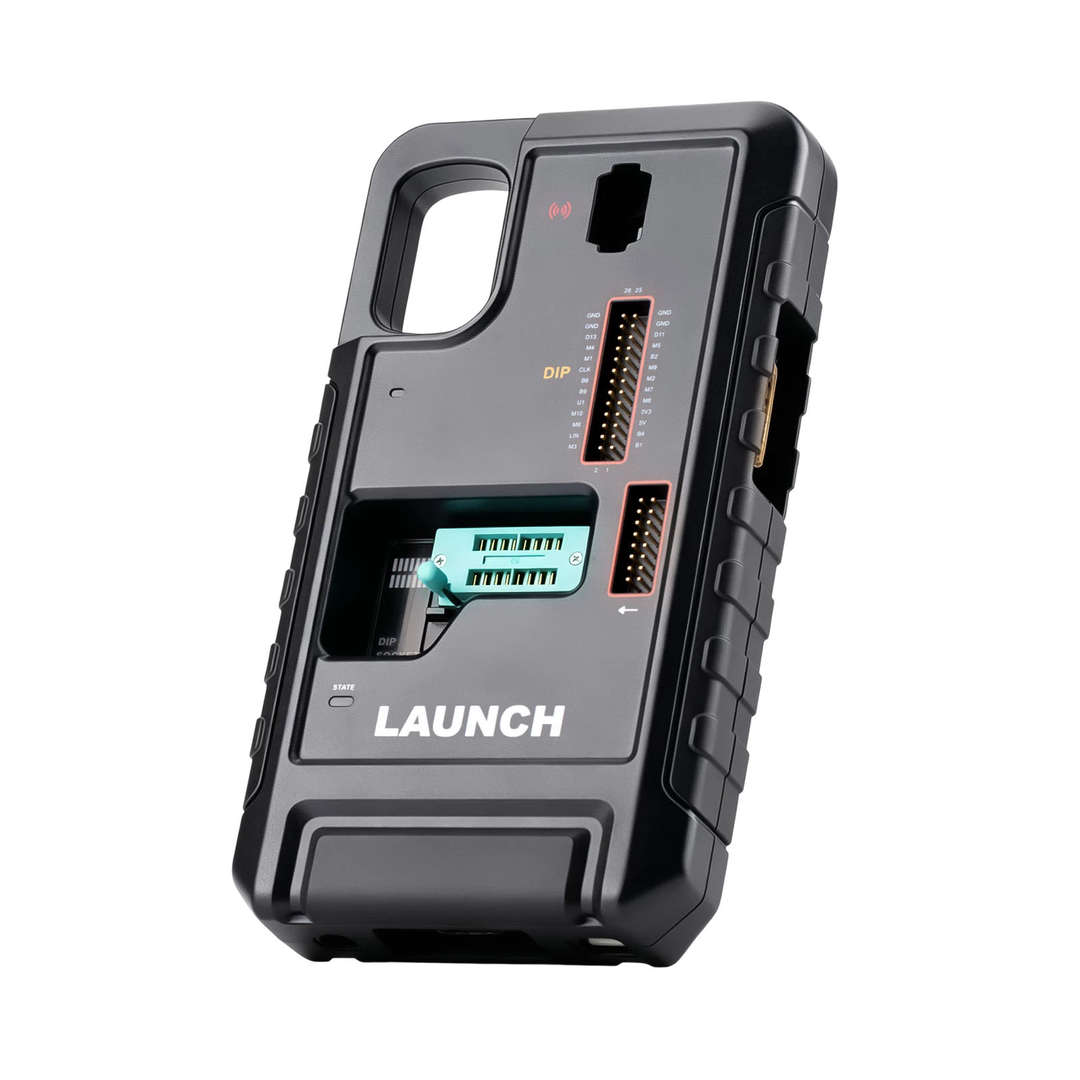

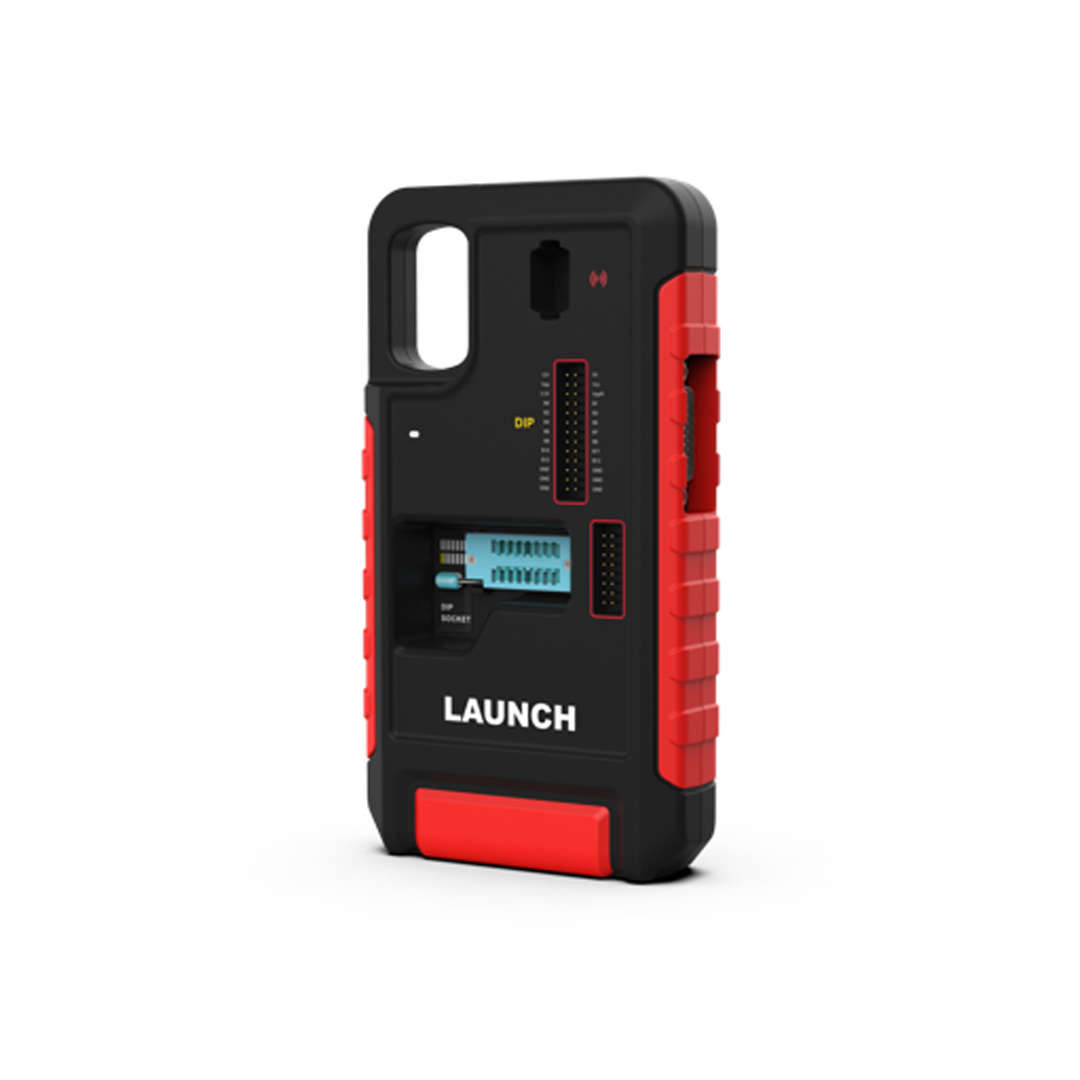

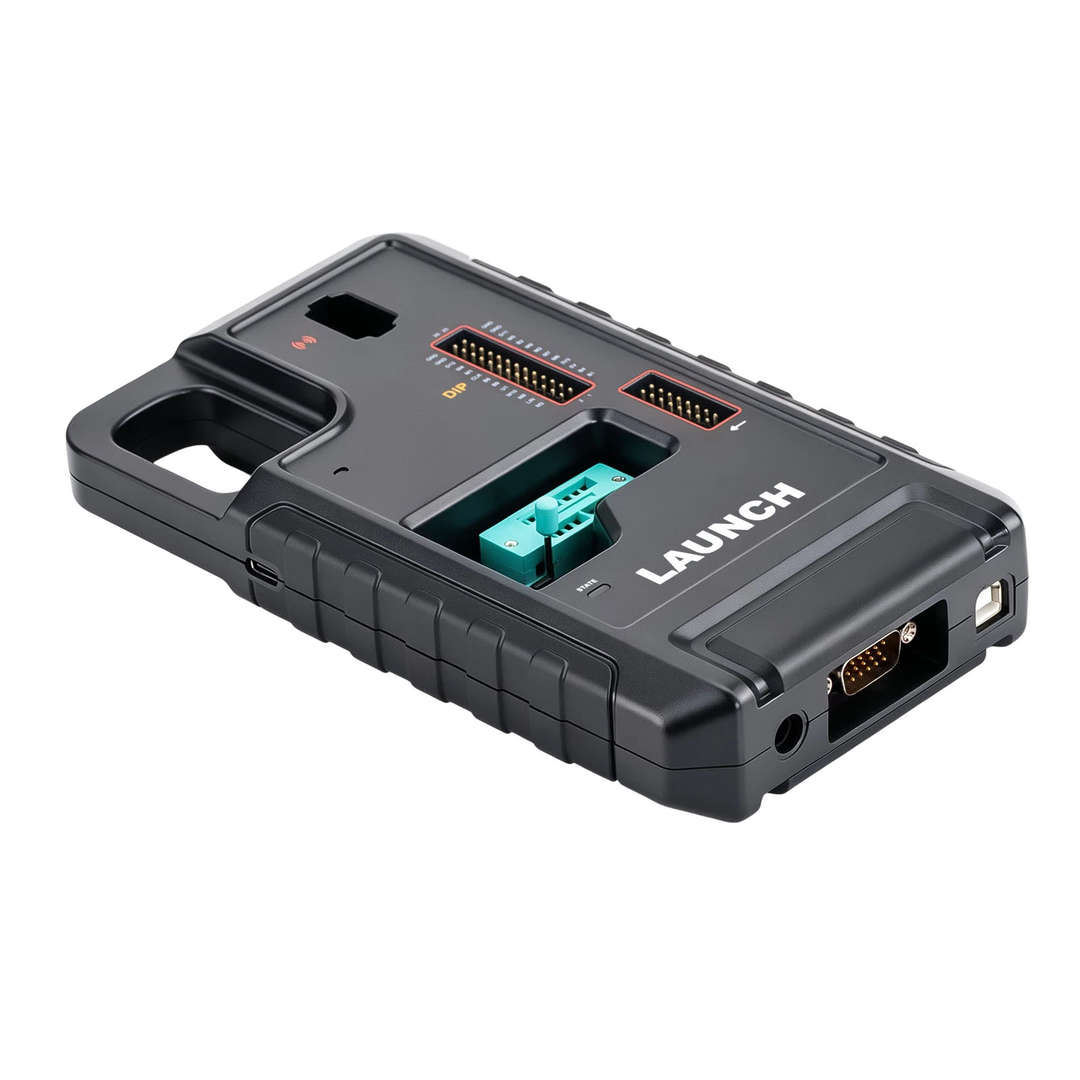

The LAUNCH X-431 PROG5 (also known as G5) is a brand-new, professional, all-in-one automotive immobilizer programming and matching tool. As the comprehensive successor to the X-PROG3, it is specifically designed for immobilizer services on European and American vehicle makes, integrating three core functions: key matching, chip read/write, and ECU/TCU cloning.
The device operates without the need for additional converters; it can be used with the full range of X-431 diagnostic tablets or connected directly to PC software to independently perform read/write and cloning operations for engine and transmission control units. This single device replaces multiple tools—including the X-PROG3, PC converters, key programmers, and MCU3 adapters—thereby significantly reducing equipment procurement costs for auto repair shops and minimizing the amount of gear technicians need to carry.
X-PROG5 Main Powerful Functions:
1. Full Vehicle Immobilizer Key Matching
Add new keys, solve all-key-lost problems, generate smart & mechanical keys, rematch remote fobs
Read & clone encrypted transponders: ID46 / ID48 / ID96, covering over 3,000 mainstream chips
Complete MQB platform 5C / 5D smart key programming, read & decode dashboard immobilizer data for VW/Audi
Mercedes FBS3 / FBS4 immobilizer reset, EIS ignition module cloning, password calculation without extra gateway device
BMW CAS / FEM / BDC immobilizer programming, stable ISN code reading for new G-series engines
Porsche 2011-2017 key matching & body control module repair
2. ECU & TCU Cloning / Read & Write (Supports 12,000+ Vehicle Models)
Read, write, clone and calibrate data for engine ECUs and transmission TCUs
Support VW SIMOS18 series, V850 / RH850 encrypted dashboard data read & clone
Clone Mercedes FDCT, VGS4 NAG2, VGS NAG3 transmissions and DSM modules
Compatible with Bosch, Siemens, Delphi, Denso, Magneti Marelli full-range engine computers
Direct replacement of blank ECU without original vehicle data backup
3. Exclusive New Hardware Features
Built-in BMS battery management system chip read & write (not available on X-PROG3)
Automatic data checksum repair to avoid no-start issues after cloning
Dual operation modes: Immo Prog on X431 tablet + professional ECU cloning software on PC
Immobilizer module replacement, dashboard repair, immobilizer data erasing & rewriting
Core Competitive Advantages Over XPROG3 (G3)
1. All-In-One Integrated Hardware, No Extra Adapters Required
Combines 4 separate devices into 1 standalone machine; no extra PC adapter needed for computer connection

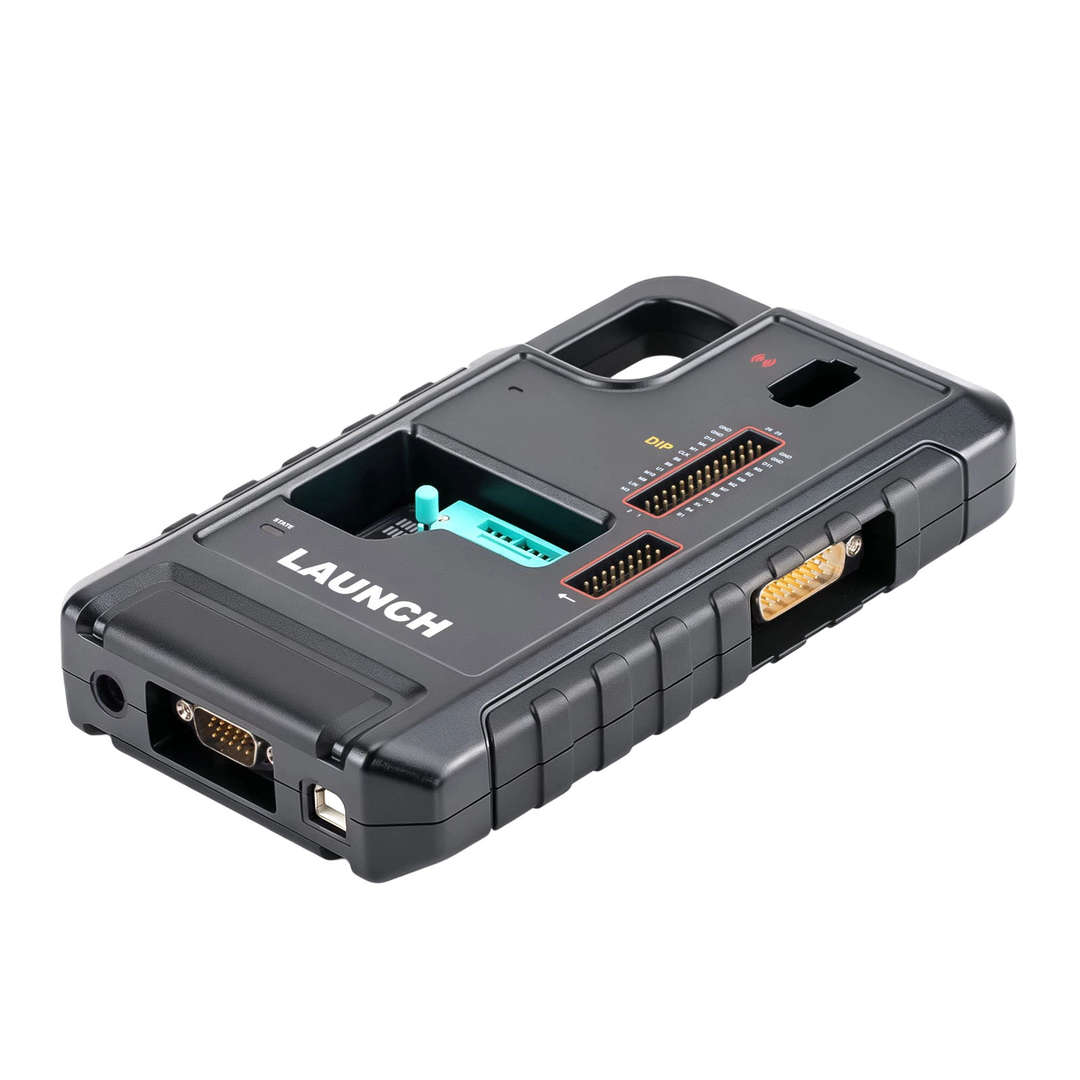

Built-in key RF slot, Mercedes key dock, EEPROM socket, DB26/DB15 universal ports for direct wiring operations
Compatible with all mainstream LAUNCH X431 diagnostic tablets: PAD V, PAD VII Elite, PRO3 V+ 5.0 Elite, X431 Pro5 Smartlink
Dual operation modes: Pair with X431 tablet via IMMO PROG software OR connect directly to PC for independent ECU cloning
2. Exclusive New Functions Missing on XPROG3
Full MQB 5C/5D All Keys Lost (AKL) key matching & data parsing
SIMOS18 engine ECU full cloning support
VW V850 / RH850 dashboard full data read, write & clone
Mercedes FBS4 FDCT, VGS4 NAG2, VGS NAG3 & DSM module cloning
Gateway-free password calculation for Mercedes W164/W169/W209/W211 FBS3 all key lost
BMS battery management chip independent read & write
Native ID46 / ID48 / ID96 transponder chip cloning hardware
Stable BMW new-gen engine ISN code reading (limited & unstable on G3)
3. Broader, Deeper Vehicle Immobilizer Coverage
Standard factory software covers full European luxury lineup: BMW, Mercedes-Benz, Audi, Volkswagen, Porsche.
Optional extended IMMO activation package unlocks 100+ global brands: GM, Nissan, Honda, Ford, PSA, Renault, Chrysler, Toyota, Hyundai, Kia and more.
Who Should Buy XPROG5 G5?
Professional auto locksmith shops specializing in European luxury cars
Repair garages handling high-volume VW/Audi, Mercedes, BMW key loss & ECU repair
Mobile vehicle electronics technicians seeking lightweight all-in-one equipment
Shops upgrading outdated XPROG3 hardware to cover 2020+ new vehicle security systems
EV repair workshops needing BMS chip read/write capability
Important Safety Notes (Must Read for New Users, Avoid Damaging Tools & Car Modules)
1.No Power Cut During Data Read/Write
When cloning an ECU or reading immobilizer data, power loss, cable unplugging or ignition shutdown will permanently damage vehicle control modules and cause irreparable faults.
2.Keep Stable Vehicle Voltage During Operation
Connect an external regulated power supply when working. Do NOT perform any programming tasks if the battery voltage is lower than 12V.
3.Gentle Plug & Unplug of Wiring Harness
DB26 / DB15 ports are precision interfaces. Do not bend cables violently; rough operation leads to unstable communication.
4.Legal Use Only
This device shall only be used on legally owned vehicles with complete paperwork. Using it on stolen, mortgaged or unresolved repossessed vehicles violates laws; users take full legal responsibility for improper usage.
5.Do Not Erase Immobilizer Data Without Backup
New operators are forbidden to click "immobilizer initialization/module full erase" blindly. Missing backup data will lead to vehicle no-start.
6.Update Software Regularly
Renew your update service annually. New vehicle immobilizer protocols are released continuously; outdated software cannot program newly-launched car models.
7.Proper Storage Environment
Keep the device away from damp, high-temperature, and dusty workshops. Disconnect all power cables for long-term storage.
8.Only Use Official Matching Cables & Adapters
Third-party non-original wiring will trigger communication failure and risk burning out the PROG5 main unit.
Supported Vehicle Brands, Immobilizer Systems & Chip Types
1. Supported Main Vehicle Makes
VW / Audi full VAG platform, BMW E/F/G/New G series, Mercedes full W chassis (FBS3 / FBS4), Porsche 2011-2017, GM, Ford, Toyota, Honda, Nissan, French car brands, American brands and more than 110 global automakers, covering over 12,000 vehicle models.
2. Covered Immobilizer Systems
VAG Group: MQB platform, V850/RH850 dashboard, Gen3/4/5 Immo, SIMOS engine series
BMW: CAS1/2/3/4, FEM, BDC, 8HP transmission, FRM body module
Mercedes: FBS3, FBS4, EIS/EZS ignition switch, FDCT 7-speed / 9-speed transmission
GM encrypted immobilizer, Japanese 46/48 chip immobilizer, Porsche smart key anti-theft system
3. Supported Chip Types
ID46, ID48, ID96 encrypted transponder chips; RH850, V850 encrypted MCU; full range BMS battery management chips; over 3,000 original encrypted storage chips for read & clone.

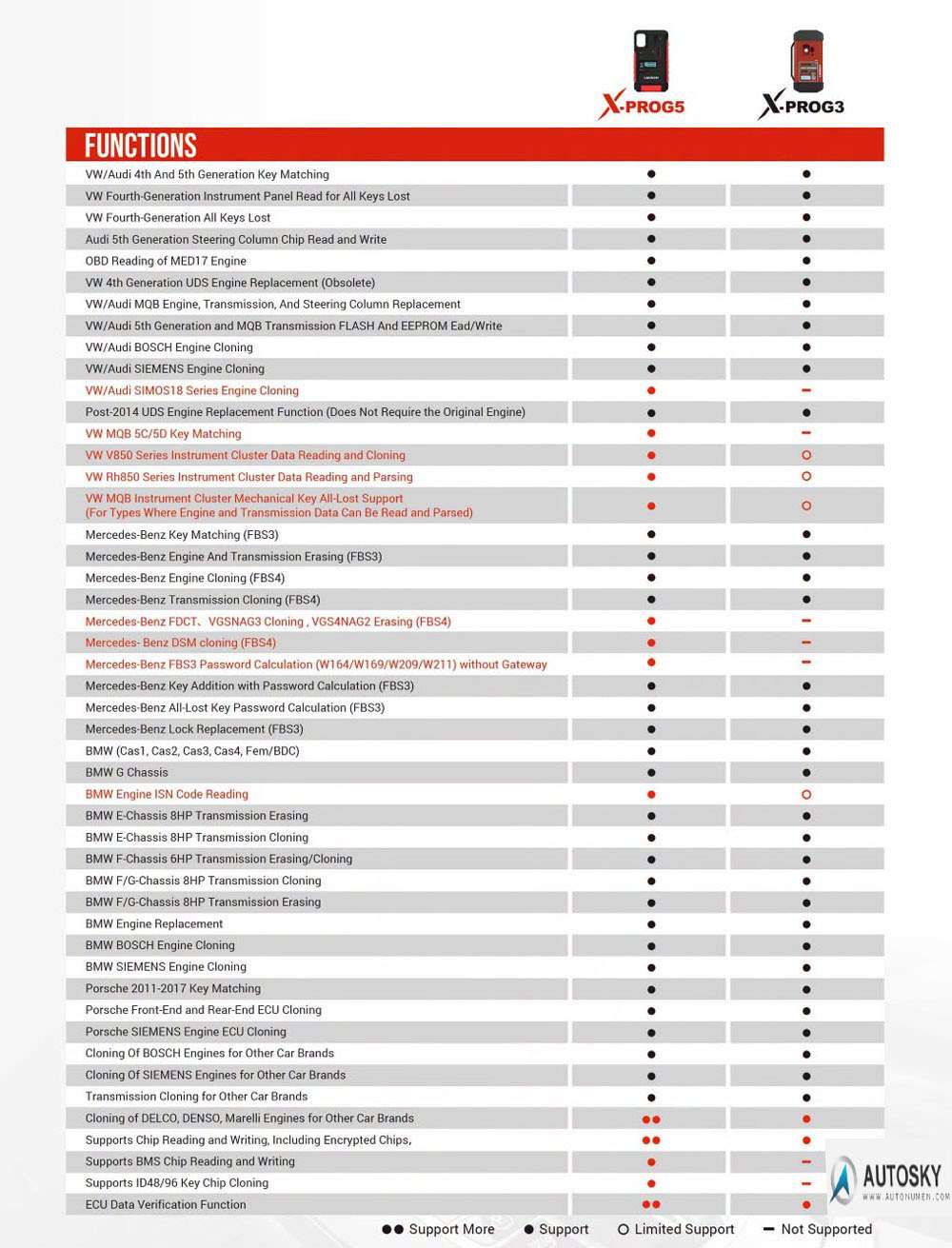

Launch X-PROG5 vs X-PROG3
|
Item
|
X-431 PROG5 G5
|
Old X-PROG3
|
|
MQB 5C / 5D Smart Key Matching
|
Full Supported
|
Not Supported
|
|
SIMOS18 ECU Cloning
|
Native Built-in Support
|
Not Supported
|
|
V850 / RH850 Dashboard Read & Decode
|
Full Decoding
|
Limited Compatibility
|
|
Mercedes FBS4 Transmission / DSM Clone
|
Full Function
|
Not Supported
|
|
FBS3 Password Calculation Without Gateway
|
Supported
|
Not Supported
|
|
BMS Battery Chip Read & Write
|
Built-in Hardware
|
No Related Hardware
|
|
ID46 / ID48 / ID96 Transponder Clone
|
Independent Operation
|
Not Supported
|
|
BMW New Engine ISN Reading
|
Stable & High Success Rate
|
Frequent Connection Failures
|
|
Accessory Integration Level
|
All-in-one, No Extra Converter Required
|
Multiple External Adapters Needed
|

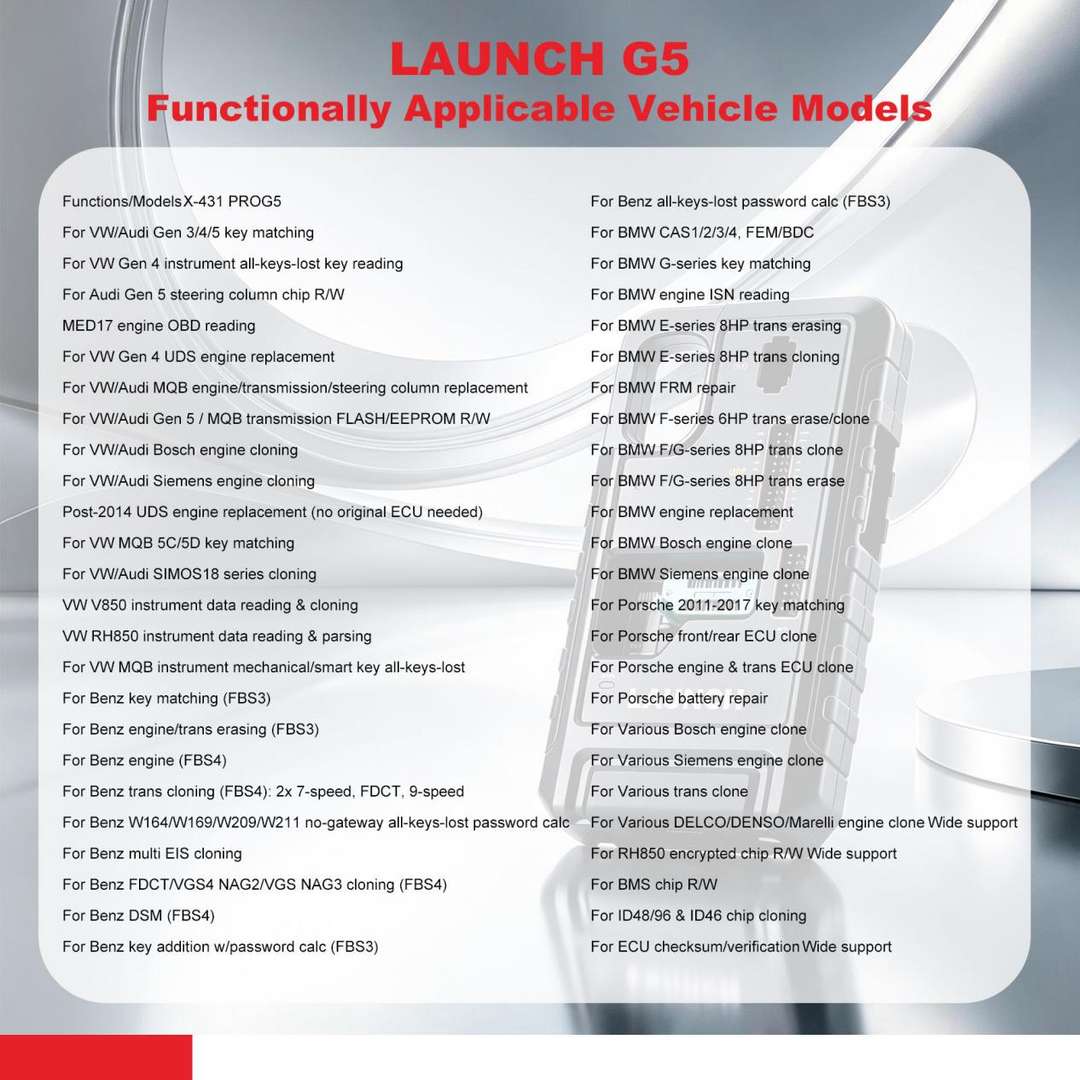

Functions/Models X-431 PROG5 X-431 PROG3
|
Functions/Models
|
X-431 PROG5
|
X-431 PROG3
|
|
For VW/Audi Gen 3/4/5 key matching
|
Yes
|
Yes
|
|
For VW Gen 4 instrument all-keys-lost key reading
|
Yes
|
Yes
|
|
For Audi Gen 5 steering column chip R/W
|
Yes
|
Yes
|
|
MED17 engine OBD reading
|
Yes
|
Yes
|
|
For VW Gen 4 UDS engine replacement
|
Yes
|
Yes
|
|
For VW/Audi MQB engine/transmission/steering column replacement
|
Yes
|
Yes
|
|
For VW/Audi Gen 5 / MQB transmission FLASH/EEPROM R/W
|
Yes
|
Yes
|
|
For VW/Audi Bosch engine cloning
|
Yes
|
Yes
|
|
For VW/Audi Siemens engine cloning
|
Yes
|
Yes
|
|
Post-2014 UDS engine replacement (no original ECU needed)
|
Yes
|
Yes
|
|
For VW MQB 5C/5D key matching
|
Yes
|
No
|
|
For VW/Audi SIMOS18 series cloning
|
Yes
|
No
|
|
VW V850 instrument data reading & cloning
|
Yes
|
Limited support
|
|
VW RH850 instrument data reading & parsing
|
Yes
|
Limited support
|
|
For VW MQB instrument mechanical/smart key all-keys-lost (read/write/parse engine & trans data)
|
Yes
|
Limited support
|
|
For Benz key matching (FBS3)
|
Yes
|
Yes
|
|
For Benz engine/trans erasing (FBS3)
|
Yes
|
Yes
|
|
For Benz engine (FBS4)
|
Yes
|
Yes
|
|
For Benz trans cloning (FBS4): 2x 7-speed, FDCT, 9-speed
|
Yes
|
Yes
|
|
For Benz W164/W169/W209/W211 no-gateway all-keys-lost password calc (FBS3)
|
Yes
|
No
|
|
For Benz multi EIS cloning
|
Yes
|
Limited support
|
|
For Benz FDCT/VGS4 NAG2/VGS NAG3 cloning (FBS4)
|
Yes
|
No
|
|
For Benz DSM (FBS4)
|
Yes
|
No
|
|
For Benz key addition w/password calc (FBS3)
|
Yes
|
Yes
|
|
For Benz all-keys-lost password calc (FBS3)
|
Yes
|
Yes
|
|
For BMW CAS1/2/3/4, FEM/BDC
|
Yes
|
Yes
|
|
For BMW G-series key matching
|
Yes
|
Yes
|
|
For BMW engine ISN reading
|
Yes
|
Limited support
|
|
For BMW E-series 8HP trans erasing
|
Yes
|
Yes
|
|
For BMW E-series 8HP trans cloning
|
Yes
|
Yes
|
|
For BMW FRM repair
|
Yes
|
Yes
|
|
For BMW F-series 6HP trans erase/clone
|
Yes
|
Yes
|
|
For BMW F/G-series 8HP trans clone
|
Yes
|
Yes
|
|
For BMW F/G-series 8HP trans erase
|
Yes
|
Yes
|
|
For BMW engine replacement
|
Yes
|
Yes
|
|
For BMW Bosch engine clone
|
Yes
|
Yes
|
|
For BMW Siemens engine clone
|
Yes
|
Yes
|
|
For Porsche 2011-2017 key matching
|
Yes
|
Yes
|
|
For Porsche front/rear ECU clone
|
Yes
|
Yes
|
|
For Porsche engine & trans ECU clone
|
Yes
|
Yes
|
|
For Porsche battery repair
|
Yes
|
Yes
|
|
For Various Bosch engine clone
|
Yes
|
Yes
|
|
For Various Siemens engine clone
|
Yes
|
Yes
|
|
For Various trans clone
|
Yes
|
Yes
|
|
For Various DELCO/DENSO/Marelli engine clone
|
Wide support
|
Yes
|
|
For RH850 encrypted chip R/W
|
Wide support
|
Yes
|
|
For BMS chip R/W
|
Yes
|
No
|
|
For ID48/96 & ID46 chip cloning
|
Yes
|
No
|
|
For ECU checksum/verification
|
Wide support
|
Ye
|
LAUNCH X431 G5 Product Specifications:
|
Specification Item
|
Detailed Parameter
|
|
Model Number
|
LAUNCH X-431 PROG5 G5 IMMO Programmer
|
|
SKU Code
|
HKSK510
|
|
Net Weight
|
3.5 KG (7.72 LB)
|
|

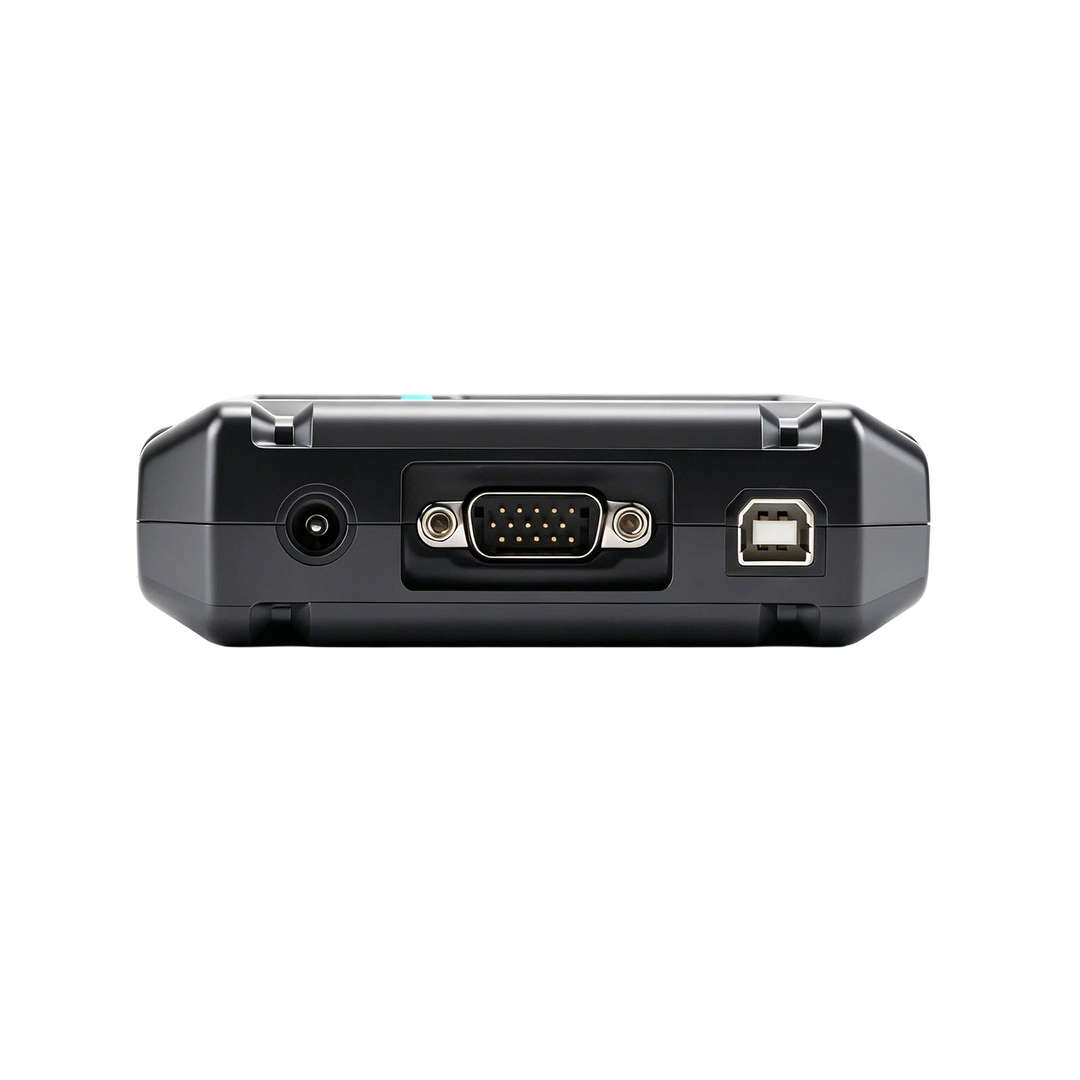

Hardware Interfaces
|
DB26, DB15 Dual Ports
|
|
Operating Input Voltage
|
DC 14V
|
|
Operating Current
|
500mA
|
|
Working Ambient Temperature
|
0℃ ~ 50℃
|
|
Storage Temperature
|
-20℃ ~ 70℃
|
|
Matching Software
|
Immo Prog (Tablet Side) + ECU Cloning Software (Windows PC Side)
|
|
Free Online Update Period
|
1 Year Free Upgrade After Purchase
|
|
Annual Renewal Fee After Expiry
|
$269 Per Year
|
|

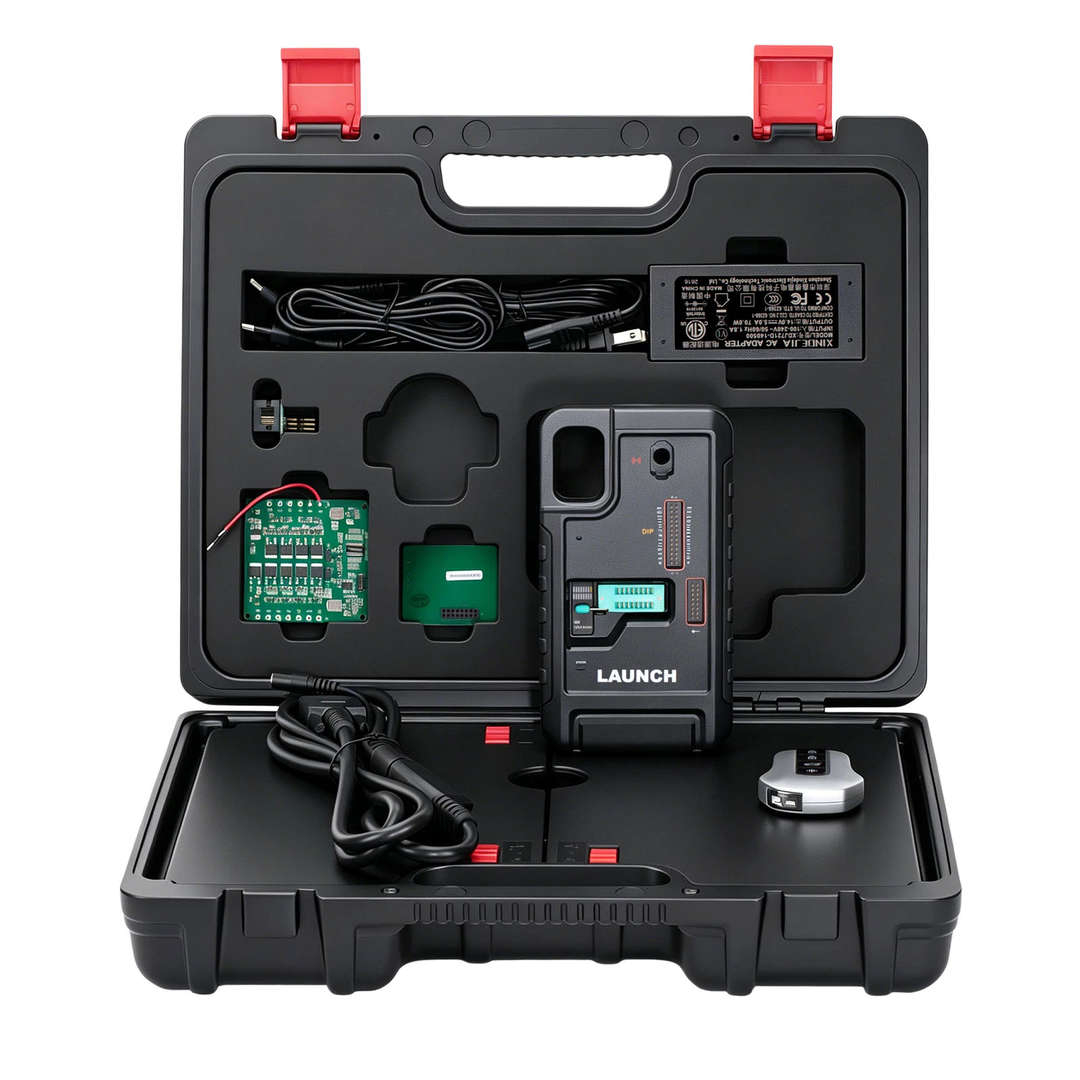

Standard Package List
|
1 x PROG5 Main Unit, Full Set of Main Wiring Harness, Matching Adapters
|
|
Compatible LAUNCH Diagnostic Tablets
|
PAD V ELITE, PAD VII ELITE, PAD IX, PRO3 V+ ELITE, IMMO Plus, IMMO Elite, CRP919X / CRP919X BT and all other X431 series tablets
|

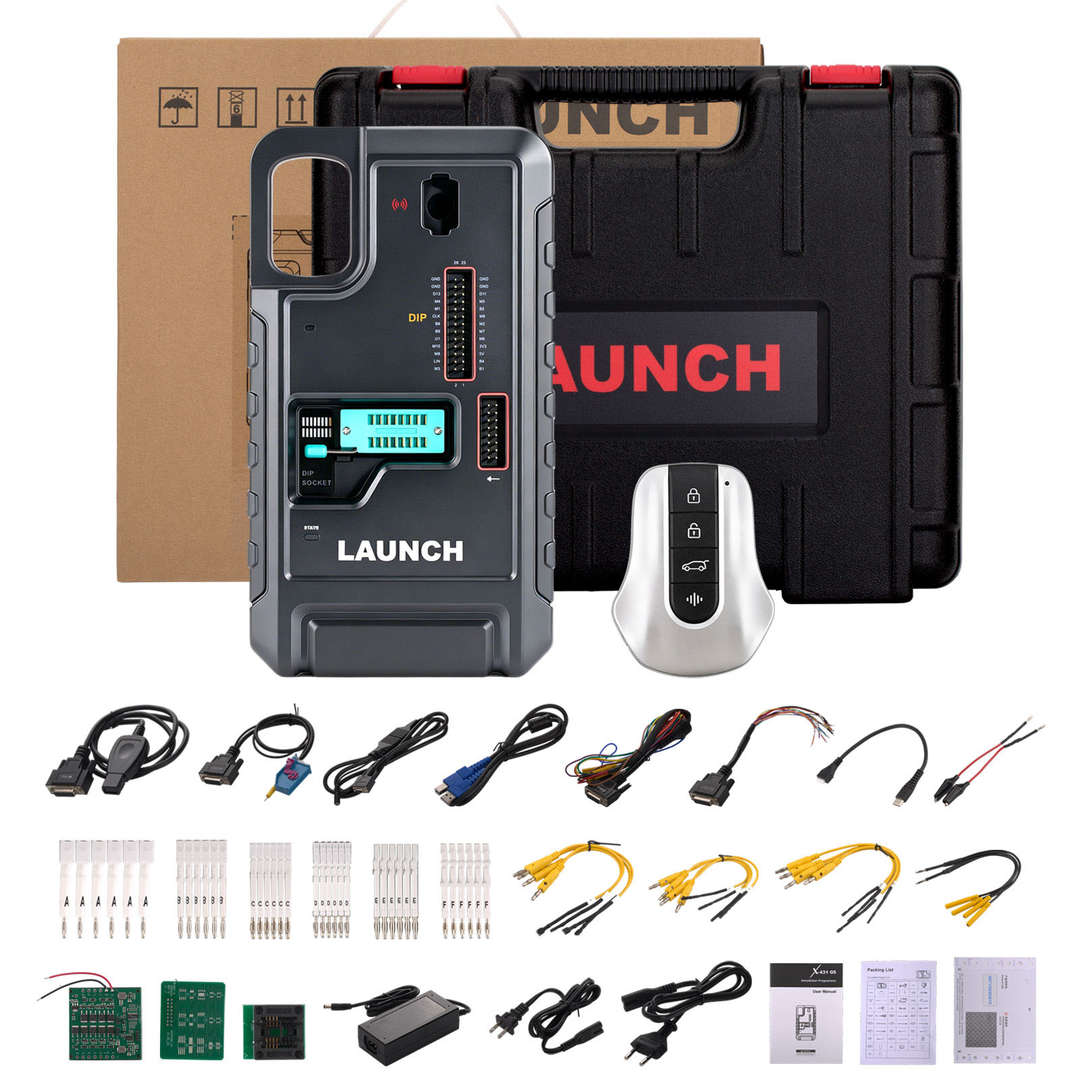

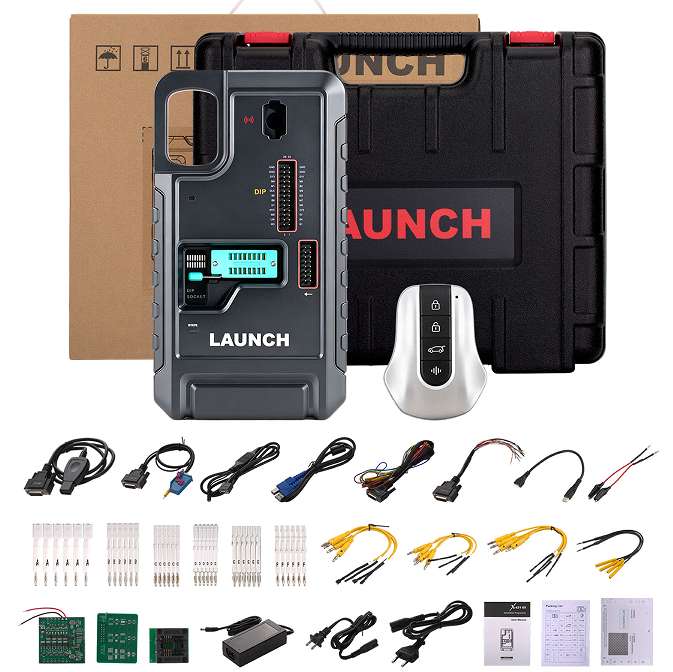

Package List:
1pc x main frame
1pc x test cable
1pc x XTA001
1pc x EEPROM
1pc x RH850/V850
1pc x USB Cable(type B)
2pcs x Black Clip Wire
1pc x switching power supply
1pc x European power cord
1pc x MB key
1pc x NS Cable V1
1pc x MCU Cable V1
1pc x Bench Cable V2
6pcs x Matching Adapter A V2.0
6pcs x Matching Adapter B V2.0
6pcs x Matching Adapter C V2.0
6pcs x Matching Adapter D V2.0
6pcs x Matching Adapter E V2.0
6pcs x Matching Adapter F V2.0
4pcs x Matching Adapter A
4pcs x Matching Adapter C
4pcs x Matching Adapter E
2pcs x Bench Extension Cables

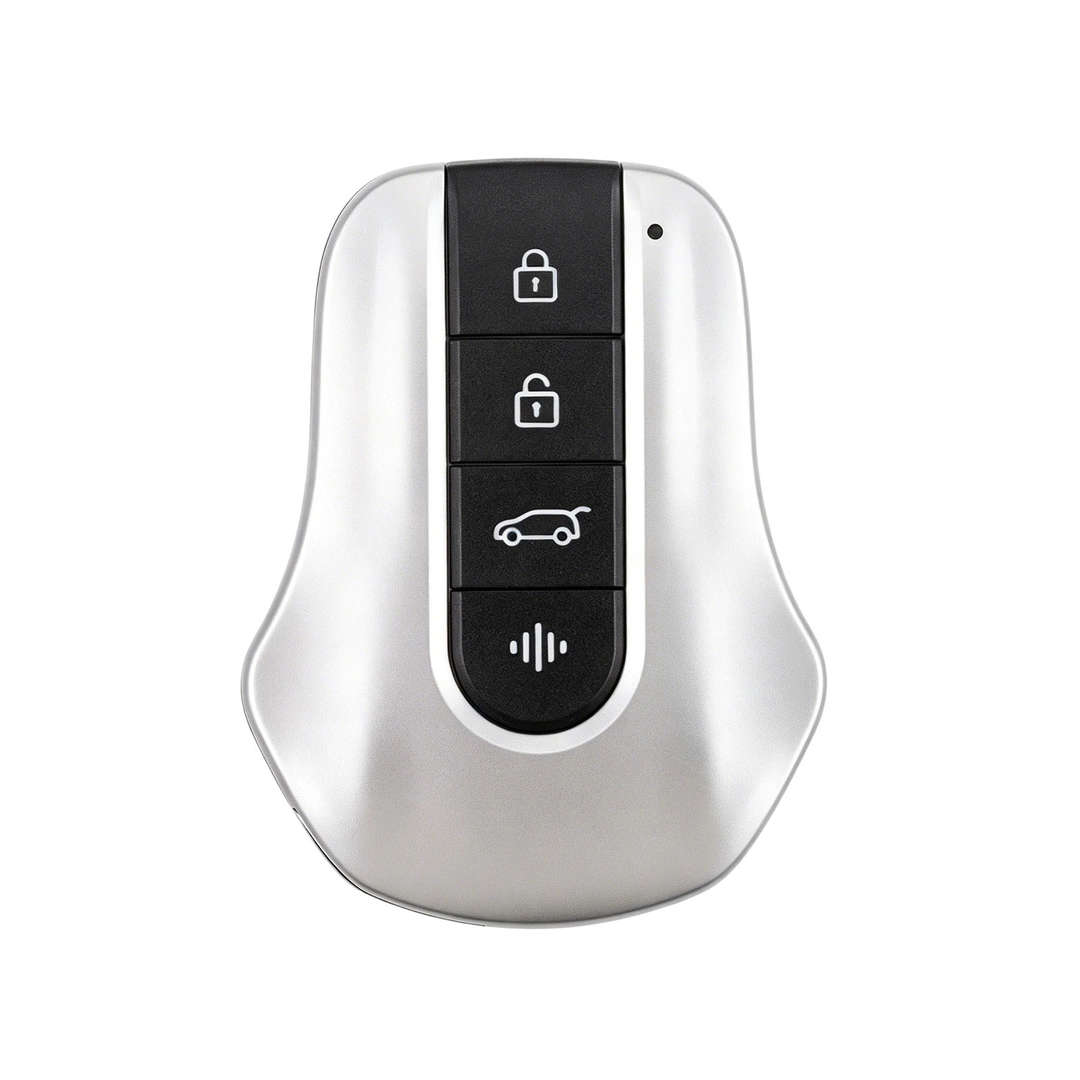

1pc x Car Key
1pc x Key Chip Programming Cable
1pc x User Manual
1pc x Password Envelope
1pc x Packing List
Frequently Asked Questions
Q1: Can XPROG5 fully replace XPROG3, X431 Key Programmer and MCU3 Adapter?
A: Yes. XPROG5 integrates all hardware functions of XPROG3, PC adapter, key programmer and MCU3 adapter into one unit; no extra accessories are needed.
Q2: Do I need the original PC adapter from G3 to connect XPROG5 to the computer?
A: No. XPROG5 supports direct USB connection to PC, eliminating the separate PC adapter required for XPROG3.
Q3: Does this device come with full global vehicle IMMO activation?
A: No. The base unit only includes European vehicle software (BMW/Benz/Audi/VW/Porsche). You need to purchase the optional IMMO extended software package to unlock GM, Toyota, Honda, Ford, Hyundai and other Asian/American brands.
Q4: Which X431 tablets can work with XPROG5 G5?
A: Compatible with LAUNCH PAD V, PAD VII Elite, X431 PRO3 V+ 5.0 Elite, X431 Pro5 Smartlink and all new-generation X431 diagnostic pads.
