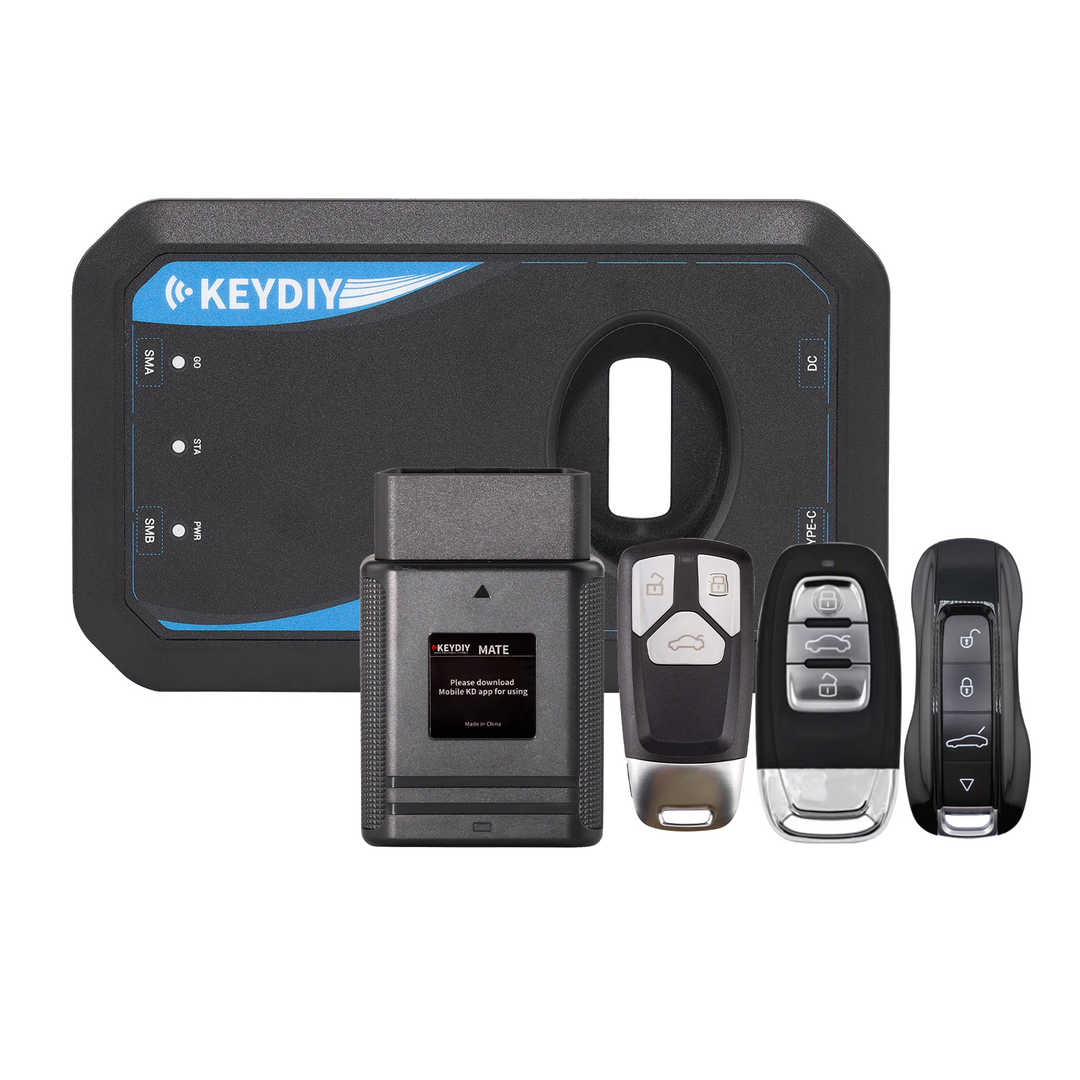

Keydiy KD-MP 5-in-1 Program Kit with KD-MATE, KD-MP MLB/MQB Tool, MLB26 MLB09 MLB08 MLB Keys
Please note that our KEYDIY tools do not support the following languages:
Polish, Chinese, Slovenian, Turkish, Brazilian, Portuguese, Hebrew, and Persian.
This set can do MLB function (no need extra device/adapter). As for MQB, you need to generate dealer key with KD-MAX, then learn key with KD-MAX+ KD-MATE or KD-X4.
KD-MATE is car key program device based on mobile KD app connection. With the matched adapter cable in the package, it can realize the Toyota smart key programming without pincde, and also can add Toyota all lost key without simulator.

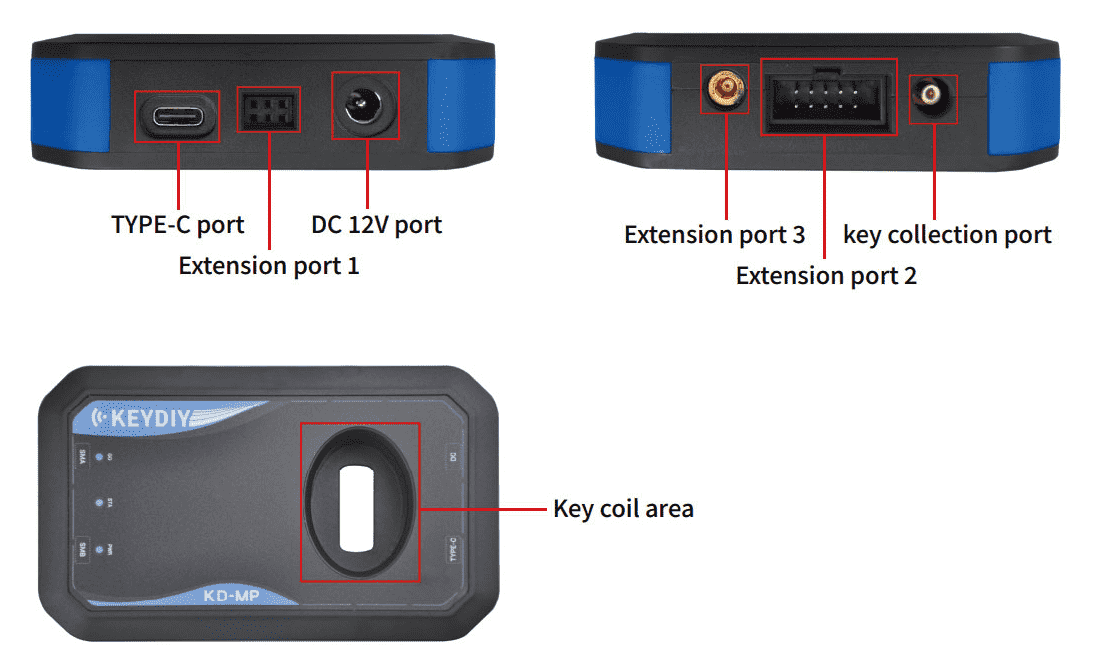

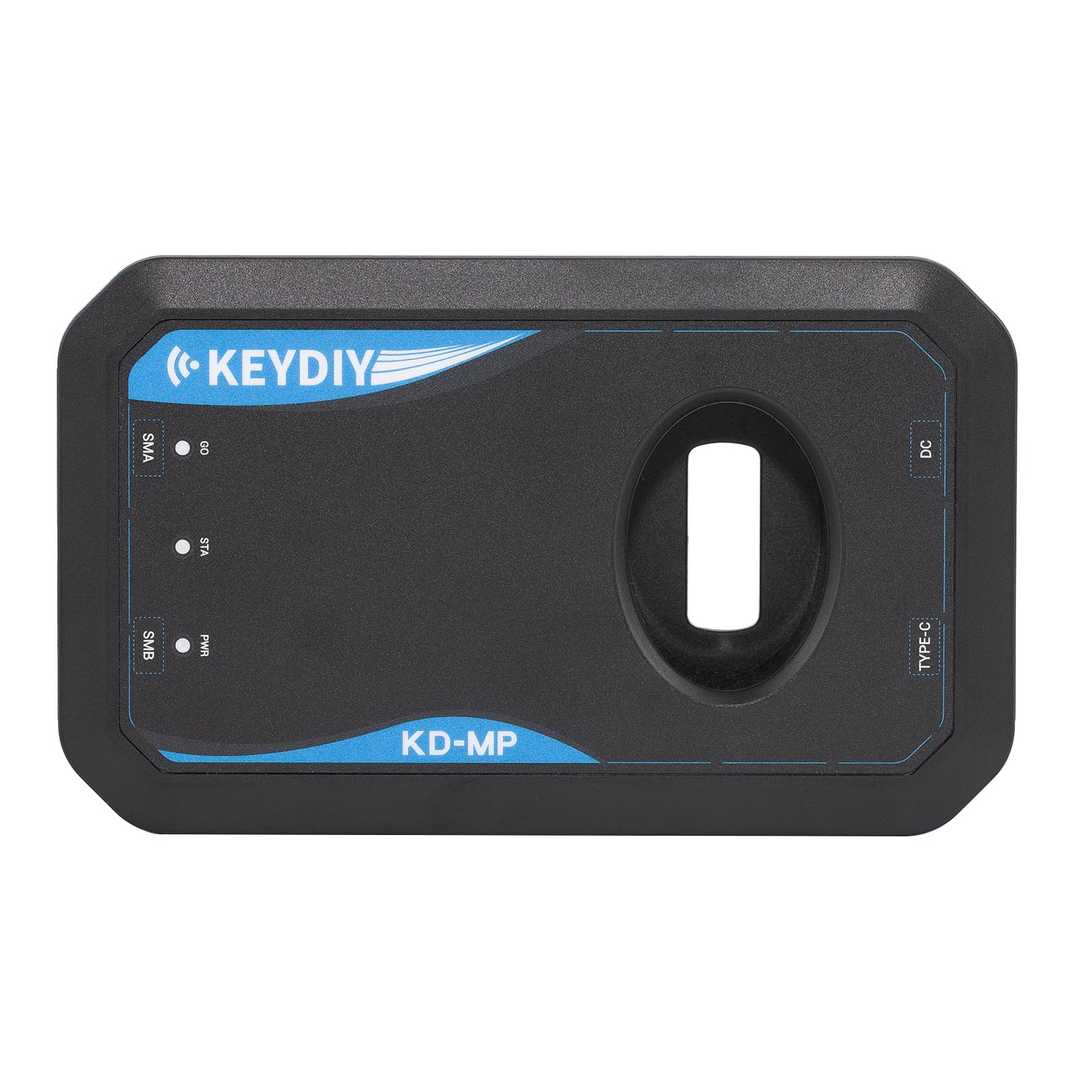

KEYDIY KD-MP Introduction:
The KD-MP is a professional locksmith tool designed for MLB and MQB IMMO systems. By connecting to the PC software, it supports the following functions without chip removal: - MLB/MQB key identification, data collection, and calculation - Dealer key generation - KD key functions: Modify ID, adjust key values, change sensitivity, restore keys - Online firmware upgrades - Expandable functionality (additional features to be released)
KeyDIY KD-MP Tool Add Keys MLB systems Functions:
1.Key Identification( Supports MLB & MQB key recognition )
2.Key Data Collection & Calculation. (Supports OEM MLB/MQB key data acquisition and computation )
3.Dealer Key Generation ( Compatible with OEM keys, KD keys, and aftermarket keys )
4.Key ID Modification( Allows KD key ID reprogramming )
5.Key Restoration( Recovers/resets KD keys to default )
6.Key Value Adjustment ( Modifies button mapping values on KD keys )
7.Sensitivity Calibration(Adjusts KD key signal sensitivity )
Functions supported now:
1.Toyota (after year 2019) Hitag-AES (4A) smart key programming without pincode and all key lost programming without simulators (ZB remote emergency ignition), including new Toyota Corolla and Levin with 2000 FCCID.
2.4D smart key (including 0111/0140/0780/5380/7990) adding, all key lost and emergency ignition (4D transponder emergency ignition).
3.8A smart key (including 0020/2110/F43/3330/0410/0440/0010/0120) programming without pin code.
4.The device will be updated continuously to work for more cars.

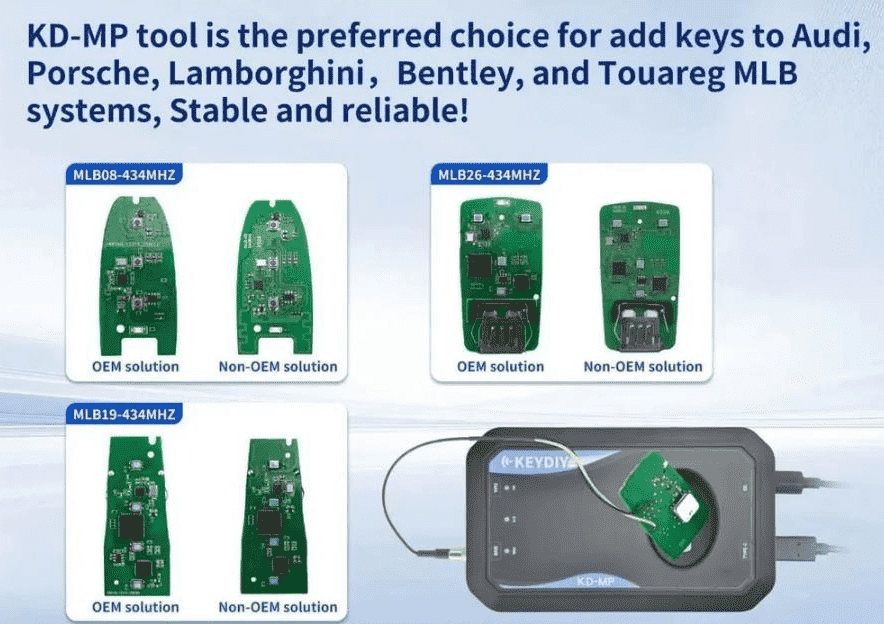

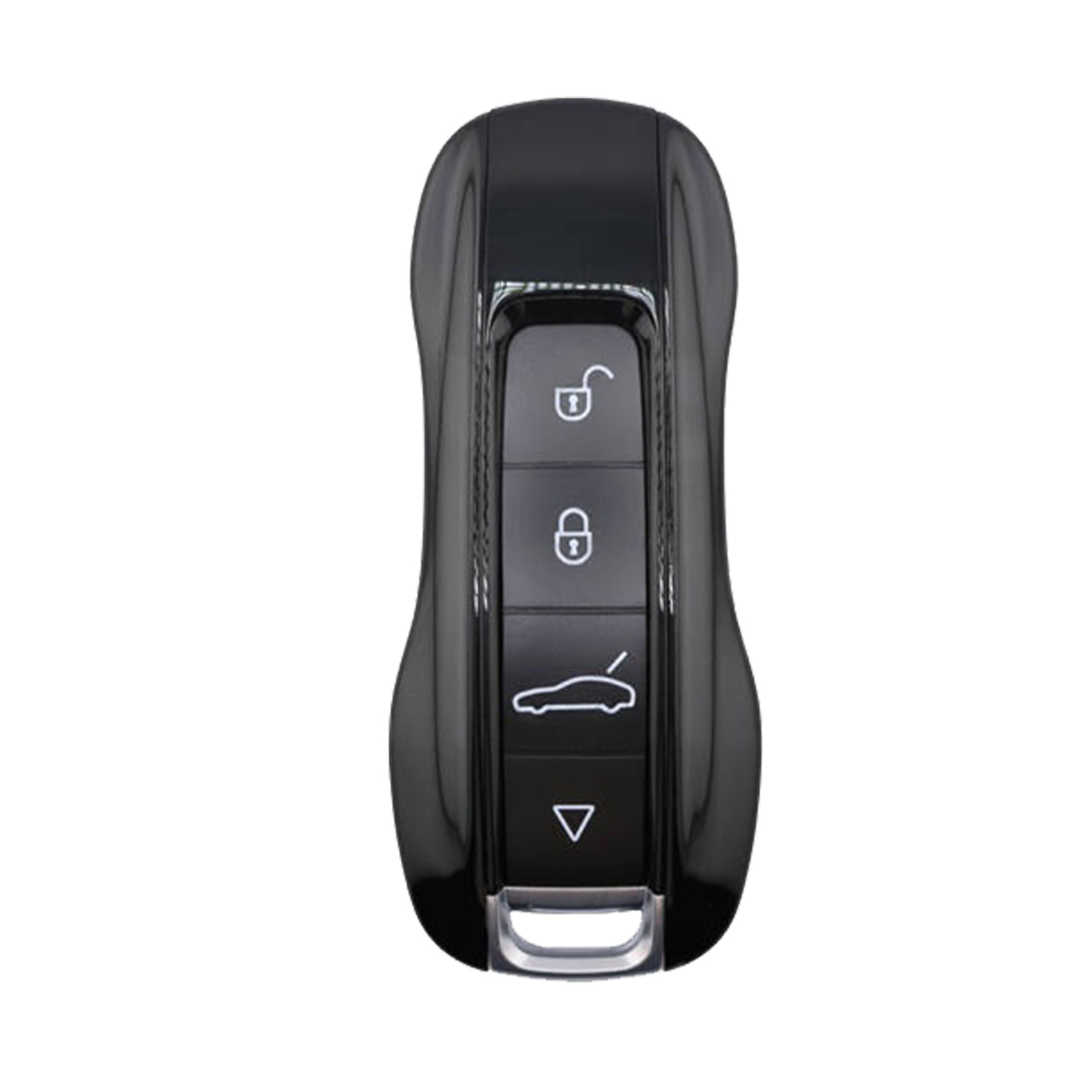

KeyDIY KD-MP MLB Tool Supported KEYDIY MLB Smart Keys:
1. After matching, KD devices can be used to repeatedly unlo-c-k and modify ke.y IDs.
2. Generate dealer keys with support for both matching and emergency start—all on a single PCB without needing a battery, making the process more efficient.
3. Compatible with original remote protocols, the KD-MP and selected third-party devices support dealer key generation.
4. Enables custom button configuration and signal strength fine-tuning for improved key performance.
5. Every PCB board undergoes comprehensive testing (e.g., PKE and RKE) to ensure top-tier performance and reliability.

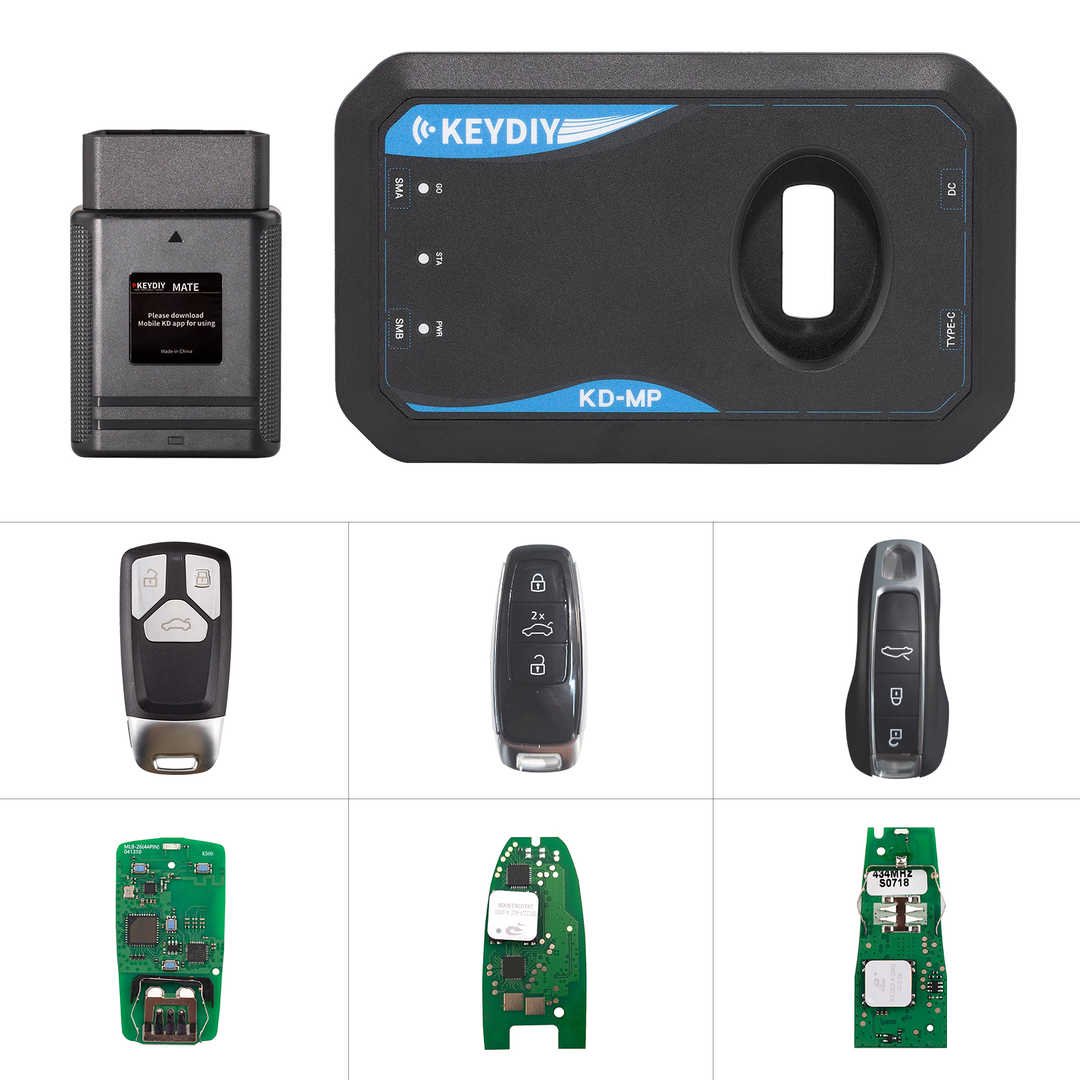

Package includes:
1pc x KD-MATE programmer
1pc x KD-MP MLB/MQB tool

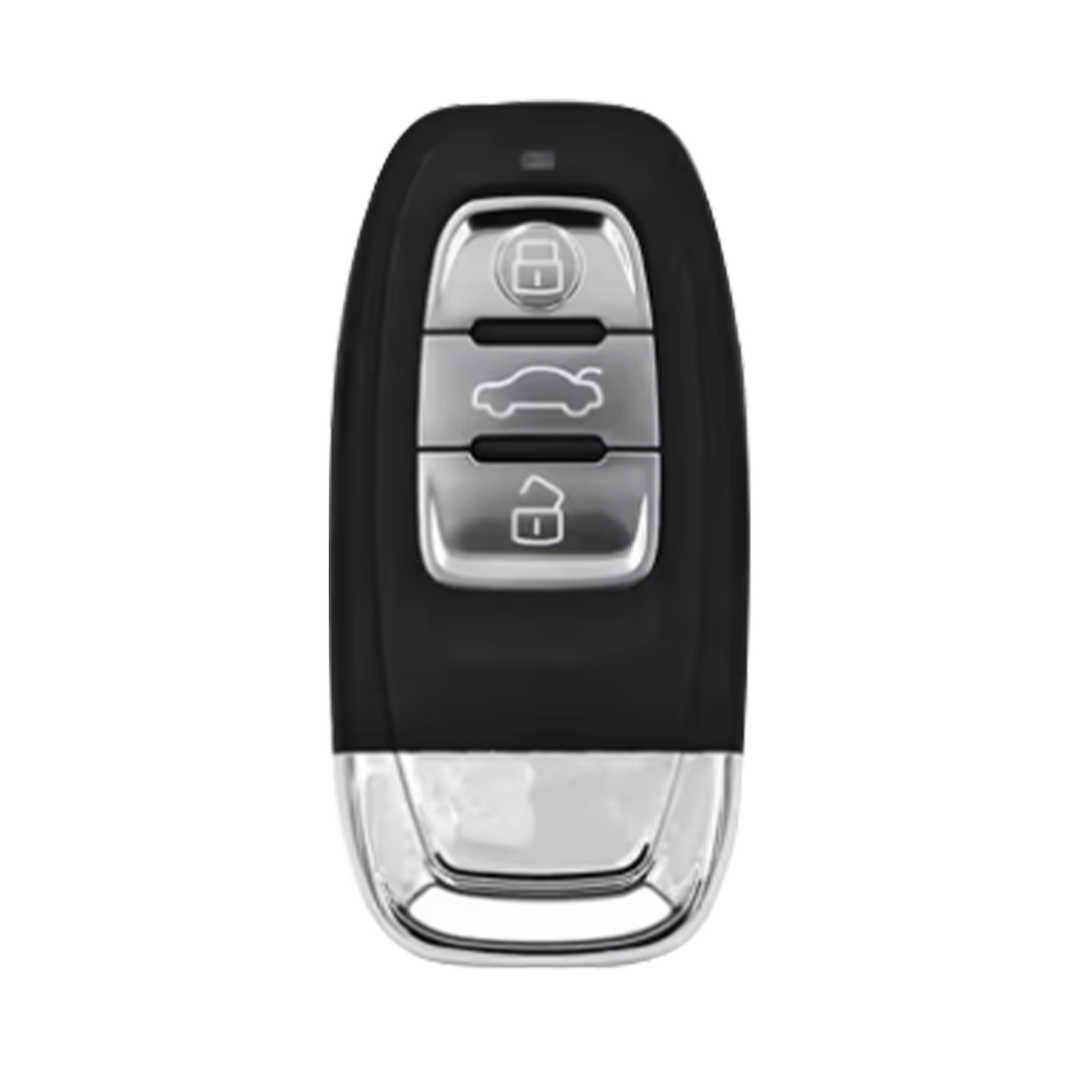

1pc x MLB08 MLB key (Non-OEM solution)
1pc x MLB19 MLB Key OEM solution
1pc x MLB26 MLB Key OEM Solution
1pc x HQ 12V power supply
5pcs x 1.8PF capacitor
KEYDIY KD-MATE Recently Added Vehicles:
KEYDIY Mate has recently been updated and it is now support more vehicle models, mostly focusing on New vehicle models smart key programming and pin code reading and much more features, Newly added vehicles are:
CHRYSLER
JEEP
DODGE
FORD
GMC
BUICK
CHEVROLET
CADILLAC
CHERY
GREAT WALL
HAVAL
WEI PAI
DENZA
MG
MODERN
ROEWE
HONDA
MAZDA
NISSAN
INFINITI
KIA
Hyundai
and much more will be added soon
KEYDIY KD-MATE OBD Adapter Frequently Asked Questions:
What is the KEYDIY KD-MATE?
The KEYDIY KD-MATE is a car key programming device that works in conjunction with the KD Mobile app to facilitate easy car key programming, specializing in Toyota, Lexus, Volkswagen, Audi, Seat, Skoda, and BYD models from 2007-2023.
How does the KEYDIY KD-MATE work with the KD Mobile app?
It connects with the KD Mobile app to enable seamless car key programming, providing continuous updates and support for various car models and key types without requiring simulators or Pincodes.
Which car models does the KEYDIY KD-MATE support for key programming?
It supports key programming for Toyota & Lexus Smart Keys, Volkswagen, Audi, Seat, Skoda, and BYD models, with specific support for models from 2007-2023.
Do I need simulators or Pincodes for programming with the KEYDIY KD-MATE?
No, the KEYDIY KD-MATE eliminates the need for simulators or Pincodes for most of its supported programming functions, making the process more straightforward.
Can the KEYDIY KD-MATE program keys for cars beyond Toyota and Lexus?
Yes, in addition to Toyota and Lexus, the KEYDIY KD-MATE also supports key programming for brands like Volkswagen, Audi, Seat, Skoda, and BYD, with continuous updates for adding more vehicle models.
Is the KEYDIY KD-MATE compatible with other KEYDIY devices?
Yes, it's compatible with KEYDIY KD-X2 and KEYDIY KD-MAX , enhancing its functionality when used together.
What updates can users expect for the KEYDIY KD-MATE?
Users can expect continuous updates via the KD Mobile app, adding more key programming functions and support for additional car models over time.
What are some specific programming capabilities of the KEYDIY KD-MATE for Toyota & Lexus?
It includes Pincode-free programming for Toyota 2018+ 4A smart keys, Toyota - Lexus 8A smart keys, and Toyota - Lexus 4D smart keys
What is required for Toyota - Lexus 2020+ Smart Key Programming?
The KEYDIY KD-MATE Toyota 30 Pin Cable (sold separately) is required for reading Smart Box module data on some 2020+ models
Does the KEYDIY KD-MATE support all keys lost programming?
Yes, it supports all keys lost programming for Toyota, Lexus, and BYD models and many other vehicles without the need for a simulator or Pincode.
Are there any special requirements for VAG key programming with the KEYDIY KD-MATE?
For comprehensive VAG system programming, the KD Mini Prog adapter may be required for some functions.
Can the KEYDIY KD-MATE work as a stand-alone device?
No, it must be used in conjunction with the KEYDY KD-X2 Or KEYDIY KD-MAX for full functionality.
What new vehicle models has the KEYDIY KD-MATE recently added support for?
It has expanded support to include models from CHRYSLER, JEEP, DODGE, and many others, with continuous updates promising more additions.
How can users acquire the KEYDIY KD-MATE and its accessories?
Users can purchase the KEYDIY KD-MATE and its specific accessories, like the Toyota 30 Pin Cable
What makes the KEYDIY KD-MATE a preferred choice for key programming?
Its ease of use, compatibility with a wide range of car models, and elimination of the need for simulators or Pincodes make it a preferred choice.
How does the KEYDIY KD-MATE support smart key programming for BYD models?
It supports smart key programming for BYD models from 2011-2023, covering spare keys and all keys lost scenarios without requiring a Pincode or simulator.
What future enhancements are planned for the KEYDIY KD-MATE?
The KEYDIY KD-MATE is set to receive more key programming functions and support for additional car models through continuous updates

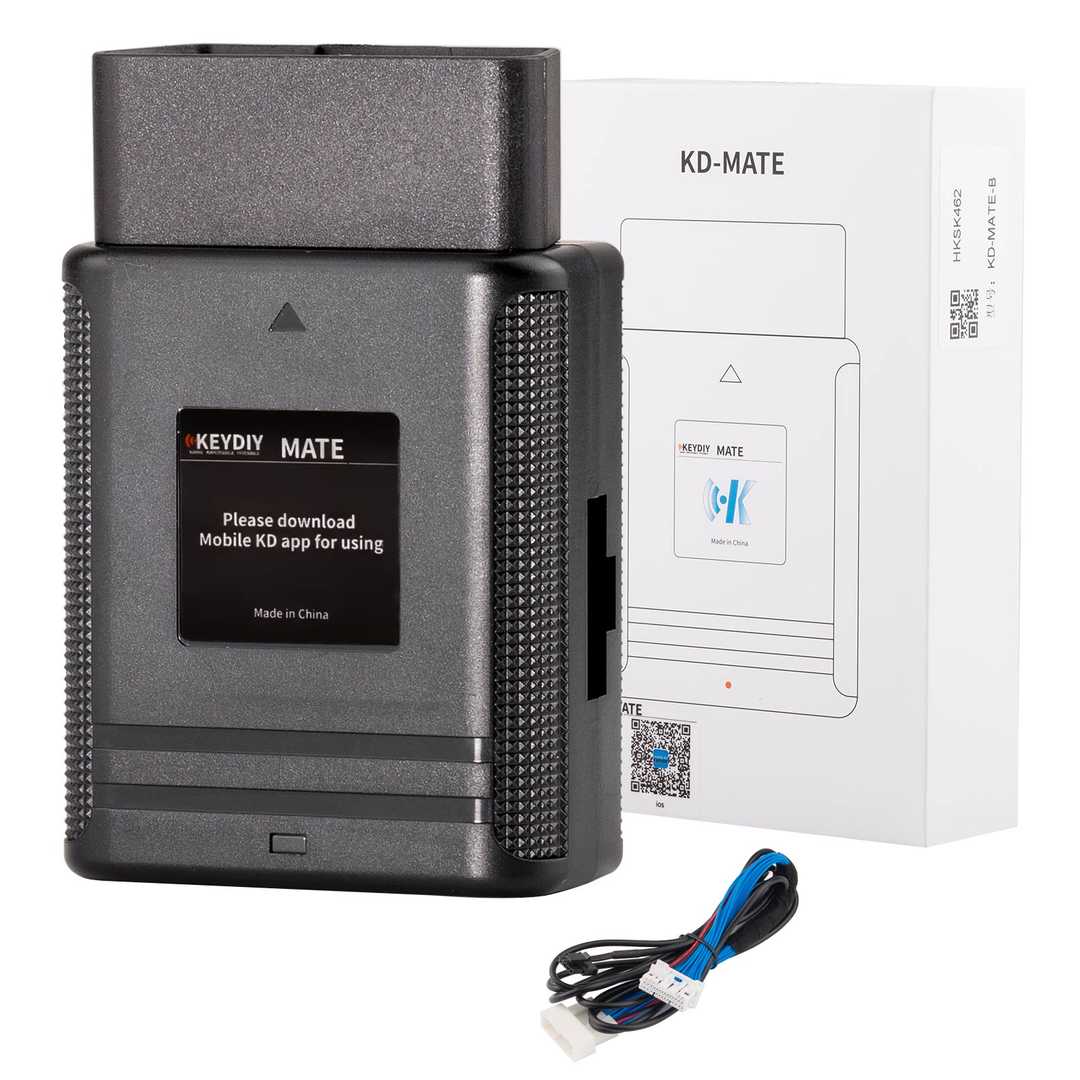

What is included in the KEYDIY KD-MATE box?
The box contains the KEYDIY KD-MATE OBD Adapter Main Unit, KD Mate Toyota 4A Cable, and a KD Mate USB Type-C Cable
