Product Description

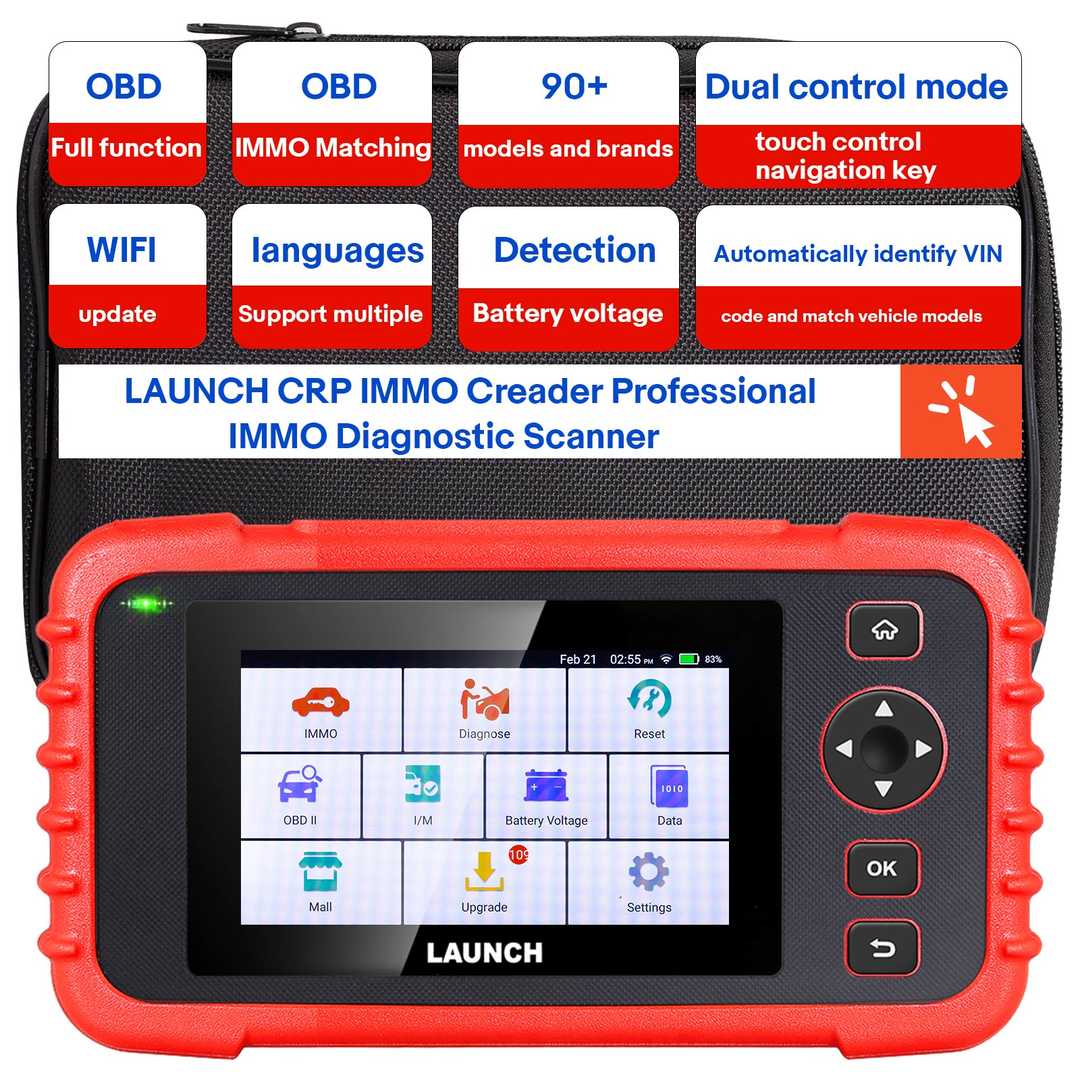

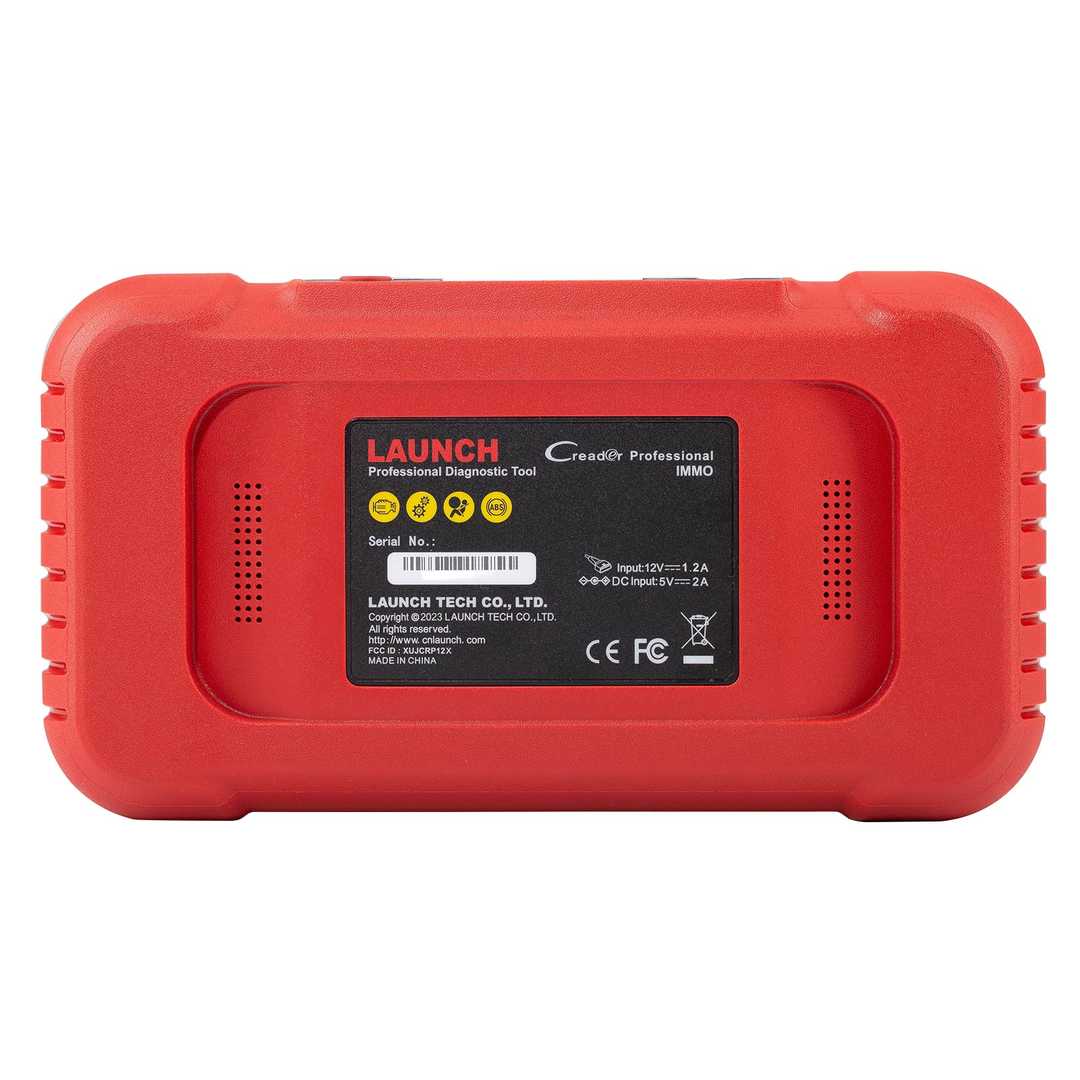

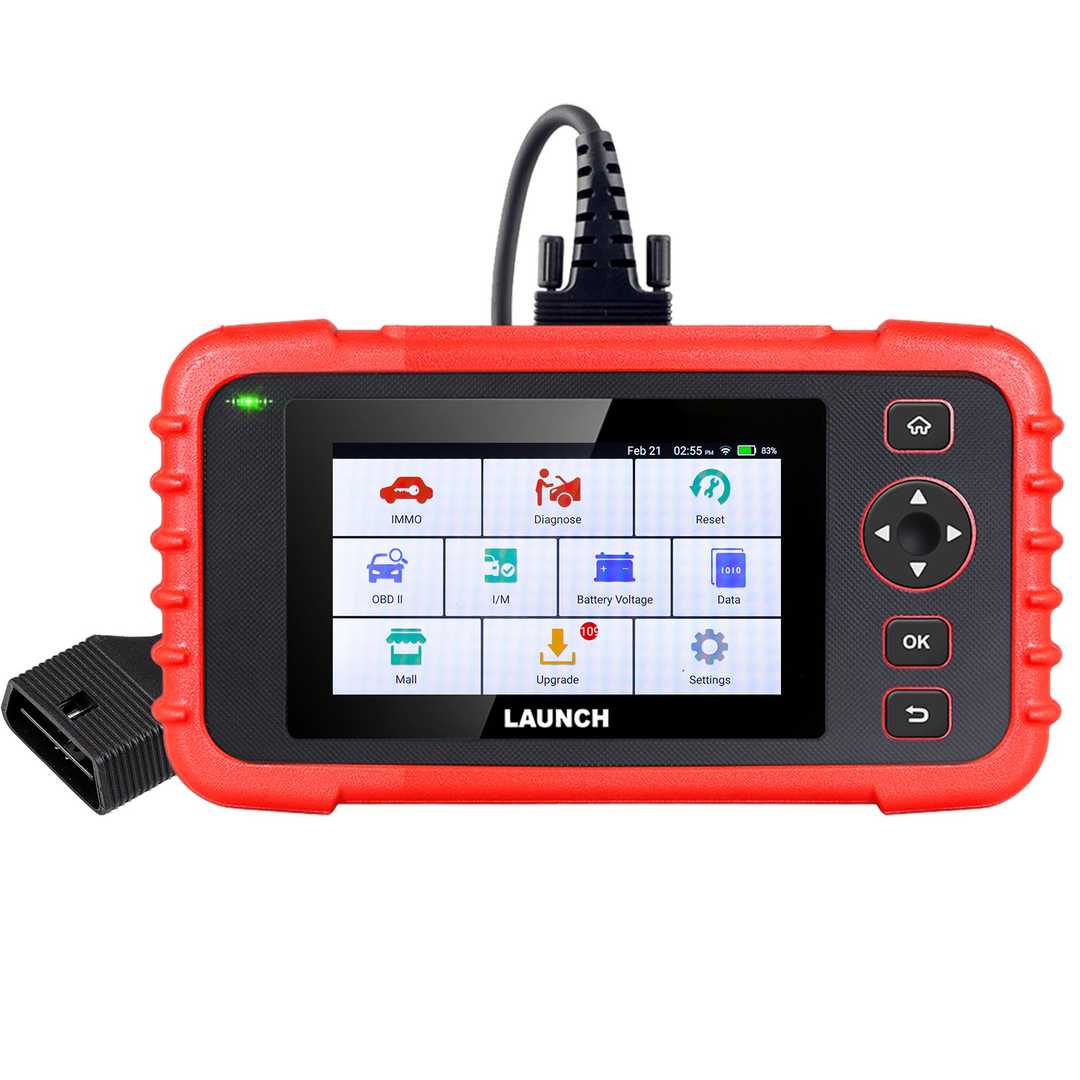

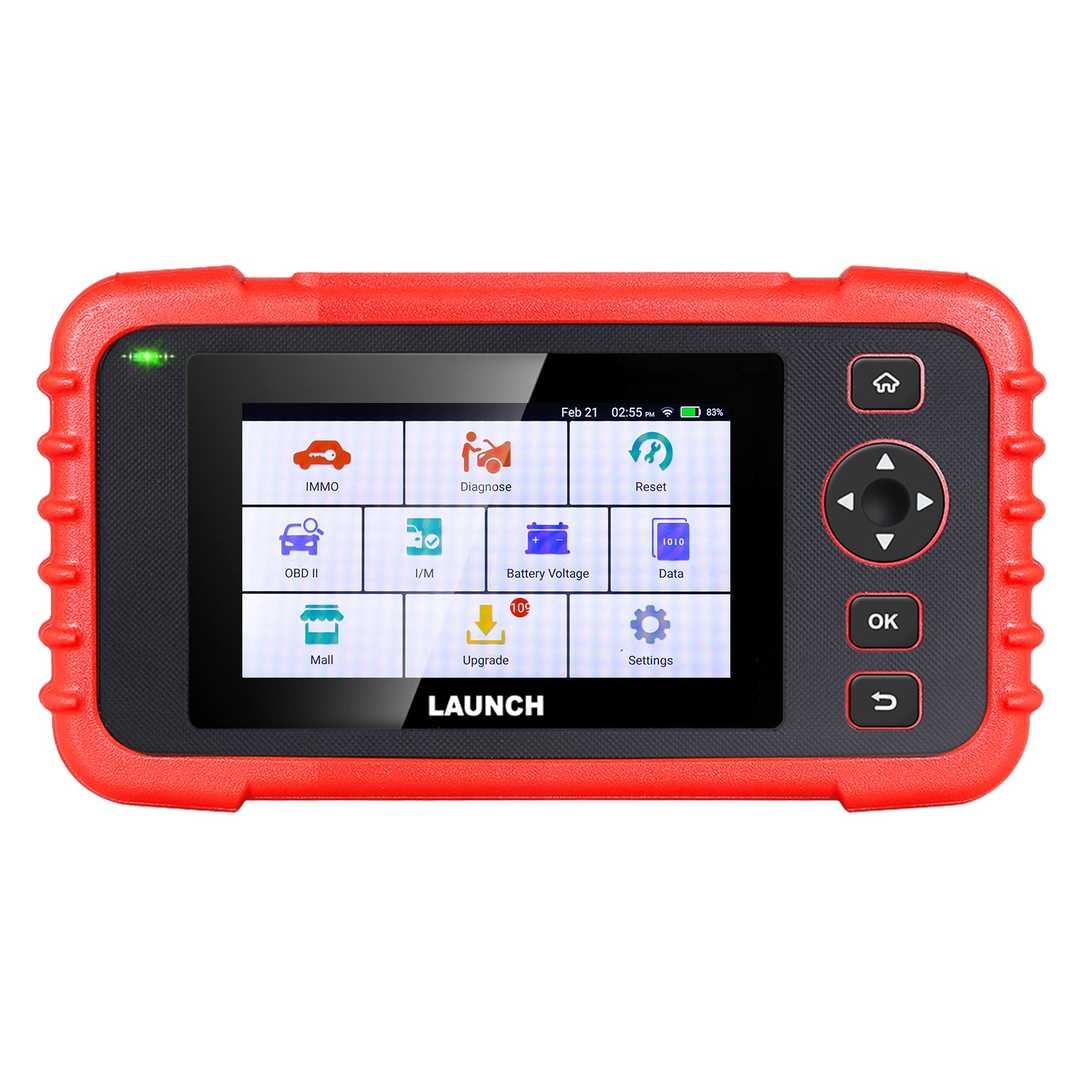

LAUNCH CRP IMMO OBD Immobilizer Key Programmer
1.Supports OBD key programming for 90 brands and have IMMO skills information.
2.Same 4 system diagnostics function as CRP123
3.Multi-language, 2 year free update, one-key update via WiFi
CRP IMMO is the first portable anti-theft diagnostic tool launched by Yuanzheng Technology in 2024.Based on the Android operating system and a stable and efficient hardware combination, the product provides software functions such as OBD II diagnosis, four-system car diagnosis, common maintenance functions and multi-brand anti-theft; in addition, there are auxiliary functions such as online one-click software update, diagnostic report sharing, and mall software expansion to choose from.
Features:
1.Basic diagnostic functions for the four major systems (ABS, SRS, ENG, AT) of overseas mainstream car series
2.Support 3 special functions: throttle learning, maintenance light reset and steering angle learning
3.Support OBDIl full function
4.Support I/M ready state function quick entry
5.Support battery voltage detection
6.Auxiliary functions such as diagnostic report, diagnostic record playback
7.Full system and full function (can be purchased in the mall)
8.90+ brand OBD anti-theft matching
9.Support anti-theft information query for various models
10.Multi-language: English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese
11.Auto VIN
12.One-key update via WiFi
Launch CRP IMMO:
OBD IMMO Matching
Supports OBD IMMO functions for many models in Asia, Europe and the United States. More brands will be continuously launched, supporting up to more than 90 models and brands. Support query of IMMO information of various models.
This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.
It needs to be performed in the following cases:
When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.
IMMO Skills
Supports querying IMMO information of many car models.
Diagnostic Function:
1.Same level diagnostic functions as CRP123 series.
2.Automatically identify VIN code to match vehicle model
3.Supports basic diagnostic functions such as code reading, code clearing, data flow 4.and version information of the four major systems of ABS, SRS, ENG and AT
5.Supports three commonly used special functions: RESETETS (throttle learning), 6.RESETOIL (maintenance light reset), RESETSAS (steering angle learning)
7.Supports full OBD functions
8.Supports quick access to I/M Readiness function menu
9.Supports battery voltage detection function
10.The information center includes diagnostic records, diagnostic reports, fault code query and help, online diagnostic feedback, and other auxiliary functions.
11.Full-system full-function software purchased in the mall
12.One-click software update at any time via Wi-Fi network
Specifications:
Operating system Android 7.1
RAM 2GB
ROM 16GB
Screen 5 inches, LCD screen
Resolution 1280*720
Battery 6000mAh
Operating temperature 0~50℃
Storage temperature -20°C to 70°C
Size 228*125*34.5 (mm)
Net weight <565g

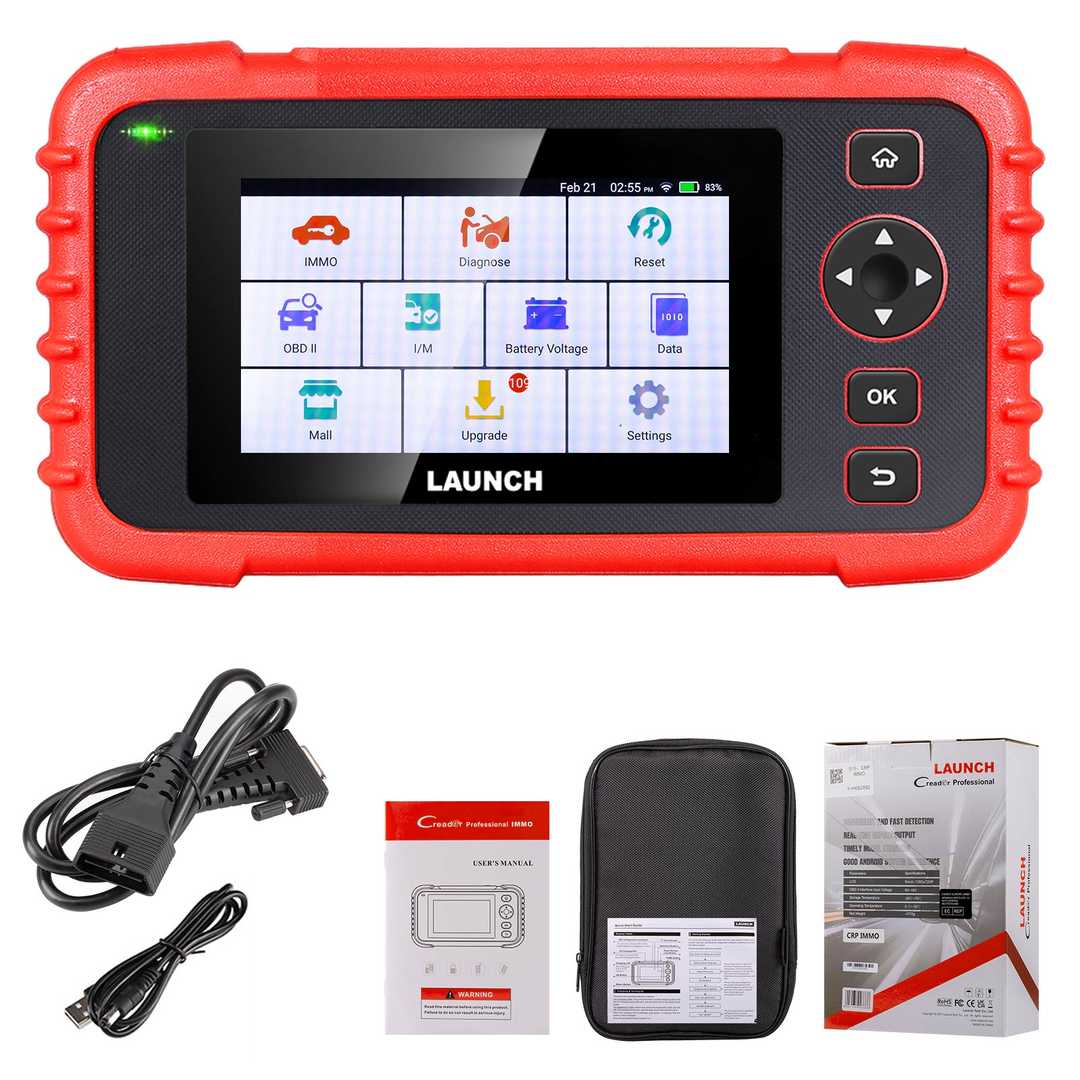

Package List:
1pc x LAUNCH Creader Professional IMMO tablet
1pc x main cable
1pc x power cord
