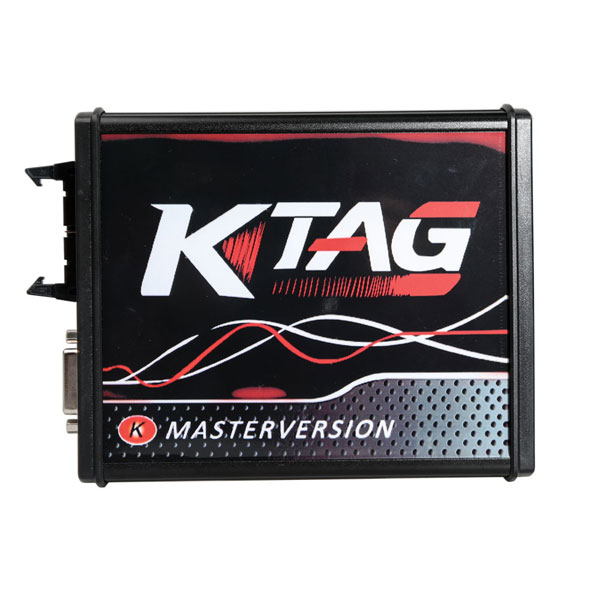

New 4 LED KTAG K-TAG ECU Programming Tool Master Version V2.25 Red Board
Mainly Features of KTAG :
1. Software Version: V2.25
Hardware Version: V7.020
2. Available Protocols for K-TAG: BDM MOTOROLA MPC5xx
3. Support BDM Function Well
4. Multi-Language: English, Italian, German, French, Portuguese, Spanish
Please pay attention :
1.Please DON'T update the KTAG online, it will damage the Unit ,and can not use any more .(You have to send back to repair,so please pay more attention)
2.Please DO Close anti-virus program when you run software
KTAG V7.020 Description:
K-TAG ECU Programming Tool is designed entirely around the needs of our customers to be more responsive and reliable.
A true champion of innovation, K-TAG introduces another brand new novelty to Alientech world: J-Tag communication for Asian vehicles.
Available Protocols for K-TAG: BDM MOTOROLA MPC5xx
Support BDM Function Well, No Checksum Error
Support both Car, Truck ECU Programming
KTAG 7.020 add new color GPT Cable for GPT Function:
GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our KTAG v7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom

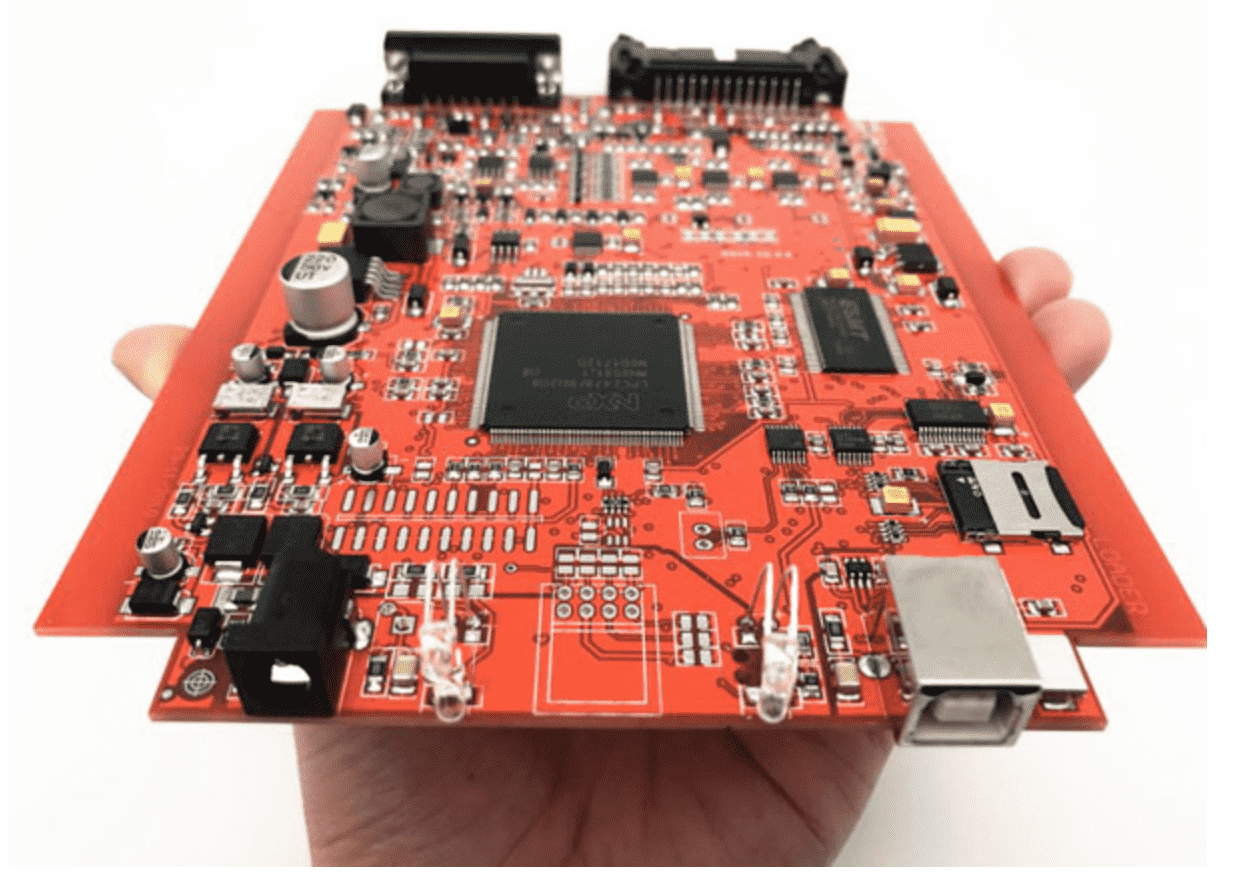

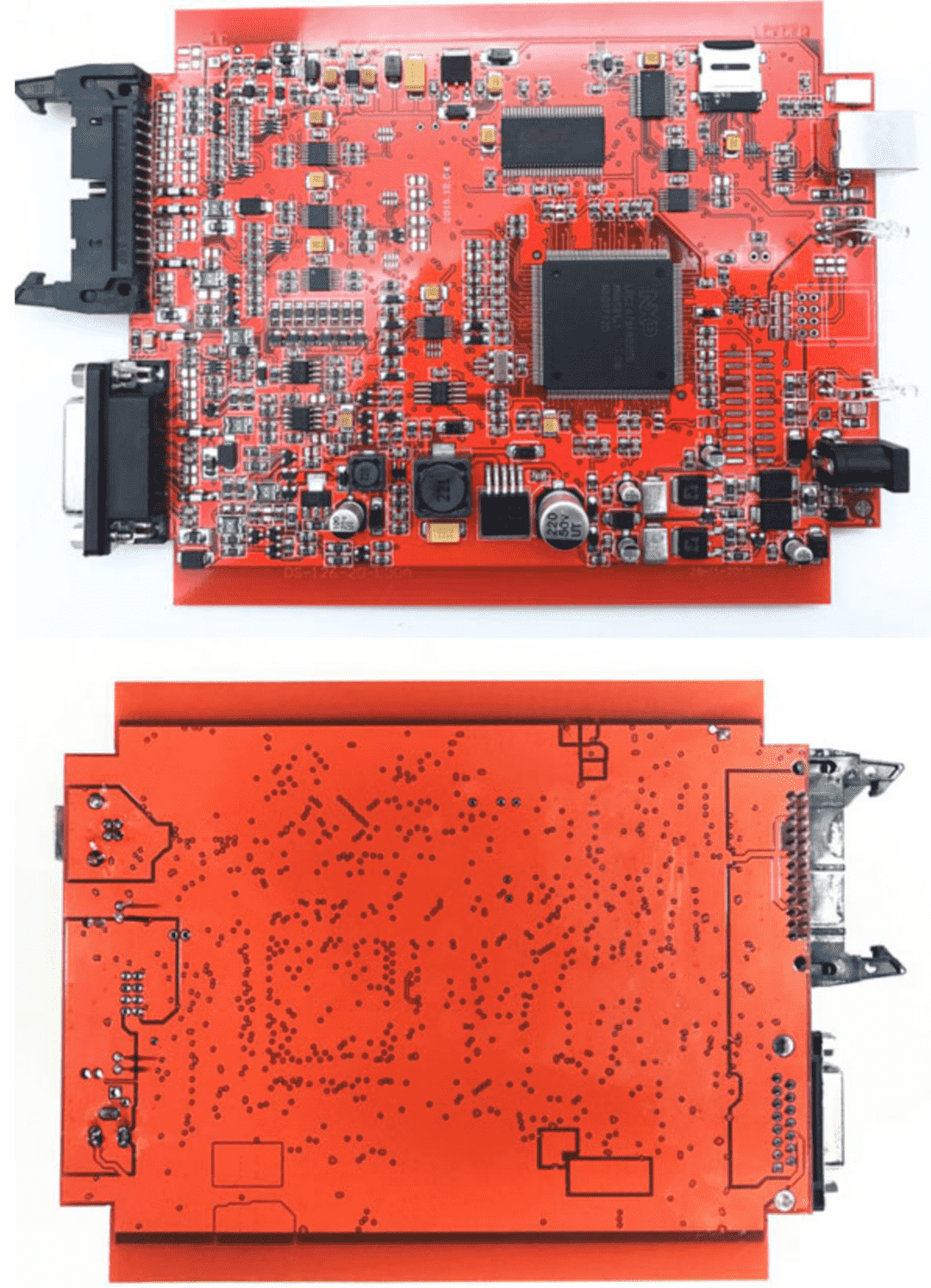

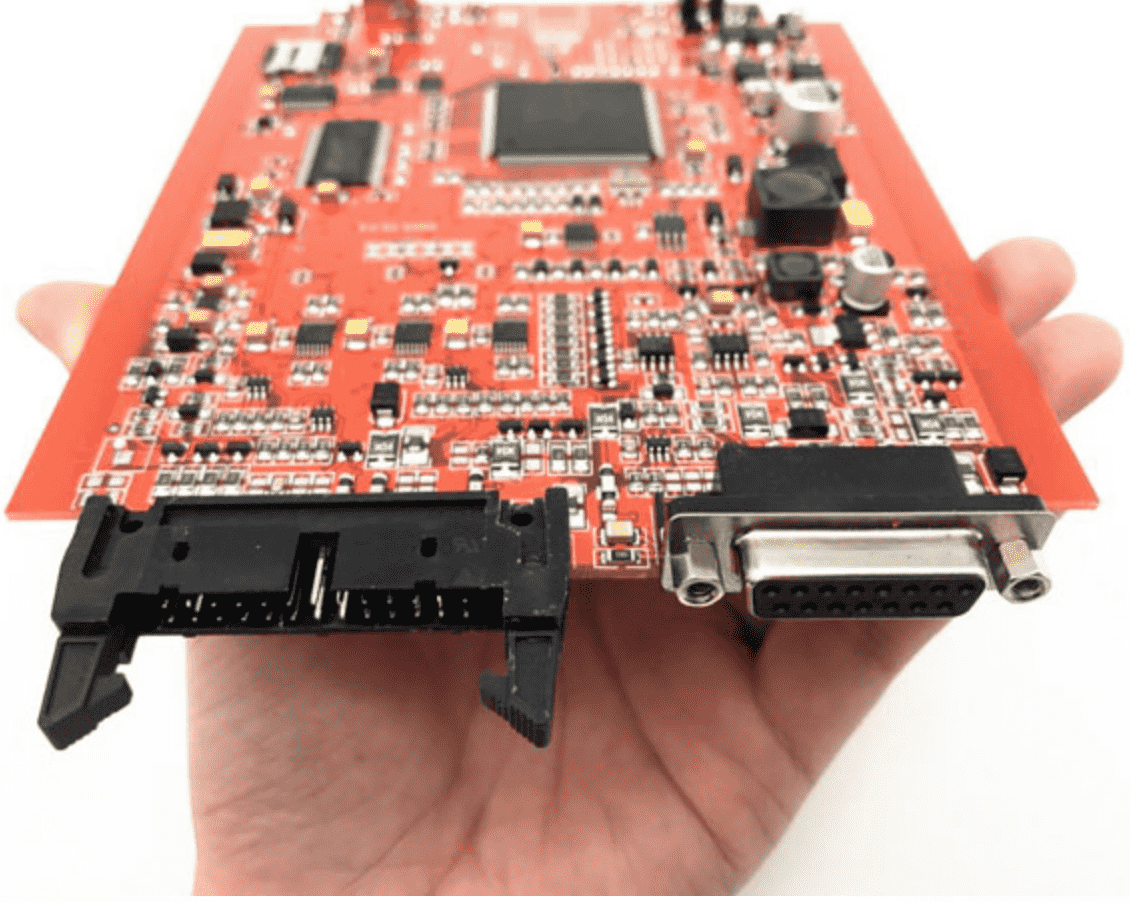

KTAG V7.020 Red PCB different information:
Murata filter
Buzzer protect

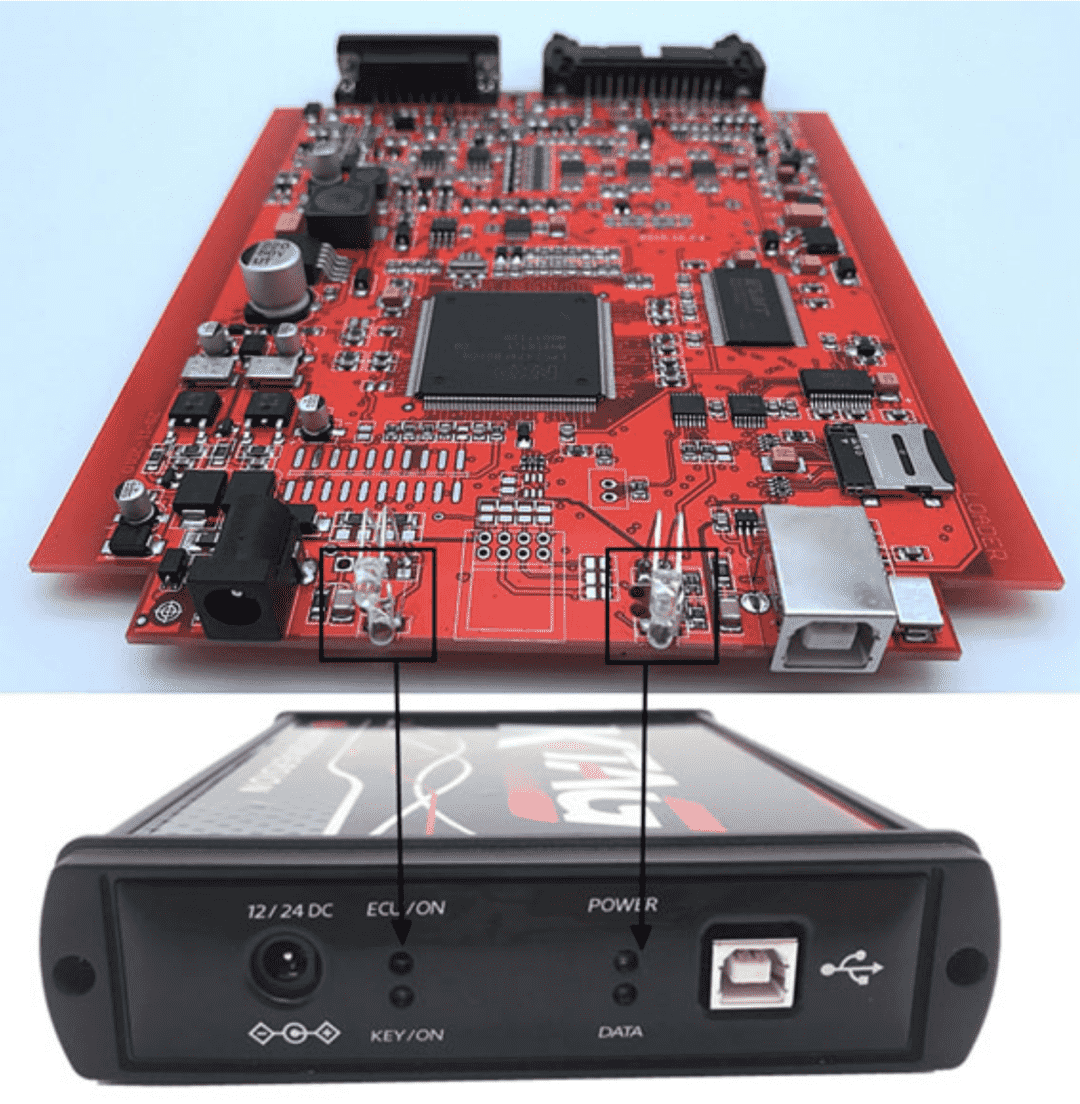

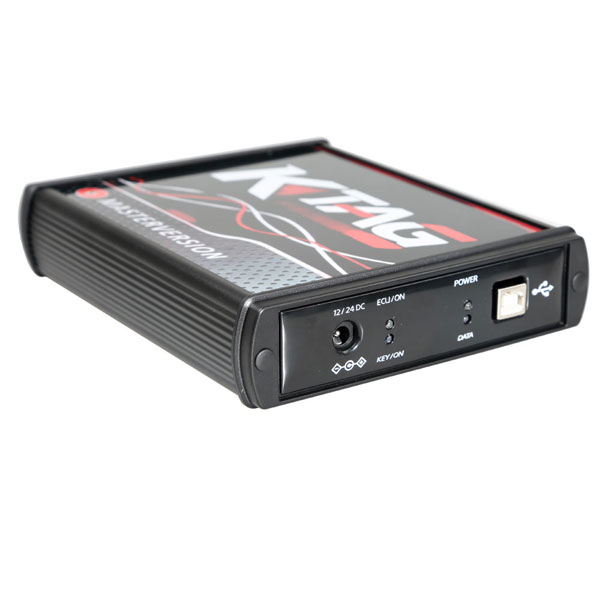

Red PCB EU Version With 4 LED Indicators:
ECU/KEY/Power/Data LED Indicator

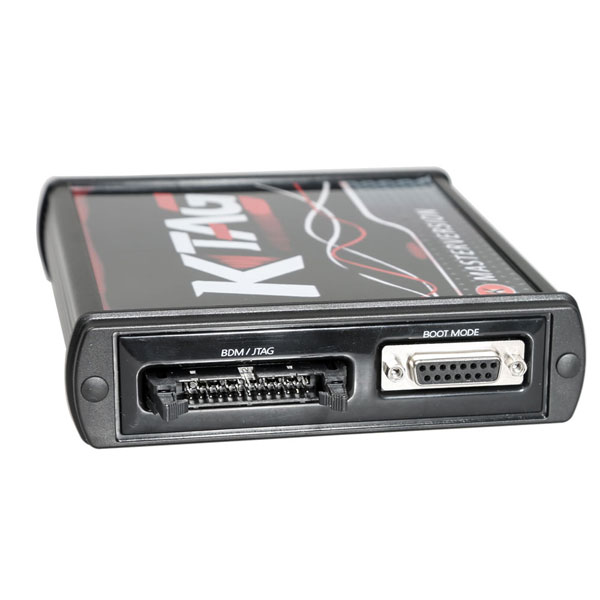

The new K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions,
never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and
Bootloader FOR Mitsubishi/Infineon Tricore/ST communication lines into a single product.
K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along
similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion.
For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.
Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware,
you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported
by K-TAG.
Just as the full range of Alientech programmers, K-TAG is available both in Master and Slave version. This way, Slave user can rely on the
larger network of Master in the chiptuning field.The only thing that K-TAG does not do: OBD Communication. But for that you can count on KESSv2.

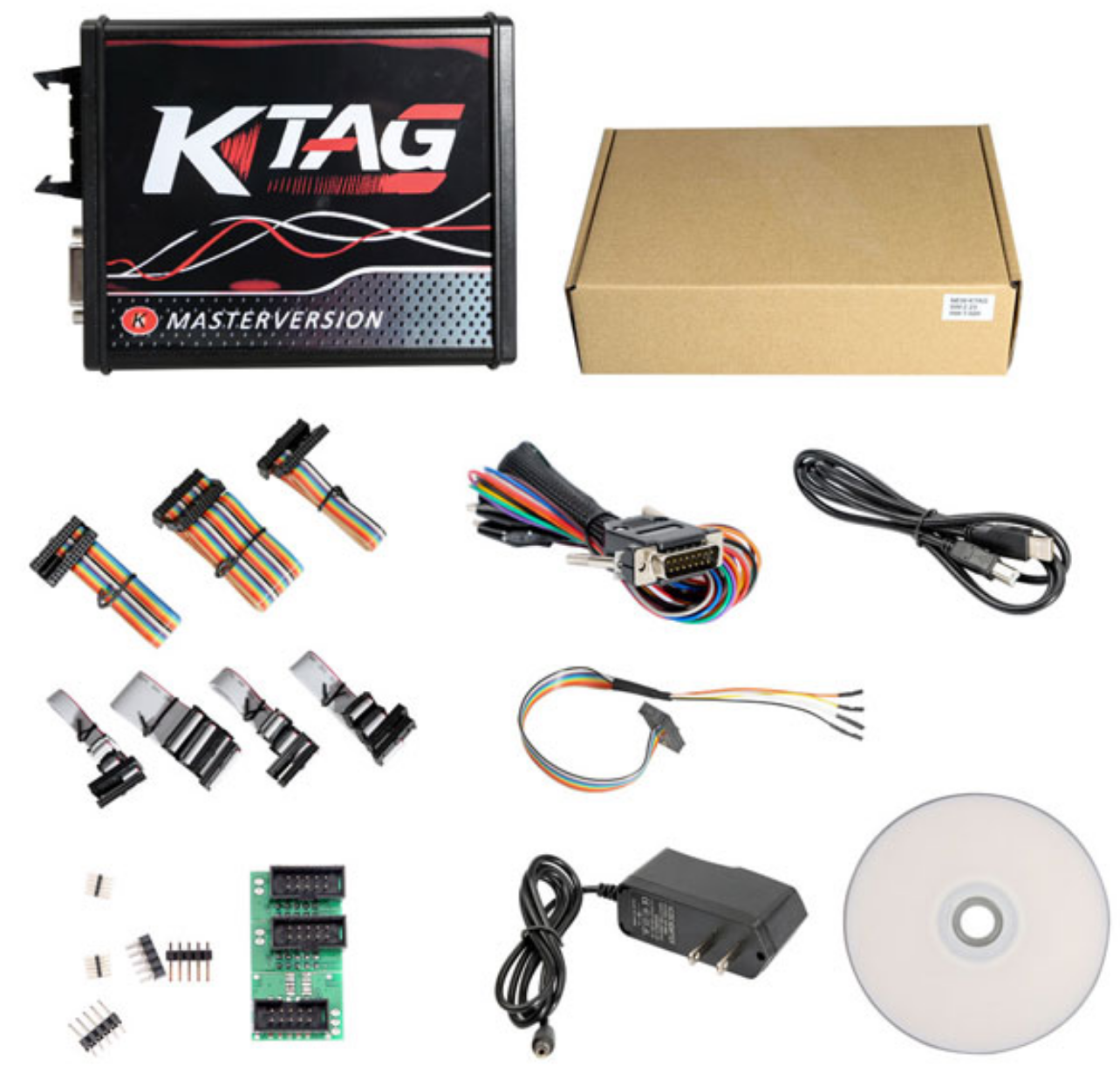

To use K-Tag at best on any kind of Electronic Control Unit, Alientech offers you a wide range of special adapters, to be soldered on
the ECU or to be used on the positioning frame.
Fllowing details of the accessories available in car list catalog per each group of protocols of communication
BDM Motorola MPC5XX
14AS00T01S: Adapter to be soldered to the ECU
14AS00T02S: Cable with connector to be soldered to the ECU
14AS00T03S: Adapter to be soldered to the ECU
14AS00T04S: Adapter to be soldered to the ECU
14AM00T00M: Board for connection through positioning frame
14AM00T01M: Board for connection through positioning frame
14AM00T02M: Board for connection through positioning frame
14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip 14AM00TB01
14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip 14AM00TB02
14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip 14AM00TB03
J-TAG Nexus MPC5xx
14AS00T05S: Adapter to be soldered to the ECU
14AM00T05M: Board for connection through positioning frame
14AM00T06M: Board for connection through positioning frame
J-TAG RENESAS SH705xx
14AM00T07M: Write Board for connection through positioning frame
14AM00T08M: Write Board for connection through positioning frame
14AM00T09M: Write Board for connection through positioning frame
14AM00T10M: Read Board for connection through positioning frame
14AM00T11M: Read Board for connection through positioning frame
BOOTLOADER INFINEON TRICORE
14P600KT04: Board for connection through positioning frame
BOOTLOADER ST10
14AM00T03M: Board for connection through positioning frame
Available protocols for K-TAG:
BDM MOTOROLA MPC5xx
TYPE BRAND ECU ECU_TYPE K-TAG
J-TAG NEXUS MPC5xx
TYPE BRAND ECU ECU_TYPE K-TAG
BOOTLOADER FOR MITSUBISHI MH72xx/MH8xx
TYPE BRAND ECU ECU_TYPE K-TAG
BOOTLOADER ST10
TYPE BRAND ECU ECU_TYPE K-TAG
