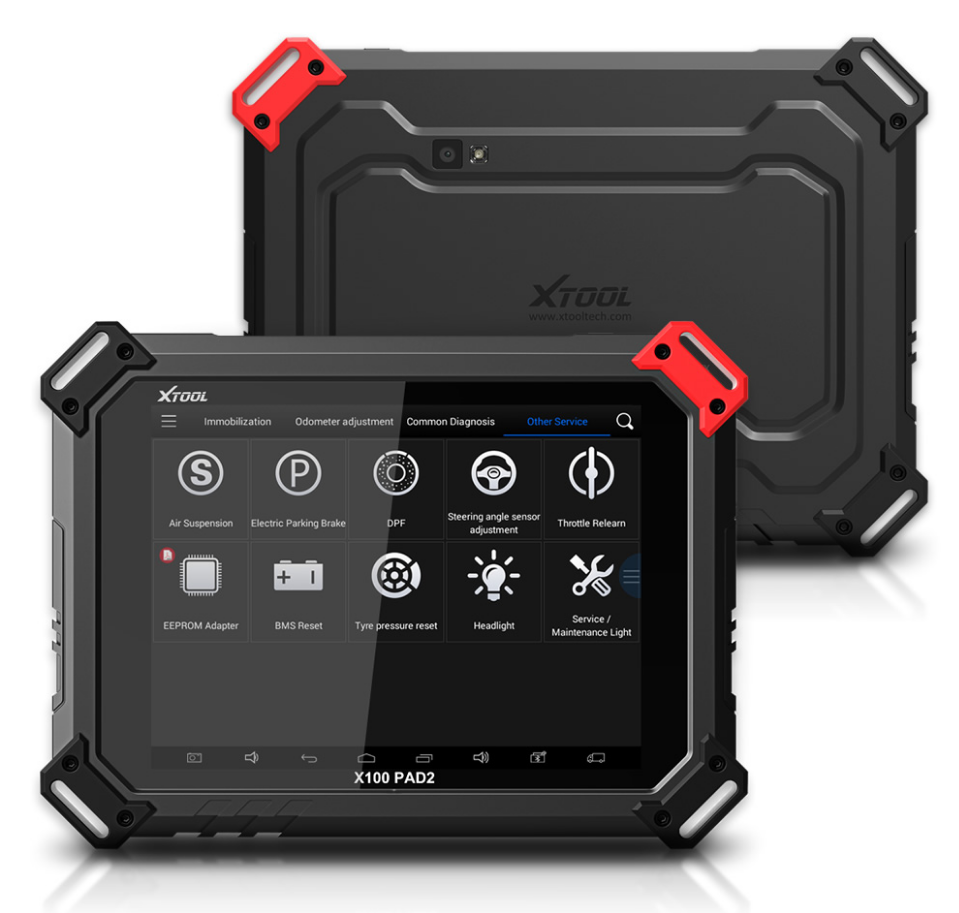

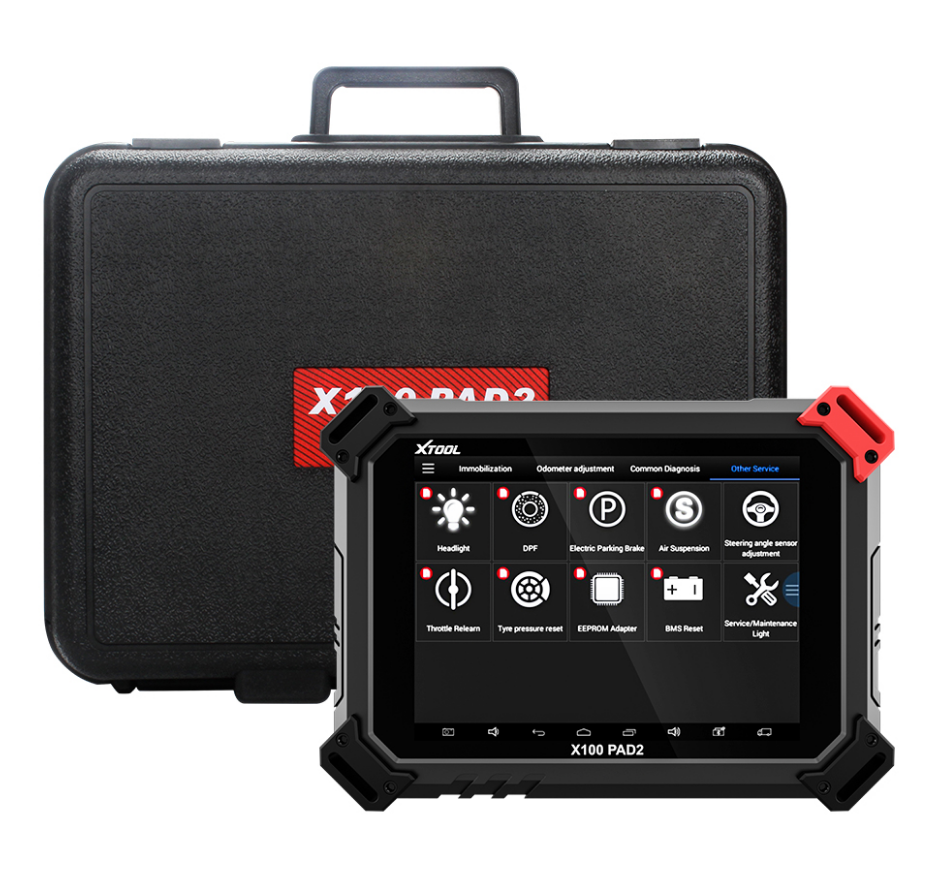

XTOOL X100 X-100 PAD2 OBD2 Car Key Programmer Odometer Correction Tool Car Diagnostic tool with Special Function
Support language: French, Arabic, Spanish, Persian,German,Russian,Portuguese
X-100 PAD2 is the first tablet key programmer in the world! It not only provides customers with professional key programming, but also the most needed special functions for workshop. X-100 PAD2 is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis.

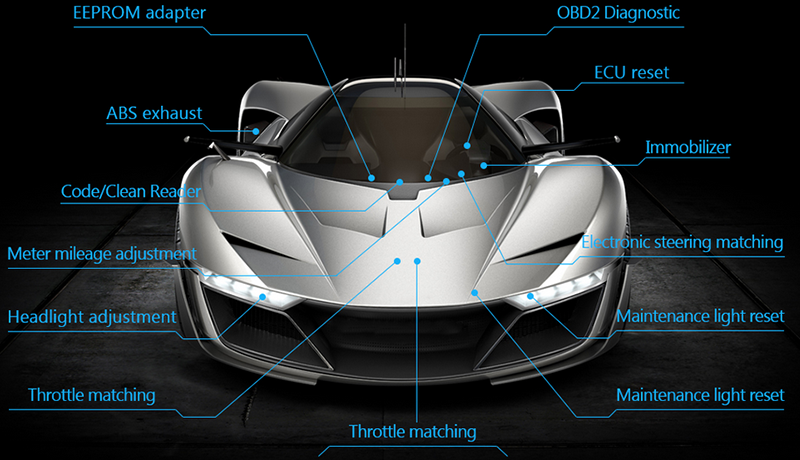

X-100 PAD2 Functions:
* Key programming
* Oil Reset/Engine oil light reset
* Odometer Adjustment
* Tire Pressure Warning Light Reset (Manual Operation)
* Timing belt light reset (Manual Operation)
* EPB Electrical Parking Brake Adaptation
* TPS Throttle Body Adaptation
* Steering Angle Calibration
* Battery Reset
* PIN Code Reading
* Hexadcimal editor(Win Hex)
* OBDII Diagnosis
* Support the latest vehicles with CAN BUS and UDS protocol
* Update Via WIFI (always equip your device with the latest software)
* More....
X-100 PAD2 Specifications:
Operating System:
Android 4.4.4
Memory:
1GB RAM, 16GB Flash
CPU
Quad Core, 1.6 GHz
Display
8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors:
Gravity Sensor, Light Sensor
Input/Output:
Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
Battery:
4000mAh, 7.4V
WIFI
WIFI 2.4Ghz
Bluetooth
100 Meters
Power Voltage:
12V
Power Consumption:
29.6W
Operating Temperature:
-20 to 50℃(-4 to 126℉)
Humidity:
<90%
Dimension:
(L*W*H): 240*177*30mm
Key Programming Features:
1.New keys programming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
4.Reads keys from immobilizer's memory
5.New immobilizer programming
6.Vehicle Identification Number programming
7.Reset ECM & reset immobilizer
8.New remote controller programming
9.With full and strong database for the most important vehicle makes
Key Programming Vehicle Coverage:
Asia: for Toyota,for Lexus, for Honda, forAcura,for Mazda,forNissan, for Infiniti, for Mitsubishi, for Subaru, for Suzuki, for Kia, for Hyundai, for Daewoo, for SSANGYONG, for Proton, etc
Europe: for Audi, for VW, for Skoda, for Seat, for Porsche, for Opel, for Citroen, for Peugeot, for Jaguar, for Land Rover, for Lincoln, for Renault, etc
America:forGM,for Cadillac, for Buick, for Chrysler, forFord etc
China:for Great Wall, for Chery, for Brilliance-auto, for Geely, for LIFAN, for HAFEI, for CHANGAN, for LANDWIND, for BYD,for BYD , for JAC, etc.
Oil Reset Functions Feature:
Innovative one-click oil reset for for VW, for Audi, for BMW, for Mercedes for Seat, for Skoda, for Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking , etc. resetting for BMW. And the supported for BMW models are F01/ F02/ F03/ F04/ F07/ F10/ F11/ F12/ F13/ F18/ F20/ F30, etc.
Support for Mercedes for Benz new C Class, E Class models and for Mercedes Benz VITO/for VIANO/for SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, for Cadillac etc.
Support for Porsche Cayenne, for Panamera till 2012
Support for maintenance light reset for Volvo, for Land Rover.
Oil Service Light Reset Coverage:
America: for Buick, for Cadillac,for Chevrolet, for Chrysler, for Chevrolet/forG MC, forFord/for Mercury/for Lincoln, for Oldsmobile, for Pontiac, for Saturn, forGM, for Jeep and more…
European: for VW, for Audi, for Porsche, for BMW, for Mercedes-Benz, for Volvo,for Land Rover, for Peugeot, for Citroen, for SAAB, for Seat, for Skoda and more…
Asia:for Toyota/for Lexus, forNissan/for Infiniti,for Honda, forAcura,for Isuzu, for Chery, forFord Transit, for Roewe, for MG and more…
Odometer Adjustment:
for VW /for AUDI/for SEAT/for SKODA, for BUICK, for CADILLAC, for CHEVROLET, for CHRYSLER, forFORD, for MAZDA, forNISSAN, for SUZUKI, for KIA, for HYUNDAI, for JAGUAR, for LAND ROVER, for PORSCHE and more…
EPB Electrical Parking Brake Adaptation:
for VW ( R36, CC, Magotan etc.), for Audi ( A4L, A6L, Q5 etc.), for Seat, for Skoda and more…
Tire Pressure Warning Light Reset (Manual Operation):
for Mercedes-Benz, forGM,for VW, for BMW, for Toyota and more…
Timing Belt Light Reset (Manual Operation)
If you want to get detailed car and function list,please click below link:
www.xtooltech.com/EN/ProductView/X100PAD2.html

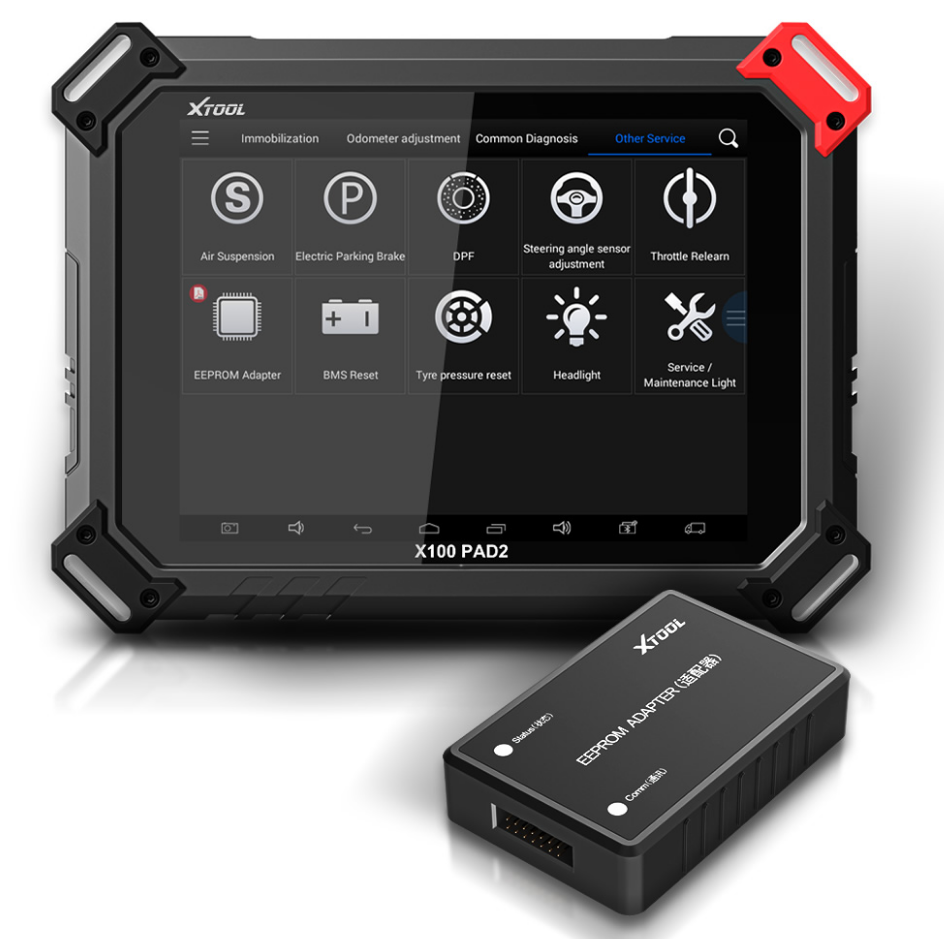

EEPROM Adapter Features:
1.PIN Code Reading
2.ECU Initializing
3.Chip Programming
Four System Diagnosis:
Each area will contain the all the brand this device can do, here is the list:
America:
Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia:
Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota
China:
BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery
Europe:
Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW

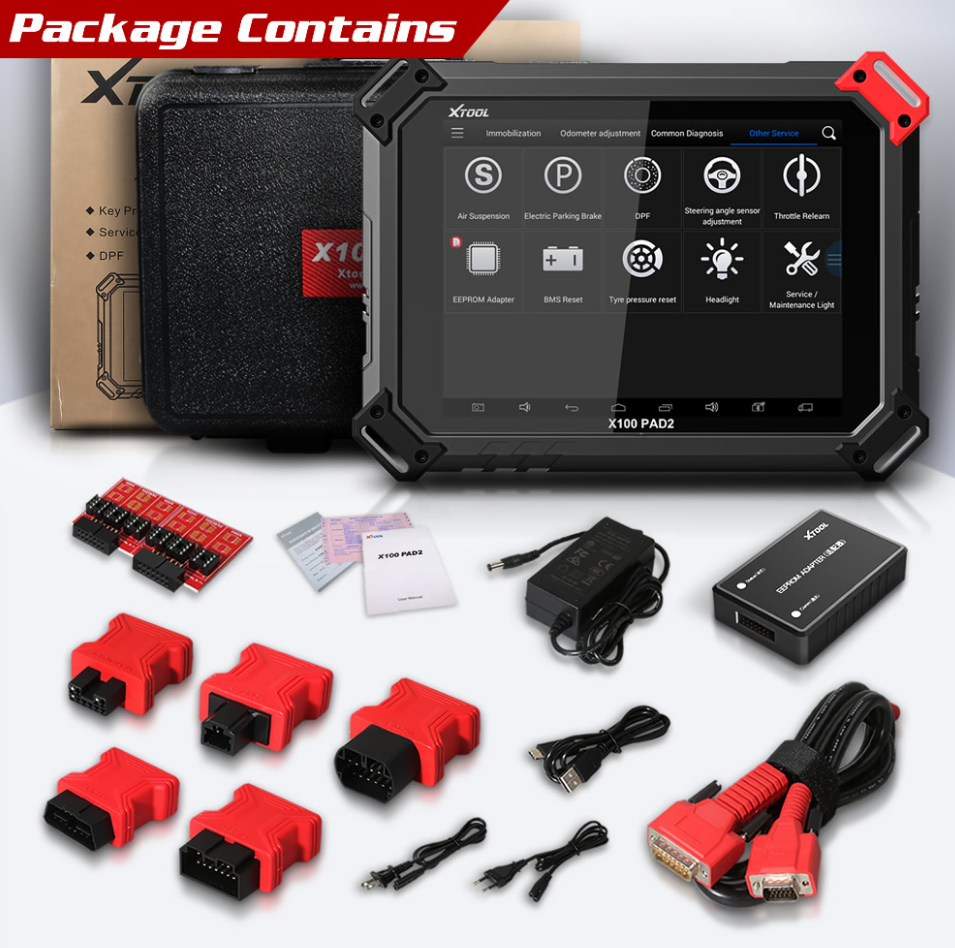

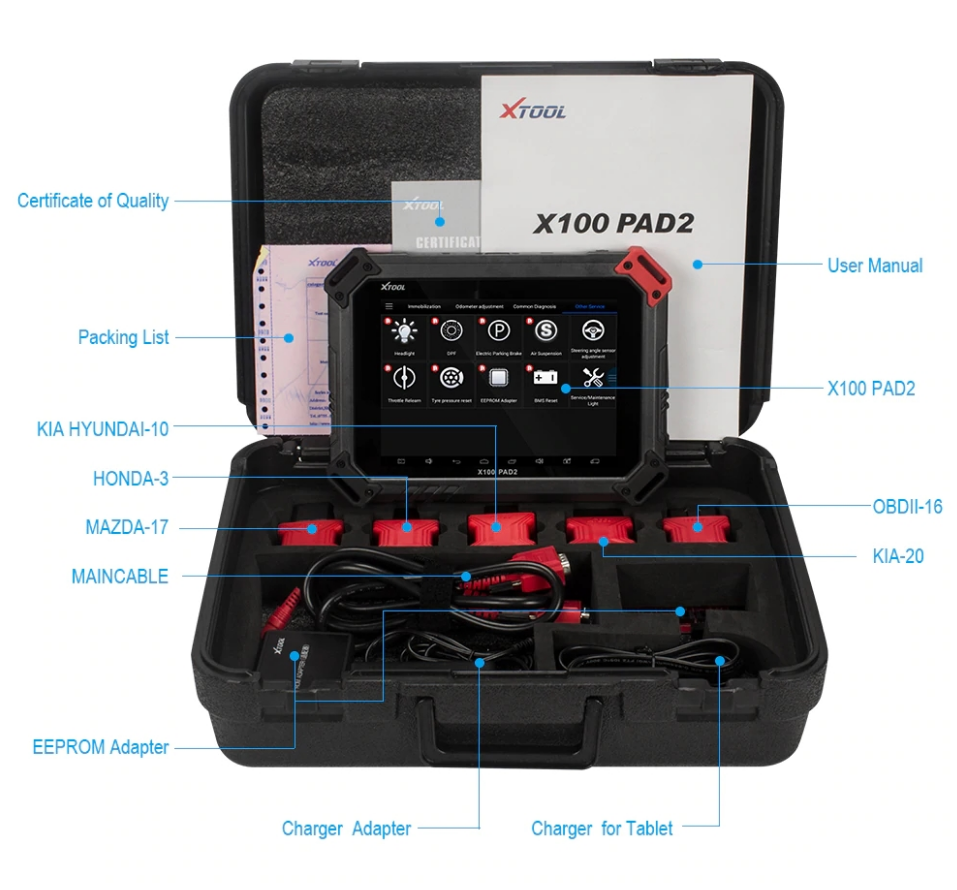

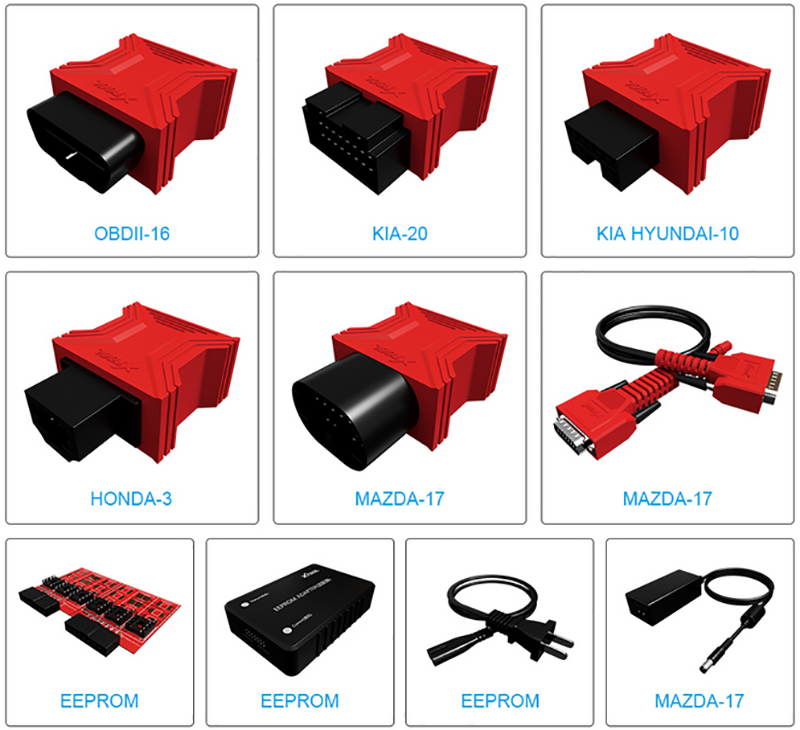

X100 PAD2 Key Programmer Package including:
1pc x X-100 PAD 2
1pc x OBD II-16
1pc x HONDA-3
1pc x KIA-20
1pc x MAZDA-17R
1pc x HYUNDAI/KIA-10
1pc x Main Cable(DB15_Male To VGA_Male)
1pc x User Manual
1pc x DC12V(AC100~240V) 3ACharger
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x EEPROM
1pc x USB Type-C to Mini USB cable
1pc x Type-C cable
1pc x Certificate of Quality
1pc x Packing List
