Software Version : V2022.09
ISTA - D: 4.36.30 with SDP Programming Database 4.36.32
ISTA - P: 220.127.116.11 with Engineer Programming，supports the programming of BMW motorcycles and electric vehicles can program F/G/I/K chassis for car (through the ICOM, not other cable )
BMW ETK: 2019.12
BMW KSD: 2019.12 Multilanguage
BMW FSC Navigation Code Generator
BMWAiCoder for BMW Coding
Win10 64 bit operating system
BMW ICOM V2022.09, With free Software:
1. Get engineer version, INPA 5.06,winkfp 5.2.3,NCS 3.5.1, e-sys 3.31,data V70.02
2. get Chinese software DR.GINI B021
3. get count code navigation tool software FSC operator code
4. get one-clik hidden brush tool BMWAi V4.6
5. Add DIS Software for Old cars, DISV57 and DISV44,diagnosis and programming for BMW virtual machines
6. Support Vehicles: For BMW Cars,For BMW Motorcycle,For Rolls-Royce, For Mini Cooper
ISTA-D Language: Czech, Dutch, French, German, Greek, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Sweden, Thai, Turkish
ISTA-P Language: English, Chinese, Czech, Dutch, French, German, Greek, Indonesian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
Notice : The software installed English language in default.
Software display :
Notice: If your ICOM HDD got error "database version mismach, the found database version are not compatible", just need to set the ISTA/D language as American English

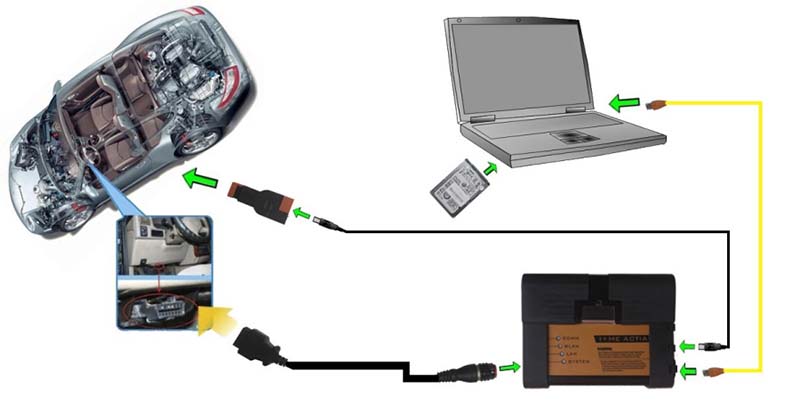

BMW ICOM A2+B+C Connection:
BMW ICOM A2+B+C Function:
1.Interface A2 - OBD diagnostic supporting MOST, D-CAN and K-CAN protocols.
2.Interface B - diagnostic via MOST bus, and have connection to A-interface via USB connection.

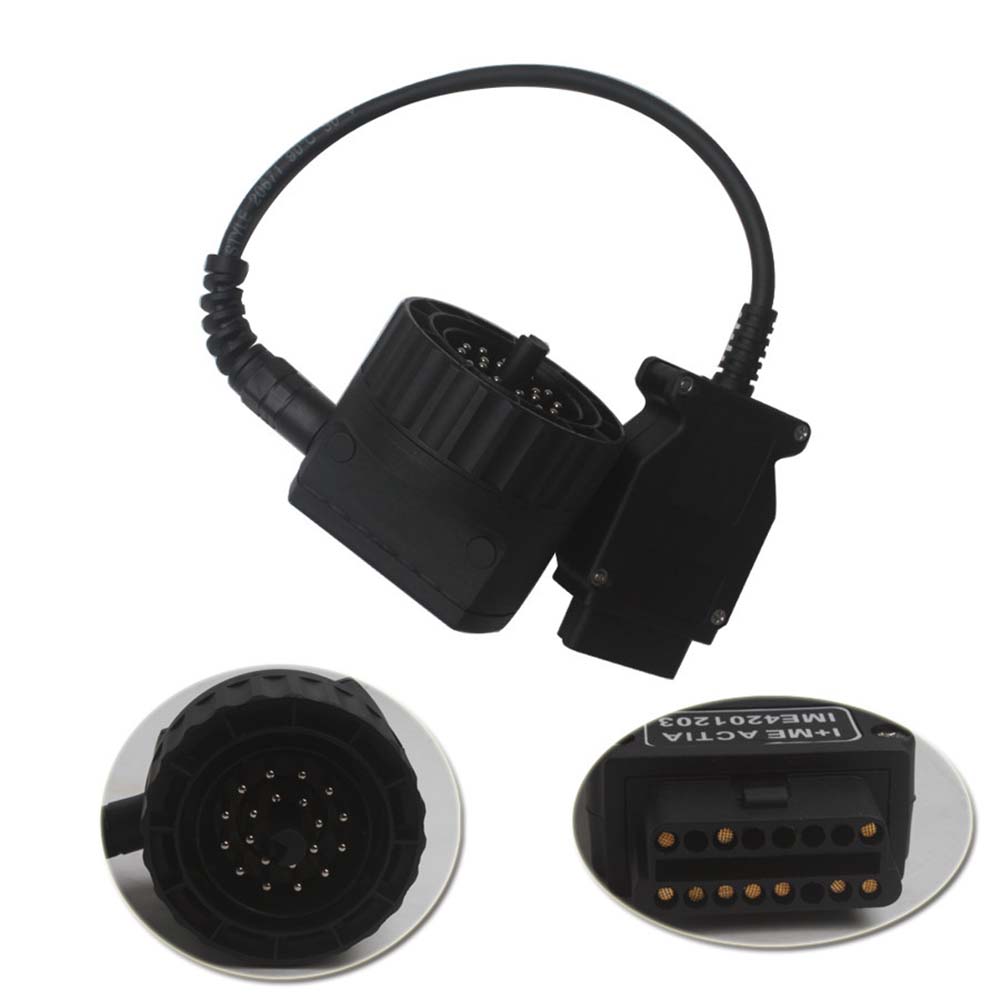

3.Interface C - 20-pin cable for old models.
BMW ICOM A2+B+C Special Features Compared with ICOM :

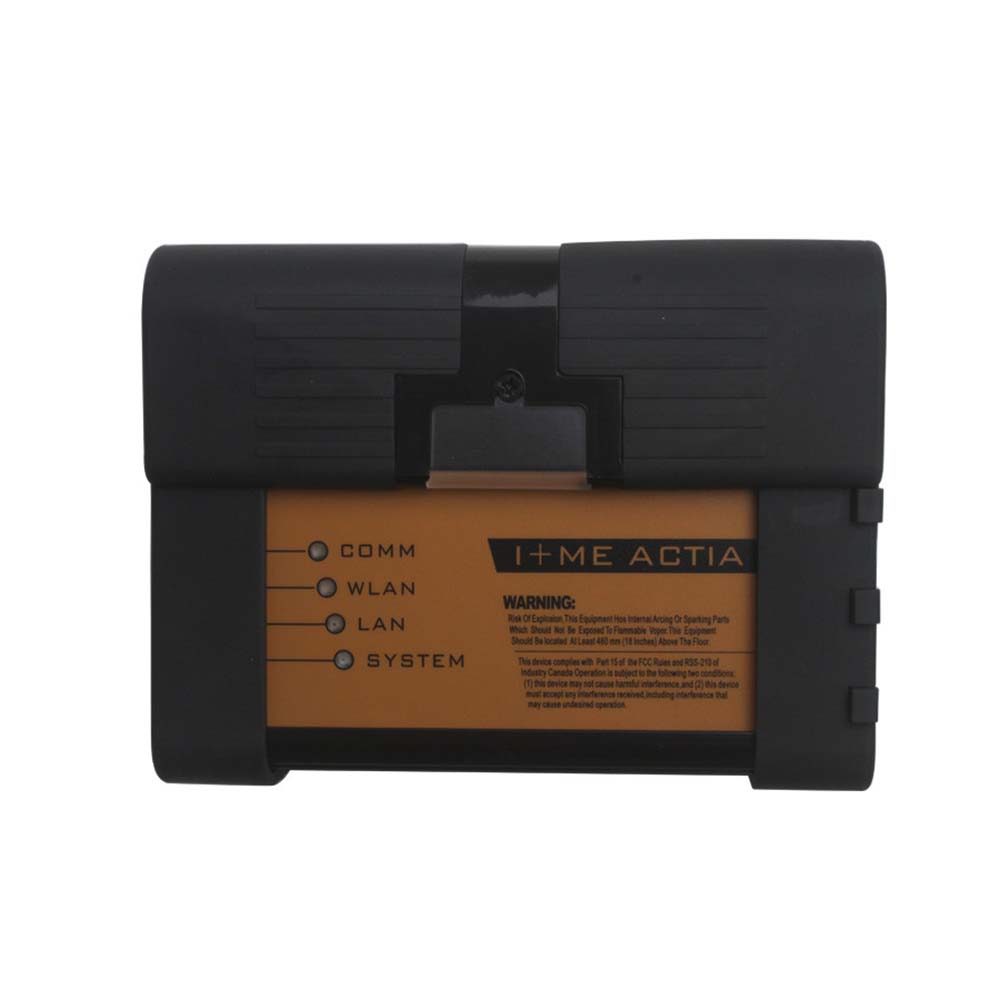

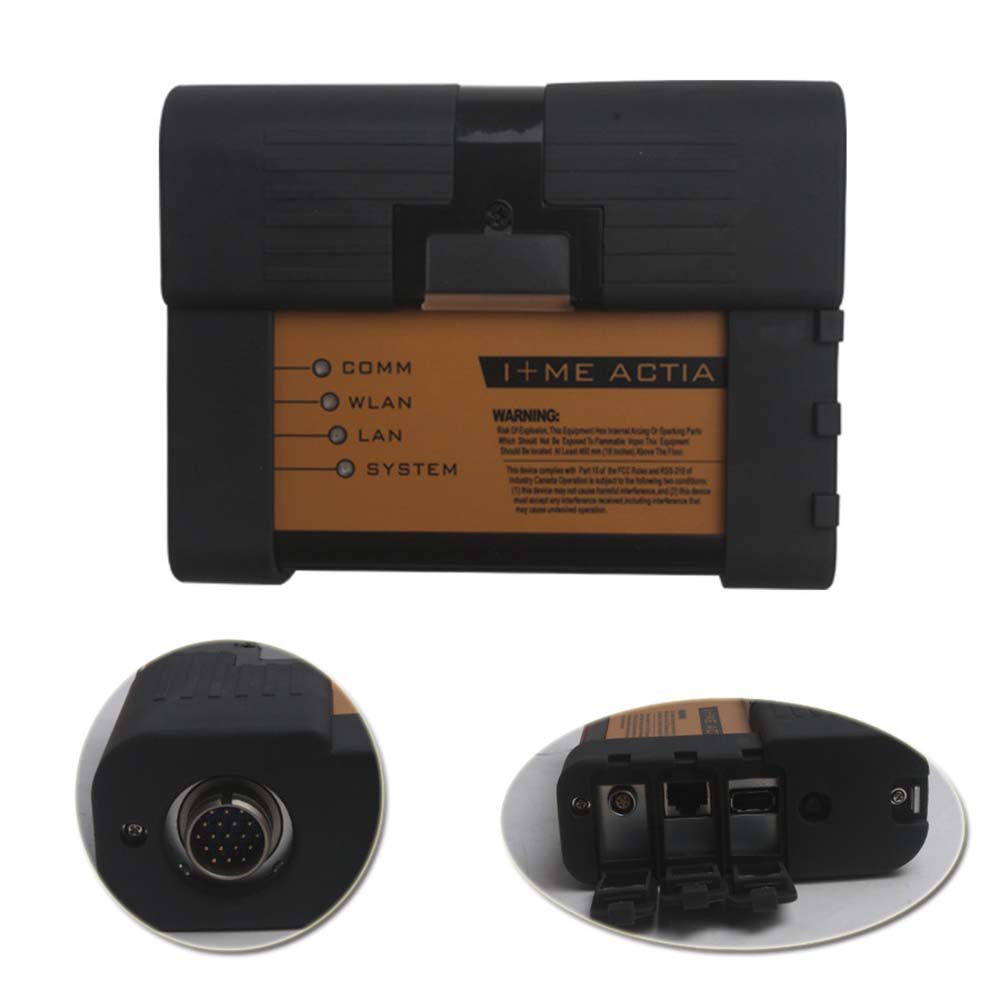

1.The modified ICOM A2 for vehicles with OBD access receives a significantly more powerful processor and more storage capacity.Robust aluminium case will help to avoid damage when using in harsh environments.

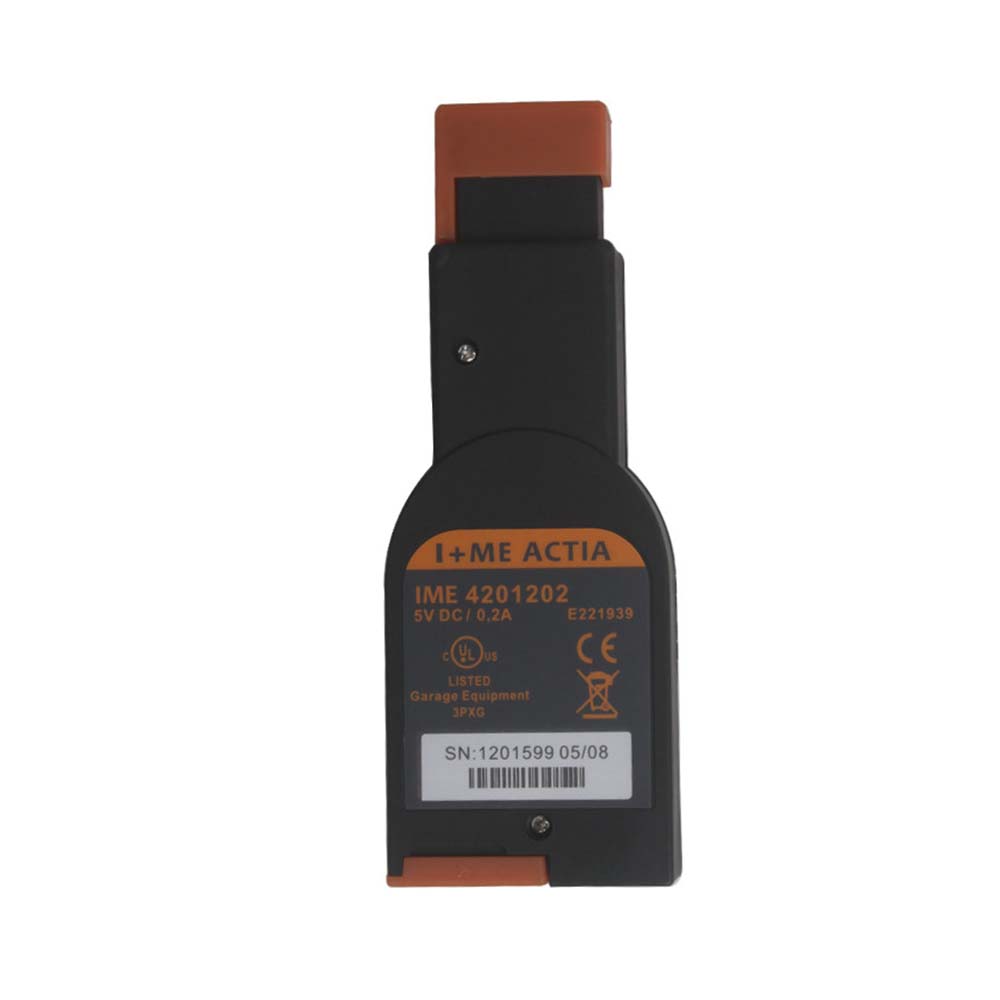

2.To protect the MOST connector, the ICOM B for vehicles with optical MOST access will be equipped with a soft cover made of rubber instead of the former plastic cap.
3.The ICOM C for old series with a diagnostics socket will be additionally equipped with an approx. 20 cm long cable, which facilitates the connection of the ICOM A2 and makes storage in the engine compartment easier.

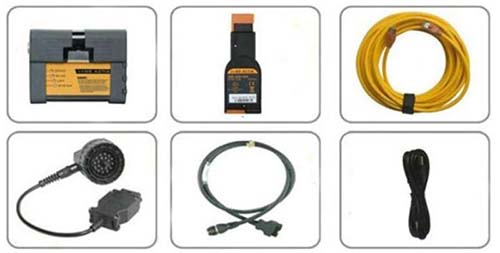

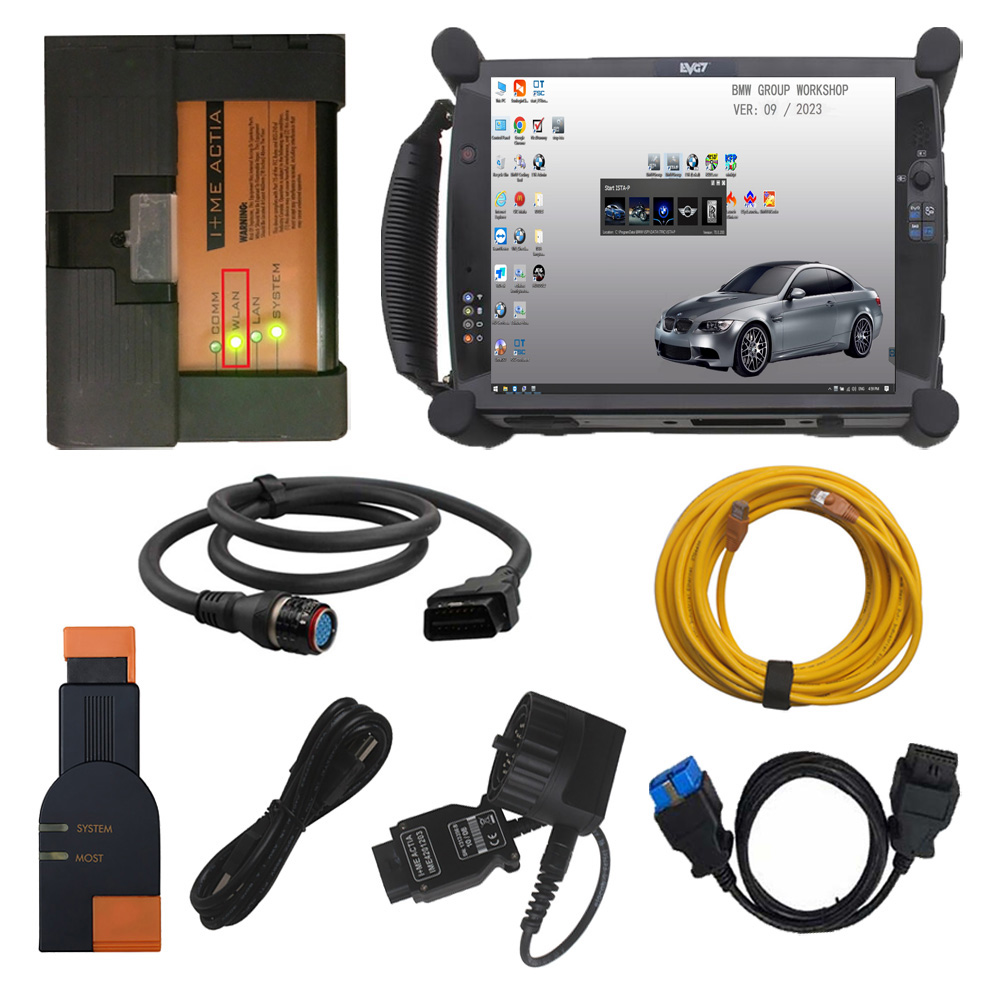

BMW ICOM A2+B+C Packing List:
1pc x BMW ICOM A2 Interface
1pc x BMW ICOM B Most
1pc x BMW 20pin Cable

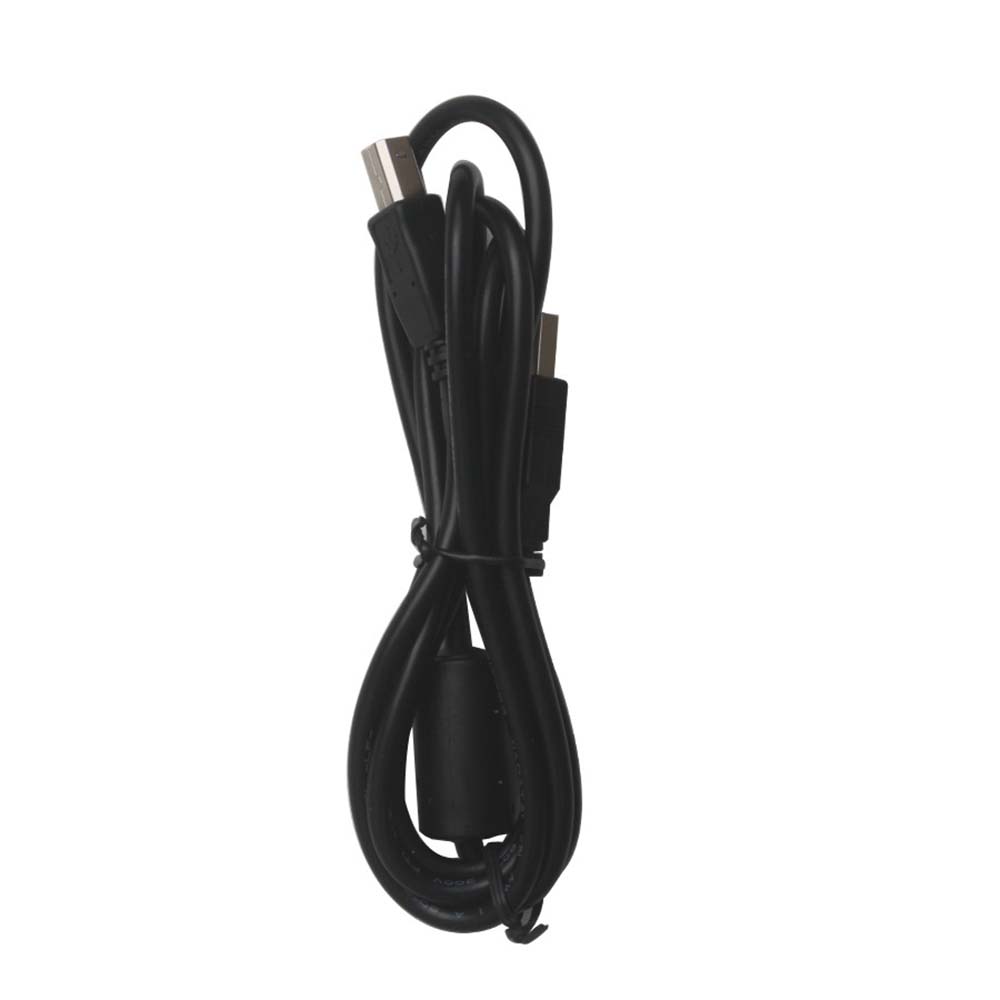

1pc x USB Cable

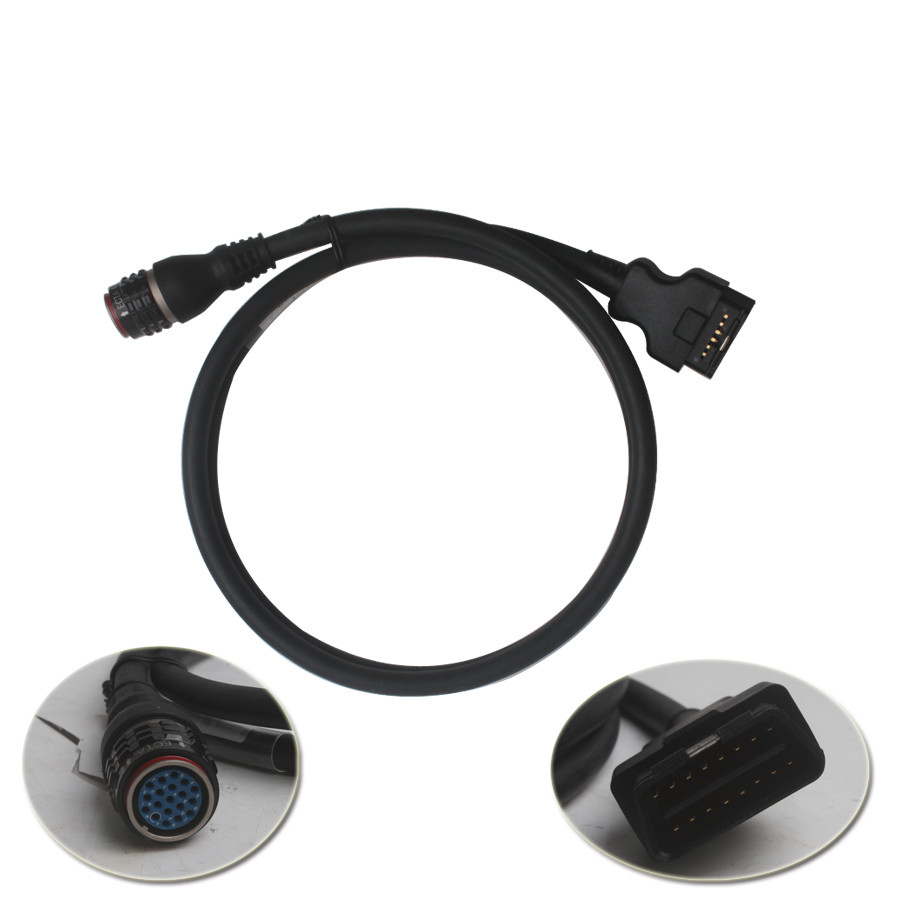

1pc x OBD2 Cable

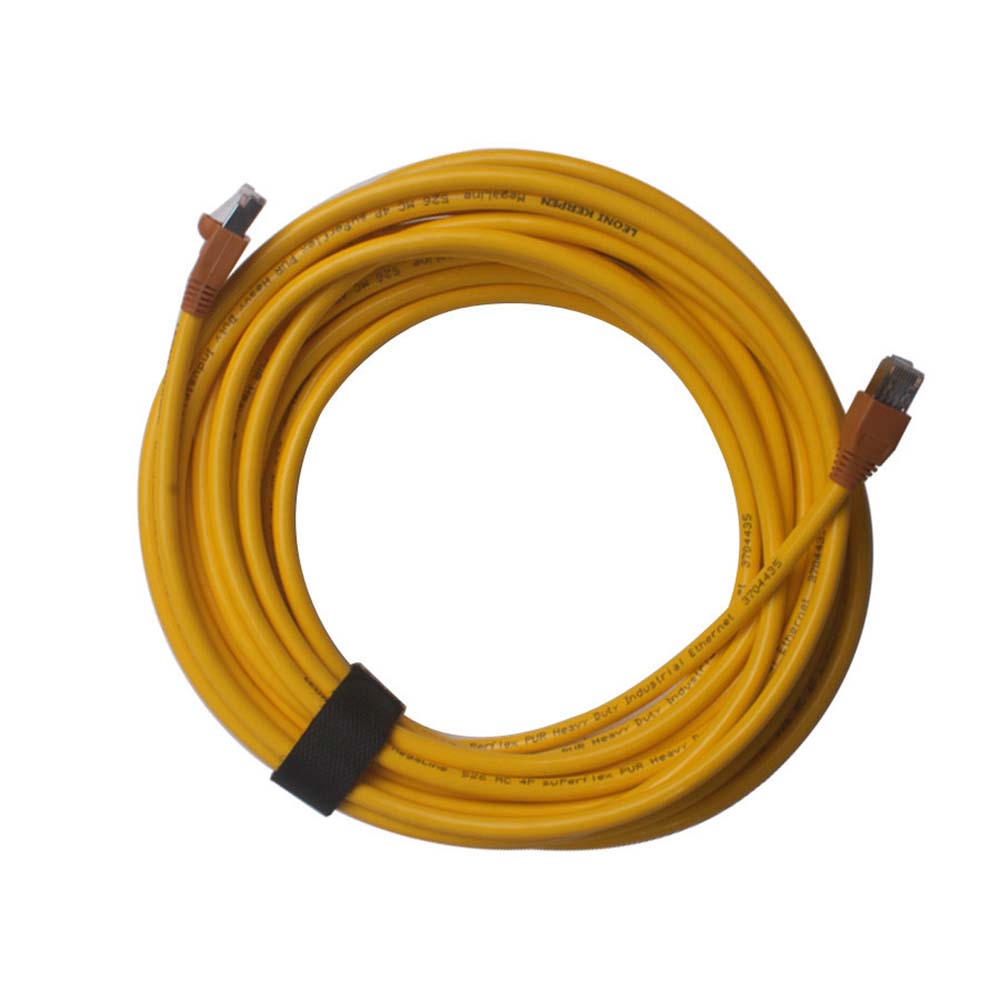

1pc x LAN Cable

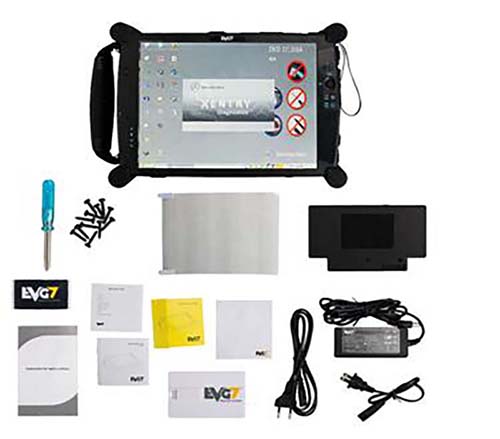

1pc x NEW EVG7 DL46/HDD500GB/DDR4GB Diagnostic Controller Tablet PC
EVG7 DL46 Specification:
Mark : EVG7
Model : DL46
Processor : Intel Celeron 1037(Dual - 1.8Ghz/L3 2M)
DDR : The biggest support memory : 4GB
HDD : 500 GB SATA HDD.
LCD : 10.4 Inch The resolution of the 1024x768
Graphics : touchscreen widescreen LED backlight, the core graphics Intel HD Graphics
Speakers : Built-in Speakers
Wireless : 802.11b/g/n
LAN : The built-in 10-100M card
Bluetooth : BT2.0 , 4.0
USB : USB3.0 / Mini USB / 2 x USB2.0
Card Reader : TF Card Reader
Other Interface : VGA Voice Input / The Sound Output / DC Power Jack / Parallel LPT Port I/O VGA Output
Battery Type : 9 The core of lithium batteries 10.08V 6600 mAh
Power Adapter : 110V-240V The adaptive communication power supply
Battery Life : The specific time depending on the use environment
Specifications : 270x180x60 mm
weight : 1911g (with battery)
Certificates : CE / FCC / RoH
