Requirement on Computer:
1. At least 4GB Memory
2. Needs to be produced after 2000 year, older computer can not run the software.
3. OS: Windows 7, Windows 8, Windows 10 32bit and 64bit
VCM 2 Pro for Ford and Mazda Function:
1. Programming & Installation of new ECUs (PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)
2. Live Data-stream with Recording & Playback Functions for Main ECUs
3. Read & Clear Diagnostic Trouble Codes (DTCs)
4. Set, Adjust or Remove Speed Governors
5. Automatic vehicle recognition
6. New Software Re-flash for Existing ECUs
7. All Other Dealer Functions
8. Steering Angle Resets
9. Guided Fault Finding
10. Program New Keys
11. DPF Regeneration
12. Brake Bleeding
13. Injector Coding
VCM 2 Pro -Ford UCDS Functions:
UCDS allows the user to:
– Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN);
– Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
– Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
– Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning);
– Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only);
– Other…
The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual UCDS-programm.
The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions.
UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..
Package List:

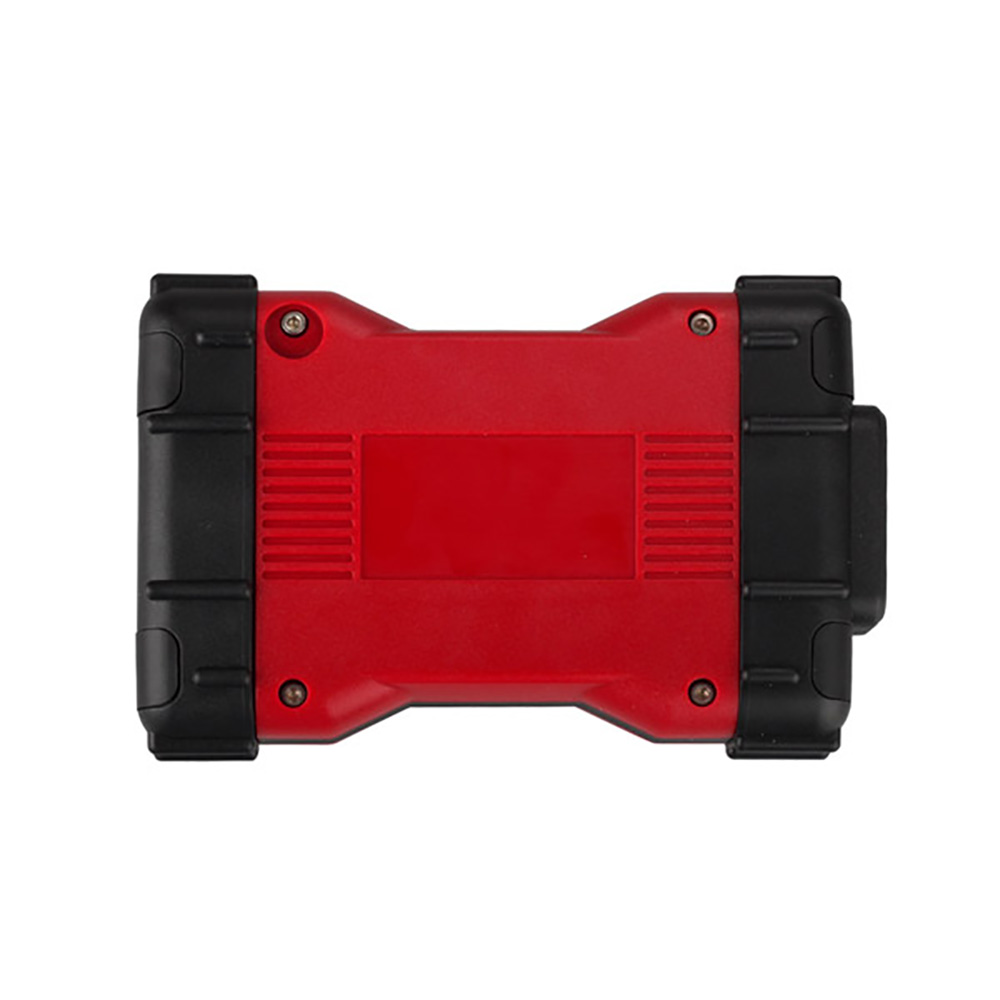

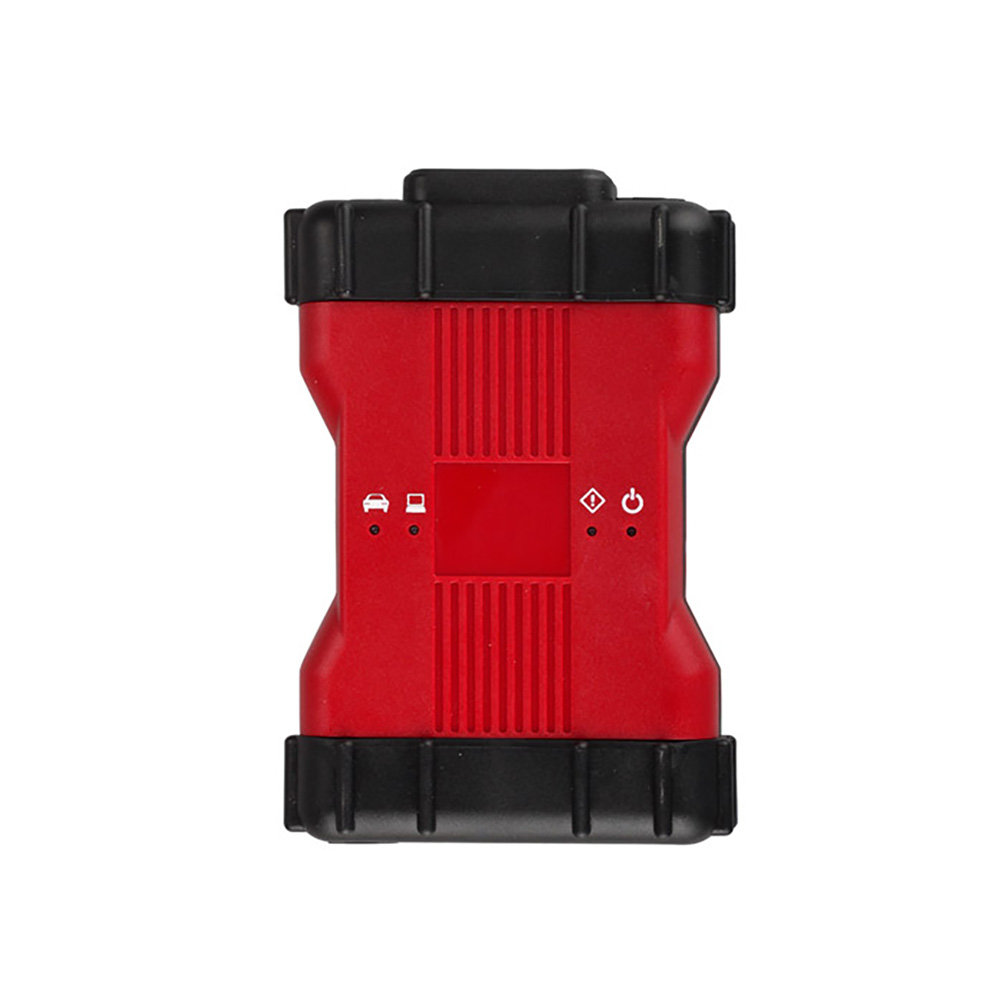

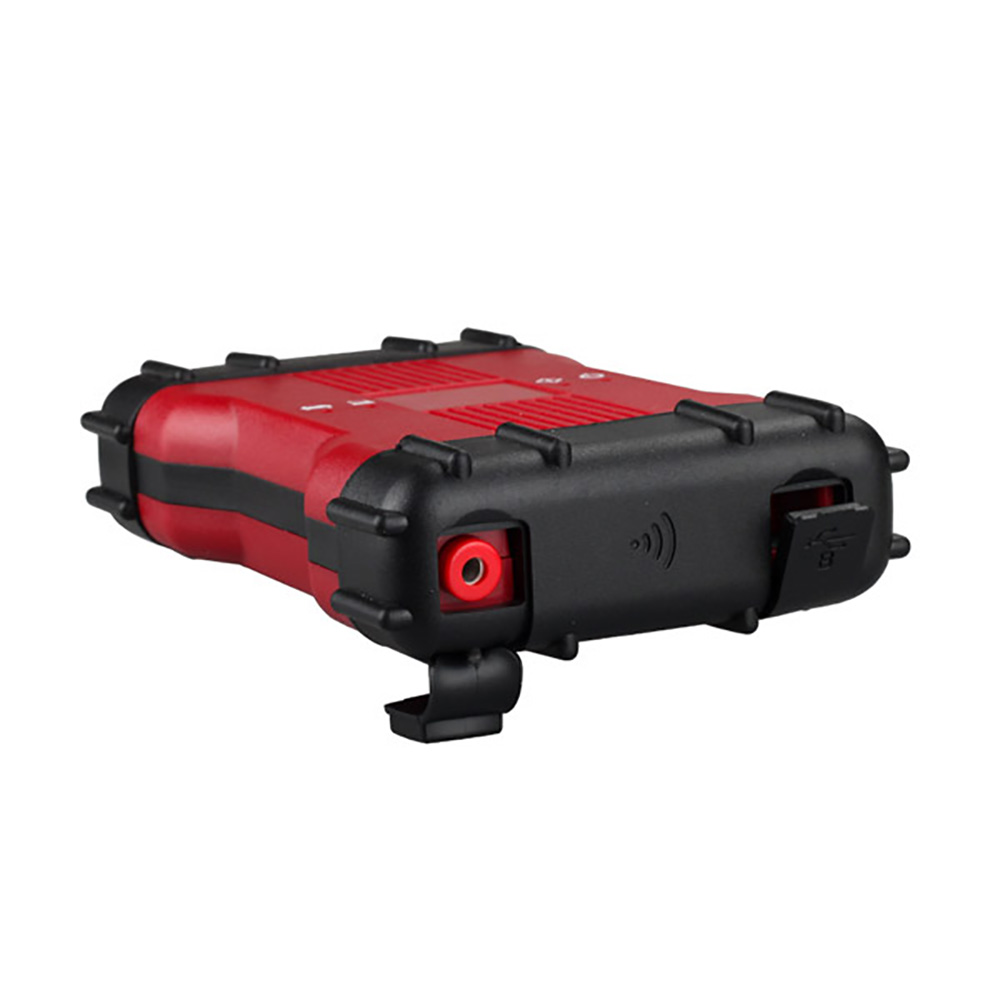

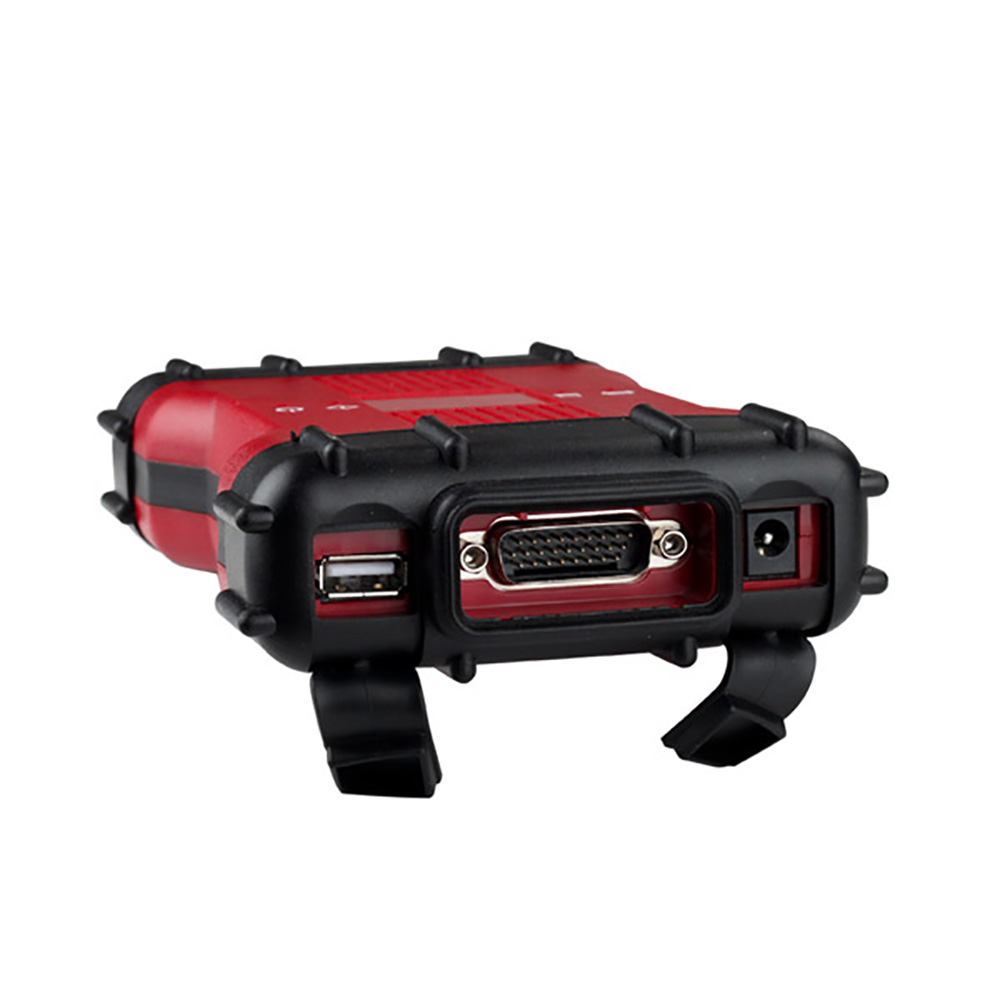

1pc x VCM2 Pro interface

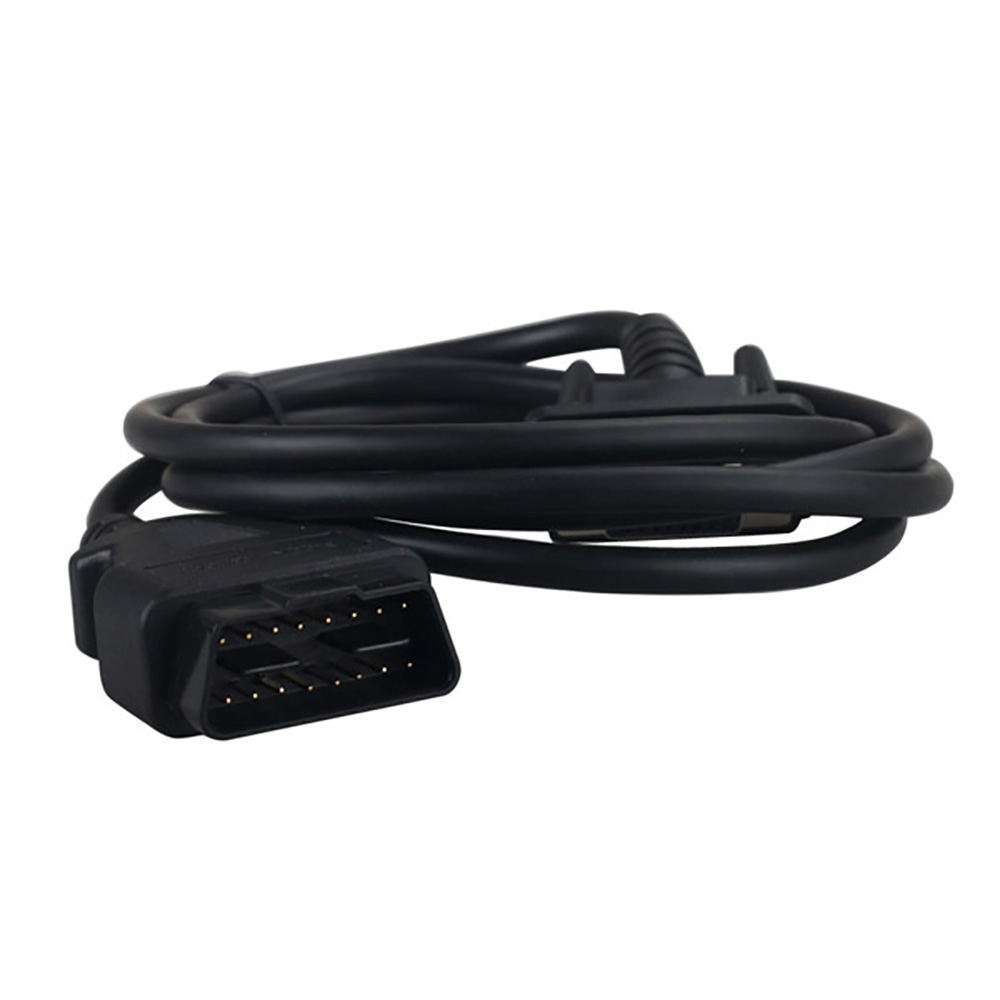

1pc x OBD2 cable

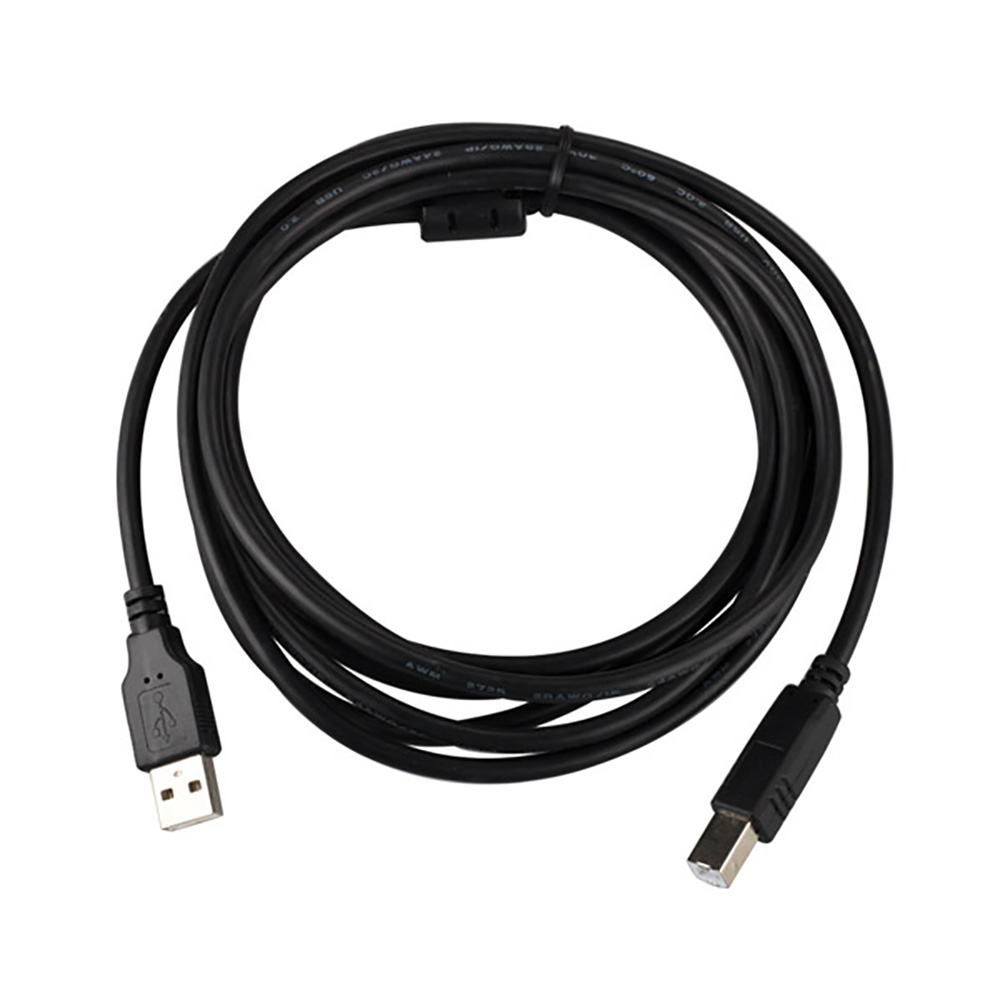

1pc x USB cable
1pc x CD-DVD
