Allscanner VXDIAG MULTI Diagnostic Tool for Toyota Honda Land Rover/Jaguar JLR & Volvo 4 IN 1 Scanner with WIFI
Top 5 Reasons to choose VXDIAG Multi Diagnostic Tool:
1. This Version VXDIAG Support Toyota, Honda, LandRover & Jaguar and Volvo, 4 Software in one Device. (From July 5th, 2017, add Volvo car software on this device, if you bought VX01/VX01-W on our site before, then can get Volvo software for free, if not , need to pay 85USD to get the authorization.)
2. Support both 12V and 24V gasoline and diesel car.
3. Hardware support 4-way CAN BUS and 2-way K - Line/L-Line, support multi-protocol high-speed and concurrent communication
4. With the innovation design of OBD II intelligent bus protocol routing hardware, a diagnostic plug can be intelligent identification test all models, fully meet the future demand for all kinds of bus communication
5. With this VXDiag firmware, you can add more original software, only need buy authorization from us. Already released original software authorization has GM, Ford, Mazda,Toyota, Honda, LandRover, Jaguar, Subaru,Volvo,VW,and Porsche.
Toyota or VW: 70USD
Ford&Mazda or JLR or Volvo: 85USD
GM: 90USD
Honda: 110USD
BMW: 150USD
Subaru: 270USD
Porsche: 440USD Hard Disk: 65USD, needs to ship HDD, not including shipping cost yet
Benz: 240USD Hard Disk: 80USD, needs to ship HDD, not including shipping cost yet
VXDIAG is the latest diagnostic software platform. Diagnostic software can be operated under WinCE and Windows, available installation for Laptop or PDA.
Automotive Diagnostic language (VDL) exploitation platform based on XML by self -determination and high efficiency database management system, these will make it easily to explore the vehicles.
Notice:
1. VXDIAG Can Not Support All Keys Lost, Need At Least One Key.
2. VXDIAG Multi Diagnostic Tool Software Update: When original newer software coming out, we can send you download link or by CD
3. VXDIAG Multi Diagnostic Tool Software Version:

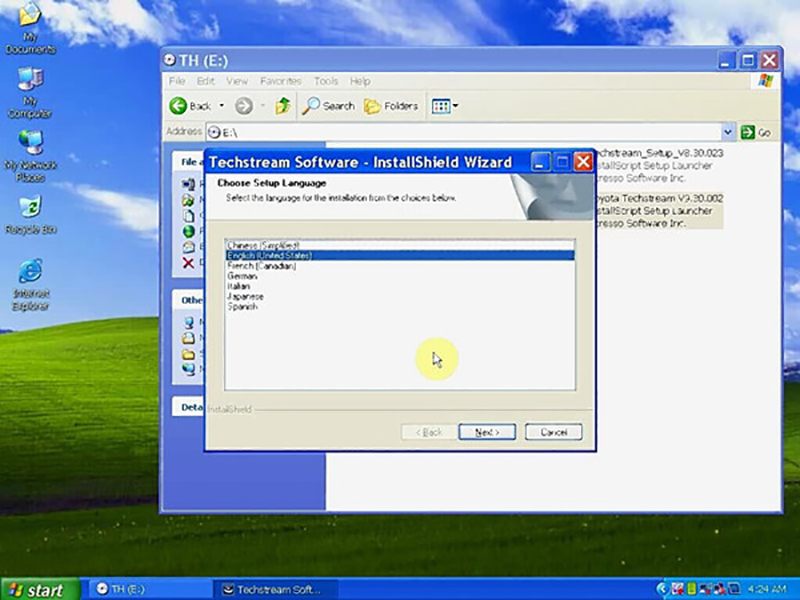

Toyota V15.00.026
Honda HDS V3.102.054, i-HDS V1.004.025

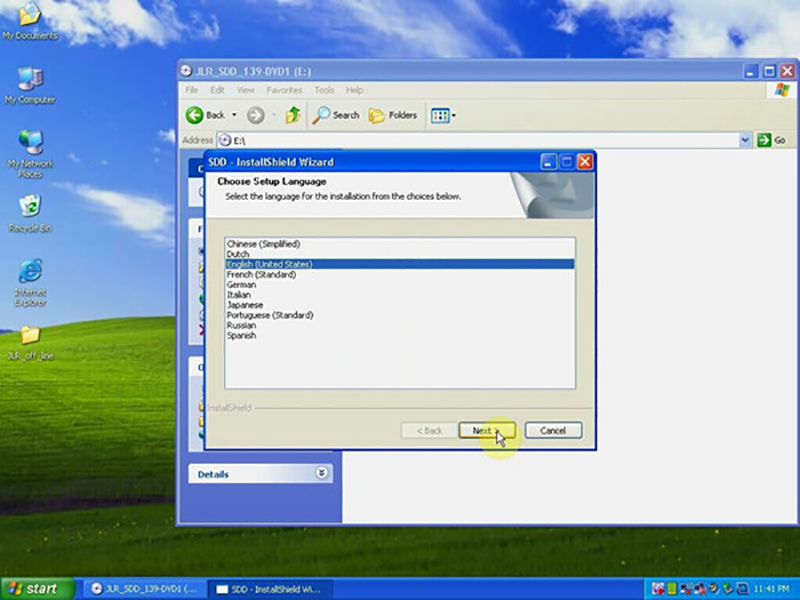

LandRover, Jaguar Version V159
VXDIAG Multi Diagnostic Tool support all original software function.
Toyota Supported Language:
Jlr Supported Language:
PC Requirement:
Processor: Pentium 4 / 1.6GHz+.
Memory: 1G Bytes or more.
Hard disk: 40G or more.
Display: Resolution 1024x768 or higher.
Network interfaces: LAN 10 / 100M or 802.11b / g.
Communication Interface: USB2.0 or USB3.0
VXDIAG Multi Diagnostic Tool Specification:
1. Item State
RAM 32bit180MHz ARM
FLASH 1MByte FALSH

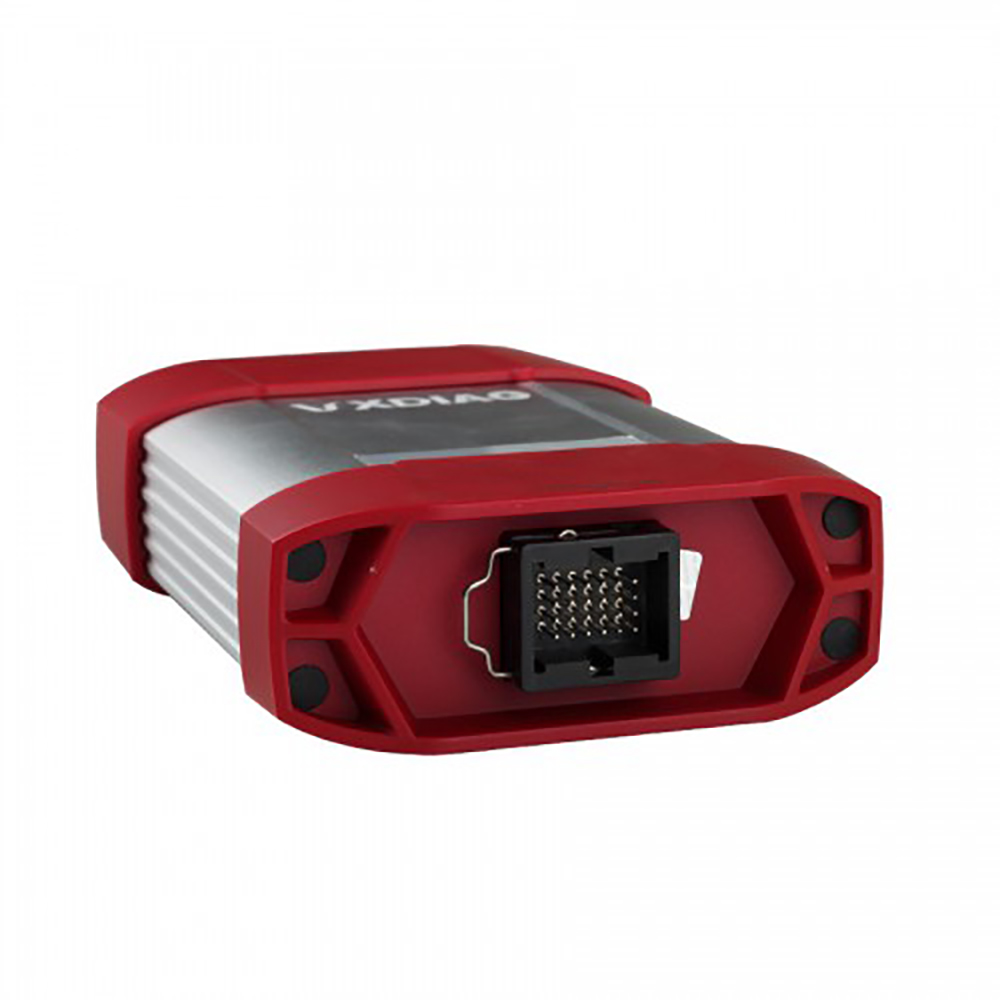

Diagnostic Port 24PIN, self-determination design
LED 4 LED indicator light,indicate power and status.
Power DC 9V-36V
Consumption 3W
Working Temperature -20°C~70 °C
Storage Temperature -40°C~85 °C
Warranty: One Year
2. Product Feature
1. Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
2. Diagnostic software accord with international standard, collocate communication port flexibly, less connectors
3. Self-determination design for connectors and cables.
4. Hardware accord with CE and FCC standard.
5. Support almost all vehicles socket.
VXDIAG Multi Diagnostic Tool Supported Protocols:
ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
SAE-J1850-VPW (GM Class2)
SAE-J1850-PWM (FORD SCP)
ISO-11898-2 DWCAN
ISO-11898-3 DWFTCAN
SAE-J2411 Single Wire CAN (GMLAN)
SAE-J2610 SCI (Chrysler)
SAE-J1567 CCD BUS (Chrysler)
SAE-J2740 GM ALDL
SAE-J2809 (HONDA DIAG-H)
CAN125/CAN250/CAN500/CAN1000
SAE-J1939 CAN
SAE-J1708/J1587 On RS485
CAT DATALINK (Catepillar)
ATA DATALINK (Catepillar)

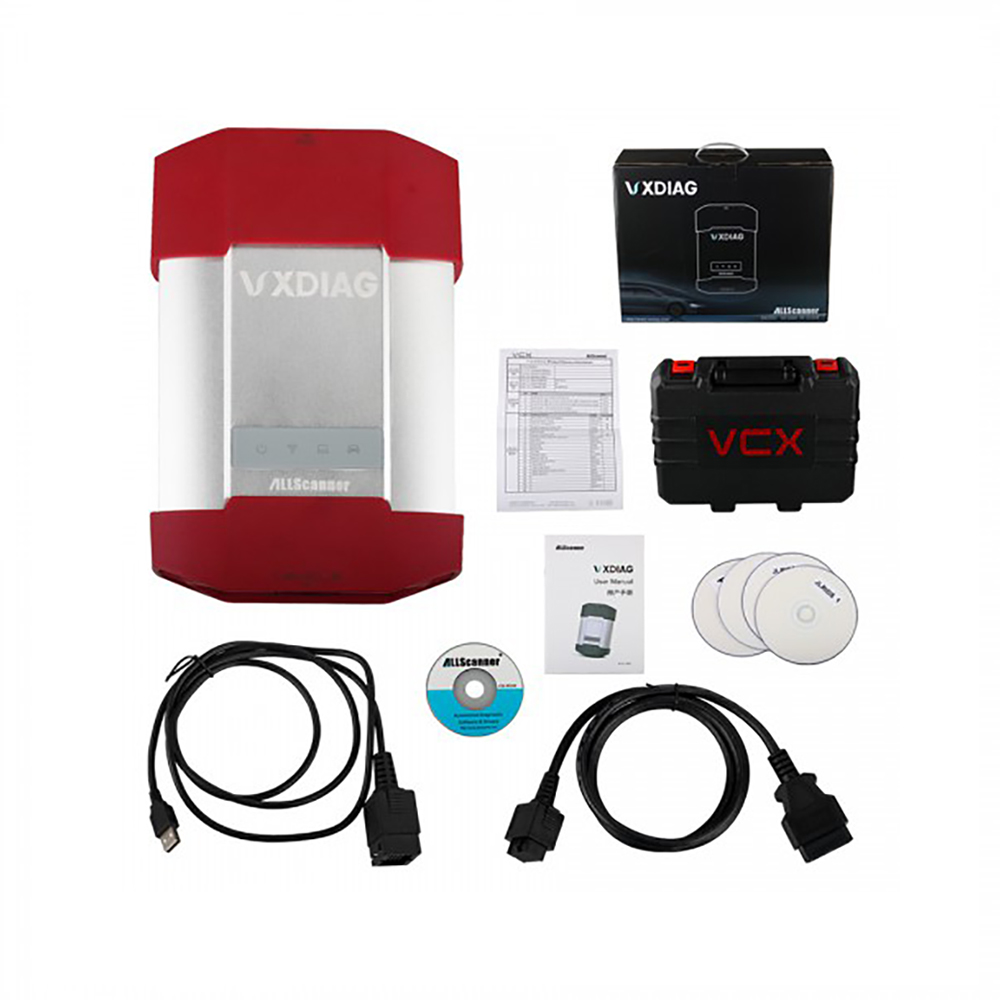

Packing List:

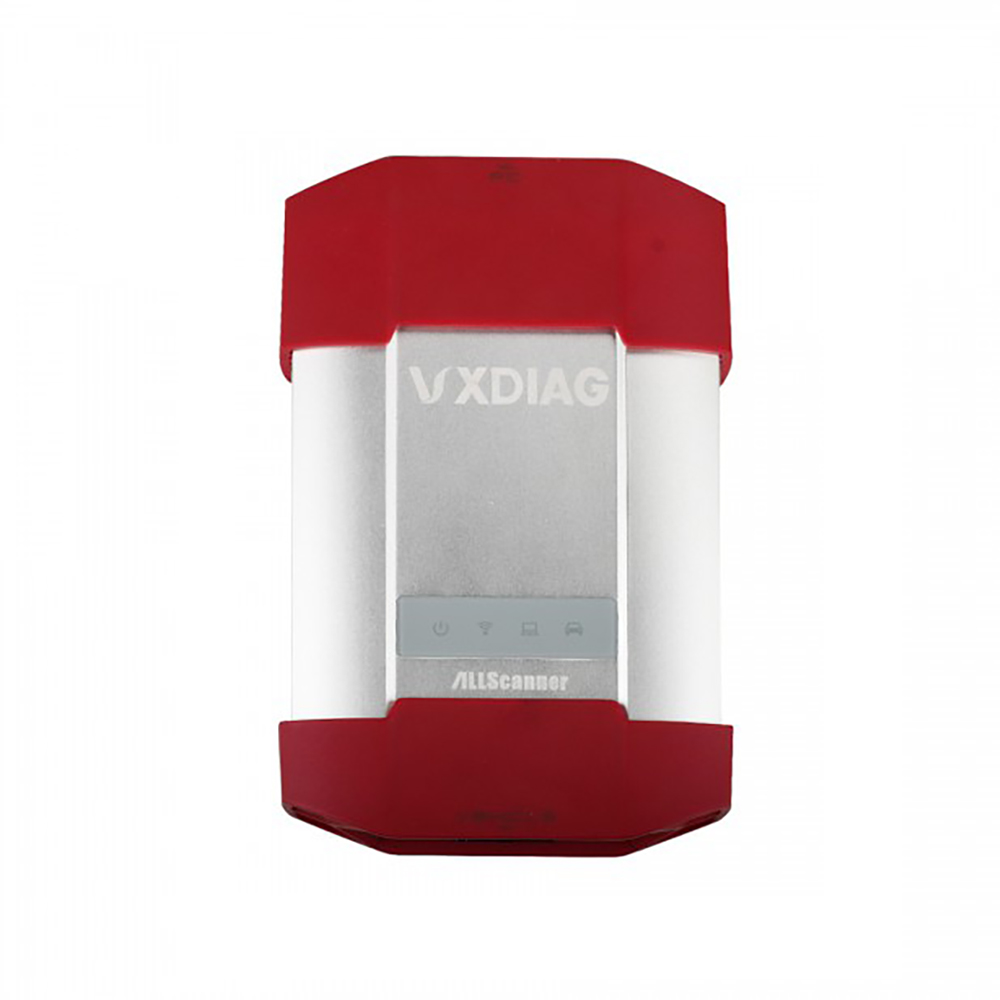

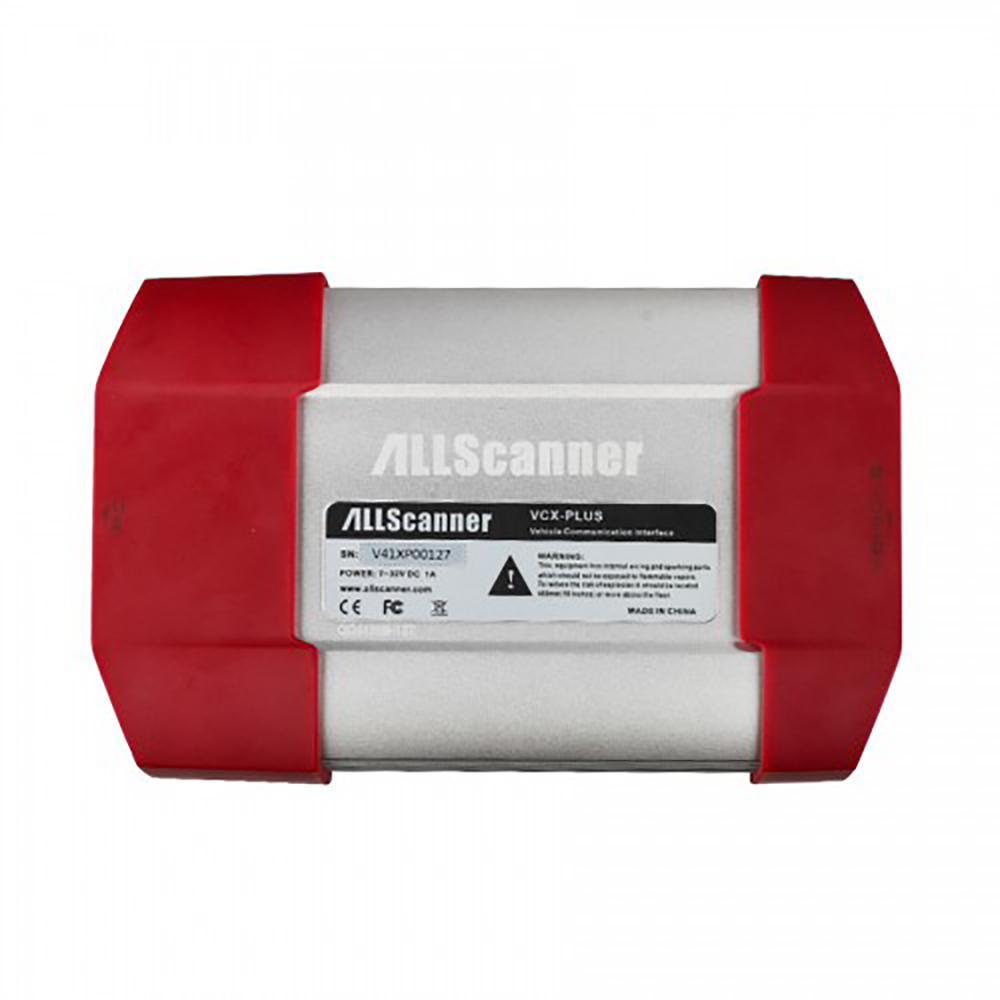

1pc x VXDIAG VCX-PLUS

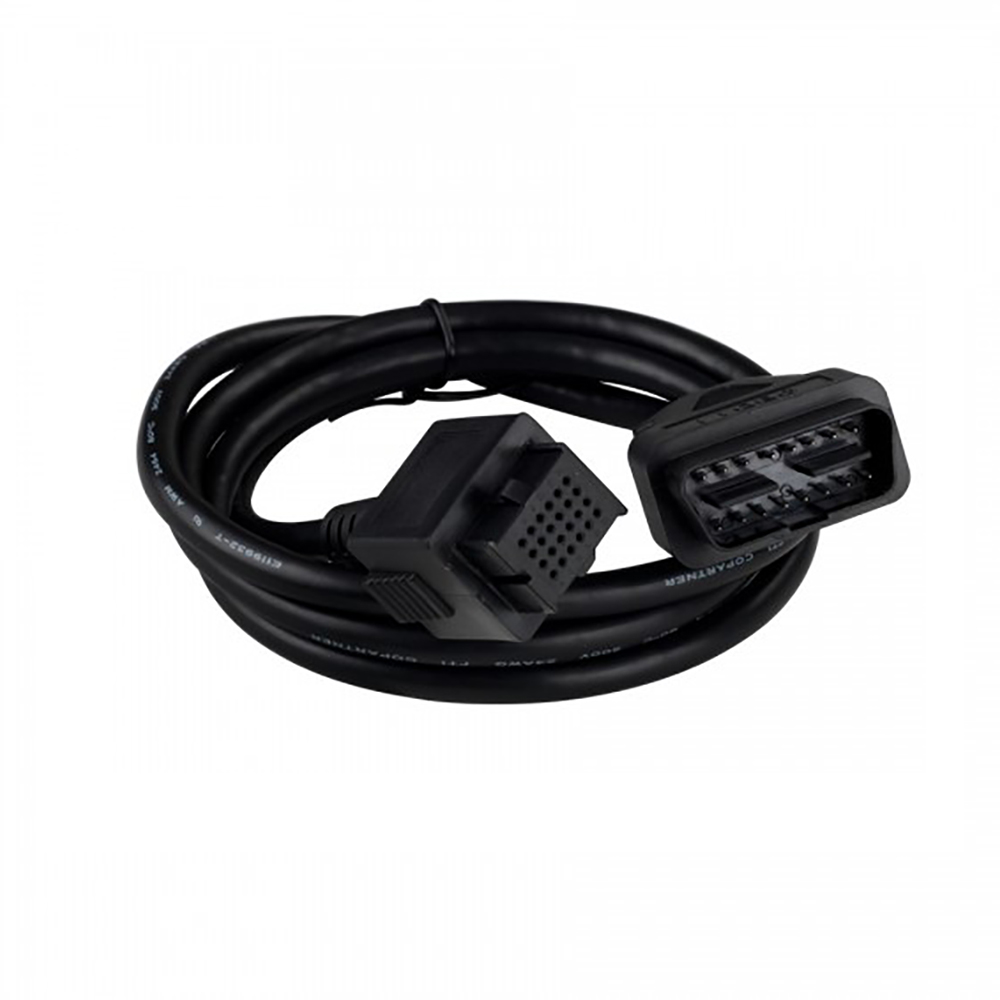

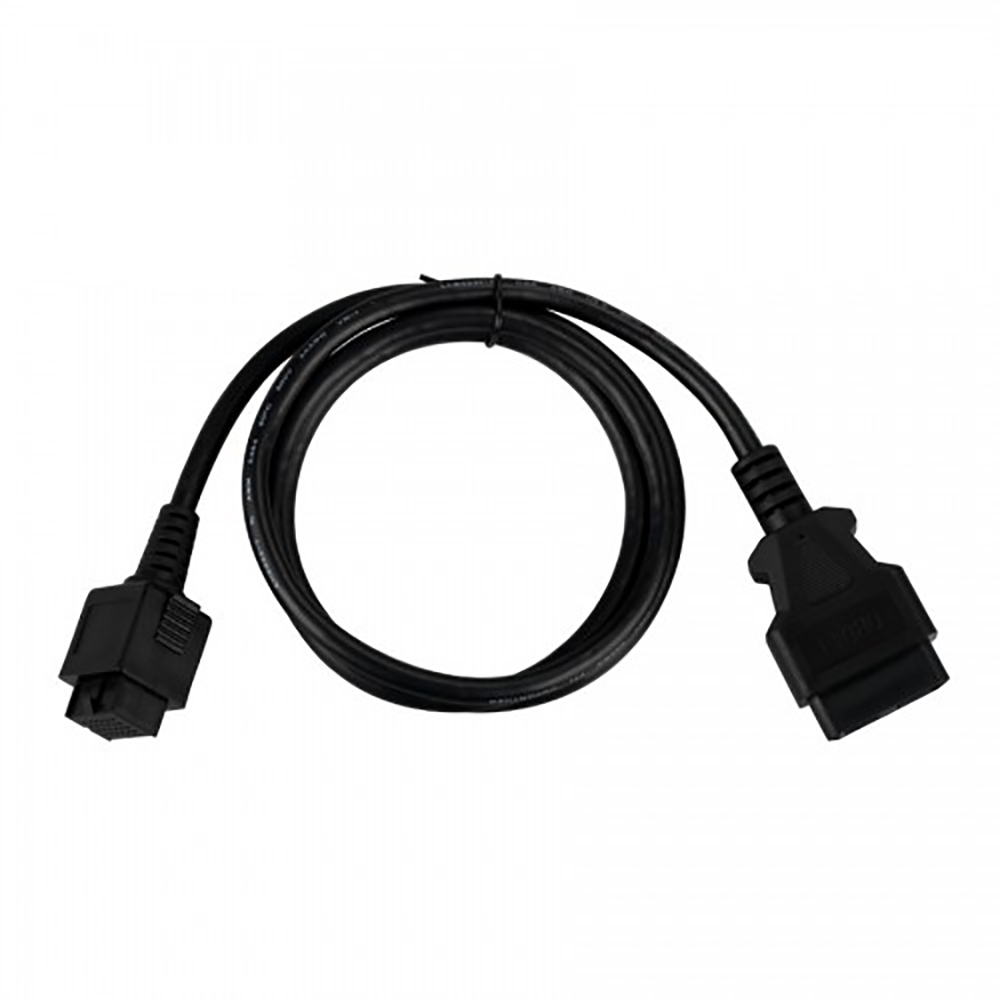

1pc x OBDII Cable

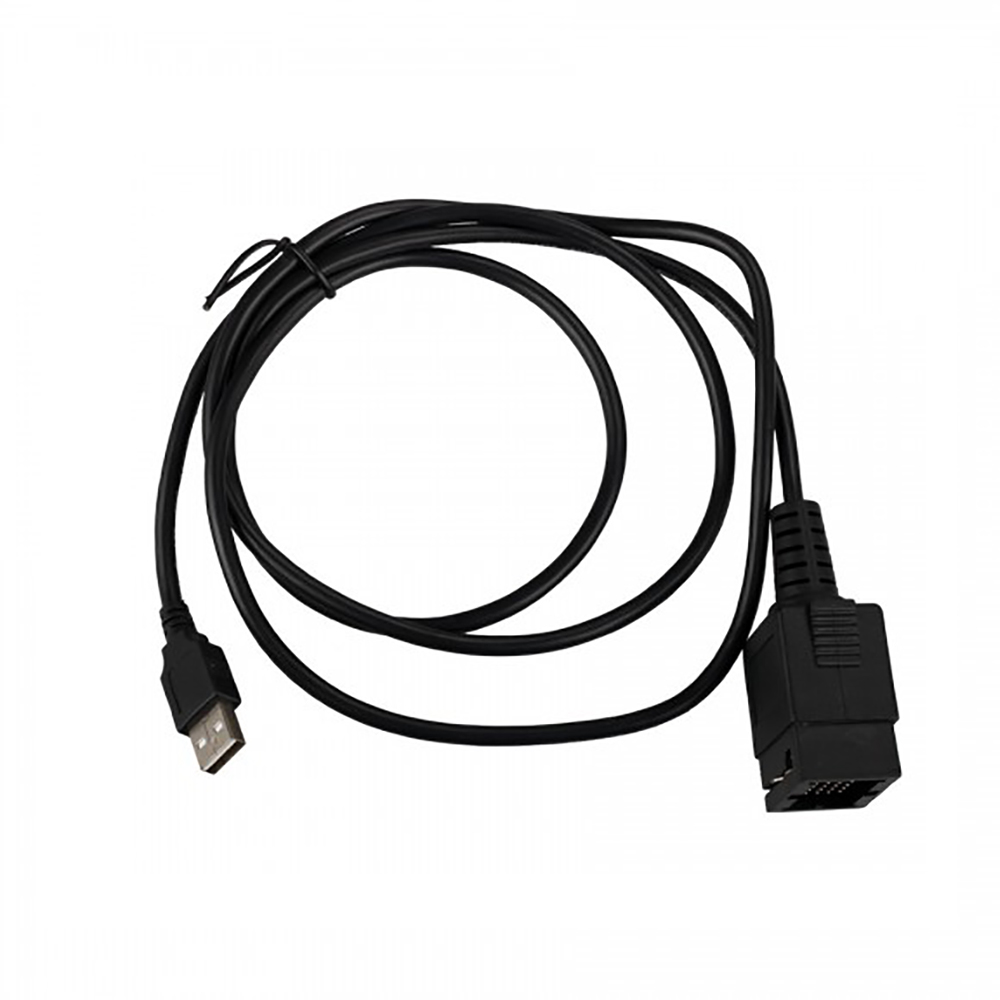

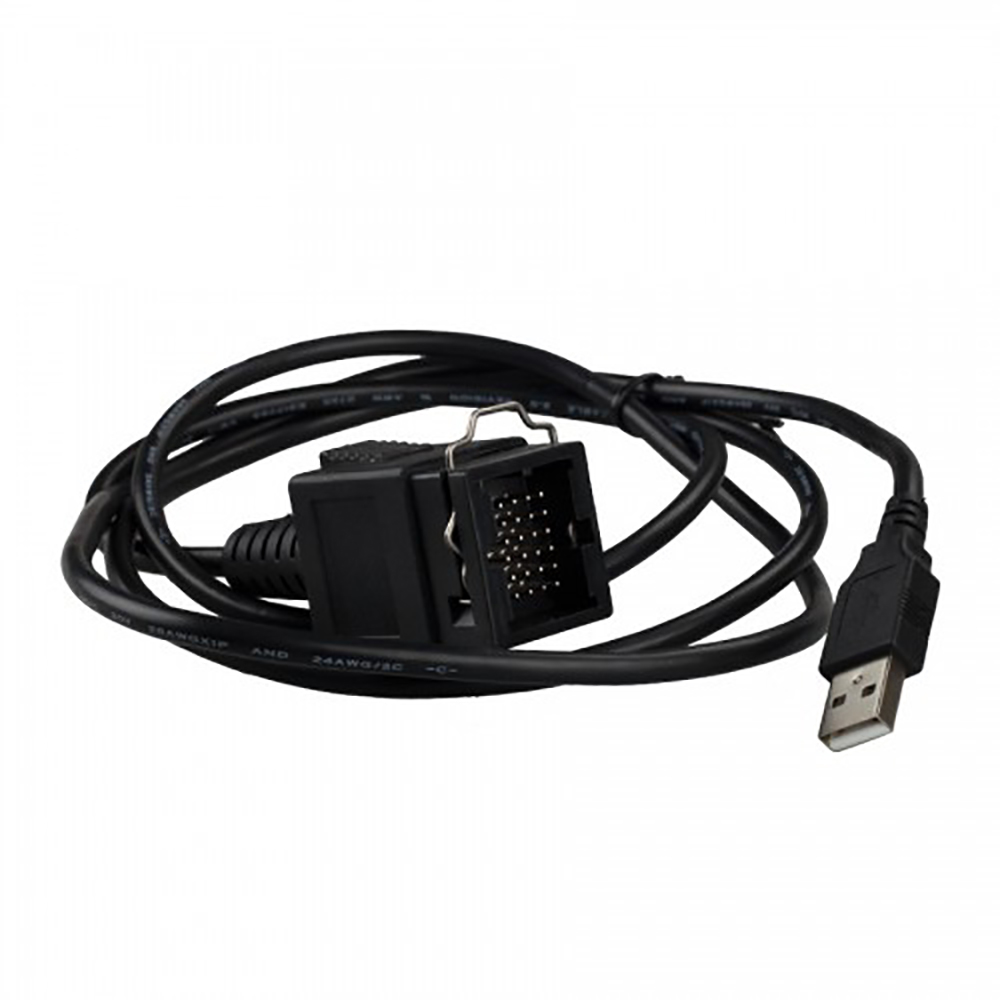

1pc x USB Cable
1pc x CD
