2023A 2019C CAT Caterpillar ET Diagnostic Adapter III CAT Diagnostic Tool PLUS Lenovo X220 laptop (Real Caterpillar ETAdapter 3)
We will install the software before shipment, so you can get it work directly after you receive it.
Caterpillar electronic technician 2023A(replaces CAT ET 2021C, 2021B,
2021A, 2020A, 2019C, 2019B) with WinFlash future is an updated version
of the caterpillar dealer diagnostic software that can help technicians
to diagnose existing and potential problems with their electronically
controlled Caterpillar Engines and Machines.
2020-2023 software version include the 10 factory password
generator. when you push the ctrl+f2 shortcut button,you can open the 10
bits of password generator.

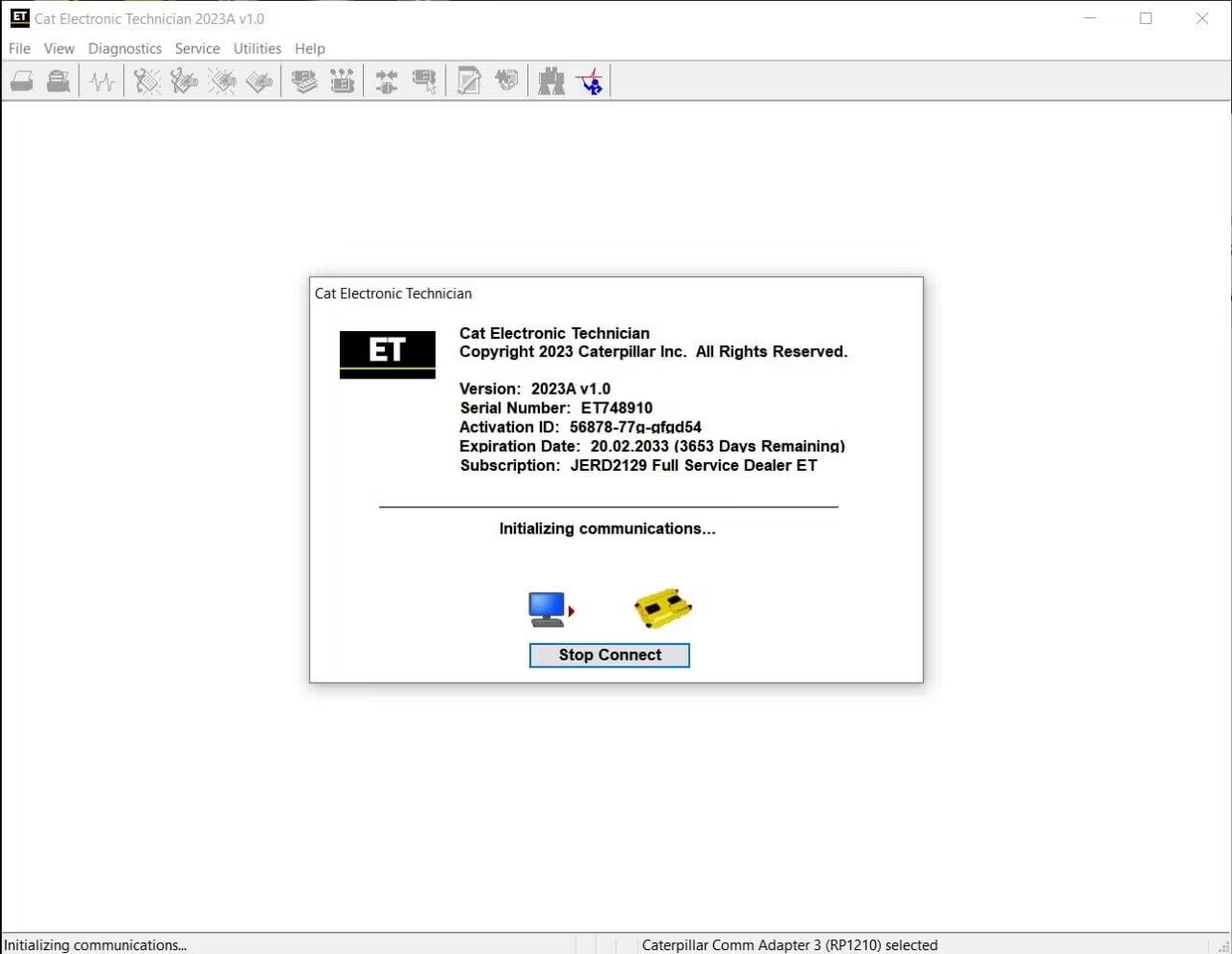

2023A Caterpillar Electronic Technician softwarer With CAT ET 3 Cat
caterpillar adapter 3 support caterpillar diagnostic till 2023.
Cat et Caterpillar Electronic Technician Software:
English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanish
Support All cars of CAT
The list of supported CAT machines and engines can be found below:
Electric Power Generation
Marine Power Systems
Oil and Gas
Hydraulic Mining Shovels
Site Prep Tractors
Skid Steer and Compact Track Loaders
Underground - Hard Rock
Underground - Long wall
Underground - Room and Pillar
CAT Caterpillar ET Diagnostic Tool from Caterpillar provide the
capability to access Electronic Control Modules (ECMs) from a personal
computer. Many job-critical tasks can be performed with an electronic
service tool. The user can display the status of a group of parameters
(temperatures, pressures, etc.) simultaneously, view active and clear
logged diagnostics, display the current configuration of an ECM and much
more. The service tool works with a communication adapter to allow
connection to an ECM. A graphical interface makes this software quick to
learn and easy to use. A separate pull-down menu for each function
enhances the "ease of use." The version and identification of the ECM is
automatically retrieved and is displayed on a summary screen when the
program is started. Diagnostic tests and calibrations can also be
CAT Caterpillar ET Diagnostic Tool enable service technicians to
reprogram ECMs, reconfigure control system parameters, fine tune
performance or diagnose the root cause of a failure the first time.
These powerful tools allow service personnel to display and analyze
vital performance and health information from any system quickly and
accurately. The service tool communicates with any system using ATA
(J1708), J1939 or the Caterpillar proprietary data link networks. The
service tools provide information and features needed to help a
technician diagnose problems and perform repairs and to customize and
personalize the operation of a product. By allowing customers to design
flexibility and configurability into a product, Caterpillar service
tools stretch beyond the capabilities of preprogrammed ECMs or onboard
Display, graph and log status parameters.
Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.
View active diagnostics and clear logged diagnostics. View events where
irregularities have occurred and have been logged by the ECM.
Perform calibrations to enhance performance of the ECM.
Customize the ECM with application-specific settings.
Over 100 custom Diagnostic, Information and Service features including:
- 2D and 3D Histogram plotting capability (engine software support required).
- Custom Status screen groups
- Snapshots (Download and display snapshot data recorded by the ECM)
- Configuration Aid that allows upload/download of same
configuration to multiple control modules
Customized Service Tool Options
Customized service tool name
Customized graphics for the splash screen and icons
Aftermarket differentiation, i.e., the tool for one customer does not work on the product of another customer.
Licensing options for customer management
Flash programming of the ECM(s)
Training demonstration allows familiarity with the tool's primary functions without connecting to ECM(s)
Perform customized diagnostic tests to identify harness problems,
cylinder or component failures (Automatic Cylinder Cutout with cylinder
to cylinder fueling comparison)
Caterpillar ET Software Function:
This diagnostic app allows you to:
View active and logged diagnostics.
View events where irregularities occurred and were logged by the ECM.
View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.
Record and log performance data.
Graph a group of status parameters.
View the current configuration of an ECM.
Change ECM configurations.
Perform diagnostic tests.
Print reports and diagnostic results.
1.Used Lenovo X220 laptop
2.Real CAT et3 Communicate Adapter III(it's best quality cat et 3,not adapter 2,please check Communication port)
3.USB Cable (From device to your computer)
4.J1939/J1708 9PIN Cable (from device to your truck)
5.6PIN Cable (for old truck)
6.14PIN Cable(for new truck)
Lenovo X220 Laptop:
Screen Size: 12.5
Memory (RAM): Intel(R)Core(TM)I5 CPU
Processor Speed: 2.53GHz
Original Factory Caterpillar ET3 Adapter III Compare With OEM Caterpillar ET Diagnostic Adapter III
1. Original Factory CAT ET can use once pluged, no need install the USB
drive, the software can automatic realize it for ET3 Adapter, and the
machine can automatic weld the high quality Circuit board, quality will
be more reliable.
2. The OEM Caterpillar ET Diagnostic Adapter III need use USB Drive to
install, and need choose the COM Port, and in the software ET also need
choose ET2 then can be used.
The Details as follows:
What's New - 2022A
Microsoft® Windows™ 11 Compatibility
Service tool testing has been performed and the service tool is compatible with Windows 11.
ECM File Replacement Compare Feature
The service tool now has an ECM Replacement File Compare feature for
troubleshooting purposes. This feature allows the user to compare one
ECM replacement file with another from within the ECM Replacement
feature screen. The feature will highlight the differences between the
selected files as a whole or the user may select the “only show
Configuration Group Headings on ECM Replacement Feature
In order to help the user find ECM replacement configuration items
easier, configuration items in the ECM Replacement, Fleet Configuration,
and Product ECM features are now grouped under their group
sub-headings, as is done in the main configuration feature.
What's New - 2021C
Feature Protection System Password Copy
The Feature Protection System (FPS) has a new "Easy Copy" link to copy
passwords in a single operation. The service tool can automatically
obtain the passwords from the clipboard and populate the FPS dialog. The
service tool dialog also has a new "Easy Paste" button that allows the
user to paste data of the correct format from the clipboard. Passwords
can still be pasted using customary copy/paste operations, such as the
context menu or the CTRL + V hotkey combination.
Screen Resolution Requirement Update
The minimum requirement for screen resolution has been updated to
1366x768, or at least 1366 pixels horizontally and at least 768 pixels
vertically. The recommended screen resolution is at least 1600x1200. The
service tool window displays with a minimum size of 1024x680.
What's New - 2021B
End of Support for Windows 8
Microsoft is ending extended support for Windows 8 as of January 2023.
The service tool will be ending support for Windows 8 after the 2021C
Images attached to calibration instructions will no longer need to be
opened manually to be viewed by a technician. The service tool will now
have split user interface windows for calibrations that display
pictures. This will allow the technician to see the images without
having to navigate away from the instructions. Images may be opened into
individual windows and resized for better clarity. The user interface
for calibrations that do not display pictures will remain unchanged.
Default PC Browser
The service tool will no longer automatically launch web pages in
Microsoft Internet Explorer. Web pages will now launch in whatever
application is configured as the default internet browser. Certain web
pages require a specific browser and may launch in a different browser.
What's New - 2021A
No significant new features or feature enhancements
What's New - 2020C
No significant new features or feature enhancements
What's New - 2020B
Trainer Update – 299D3
The 299D3 Skid Steer Loader has been added to the Trainer application.
What's New - 2020A
Product Status Report Updates
The Product Status Report has been updated to include throttle configuration information.
Built-in Factory Password Generator
The experimental feature allows you to decode (18-Bit passwords not supported) factory passwords
What's New - 2019C
Indication of Selected Communications Adapter
The service tool now displays the selected communications adapter when
the service tool is disconnected. The adapter name is displayed in the
status area at the bottom right of the service tool window.
