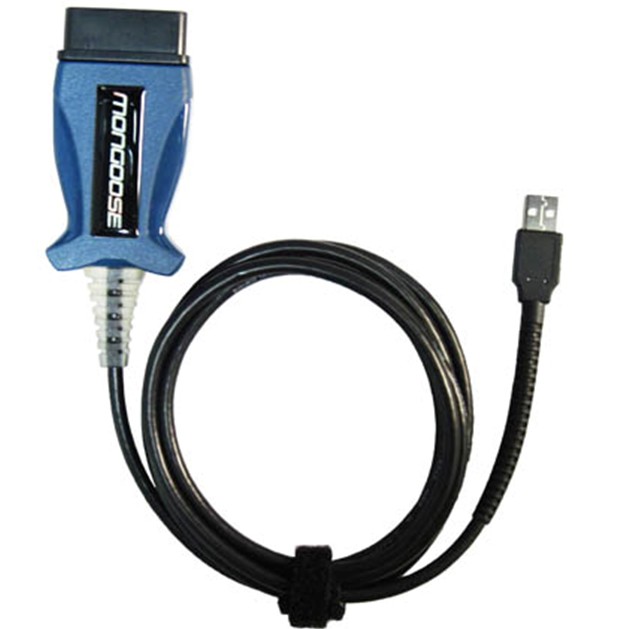

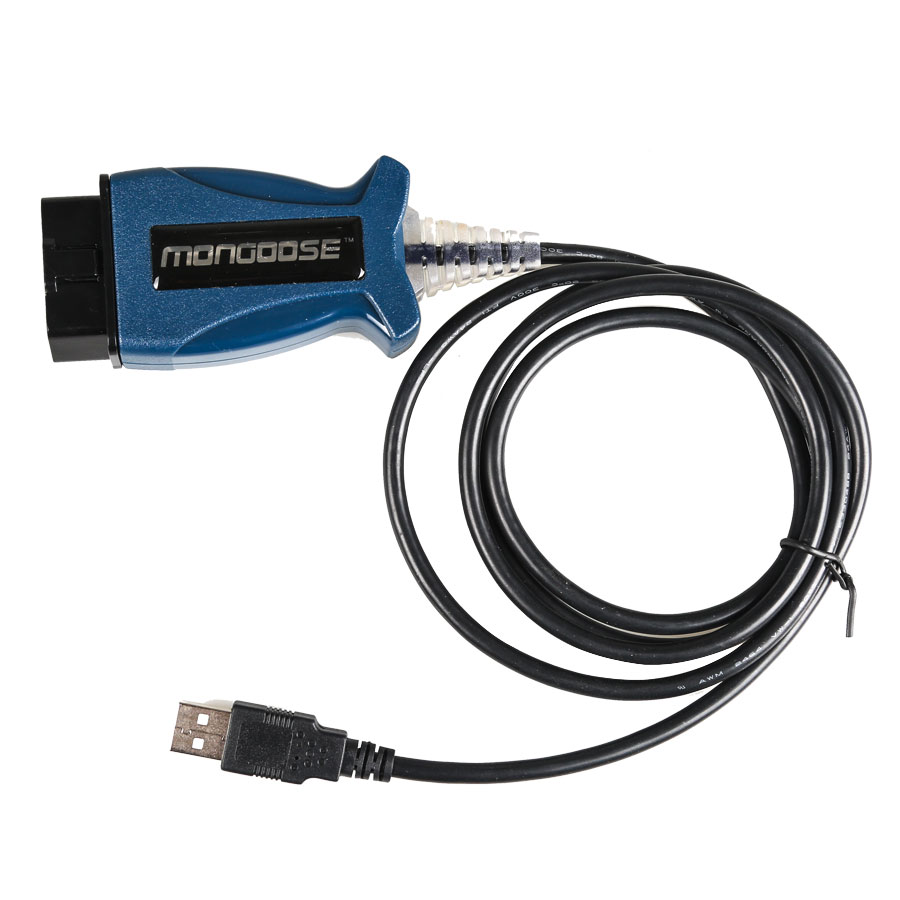

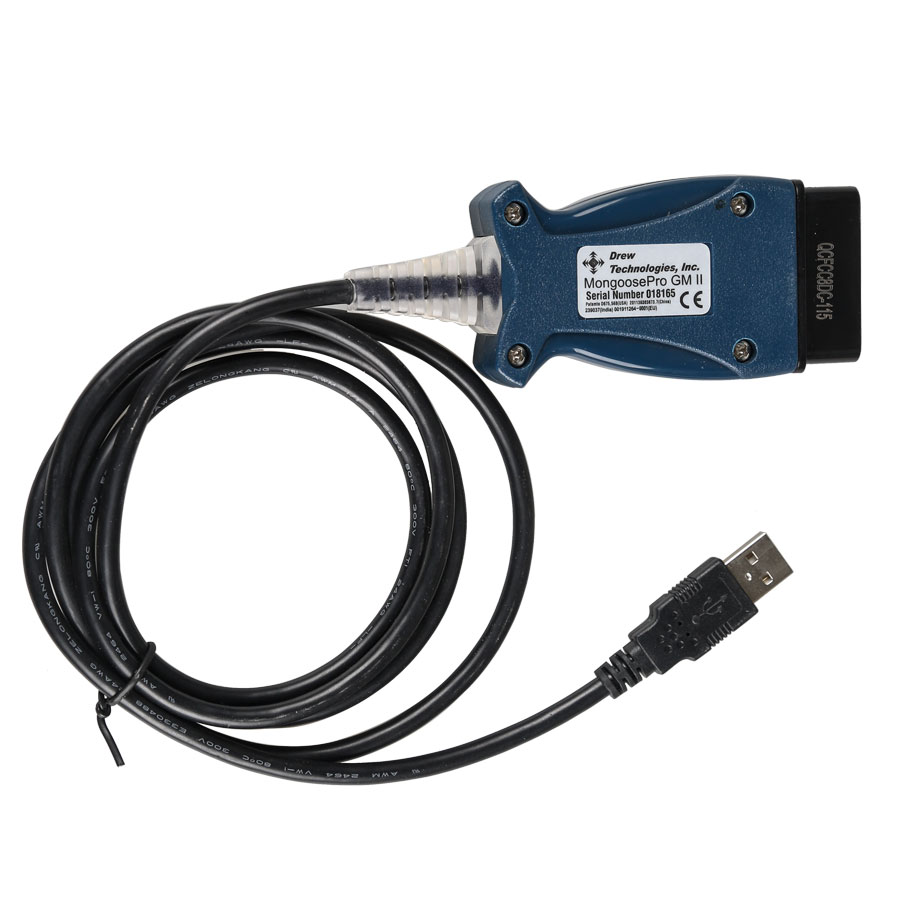

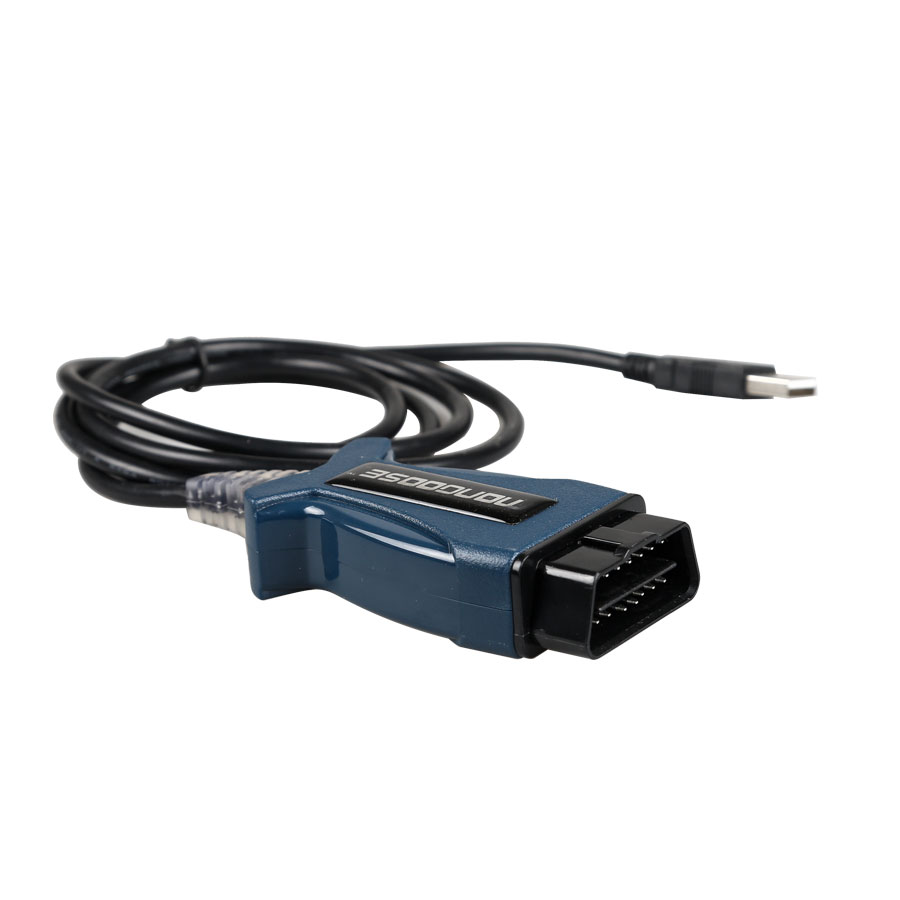

For GM II Diagnosis and programming interface Supports GDS2 Global Vehicle Diagnostic Mongoose Pro
MongoosePro GM II is a low-cost, high-performance reprogramming diagnostics interface for GM vehicles. It supports TIS2WEB for module reprogramming and Tech2WIN for diagnostics. The MongoosePro GM offers a wide range of capabilities to help you grow your business and retain customers including:
Diagnostics functions via GDS2
Diagnostics functions via Tech2WIN
All Module Flash Programming
Security system programming
Mongoose Pro GM software version: V2016.6
Software support system : Win7/win8/win10 , not support xp system
Mongoose GM offers a wide range of capabilities including:
* Diagnostics functions via GDS2
* Diagnostics functions via Tech2WIN
* All Module Flash Programming(customer need have online account which we unable to provide)
* Security system programming(customer need have online account which we unable to provide)

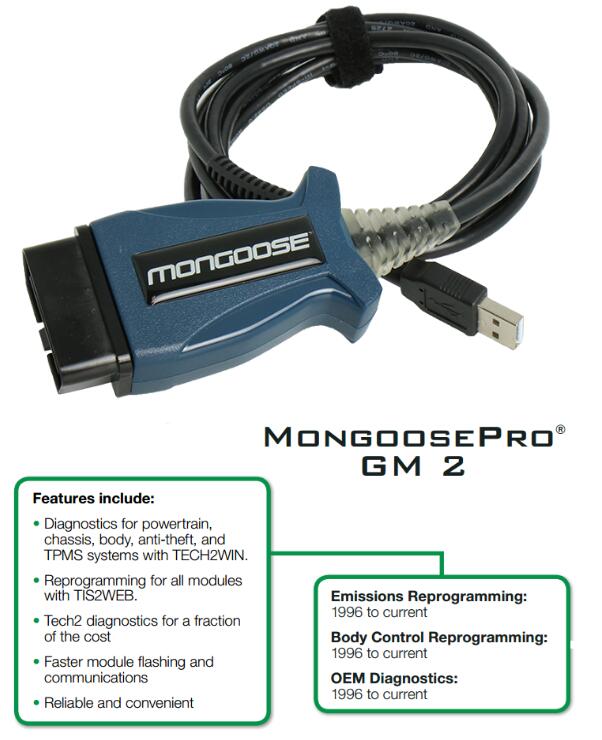

Mongoose Pro GM II Features include:
• Diagnostics for powertrain,chassis, body, anti-theft, and TPMS systems with TECH2WIN.
• Reprogramming for all modules with TIS2WEB.
• Tech2 diagnostics for a fraction of the cost
• Faster module flashing and communications
• Reliable and convenient
Emissions Reprogramming:
1996 to current
Body Control Reprogramming:
1996 to current
OEM Diagnostics:
1996 to current
Mongoose Pro GM 2 Reprogramming:
* Mangoose Pro GM supports module reprogramming using GM's TIS2WEB software.(customer need have online account which we unable to provide)
* Technicians can use Mangoose for GM security systems.(customer need have online account which we unable to provide)
Mongoose Pro GM Technical Specs:
Key Features:
* Support for GM TIS2WEB Programming software(customer need have online account which we unable to provide)
* USB Diagnostics tool for CAN, J1850VPW, and Single-Wire CAN vehicles
* Simple packaging with electronics contained inside the cable.
* Supports Windows XP, Vista & 7 (32 & 64bit)
Bus Protocols:
* CAN pins 3-11, 6-14, 12-13
* Single Wire CAN pin 1
* J1850VPW / GM Class 2
* ISO 9141 / KWP pins 3, 6, 7, 8, 9, 12, 13
* GM UART
* ISO22900 Compliant for GM’s Tech2WIN software
Other
* J2534 and J2534-1 compliant device driver
* Commercial Range (0 to +70 C)
* Dimensions: 3" x 1.75"
* Operating Voltage: Bus-powered by USB
* Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device drivers

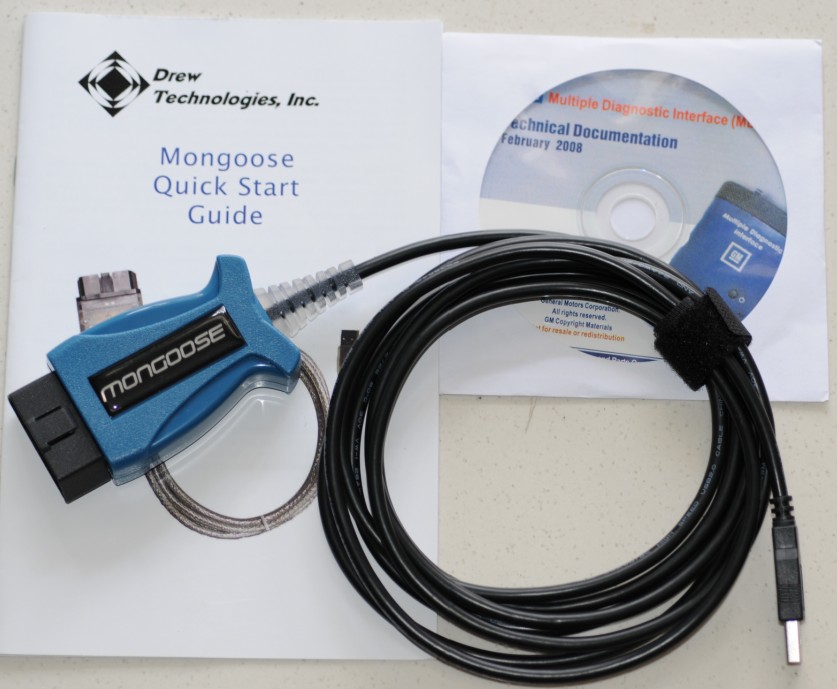

Package including:
1pc x Mongoose Pro GM II Cable,high
