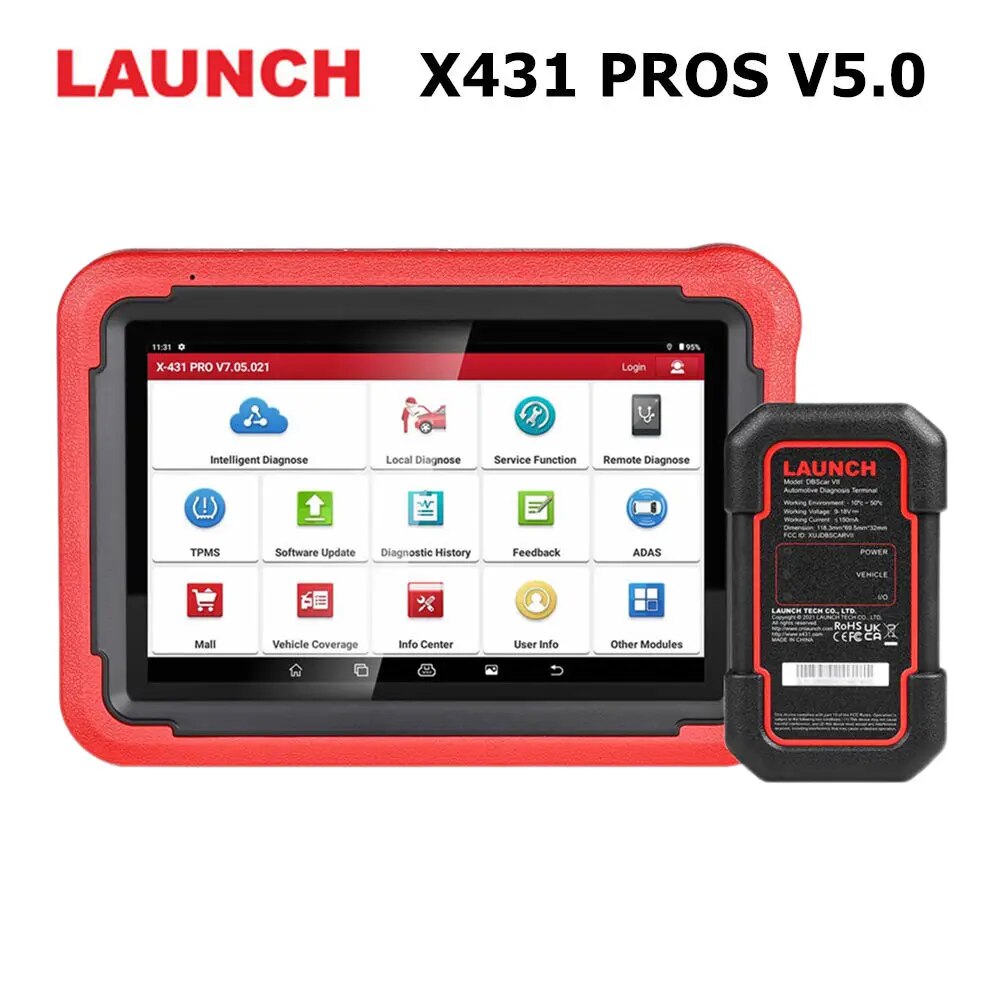

Launch X431 PROS V5.0 Diagnostic Tool Auto Scanner 37 Special Functions Intelligent Diagnose TPMS Support CANFD and DOIP
Launch X-431 PROS V5.0 is a new generation of 8-inch automotive intelligent diagnostic tool with high configuration and super performance. The tablet is developed based on the Android 10.0 system, using a 2.0Ghz 4-core efficient processor, 4GB RAM + 64GB ROM large storage, and equipped with a high-end battery to make diagnosis faster, more stable and longer-lasting. Launch X-431 PROS V5.0 can cover more than 98% of cars on the market. It supports fault diagnosis for all models and systems, and supports code reading, code clearing, data stream reading, special functions, action testing, coding, matching, and powerful diagnostic functions.
Launch X-431 PROS V5.0 Product Features:
1.Upgraded to DBSCAR VII diagnostic connector, supports CANFD and DOIP
2.Wide car model coverage, strong diagnostic function, supports full system diagnosis of all car models
3.Support reading version information, code reading, code clearing, reading data stream, action testing, coding, matching, etc.
4.Supports tire pressure activation, programming, learning and detection functions with a tire pressure gun
5.Support IMMO programming and other functions with X-PROG 3
6.Support Volkswagen Audi and other guidance functions (optional)
7.Multiple expansion modules support: endoscope, BST-360, oscilloscope, sensor, wifi printer
8.Supports 37 special functions such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, etc.
9.Support VIN code intelligent identification function to quickly enter diagnosis
Product Functions:

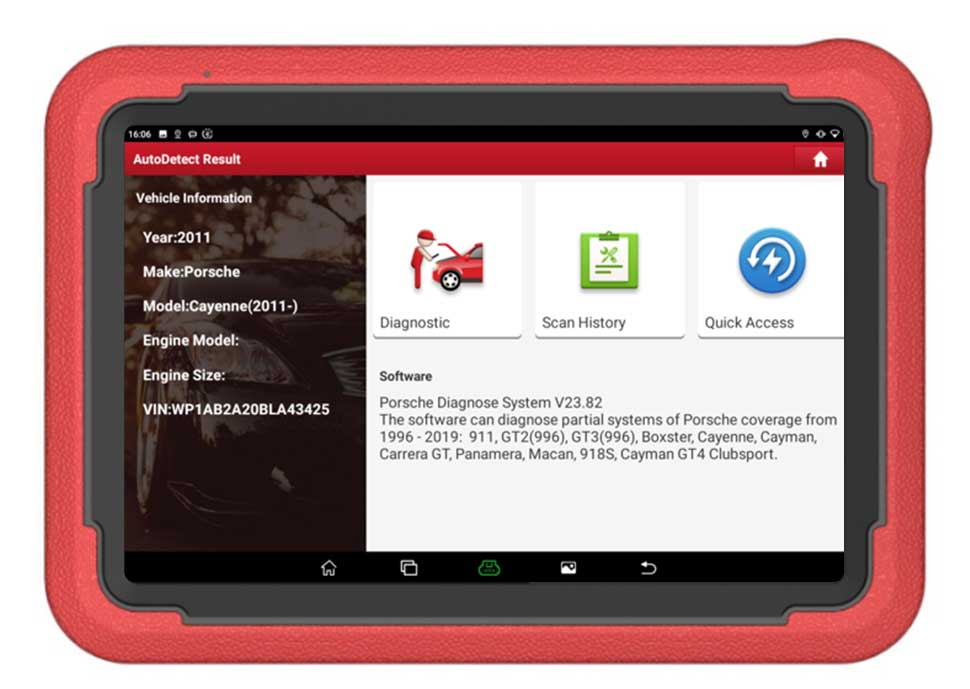

Intelligent Diagnose
LAUNCH has accumulated automotive diagnostic technology for more than 20 years, and was the first to propose intelligent diagnosis technology. Through "intelligent diagnose", it can quickly read the vehicle VIN code, quickly enter the diagnosis, and review historical diagnosis records.
Local Diagnose
Support the diagnosis of the whole system of 110+ brand models in the world Basic function diagnosis, support reading version information, reading code, clearing code, reading data stream, action test, code setting, matching, etc., can read and record data stream, etc., to help rapid positioning the fault.

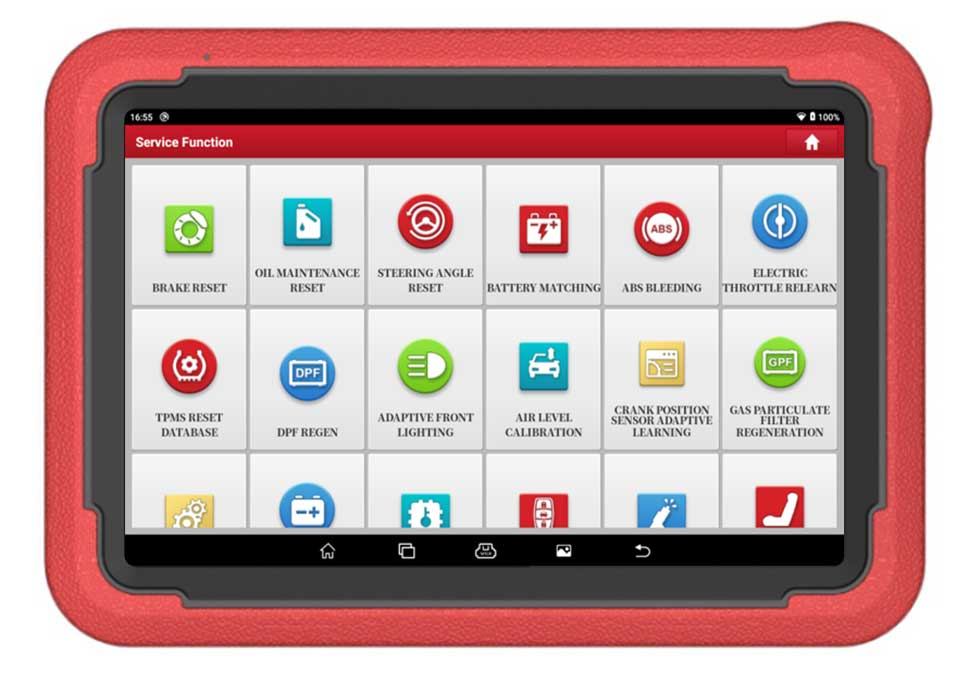

37 Special Functions
Supports common special functions for most models, such as maintenance light reset, throttle matching, steering angle reset, brake pad reset, tire pressure reset, ABS exhaust, battery matching, gear information learning, injector coding, DPF regeneration, IMMO, 37 special functions such as matching and IMMO programming.

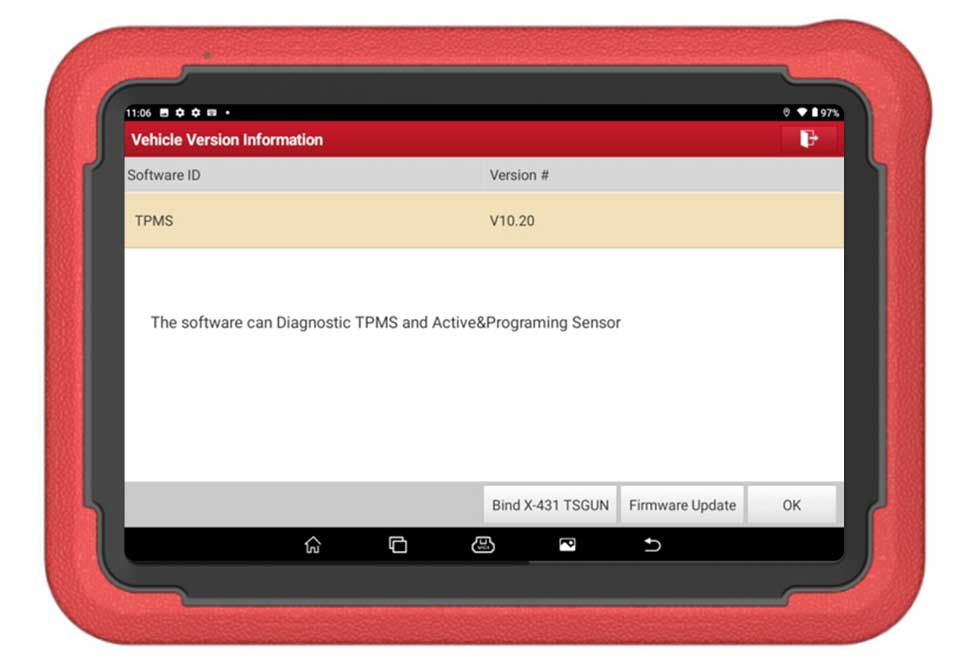

TPMS
Supports tire pressure activation, programming, learning, detection and other functions with a LAUNCH X-431 TSGUN TPMS WAND (additional purchase is required).

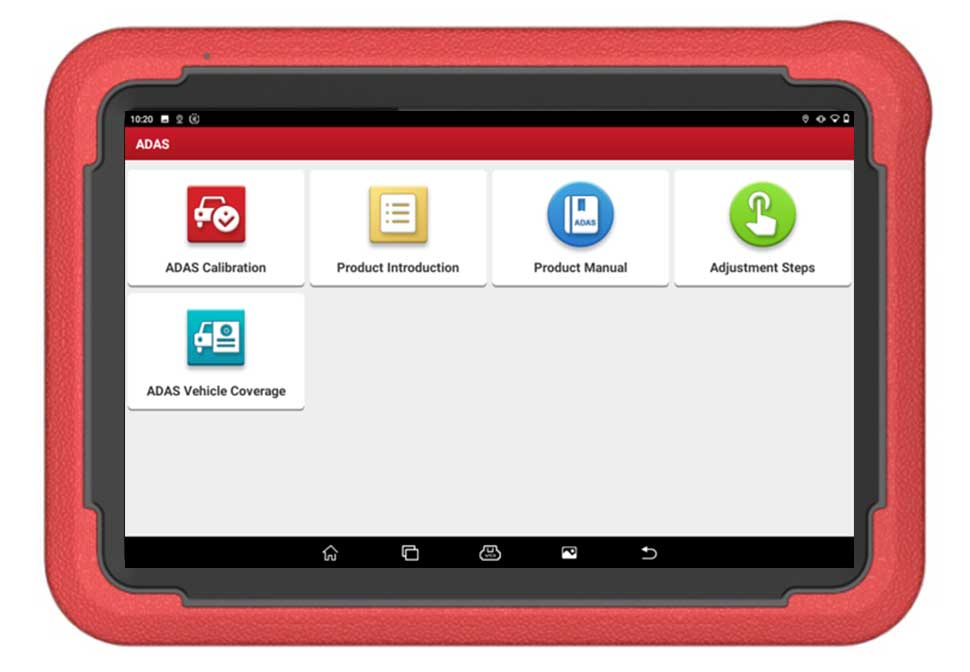

ADAS Calibration
It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (optional), which can realize the calibration of LDW, ACC, RCW, AVM, BSD, NVS and other ADAS systems.

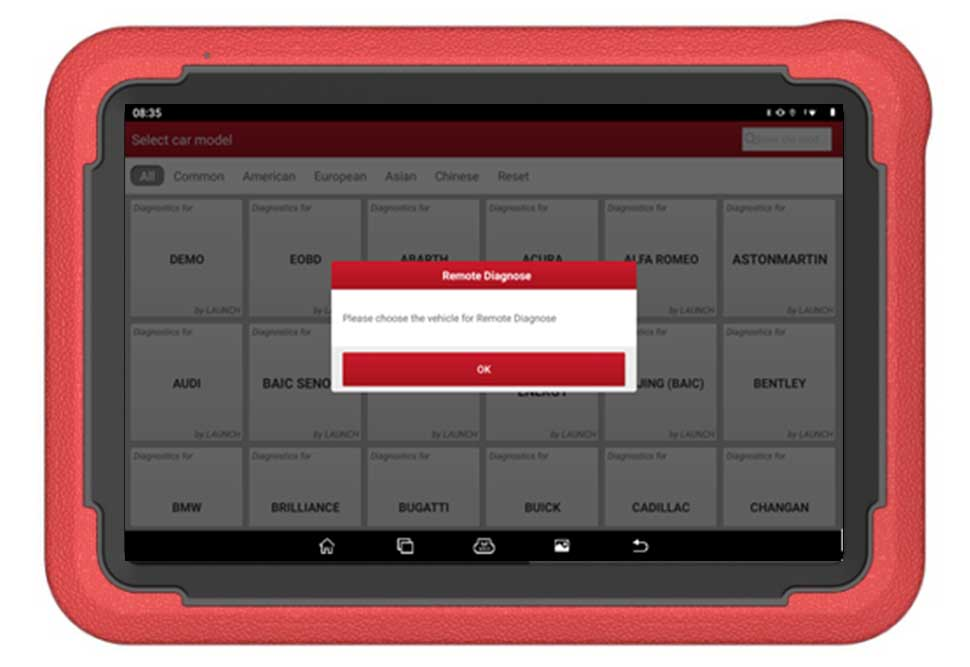

Remote Diagnose
"Remote diagnose" can realize real-time communication between equipment and equipment or equipment and computer, complete vehicle remote diagnosis, and make it a reality for repair technicians to diagnose vehicles thousands of miles away.

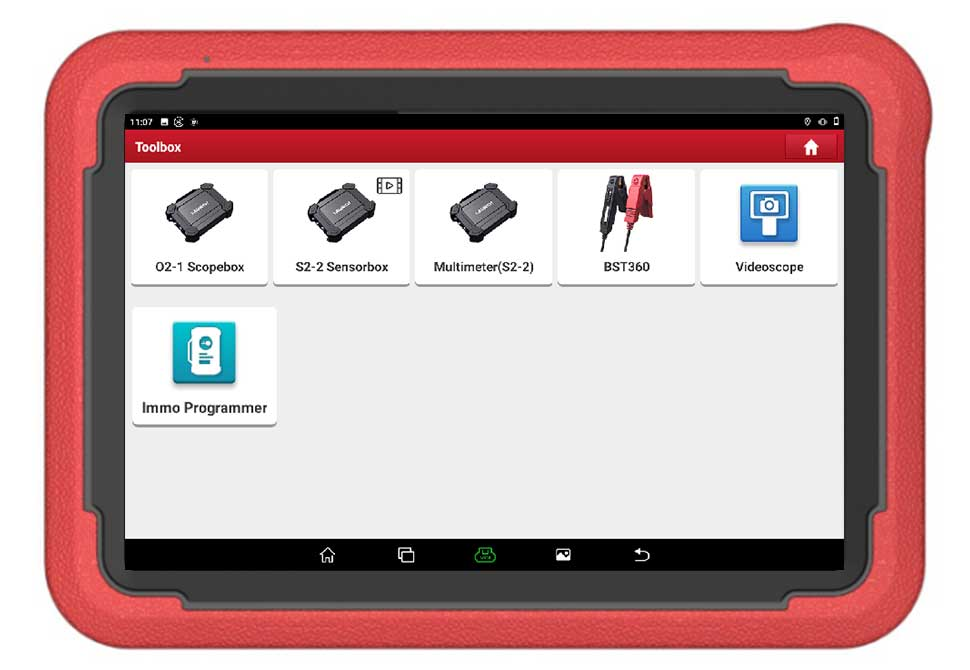

Toolbox
It can be used with endoscopes, battery detection, oscilloscopes, sensors, IMMO programmer and other expansion modules to make the diagnostic function more powerful.

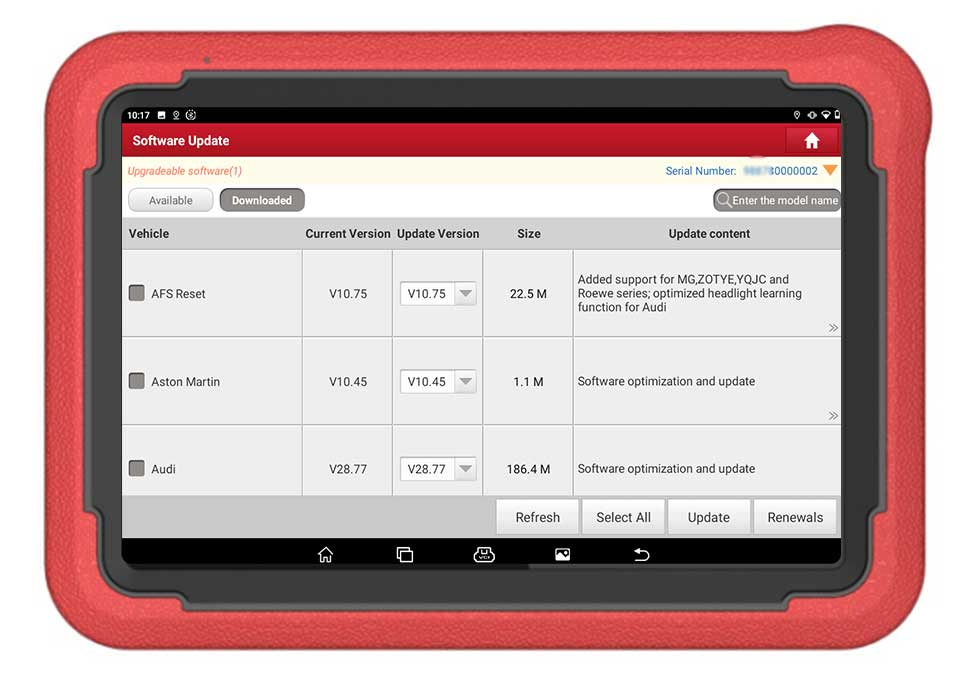

Software Upgrade
Supports one-click online upgrade of client software, vehicle model software, and connector firmware. The new smart selection upgrade function can automatically filter out commonly used software based on user software usage for users to quickly upgrade.

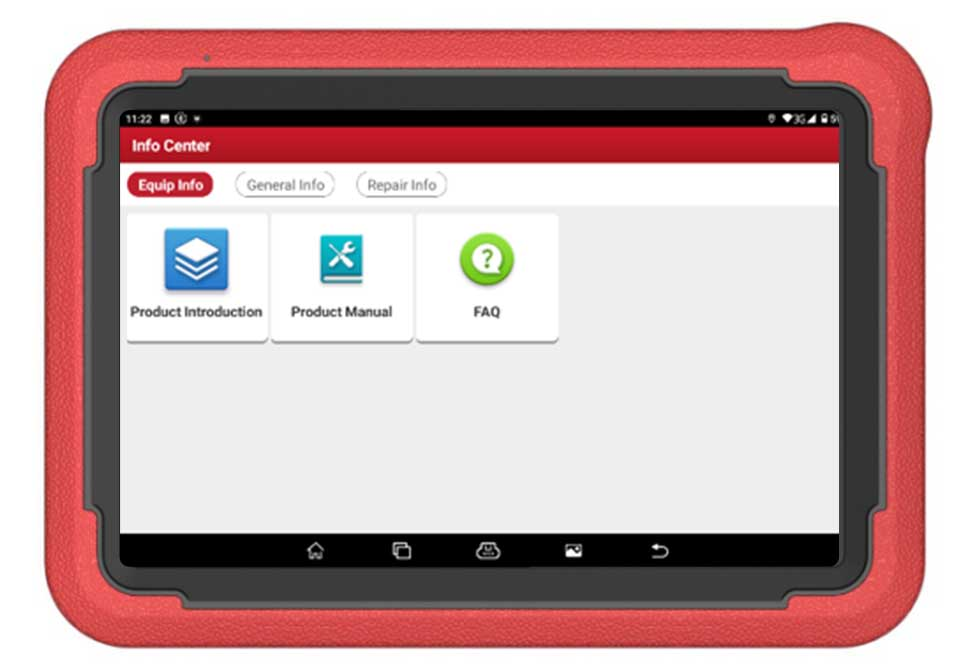

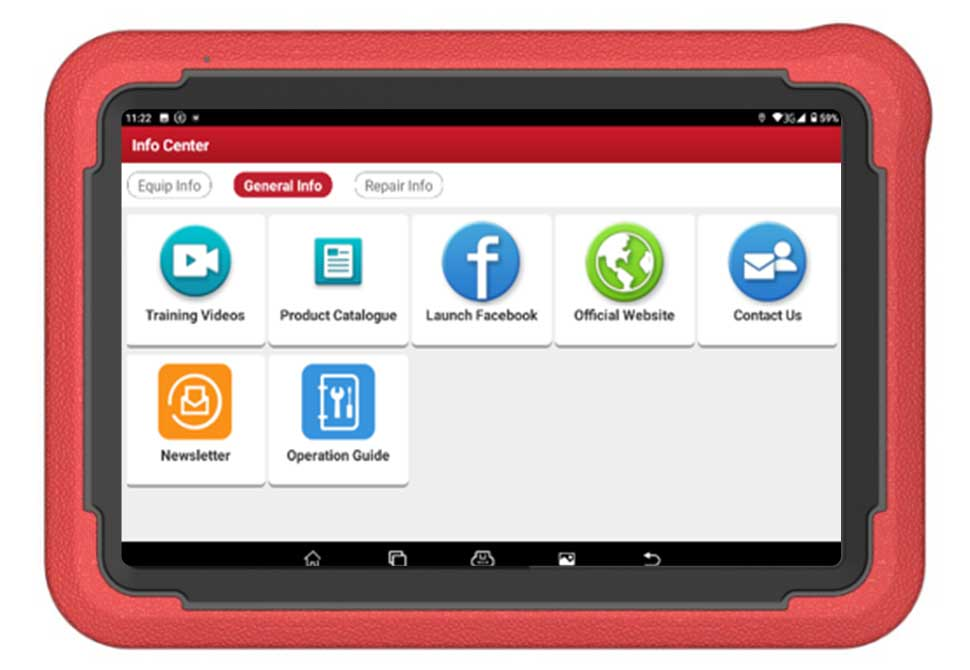

Info Center
The information center integrates maintenance materials, general information and equipment information, and is an information query center.

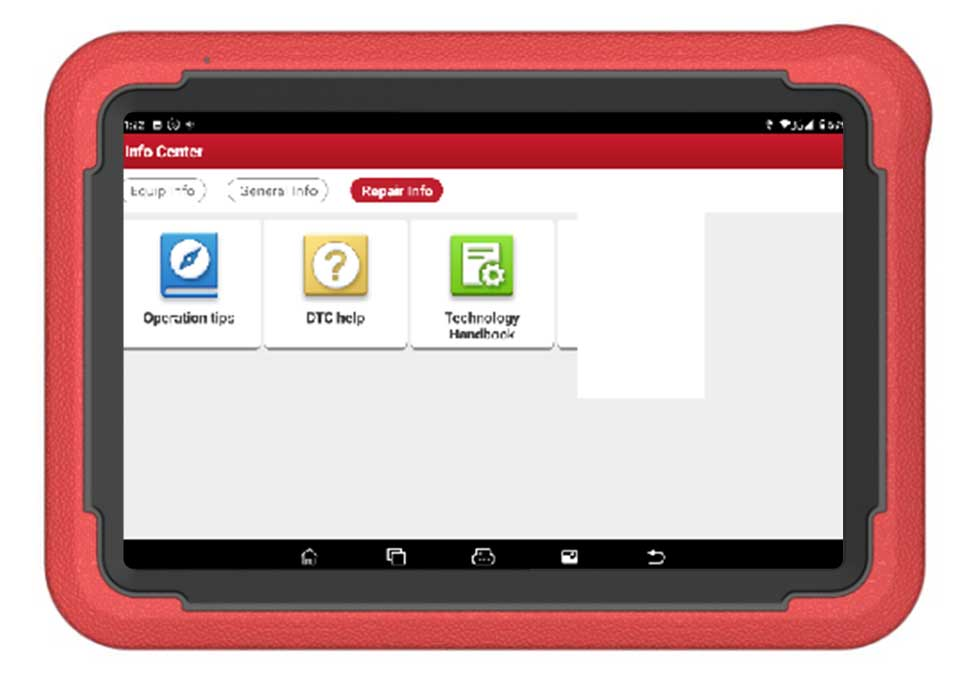

The maintenance information includes operation skills, fault code help, vehicle maintenance technical manual and IMMO database;
General information provides various types of car maintenance videos and information website online query;
Device information includes product manuals and answers to frequently asked questions.
Specifications of the tablet:
Processor 2.0GHz 4 core
Operating system Android 10.0
Memory 4GB
Battery 47880mWh(7.6V,6300mAh)
Camera Rear 8 million pixels
Screen 8 inches 1280*800
WIFI 2.4GHz/5GHz (dual frequency)
Interface 1pc*TYPE A &1pc*TYPE C
Working temperature 0~50℃
Size 228*160*37.4(mm)
Specifications of the DBScar VII VCI connector:
Working voltage DC 9~18V
Communication method Bluetooth
Size 118.3*69.5* 32 (mm)
Power Indicator This indicator light will illuminate when the VCI diagnostic connector is connected to the vehicle's OBD II diagnostic socket
Vehicle When the VCI diagnostic connector is communicating with the vehicle ECU, the indicator light will flash
IO
1. When the VCI diagnostic connector communicates with the diagnostic host via Bluetooth, the indicator light displays blue.
2. When the VCI diagnostic connector communicates with the diagnostic host via USB, the indicator light turns red.

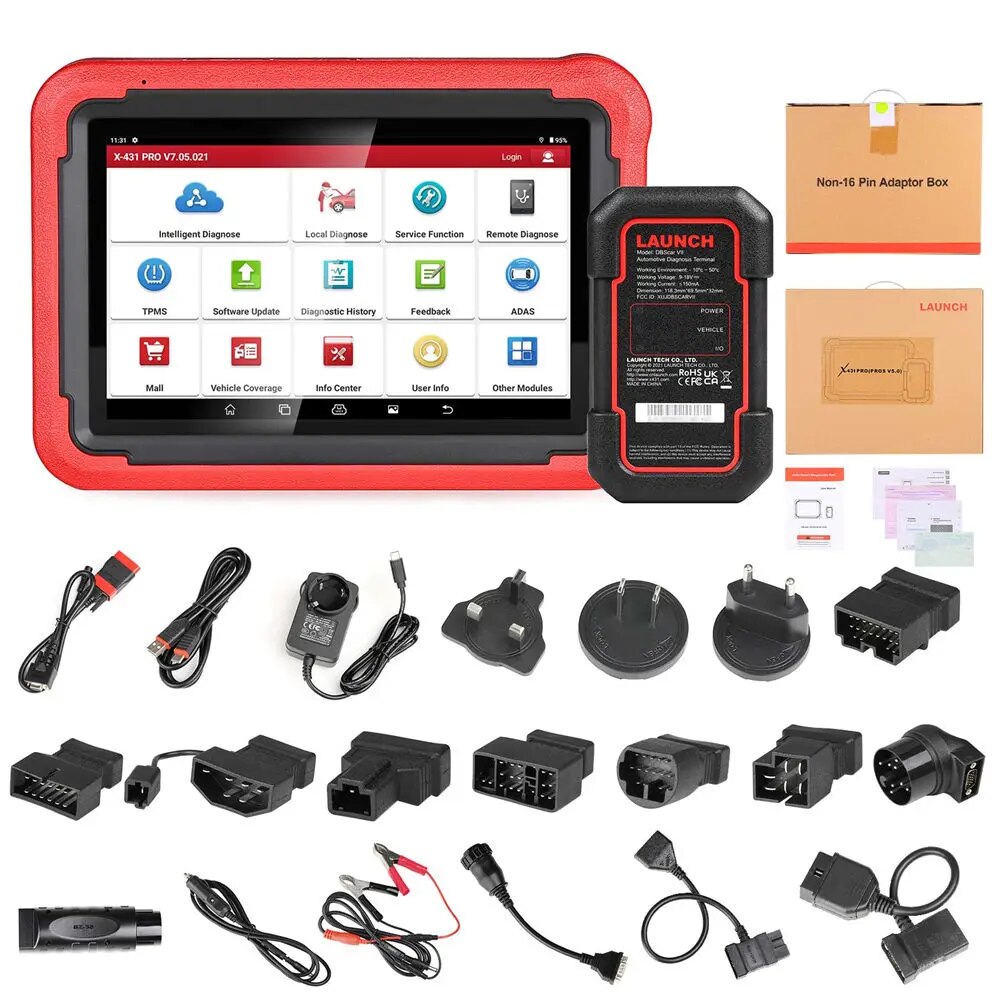

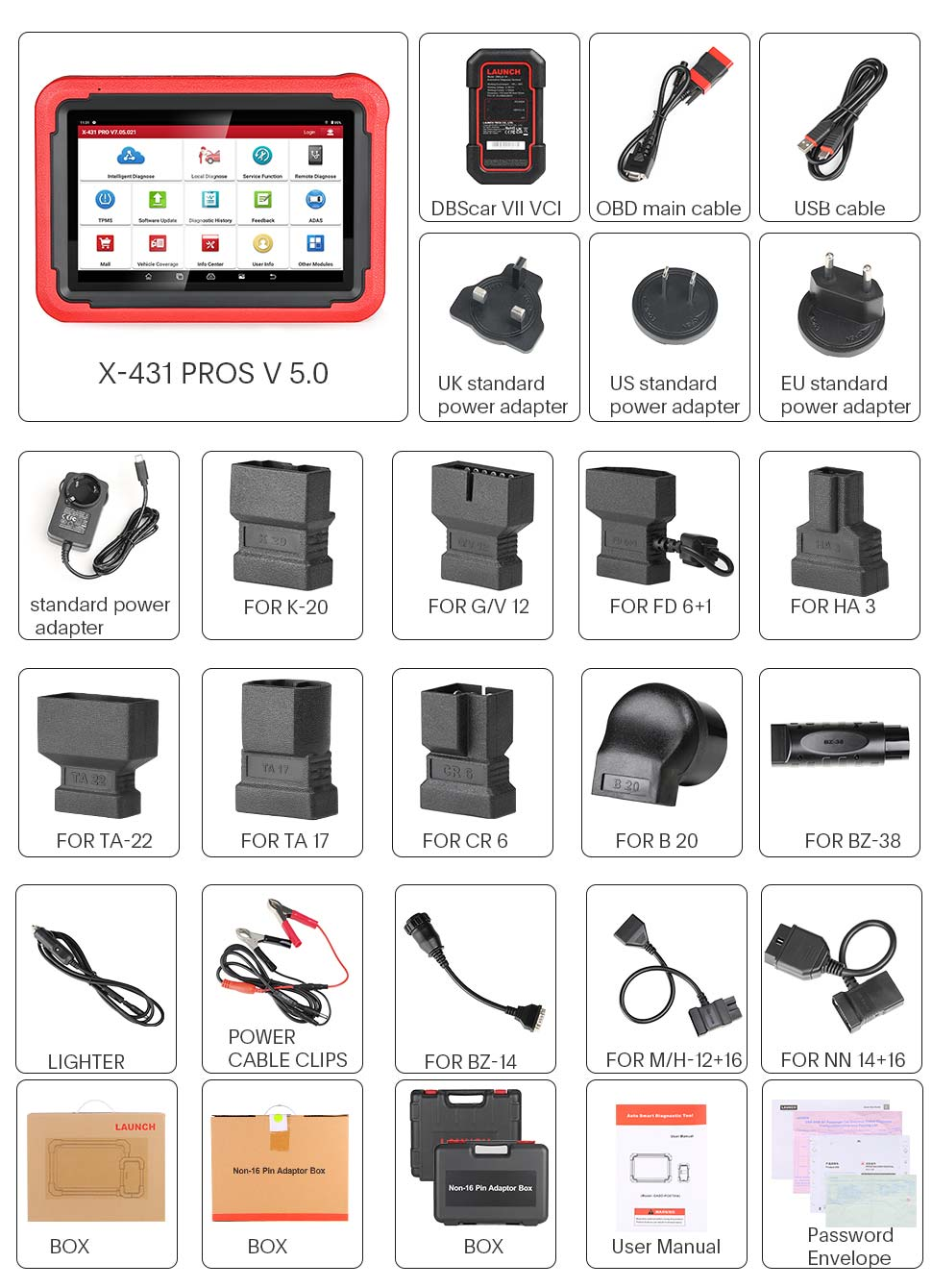

Package Includes:
1pc x Launch X-431 PROS V5.0 tablet
1pc x DBScar VII VCI connector
1pc x OBD main cable
1pc x USB cable
1pc x UK standard power adapter
1pc x US standard power adapter
1pc x EU standard power adapter
1pc x standard power adapter
1pc x For K-20 adapter
1pc x For G/V 12 adapter
1pc x For FD 6+1 adapter
1pc x For HA 3 adapter
1pc x For TA 22 adapter
1pc x For TA 17 adapter
1pc x For CR 6 adapter
1pc x For B 20 adapter
1pc x For BZ 38 adapter
1pc x For BZ 14 adapter
1pc x For M/H 12+16 adapter
1pc x For NN 14+16 adapter
1pc x Lighter
1pc x Power cable clips
1pc x User manual
1pc x Password envelope
