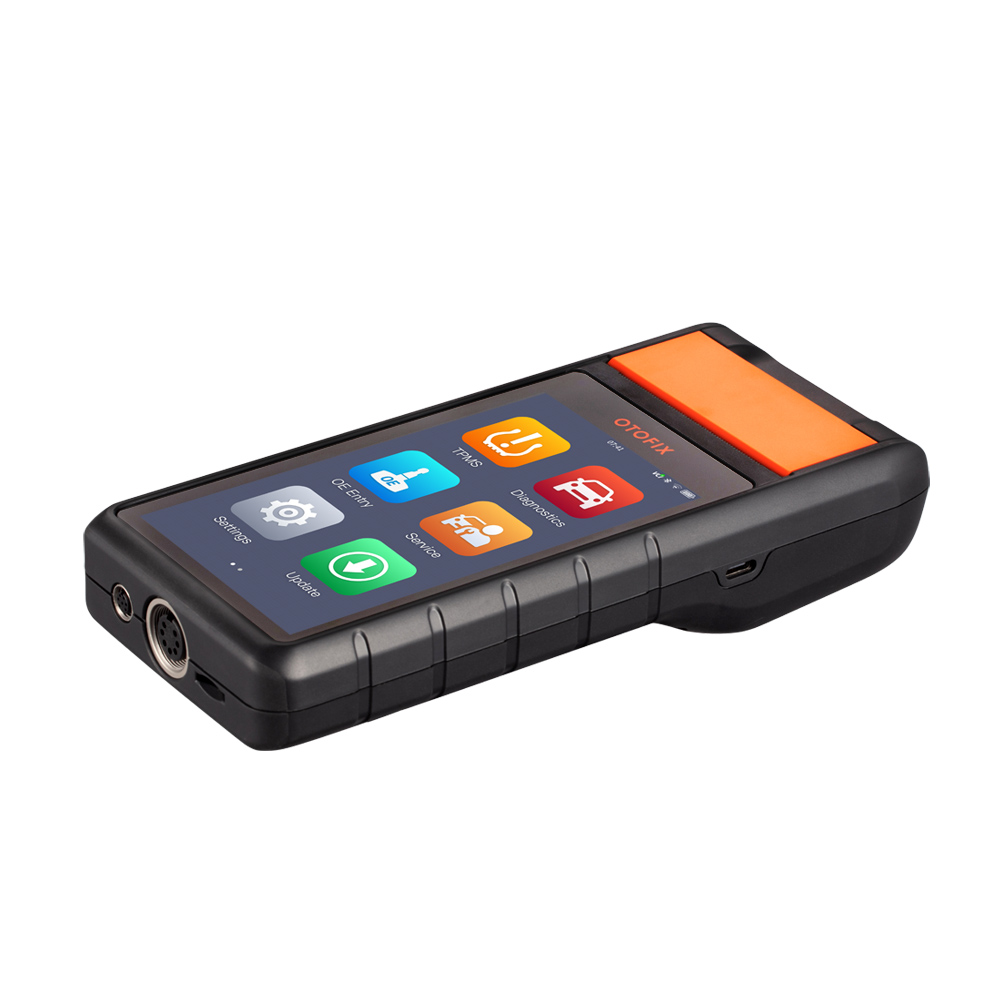

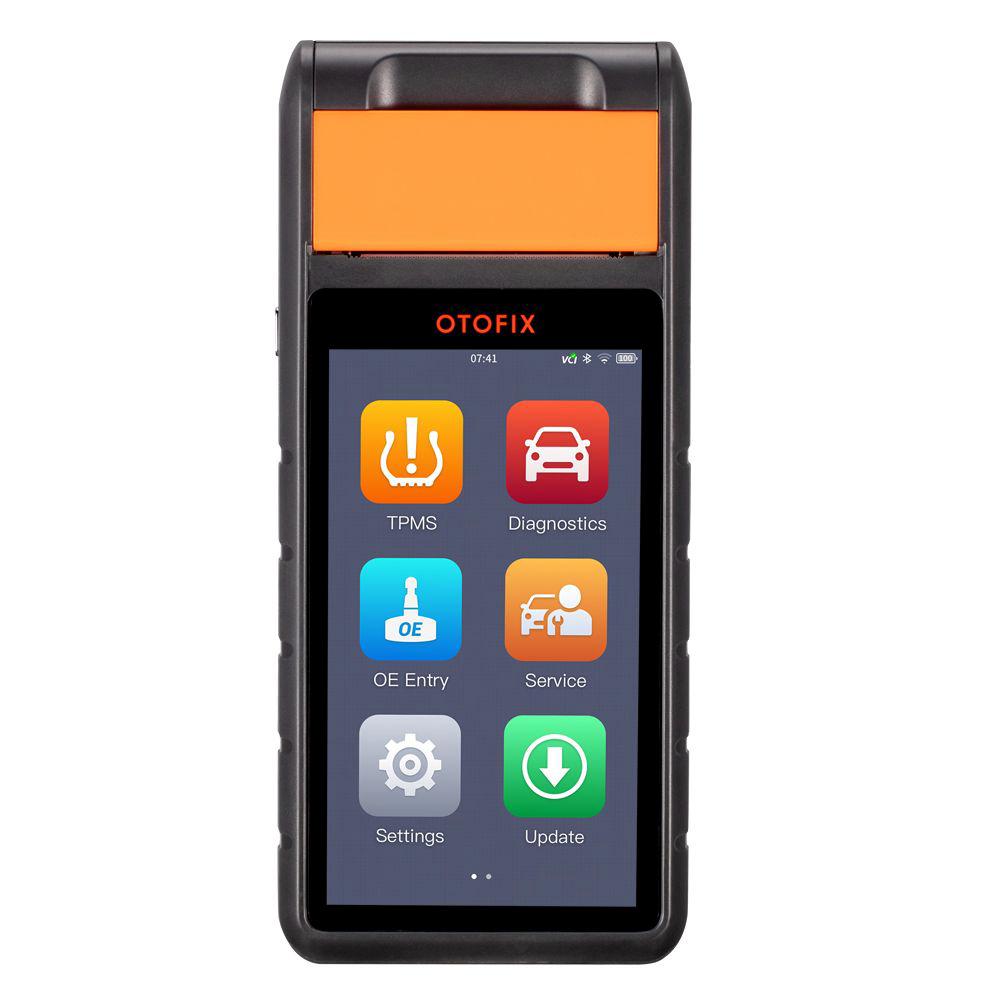

AUTEL OTOFIX BT1 Professional Battery Tester Full System Diagnostic Tool with OBDII VCI Supports Battery Registration
OTOFIX BT1 - with its smart 5.5 in. touchscreen - enables you to
examine your battery and electrical systems and register a new battery
with the fastest, most convenient experience ever. Combined with otofix
Cloud Services, the otofix BT1 provides a comprehensive battery analysis
solution from diagnosis to repair.
The OTOFIX BT1 is a
touchscreen Battery & Electrical System analyzer that applies an
advanced battery analysis algorithm - Adaptive Conductance. Adaptive
Conductance produces a more accurate examination of the battery's
cold-cranking ability and reserve capacity, vital to determining a
battery's true health. The diagnostic report can be customized with your
personal or entity information.
1. Lifetime Free Update Online
2. Print and Email Customised Report
3. BMS Reset: Broaden your service expertise
4. Smart System Detection: Bolster confidence
5. Comprehensive Systems Diagnostics, unleash more possibilities
6. Accurate Diagnostics: Advanced testing methods, more decisive results
7. Multi-Language Supported: English, German, French, Italian, Dutch, Polish, Spanish, Portuguese, Russian, Swedish
Dynamic Service Experience, Faster and Easier Operation:The BT1 offers a
rich user experience with a large touchscreen and on-screen support
* Offers Simple Navigation
* Improve Service Effectiveness with Its 5.5-Inch Color LCD Screen
1. TOP-LEVEL ACCURACY & QUICK TEST RESULTS: Exclusive adaptive conductance algorithm.
2. Battery load tester, car cranking, and charging system analysis.
3. New battery registration to ECU.
4. Auto VIN entry, auto-detection of battery specifications through the built-in camera

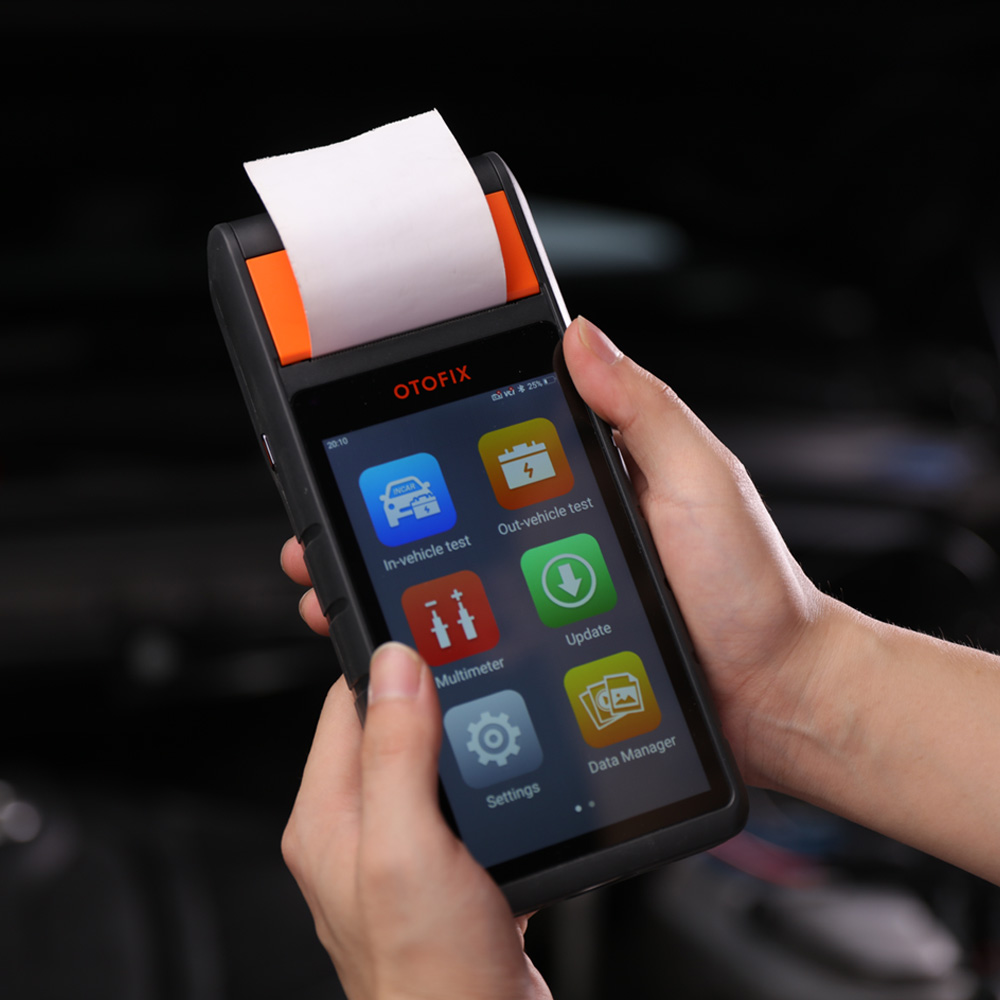

5. Built-in thermal printer and e-mail function to print and email customized report
Supported Battery Types
1. Battery Ratings:
CCA, CA, MCA, JIS, DIN, SAE, IEC, EN, EN2, BCI, GB
2. Battery Types:
Test Flooded, AGM, AGM_Spiral, EFB and GEL Batteries
Test 6- and 12-volt Batteries: 100 - 3000 CCA
Test 12- and 24-volt Cranking/Charging Systems
1. BMS Reset
Get access to automatic battery registration and more
2. Smart System Detection
Automatically identifies battery parameters and displays vehicle-specific battery locations by VIN
* AutoVIN: Battery parameters are identified when VCI is connected or VIN is scanned
* Guided Battery Replacement function with memory reset
* Graphic Instruction for battery positioning and testing helps to locate the battery and perform the test quickly
3. All System Accurate Diagnostics
your tester to a comprehensive tool with all-system diagnostics.
Adaptive Conductance test technology provides more accurate test results
* Reduce misdiagnosis
* Diagnose low-capacity batteries
* Reduce the need to charge and retest
* Read and clear codes for all available systems
* Covers 98% of the US, European, and Asian vehicle makes in the market

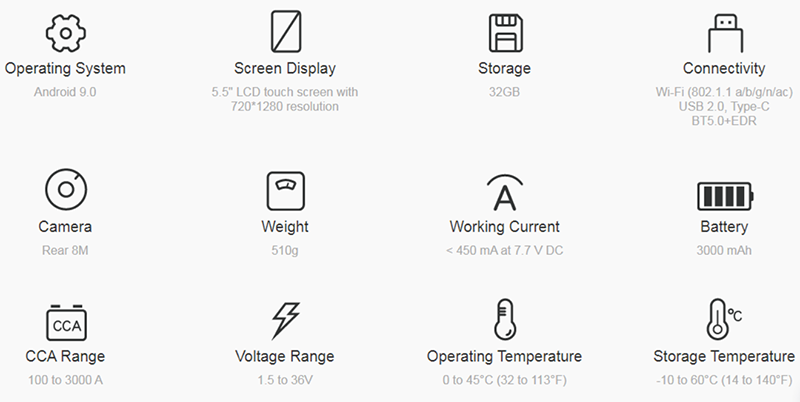

Operating System: Android 9
Screen Display: 5.5" LCD Touch Screen / 720*1280 Resolution
Connectivity: Wi-Fi (802.1.1 a/b/g/n/ac) / USB 2.0 Type-C / BT5.0+EDR
Input Voltage: 5V DC
Working Current: < 450 mA at 7.7 V DC
Internal Battery: 7.7V, 3000 mAh
CCA Range: 100 to 3000 A
Voltage Range: 1.5 to 36 V
Operating Temperature: 0° to 45°C
Storage Temperature: -10° to 60°C

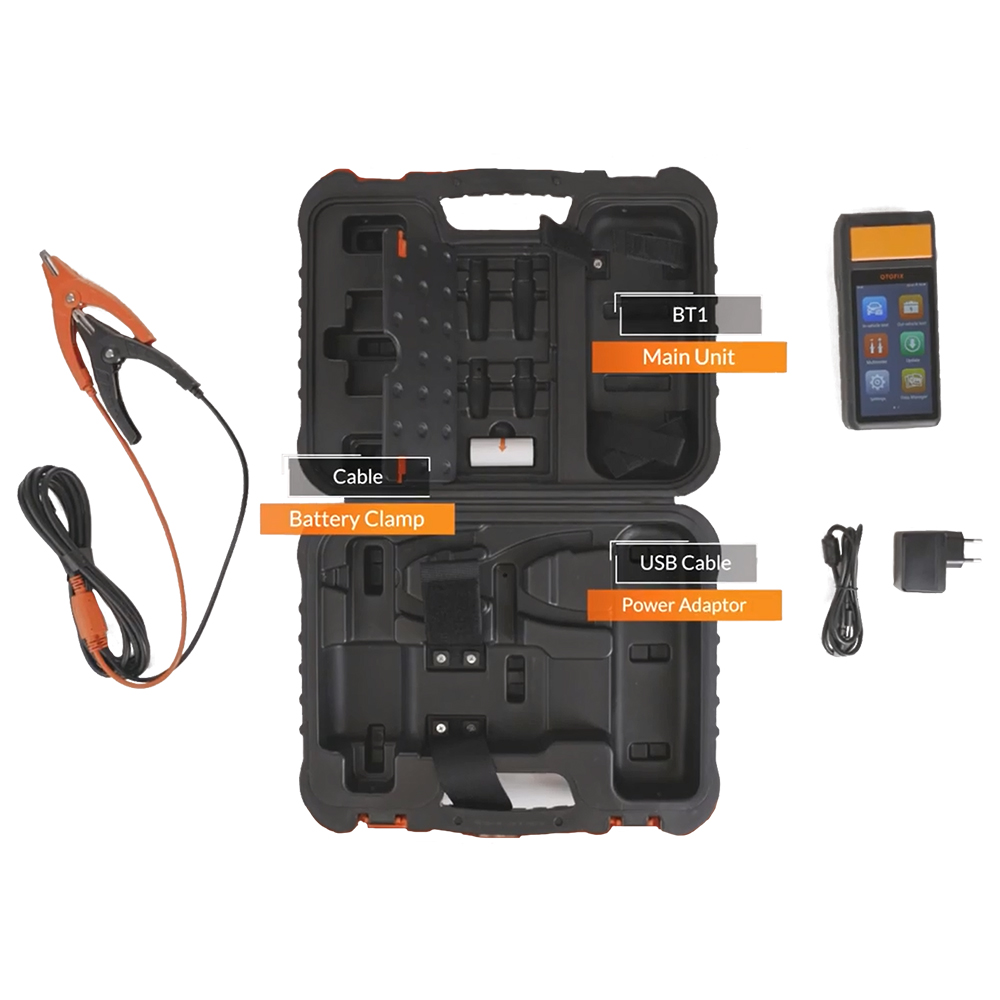

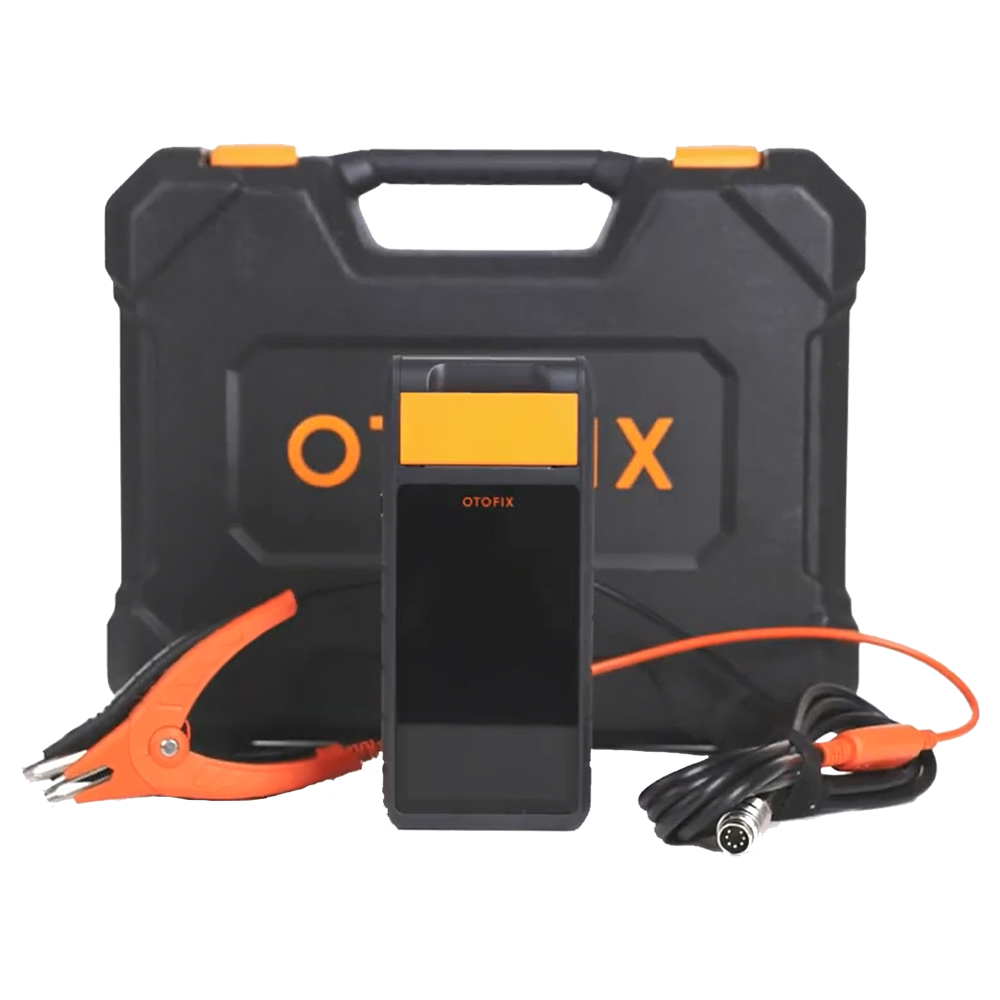

1pc Main Unit
1pc x Battery Clamp Cable
2pcs x Paper Roll
1pc x Power Adapter
1pc x USB Cable
What Can OTOFIX BT1 Do for You?
1. Electrical System Reset
2. Auto Registration After Battery Replacement
3. All System Diagnostics with Subscription
4. Graphic Instructions for Battery Replacing and Testing
5. Guided Battery Replacement Procedure with Prompted Memory Reset
6. AutoVIN to identify Battery Parameters
