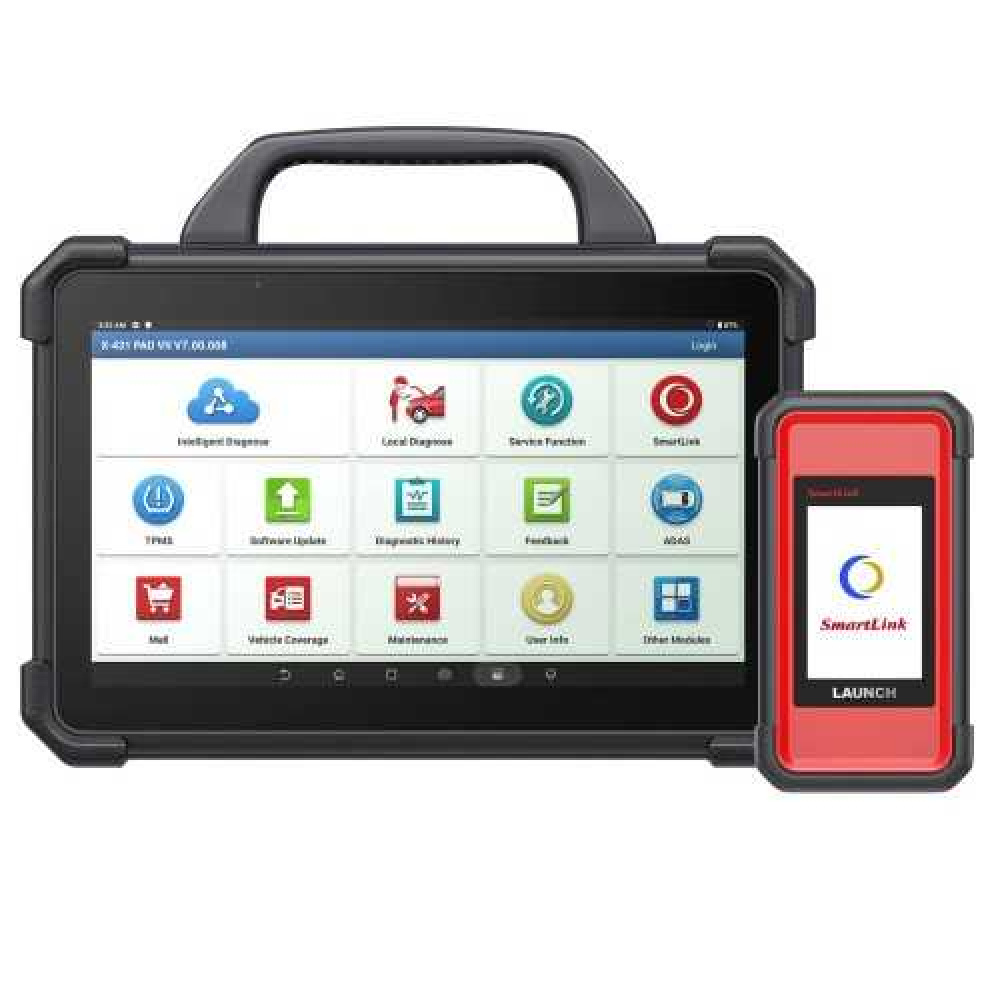

Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool Full System Support Online Coding Programming and ADAS Calibration

In Stock. History 29 sold. Item No. OA449

Buy Now: US$2250 16% off
May Sale Starts Now with Big Discount!
https://www.obdii.shop/category-225-b0-Disount-Items.html

If you have any questions, please do not hesitate to contact us, below is our contact information:
Email: Sales@obdii.shop
Whatspp: +86-13428908617
Skype: Cara02209
Shipping:
Free Shipping Express Shipping Service    Estimated delivery time: 5-7 working days.See details »
Because the covid-19 affects , the delivery time will be have delays , thanks
Weight:
15.0KG
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »


Related Products

Product Description

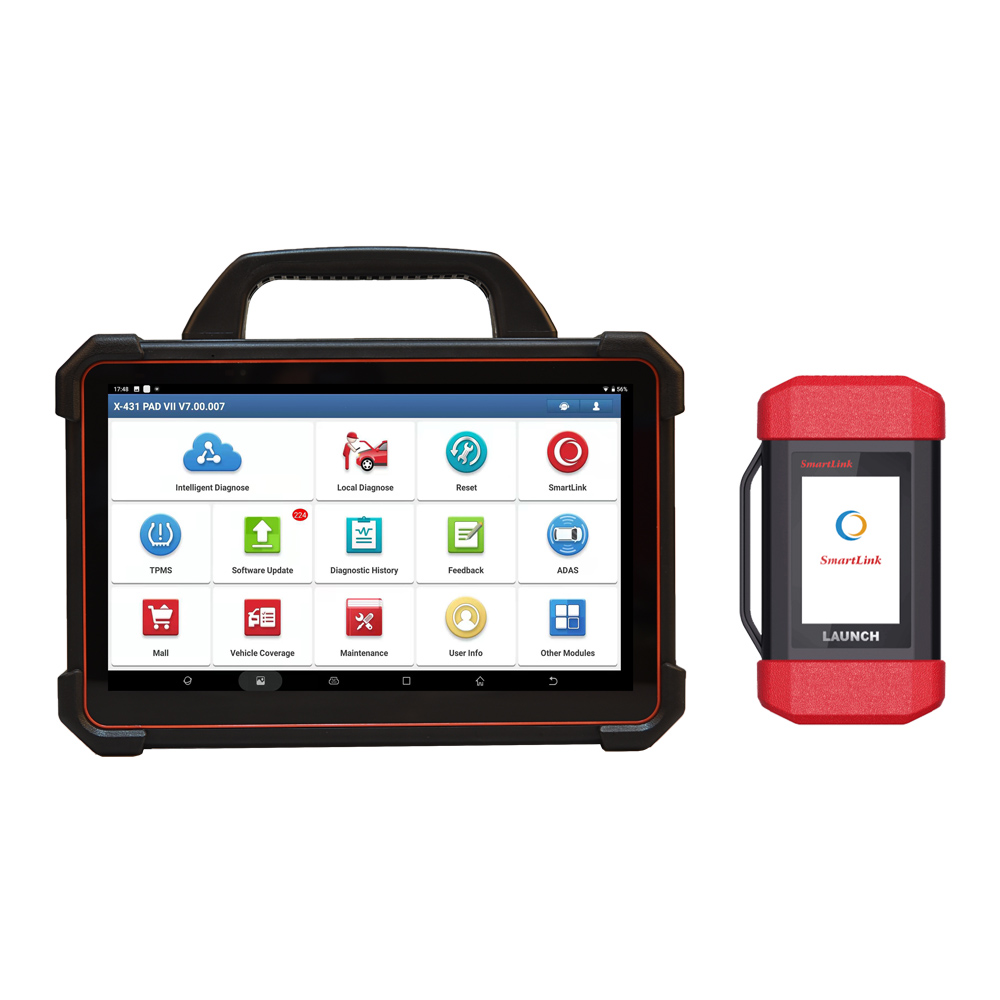

Launch X-431 PAD VII PAD 7 Elite Automotive Diagnostic Tool Full System Support Online Coding Programming and ADAS Calibration

Notice:
1. Launch PAD7 Elite can support Mercedes and BMW online coding and programming only in the United States, Canada and Mexico.
2. Online coding and programming functions can't perform at all in Spain and Portugal.
Other countries no limitation.

Customer Feedback:
It has nice functions, it did things for me on Mercedes especially the online scn coding and variant coding is great much more than im608. Also on old Volkswagen I could never read DTC from it with im608 or other tools but pad 7 do it easy.

Launch X431 PAD VII Elite is an unexpected high-end professional diagnostic tool with LAUNCH Innovation technology, comes with the ADAS calibration function, 32 service functions, TPMS service and 8 extended modules functions such as videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester. New Smartlink C VCI powers technician a new diagnostic level without the limitation of diagnostic functions, tools and vehicle types. X431 Pad V II offers topology mapping and a new module 'MALL' for users to expand and upgrade the tool with more diagnosis software.


Launch X431 PAD VII Highlights:
1. With 2 Years Free Update Online (Register after Oct 1st, 2022). After 2 Years, Please buy Update Service.
2. This is Global Version Without IP Limitation
3. Realtime Remote Diagnosis Function via WiFi
4. Support Commercial Vehicle and Passenger Car Diagnose, Support J2534, CAN FD, DoIP.
5. Multi-Language Supported: English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Swedish, Chinese
6. Full System Vehicle Coverage for U.S, Asian and European markets over 110 brands, which is continually updated
7. 32 Special Functions Supported: Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
8. Support Online Programming for Car Brands: BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru.
9. Guided Function for VW and AUDI
10. Support ADAS calibration Function and Eight Extended Mudule: videoscope,oscilloscope,sensor box,TPMS tools,key immobilizer and battery tester.
11. Build-in repair information and training video modules help to track and fix issue fast.

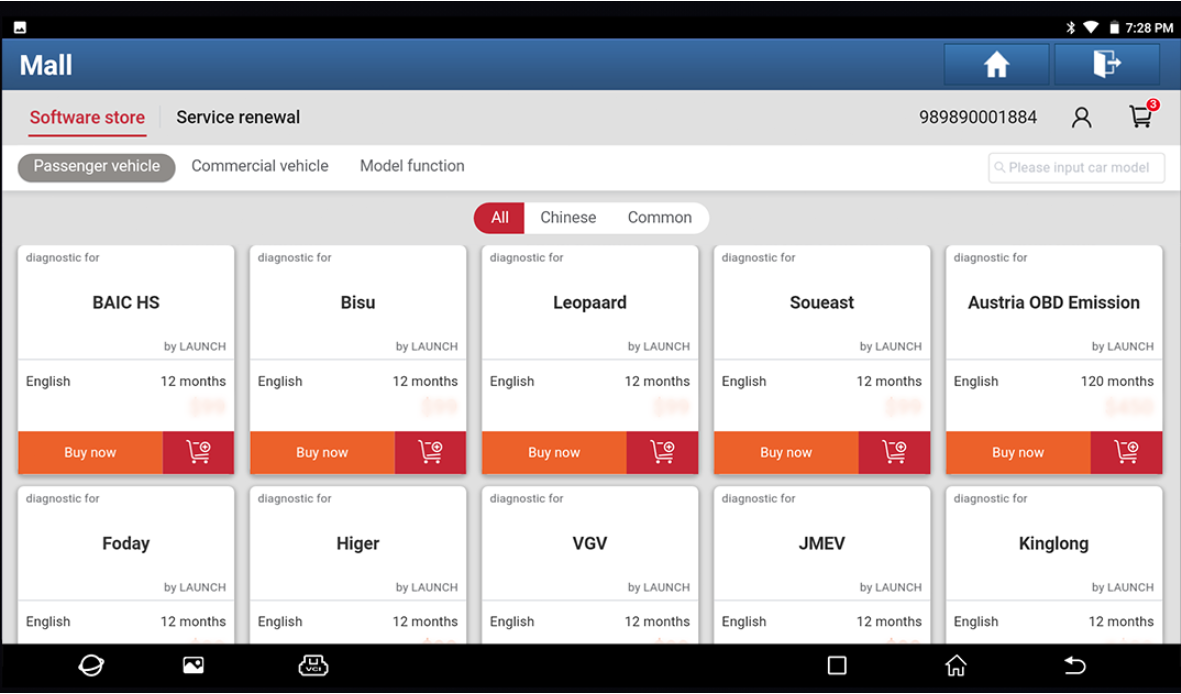

12. Upgrade and expand the X-431 PAD VII Elite with more software and service via the new module 'MALL' as demanded

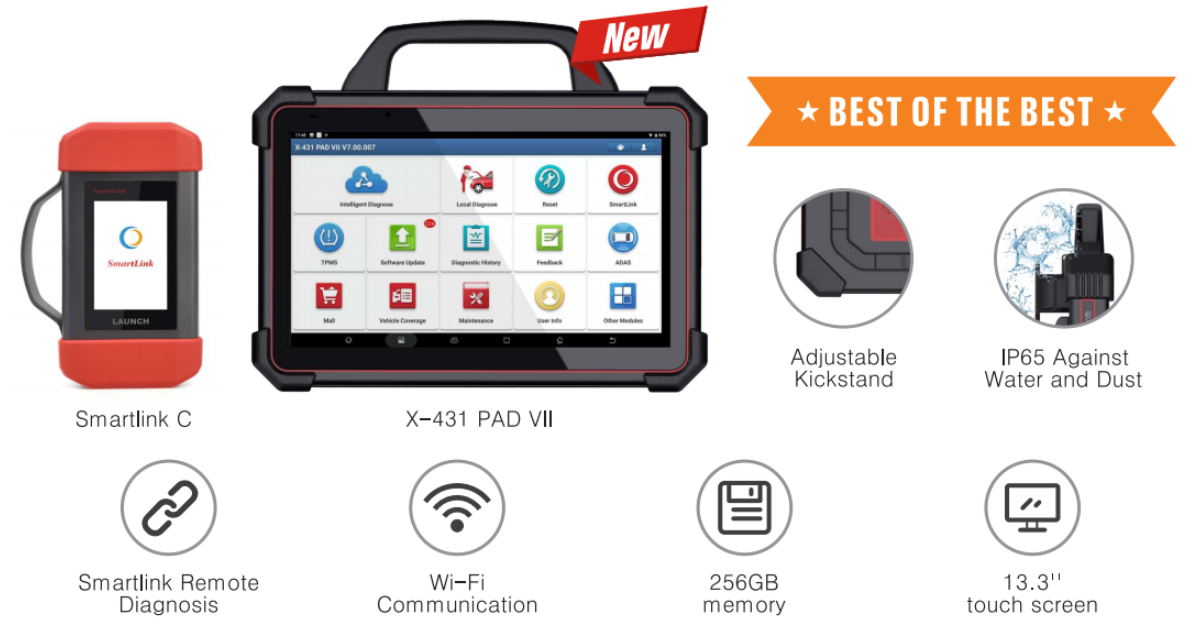

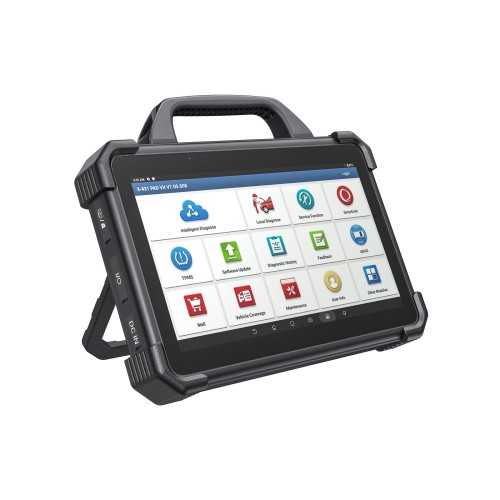

Superior Hardware Make Diagnosis Faster Than Ever
Launch X431 PAD VII Elite is an unexpected high-end diagnostic, comes with a 13.3 inch large touch screen, 32 service functions and Smartlink remote diagnosis. Equipped with the 2.0GHz Octa-core optimized chipset, Android 9.0 operating system, 8G memory and 256G large storagememories, X- 431 PAD VII Elite makes your intelligent diagnosis faster than ever.  The precision-machined outer shell is designed to work against workshop hazards such as water and dust damage and in compliance with IP65.
The X-431 PAD VII uses a high-capacity (about 19,000 mAh) and high power battery to ensure a longer battery life but a shorter charging time. Moreover, X-431 PAD VII Elite improves the connection between scanner and VCI into ‘Dual WiFi' connectivity, which allows the VCI to maintain faster and stable connection during diagnostics.


Launch X431 Pad VII Elite Functions:

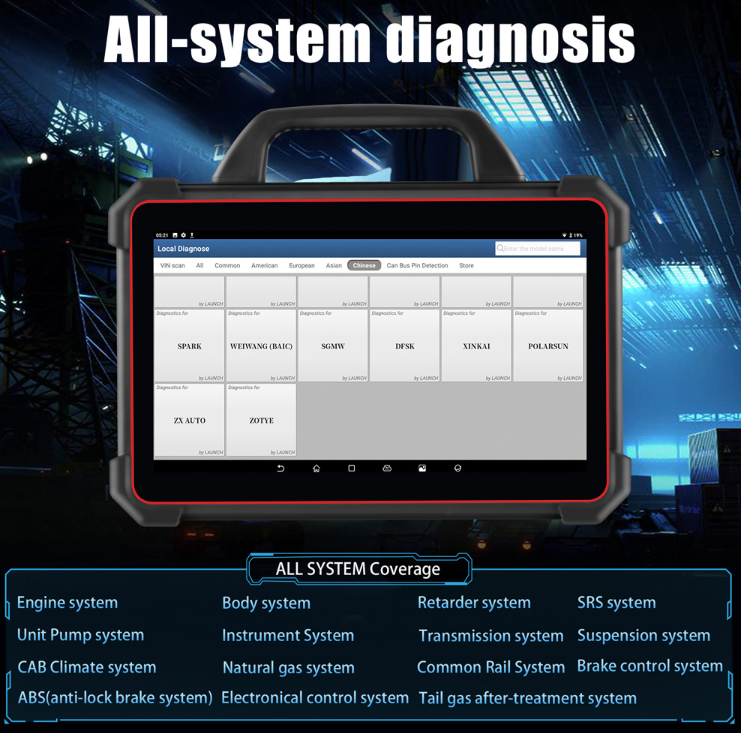

1. ALL System Diagnosis
Powerful all system diagnostic functions (intelligent diagnosis, remote diagnosis, read DTC, clear DTC, read data stream, actuation test), accurate diagnostic data, and abundant special functions.
Local diagnose:When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
Real-time voltage display helps technician to monitor the voltage condition of vehicle during the diagnosis
Intelligent diagnostic enable identify VIN automatically and access system quickly


BI-Directional Control [Active Test]


Check the DTCs and all systems communication status visually by topology module mapping function

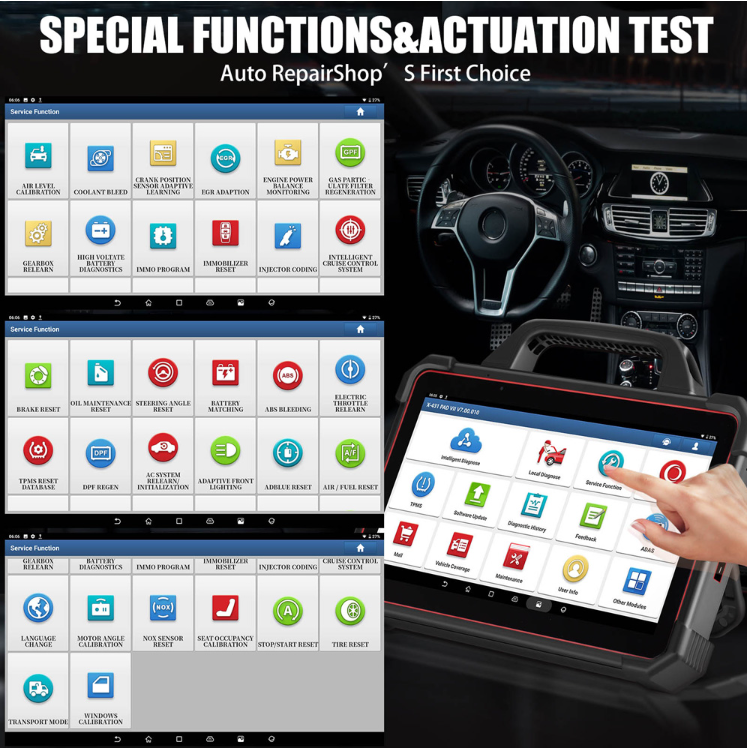

2. 32 Service Functions:
Service Lamp Reset
Electronic Throttle
Brake Reset
Immobilizer Reset
Battery Reset
Injector Coding
SAS Reset
TPMS Reset
ABS Bleeding
Gear Learning
DPF Regeneration
Gearbox Reset
Headlamp Reset
Sunroof Initialization
SUS Reset
EGR Adaption
A/F Reset
AdBlue Reset
Nox Sensor Reset
Stop/Start settings
Transport Mode
Coolant Bleed
Windows Calibrations
Seat Calibrations
Tyre Reset
Language Change

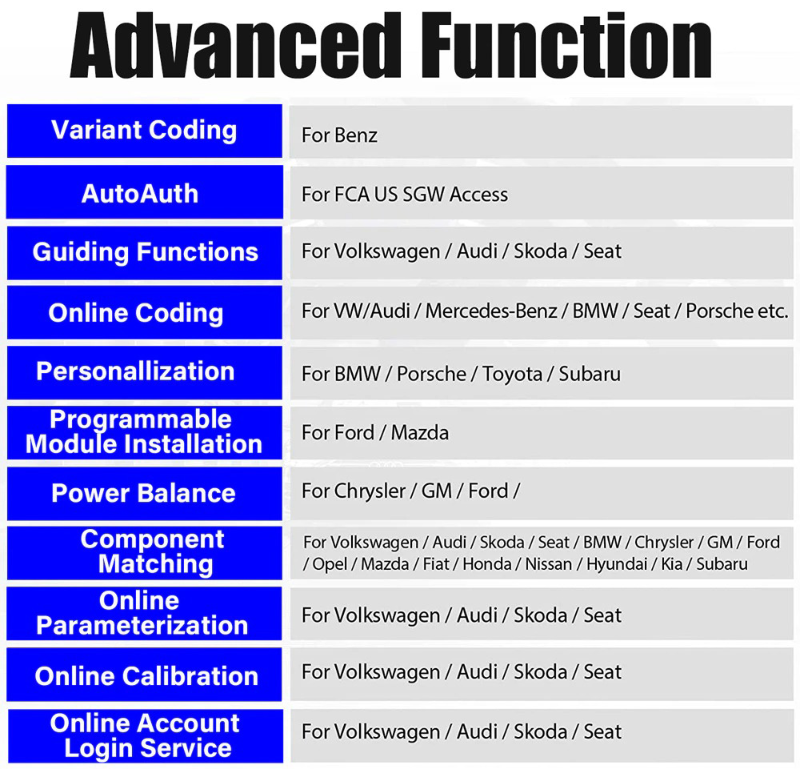

3.Advanced ECU Coding and Online Coding
J2534 ECU + Programming
Flash Hidden Functions
ECU Coding
Guided Functions
AutoAuth for FCA SGW
Anti-Theft IMMO Service


4. ADAS calibration Function and Extend 8 Module Functions
Optional ADAS calibration function increases more revenue.

X431 PAD VII Elite also supports 8 extended modules such as videoscope, oscilloscope, sensor box, TPMS tools, key immobilizer and battery tester.  With these extended modules, technicians are available to solve high level faults with ease, to make thouse extended modules, you need to pay and buy the following extended adapters,

Please notice
1.  X431 VSP-600 Videoscope (Mainly applied to check unseen parts of engine, fuel tank, braking system, etc.)
2.  X431 TSGUN (Not only can you use it to activate the sensor's ID, tire pressure, sensor frequency, tire temperature, and battery status;  you can also program sensor data to a blank LAUNCH brand sensor in three ways: Auto, Manual, and Activation Copy;  at the same time, you It can be used to write the newly programmed sensor ID to the vehicle ECU.)
3.  X431 X-PROG III(IMMO For VAG Group Above 3.5,advanced immobilizer & key programmer)Vehicles that require cloning are not compatible with this accessory
4.  X431 ADAS Moblie/ADAS PRO (Calibrate a wide range of camera-based & radar-based driver assistance systems)
5.  X431 Printer (Print out diagnostic data/reports.)
6.  X431 BST360 Battery Test. (For Battery Cranking system Test, Battery Charging system Test, Battery Health Test)
7.  S2-2 Sensor Box.  (Designed to test and simulate most vehicle sensors.  quickly troubleshooting the ECU)


5. More Advanced Functions:


Available Buy LAUNCH IMMO Function Authorization. Activate IMMO Plus function To Launch X431 PAD VII Elite

Launch X431 PAD VII Elite Vehicle Coverage:
Passenger Vehicles:
1. Australian:  AUST Holden, AUST Ford
2. Asian: Toyota/ Lexus, Honda/ Acura, Mazda, Subaru, Nissan/ Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti
3. European: Audi, Mercedes/ Maybach, BMW/ MINI/ Rolls Royce, VW/ Bentley/ Bugatti, Opel/ Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/ Dacia, Fiat/ Romeo/ Abarth/ Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar
4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep
5. Chinese: Changcheng (Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.
6. Special: Immobilizer/ Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS
7. Others: EOBD, Demo

Heavy Duty Vehicles (Need to Pay Heavy Duty License and Adpater Set):
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty,  Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

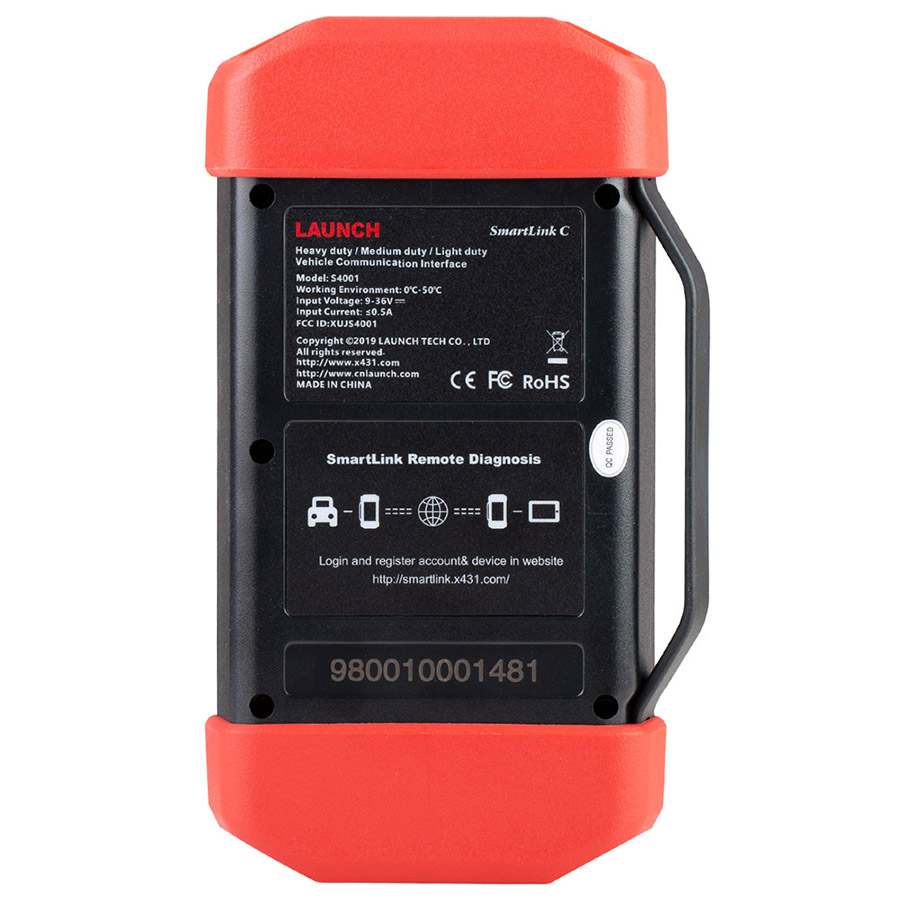

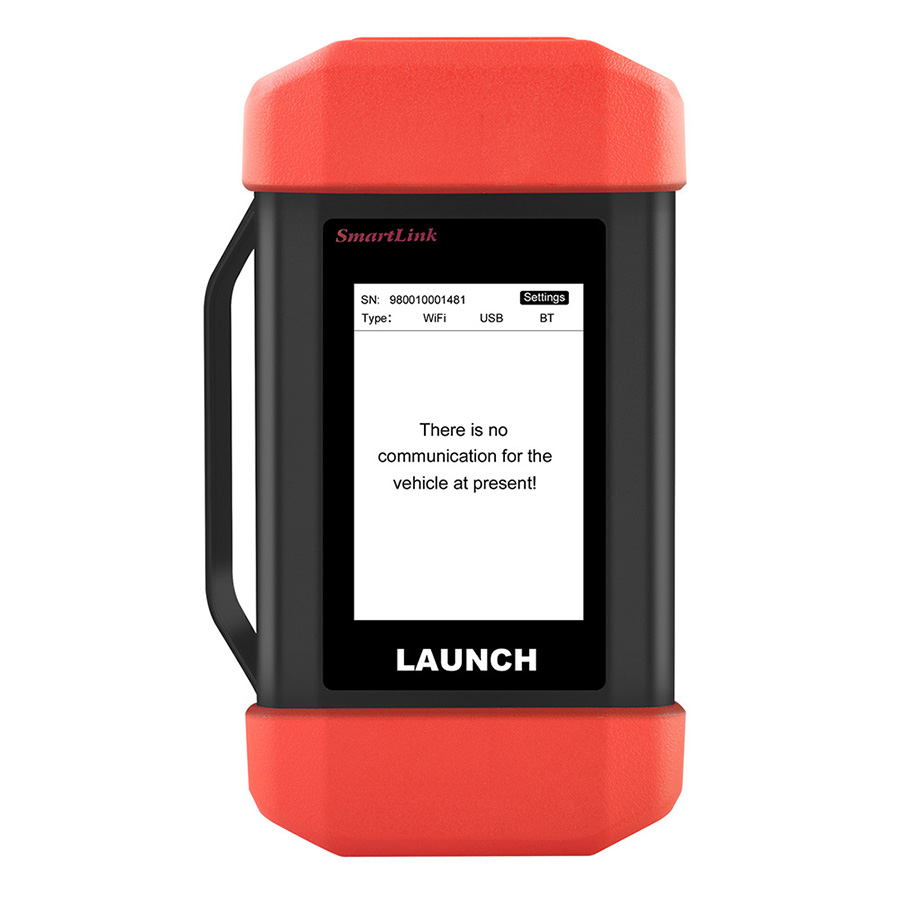

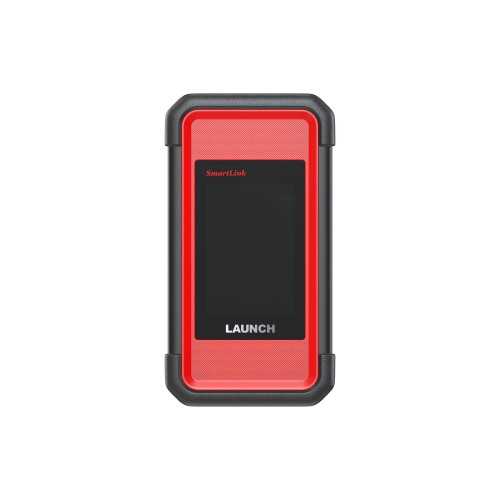

Smartlink C VCI

Smartlink C is a new generation intelligent diagnostic box with Linux system independently developed by Launch, which supports multiple communication modes (USB, BT, WIFI) and multiple diagnostic protocols. It can be used alone as a remote diagnosis box for SmartLink remote diagnosis, or as a pass-thru tool to connect with OEM software.

* Support D-PDU / J2534 / RP1210 diagnostic standard, and cover passenger cars and commercial vehicles at the same time
* Support the latest diagnosis protocol of CAN/DOIP / CAN FD
* Support 2.4G/5G dual band
* Support online upgrade

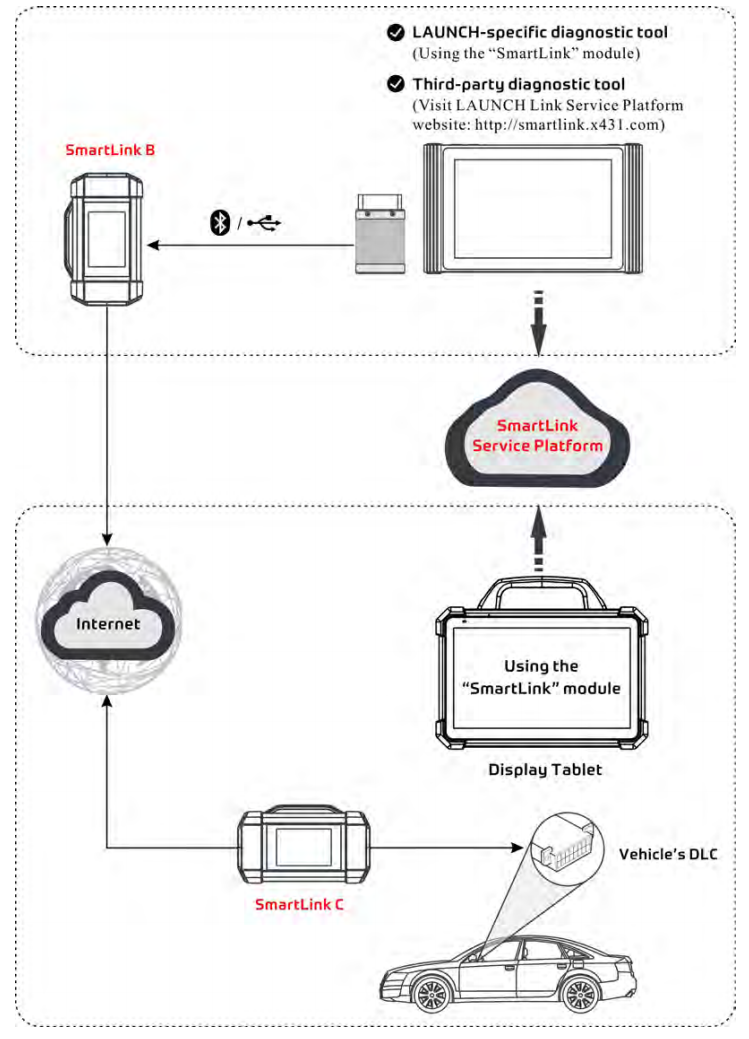

In the SmartLink ecology system, if a technician (SmartLink C) does not have time to puzzle through a touch vehicle problem, he can seek a trusted second opinion or additional expertise on various vehicle issues from remote master technicians or repair shops (SmartLink B). SmartLink B enables the shop owner to greatly increase customer's retention and boost shop revenue by providing the professional technical assistance service.
It mainly consists of the following parts:


Comparison Table for Launch X431 PAD VII, PAD V and PAD III V2.0:



Launch PAD III V2.0

Launch PAD V

Launch PAD VII Elite








Configuration







Display

10.1'' / IPS 1920*1200

10.1'' / IPS 1920*1200

13.3''  / 1920 x 1080 IPS

CPU

2.0GHz Octa-core

2.0GHz Octa-core

2.0GHz Octa-core

Memory

2 GB

4 GB

8 GB

Storage

64 GB

64 GB

256 GB

Camera

8MP Rear + 2MB Front

13MP Rear + 8MB Front

13MP Rear + 8MB Front

VCI Connector

DBScar IV

Smartbox 3.0

Smartlink C

VCI Connection

Bluetooth

2.4GHz & 5GHz dual WiFi

2.4GHz & 5GHz dual WiFi

Battery

15000mAh

9360mAh

71.1Wh (≈19000mAh)

Adjustable Supporting Holder

IP65 Waterproof & Dustproof



Quick Charge Technology



Charging Station





PUSH PUSH Design







Size (mm)

317 * 202 * 53

320 * 211 * 46

353 * 236 * 71









FEATURES

Operating System

Android™ 5.1.1

Android™ 7.1

Android™ 9.0

Full System Diagnosis

OBD II Full Function

Tech-to-Tech Remote Diangosis

Smartlink Remote Diagnosis





Auto VIN Identification

Bi-Directional Control

Advanced Coding

VW & AUDI Guided Function

J2534



DoIP



RP1210/D-PDU



Advanced Programming

Complete TPMS Service

with X-431 TSGUN

with X-431 TSGUN

with X-431 TSGUN

Advanced Key Programming

with X-PROG 3

with X-PROG 3

with X-PROG 3

ADAS Calibration

Optional

Optional

Optional

Software Upgrade

WiFi

WiFi

WiFi

Vehicle Coverage

Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)

Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)

Passenger Cars Medium & Light Duty Vehicles Heavy Duty Vehicles (Optional)

Service Functions

21

26

32 by local diagnosis
Get More by Smartlink Remote Diagnosis

SERVICE FUNCTIONS

Brake Reset

Oil Reset

SAS Reset

Battery Match

ABS Bleeding

Elec. Throttle RLRN

TPMS Reset

DPF Regeneration

Gear Learning

Immobilizer

Injector Coding

Sunroof Initialization

SUS Reset

AFS Reset

Gearbox Learning

Adblue Reset

Coolant Bleeding

EGR Adaption

Nox Sensor Reset

Seats Call Bration

Tyre Reset

Windows Calibration



A/F Reset



Stop/Start Reset



Transport Mode



Language Change



AC System Relearn





ACC Calibration





Engine Power Balance Monitoring





GPF Regeneration





Rotation Angle Sensor Calibration





High-Voltage Battery Health Detection





More Reset Services





Via Smartlink Remote Diagnosis

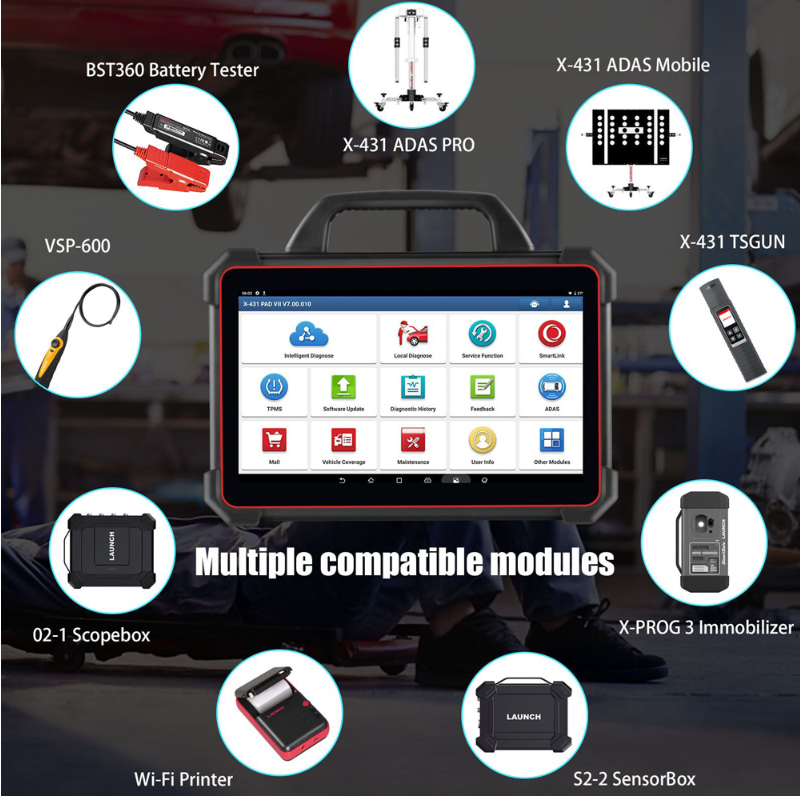

Compatible Modules

X-431 ADAS PRO

X-431 ADAS Mobile

X-PROG 3  Immobilizer

X-PROG  Immobilizer

BST360 Battery Tester

WiFi Printer

X-431 TSGUN TPMS device

VSP600 Videoscope

X-431 O2-1 Osciloscope

X-431 S2-2 Sensorbox

HD III Module





Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools
Smartlink Remote Diagnosis: Diagnose vehicles without being on-site with Launch scan tools, OEM tools or other diagnostic tools of different brands.


Launch X-431 PAD VII Elite Specification:



X-431 PAD VII Elite

Smartlink

Operation System

Andorid 9.0

N/A

CPU

2.0GHz Octa-core

N/A

Display

13.3' touch screen 1920*1080

3.5' touch screen  320*480

Memory

8GB

256M

Storage

256GB

8GB

Camera

Rear 13MP, Front 8MP

N/A

WiFi

Dual Band 2.4 & 5GHz

Dual Band 2.4 & 5GHz

Diagnostic Communication

WiFi

WiFi & BT & USB

Working Temperature

0℃~50℃

0℃~50℃

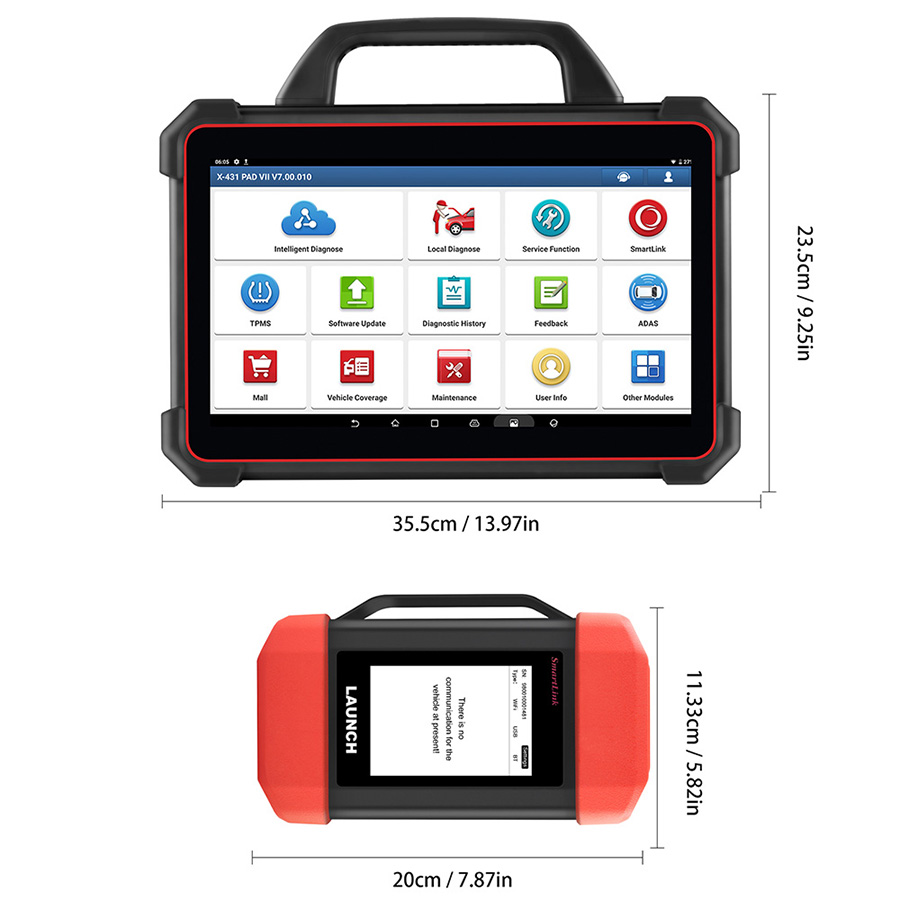

Dimension

353*236*71 mm

204*110*45 mm

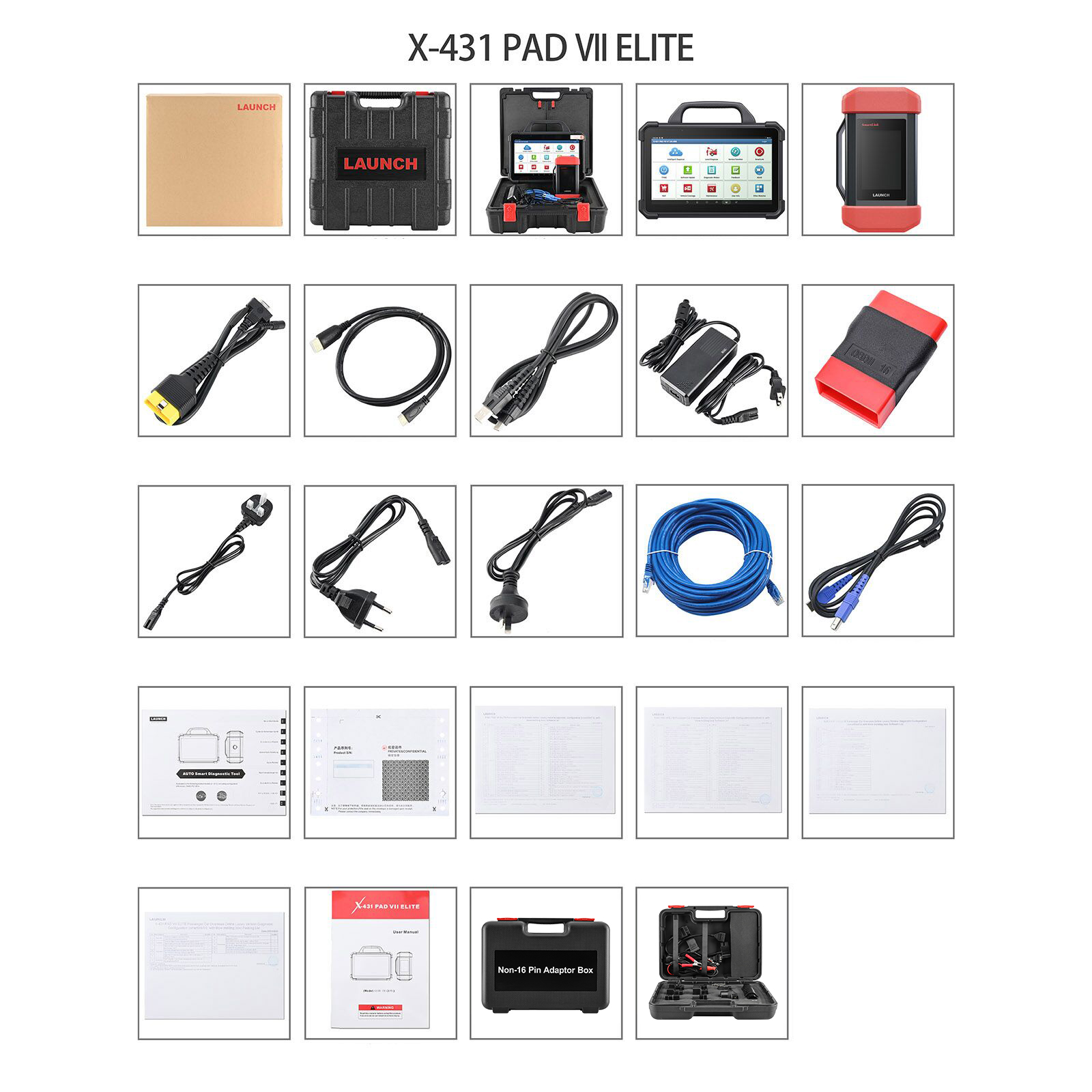

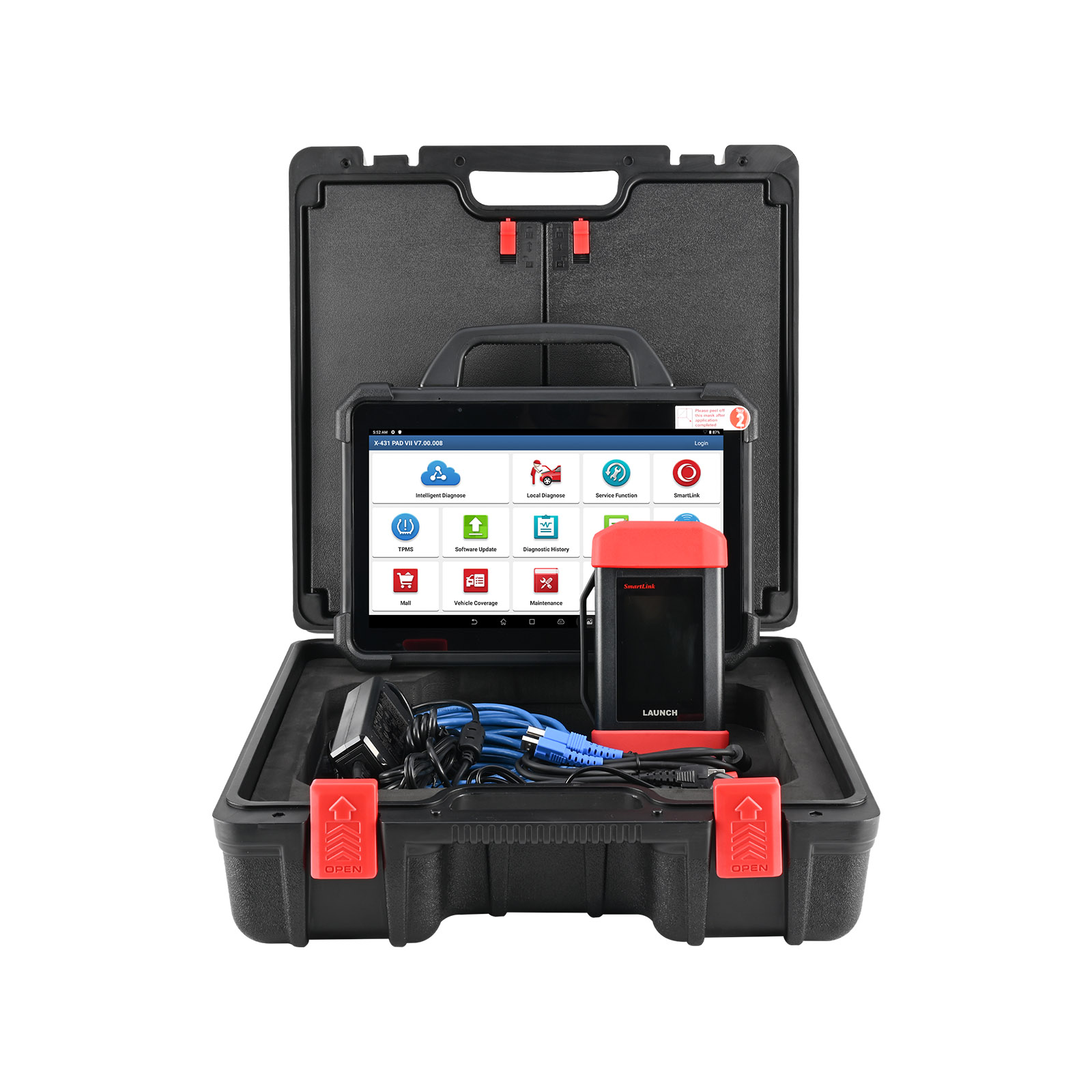

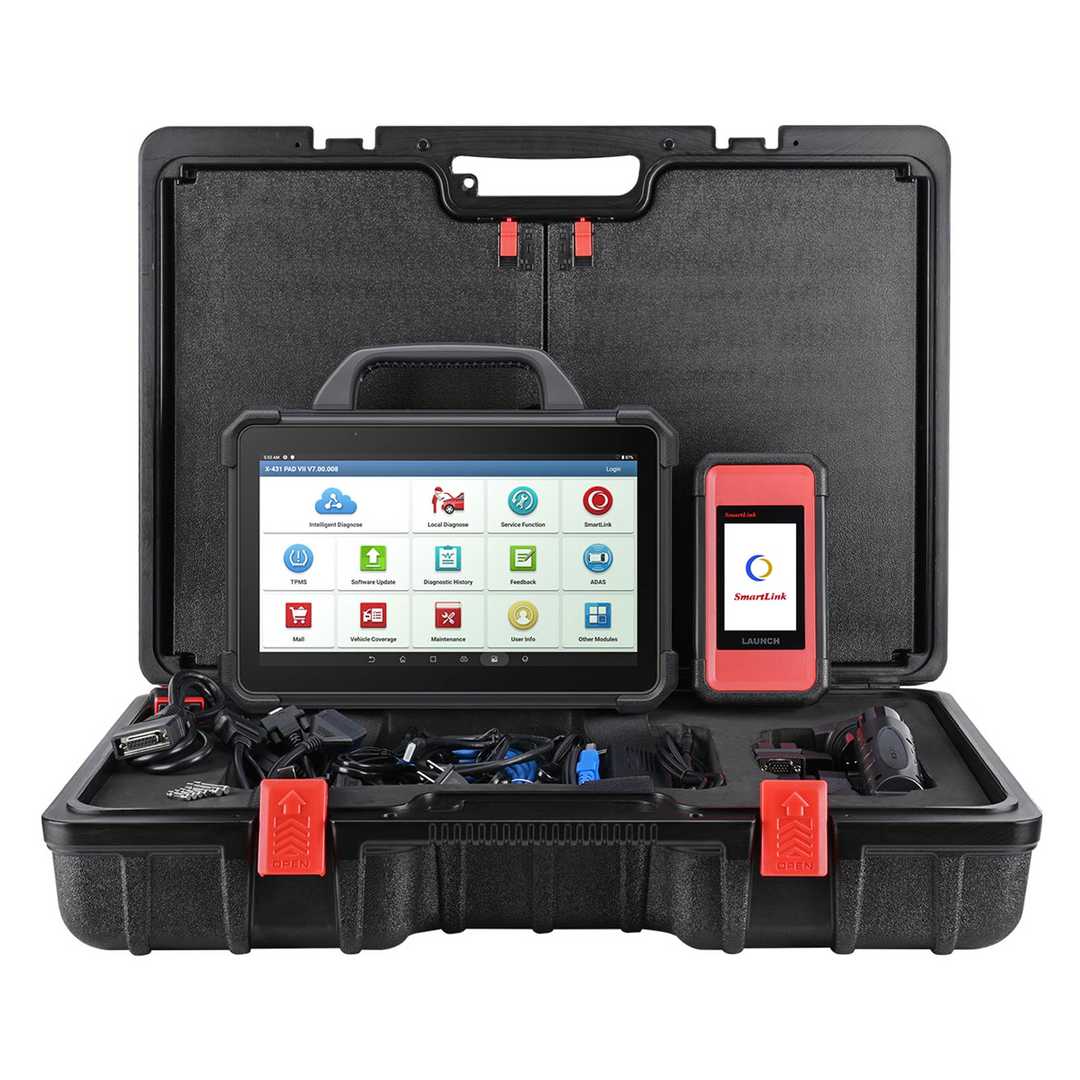

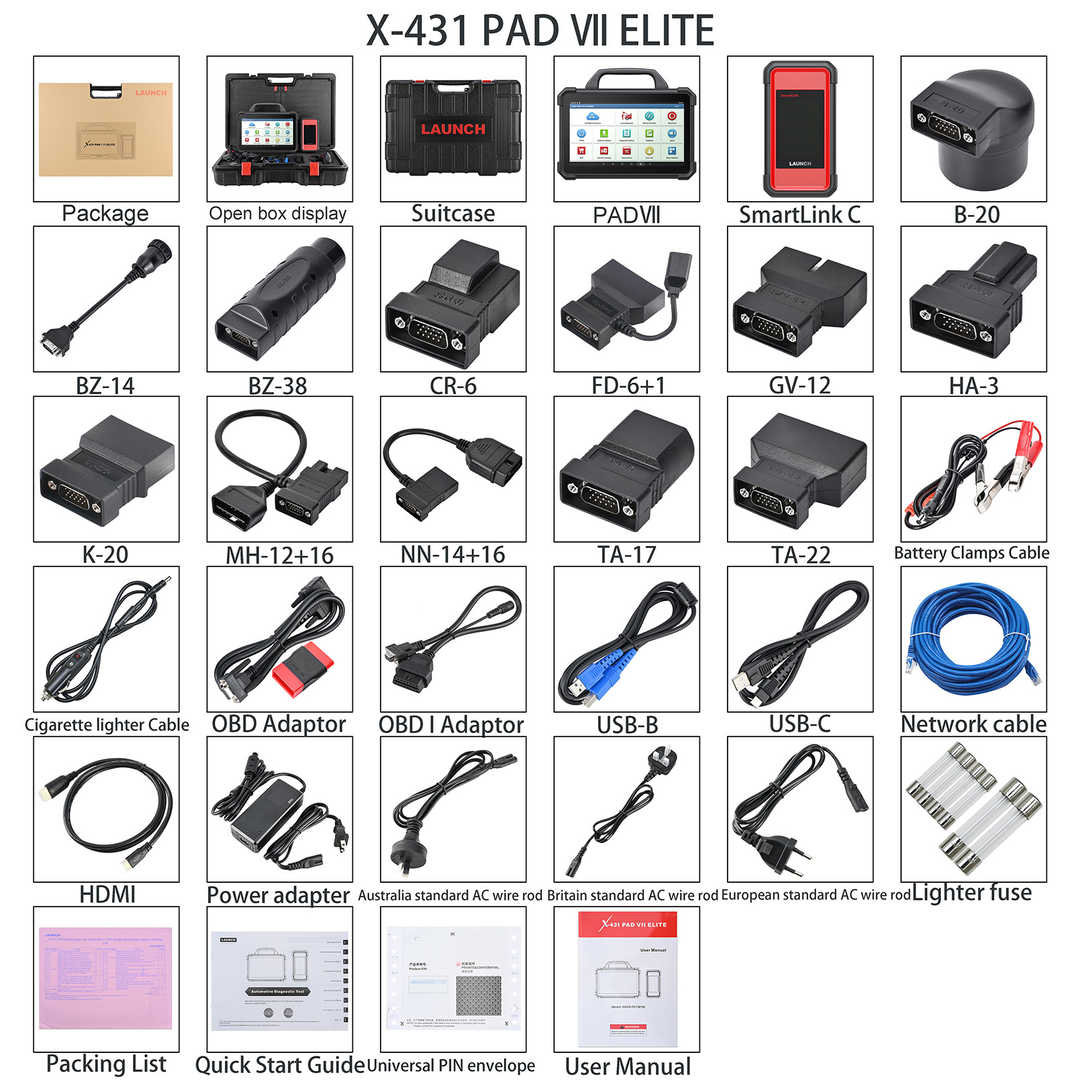

Launch X431 Pad VII Elite Package List:
1pc x carton
1pc x plastic box
1pc x PAD Ⅶ elite
1pc x smartlink
1pc x main cable
1pc x HDMI
1pc x USB-C
1pc x US power adaptor
1pc x OBD2 16-pin adaptor box

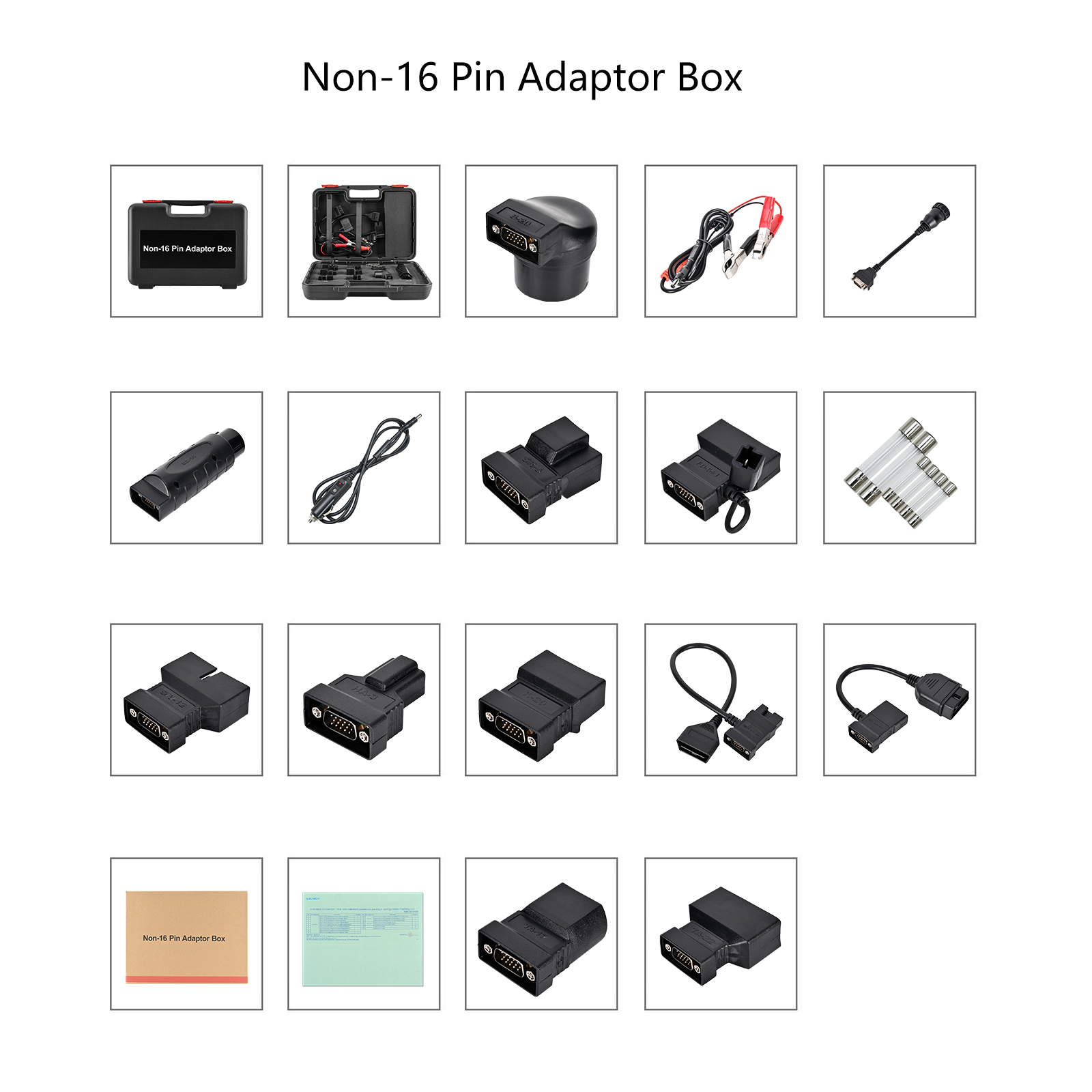

1pc x Non-16 Pin adaptor box
1pc x UK power adaptor
1pc x Australia power adaptor
1pc x net cable
1pc x USB printer cable
1pc x quick start guide
1pc x product S/N
1pc x packing list
3pcs x software list
1pc x manual
