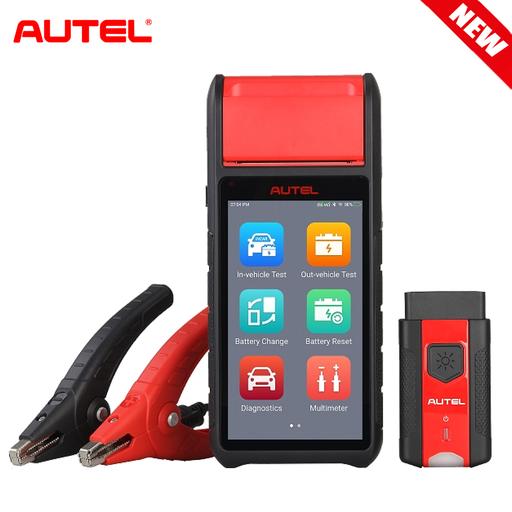

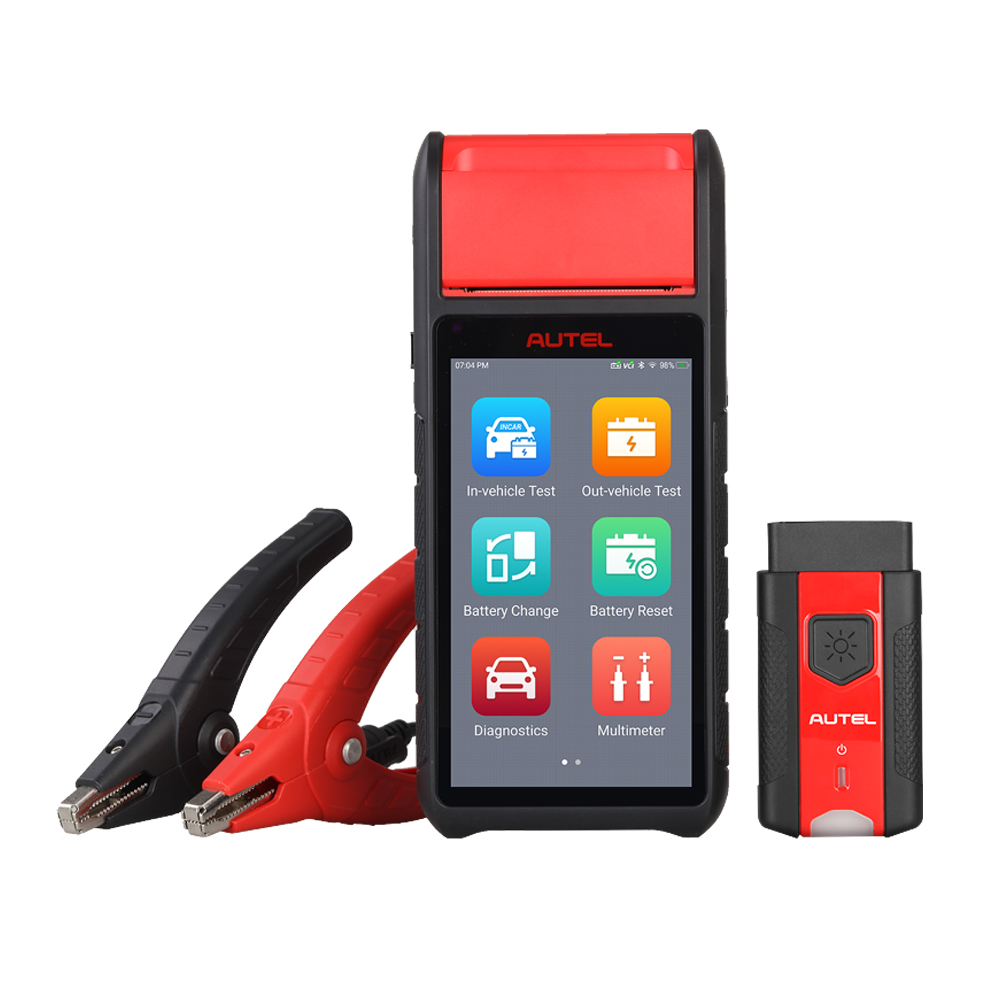

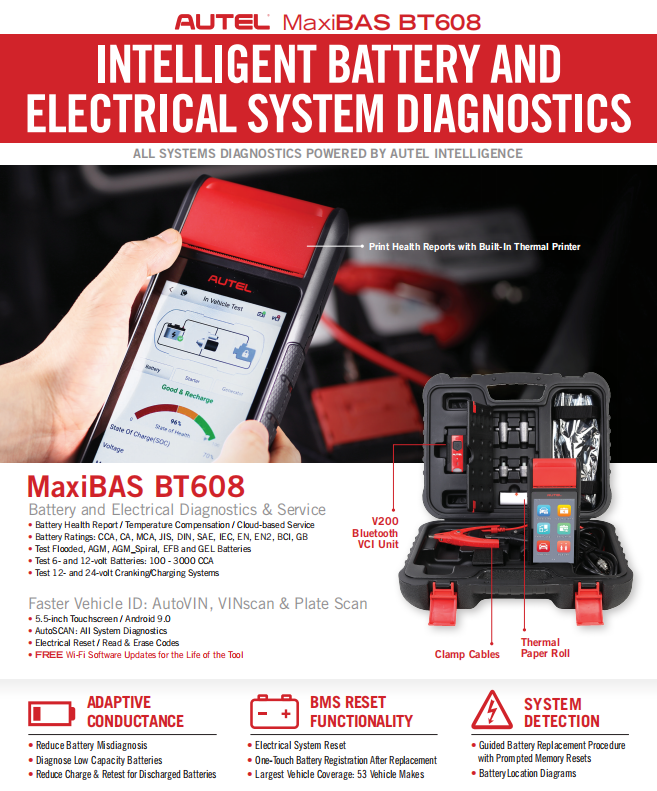

Autel MaxiBAS BT608 Automotive Battery & Electrical System Analyzer Diagnostic Tool Car Circuit Tester
Autel MaxiBAS BT608 video：

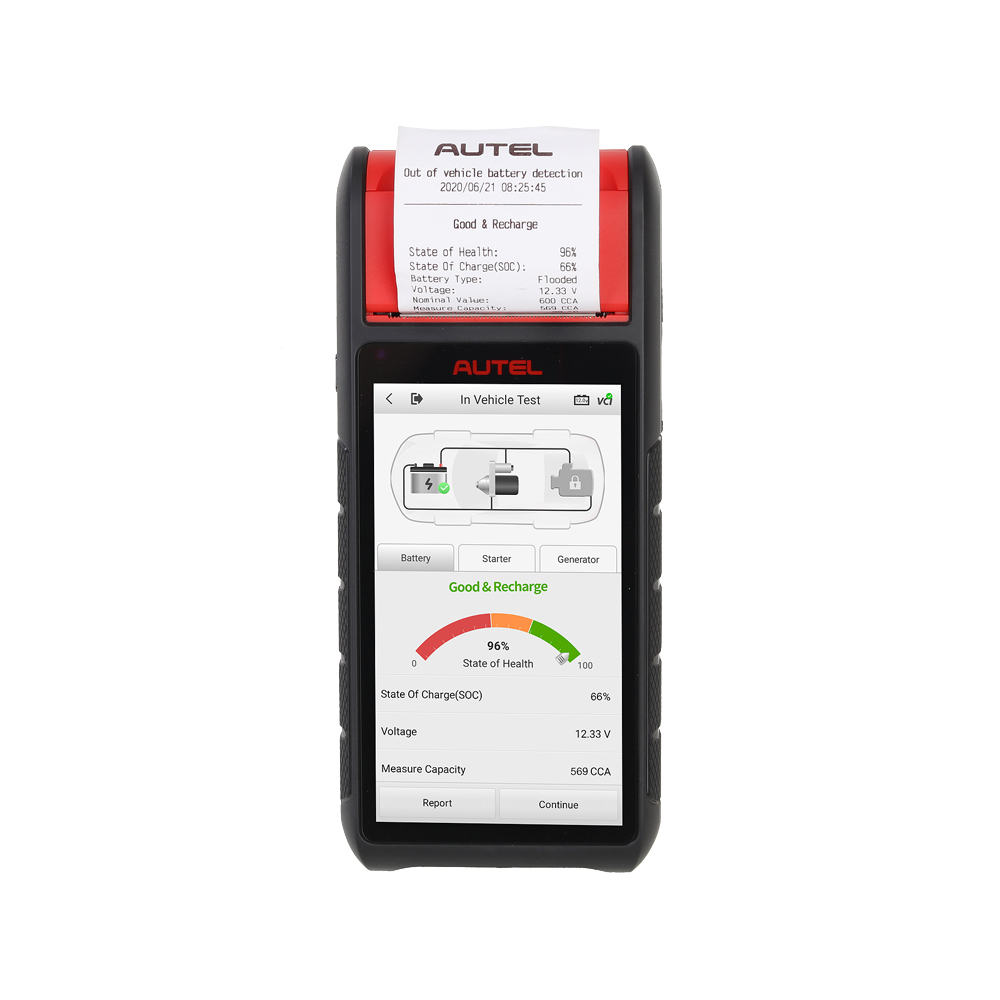

The BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT608 can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT608’s VINscan function enables quick identification of the vehicle and battery specifications. Read/Clear codes on all available vehicles systems. Print or share customized reports via Wi-Fi or print test reports via the built-in thermal printer
Autel MaxiBAS BT608 Description：
• Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
• Test 6- and 12-volt batteries: 100 - 3000 CCA
• Test 12- and 24-volt cranking/charging systems
• Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
• Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
• One-touch Battery registration

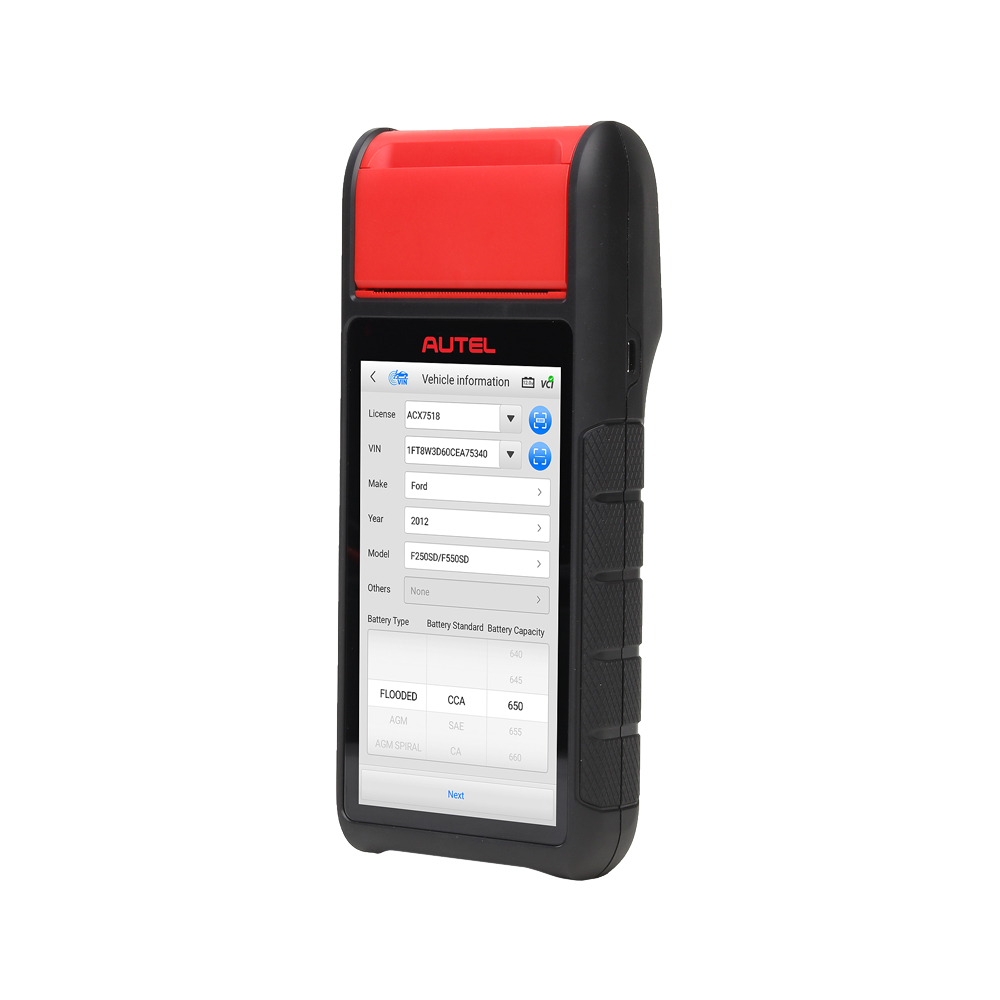

• Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry
• Illustration instruction guides for battery positioning and testing
• Print test reports via built-in thermal printer
• Read and erase codes of all available systems
Autel MaxiBAS BT608 Comparison:
Autel BT608 Specifications:
Operating System: Android 9.0
Screen Display: 5.5'' LCD touch screen with 720*1280 resolution
Connectivity: Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 Type C, BT5.0+EDR
Camera: 8 Megapixel
Input Voltage: SV DC
Working Current: < 450 mA at 7.7 V DC
Internal Battery: 7.7 V, 3000 mAh
CCA Range: 100 to 3000 A
Voltage Range: 1.5 to 36 V
Working Temperature: 0° to 50° C (32° to 122° F)
Storage Temperature: -10° to 60° C (14° to 140° F )
Dimension (L x W x H): 204 mm (8.03”) x 90 mm (3.54”) x 32 mm (1.25”)
Weight: 510 g (1.12 lb.)

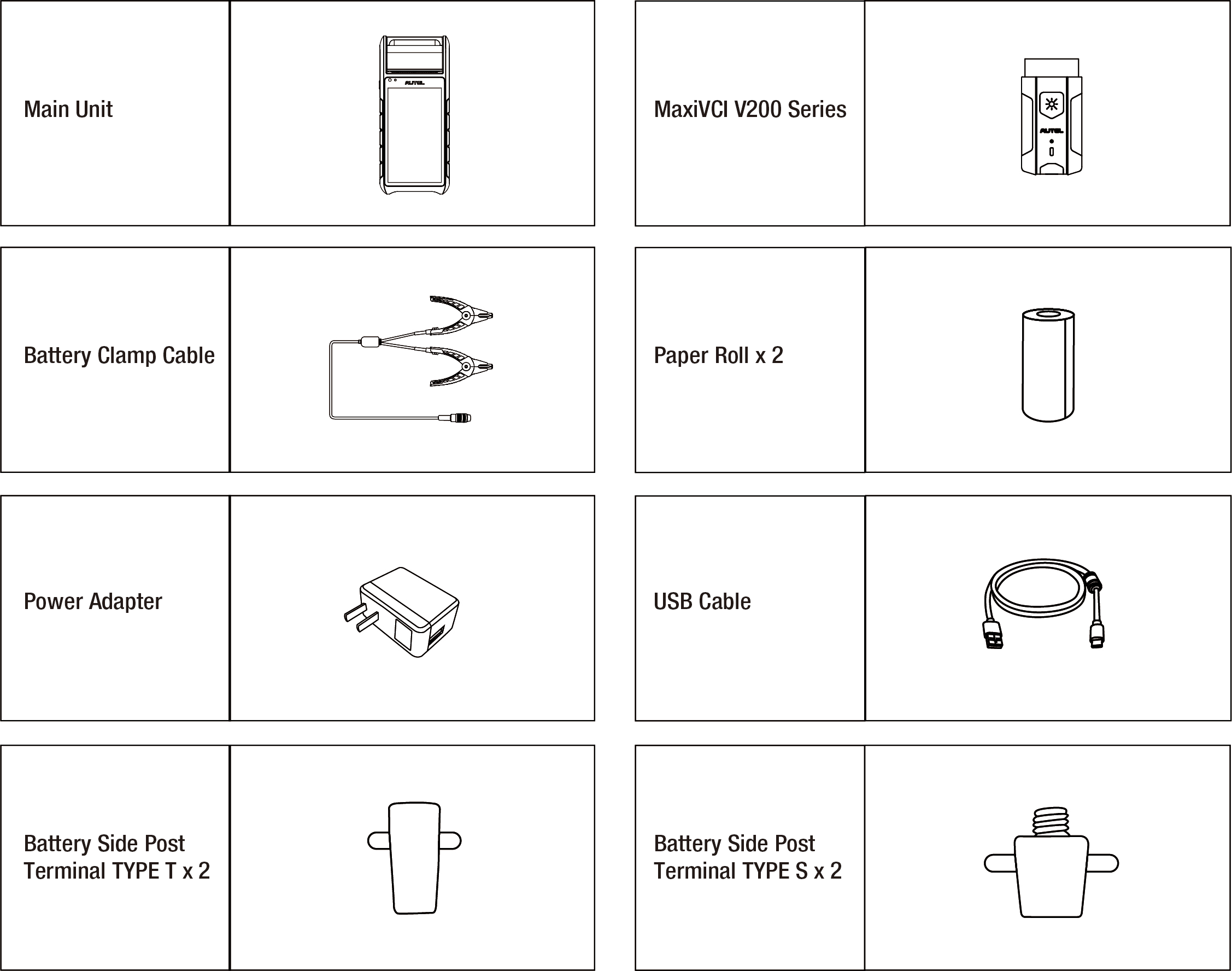

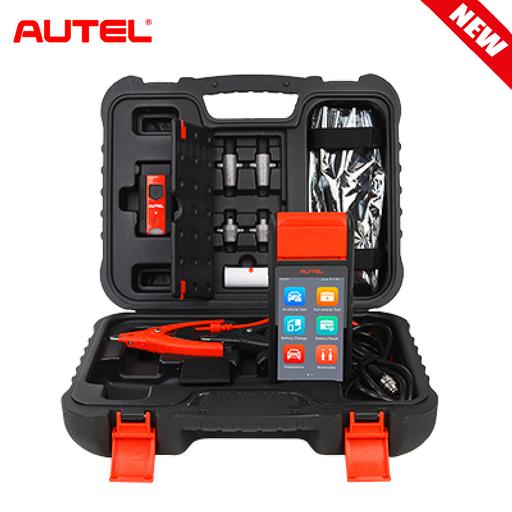

Autel MaxiBAS BT608 Package:
1x BT608 Main Unit

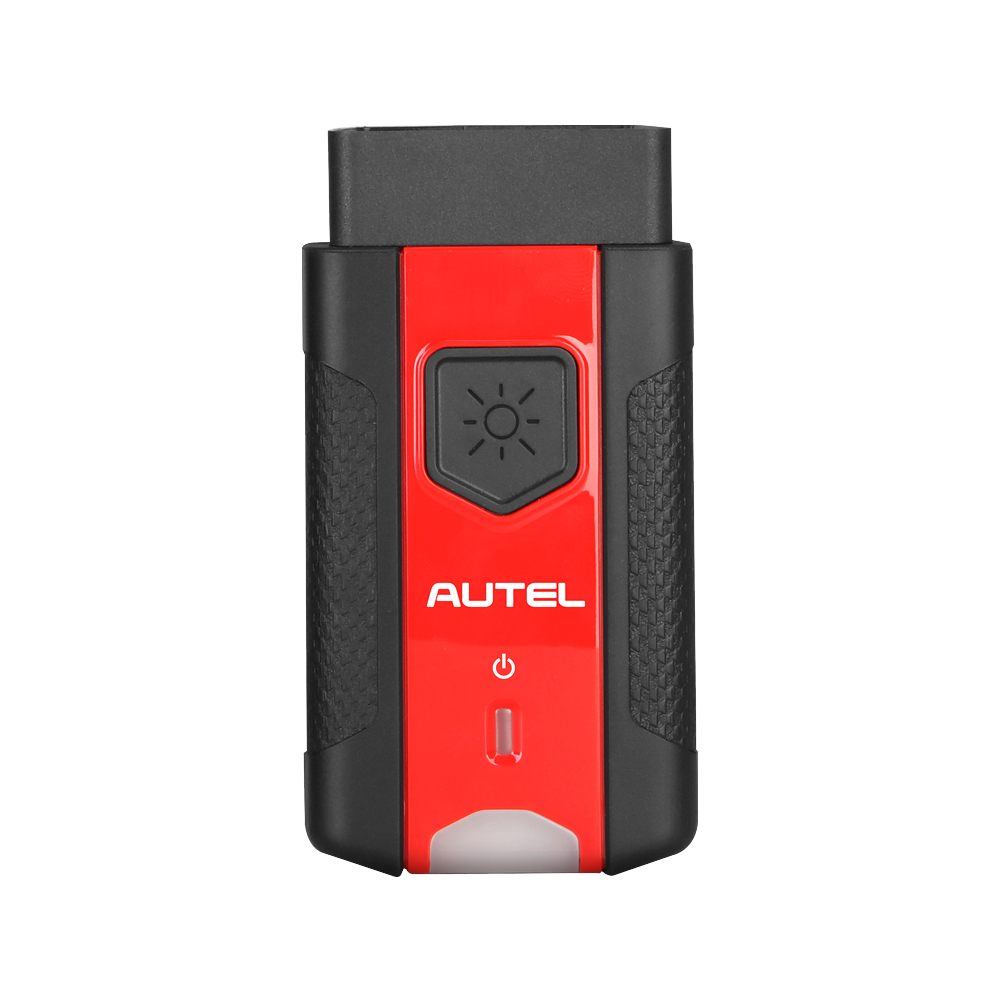

1x MaxiCVI MV200 Series

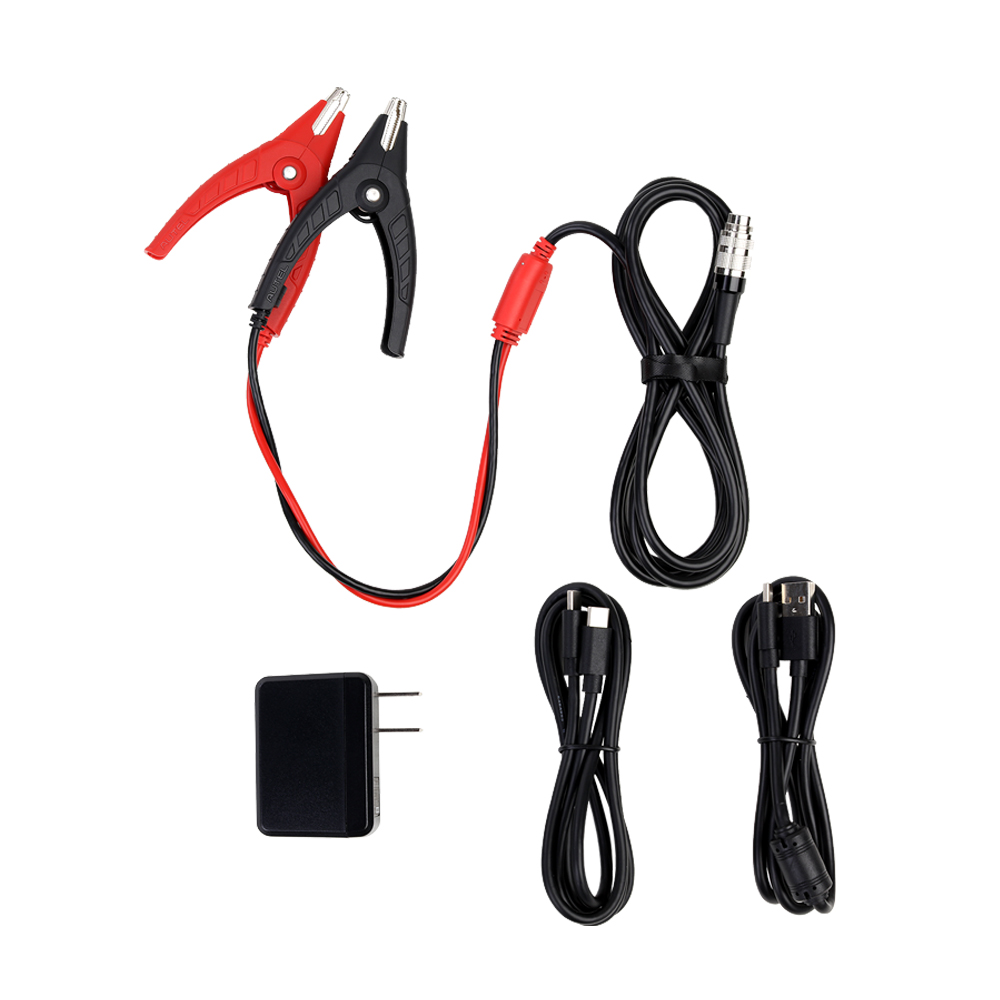

1x Battery Clamp Cable
2x Paper Roll
2x Battery Side Post Terminal TYPE T
2x Battery Side Post Terminal TYPE S
1x Power Adapter
1x USB Cable
