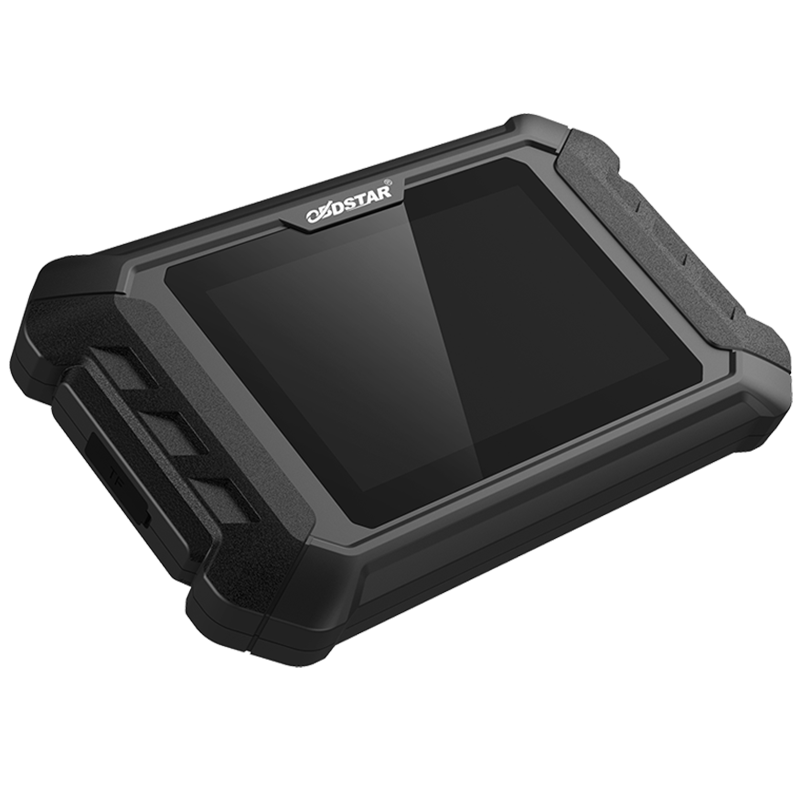

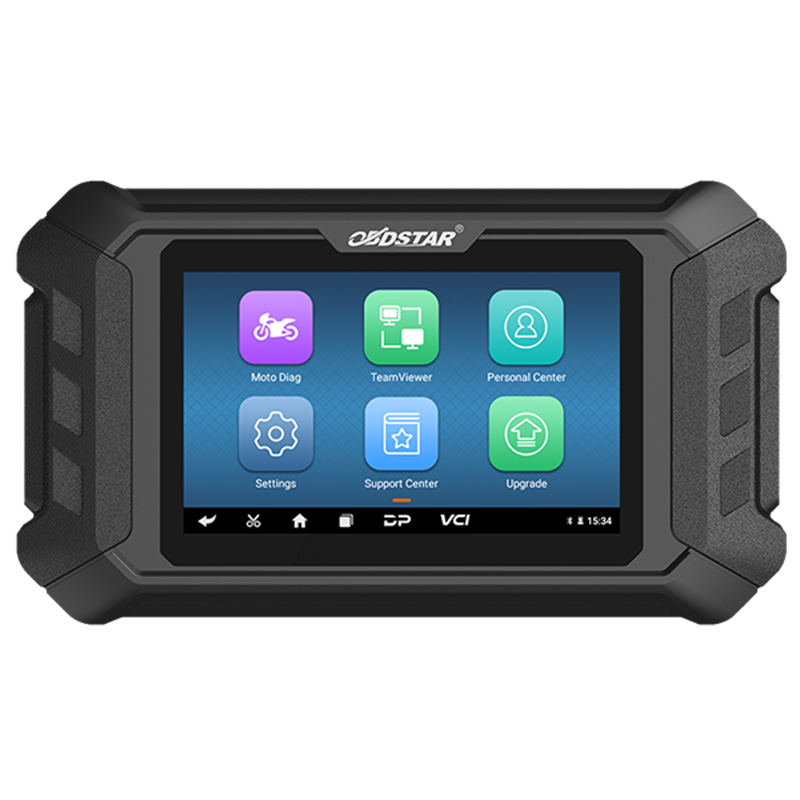

OBDSTAR MS50 Motorcyecle Scanner Motorcycle Diagnostic Tool

MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent  motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

Functions:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support  most of the Asia and Europe models;

Advanced function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/snowmobile/ATV/UTV support car series:
Asia:
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、Hardford、AEON;

Europe:
Benelli、KTM、Piaggio、Vespa

More functions under developing...

Different configurations include different software. For details, please contact OBDSTAR.

Function Display:

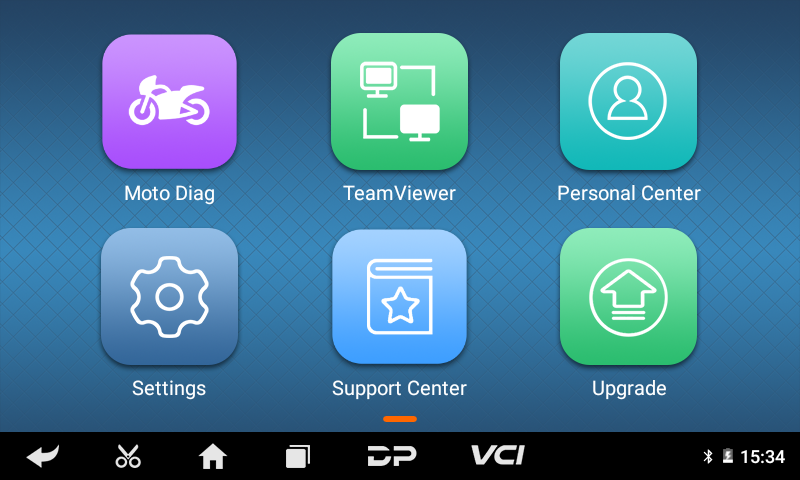

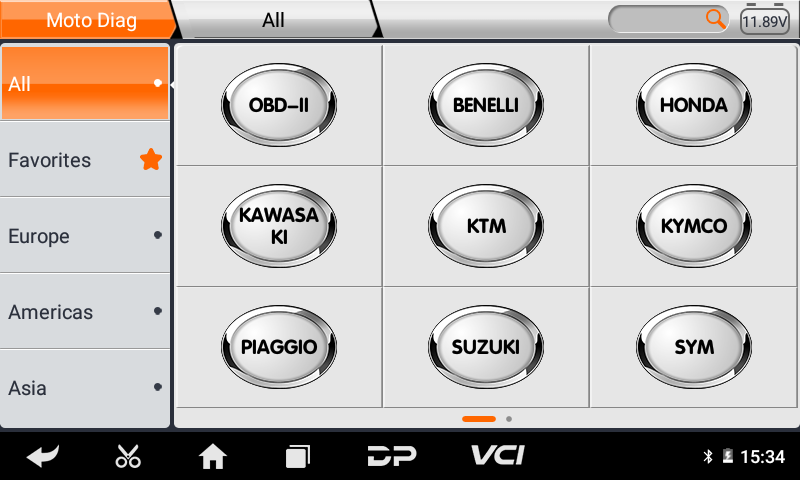

1) Main Page/Brand Supported

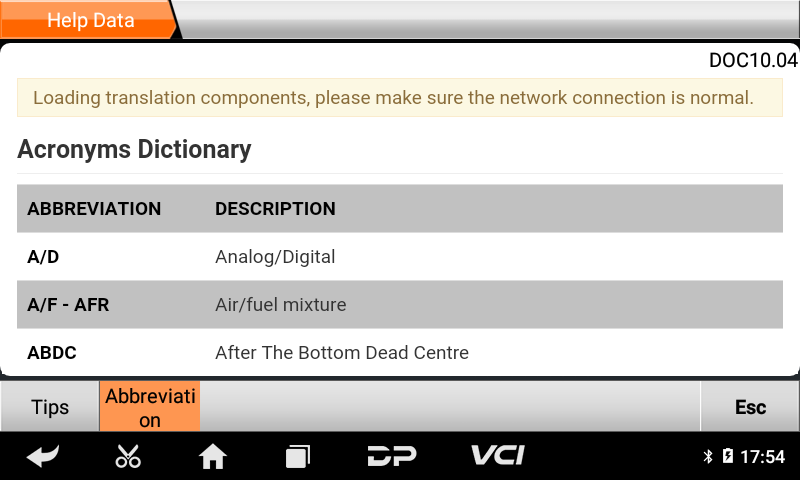

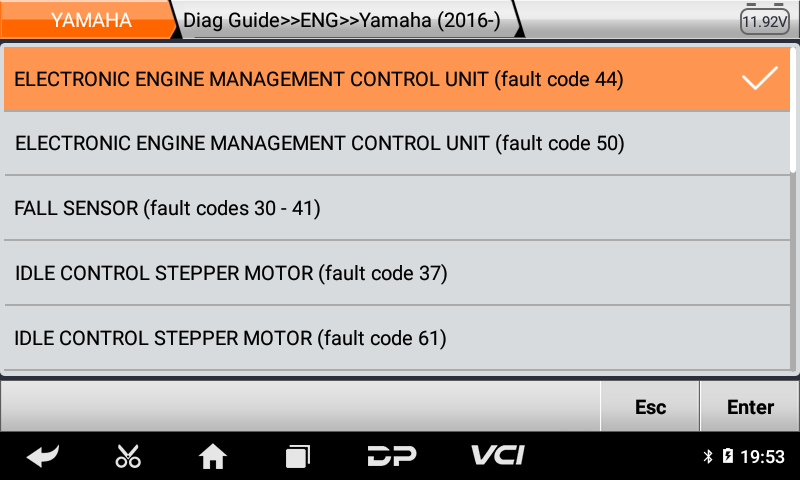

2) Help Data/Technical Bulletin/Fault Guidance

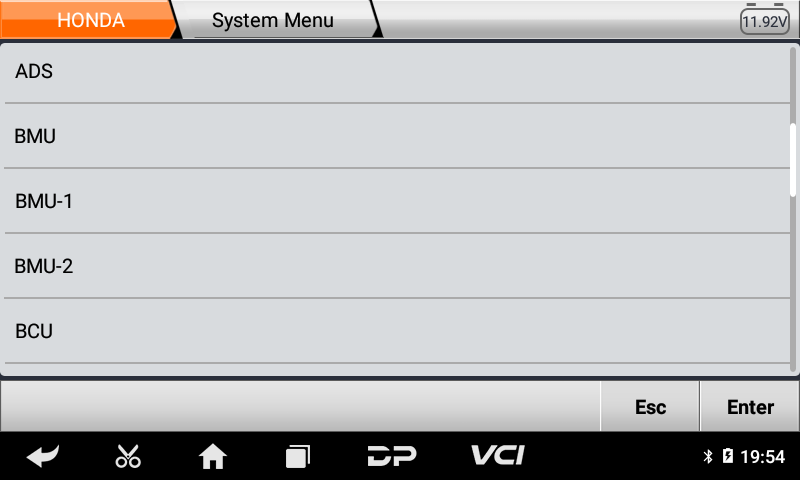

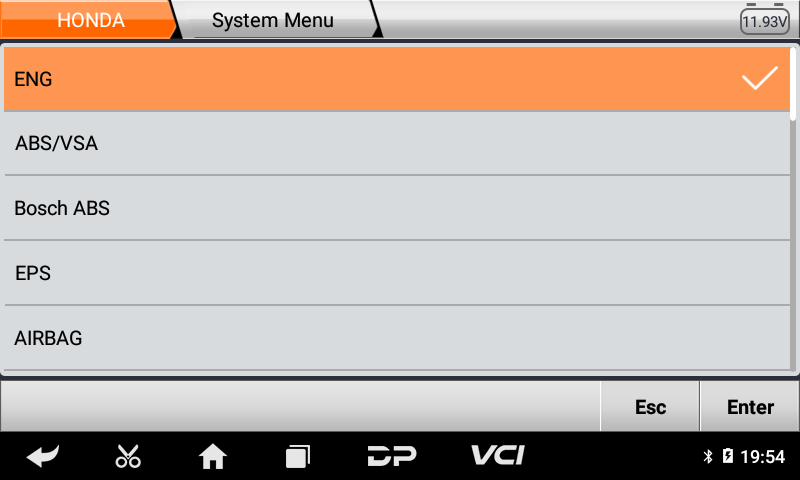

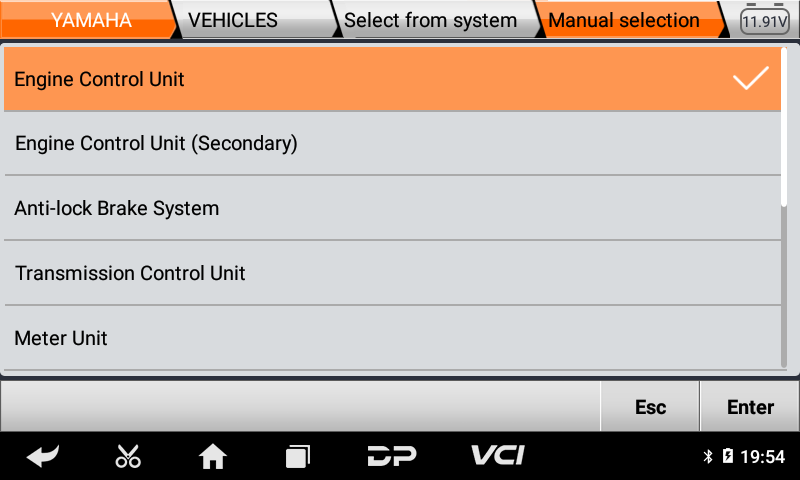

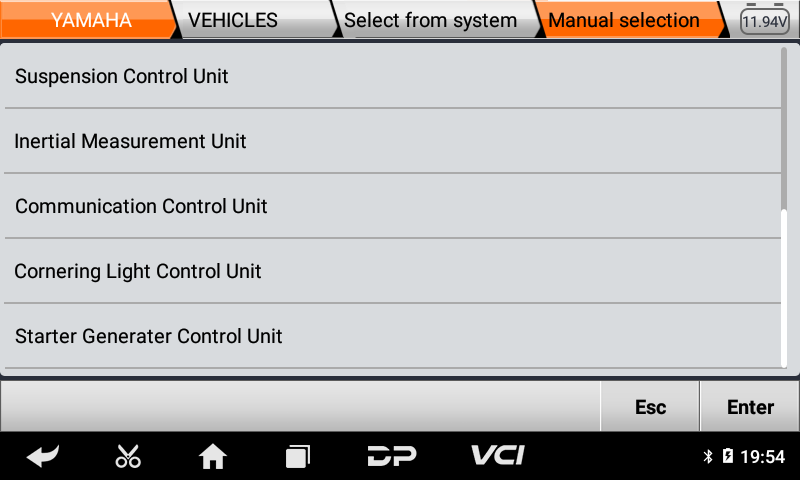

3)Supported System List/ Manual Service Function

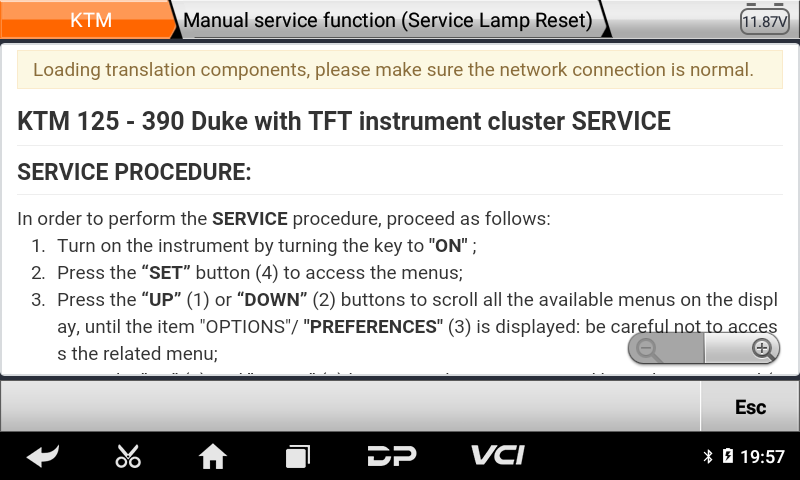

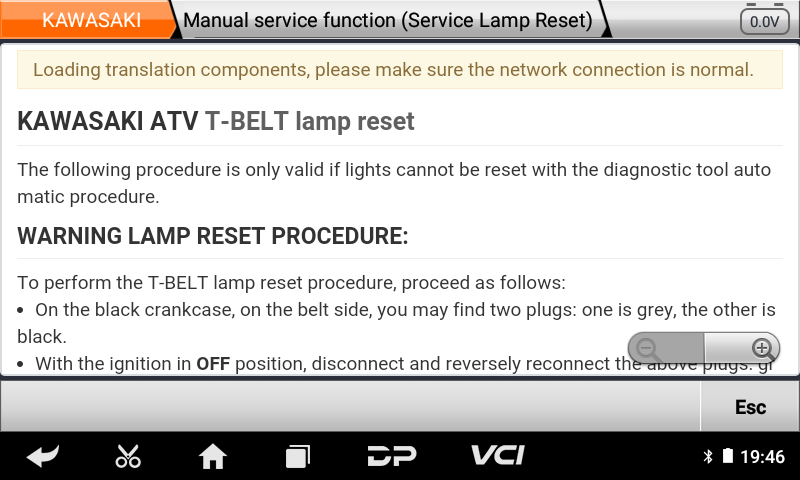

4) Manual maintenance reset

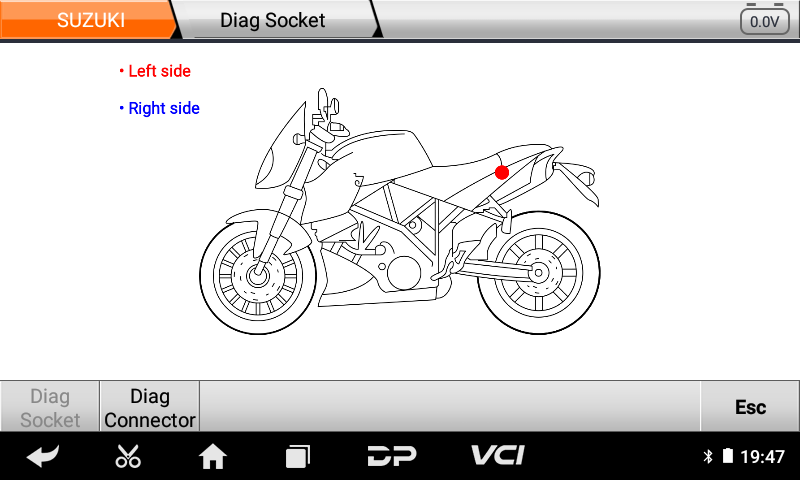

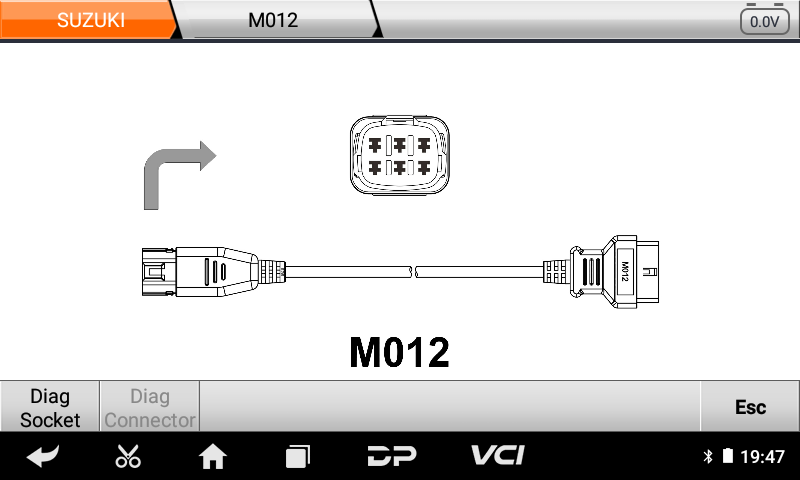

5) Diag socket/Diag Connector Location

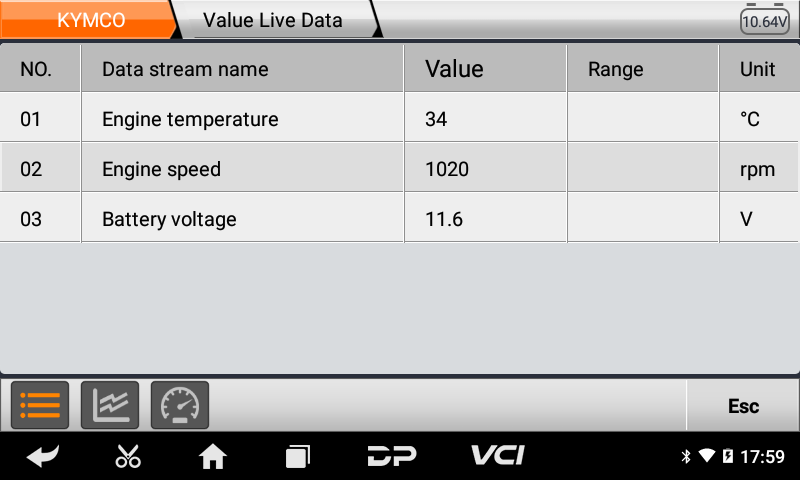

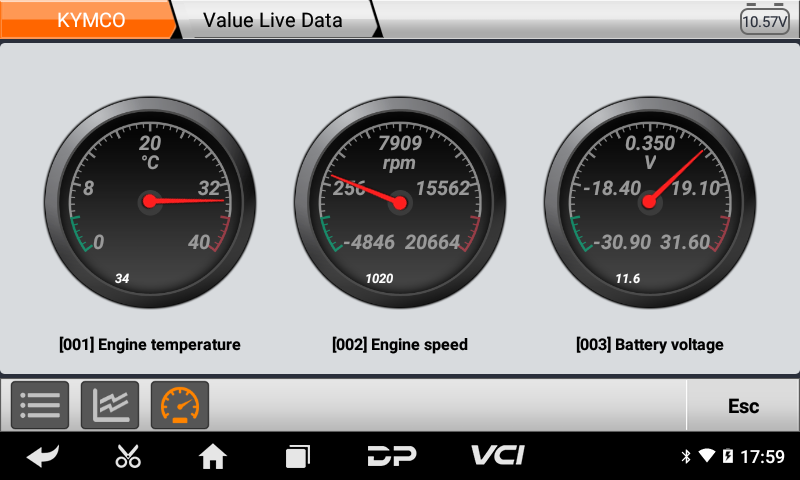

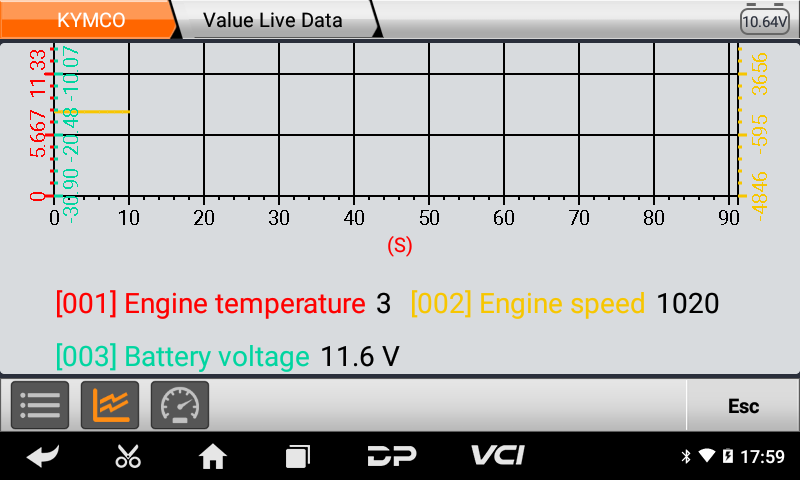

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

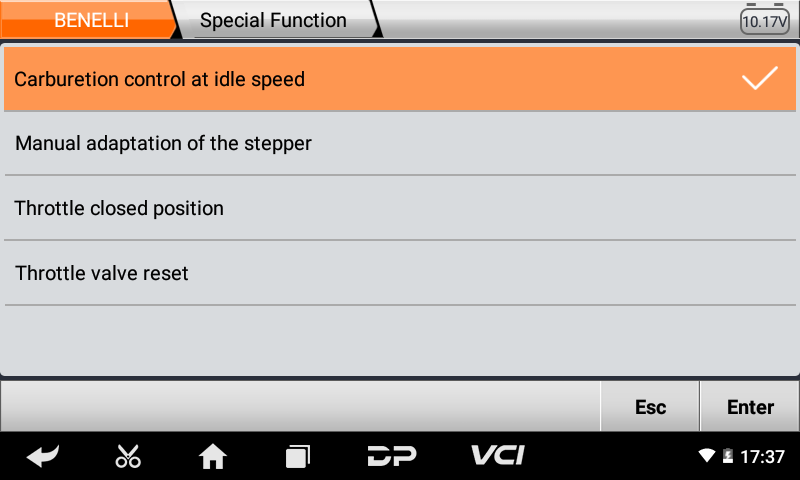

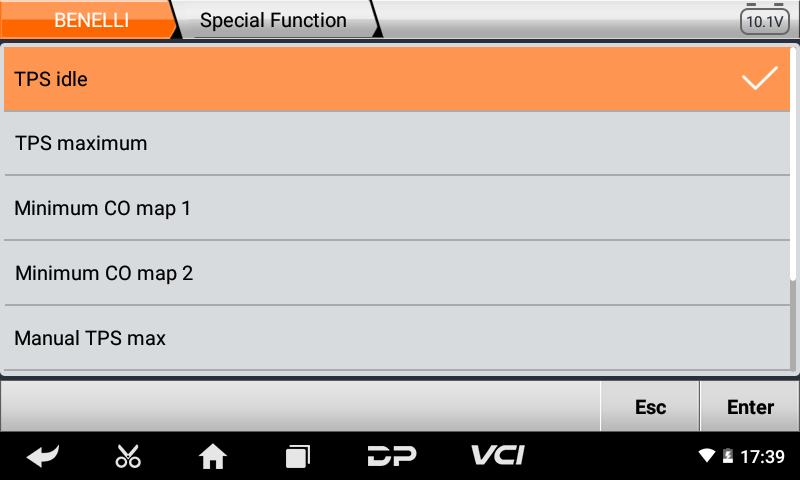

7)Special Function-Benelli

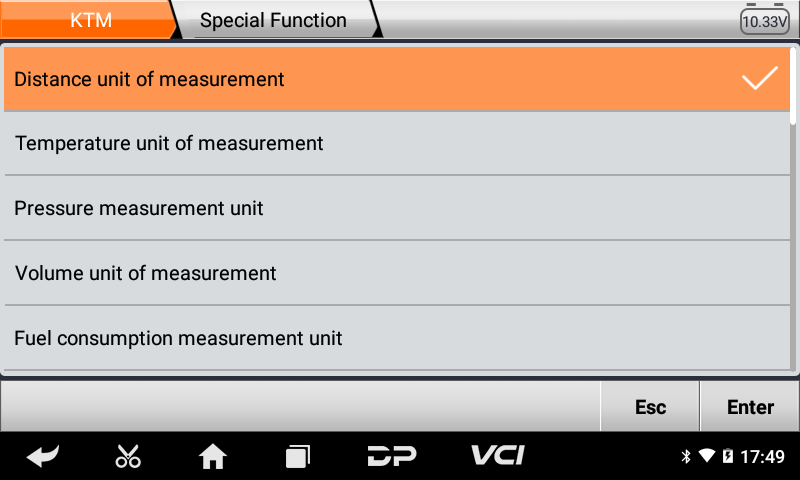

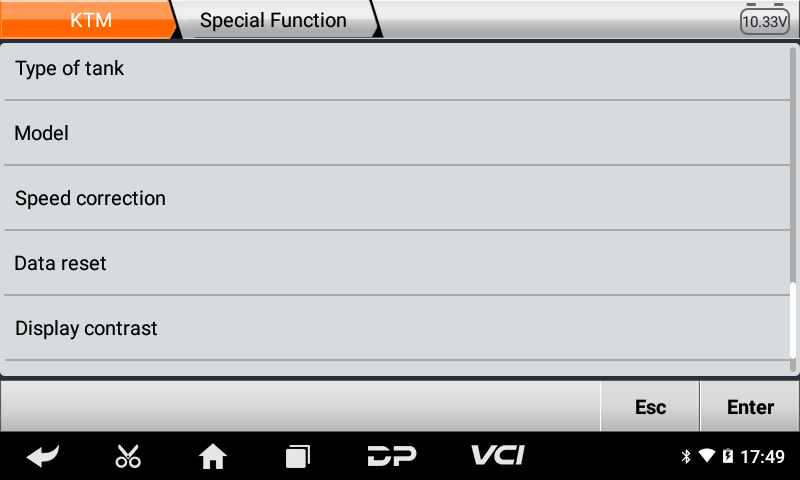

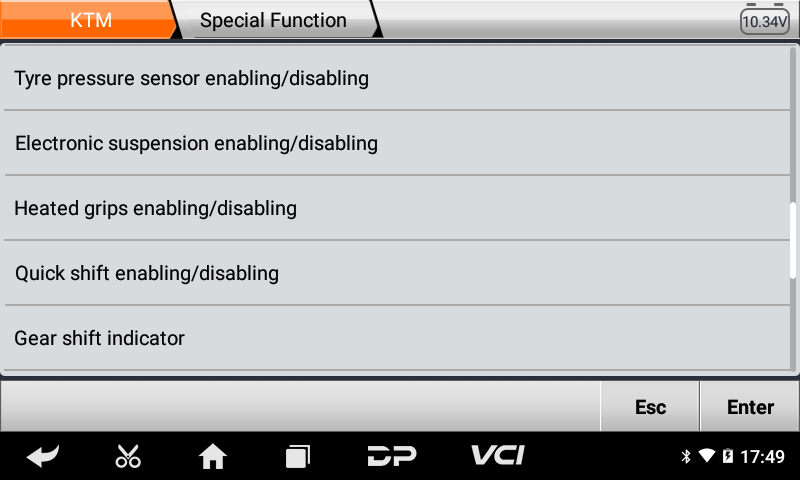

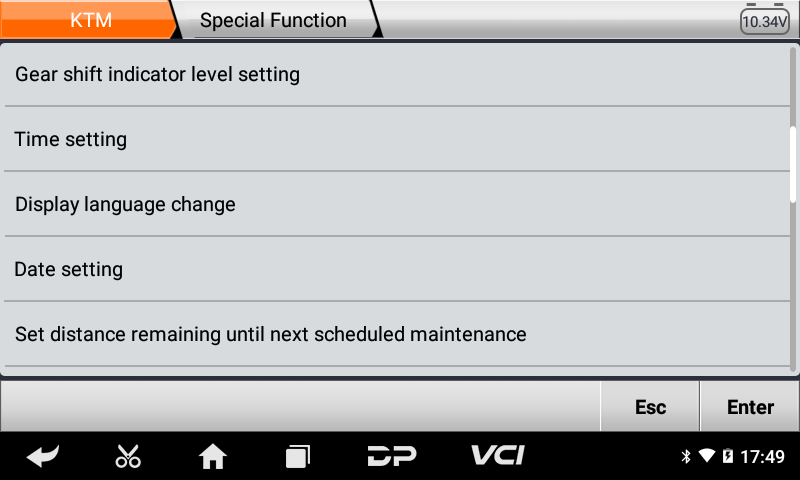

8) Special Function-KTM

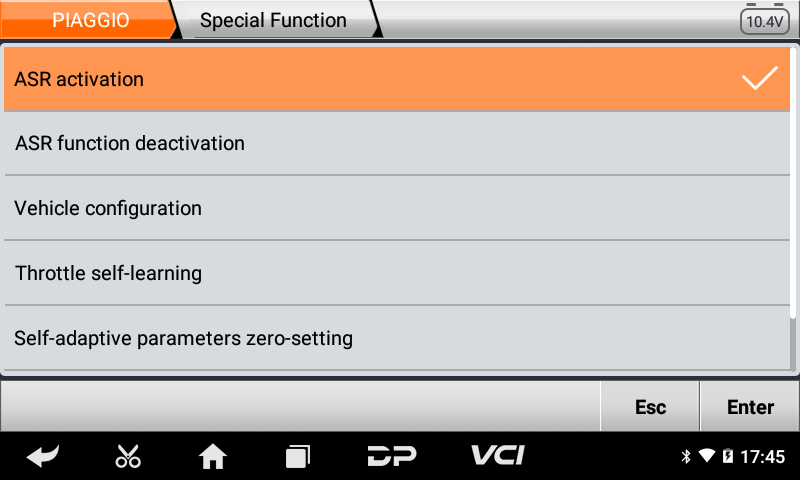

9) Special Function-Piaggio

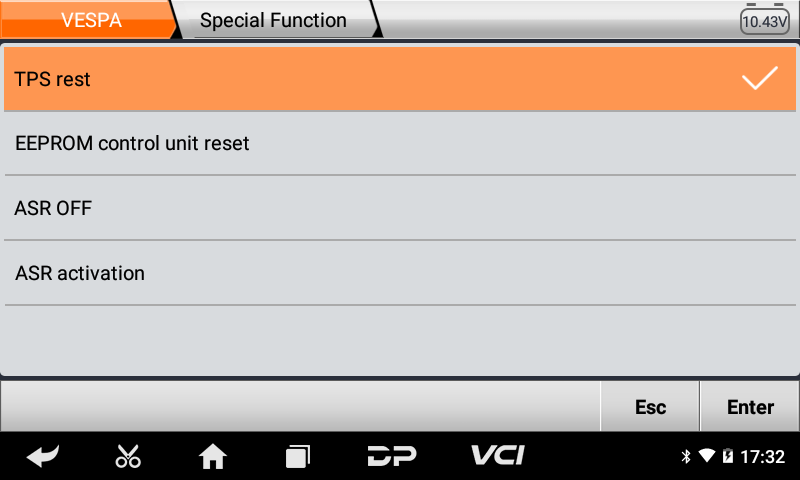

10) Special Function-Vespa


Specifcations:

Operation system

Android 5.1.1

CPU

RK3128 Quad-Core ARM Cortex A7

Battery

2500mA, rechargeable polymer lithium battery

Extension memory card

32G Micro SD (TF) card supported

Storage capacity

16GB

LCD

5.0 inch

LCD resolution

800*600

Touch screen

capacitive touch screen

Wifi

supported

Working temperature

-20℃  ~  55℃(14℉  ~  131℉ )

Storage temperature

 -20℃  ~  70℃(-4℉  ~ 158℉ )

Weight

about 700g

Dimension

140mm*89mm*18mm

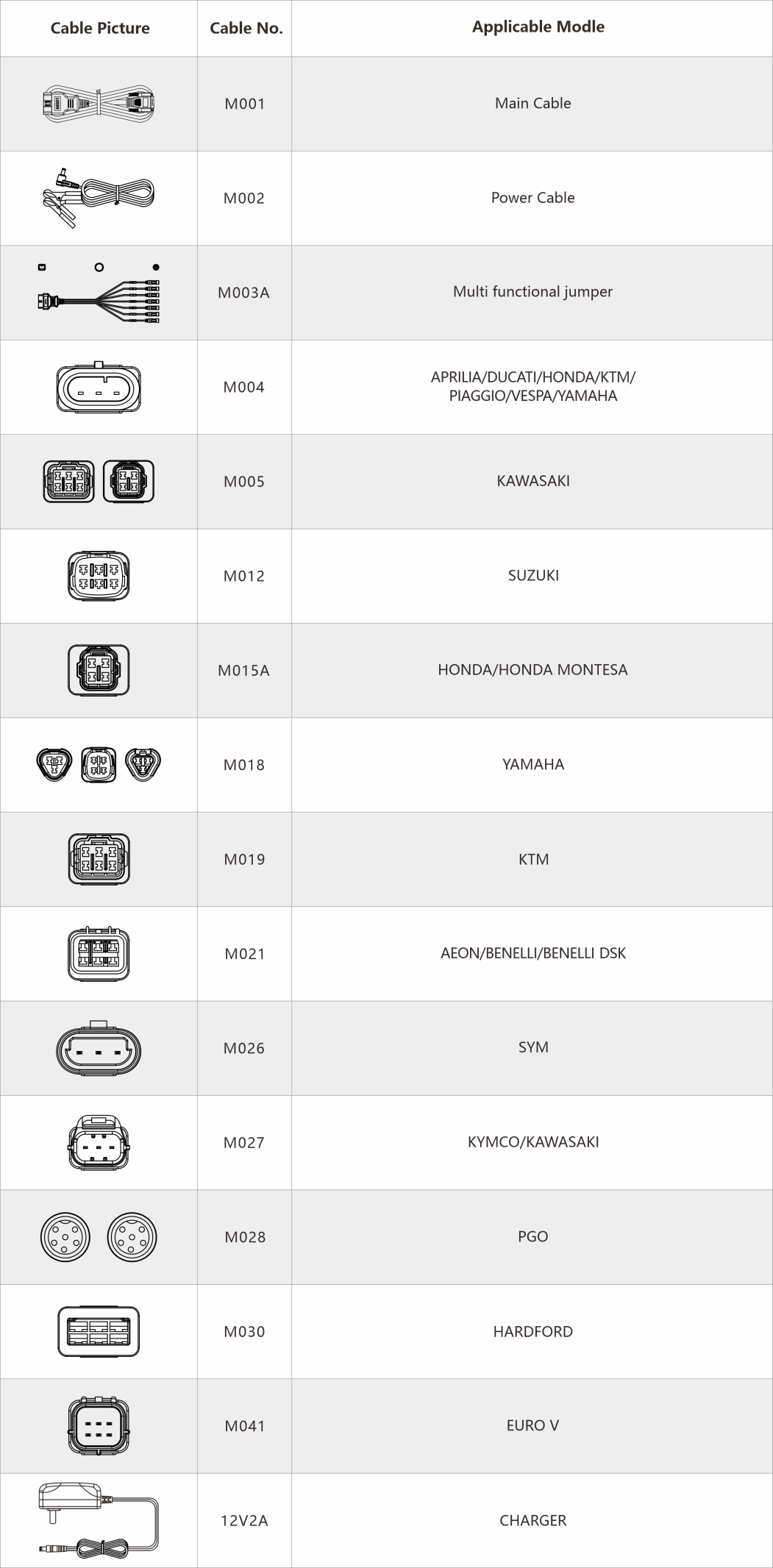

Accessories:
