How To Solve BMW ICOM NEXT Cannot Find IP Address

BY OBDII  2019-12-19
How To Solve BMW ICOM NEXT A+B+C Cannot Find IP Address


When you use BMW ICOM A+B+C diagnostic head with ICOM ISTA-P/D software, but the IP address cannot be found, how to solve this problem?


Here is the suggestion from a professional technician working at obdii.shop.


If you have the same problem, you can try to set ICOM WLAN.

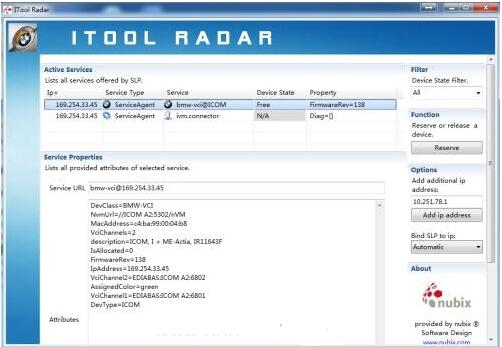

Step 1: Open Itool Radar to identify the BMW ICOM info





Step 2: Acess the ICOM configuration url through IE


Here take IP address: http://169.254.33.45:58000/ as an example,the address is subject to the actual reading.

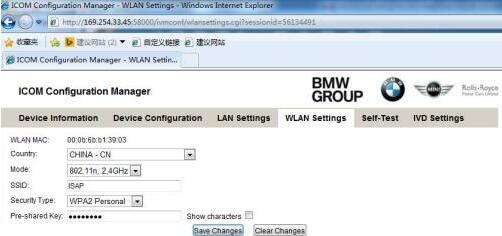

Step 3: Select WLAN Settings and enter the corresponding available WiFi info


Confirm the info entered and click Save Changes to save





Step 4: Disconnect the network cable and power supply, then restart ICOM


Wifi will be connected automatically when starting ICOM


Note: If you use our sotware and USB- WiFi, the ICOM configuration info is:


Mode: 802.11n, 2.4GHz


SSID: ISAP


Security Type: WPA2 Personal


Pre-shared key: BmwAp24h
