VNCI MF J2534 Diagnostic Tool With Ford/ Mazda IDS V130 Car Scanner Compatible With J2534 PassThru And ELM327 Protocol Free Update
VNCI (Vehicle Network Communication Interface) MF is a device that works between diagnostic software and vehicle. It is compatible with J2534 PassThru and ELM327 protocol.
Attention :

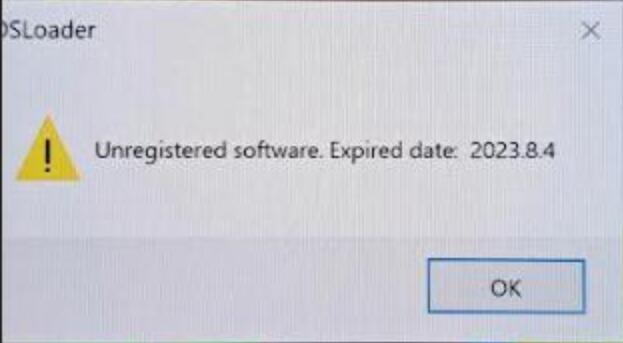

If software reports an error: Unregistered software, Expire date.
Download IDS Loader Driver to fix the problem.
Notice : Please select which configuration you need before you make order .
Option 1 : Without software (you should have software which can work with this hardware ）
Option 2 : with software ( we offer activate service for software by remote one time )
VNCI MF IDS V130 doftware download link :
https://mega.nz/file/gD9CkKbL#M-c0KNJuez868ygKM4TXQv1xUMBLWH0iM2oPlYJQExY
VNCI MF Main Functions:
1. Compatible with Ford IDS and Mazda IDS newest version.
2. Support many J2534 compatible software(HDS, TIS, SDD2, VIDA, PCMFLash ...).
3. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster ...).
VNCI MF Advantages:
1. High speed communication. Program most of modules in 5 minutes.
2. More stability. Never let you down while reprogramming.
3. More coverage. Support J1850 PWM programming for Ford before MY2006.
VNCI MF Hardware Configuration:
1. High speed CAN.(OBDII PIN 6 and PIN 14. Speed 500Kbps)
2. Middle speed CAN.(OBDII PIN 3 and PIN 11. Speed 125Kbps)
3. ISO9141 and ISO14230 K line.(OBDII PIN 7 and PIN 15)
4. J1850 PWM.(AKA Ford SCP. OBDII PIN 2 and PIN 10.)
5. Ford FEPS.(OBDII PIN 13. programming voltage up to 20V)

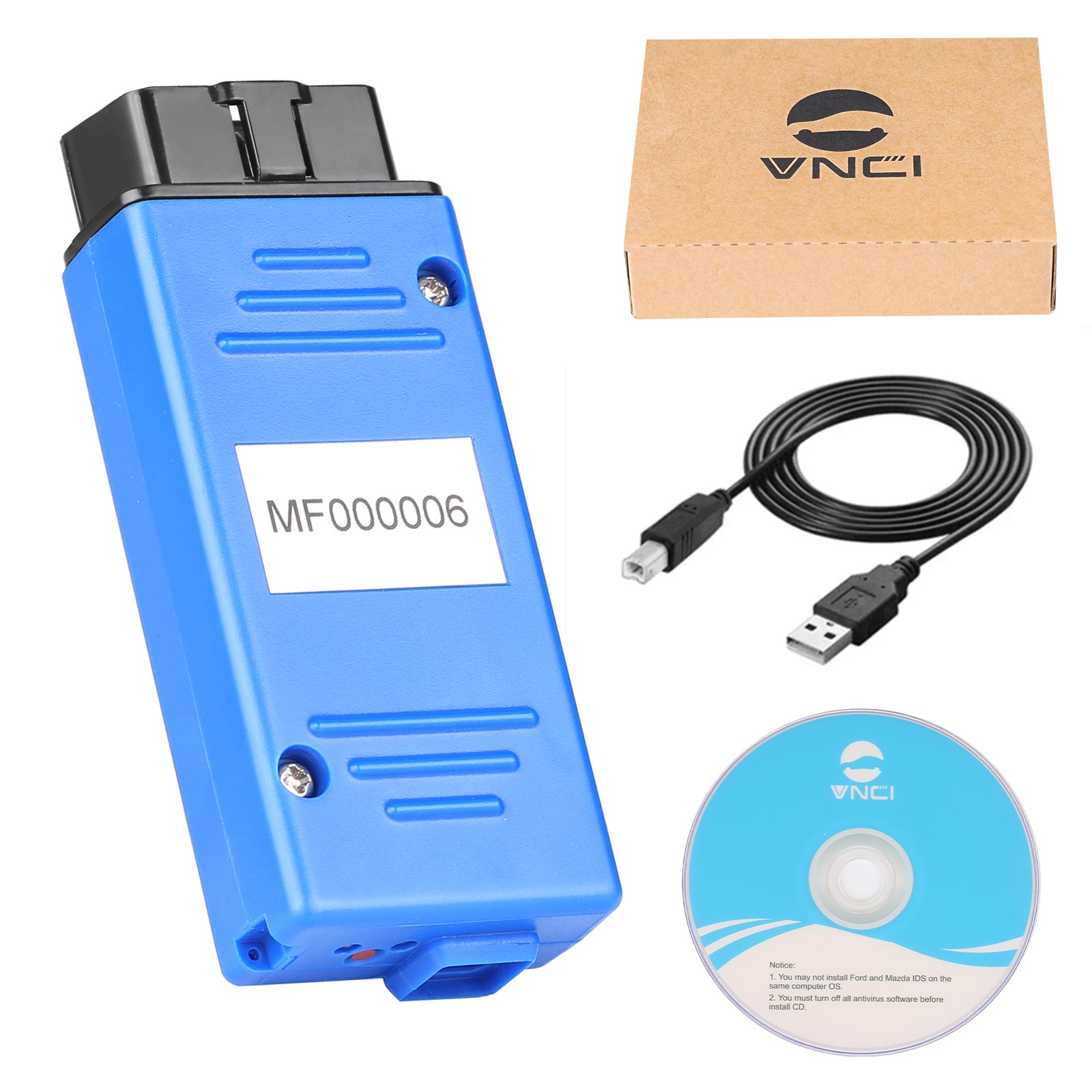

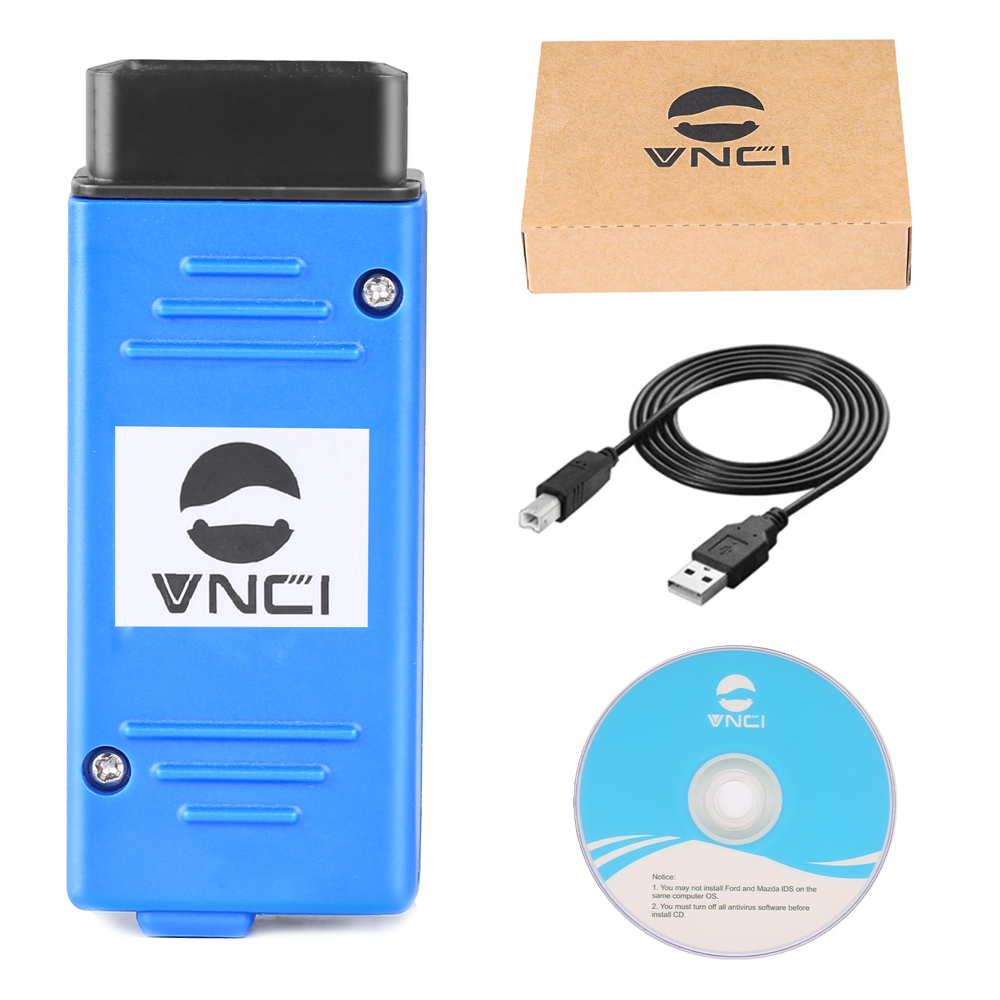

Package Includes:
1pc xVNCI MF J2534
