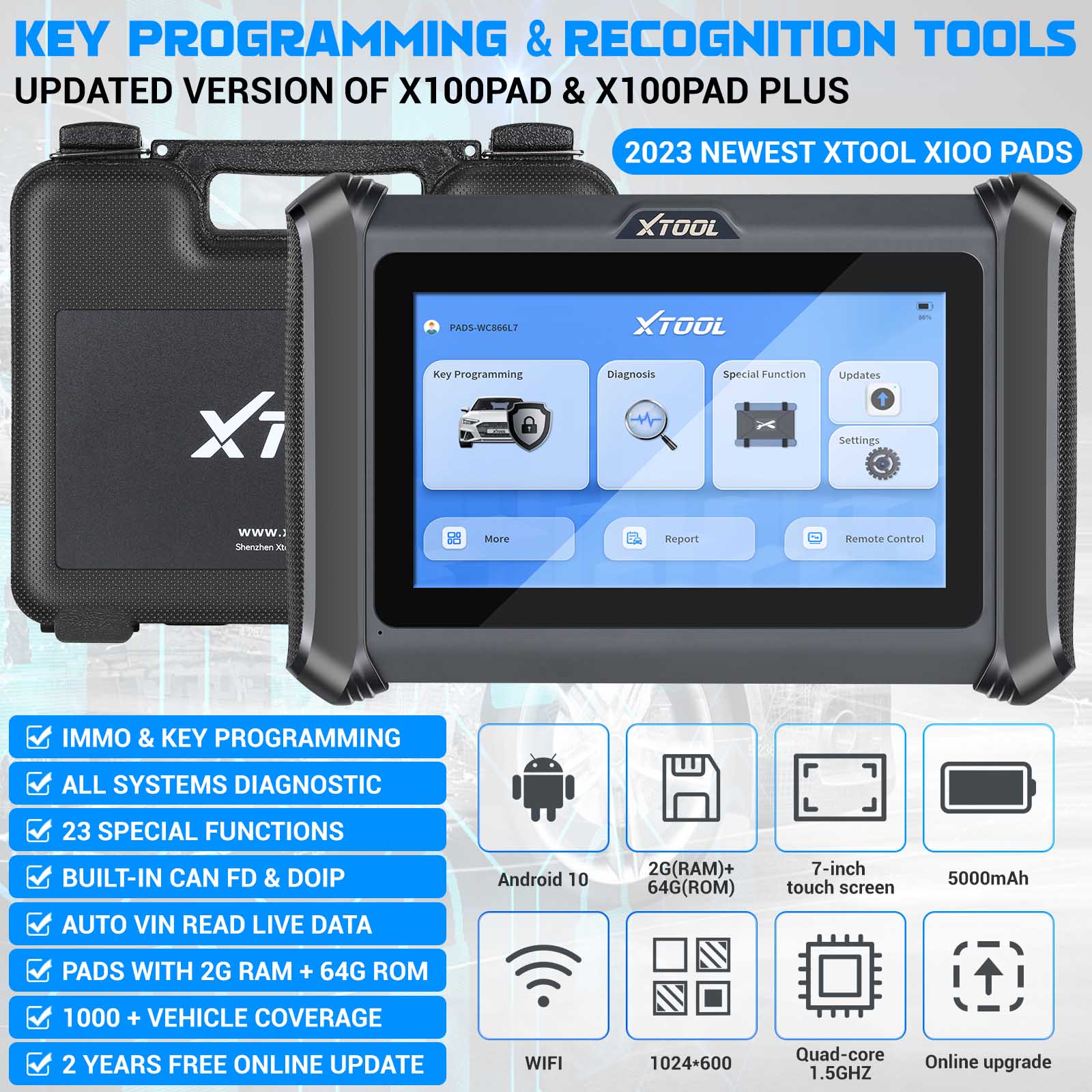

XTOOL X100 PADS Key Programmer with Built-in CAN FD DOIP Support 23 Service Functions Replace X100 PAD 2 Years Free Update

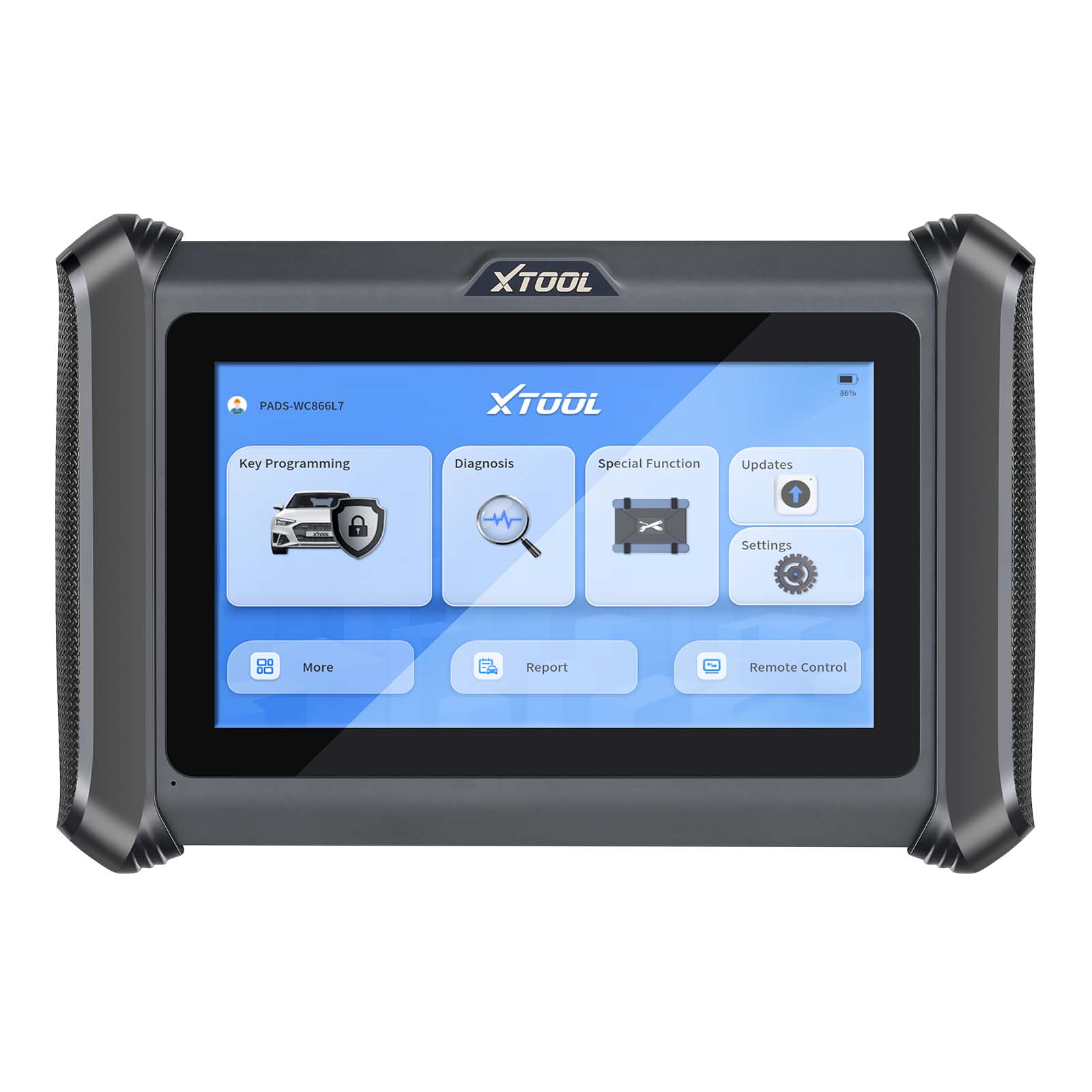

XTOOL X100 PADS is an advanced tablet scan tool based on the Android operating system. 2023 New release key programmer XTOOL X100PAD S is an upgraded version of XTOOL X100PAD PLUS. X100PAD S added CANFD and DOIP protocol, endoscope, stent, the memory, battery, USB, WiFi. The appearance have all been upgraded.
XTOOL X100 PAD S Full System Diagnosis 23+ Service Functions Upgraded Version of X100PAD PLUS
XTOOL X100 PAD S Features:
1. Upgraded Version of X100 PAD & X100 PAD PLUS with New UI, Add 8MP Camera, Self test, Collapsible stand
2. Full System Diagnosis: Access and scan on 80+ vehicles and all available models including ABS, SRS, TCM, Brakes, BCM, TPM and etc to read and clear codes, read live data, and read ECU information.
3. Advanced Key Programming: Read PIN, Add Transponder/Smart Key, Disable Lost Keys, Remote Learning, Make Dealer Key/All-Key-Lost, IMMO Data Backup, Key Learning/Matching, EEPROM Read & Write, etc.
4. 23+ Service Functions: Oil Light, EPB, SAS, DPF, BMS Reset, Throttle, TPMS Reset, ABS Bleeding, Injector Coding, Gearbox Match, Suspension, Seat Calibration, Headlight, Airbag Repair, etc. Note: come to us with your car brand, year, VIN and function to check the compatibility firstly.
5. Added CANFD & DOIP Protocol: With CAN FD protocol covers for GM MY2020+ models. No extra CAN FD adapter needed. With DOIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.
6. Auto VIN Scan: For quickly identify the vehicle and scan all available ECU and run diagnostics on the selected system.
7. Full OBDII Function: Read Codes, Clear Codes, Vehicle Information, Live Data, View Freeze Frame Data, I/M Readiness, O2 Monitor Test, On-Board Monitor Test, Component Test, Modules Present.
8. 15 Languages: English, German, Spanish, French, Polish, Portuguese, Russian, Italian, Turkey, Traditional Chinese, Japanese, Korean Vietnamese, Arabic, Finnish.
9. Wide Vehicles Coverage + 2 Years Free Update
10. Upgraded Hardware: 2G+64G storage, 5000mAh battery, 2.4G/5G WIFI, USB 2.0, movable navigation bar, electronic user manual, with bracket.
11. Work with KC100/KC501: add keys for Mercedes, for Toyota etc. Read PIN codes, program new keys/fobs, perform remote learning, disabIe the lost keys etc.
12. Work with XTOOL XV100: Help you better check the vehicle by viewing details via the endoscope.

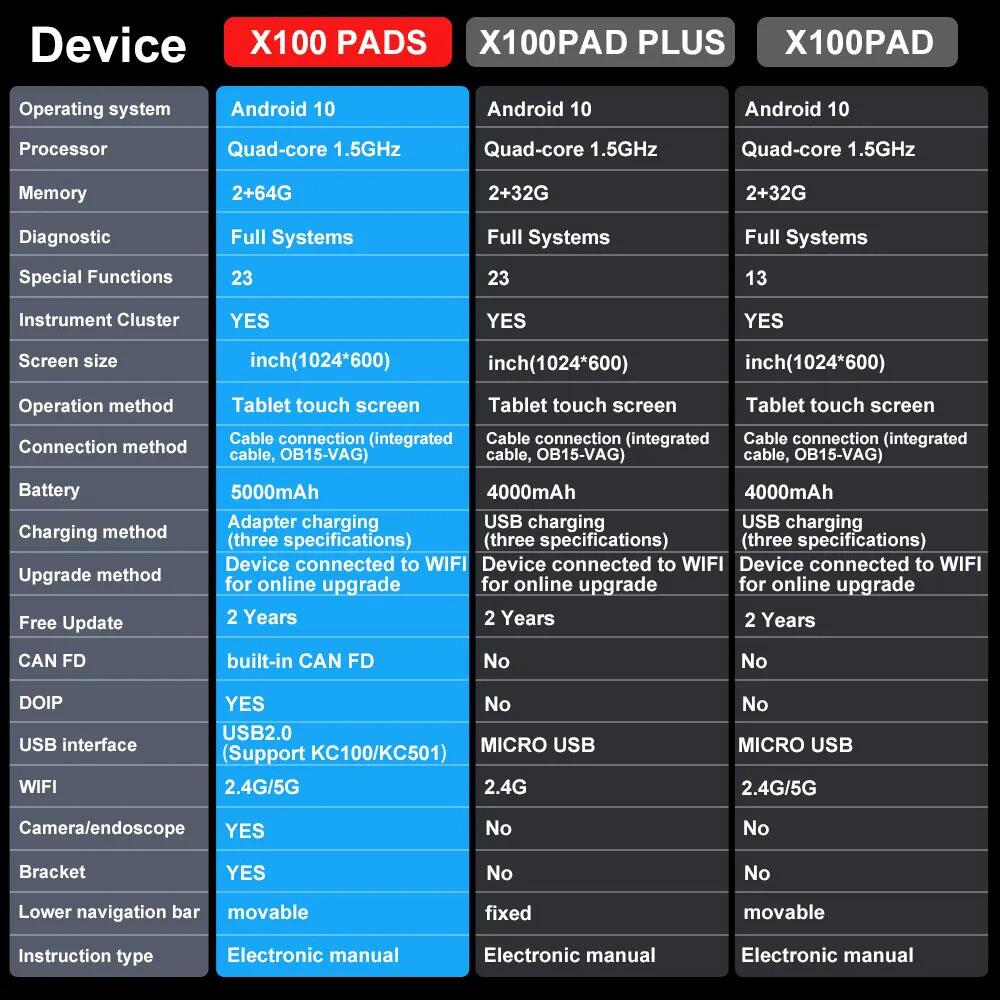

XTOOL X100 PADS vs.X100 PAD PLUS vs.X100 PAD ：
XTOOL X100 PAD S Functions:
IMMO Key Programming: Read PIN, Add Transponder/Smart Key, Disable Lost Keys, Remote Learning, Make Dealer Key/All-Key-Lost, IMMO CAR MO Reset/Coding,IMMO Data Backup, Key programmer, Key Learning/Key Matching, EEPROM Read & Write, etc.
Advanced IMMO/Key Programming/Key Coding(X100PADS + EEPROM Adapter)
The IMMO service can disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed. like programming new key fobs, Read PIN code/pin code calculation,Check number of keys, Generate key, Add key, All key lost.
Read Pincode
Generate key, Key Refresh
Make Dealer Key
All Key Lost
Immobilizer Data Reading & Writing
Backup IMMO Data
Remote Frequency Detection
Immobilizer Module Replacement
IMMO ECU Reset & Coding
Mercedes lnfrared Key Read/Write
Note: X100PADS Key Programming function can not work for Benz/BMW/Audi/VW/Toyota smart key all key lost, for Chrysler Read Pin (Need XTOOL X100PAD3 +adapter). To save your time please come to Seller. come with your Car VIN to check compatibility before purchase.
All System Diagnostics: Access and scan on 80+ vehicles and all available models including ABS, SRS, TCM, Brakes, BCM, TPM and etc to read and clear codes, view live data, freeze frame, and retrieve CAR MO info.
OE-Level Full Systems Diagnostic
XTOOL X100PADS automotive diagnostic scan tool enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information as trouble and event codes and live data for various vehicle control systems, such: ABS, SRS, Engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.
Read/Clear Codes
View the Live Data stream
View the Freeze Frame of faults
Perform Active Tests
Read ECU Information
23+ Special Functions
Oil Reset: Reset service intervals after oil change and turn off the oil light.
EPB Reset: Reset brake pads after replacement of brake system.
BMS Reset: Register the new battery to the CAR MO after replacement.
Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.
EEPROM Adapter: Used to read, write and backup the EEPROM chip inside the immobilizer module.
Injector Coding: Coding injectors after replacement.
ABS Bleeding: Perform ABS Brake Bleed function to cycle ABS pump to bleed the air out of the ABS.
Gearbox Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.
Headlight: Initialize the adaptive headlight system.
Air Suspension: Calibrate the suspension height.
Window Initialization: Match windows to restore initial memory of the CAR MO and restore the power window.
Airbag Repair: Allows you resets the airbag data to clear the airbag collision/crash data.
More Functions Include: TPMS Reset,Seat Calibration, Cylinder, Transport Mode, Tire Upgrade, Electronic Pump Activation, DPF/GPF, SAS, Gear Learning, EPS, etc.
Note: Please provide your specific car model and VIN number to check compatibility before purchasing.
MORE PROFESSIONAL FUNCTION TO IMPROVE YOUR EFFICIENCY
Built-in CAN FD & DoIP Protocol: Compatible More CAN FD Protocol Vehicles (For GM Vehicles After 2020).No extra CAN FD adapter needed. With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.
DOIP PROTOCOL: With DoIP Protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.
8 IN 1 LVE DATA DISPALY: Reads, graphs and combines 8 independent streams of sensor data. Real-time data export to CSV file and data recording, playback, viewing. Allows you to export live data to a csv file for storage and comparison over time, or to view its graphical changes and textual readouts later.
FAST AUTO VIN SCAN: X100PADS is based on the latest VIN auto-scan function, which can quickly identify the vehicle and scan all diagnosable ECUs and run diagnostics on the selected system. For vehicles that do not support the automatic VIN scan feature, you can manually enter the vehicle VIN.
Record & print report: Share Report to mobile phone, tablet or computer via Bluetooth Print Report via connecting Printer
Wide Vehicle Coverage:
|
ABARTH
|
JAGUAR
|
VW
|
ACURA
|
NISSAN-GTR
|
|
ALFAROMEO
|
LANCIA
|
ZAZ
|
HONDA
|
RENAULT SAMSUNG
|
|
ASTON MARTIN
|
LAND ROVER
|
BUICK
|
HYUNDAI
|
SSANG YONG
|
|
AUDI
|
MASERATI
|
CADILIAC
|
HYUNDAICC
|
SUBARU
|
|
BENZ
|
MINI
|
CHEVROLET
|
INFINITI
|
SUZUKI
|
|
BMW
|
OPEL
|
CHRYSLER
|
ISUZU
|
TOYOTA
|
|
CITROEN
|
PAZ
|
DODGE
|
KIA
|
BYD
|
|
DACIA
|
PEUGEOT
|
FORD(USA)
|
LEXUS
|
CHERY
|
|
FERRARI
|
PORSCHE
|
GM
|
MAZDA
|
GEELY
|
|
FIAT
|
RENAULT
|
GMC
|
MITSUBISHI
|
GREAT WEII
|
|
FORD（EU）
|
SEAT
|
HUMMER
|
NISSAN
|
JAC
|
|
GAZ
|
SKODA
|
JEEP
|
Ford（AU）
|
LIFAN
|
|
IZH
|
SMART
|
LINCOLN
|
PONTIAC
|
SATURN
|
|
VOLVO
|
UAZ
|
|
|
|
Product Specifications:
|
Items
|
Description
|
|
Operating System
|
Android 10
|
|
Processor
|
Quad Core 1.5Ghz
|
|
Memory
|
2+64G
|
|
Screen Size
|
7 Inches (1024*600)
|
|
Mode of Operation
|
Tablet Touch Screen
|
|
Connection Method
|
WIFI Connection
|
|
Battery Capacity
|
5000 mAh
|
|
Upgrade Method
|
WIFI Online Upgrade
|
|
Dimension (L*W*H)
|
37*11*29cm
|
|
Upgrade Period
|
2 Years
|
|
Charging Method
|
Adapter Charging
|
|
Support
|
CAN FD & DOIP Function
|
|
USB Interface
|
USB2.0 (Supports KC100/KC501)
|
|
WIFI
|
2.4G/5G
|

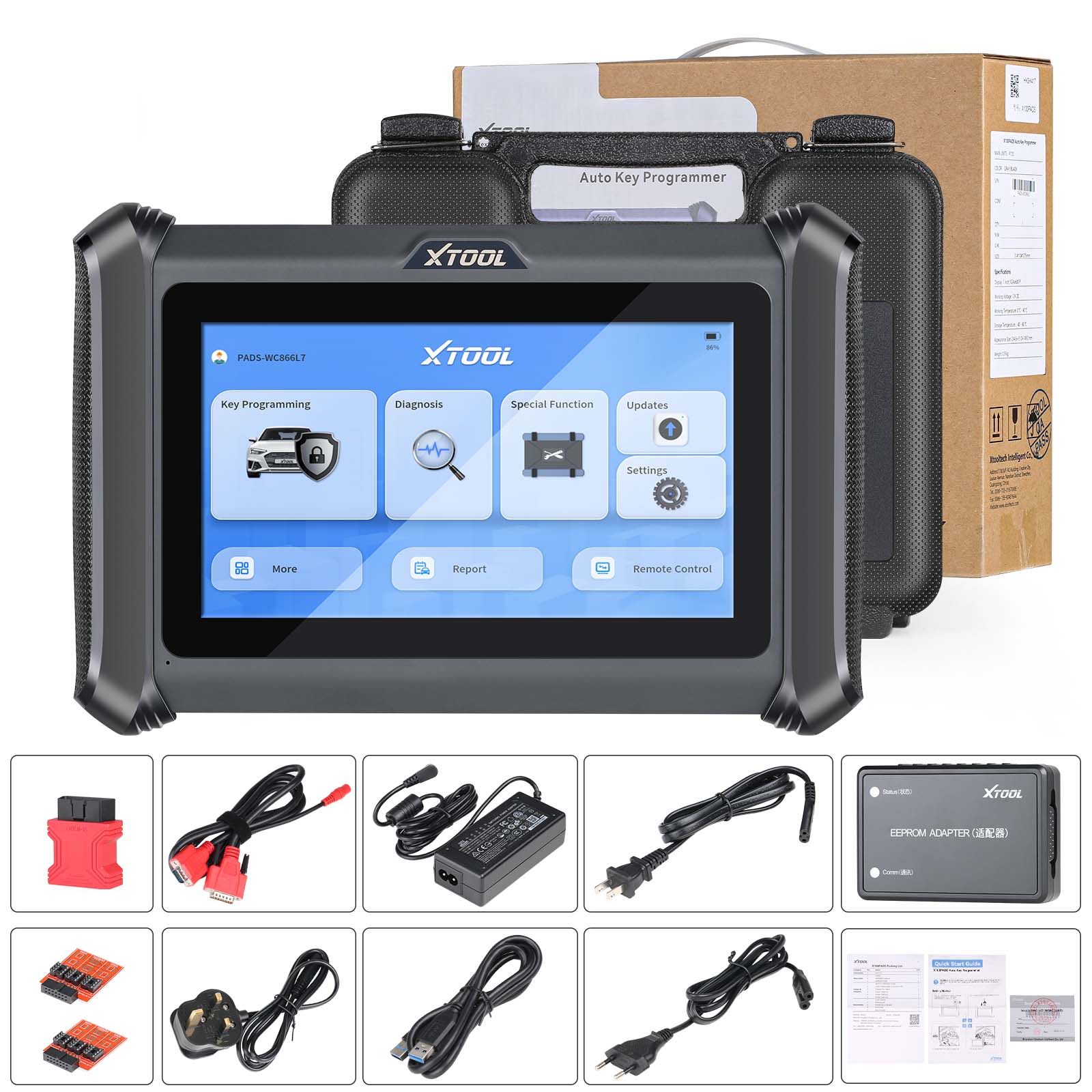

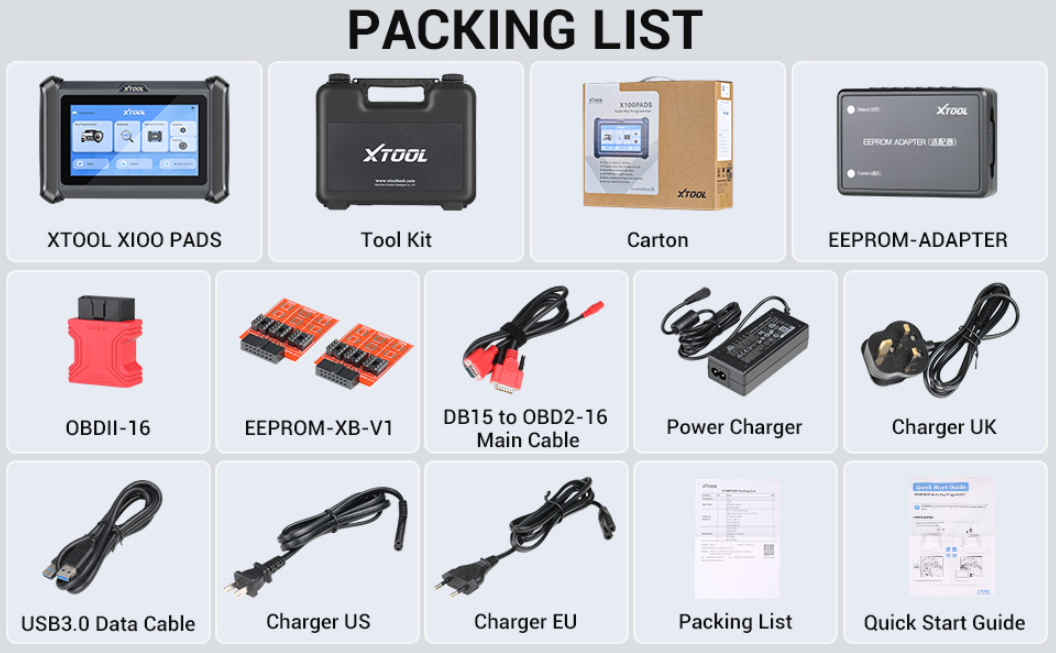

Package Includes:
|
Category
|
No.
|
Name
|
QTY
|
|
Accessories
|
1
|
Quick Start Guide
|
1
|
|
2
|
Carton
|
1
|
|
3
|
Tool Kit
|
1
|
|
4
|
Packing List
|
1
|
|
Main Units
|
5
|
X100PADS Main Unit
|
1
|
|
6
|
EEPROM-ADAPTER
|
1
|
|
7
|
EEPROM-XB-V1
|
1
|
|
8
|
Charger EU
|
1
|
|
9
|
Charger US
|
1
|
|
10
|
Charger UK
|
1
|
|
Test Connectors
|
11
|
USB3.0 Data Cable
|
1
|
|
12
|
DB15 to OBD2-16 Main Cable
|
1
|
|
13
|
Power Charger
|
1
|
