Launch X431 ECU & TCU Programmer Support ECU Read and Write Standalone Launch Supports Checksum Correction IMMO Off

In Stock. History 1 sold. Item No. OA470
Buy Now: US$595
USD 595.00 CAD 850.85 EUR 589.05 GBP 517.65
16% off
April Deals Starts Now with Big Discount!
https://www.obdii.shop/category-225-b0-Disount-Items.html

If you have any questions, please do not hesitate to contact us, below is our contact information:
Email: Sales@obdii.shop
Whatspp: +86-13428908617
Skype: Cara02209
Shipping:
Express Shipping Service    Estimated delivery time: 5-7 working days.See details »
Because the covid-19 affects , the delivery time will be have delays , thanks
Weight:
3.5KG
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »

Product Description

Launch-X431-ECU-&-TCU-Programmer-User-Manual.pdf
Launch-X431-ECU-TCU-Programmer-Car-List.xlsx

Launch X431 ECU & TCU Programmer Support ECU Read and Write Standalone Launch Supports Checksum Correction IMMO Off

Launch X-431 ECU & TCU Programmer supports ECUs data reading & writing quickly, including reading the chip ID and backing up the EEPROM data, backing up the FLASH data and restoring EEPROM/FLASH data. There are two methods to read various vehicle brand ECUs info. The X-431 ECU & TCU Programmer also supports Data Processing, anti-theft shutdown and file verification.

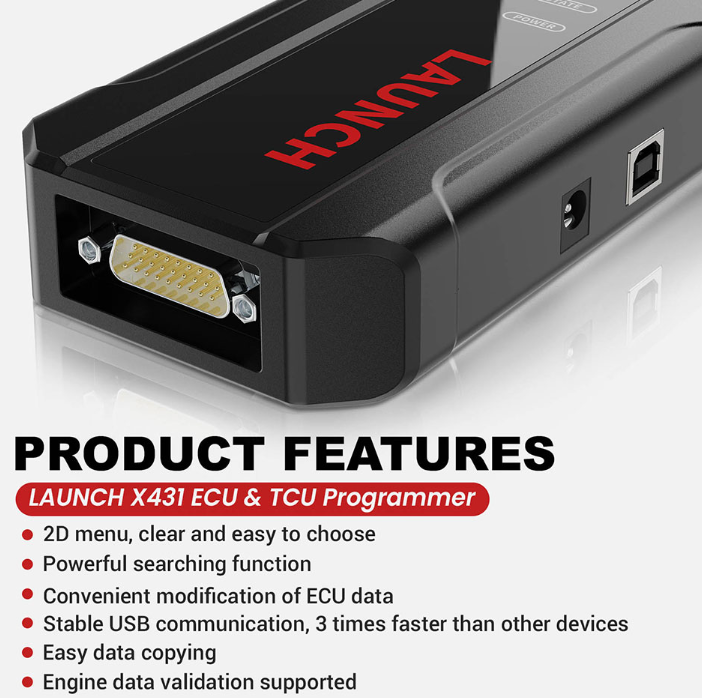

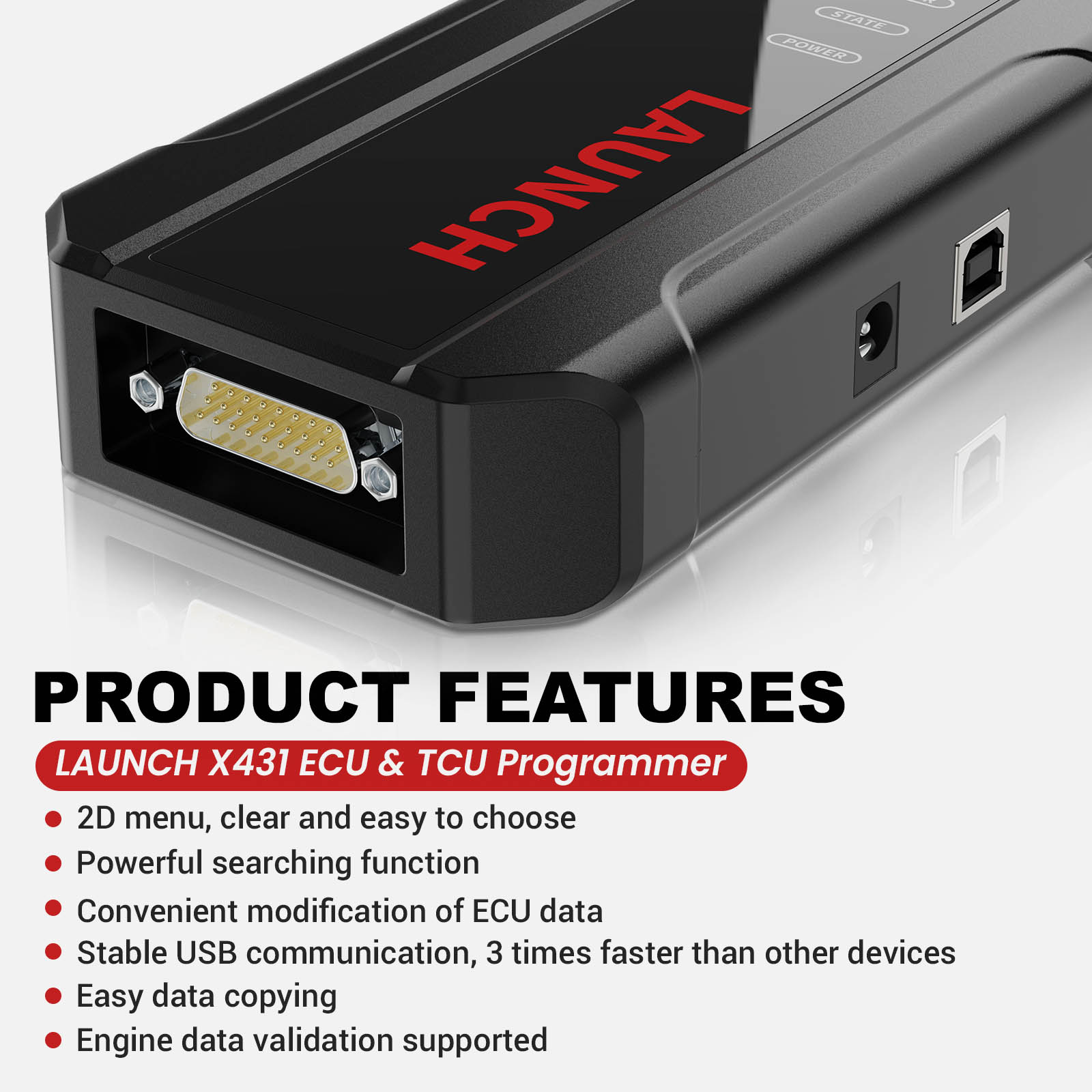

Launch X-431 ECU & TCU Programmer Features:
1. 2D menu, clear and easy to choose
2. Powerful search function
3. Convenient modification of ECU data
4. USB communication, with a speed more than three times that of Android devices, making it more stable
5. Easy to copy data
6. Support engine data validation function
7. One year free update
8. X-431 ECU TCU Programmer Support Function List


Software download link: https://en.cnlaunch.com/download

Launch X431 ECU TCU Programmer Functions:
1. ECUs Data Reading & Writing quickly.
· Support two methods to read various vehicle brand ECUs info.
· Support Read the chip ID and Back up the EEPROM data.
· Support Back up the FLASH data and Restore EEPROM/FLASH data
2. Support Data Processing, anti-theft shutdown and file verification.

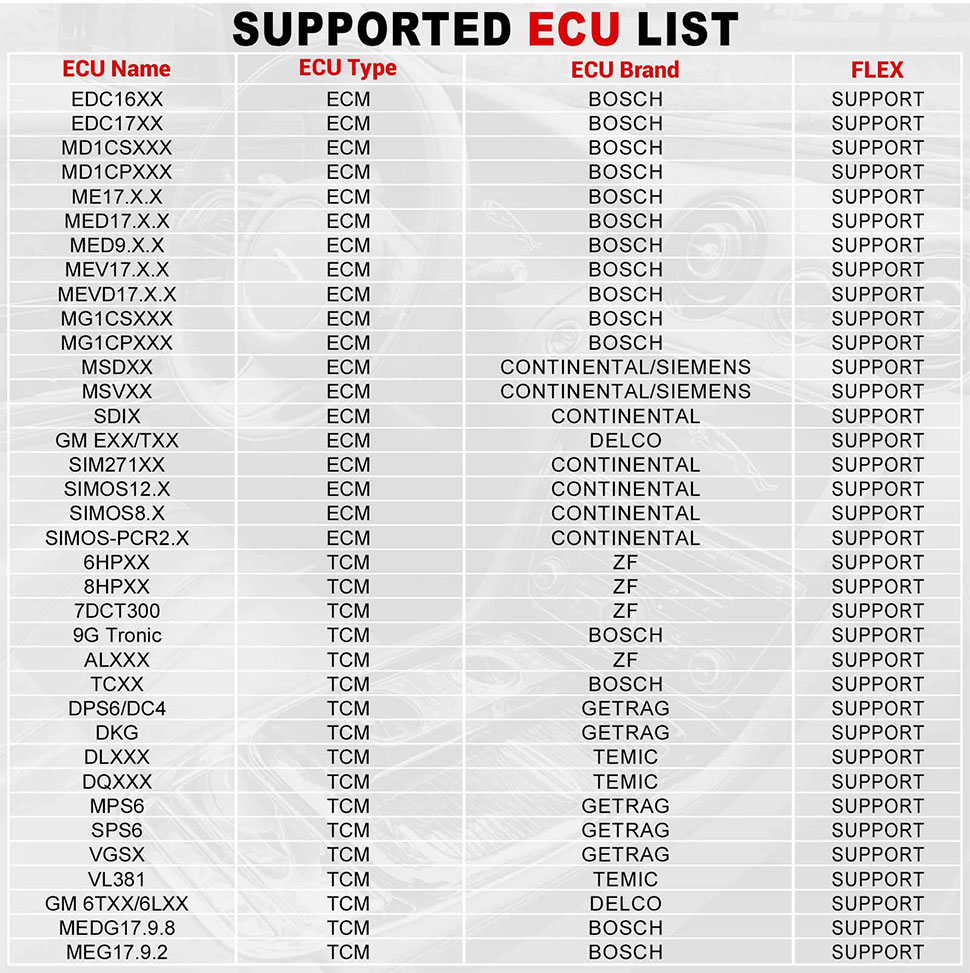

ECU Support list June 2023:

ECU Name

ECU Type

ECU Brand

FLEX

EDC16XX

ECM

Bosch

Support

EDC17XX

ECM

Bosch

Support

MD1CSXXX

ECM

Bosch

Support

MD1CPXXX

ECM

Bosch

Support

ME17.X.X

ECM

Bosch

Support

MED17.X.X

ECM

Bosch

Support

MED9.X.X

ECM

Bosch

Support

MEV17.X.X

ECM

Bosch

Support

MEVD17.X.X

ECM

Bosch

Support

MG1CSXXX

ECM

Bosch

Support

MG1CPXXX

ECM

Bosch

Support

MSDXX

ECM

CONTINENTAL/SIEMENS

Support

MSVXX

ECM

CONTINENTAL/SIEMENS

Support

SDIX

ECM

Continental

Support

GM EXX/TXX

ECM

DELCO

Support

SIM271XX

ECM

Continental

Support

SIMOS12.X

ECM

Continental

Support

SIMOS8.X

ECM

Continental

Support

SIMOS-PCR2.X

ECM

Continental

Support

6HPXX

TCM

ZF

Support

8HPXX

TCM

ZF

Support

7DCT300

TCM

ZF

Support

9G Tronic

TCM

Bosch

Support

ALXXX

TCM

ZF

Support

TCXX

TCM

Bosch

Support

DPS6/DC4

TCM

GETRAG

Support

DKG

TCM

GETRAG

Support

DLXXX

TCM

Temic

Support

DQXXX

TCM

Temic

Support

MPS6

TCM

GETRAG

Support

SPS6

TCM

GETRAG

Support

VGSX

TCM

GETRAG

Support

VL381

TCM

Temic

Support

GM 6TXX/6LXX

TCM

DELCO

Support

MEDG17.9.8

TCM

Bosch

Support

MEG17.9.2

TCM

Bosch

Support



Launch X431 ECU TCU Programmer and PC Software Use Guide:
Firstly, connect the X431 ECU &TCU Programmer to the computer with a cable. Then, click to enter the software. The serial number will be automatically recognized from the X-431 ECU &TCU Programmer, and the activation code needs to be obtained from the envelope bar of the X-431 ECU&TCU Programmer.

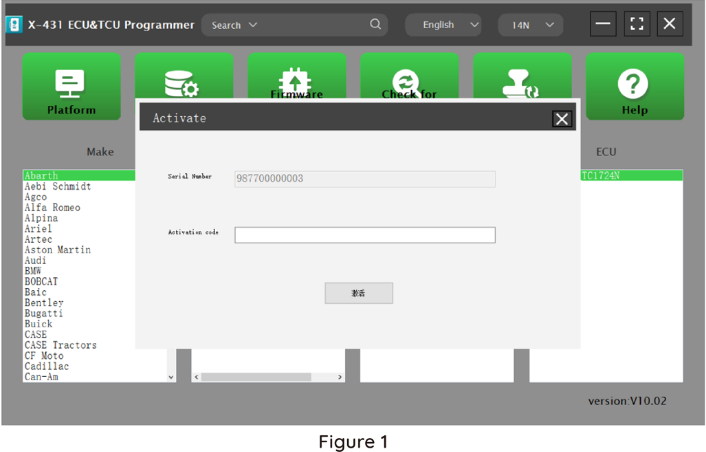

Click [Activate] to activate (only activate once, no need to activate again later), as shown in Figure 1. Without connection, you cannot access the software, as shown in Figure 2.


I. ECU Date Reading and Writing:
1. Obtain the related ECU.

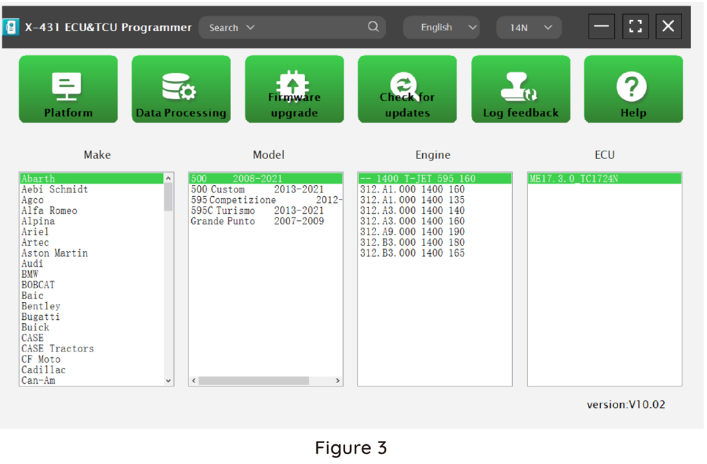

Method (1): Obtain the desired ECU type through brand > model > engine > ECU in turn, as shown in Figure 3.

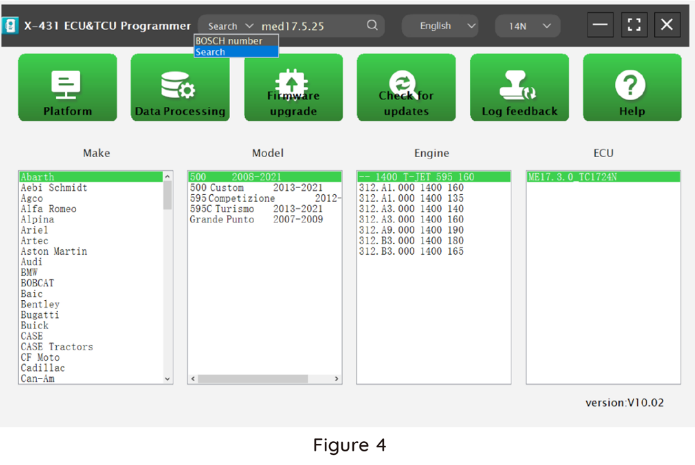

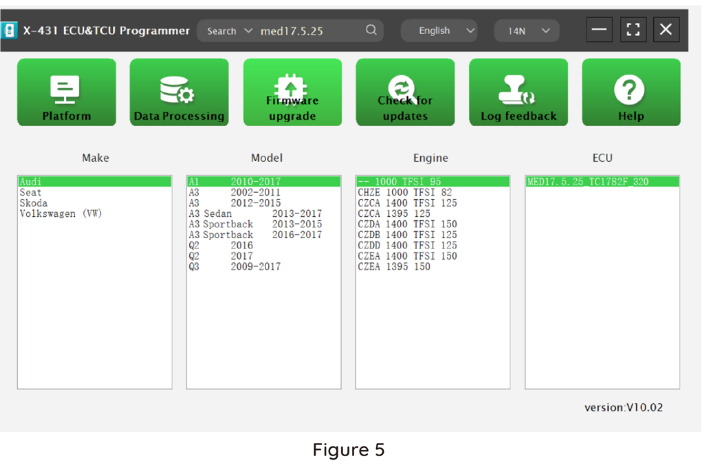

Method (2): Query the desired ECU by entering a value in the search box. The search categories include Bosch number and Search, as shown in Figure 4. For example, search for the MED17.5.25 engine by Search, as shown in Figure 5.

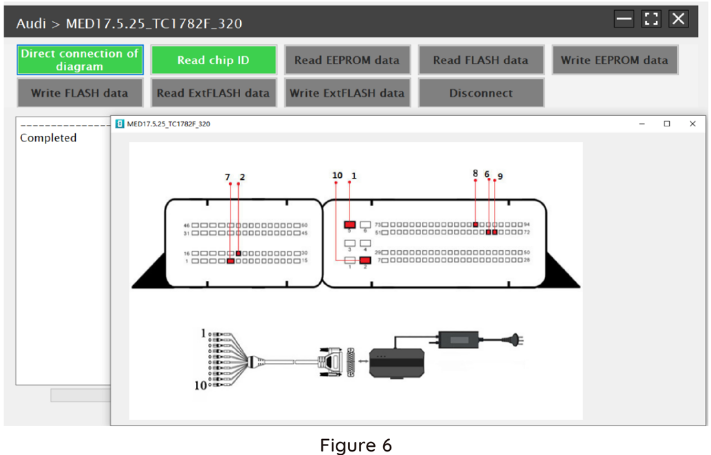

2.Click [Direct Connection Diagram] to obtain the ECU connection diagram, as shown in Figure 6.

3. Connection:

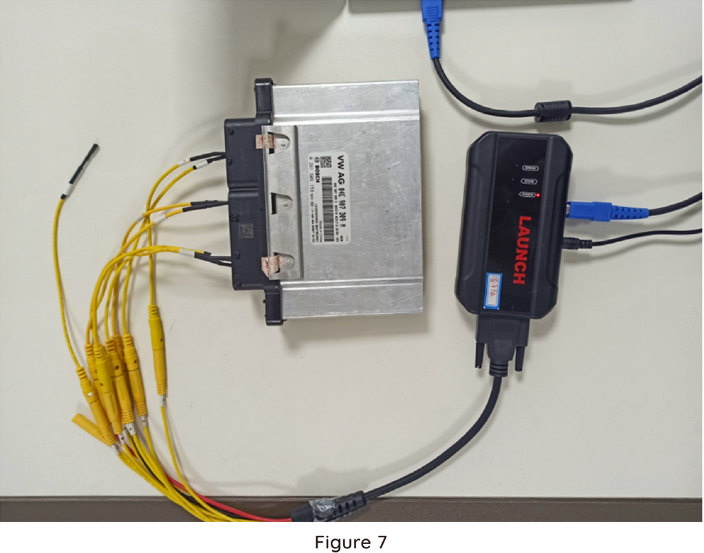

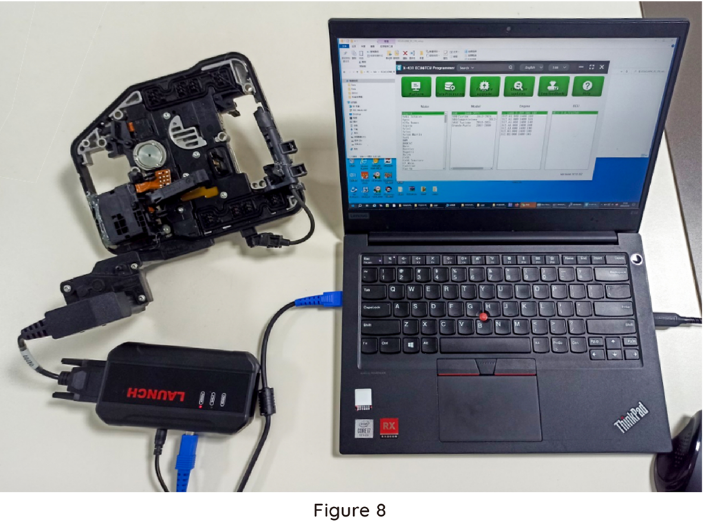

Connect the ECU and PCBOX according to the information provided in the connection diagram. The physical connection diagram of MED17 .5 .25 (using the BENCH mode line)is shown in Figure 7, and the physical connection diagram using the gearbox adapter is shown in Figure 8.

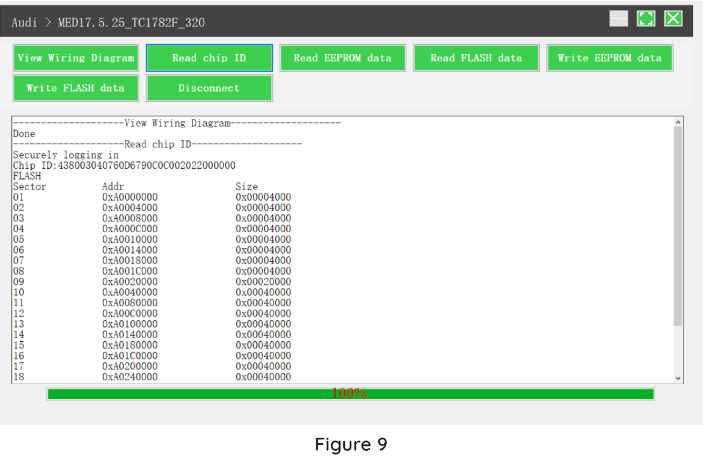

4.Read the chip ID, as shown in Figure 9.

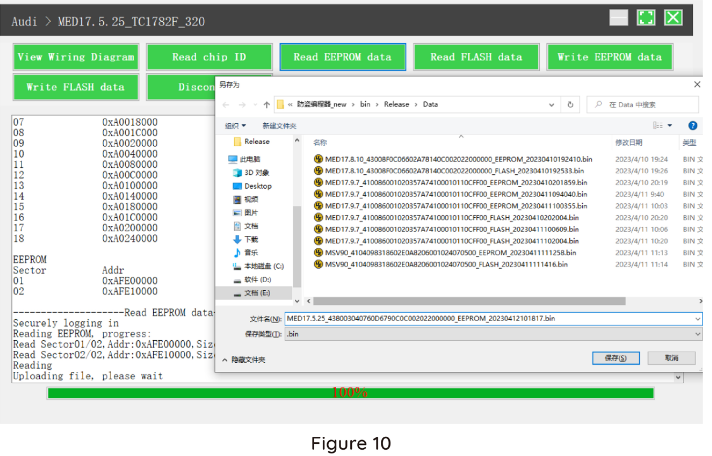

5. Back up the EEPROM data and save it, as shown in Figure 10 (the figure shows the save page of the read date).

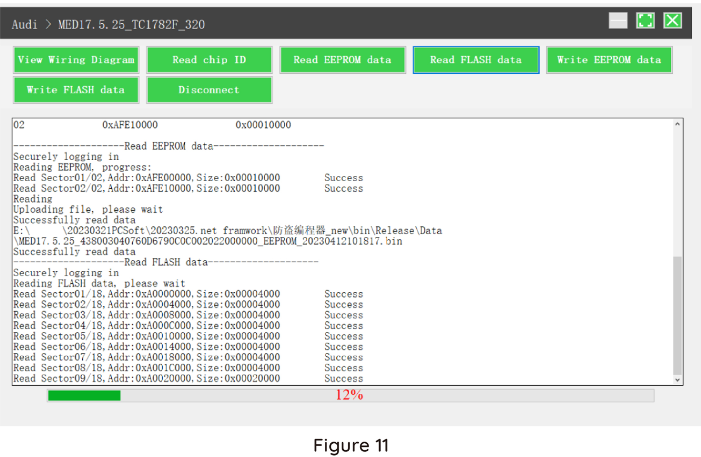

6. Back up the Flash date and save it, as shown in Figure 11 (the figure shows the process of reading FLASH date).

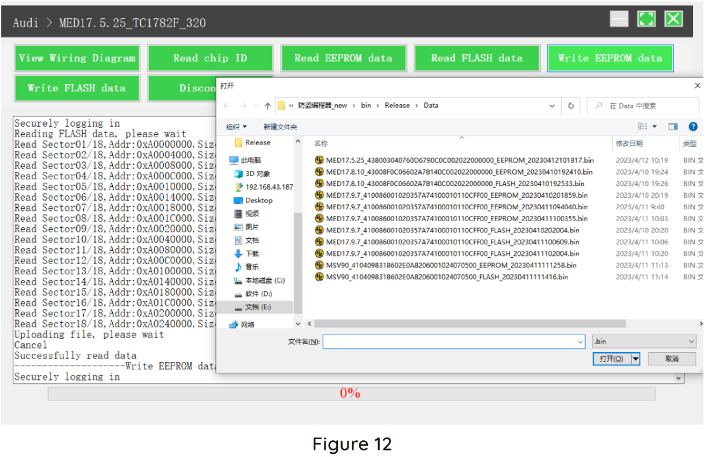

7. Restore EEPROM / FLASH date, as shown in Figure 12 (the figure shows the file selection page).

II. Date Processing

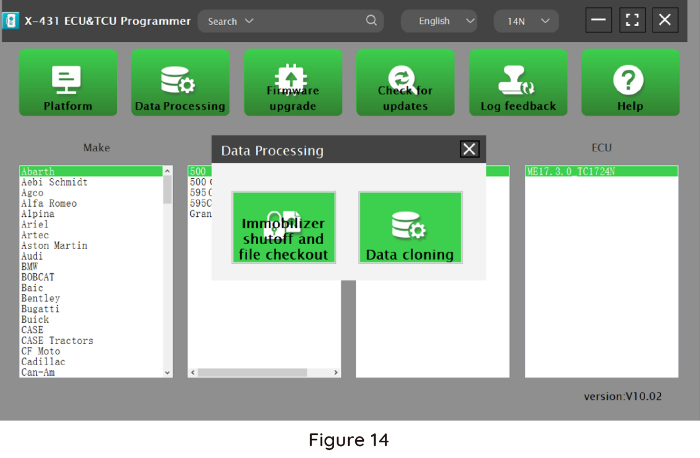

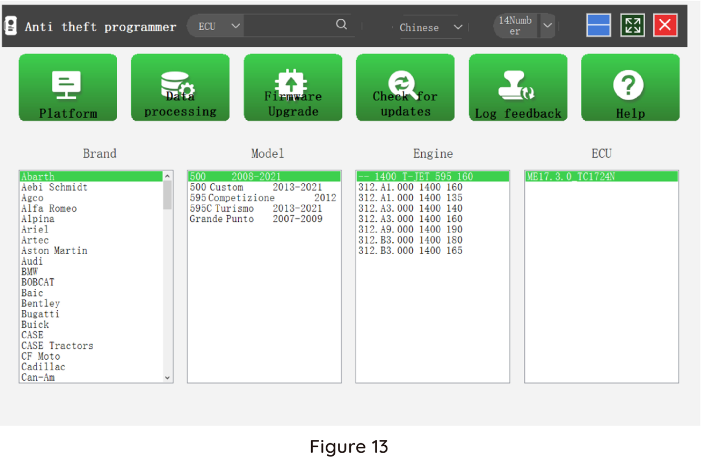

1. Click the [Date Processing] button on the main page, as shown in Figure 13, and select [IMMO Off and File Verification] ([DTC Shield] is not currently supported), as shown in Figure 14.

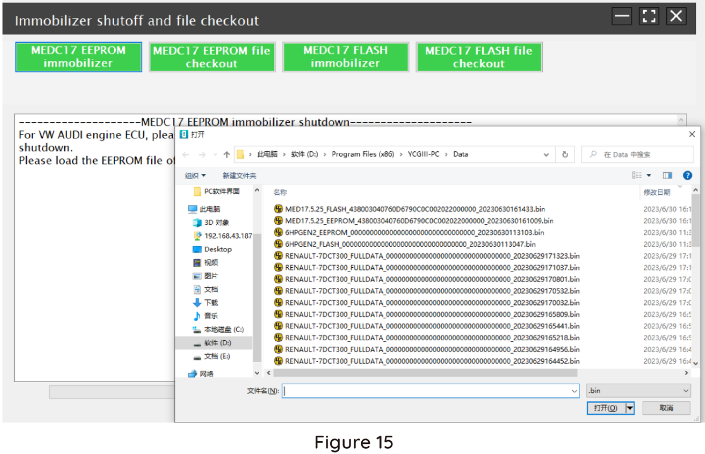

2. File verification and IMMO OFF (process: select file>connect network to obtain>save file), as shown in Figure 15

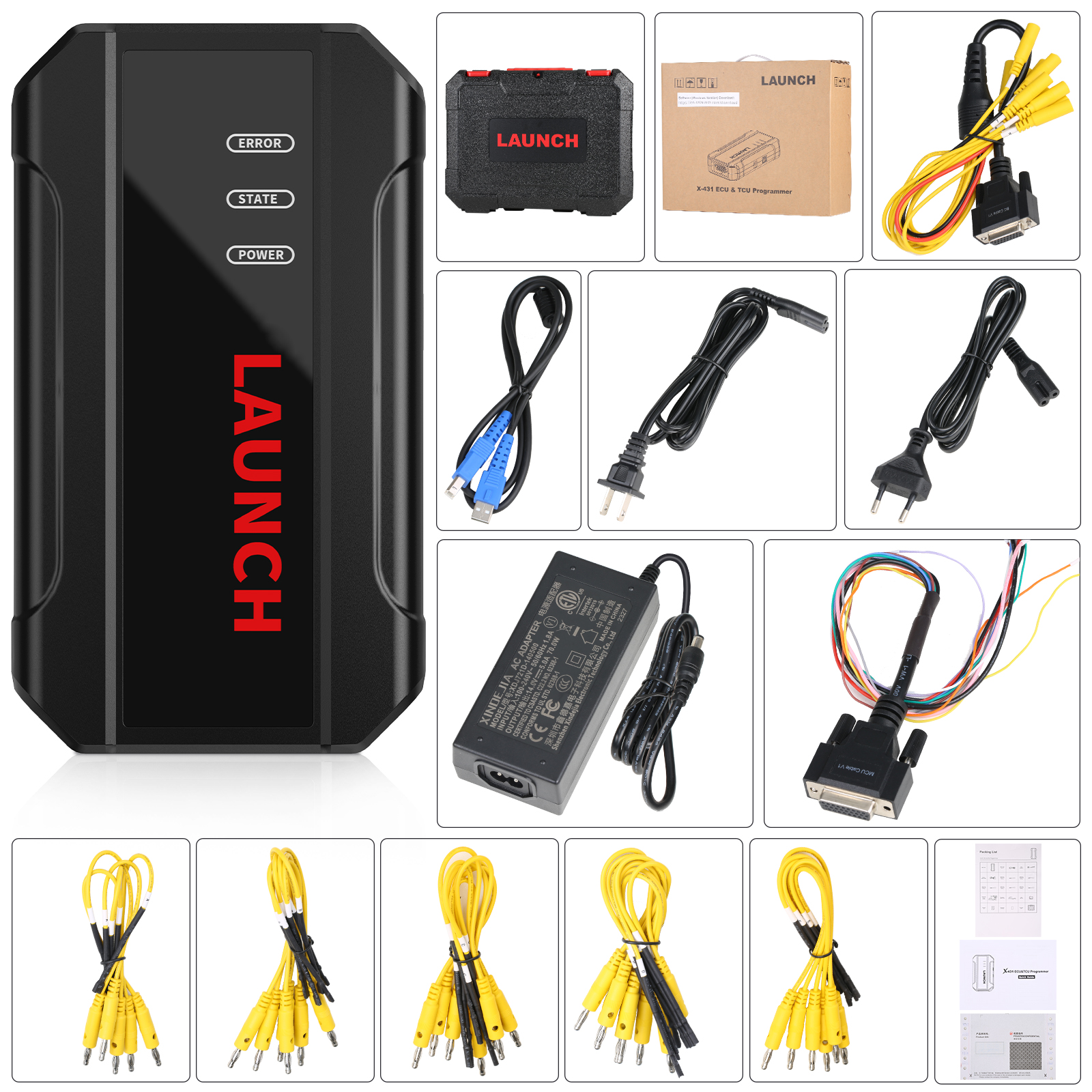

Package Includes:
1pc x the Host
1pc x Jumper
1pc x MCU Cable
1pc x EU Adapter
1pc x US Adapter
1pc x Power Supply Cable
1pc x USB Cable
