Software Version : V2024.03
ISTA - D: 4.46.14 with SDP Programming Database 4.46.11
ISTA - P: 3.71.0.200 with Engineer Programming，supports the programming of BMW motorcycles and electric vehicles can program F/G/I/K chassis for car (through the ICOM, not other cable )
Vin: V2024.02.13
BMW ETK: 2020.01
BMW KSD: 2019.12 Multilanguage
BMW FSC Navigation Code Generator
BMWAiCoder for BMW Coding
Win10 64 bit operating system
BMW ICOM V2024.03, With free Software:
1. Get engineer version, INPA 5.06,winkfp 5.3.1,NCS 3.5.1, E-sys PLUS 3.81,e-sys 3.35.3,data V71.0
2. Get Chinese software DR.GINI B022
3. Get count code navigation tool software FSC operator code
4. Get one-click hidden brush tool BMWAi V4.6
5. Add DIS Software for Old cars, DISV57 and DISV44,diagnosis and programming for BMW virtual machines
6. Support Vehicles: For BMW Cars,For BMW Motorcycle,For Rolls-Royce, For Mini Cooper
Notice : The software installed English language in default.
ISTA-D Support Multi-language: English German Spanish French Italian Polish Portuguese Turkish Czech Swedish Dutch Greek Russian Japaness Korean Thai
ISTA-P Support Multi-language: English, German, Spanish, French, Italian, Polish, Portuguese, Turkish, Czech, Swedish, Dutch, Indian,Greek, Russian,Chinese, Japanese, Korean and Thai.

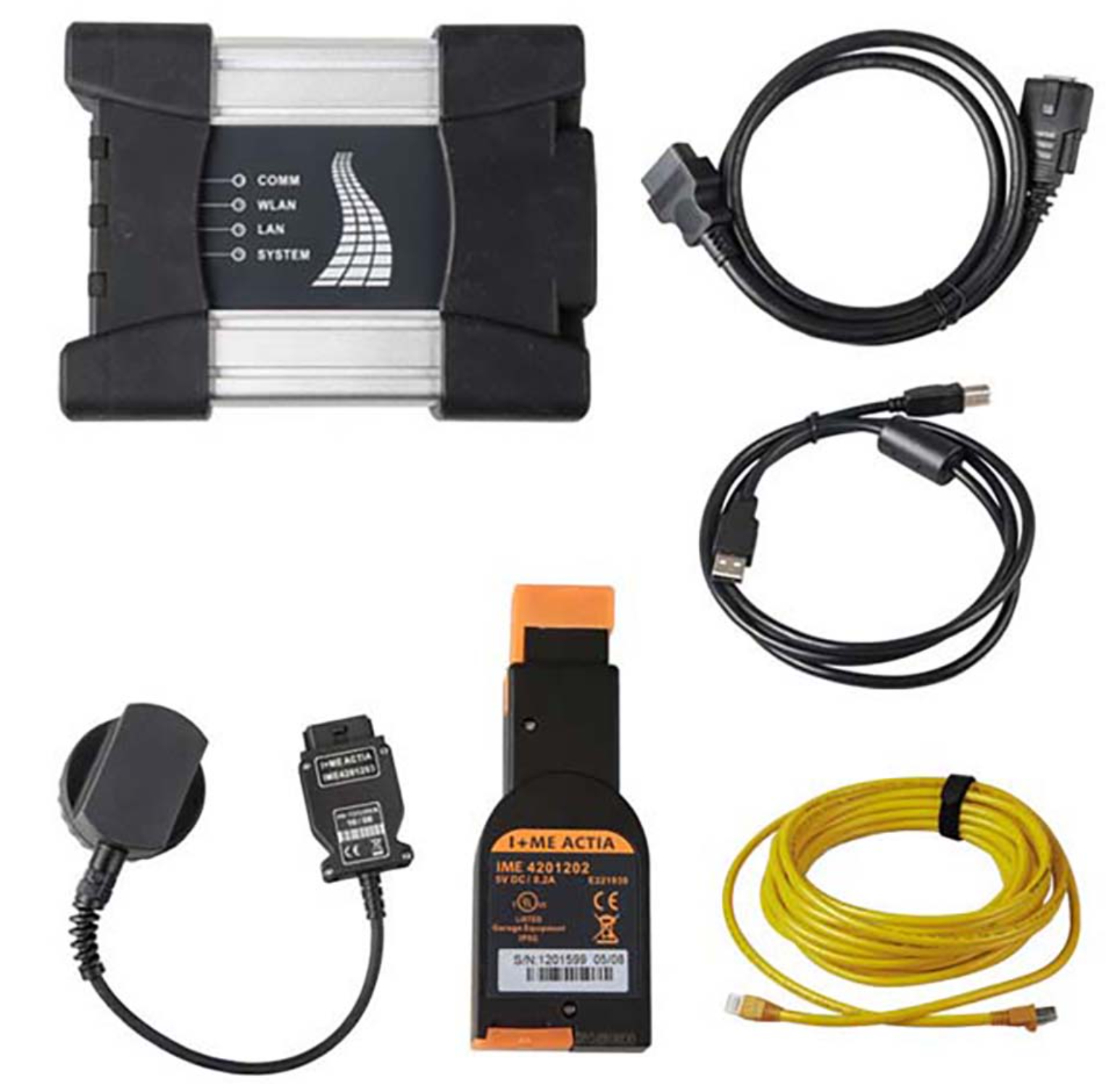

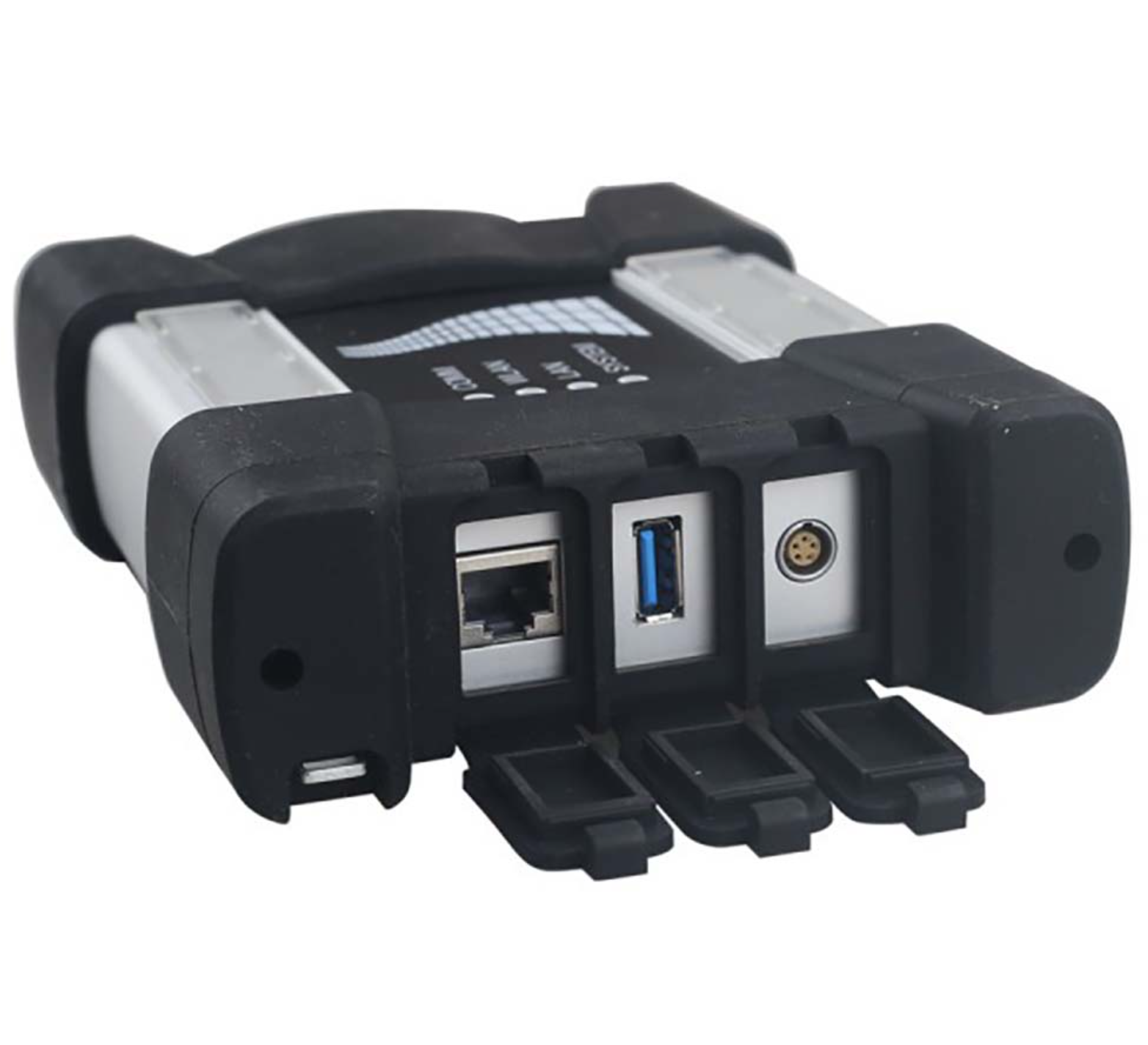

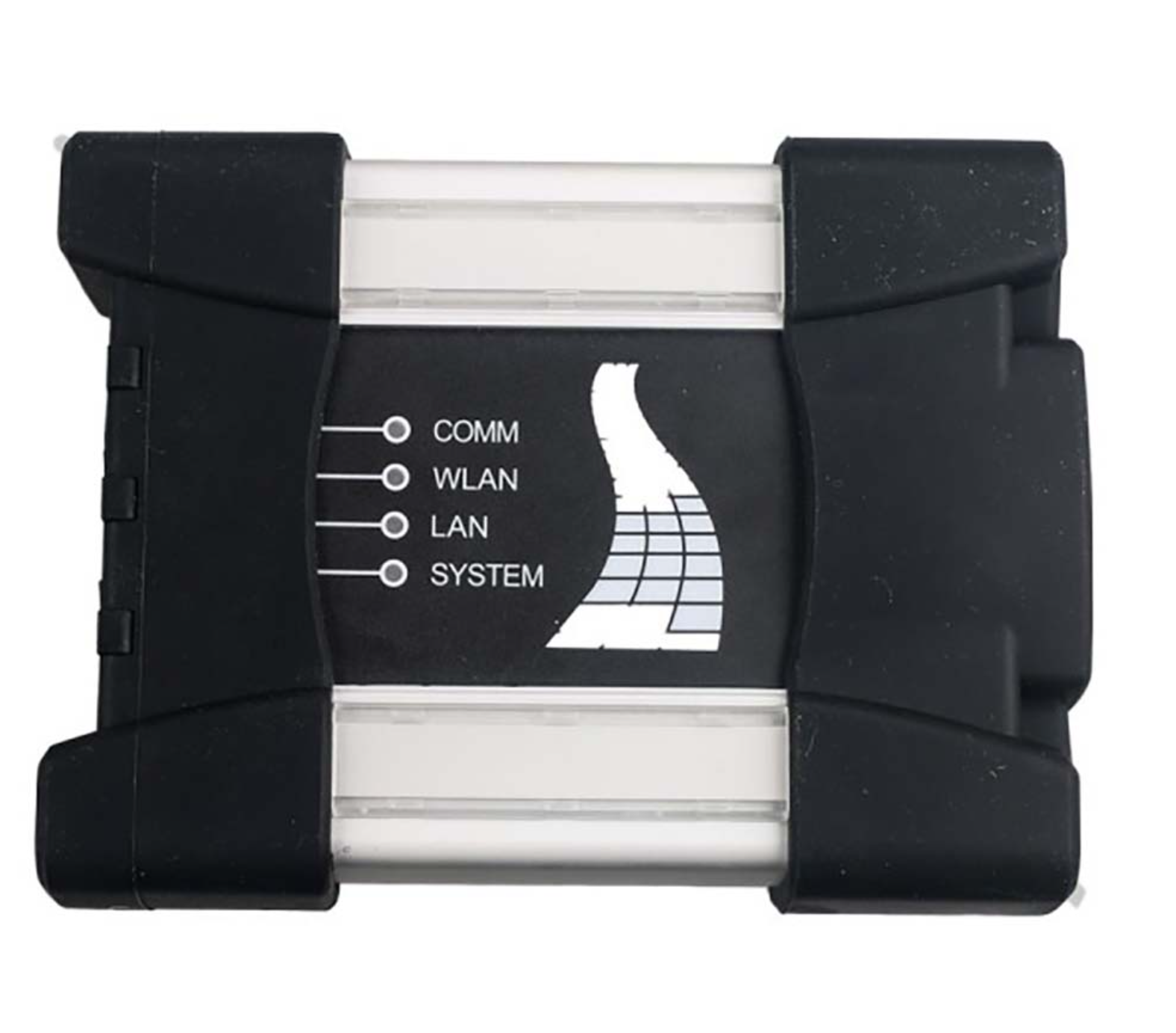

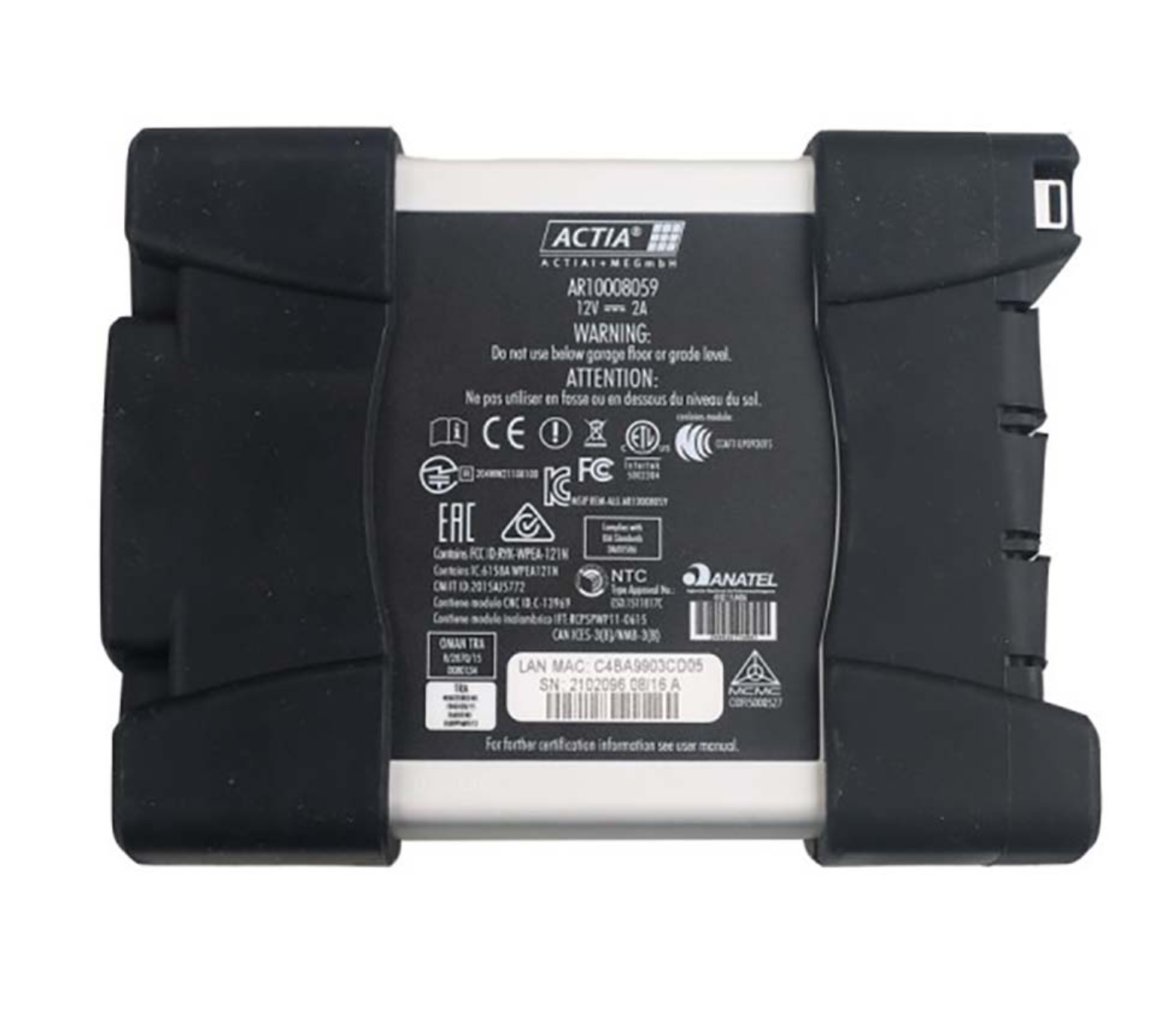

ICOM NEXT A+B+C Diadnostic Head Overview:
Share the same functionality as ICOM A2
ICOM NEXT A+B+C with is a redesign of ICOM A2+B+C
Backwards compatible to car adapters (ICOM B, C) and motorcycle adapters (ICOM D, E)
Firmware version: V1.40 (Share the same firmware upgrade method with ICOM A2)
ICOM NEXT ABC Specifications:
Zeroization of data on tamper detection
Secure supply chain assurance
Key storage using physically un-clonable function
CRI Pass-Through DPA Patent Portfolio
Advanced cryptographic Services
BMW Software works with ICOM Next A:
ISPI NEXT—BMW ISPI NEXT is latest generation after service tool for BMW, these brief instructions describe the basic functions of the AIR application (Aftersales Information Research) in Service. For the Diagnostic, it use IPSI (Rheingold) and ISPI Next for Coding Programming functions.
ISTA/D— Integrated Service Technical Application Diagnostic. ISTA/D is used to diagnose BMW all series and models from all systems.
ISTA/P— Integrated Service Technical Application/Programming. ISTA/P is used to process all coded, programmed and enable-dependent control modules in BMW Group vehicles.
Rheingold—Diagnostic and repair guide, including Diagrams and disassembly Figure
KSD—BMW KSD (Kaufmännische Service Daten, i.e. Commercial Service Data) is a collection of invaluable data for determining labor hours, inspection sheets and general service methods. There’s also information about wheels and rims for the various models.
EasyConnect— Used to Configure the Environment Parameter of Engineer Software for E series, can activate or release ICOM Port
IToolRadar— Used to recognize ICOM, activate or release ICOM Port
ETK— Accessories Catalog
EDIABAS Tool32— Engineer Software for E series, able to run directly
INPA— Engineer Software for E series, for diagnosis
NCS Expert Tool—- Engineer Software for E series, for coding
WinKFP—Engineer Software for E series, for programming
E-sys — Engineer Software for F series (available for programming and coding)
BMW Standard tool
Coding Database
Coding Tool
ICOM NEXT A+B+C Special Features Compared with ICOM:
1. The modified ICOM A2 for vehicles with OBD access receives a significantly more powerful processor and more storage capacity.
2. Robust aluminium case will help to avoid damage when using in harsh environments.
3. To protect the MOST connector, the ICOM B for vehicles with optical MOST access will be equipped with a soft cover made of rubber instead of the former plastic cap.
4. The ICOM C for old series with a diagnostics socket will be additionally equipped with an approx. 20 cm long cable, which facilitates the connection of the ICOM A2 and makes storage in the engine compartment easier.
5. BMW ICOM support BMW cars till 2023 year. Support BMW & MINI full system diagnose and offline programming.
ICOM NEXT A+B+C Functions:

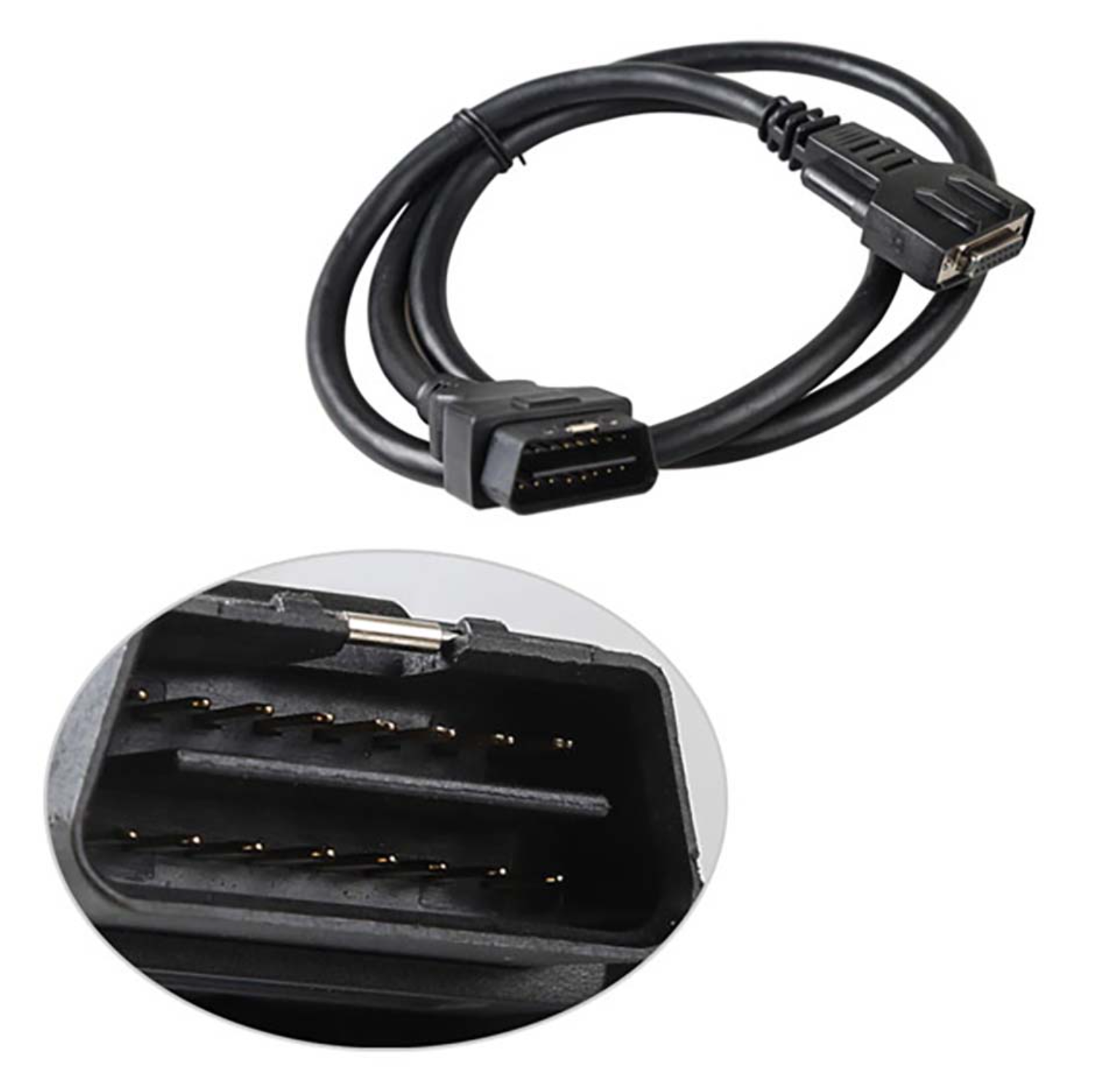

1. A - OBD diagnostic supporting MOST, D-CAN and K-CAN protocols

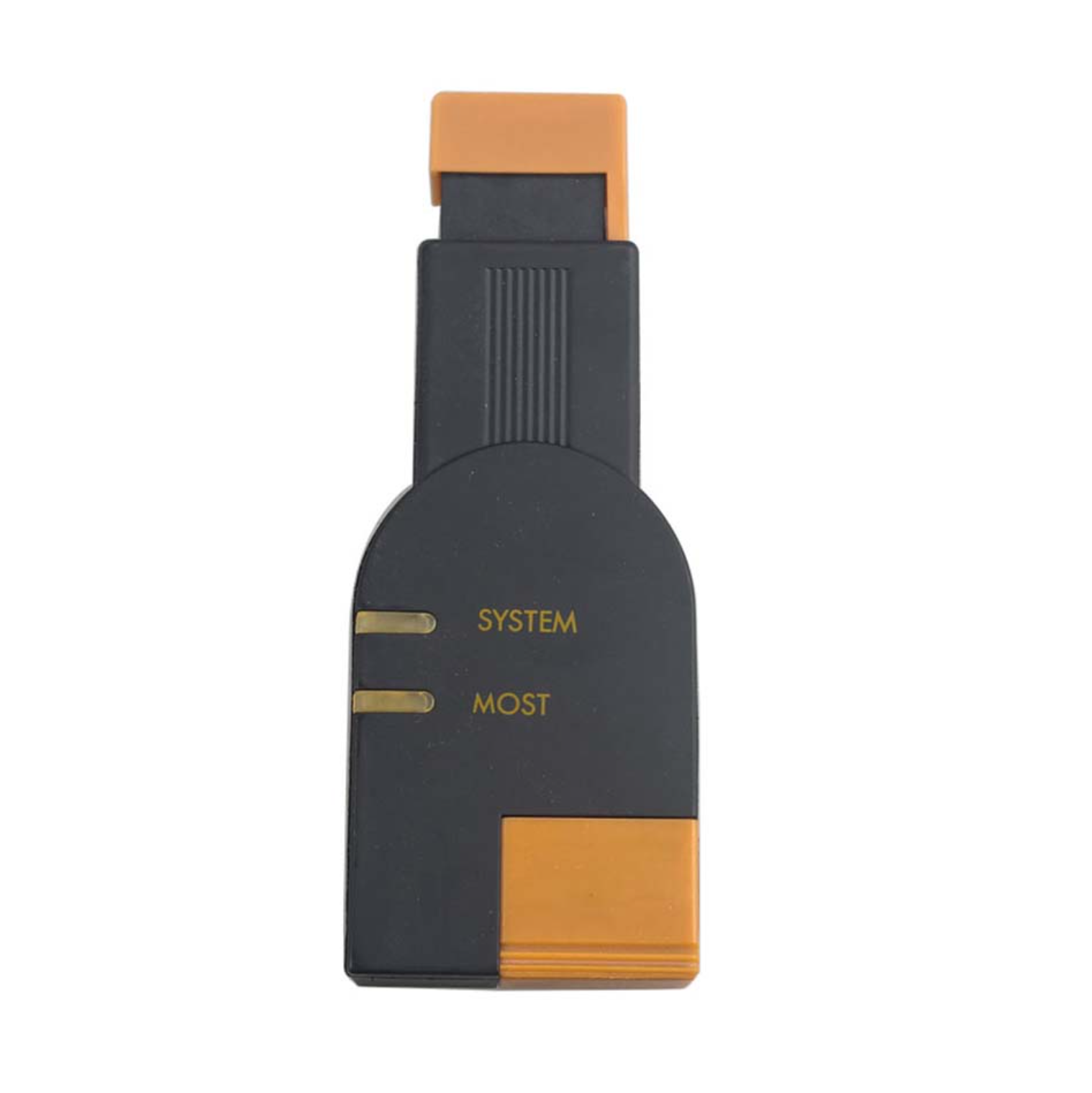

2. B - diagnostic via MOST bus, and have connection to A-interface via USB connection
3. C - 20-pin cable for old models.
Second Hand DELL E6420 Laptop：
Brand: DELL
Condition: Used
An item that has been used previously, but is fully operational and functions as intended
Type: Laptop/Notebook
Screen Size: 14.0
Memory (RAM): Intel (R) Core(TM) I5-2520M CPU
HDD：1TB
Primary Drive: DVD+/-RW Processor Speed: 2.50GHz
Processor Configuration: Dual Core
Memory: 8GB

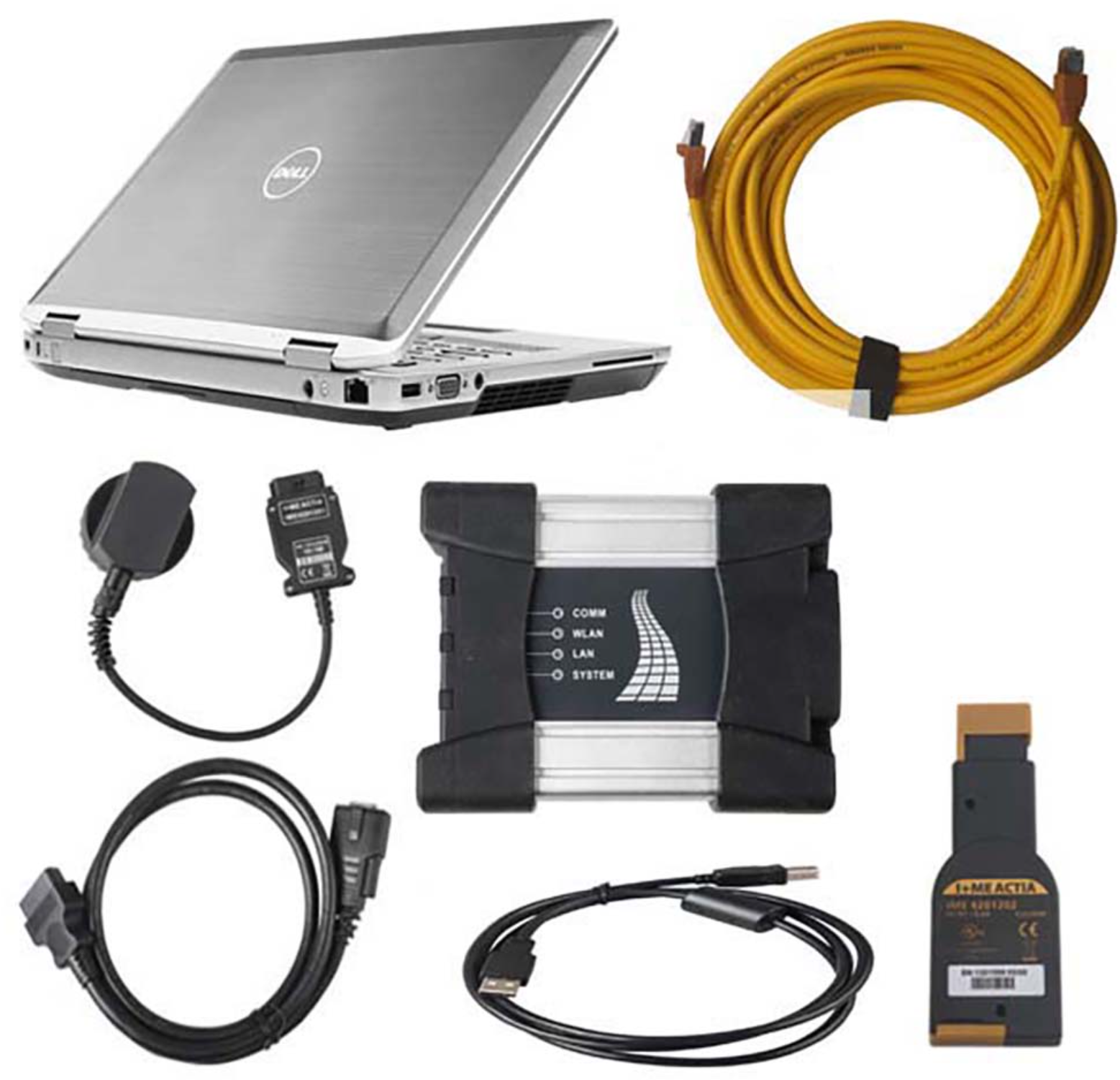

Packing List:
1 x BWM ICOM NEXT
1 x Second hand DELL E6420 Laptop
1 x Latest software HDD
